1 Coagulation: Review & Lab techniques
Renee Wilkins, Ph.D., MLS(ASCP)CM MLS 322 Clinical Hematology School of Health Related Professions University of Mississippi Medical Center

2 What is hemostasis? The process in circulation where the blood is maintained within the blood vessels Depends on the balance of Vascular Plasma coagulation factors Platelets Fibrinolytic system

3 Primary Hemostasis PLATELETS

4 Hemostasis Primary hemostasis
Blood vessel constricts (vasoconstriction) Platelets adhere and aggregate to damaged area of the vessel wall Results in the formation of the platelet plug Platelets must be adequate in number and must be functioning normally in order for the platelet plug to form Thrombocytopenia Aspirin therapy

5 Platelets (thrombocytes)
Cellular fragments of megakaryocytes that contain granules Circulate 9-12 days 2-4 μm Normal platelet count is ,000/μL 100,000 are needed to perform platelet function testing Thrombocytopenia is the most common cause of abnormal hemostasis

6 Platelet Alpha granules within the organelle contain platelet derived growth factor, platelet factor 4, FV, FXIII, fibrinogen, vWF

7 Formation of platelet plug
Adhesion (1-2 seconds) Platelets adhere to collagen fibers and vWF to form a bridge (glycoprotein Ib) Activation Morphological and functional changes Increases internal Ca++, swelling occurs Glycoprotein IIb/IIIa is activated Aggregation (10-20 seconds) Vasoactive substances like ADP and thrombozane A2 are released along with platelet procoagulants gp IIb/IIIa is exposed and binds to fibrinogen Other platelets are stimulated to adhere and aggregate When activation and primary adhesion have been achieved, platelets commence discharge of granule contents. Granule contents include ADP, adenosine triphosphate (ATP), serotonin, calcium, vWF, Factor V, and fibrinogen Once the plug is formed (1-3 minutes), the platelet mass consolidates to a dense thrombus (3-5 minutes), then retracts and stabilizes (5-10 min)

8 blood vessel wall/subendothelium
platelet gp IIb/IIIa fibrinogen gp IIb/IIIa glycoprotein Ib Platelet von Willebrand factor blood vessel wall/subendothelium collagen

9 Primary platelet plug platelets fibrinogen

10 Platelets in coagulation
Platelet factor 3 (PF3) is a phospholipid that resides on or within the platelet PF3 is required in the activation of certain coagulation factors (to help form thrombin)

11 Diseases of Primary Hemostasis
Bleeds from skin or mucous membranes Factor abnormalities are usually internal Disorders of the vascular system Abnormalities or damage of lining of blood vessels or subendothelial structures Superficial bleeding (bruises, petechiae) Platelet count and factors are normal Platelet disorders Thrombocytopenia (<50x109/L) Asymptomatic to severe Thrombocytosis (>450x109/L)

12 Diseases of Primary Hemostasis
Inherited (functional disorders) von Willebrand Disease (vWD) [adhesion] Bernard-Soulier syndrome (adhesion) Glanzmann Thrombasthenia (aggregation) May Hegglin anomaly (quantitative) Disorders of pregnancy (quantitative) Aquired Idiopathic thrombocytopenic purpura (ITP) Drug-induced platelet dysfunction Aspirin induced platelet dysfunction Aspirin resistance

13 von Willebrand Disease
Inherited, up to 3% of U.S. population Qualitative or quantitative abnormality of von Willebrand Factor (vWF) – fails to bridge gap (NOT a platelet disorder) vWF is a cofactor to Factor VIII (VIII:vWF complex) Excessively heavy or prolonged menstrual bleeding occurs in 20% of women vWD may be the cause of menorrhagia in as many as 20% of these women Other symptoms include easy bruising and gingival bleeding 3 types with Type 2 containing 4 subtypes

14 Nature of vWF The vWF molecule (protein) is a chain of identical subunits called multimers vWF is synthesized in alpha granules of megakaryocytes Primary hemostasis: vWF bridges GPIb/IX on platelets and collagen to form the plug Secondary hemostasis: vWF binds to FVIII which ultimately leads to fibrin formation vWF in plasma varies in size, but most binds with VIII in plasma (1:1) FVIII is formed in liver before release

15 vWD glycoprotein Ib Normal Platelet
No von Willebrand factor means no adhesion… von Willebrand disease blood vessel wall

16 On the flip side…. No glycoprotein Ib means no adhesion…. Bernard-Soulier Giant Platelet von Willebrand factor blood vessel wall

17 Bernard-Soulier syndrome
A.k.a. giant platelet syndrome Rare autosomal recessive disorder <1 in 1,000,000 Moderate to severe thrombocytopenia Abnormal platelet function due to lack of GPIb/IX complex on platelet Homozygous individuals have lifelong bleeding tendency; heterozygous have not significant bleeding

18 Glanzmann Thrombasthenia
Rare deficiency of glycoprotein IIb/IIIa on platelet gp IIb/IIIa binds fibrinogen and is essential to platelet aggregation Platelet count normal, but bleeding prolonged Fails to aggregate with agonists ADP Epinephrine Collagen

19 May-Hegglin anomaly Moderate macrothrombocytopenia (large platelets, low #) Dohle-like inclusions in WBCs Associated with abnormalities of MYH9 gene

20 Disorders of Pregnancy
Incidental thrombocytopenia of pregnancy Occurs in 5-7% of pregnancies Poses no risk for neonatal thrombocytopenia Thrombocytopenia from pre-eclampsia Pre-eclampsia is a hypertensive disorder of pregnancy (7-10%) 10-20% of pre-eclamptic women will develop thrombocytopenia Prolonged bleeding Pathogenesis unknown

21 Idiopathic Thrombocytopenic Purpura (ITP)--autoimmune
Children No gender preference Platelet count <20x109 Abrupt onset of bleeding Infection 1-3 wks prior Lasts 2-6 weeks Adults Females 3:1 Platelet count 30-80x109 Insidious onset of bleeding No history of infection Lasts months to years ACUTE CHRONIC

22 Drug induced platelet dysfunction
Aspirin inhibits prostaglandin production and Thromboxane A2 (TXA2) Aspirin irreversibly acetylates the cyclooxygenase enzymes which prevents formation and release of thromboxane A2 Platelets affected by aspirin continue to circulate but are no longer capable of functioning Thromboxane COX-1

23 Aspirin resistance Evidence suggests that significant insensitivity (5% - 60%) to aspirin occurs among patients with defined coronary disease and stroke Some individuals may have to take alternative drugs (i.e. Plavix®) Plavix (clopidigrel) affects the ADP receptor (P2Y12) which inhibits gp IIb/IIIa receptor that binds fibrinogen

24 Aspirin & Clopidogrel Effects

25 QUESTION Cells involved in hemostasis are: Erythrocytes Granulocytes
Lymphocytes Thrombocytes

26 QUESTION Normal platelets have a circulating life-span of approximately: 5 days 10 days 20 days 30 days

27 QUESTION Aspirin affects platelet function by interfering with platelets’ metabolism of: Prostaglandins Lipids Carbohydrates Nucleic acids

28 QUESTION Platelet activity is affected by: Calcium Aspirin
Hyperglycemia Hypoglycemia

29 QUESTION Thrombocytopenia is a characteristic of:
Classic von Willebrand disease Hemophilia A Glanzmann thrombasthenia May-Hegglin anomaly

30 QUESTION Which of the following is the most common cause of an abnormality in hemostasis? Decreased plasma fibrinogen level Decreased Factor VIII level Decreased Factor IX level Quantitative abnormality of platelets

31 QUESTION Which of the following is a true statement about acute idiopathic thrombocytopenic purpura (ITP)? It is found primarily in adults Spontaneous remission usually occurs within several weeks Women are more commonly affected Peripheral destruction of platelets is decreased

32 QUESTION Which of the following is characteristic of platelet disorders? Deep muscle hemorrhage Retroperitoneal hemorrhage Mucous membrane hemorrhage Severely prolonged clotting times

33 QUESTION Thrombocytosis would be indicated by a platelet count of:
100 x 103/μL (100 x 109/L) 200 x 103/μL (200 x 109/L) 300 x 103/μL (300 x 109/L) 600 x 103/μL (600 x 109/L)

34 QUESTION vWF antigen can be found in which of the following?
Myeloblast Monoblast Lymphoblast Megakaryoblast

35 QUESTION Alpha granules are found on the platelet in: Peripheral zone
Sol gel zone Organelle zone Membranes


37 Secondary Hemostasis Results in the formation of a blood clot because of coagulation factors Forms fibrin network and thrombus that stabilize the plug/clot Stops bleeding completely Lysis (fibrinolysis) of the clot begins and final repair of injury takes place

38 Thrombin acts on fibrinogen to form fibrin strands (clot)

39 Factors were named in the order of discovery, NOT in the order in which they occur

40 Secondary Hemostasis Coagulation factors are proteins (with exception to thromboplastin and calcium) All are involved in generating insoluble fibrin (cascade) They can be divided into 3 families based on properties: Fibrinogen group (thrombin sensitive) – fibrinogen, FV, FVIII, FXIII Prothrombin group (vitamin K dependent) – Factors II, VII, IX, X, Protein C and Protein S Contact family – Factor XII, Factor XI, prekallikrein and HMWK Fibrinogen group is thrombin sensitive. Thrombin enhances V and VIII and converts them to cofactors. All of the factors are consumed during coagulation. V and VIII are heat labile. Prothrombin group – dependent upon Vitamin K for synthesis. Coumadin inhibits vitamin K and also decreases these factors. They are stable in stored blood.

41 Factors in RED are affected by vitamin K
Vitamin K is inhibited by warfarin (Coumadin®) All factors in the prothrombin group are affected Individuals on warfarin need to monitor vitamin K intake (hypercoag) Factors in RED are affected by vitamin K

42 QUESTION Coagulation factors affected by coumarin (warfarin) drugs are: VIII, IX and X I, II, V and VII II, VII, IX and X II, V and VII

43 ANSWER Coagulation factors affected by coumarin drugs are:
VIII, IX and X I, II, V and VII II, VII, IX and X (vitamin K dependent) II, V and VII

44 Mechanism of Coagulation
Generation of Thromboplastic activity Generation of thrombin Conversion of fibrinogen to fibrin

45 Pathways for the Coagulation Cascade
Intrinsic pathway Extrinsic pathway Common pathway

46 Intrinsic vs. Extrinsic
All factors are contained in the blood Extrinsic Activated by tissue thromboplastin (FIII) Thromboplastin is released from damaged cells and tissues outside the circulating blood


48 Intrinsic Pathway Circulating blood contains all components that lead to activation of Factor X HMWK (Fitzgerald) and prekallekrein (Fletcher) activate FXII to FXIIa Factor XII activates FXI, which in turn, activates FXI (now FXIa) in the presence of Ca++ ions Factor IX forms a complex with FVIII (with Ca and phospholipid on platelets) which activates FX Factor XI and XII are “contact factors” b/c their activation is initiated by contact with subendothelial basement membrane that is exposed at the time of a tissue or blood vessel injury

49 Intrinsic Pathway Also these complex reactions take place slowly, they account for the most coag activities in the body The APTT test can monitor the intrinsic pathway The APTT measures: Factors XII, XI, X, IX, VIII, V, II, and fibrinogen Common Pathway Factors

50 Extrinsic Pathway Occurs when tissue thromboplastin (not in blood) enters vasculature Factor VII is activated to VIIa by Ca++ and tissue thromboplastin (FIII) Factor VIIa can now activate FX (common)

51 Extrinsic pathway vascular injury X tissue thromboplastin + VIIa Ca++
(VVa) X Xa V II (prothrombin) IIa (thrombin) I (fibrinogen) fibrin

52 Extrinsic Pathway The extrinsic pathway can also quickly provide small amounts of thrombin (leads to fibrin formation) Thrombin can also enhance the activity of Factor V and VIII (intrinsic pathway) The PT test (prothrombin time) monitors the extrinsic pathway The PT measures Factors VII, X, V, II, and I Common

53 QUESTION Which of the following factors is used only in the extrinsic coagulation pathway? II V VII VIII

54 ANSWER Which of the following factors is used only in the extrinsic coagulation pathway? II V VII VIII

55 Common Pathway Begins with FX
Activation of FX is the point where both the intrinsic and extrinsic pathway converge Once Xa is formed, it’s cofactor (FV), in the presence of Ca++ and PF3 convert prothrombin to thrombin Thrombin acts to convert fibrinogen to fibrin Factor XII stabilizes the clot

56 Interpreting abnormal tests

57 Disorders of the coag cascade
Hemophilia A Factor VIII deficiency (VIII:C subunit) Have normal VIII:vWF molecule vWD is deficient of VIII:vWF Hemophilia B factor IX deficiency Mild, moderate, or severe (need to test) Hemophilia C Factor XI deficiency 4th most common inherited bleeding disorder

58 Factor XII deficiency Causes prolonged APTT Normal PT, PFA 100 and TT
No signs of a bleeding disorder FXII may be more involved with inflammation since FXII deficient individuals have higher rates of infection.

59 Disorders of the coag cascade
Vitamin K deficiency diet, malabsorption disorders, liver disease pregnancy Can prolong factor assays that include II, VII, IX, and X…as well as the PT and APTT Found in leafy green vegetables Green tea (712 μg) Avocado (634) Turnip greens (408) Brussels sprouts (317) Broccoli (200)

60 Anti-coags that can affect the cascade
PT aPPT Direct thrombin inhibitors: Hirudin (leaches) Argatroban Vitamin K antagonists: -Coumadin® (warfarin) Heparins: -Heparin -Lovenox® (enoxaparin), LMWH Factor Xa inhibitors: -Arixtra®

61 Heparin Heparin and its low molecular weight derivatives are effective at preventing deep vein thromboses and pulmonary emboli in patients at risk Heparin binds to the enzyme inhibitor ATIII causing a conformational change that results in its activation through an increase in the flexibility of its reactive site loop The activated ATIII then inactivates thrombin and other proteases involved in blood clotting, most notably FXa

62 Fibrinolysis….almost done
Fibrinolysis is the last stage of coagulation that causes the dissolution of the fibrin clot Fibrinolysis is mediated by the conversion of plasminogen to plasmin Activation of plasminogen can be due to: Intrinsic activation- initiated by FXIIa & kallikrien Extrinsic activation- stimuli like vascular injury, ischemia, exercise and stress Exogenous (therapeutic) activation- drugs like streptokinase, urokinase, tissue plasminogen activator (tPA)…for strokes

63 Crosslinked fibrin polymer
FIBRINOGEN FIBRIN Fibrin monomer thrombin Fibrin polymer D E D Factor XIII plasminogen  plasmin Crosslinked fibrin polymer “Stabilized Clot” plasmin X fraction: Degradation products Y fraction D fragments D-dimer (cross-linked D-domains) E fragments D fragments

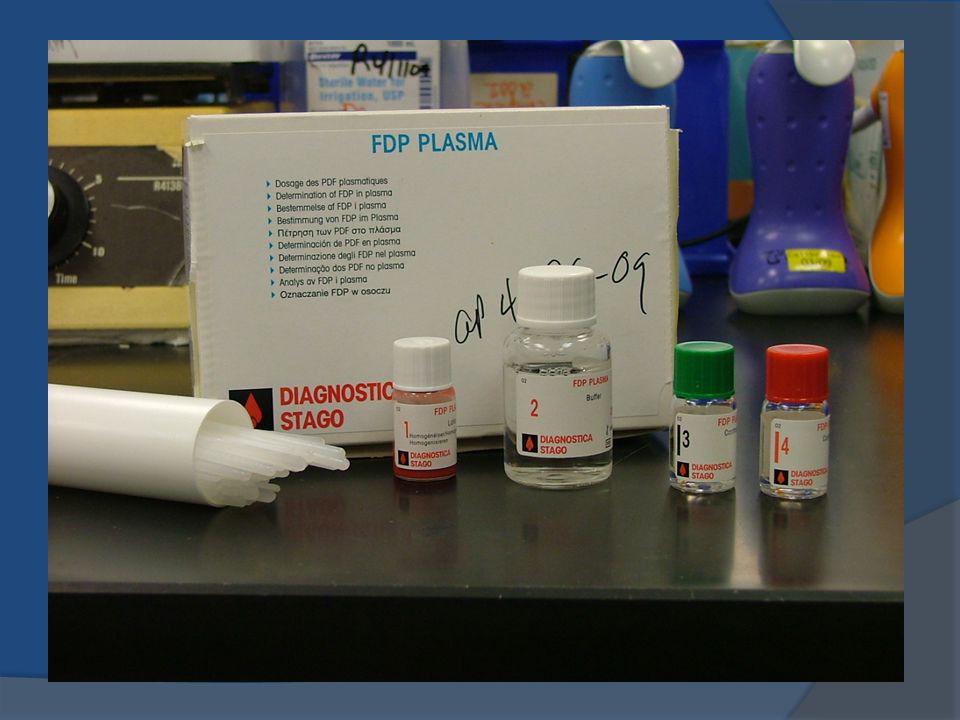

64 Fibrinolysis testing Most commercial FDP kits detect D & E fragments which are both products of fibrin and fibrinogen degradation (latex kits) The D-Dimer test is a specific marker for plasmin degradation of fibrin (latex kit or ELFA)


66 Latex particles are coated with anti-human fibrinogen


68 SPR – Solid Phase Reaction
Sample goes here

69 Fibrinolysis Disease states can either increase or decrease fibrinolytic activity Disseminated Intravascular Coagulation Trauma from surgical procedures or accidents Deficiencies in or consumption of the various inhibitors and activators of the fibrinolytic system

70 DIC Uncontrolled formation of thrombi/fibrin
Fibrinolysis is activated but rapidly consumed thus leading to depletion of coag factors and platelets Bleeding, shock, microscopic thrombi Petechiae, hematomas, deep tissue bleeding Associated with obstetric emergencies, septicemia, burns, crush injuries, cardiac and vascular disorders

71 DIC lab findings PT and PTT usually prolonged, not always
Fibrinogen – 2-3X normal ( ) Platelets – thrombocytopenia (<50,000) FDPs – usually elevated D-Dimer – elevated


73 DVT Occurs when a blood clot forms in one of the large veins, usually in the lower limbs The blood clot can break loose and move into the: Lungs (Pulmonary Embolism) Brain (Stroke)

74 DVT facts DVT occurs in about 2 million Americans every year.
Up to 600,000 people are hospitalized in the U.S. each year for DVT. Fatal PE may be the most common preventable cause of hospital death in the United States. In the elderly, DVT is associated with a 21% mortality rate, and PE is associated with a 39% mortality rate. PE is the leading cause of maternal death associated with childbirth. A woman's risk of developing emboli is six times greater when she is pregnant

75 Lab tests D-Dimer is most useful b/c it tests for the breakdown of the fibrin mesh >10,000 critical (>500 pos) FDPs are sometimes useful in post-op deep vein thrombosis


77 Natural anticoagulants
In vivo anticoagulants help to prevent thrombosis Antithrombin III (ATIII) Inhibits thrombin and factor Xa, but can also affect Factors IXa, XIa, and XIIa Deficiencies can be inherited or acquired ATIII can be given as treatment for thrombotic disorders Heparin Cofactor ATIII heparin cofactor and HC-II are thrombin inhibitors that are present in human plasma They are produced by mast cells Unfractioned heparin binds to ATIII to target factors IX, X, V, and II (prothrombin)..detected by APTT or both (if dose is high

78 Natural Anticoagulants (cont’d)
Protein C and Protein S Protein C is made in the liver and circulates as zymogen It is converted to activated protein C (APC) by thrombin and thrombomodulin APC with its cofactor, protein S, can inactivate FV and VIII

79 Protein C/S Disorders APC Resistance Also factor V Leiden
Factor V Leiden is a genetic mutation that alters Factor V so that APC cannot bind and inactivate it This can lead to thrombophilia (hypercoagulability…..thrombosis) 20-50% of inherited thrombophilias Discovered at the Univ. of Leiden (Netherlands)

80 QUESTION A deficiency of protein C is associated with which of the following? Prolonged APTT Decreased fibrinogen (<100) Increased risk of thrombosis Spontaneous hemorrhage

81 ANSWER A deficiency of protein C is associated with which of the following? Prolonged APTT Decreased fibrinogen (<100) Increased risk of thrombosis Spontaneous hemorrhage

82 QUESTION Which of the following is a characteristic of Factor XII deficiency? Negative bleeding history Normal clotting times Decreased risk of thrombosis Epistaxis

83 The Coagulation Lab

84 A coagulation lab performs:
Routine Testing PT(INR) aPTT Fibrinogen D-Dimer FDP Thrombin Time PFA-100 Bleeding Time Special Coag Factor Assays Lupus Panels Mixing Studies ATIII Plasminogen von Willebrand LMWH Euglobulin clot lysis Factor XIII Factor Inhibitor Fletcher Factor APC Resistance Antiphospholipid testing (ELISA) HIT (ELISA) PAI-1 (ELISA)

85 Coagulation Basics 3.2% sodium citrate tubes
Anticoag to blood ratio is crucial a short draw could prolong results Ratio is 9 parts whole blood to 1 part anticoagulant (sodium citrate) Discard first tube b/c it may be contaminated with tissue fluid (tissue thromboplastin may activate extrinsic system..prolonged PT)

86 Anticoagulants to remember
Anticoagulants (EDTA, citrate) remove calcium to prevent clotting (in vitro) Heparin (FIX, X, V, II) and warfarin (vitamin K dependent factors II, VII, IX, X) prevent the conversion of prothrombin (factor II) to thrombin (in vivo)

87 Centrifugation Samples are spun in a refrigerated centrifuge fro minutes at 3500 rpms to obtain platelet poor plasma Refrigeration maintains labile factors VIII and V Samples for assays that are performed at a later date are: Immediately separated Checked for platelet count (<10x109) Phospholipids from lysed platelets can falsely effect phospholipid based tests (Lupus testing) frozen rapidly at -72°C Thawed rapidly to avoid cryoprecipitation (VIII)

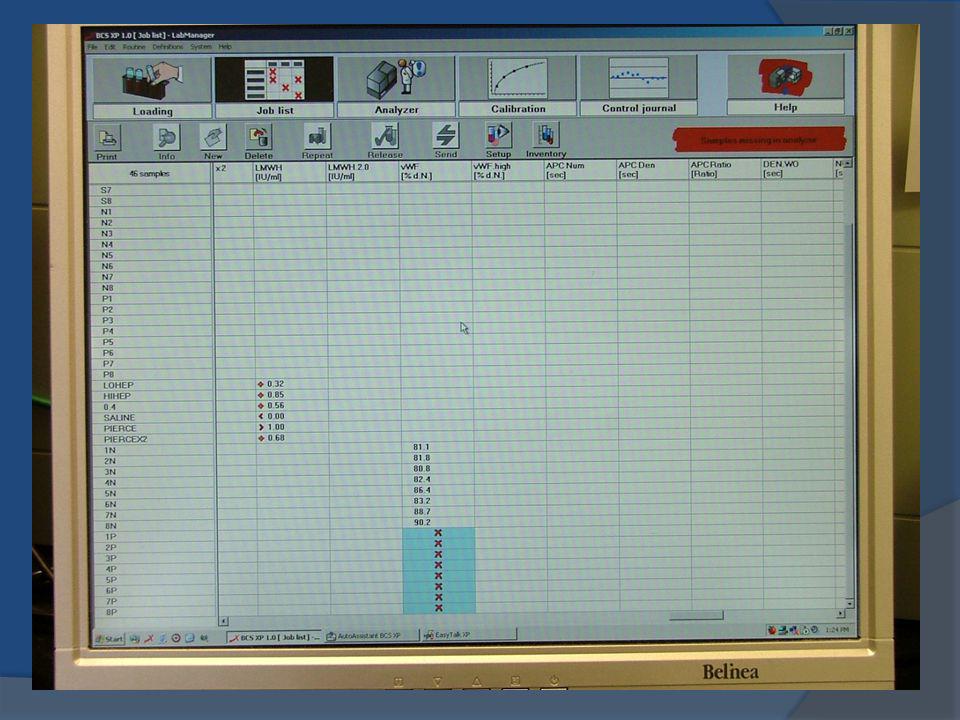

91 Automated Testing Automated (photooptical) or semi-automated
End point of reaction is a clot (measured in seconds) Clot formation is timed automatically and is detected by a photocell that reads the optical density change when the clot is formed Contains a heat block to bring reagents and plasma to 37°C Reagents not in use are kept at 4-6°C to maintain integrity (on instrument, in fridge, or cooling block) Analyzers automatically pipette (or require manual pipetting) PT, APTT, factor assays, fibrinogen, etc







98 STart 4 Analyzer Electromechanical method

99 Contained together in a single vial
PT testing Prothrombin time (extrinsic & common pathways) Method of choice for monitoring Coumadin (Vit K antagonist) Reagents include Calcium Chloride Thromboplastin Both of these are needed to initiate the extrinsic pathway and test for any deficiencies Contained together in a single vial

100 PT Testing Normal PT = 10-14 seconds
In the past, many labs performed a PT test with (thromboplastin) and a separate PT(INR) test for those on oral anticoagulant therapy to determine an INR Now, some labs run the PT(INR) on all patients and have discontinued the routine PT

101 PT INR INR – International PT standardization for oral anticoagulant therapy monitoring The WHO and the International Committee on Thrombosis and Hemostasis recommend that PT tests run on patients on oral therapy use an INR value INR values are independent of the reagents and methods used, and are specifically intended for assessing patients stabilized on long term oral anticoagulant therapy

102 Mean PT (of normal population)
PT(INR) To standardize the PT, a calculation is used to obtain the International Normalized Ratio (INR) for people on warfarin (normal INR = up to about 4) Patient PT Mean PT (of normal population) INR = X ISI International Sensitivity Index Current normal PT in lab =

103 PT INR Note: When coumadin is initiated, with a loading dose, there is a rapid depletion of Factor VII during the first 48 hrs, with other factors not being fully affected until about 5 days after Prolonged PT times before 5 days have no correlation with any therapeutic benefits Measurements are not suggested until the 5th day of therapy

104 QUESTION The prothrombin time (PT) test requires that the patient’s citrated plasma be combined with: Platelet lipids Thromboplastin Ca++ and platelet lipids Ca++ and thromboplastin

105 ANSWER The prothrombin time (PT) test requires that the patient’s citrated plasma be combined with: Platelet lipids Thromboplastin Ca++ and platelet lipids Ca++ and thromboplastin

106 APTT Testing Activated Partial Thromboplastin Time
Screens for deficiencies involving factors of the intrinsic pathway Most sensitive to Factors VIII, IX, X, XI & XII Can be prolonged in severe Factor V deficiency Fresh citrated plasma provides all factors necessary for the intrinsic clotting mechanism except ionic Ca (removed by citrate) platelet factor (removed by centrifugation

107 APTT testing An activator and phospholipid is incubated with patient plasma to activate contact factors (creates negatively charged surface) Activators: kaolin, celite, ellagic acid, silica Phospholipids: rabbit brain, cephalin, soy bean Calcium is added after incubation and the time it takes for a clot to form observed Normal aPTT = varies from about seconds Actin® is a reagent that contains ellagic acid and rabbit brain

108 APTT Note: Heparin can be given continuously (IV) or in subcutaneous mini-doses Care should be taken not to obtain samples above heparin line Patients should be monitored prior to next dose if APTT is to be meaningful Heparin contamination can sometimes severely prolong APTT (>60 seconds)

109 Another APTT reagent: PSL
Panthromtin SL is more sensitive than the routine APTT reagent It is used in some labs to detect inhibitors affecting the APTT The “SL” refers to Lupus and is used to detect risk of disease If prolonged and heparin is ruled out, further Lupus testing is performed

110 Fibrinogen Testing Thrombin converts fibrinogen to fibrin
Thrombin is added to plasma and the time it takes to clot (determined in seconds) is proportional to the fibrinogen concentration in plasma Calibration curves are needed for each new lot of thrombin Normal range = 150 – 400 mg/dL Anything >500 is run manually on a semi-automated instrument (i.e. Start 4)

111 Special Coag Testing

112 Factor Assays Allows testing for specific factors by making a series of dilutions on a control, reference (deficient) plasma, and patient 3 (automated) dilutions made: 1:10, 1:20, 1:40 Run a PT or APTT, depending on what factor is being tested The factor deficient plasma has every factor except the desired factor

113 Factor assays PT: 2, 7, 5, 10 PTT: 9, 8, 11, 12 The 3 points of the reference (calibration curve) is plotted and a best fit line is drawn (automated) The 3 points of the patient or control are plotted and compared to reference If patient is below reference, then the factor activity is low (normal %) If patient is above, then factor is high (no worry) If patient crosses the reference line (not parallel), then an inhibitor is suspected

114 Factor graph (basic example)
1:40 Inhibitor present, possibly FVIII inhibitor or Lupus anticoagulant Low factor 1:20 1:10 reference Curvilinear paper is used to obtain straight line

115 Factor XIII Stabilizes clot
Uses 2 tubes containing plasma are clotted with Calcium chloride 5M urea added to one tube Acetic acid added to the other Checked (in water bath) at 30 min intervals to monitor clot If clot dissolves in min, FXIII deficiency Normal clots remain over an hour Umbilical stump hemorrhage is the hallmark of FXIII deficiency

116 Lupus Anticoagulant Panel
LA (or inhibitor) is thought to be a nonspecific phospholipid antibody Prolonged PTT is a routine screening test If after testing, a lupus inhibitor is detected, mixing studies are performed to rule out factor deficiency

117 LA testing Lupus panel consists of: APTT: Actin FSL and Pathromtin SL
Dilute Russell’s Viper Venom Test (DRVVT) – modified APTT that uses viper venom as an activator. Very sens. DRVV Confirm – higher concentrations of phospholipids. This higher concentration of phospholipids allows the reagent to “correct” the prolonged DRVVT. Anti-cardiolipin, anti-phosphatidylserine, anti-prothrombin and beta-2-glycoprotein Sta-Clot kit detects lupus inhibitor Tube A is an APTT Tube B is an APTT with phospholipid If clotting changes more than 8 seconds, it is positive

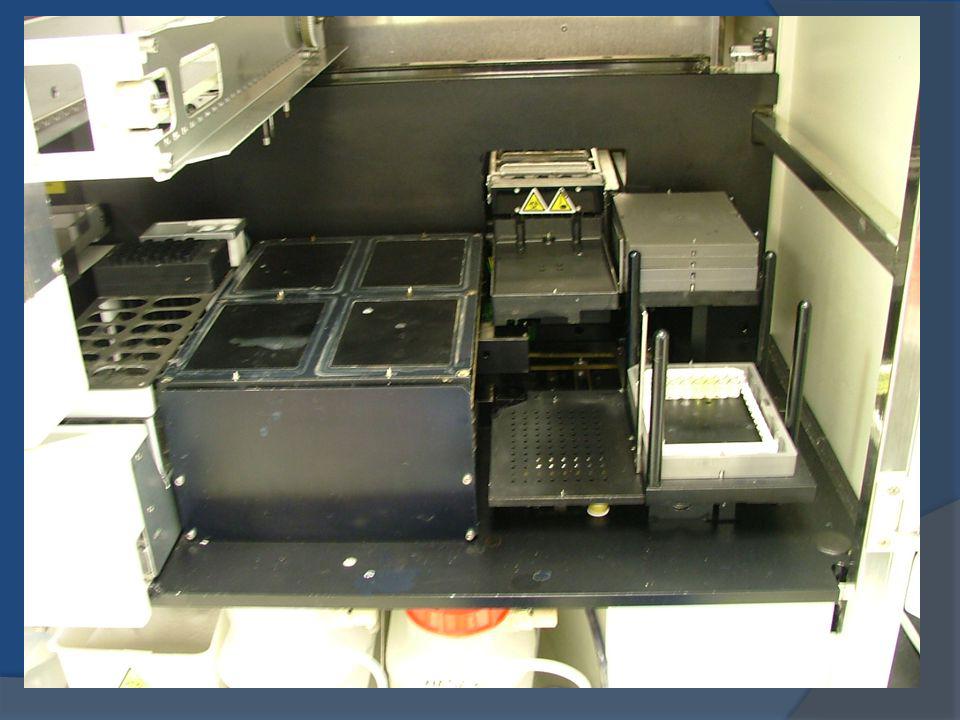

121 Triturus tests (ELISA)
Antiphospholipid tests (for APS syndrome, SLE, etc) HIT Testing PAI-1 Inhibitor

122 HIT Heparin Induced Thrombocytopenia
Tests for anti-platelet antibodies to the PF4 receptor on platelets In patients on heparin or who have had previous exposure to heparin Platelet count dramatically drops by 50% after second exposure Must be removed from heparin and given alternative treatment (i.e. argatroban, LMWH)

123 Euglobulin Lysis Overall screen of the fibrinolytic system
Fibrinogen, plasmin and fibrinolytic agents are precipitated (left in tube) Inhibitors of fibrinolysis are discarded The precipitate is re-dissolved in buffer and thrombin is added to form a clot It is put in a water bath and monitored every 10 min for 1 hour then at 2 and 24 hours Normal patient >2 <24 hours Abnormal <2 hrs increased fibrinolytic activity >24 hours decreased fibrinolytic activity

124 ATIII testing Naturally occurring inhibitor that neutralizes the serine protease thrombin, FIXa, Xa, Xia and XIIa The inhibition of thrombin by antithrombin is greatly accelerated by heparin Chromogenic assays that inhibit thrombin or Fxa, microlatex assays, nephalometry are frequent assays.

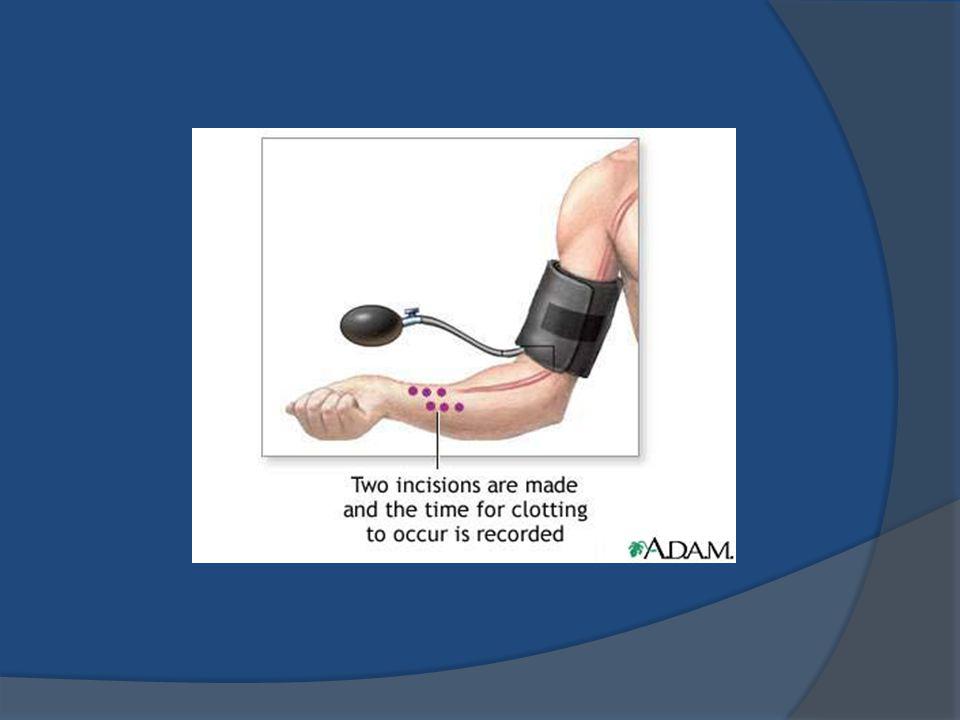

125 Bleeding Time Tests for platelet function Normal 3-9 minutes
Patient MUST have a Plt count >50,000 Blood pressure cuff is applied (40) Small incision made with lancet and the bleeding is “wicked” with paper disc every 30 seconds until plug forms Test is terminated if bleeding does not stop after 15 minutes Abnormal bleeding disorders include: Thrombasthenia vonWillebrand disease Bernard Soulier Aspirin sensitivity


127 PFA 100® Platelet Function Analyzer Simulates in vivo conditions
Uses 2 cartridges: Col/EPI Col/ADP Could replace the bleeding time Francis J., Francis, D., Larson, L., Helms, E. & Garcia, M. (1999). Can the Platelet Function Analyzer (PFA)-100 test substitute for the template bleeding time in routine clinical practice? Platlets, 10(2-3), Assesses platelet dysfunction due to: ASA-like platelet defects congenital platelet defects (vWD)

128 PFA 100

129 Platelet aggregation/plug
800 µL blood Filter with Epinephrine or ADP Once started, a timer begins. When platelets have plugged aperature, the final time is reported as “closure time”

130 Interpretation Col/EPI Col/ADP True platelet defect (vWD, etc) +++
(ex. >300) Aspirin-like defect (ASA) normal

131 Platelet Aggregation A photo optical instrument or instruments using electrical currents are used to detect aggregation of platelets in platelet rich plasma or whole blood, respectively PRP or whole blood is mixed with an aggregating agent and results are transmitted to a chart recorder Collagen, ADP, epinephrine, thrombin, serotonin, ristocetin

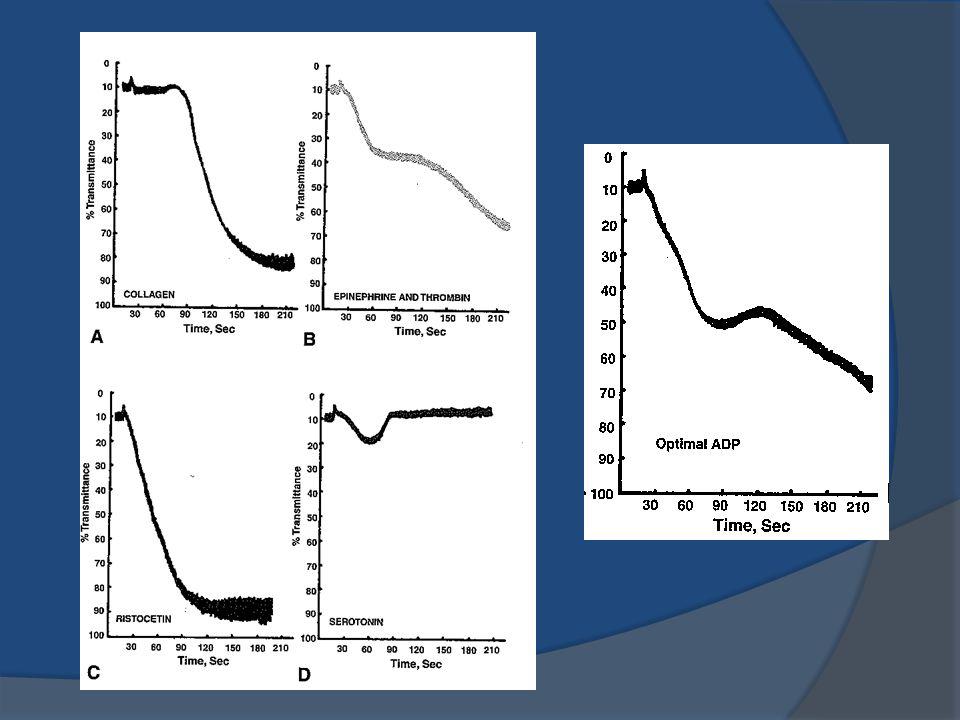

132 Platelet aggregation curves
click here for practice cases


134 Aggregation Disorders
Lab Findings Glanzmann’s Thrombasthenia Bernard-Soulier Syndrome Platelet Aggregation ADP Abnormal Normal Thrombin Collagen Epinephrine Ristocetin vWF

135 QUESTION Heparin Induced Thrombocytopenia (HIT) is an immune mediated complication associated with heparin therapy. Antibodies are produced against: ACLA PF4 AT B2GP1

136 QUESTION A bleeding time is used to evaluate the activity of:
Platelets Prothrombin Labile factor Factor XIII

137 QUESTION A patient has been taking aspirin regularly for arthritic pain. Which one of the following tests is most likely to be abnormal in this patient? Platelet count Template bleeding time Prothrombin time Activated partial thromboplastin time

138 QUESTION Biological assays for antithrombin III (ATIII) are based on the inhibition of: Factor VIII Heparin Serine proteases Anti-ATIII globulin
