CEHv10 Module 01 Introduction to Ethical Hacking

CEHv10 Module 01 Introduction to Ethical Hacking

We will start defining ● Program bugs ● Buffer overflows ● Viruses
● Worms ● Trojan Horses ● Denial of Service ● Social Engineering

Different methods used to Attack:
● Footprinting ● Scanning ● Enumeration ● Penetration – (Individuals that are unsuccessful at this step may opt for a Denial of Service attack) ● Escalation of Privilege ● Cover Tracks ● Backdoors

●Confidentiality ●Integrity ●Availability
The Security Functionality Triangle The CIA triangle or triad comprises the three fundamental pillars of security. These include: ●Confidentiality ●Integrity ●Availability

Different Types of Attacks
● LAN Attack ● WAN Attack ● Physical Entry ● Stolen Equipment ● Unsecured Wireless Access ● DialUp Attack

Security evaluation plan
It is a very important part at the time of making an audit, it requires a document in which is the client's authorization, the rules of the game and scope. it consists of the following: 1. Authorized signature of the client to perform the auditing. 2. How and when is the audit carried out? 3. What would be the scope of the audit that can be accessed and that can not be accessed?

Type of tests ● Internal Evaluations ● External Evaluations
● Stolen Equipment Evaluations

Ethical Hacking Report
● Preparation ● Result ● Conclusion

Penetration test methodologies
1. AsseE among other assessment 2. Policy 3. Implementation 4. Training 5. Audit

CEHv10 Module 02 Footprinting and Reconnaissance

Most important phase of testing – very time consuming
Footprinting Most important phase of testing – very time consuming

Footprinting tools Steps for gathering information Some of the most well-known tools used for information gathering include: ● WHOIS ● Nslookup ● Web-Based Tools

WHOIS WHOIS allows you to query the information an organization entered when they registered their domain.

Nslookup Nslookup is employed to query domain name servers. A nslookup query can be used to resolve IP addresses to hostnames.

Web-based Tools Many web-based tools are available to help you get hidden domain information. These services provide whois information, DNS information, and network queries.

IANA IANA is an excellent starting point for determining details about a domain.

RIR’s (Regional Internet Registries)
These databases provide an excellent resource to use to research a domain further, once you have decided what area of the world it is located in.

Domain Location and Path Discovery:
If you are unsure of a domain’s location, the best way to determine its position is by use of the traceroute command. Traceroute identifies a path to a domain by incrementing the TTL field of the IP header.

The first step in security testing Google hacking may be employed
Reconnaissance The first step in security testing Google hacking may be employed

CEHv10 Module 03 Scanning

War Dialing War Driving Pinging Port Scanning
Identification Processes There are numerous ways that this identification process can take place that includes: War Dialing War Driving Pinging Port Scanning

War Dialing While some may see war dialing as a dated art, it still has its place in the hacker’s arsenal of tools. If a thorough footprint has been performed, phone numbers were most likely found that can be associated with the organization.

War Driving This mode of penetration relies on identifying unsecured wireless access points.

ICMP Ping Ping is an ICMP (Internet Control Message Protocol) echo request- response

ICMP could be disabled on the target – try a TCP ping instead
No ping response??? ICMP could be disabled on the target – try a TCP ping instead

Port Scanning Port scanning allows a hacker to determine what all services are running on the system. Identification of vulnerable or insecure services let the hacker to exploit unauthorized access.

Ping Scan SYN Scan Full Scan ACK Scan XMAS SCAN UDP Basics
TCP Scan Types Ping Scan SYN Scan Full Scan ACK Scan XMAS SCAN UDP Basics

Nmap Nmap (network mapper) is an open source port scanner that can craft packets in numerous ways allowing the program to determine what services an OS is running. Find out what ports are open OS Scan requires root privileges nmap -T4 -F /24 – enumerates machines quickly nmap -sV host.domain.com -p 80 – attempts banner grabbing nmap -sS -sU -Pn -p – scans udp To save time, ping sweep to identify live hosts and then port scan the live hosts.

Port Scan Countermeasures
Practice the principle of providing least privilege. Don’t leave ports open and block ICMP echo requests at the firewall or external router. Allow traffic through the external router to only specific hosts.

Active Stack Fingerprinting
Active stack fingerprinting relies on subtle differences in the responses to specially crafted packets.

Nessus or another vulnerability scanner
Is one of the best approaches for discovering vulnerabilities on a Windows-based computer Shows missing patches and weak passwords

Determining the attack surface of an organization
Run a scan to detect network services in the corporate DMZ

The port will ignore the packets if the port is open
XMAS, FIN, NULL scans The port will ignore the packets if the port is open RST if port is closed

TCP three way handshake connection establishment and termination
Connection Establishment: SYN, SYN-ACK, ACK Connection Termination: FIN, ACK-FIN, ACK

HTTP/1.1 200 OK Server: MIcrosoft IIS/6 Expires Wed, 26
Banner grabbing HTTP/ OK Server: MIcrosoft IIS/6 Expires Wed, 26 Feb :41:33 GMT Date: Wed, 26 Feb :06:13 GMT Content-Type: text/html Accept- Ranges: bytes Last-Modified: Wed, 26 Feb :12:11 GMT ETag: “50ba0543e25c31:89d" Content-Length: 8156

Netcraft This is a handy site for legitimate and illegitimate purposes. Its most used feature is that it shows how long a particular site has been up and what the site is running

Telnet Telnet can easily be used for banner grabbing from various applications simply by specifying the target and port.

TCP SYN scanning Will not evade IDS

TOR network with multi-node
Surf the internet anonymously

Log of Port scan targeting 172.17.17.206
Time:Mar 13 17:30:15 Port 20 Source: Destination Protocol TCP Time Mar 13 17:30:17 Port 21 Source: Destination: Protocol TCP Time Mar 1317 :30 ;19 Port 22 Source Destination: Protocol TCP Time: Feb 29 13:21:31 Port23 Source Destination Protocol TCP Time Feb 29 13:21:32 Port 25 Source Destination Protocol TCP Time Feb 29 13:21:33 Port 80 Source Destination Protocol TCP Time Feb 29 13:21:30 Port 443 Source Destination Protocol TCP

Active OS fingerprinting
sends specially crafted packets to the remote OS and analyzes the received response

ICMP scan using hping2 hping2 -1 host.domain.com

Xmas scan using NMAP nmap -sX

CEHv10 Module 04 Enumeration

Enumeration Enumeration is the process of discovering each domain that is located within the LAN.

Port and services 135 - MS-RPC Endmapper 137 - NetBIOS Name Service
138 - NetBIOS Datagram Service 139 - NetBIOS Session Service 445 - SMB over TCP / IP (Windows 2K and above)

NetBIOS Null Sessions The legitimate purpose of a Null Session is to grant unauthenticated computers to obtain browse lists from servers, permit system accounts access to network resources, or to allow a null session pipe.

The Inter-Process Communication Share
Windows computers make communications with each other over the IPC$ “Inter-Process Communication” share. The Inter-Process Communication Share

515, 631 and 9100 515 is Line Printer Daemon (LPD)
631 is Internet Printing Protocol (IPP) 9100 HP Jet Direct This host is most likely a printer

net view Lists file shares

AXFR or IXFR DNS zone transfers

CEHv10 Module 05 System Hacking

System hacking System Hacking - System hacking is the point at which an actual connection is made. It is the first true attack phase, breaking and entering by an attacker using the administrative connection or by an enumerated share.

Create User Account Install backdoor
Maintain Access Create User Account Install backdoor

Dictionary – least time and effort Brute force – most time and effort
Password Cracking Dictionary – least time and effort Brute force – most time and effort

The maximum password length is 14 characters No case sensitivity
LM Hash The maximum password length is 14 characters No case sensitivity

Steganography Hiding a covert message within an overt message
Security through obscurity

Linux based tool to change any Windows user's password or to activate
CHNTPW Linux based tool to change any Windows user's password or to activate disabled accounts

Counter-based authentication system
creates secret key encrypted one-time passwords

John the ripper Hydra Rainbowcrack Lophtcrack Cain
Password crackers John the ripper Hydra Rainbowcrack Lophtcrack Cain

Basic syntax is: john passwordfile.txt
Using john the ripper Basic syntax is: john passwordfile.txt

Does not contain the passwords themselves. The shadow file does.
/etc/passwd Does not contain the passwords themselves. The shadow file does.

Pwdump SAM file hash dump format
USER:RID:LM:NTLM

Uses a list of commonly used passwords
Dictionary attack Uses a list of commonly used passwords

Defeats rainbow tables
Salting Defeats rainbow tables

Privilege Escalation Vertical - acquiring administrative privileges
Horizontal – acquiring access to another account's files

Multi-factor authentication
Something you remember – password or pin Something you have – smart card or token Something you are - biometric

Uses a precomputed table of hashed passwords
Rainbow Table Attack Uses a precomputed table of hashed passwords

Doesn’t affect Windows
Shellshock Doesn’t affect Windows

Dumps files from USB devices without alerting the user.
USB Dumper Dumps files from USB devices without alerting the user.

CEHv10 Module 06 Malware Threats

Boot Sector Virus Copies itself to the original location of the MBR after relocating the original to another location on the disk

Locks your computer and demands payment to unlock it.
Ransomware Locks your computer and demands payment to unlock it.

Botnet Trojans Send junk mail Participate in coordinated attacks
Host unauthorized content

User Access Control (UAC)
Prevents a user from accidentally executing a potentially malicious program

Actively alters and corrupts service call interruptions
Tunneling virus Actively alters and corrupts service call interruptions

Blocks execution in a non-executable memory location
DEP Blocks execution in a non-executable memory location

Infects Microsoft Office files
Macro virus Infects Microsoft Office files

CEHv10 Module 07 Sniffing

Can be used for DNS poisoning to direct the user to a phishing site
Hosts file Can be used for DNS poisoning to direct the user to a phishing site

Best defense against sniffing
Encryption Protocols Best defense against sniffing

Syslog Uses UDP port 514

ip.src ip.dst tcp.port tcp.srcport tcp.dstport
Wireshark filters ip.src ip.dst tcp.port tcp.srcport tcp.dstport

Used to analyze packet capture files
tcptrace Used to analyze packet capture files

Sends a broadcast for the MAC address from a specific IP address.
ARP Sends a broadcast for the MAC address from a specific IP address.

Sniffers Work at Layer 2 and Layer 3 of the OSI model.
Can be used to read PCAP files from IDS’s or other utilities. Wireshark is a very popular sniffer for both wired and wireless traffic Tcpdump is a popular command line packet sniffer

Promiscuous mode Passes all traffic to the CPU vs. only traffic to the local MAC address or broadcasts

Application layer vulnerabilities
Are identical in IPv6 and IPv4

redirects traffic to attacker’s computer
STP manipulation redirects traffic to attacker’s computer

Protocols should be configured with authentication
Network routers Protocols should be configured with authentication

Provides authentication of DNS traffic
DNSSEC Provides authentication of DNS traffic

CEHv10 Module 08 Social Engineering

Social engineering low-tech methods

Piggybacking / Tailgating
Following someone closely through a secure entrance

a transparent iframe in front of the URL
Click jacking attack a transparent iframe in front of the URL

modifying host configuration files or exploiting DNS
Pharming modifying host configuration files or exploiting DNS

URL misspelled or similar to the actual domain name
Phishing URL misspelled or similar to the actual domain name

Looking for useful information in the trash
Dumpster diving Looking for useful information in the trash

CEHv10 Module 09 Denial-of-Service

Denial of Service A DoS attack is a special type of attack that brings a system offline compromised or otherwise makes a host’s service unavailable to legitimate users.

Common DoS Attack Popular DoS attacks can be separated into three categories: 1. Bandwidth 2. Protocol 3. Logic

Common DoS Strategies:
Ping of Death SSPing Land Smurf SYN Flood Win Nuke Jolt2 Bubonic Targa Teardrop

Mass Intrusion Attack Phase
DDoS Attack Sequence Mass Intrusion Attack Phase

Preventing DoS Attacks
No solution provides complete protection against the threat of DoS attacks. However, there are things you can do to minimize the effect of a DoS attack

Find_ddos SARA DDoSPing RID Zombie Zapper
DoS Scanning Tools Find_ddos SARA DDoSPing RID Zombie Zapper

DoS and DDoS Denial of Services (DoS) and Distributed Denial of Service (DDoS) attacks are embarrassing and inconvenient. Both attacks are extremely difficult to prevent from being attempted. The best defense is a well-designed network that is hard to overwhelm.

CEHv10 Module 10 Session Hijacking

Spoofing Spoofing is an act of masquerading or impersonating as another user, whereas session hijacking tries to attack and take over an existing connection.

Session Hijacking Session hijacking attacks can range differently from basic sniffing, to capture the traffic of an authenticated traffic between a client and server, to hijacking the established session to fool the server into thinking it has an authenticated session with the server.

Session Hijacking Steps
The attacker must be able to track and intercept the traffic The attacker must be able to desynchronize the connection The attacker must be able to inject his traffic in place of the victim’s

Passive Session Hijacking Active Session Hijacking TCP Concepts
Types of Hijacking: Passive Session Hijacking Active Session Hijacking TCP Concepts

TCP must set up the session. This setup is comprised of three steps.
Client -- SYN -→ Server Client ←- SYN / ACK -- Server Client -- ACK -→ Server

IPSec Operates at Layer 3 Transport mode is used on the LAN
Tunnel mode is used on the internet (VPNs) ESP provides confidentiality AH provides authenticity

CEHv10 Module 11 Hacking Webservers

Hacking Web Servers Web hacking is an important topic because much of the Internet is devoted to e-commerce.

Web Server Identification
While standard web servers run on ports 80 (HTTP) or 443 (HTTPS), there are similar ports that should be scanned while looking for web-based applications. These include the following ports: ● – Kerberos ● Windows 2000 Web Server ● – Squid ● – Alternate Web Server

Web Server Scanning Tools
Nmap Netscan Tools Superscan

Web Server Enumeration
Once all the possible web servers have been discovered, the attacker will usually attempt to enumerate the web server vendor.

Vulnerability Identification
Once the attacker has identified the vendor and version of the web server, he will then search for vulnerabilities.

Vulnerability Exploitation:
IIS has been noticed to be the target of many attacks, but this is partly because it is so widely used. Others such as Apache, have also been targeted for attack and have their share of vulnerabilities.

Types of Web Server Attacks:
ISAPI DLL Buffer Overflows IPP Printer Overflow Directory Listing Shoveling the Shell Types of Web Server Attacks:

NMAP http-methods script
Can detect all http methods (GET, POST, HEAD, PUT, DELETE, TRACE)

Msfencode / msfvenom Can help evade AV

Exploitation framework
Metasploit Exploitation framework

CEHv10 Module 12 Hacking Web Applications

Attacking Web Application Server
Web servers typically listen on TCP port 80 (HTTP) and TCP port 443 (HTTPS). Because those ports must be open and available to web clients, any firewalls or packet filtering devices between the web client and web server must pass traffic destined for those ports. Web application software sits on top of the web server software and allows access to additional ports

Basic Attacks Steps for Web Application Server
Hacking web applications is similar to hacking other systems. Hackers follow a five-step process: Scan the network Gather information Test different attack scenarios Planning the attack Launch an attack

#1 on the OWASP Top Ten List
Injection #1 on the OWASP Top Ten List

Web vulnerability scanner
Nikto Web vulnerability scanner

Insufficient input validation
A software design problem where unexpected input can be entered into an application

Burpsuite Web proxy tool

Input validation Escape input
XSS prevention Input validation Escape input

Simple Object Access Protocol (SOAP)
Provides a structured model for messaging Based on XML Exchanges data between web services

CEHv10 Module 13 SQL Injection

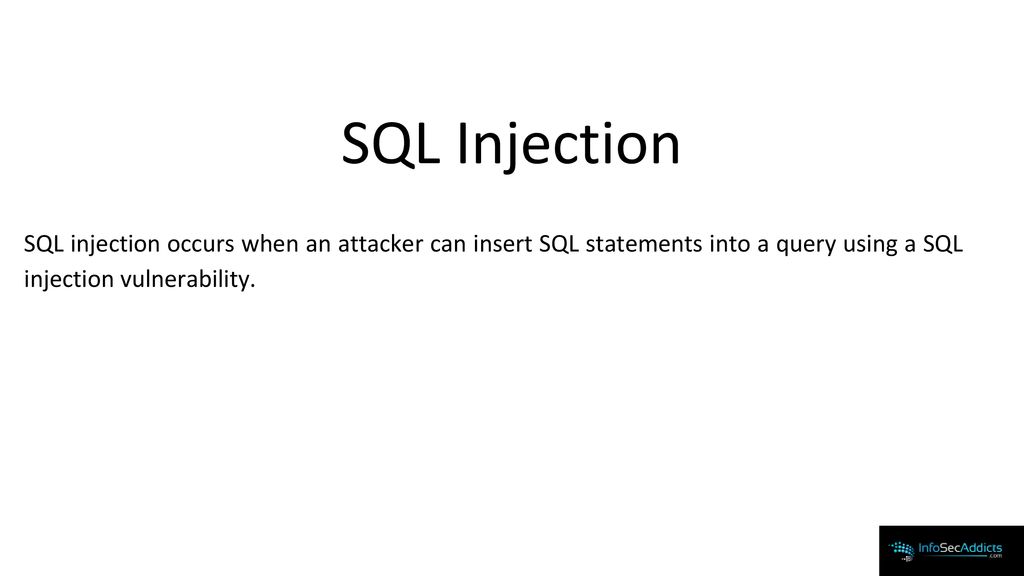

SQL Injection SQL injection occurs when an attacker can insert SQL statements into a query using a SQL injection vulnerability.

SQL Injection Vulnerabilities
Unpatched Systems Blank SA Password

Used to attempt to breaking a valid SQL request
Single quote Used to attempt to breaking a valid SQL request

Generic error page True/False questions Time delay
Blind SQLi Generic error page True/False questions Time delay

CEHv10 Module 14 Hacking Wireless Networks

Wireless DoS Access Point Spoofing
Wireless Attacks Wireless DoS Access Point Spoofing

Wireless detection tool
Kismet Wireless detection tool

Wireless Intrusion Prevention System
Used to detect and restrict network access to unauthorized wireless devices, also capable of searching for and locating rogue access points

RADIUS Authentication, Authorization, and Accounting (AAA) server
Used in 802.1x authentication

Bluetooth short-range wireless

Wired Equivalent Privacy (WEP)
Can be attacked by capturing enough packets to crack the key in seconds

MAC filtering WAP must recognize the client’s MAC address as being authorized to connect

Bluesnarfing Bluejacking Bluesmacking Bluebugging
Bluetooth attacks Bluesnarfing Bluejacking Bluesmacking Bluebugging

802.11 WEP and WPA cracking tool
Aircrack-ng WEP and WPA cracking tool

Evil twin attack Access point that appears to be a legitimate set up to eavesdrop on wireless communications.

WPA2 AES 128 bit CCMP

CEHv10 Module 15 Hacking Mobile Platforms

BBProxy Blackjacking tool QUESTION 1
Bob received this text message on his mobile phone: ""Hello, this is Scott Smelby from the Yahoo Bank. Kindly contact me for a vital transaction on: Which statement below is true? A. This is a scam as everybody can get address, not the Yahoo customer service employees. B. Bob should write to to verify the identity of Scott. C. This is a scam because Bob does not know Scott D. This is probably a legitimate message as it comes from a respectable organization. Correct Answer: C

CEHv10 Module 16 Evading IDS, Firewalls, and Honeypots

Web vulnerability scanner with session splicing capabilities
Whisker Web vulnerability scanner with session splicing capabilities

Facilitates separation of duties
Bastion host Facilitates separation of duties

Encryption Flooding Unicode Characters
IDS evasion Encryption Flooding Unicode Characters

Stateful inspection firewall
Verifies packets belong to an established session

Capable of inspecting content
Application firewall Capable of inspecting content

alert tcp any any -> 10.0.0.0/24 23 (msg: “Telnet traffic";)
IDS rule example alert tcp any any -> /24 23 (msg: “Telnet traffic";)

Intrusion Detection System
Identifies malicious activities

No alarm is triggered when one should be triggered
False Negative No alarm is triggered when one should be triggered

Allows for encrypted passing of data over the network
Cryptcat Allows for encrypted passing of data over the network

Network based intrusion detection system (NIDS)
Monitors all network traffic ideal for observing sensitive network segments

Firewalking Determines which ports are open and if the packets can pass through the packet filter and the firewall Receipt of “Time-to-live exceeded” message indicates port was not blocked at firewall QUESTION 14 What does a firewall check to prevent particular ports and applications from getting the packets into an organization? A. Application layer port numbers and the transport layer headers B. Transport layer port numbers and application layer headers C. Network layer headers and session layer port numbers D. Presentation layer headers and the session layer port numbers Correct Answer: B

Alarm is triggered when one should not be triggered
False positive Alarm is triggered when one should not be triggered

CEHv10 Module 17 Cloud Computing

Cloud Computing Cloud Computing is an on-demand delivery of IT where IT infrastructure and applications are provided to subscribers as a metered services over a network.capabilities

Characteristics of Cloud Computing
On-demand self service. Distributed storage. Rapid elasticity. Automated management. Broad network access. Resource pooling. Measured service. Virtualization technology.

CEHv10 Module 18 Cryptography

Uses product of two large prime numbers
RSA Uses product of two large prime numbers

Designed to verify and authenticate the identity of individuals
PKI Designed to verify and authenticate the identity of individuals

XOR 1 XOR 1=0 1 XOR 0=1 0 XOR 1=1 0 XOR 0=0

Heartbleed Serious vulnerability in OpenSSL (TLS/SSL)
Exposes private key of the server

Two inputs producing the same hash
Collision attack Two inputs producing the same hash

Public Key (Asymmetric)
PGP SSL IKE RSA

Insures integrity of data
Hash Insures integrity of data

TLS Successor to SSL

Disk Encryption Best protection against data compromise in the event of physical theft of the device.

asymmetric key pair is used to deliver the shared session key
SSL asymmetric key pair is used to deliver the shared session key

Private Key (Symmetric)
Faster than Asymmetric AES DES RC4

Hash of the document encrypted with the private key of the signer
Digital signature Hash of the document encrypted with the private key of the signer

Certificate Authority (CA)
Vouches for the identity of an individual or company

CEHv10 Module 19 Ethics, Process, General Knowledge

Risks = Threats x Vulnerabilities
Risk equation Risks = Threats x Vulnerabilities

Most secure retention method is an offsite location
Backup tapes Most secure retention method is an offsite location

host -t a targetdomain.org
Host command host -t a targetdomain.org

Can never be fully eliminated, but can be reduced to acceptable levels
Risk Can never be fully eliminated, but can be reduced to acceptable levels

Should be considered in a risk assessment
Physical security Should be considered in a risk assessment

Shellshock GNU bash shell vulnerability often exploited through a malformed environment variable

Five basic responses to risk
accept avoid mitigate share transfer

Vulnerability scanner
May be used to audit compliance with security policies

Ensures log file event correlation is accurate
Time synchronization Ensures log file event correlation is accurate

An entity or event with the potential to adversely impact a system
Threat An entity or event with the potential to adversely impact a system

Residual risk Risk that remains after the vulnerabilities are classified and the countermeasures have been deployed

Launches Computer Management Console
compmgmt.msc Launches Computer Management Console

If you encounter evidence of a crime:
Immediately stop and contact law enforcement

A restricted OS for testing code
Sandbox A restricted OS for testing code

Responsible for moving and processing data between tiers
Application Layer Responsible for moving and processing data between tiers

If you discover a vulnerability
Notify the web site owner

Permits users to authenticate once and gain access to multiple systems
Single sign-on Permits users to authenticate once and gain access to multiple systems

Biometric processing speed
The time it takes to be accepted or rejected from when an individual provides identification and authentication information

Civil liability Executives are liable for not reasonably protecting company's assets in information systems

Must be authentic and incapable of being forged
Digital signature Must be authentic and incapable of being forged

deny tcp any any permit tcp any any
All tcp traffic would be blocked since the first rule applies and others are disregarded QUESTION 42 A beta stores and processes sensitive privacy information related to home loans. However, auditing has never been enabled on the system. What is the first step that the bank should take before enabling the audit feature? A. Allocate funds for staffing of audit log review B. Determine the impact of enabling the audit feature C. Perform a cost/benefit analysis of the audit feature D. Perform a vulnerability scan of the system

A security solution which filters data packets
Stateful firewall A security solution which filters data packets

PCI compliance Use a firewall between the public network and the payment card data Limit access to card holder data to as few individuals as possible Use encryption to protect all transmission of card holder data over any public network

Most susceptible to buffer overflows

Employees must be informed that they are being monitored
Monitoring Employees Employees must be informed that they are being monitored

The probability that a threat-source will exploit a vulnerability
Likelihood The probability that a threat-source will exploit a vulnerability

To verify that a backup can be restored
Perform a full restore

CEHv10 Module 20 Performing a Penetration Test

Defining Security Assessments
A penetration tester assesses the security posture of the organization as a whole to reveal the potential consequences of a real attacker compromising a network or application. Security assessments can be categorized as security audits, vulnerability assessments, or penetration testing.

Penetration Testing Steps
Penetration testing includes three phases: Preattack phase Attack phase Postattack phase

CEHv10 Module 21 IoT Security

IoT Security IoT Security is key for the secure development and secure operation of scalable IoT applications and services that connect the real and virtual worlds between objects, systems, and people.

IoT Introduces an Increased Number of Security Threats
One of the big differences between the Internet of Things and previous internet technology is that the number of possible threats is much larger.

IoT Security Happens on Four Different Layers
IoT solution architectures require multi-layered security approaches that seamlessly work together to provide complete end-to-end security from device to cloud and everything in between throughout the lifecycle of the solution.

Increasing Automation of IoT Security Tasks
With forecasted growth to billions of IoT devices, manually handling security tasks (e.g., revoking certificates, isolating compromised devices), as is still the case in many solutions today, will not be feasible.

CEHv10 Module 01 Introduction to Ethical Hacking

Similar presentations

Presentation on theme: "CEHv10 Module 01 Introduction to Ethical Hacking"— Presentation transcript:

Similar presentations

About project

Feedback

Log in

Auth with social network:

CEHv10 Module 01 Introduction to Ethical Hacking

Similar presentations

Presentation on theme: "CEHv10 Module 01 Introduction to Ethical Hacking"— Presentation transcript:

Similar presentations

About project

Feedback
