1
Business Information Server (BIS) formerly (The MAPPER System)
UNITE Conference BIS 3011 – BIS Marketing Overview and Status Anaheim, California 23-MAY-2011 Rich Abriani
2
BIS News! BIS 11.1 for Windows released 22-OCT-2010
BIS 47R1 for OS 2200 released 25-APR-2011 2011 UNITE - BIS BIS Marketing Overview and Status
3
BIS is… Rapid Application Development (RAD) Tool (scripting)
Built-in ad-hoc decision support capability Data aggregation and integration Achieves web integration with the BIS Resource Adapter (RA) and Internet Commerce Enabler (ICE) component Available on Unisys and commodity platforms BIS is a complete application development and deployment environment including a database, a graphical user interface (GUI), built-in security, built in integrated recovery, and Web integration tooling. It performs data aggregation and integration. It is designed for both end-user ad-hoc analysis and the rapid development of sophisticated business information applications (transactional applications, decision-support applications, or both). But let’s also look at BIS from a different angle. Yes, it is a RAD tool, and yes it provides for “what if” ad-hoc decision support. But it is much more powerful than that. BIS features data capture, transformation, analysis, reporting and flow and is indeed suitable for the timeliness and pervasive connectivity of real-time business information environments. It offers flexibility with the ICE component for ubiquitous feeds to and from Web, wireless, and other emerging technologies to help protect the value of past and current investments. BIS is a highly adaptive environment, which cost-effectively enables application integration and modernization to fit the business needs of a contemporary service-oriented architecture. It has a large scale adoption by over 1000 worldwide customers using it for business information processing environments on ClearPath servers, ES7000, and commodity severs. And finally, it can be deployed incremental in a phased approach that enables ROI to be delivered and measured throughout the implementation cycle. And to top it off, BIS is available on a number of Unisys proprietary and commodity platforms. 2011 UNITE - BIS BIS Marketing Overview and Status
4
A Complete Development Environment for the Real-Time Enterprise
Development & Test options BIS ClearPath OS 2200 Runtime Environment End User Interface Options Native BIS application Scripts Procedures Java applications / JVM Developer Workshop JavaScript development BIS script development Test/Debug Windows Workstations Browsers Mobile devices Web Services (SOA) Java Applications Eclipse (Java) Native Java development BIS Resource adapter (for BIS scripts/data base) SOA Native Interface OLEDB ODBC MQ Series BIS Data Store OS 2200 DMS RDMS There are a number of ways to develop BIS applications: The Developer Workshop allows developers to manage applications like projects. It provides editors for both BIS script and JavaScript. It also allows Windows to open so that the developer has a view of both input data and results of execution. The debugging feature provides application pauses so that variables and files can be examined on the fly. Using Java with Eclipse as an IDE, is another way to build applications accessing BIS resources. Eclipse does not generate BIS script but does provide tools to help the Java developer view BIS data. The administration is accomplished with a Microsoft MMC that allows administrators with industry knowledge of MMC the ability to manage a BIS site. The heart of the BIS environment is the BIS run time. This is where all BIS applications reside (nothing is stored on the client that can’t easily be downloaded from the BIS server) and are executed. BIS provides access with updating capabilities to a large number of relational databases. In fact, there are very few external resources that BIS can’t access. BIS supports a wide variety of clients/end user interface. Administration Enterprise Manager (MMC console plug-in) MapAdmin Runtime Platform Windows/Linux/UNIX platform Windows Development Platform External Database Oracle SQL Server 2011 UNITE - BIS BIS Marketing Overview and Status
5
Some of the ways to access BIS
Windows Workstation GI (MPC) OS 2200 BIS DMS RDMS MQ GI (MPC) Browser ODBC COM Windows/Linux/UNIX Windows BIS SQL Server Oracle MQ BIS RA JRE ODBC/OLE DB Native Windows ODBC/OLE DB SQL Server Oracle MQ Windows SQL Server Oracle MQ 2011 UNITE - BIS BIS Marketing Overview and Status
6
BIS 47R1 for OS 2200 BIS 11.1 for Windows BIS Product Family
OS x and 13.1 Dorado 300, 400, 700, 800, 4000, & 4100 BIS 11.1 for Windows Windows Server 2003 and 2008 R2 Windows XP Professional Windows Vista Windows 7 BIS 45R1 began shipping in late It had many performance improvement features supporting scaling on the popular Dorado servers and Security enhancements. This newer release includes items such as the ability to develop BIS applications using JavaScript and an interface supporting access to BIS resources using Java. The BIS 10 Product Family is available on the most popular operating systems. The first release of BIS 10 was for Microsoft Windows. In December 2006, BIS 10 was made available for Windows 2003 server and Windows XP Professional. In March 2007, BIS 10 was released on SUSE LINUX Enterprise Server 9, Red Hat Enterprise Linux 4, and Sun Solaris 10. 2011 UNITE - BIS BIS Marketing Overview and Status
7
BIS 10R1 for Linux BIS 10R1 for UNIX BIS Product Family
SUSE Linux Enterprise Server 9 Red Hat Enterprise Linux 4 BIS 10R1 for UNIX Sun Solaris 10 BIS 45R1 began shipping in late It had many performance improvement features supporting scaling on the popular Dorado servers and Security enhancements. This newer release includes items such as the ability to develop BIS applications using JavaScript and an interface supporting access to BIS resources using Java. The BIS 10 Product Family is available on the most popular operating systems. The first release of BIS 10 was for Microsoft Windows. In December 2006, BIS 10 was made available for Windows 2003 server and Windows XP Professional. In March 2007, BIS 10 was released on SUSE LINUX Enterprise Server 9, Red Hat Enterprise Linux 4, and Sun Solaris 10. 2011 UNITE - BIS BIS Marketing Overview and Status
8
Modernization The main reason for leveraging mainframe and mainstream is modernization. Lets take a look at BIS and modernization. Modernization means a lot of things to many people. It could be a simple as populating a drop-down list box with valid selections – or – validating a credit card through an external service – or – exposing a company assets as a service such as product inventory levels or providing an insurance quote.
9
Methods of BIS Modernization
Graphical Environment (PCME) The powerful APIs BIS GUI commands Internet Commerce Enabler component ICE services iceDrill / Component Builder Web Services BIS Resources Adapter (BIS RA) Java/Java EE applications accessing BIS Resources (Service-Oriented Architecture) There are many ways to modernize BIS for OS 2200 applications. The easiest way is to deploy the Graphical Environment – in a previous life this was called PCME or Point-and Click MAPPER Environment. The Graphical Environment provides an easy-to-use framework for retrieving, aggregating, reporting, and grafting data right out of the box – no programming required. The BIS GUI commands provide a way to build Windows point and click applications for both new applications and older character-based green screens applications. In either case, this modernization can be easily accomplished by using the built-in BIS scripting commands or one of the development studios available from our partners: RADS from CIBER and iceStudio from ICS Limited. For both BIS and non-BIS ClearPath clients, the ideal product for Web enabling their ClearPath applications is Internet Commerce Enabler or ICE which is a component of BIS for Windows. It can easily be installed on either the Intel-node of a ClearPath server or a commodity server such as an ES With ICE, support for Web access, mobile computing including wireless devices such as mobile phones and PDAs and Web services are possible. Another component of ICE is iceDrill. iceDrill provides an easy, user driven way to access data through a Web browser. In effect, anyone with a Web browser can access any data on your system via the Internet. Of course, with the proper security levels. The ICE component also provides that ability to expose BIS programs or modules as Web services. The new Java Resource Adapters allows any Java program access to BIS resources – not only reports but also scripts. With the new Java Resource Adapter and Web services, BIS applications and data can be exposed in a Service-Orientate Architecture paving the way for composite applications. In summary, all of these methods provide a means to add value to an existing application without utilizing the rip and replace mentality. 2011 UNITE - BIS BIS Marketing Overview and Status
10
Complementary Development Studios
RADS from IT Resources Integrated Development Environment MQS (MAPPER Quick Screen) Plus Enterprise Output Manager (DEPCON) Developer Workshop There are a number of products that complement BIS. These products support the effort in the modernizing of BIS applications. They just make it easy. 2011 UNITE - BIS BIS Marketing Overview and Status
11
Enterprise Output Manager (EOM)
Output Manager Server ES7000 Enterprise Server or Other Windows Servers Unisys ClearPath Servers IBM or Other Mainframes Archival Storage Systems (i.e. COLD) Servers Running UNIX or Linux Server Fax Server FTP Server SMS Windows Network Web Web Services SharePoint folder Document archive/ retrieval IBM iSeries CD/DVD Burner Network Printers EOM is compatible with your Data Center: As you can see in the above chart EOM integrates easily with many different devices in your data center. EOM is able to process input from Unisys ClearPath or Enterprise Servers, IBM Servers , Oracle, Unix/Linux, file servers, other output management systems, Monitor network directories, COM interfaces, .Net API, IMAP, Message Queuing (MSMQ), HTTP, and many more devices using “open protocols”. From that input EOM can generate a wide array of outputs, including: ability to print to any Windows printer or TCP devices, , Fax, create CD/DVDs, send files to external applications, view files electronically, write files to directories, post files to web folders, perform XML transformations, other Output Manager servers, and FTP, HTTP, or ANY operating system using open protocols. A typical customer environment contains numerous types of operating systems, printing devices, and other output resources. Output Manager might be used to drive very large high-speed printers at a central location, post data to a web site, or write to a CD/DVD. It can be installed at a remote branch to allow personnel to view, print, and manage data sent to the branch. Or, it can be used to do all of these things at the same time! EOM is the only output management solution compatible with Unisys and non-Unisys platforms and applications. 2011 UNITE - BIS BIS Marketing Overview and Status
12
Enterprise Output Manager 9.0
New Features and Capabilities Transfer Jobs using LPR/LPD protocol Directory Alias Enhancement Directory Monitor Enhancement Logging Enhancement Scaling Metafile to page size DDA Charting Utility Secure File Transfer Staging the file in a temporary folder Expand use of Print Attribute’s ‘Output file naming rule Copy File Properties and Export File/Job Management Window 1 2 3 4 5 6 7 8 Extend usage of Directory Alias – The Directory Alias feature provides a way for users to reference directories by use of an alias name. the directory alias name is easier to remember and much shorter than full directory path names. These alias’ may now be used for Backup directory in Backup attributes, Application to start property in Custom Attributes, and Directory Path property in Directory Monitors. Directory Monitor enhancements – Users are now able to monitor multiple files in a directory as well as process zero length files which may contain processing instructions like triggering an . Prior to this release directory monitors we only able to monitor a certain type of file, such as .txt, .pdf, etc. Logging enhancements – EOM is able to log certain activities such as when s have been sent using EOM, or when a job has been printed. This logging feature has been enhanced to provide additional log details such as when a printer needs to be loaded with paper, when a job has been transferred successfully, and when archiving or restoring files has taken place. Scale metafile to page size – Metafiles are used to insert logos, signatures, or partial forms into an electronic form. EOM 9.0 provides the user with the option to automatically scale Metafile to page size and ignore the margins defined on the Hardware tab of the Print Attribute DDA Charting Utility—One of the biggest enhancement to EOM 9.0 is the ability to create charts and graphs. Now in previous releases of EOM it’s worth noting that users were able to create charts and graphs. EOM 9.0 allows users to accomplish the same task in about an eighth of the commands that it took in prior releases, and the charts and graphs look sharper. The chart design feature supports 35 types of charts and graphs such as common area, bar, column, line, pie and point chart types – most of these charts and graphs may be seen in 3D. The chart designer may also be used to further develop customize and save reusable chart templates. Just a quick note, EOM DDA Designer must be purchased in order to take full advantage of these new capabilities. Secure File Transfer—Enables print jobs containing sensitive data to be securely transferred from an MCP server to print servers managed by Enterprise Output Manager (EOM) 9.0, to an EOM print server using Raw TCP, LPR/LPD, and Output Manager protocols. SSL/TLS is used to secure the data. 9 10 2011 UNITE - BIS BIS Marketing Overview and Status
13
EOM 9.0 Inputs Output Manager or Output Manager applications on other systems NET API (programmatic interface for .NET applications) Communication protocol of HTTP (web services) LPR/LPD protocols Raw TCP protocols Message Queuing interfaces Systems without full-time network connections Local or network directories COM Output Manager interfaces Receive message bodies and/or attachments through the Output Manager interface to an client EOM is able to receive files from Output Manager or Output Manager applications on other systems, NET API (programmatic interface for .NET applications), communication protocol of HTTP (web services), systems using LPR/LPD protocol or Raw TCP protocols, Message Queuing interfaces, systems without full-time network connections, files written into a local or network directory by another application, COM Output Manager interface, and message bodies and/or attachments through the Output Manager interface to an client. 2011 UNITE - BIS BIS Marketing Overview and Status
14
EOM 9.0 Outputs File server Mainframe PC/Thin Client E-mail system Fax
CD/DVD XML file HTML file Printer Web site FTP server HTTP server SharePoint Server (using HTTP PUT method) PDF file XPS file User written program Software application EOM output can be customized and transformed to file servers, mainframes, PCs and thin clients, systems, fax, CD/DVDs, XML files, HTML files, printers, web sites, FTP servers, HTTP servers, SharePoint server, PDF files, XPS files, user written program, and software applications. 2011 UNITE - BIS BIS Marketing Overview and Status
15
Developer Workshop 2011 UNITE - BIS BIS Marketing Overview and Status
16
BIS and SOA
17
Service-Oriented Architecture
SOA is about business value and productivity, not technological SOA is about enabling business change: Speeds business change Facilitates business connections Enhances business control SOA is about business design: Identifies a strategic set of business services Creates a digital model of business capabilities that is a foundation for business flexibility the strongest view of SOA comes from the perspective of business design: By hiding the complexity of your applications behind a strategic set of business services, you create a digital world model of your business capabilities that, in turn, is the foundation of your future business flexibility. Said another way, the design point of your IT applications switches from building individual, (OUR Forrester Whitepaper) 2011 UNITE - BIS BIS Marketing Overview and Status 17
18
A Solution Assembly Model
An application built by combining multiple services within a Service-Oriented Architecture Services may be provided by newly developed components, or by legacy systems whose outputs have been packaged as Web Services Composite Application Composite Service Composite Service Composite Service Main Point: Composite Applications: Composite applications are a means to define new or enhance existing business processes by using services already available. Composite applications pose complex “data models” challenges. For example, different components may represent the same information using different data models and it’s up to the Composite application to handle the differences. Background information <back pocket> Companies Embracing this Technology SAP with NetWeaver IBM with Tivoli Microsoft with BizTalk Service Service Service Service Service Service Service Service Service .NET Component Legacy System Java EE Component Composite Applications allow the development of flexible, robust “Transition” Architectures 2011 UNITE - BIS BIS Marketing Overview and Status 18
19
OS 2200 ClearPath Resource Adapters
Java connectors to all OS 2200 resources Application Integration Database Integration OpenDTP RA TIP RA BIS RA JDBC Driver for RDMS DMS RA There are two integration scenarios for business assets; Application integration and database integration. Application integration involves creating a web service wrapper that uses a resource adapter to call a business application, such as an OpenDTP service, TIP/HVTIP transactions, or a BIS script. Not all business applications are ready to be wrapped as a web service and may require some modification, but the goal is to reuse as much code as possible. Database integration involves creating a web service that uses a resource adapter to access business data stored in DMS, RDMS, or BIS. Database integration is used when new business logic is required. OS 2200 includes the following resource adapters: OpenDTP resource adapter, TIP resource adapter, BIS resource adapter, DMS resource adapter, and the JDBC Driver for RDMS. Each of the resource adapters complies with the J2EE Connector Architecture (JCA) 1.5 specification. DMS RDMS TIP/HVTIP transactions OpenDTP service BIS application 2011 UNITE - BIS BIS Marketing Overview and Status
20
The Architecture – The Big Picture
Client tier OS 2200 Tier Resource Adapters Resource Managers JVM/JRE (JProcessor) DTP Svcs OpenDTP RA JBoss App Server Eclipse Develop & Deploy JDBC RDMS EJB container DMS EJB DMS RA Browser, WebService, Remote Client Execute BIS BIS RA This slide depicts an illustration of the JBoss-2200 OS 2200 JProcessor architecture. While JBoss-2200 is installed to OS 2200 using standard SOLAR procedures, the java byte code executes in the JProcessor specialty engine. Resource adaptors connect to their respective database and transaction environments either via sockets or JNI. The JBoss Transaction/Open DTP integration is supported as well as integration to OS 2200 Security. The OS 2200 JProcessor has its own IP address that remote clients can access. These remote clients can be web browsers or services on other servers. Scripts Web container TIP HVTIP JSP Servlet TIP RA Windows Linux UNIX 2011 UNITE - BIS BIS Marketing Overview and Status
21
Your ClearPath Applications as Full Players in the Enterprise
Integration Service Providers SOA infrastructure New features in the 13.0 release help you transform your core business applications to address new business unit requirements and securely integrate them into a service-oriented architecture (SOA). Integration through standard Java and .NET building blocks enable you to leverage skills and tools available in the marketplace. Service Consumers 2011 UNITE - BIS BIS Marketing Overview and Status 21
22
BIS 47R1 for OS 2200 25-APR-2011
23
BIS 47R1 at-a-glance 70 new Features / 30 from NFSs
Supported on OS 2200 releases 12.x and 13.0 Supported on the Dorado 300, 400, 700, 800, 4000, and 4100 series of servers Special BIS Workloads for both Traditional and Prepaid Metering are still available Available 25-APR-2011 2011 UNITE - BIS BIS Marketing Overview and Status
24
BIS 47R1 New Feature JavaScript Enhancements
JavaScript addByTemplate Method Session Bean Create Object Session Debug Method Using JavaScript as a Java Client (Java Beans) Start Debug Session in ‘GO’ (Run) Mode XML Processing Binary Find Statement The Binary Find statement is enhanced to continue execution even if a no-find condition is encountered. This eliminates the need to supply an error label to the @BFN command when checking only for a no-find condition. Create Result Copy Function The Create Result Copy (RSLT function is enhanced with new subfields that can specify the receiving drawer of the output result. Date Support for Match Function The Match function (MA is enhanced to allow date formats on match and move fields. Defer Additive Statement The new Defer Additive statement is an extension to the existing Defer Updates statement. statement is used to add a report to an existing deferred-update list or to create a new list has not been used. Enterprise Output Manager Tags The Print function now allows you to print a preamble report prior to printing the normally-requested primary report or reports. Reports printed function can now include Enterprise Output Manager (DEPCON) control images, specified by the $EOM$ control statement and in predefined forms. Format Columns Command The new Format Columns command allows you to justify data in a column. The @FC command provides options to column justify alphanumeric data and case justify alphabetic data. JavaScript addByTemplate Method The BIS JavaScript DataSet object is enhanced to allow records to be added to the calling DataSet object under scripted control of a specified document template. BIS document templates use ASP-like markup syntax to allow a combination of procedural and literal data to be used in generating the added dataset records. Session Bean Create Object The SessionBeanCreateObject function creates an instance of a SessionBean object that can be used in a script. Session Debug Method The Session.debug method enables application developers to programmatically initiate a Developer Workshop debugging session. This is accomplished using the new Session.debug() method. Method arguments enable the developer to have complete control over where and when debugging occurs. Using JavaScript as a Java Client (Java Beans) The BIS JavaScript runtime environment is enhanced to facilitate access to Enterprise Java Beans (EJBs). Access to both stateless and stateful session beans is supported. Developers can call bean methods, passing arguments and receiving returned data. Start Debug Session in ‘GO’ (Run) Mode This includes: · This feature will allow the user to start the debug session in ‘GO” (Run) mode by enabling the debug ‘GO’ button when not in debug mode. · The debug ‘GO (Run)’ control will be added to menu items when you right-click on a script from the BISTree – where ‘Step Into’ is located. · The debug ‘Step Into’ control will be enabled along with the ‘GO’ control to allow starting a debug session by stepping into from the ‘Step Into’ debug button. XML Processing The BIS JavaScript application programming environment is enhanced to include new extensions to allow processing of XML document data. The BIS programming extensions to support XML are based on ECMAScript for XML (E4X) standard which is an outgrowth of previous ECMAScript Language Specification. Tools for the BIS Developers Binary Find Statement Create Result Copy Function Defer Additive Statement Enterprise Output Manager Tags Format Columns Command 2011 UNITE - BIS BIS Marketing Overview and Status
25
BIS 47R1 New Feature Graphical Interface Enhancements
@CBX - allow auto sending of input from Combo Edit Box. @LST - disable item selection by a user & inhibit automatic addition of horizontal scrollbar @MNU - allow addition of hot keys @PCF - return the size of a file in bytes Window Handles increased from 2000 to 4000 Window Close (“x”) provides close alert message @CBX Statement A new “A” option is added to statement to allow sending of input automatically from Combo Edit Box. It is not required to press Enter. The content typed in the Combo Edit Box is passed as an input automatically after a delay of one second. @LST Statement statement is enhanced with the following options: · Disable item selection by a user · Inhibit automatic addition of horizontal scrollbar @MNU Statement A new “A” option is added to statement to allow addition of hot keys. @PCF Statement statement is enhanced to return the size of a file in bytes. Window Handles The number of server window handles is increased from 2000 to 4000. Interrupt MPC Window Close (“x”) To avoid accidental termination, MPC session is enhanced to give close alert message. Date Support for Match Function The Match function (MA is enhanced to allow date formats on match and move fields. End-of-month Functions The Date Calculator Date and Calculate functions are enhanced to support a new option to calculate the final date of a month. New Date Format - DATE21 A new DATE21 date format (DD-MMM-YY) is supported. Date Processing Date Support for Match Function End-of-month Functions New Date Format – DD-MMM-YY 2011 UNITE - BIS BIS Marketing Overview and Status
26
BIS 47R1 New Feature Security Domain Name Logon
User and Run Security Enhancements Cipher API Encrypt data at rest FIPS certified Domain Name Logon Now, you can log on to BIS using domain credentials. This feature allows users with identical user-IDs in different domains to be uniquely identified in BIS. For example, both NA\JSMITH and EA\JSMITH could log on to BIS and be recognized as unique users. Logon using the Microsoft Active Directory and Lightweight Directory Access Protocol (LDAP) authentication are supported. User and Run Security Enhancements Run registration now accepts DrawerCabinet in the MODES field. Additional drawer access registration enables the User Security and/or a specific Security Report and Security Group. 2011 UNITE - BIS BIS Marketing Overview and Status
27
BIS 11.1 for Windows 22-OCT-2010
28
Graphical Interface (MPC)
Suppress the horizontal scroll bar Disable user selection from the list box to allow CTRL+ keystrokes “Close alert” message facility in MPC session Create scroll bars in GUI screens when reducing screen size Byte count for file command New “A” option for combo box Suppress the horizontal scroll bars @LST is enhanced with a new option “H” to suppress the horizontal scroll bars. If we use this option then list box will not display horizontal scroll bar. This is a new option for BIS which is not there in It helps to hide some data which placed outside the list area. statement is enhanced with the following options: Disable item selection by a user Inhibit automatic addition of horizontal scrollbar MPC Session An MPC session can now display a close alert message to avoid accidental termination of the session. @MNU Statement A new “A” option is added to statement to allow addition of hot keys. @PCF statement statement is enhanced to return the size of a file in bytes. @WIN Statement A new option is added to statement to allow the window to automatically add vertical and/or horizontal scroll bars if any visible child window is truncated. User Specific Files in User Specific Location This enhancement ensures that all users of GI-BIS (from GI-BIS console and DW GI‑BIS) can create or modify GI-BIS files by creating a local copy in the “Unisys” directory located in the local application data directory of the user. Also, any new file created by a user is created in the “Unisys” directory. With this implementation GI-BIS does not share user specific files (MSF files, trace file, script file and so on). Each user has unique configuration files and other files that are generated during execution or run time. 2011 UNITE - BIS BIS Marketing Overview and Status
29
End User Interface Options
Graphical Interface (MPC) GUI Logon PCMA – add/del security groups ICE Features HTML Consistency User and logging scale-up JavaScript ICE services Improved gateway creation New graphics engine GUI Logon – This feature supports the requirement to force a password to be entered at signon Security Report and Group using PCMA – The Security task menu now has the option to add or delete Security Registration reports. It also has the option to add, modify, and delete Security Group permissions within a Security Registration report. Internet Commerce Enabler Making Virtual Directories This feature enables ICEAdmin to setup new Web gateways for ICE access. It creates a gateway to the user specified directory and ensures that the minimum required files are present. For Windows, this includes a gateway to CISystem (Default.asp and CIErrorHandler-HTML.asp) and establishes the initial Gatetool records to make the operation possible. All maintenance after that can be performed normally. User Management Improvements Integrated ICE user registration with the BIS User Registration drawer. User registration controls ICE Access and determines if a user can change password at ICE logon. These controls are added to the user registration even if ICE is not installed. During the UPGRADE run, permission to access ICE and any restriction from changing passwords are copied from the existing registration (2E3950). For all other user IDs ICE access is not allowed, but passwords can be changed. User registration for large departments can be optimized by marking the department as sorted. Any department with 32,000 users or more is automatically marked as sorted (line 2). Once sorted it is maintained as sorted while using PCMA and ICEAdmin to perform maintenance regardless of the department size. User and department browsing with PCMA or ICEAdmin is no longer restricted to 32,000 users while maintaining large departments. Agenda is no longer supported. 2011 UNITE - BIS BIS Marketing Overview and Status
30
Client Features Developer Workshop Features
Persistent Session and Debug settings Debugging Background and ICE scripts In-line insertion of code to execute in debugging session Code Template Enhancements Persistent settings: Line Breakpoints, Conditional Breakpoints, Watches, Bookmarks BIS Explorer Restore – Open connection and scripts Re-Open Scripts – Line positioning Automatic Script Saves – Save all scripts when a debug session begins Debugging background and ICE scripts BIS script (RUN) already exists in released BIS products JavaScript Debug() method provides the same ability Code execution in debugging session BIS script (RUN) only Use the Evaluate->Expression window Code template enhancements BISScript, DocTemplate, and JavaScript can be user-defined Not shared by different users on the same client machine Unisys defined templates are read-only MapAdmin Site Initialization Options The Administration Client Initialization and Recovery dialog now provides an option for displaying Verbose or Limited messages. The Limited messages option will allow the site initialization and recovery process to complete faster. MapAdmin Administration Client changes New Properties Restructuring Backup & Initialization Directory Creation & Permissions 2011 UNITE - BIS BIS Marketing Overview and Status
31
Client Features JavaScript Features Plug-in for XML Processing
Language extensions Document Templates Java Client Debug Initiation OS 2200 parity XML Processing Extensive work has been done to allow for the processing of XML documents by BIS JavaScript applications. The XML language extensions are based on the ECMAScript for XML (E4X) standard which conforms with the earlier ECMAScript Language specification for JavaScript. More than 80 topic pages have been added to the JavaScript Developer’s Help regarding XML processing. In BIS 11, the JavaScript Developer’s Help is now included in the Standard Help Library. XML documents, which may contain namespace data, can be read and processed. These extensions are available on the Windows, Linux and Sun platforms. They are planned to be available for OS 2200 in BIS 47. New objects: XML object XMLList object Namespace object QName object default_xml.namespace global object 2011 UNITE - BIS BIS Marketing Overview and Status

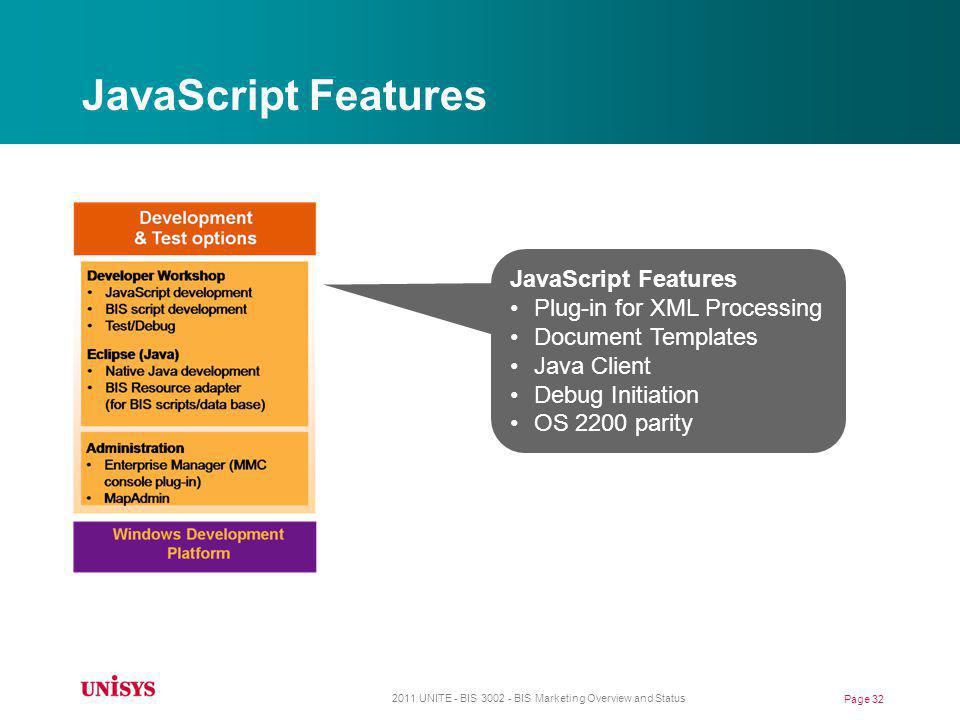

32
JavaScript Features JavaScript Features Plug-in for XML Processing
Document Templates Java Client Debug Initiation OS 2200 parity XML Processing Extensive work has been done to allow for the processing of XML documents by BIS JavaScript applications. The XML language extensions are based on the ECMAScript for XML (E4X) standard which conforms with the earlier ECMAScript Language specification for JavaScript. More than 80 topic pages have been added to the JavaScript Developer’s Help regarding XML processing. In BIS 11, the JavaScript Developer’s Help is now included in the Standard Help Library. XML documents, which may contain namespace data, can be read and processed. These extensions are available on the Windows, Linux and Sun platforms. They are planned to be available for OS 2200 in BIS 47. New objects: XML object XMLList object Namespace object QName object default_xml.namespace global object RDB (Run Debug) The Run Debug utility is enhanced to automatically initiate a debugging session with the Workshop when debugging BIS scripts. For more information see the Developer Workshop Help. In BIS 10.1.E2 this capability can be disabled through the dws_rdb_debug start parameter. 2011 UNITE - BIS BIS Marketing Overview and Status
33
Runtime Execution Subroutine Logging
Calling an unregistered JavaScript routine More than 2000 window handles Sizing – 64-bit servers 2,000 Users 10,000 reports The ODBC client driver (unisdb32.dll) is now available in a 64-bit flavor. MRI Features Access MySQL and PostgreSQL (ODBC) Native access using all the normal BIS commands 64-bit ODBC driver 2011 UNITE - BIS BIS Marketing Overview and Status
34
Linux/Unix Platform Specific Features
Similar feature set as BIS 11.1 for Windows plus GUI Installation No more “Select Features and Connections” Windows-based Administration Client Adding SUN Solaris support for – J2EE (JBIS) JavaScript Developer Workshop ICE on Linux GUI installation is part of a larger initiative to make Unix/Linux BIS easier to install and maintain. This installation is built with tooling similar to that available for Windows installation programs and provided a dialog based interface. The installation does require an X terminal. BIS 11R1 for Linux/UNIX is under development and subject to change 2011 UNITE - BIS BIS Marketing Overview and Status
35
BIS 11 Supported operating systems
Windows bit Windows bit Windows 2008 R2 64 bit Windows 7 32 bit 7 64 bit Windows Vista 32 bit Windows Vista 64 bit Windows XP Pro 32 bit BIS P GI MapAdmin Developer Workshop Red Hat 5 32 bit Red Hat 5 64 bit SuSE bit SuSE bit Solaris 10 BIS P 2011 UNITE - BIS BIS Marketing Overview and Status
36
RADS Status
37
Again!
38
BIS Services Organization
Our Current BIS Consultants: Have over 25 years of BIS/MAPPER experience Had at least 12 years at Sperry/Unisys Most joined Vector Software Services in the 1990’s 1994 1999 2002 2004 2011
39
IT Resource Solutions (ITRS)
Privately Held IT Services Company Headquarters in Long Island, NY Offices in Columbia, SC & Orlando, FL Founded 1995 Woman-Owned, 8(a) Certified IT Recruiting Group Strategic IT Staffing Solutions Project Consulting Solutions Recruitment Process Outsourcing Professional Placement Solutions Unisys Technology Group BIS/ICE Development Services RADS Software & Support Portation Experts Unisys Value Added Reseller Servers, storage, software & services
40
Application Development Tools
RADS Toolset Integrated Development Environment Point & Click Wizards Table-Driven Screens & Services Reusable Components Active Data Dictionary All BIS/ICE Platforms Same Toolset for GUI & Web Rapid Application Development S tudio Application Development Tools A major strength of RADS is how it simplifies development. Point-and-click wizards greatly reduce the amount of program coding, which saves both time and money. Application components, like input screens, are stored as tables, rather than run script. These components, plus dozens of built-in services provided by RADS, can be reused throughout an application. The result is far fewer lines of program code than a traditional application. Although the ICE version is new, the RADS tool set has been around for years. It has been used to build many successful applications, including PCME, the Point and Click MAPPER Environment. The RADS tools run on all Business Information Server and Internet Commerce Enabler platforms. Using the same basic tool set, a RADS developer can create both GUI and Web applications. Builds & manages entire Applications, not just scripts or screens
41
RADS Major Releases 4.5.0 4.4 4.3.2 4.5.1 4.3.1 4.2 4.5.2 * Web Application Screens ICEME Reporting Tool RADS software has a long track record of continually being enhanced and improved. A significant new version is generally released very one to two years. The most recent major release – – supports BIS 11.1, and related products such as MPC In addition, contains changes to fully support the Windows 7/2008 platforms, as well as 64-bit operating systems. In late 2008, the initial version of the entry-level RADS product – RADS Lite – was introduced. Expanded/Enhanced Toolset More Advanced Web Screens Expanded Data Dictionary Features Enhanced Graph Services * Version paired with BIS 11.1 release.
42
RADS Product Portfolio
Limited Edition Freeware Minimal Training Required Basic Application Tools Report, Graph, Data Entry Services Active Data Dictionary Built-in Menu System Import / Export Application Packages Both GUI & Web Services Full Featured Development Studio Professional Training & Mentoring Extended Features & Capabilities Drill Down / Data Mining Additional Types of Services User Profiles, Access Control, Auditing Many Additional Development Tools ICEME (Web-Enabled PCME) There are now two distinct editions of the RADS Development Studio – Lite and Professional. RADS Lite is an entry-level product, designed to require no formal training. While it is limited in functionality, RADS Lite can be used to create complete applications, with report and graph displays, data entry screens and other services for both the Windows GUI and the Web browser environments. RADS Lite is basically a subset of RADS functionality, so the Development Studio (and applications created by it) can easily be upgraded to the Professional version. RADS Professional includes many additional development tools to create more robust applications. These includes Drill Down Links, User Profiles, enhanced user interface features, and much more. Lite version fully compatible with and upgradeable to Professional
43
More Information For more information about RADS, or to obtain a copy of RADS Lite: Contact ITRS: IT Resource Solutions 10 Technology Drive, Suite 1 East Setauket, NY 11733 Phone: (631) Web:
44
BIS Directions The main reason for leveraging mainframe and mainstream is modernization. Lets take a look at BIS and modernization. Modernization means a lot of things to many people. It could be a simple as populating a drop-down list box with valid selections – or – validating a credit card through an external service – or – exposing a company assets as a service such as product inventory levels or providing an insurance quote.
45
BIS Software Release Plans
BIS 46R1 (Sept 19, 2009) BIS 47R1 BIS 48R1 BIS 10.1 Windows (Dec 11, 2006) BIS 11.1 Windows BIS 12.1 Windows BIS 10.1 Linux / Sun Solaris (Mar 12, 2007) BIS 11R1 Linux / Sun Solaris BIS 12R1 Linux / Sun Solaris 2008 2009 2010 2011 2012 2013 2014 2015 Future dates are subject to change 2011 UNITE - BIS BIS Marketing Overview and Status
46
Additional Information
47
Unisys eCommunity eCommunity is being phased out
All information will be available on unisys.com For BIS information: “Offerings” “Data Center Transformation and Outsourcing” “ClearPath Systems and Services” “Products” tab “ClearPath OS 2200 Software” link “Key Products” tab “Business Information Server” link 2011 UNITE - BIS BIS Marketing Overview and Status
48
New Cool BIS Brochure Highlighting real and unique BIS Solutions
Featuring Mobile devices Java connectivity Tracking food sources Ensuring Heart Health Real-time insurance services 2011 UNITE - BIS BIS Marketing Overview and Status
49
New BIS Video 2011 UNITE - BIS BIS Marketing Overview and Status
50
BIS Services plus any custom service BIS Assessment & Design Services
Design for modernization and integration of your existing BIS applications BIS Proof of Concept Designed to validate a solution recommendation BIS Implementation Service Ensures successful deployment of the BIS solution. JavaScript Jumpstart Service Service engagement to provide JavaScript technical know-how and best practices BIS Performance Analysis Analyze and identify specific actions to improve performance plus any custom service 2011 UNITE - BIS BIS Marketing Overview and Status
51
ClearPath Connection Newsletter
Rich content of latest ClearPath news Distributed electronically plus printable download versions in four languages Contains client stories, engineering articles, latest product news, events Current issue: ClearPath Launch! Click Here to Subscribe in PPT show mode 2011 UNITE - BIS BIS Marketing Overview and Status
52
BIS Contacts Rich Abriani Mike Stroeing Web Sites +1 610-548-7154
Mike Stroeing Web Sites If you have any questions on any of the information we’ve discussed, you can contact any of us through a variety of resources. Feel free to call or any one of us. 2011 UNITE - BIS BIS Marketing Overview and Status
53
Business Information Server (BIS) formerly (The MAPPER System)
UNITE Conference BIS 3011 – BIS Marketing Overview and Status Anaheim, California 23-MAY-2011 Rich Abriani
