1. Understanding JavaScript

2. The Three Layers of the Web

3. What is JavaScript? Lightweight programming language
Adds interactivity to HTML pages
Works in all major browsers – IE, Mozilla, Firefox, Netscape, Opera and Safari
Is a complementary language – not used on own (embedded into HTML pages)
Primarily used for web-related programming
Consists of lines of executable code (statements)

4. What is JavaScript?
Is an interpreted language (no preliminary compilation)
No need to purchase a license
Used on the client-side (browser) of web application
Is the J in the acronym AJAX (Asynchronous JavaScript and XML)
JavaScript is not related to Java (Sun Microsystems)

5. What JavaScript Can Do
Gives web designers a programming tool (“code snippets”)
Dynamic effects on pages
document.write(“<h1>” + name + “</h1>”)
Responds to user actions (event-driven)
Reads and writes HTML elements
Change page appearance – text, background
Pop-up windows – alert, confirm and prompt

6. Examples:
Flashing grid of coloured squares (
How to change images on a web page
How to affect web pages over time
How to add randomness to web pages
How to dynamically change what’s happening on a web page based on a user action
Fish Weight Calculator (

7. What JavaScript Can Do Image swaps and rollover effects
Drop-down menus
Performs calculations
Opens new browser windows
Form entry validation
Create cookies
Browser detection

8. History of JavaScript Developed by Brendan Eich (Netscape) -1996
Together with Sun Microsystems
Appeared in all major browsers since then
Microsoft developed its own version – JScript
Official name is ECMAScript (
ECMA-262 is the official JavaScript standard

9. JavaScript Guidelines
JavaScript is case sensitive
“myfunction” is not the same as “myFunction”
“myvar” is not the same as “myVar”
JavaScript ignores white space
name=“Bedford”;
name = “Bedford”;
Break up code lines (within strings)
document.write(“Hello \
World!”);

10. JavaScript Guidelines
JavaScript once required a semicolon (;) at the end of each statement
Group statements together into blocks by enclosing within curly braces { and }
Single line comments
//This code will write “Hello World” to the page
Multi-line comments
/*This code will write
one header and two paragraphs to the page */

11. Object-Oriented Programming (OOP)
JavaScript uses a model called OOP (object-orientated programming)
Objects (for example, a window)
Properties (for example, length)
Methods or actions (for example, open)
Events (for example, click)
Note: Many programmers argue the notion that JavaScript uses the object-orientated model.

12. Compiled vs. Intepreted
JavaScript is an interpreted language
Code is run on the fly - no need to compile
Only need a text editor and browser
Does not perform as efficiently as compiled code
Easy to edit and embed in a web page
Compiled code tends to be platform specific – JavaScript is not

13. JavaScript Statement var smallNumber = 4; Reserved Word Identifier
Operator
Literal

14. What JavaScript Can’t Do
JavaScript can’t be forced on a client
JavaScript may be disabled in browser
JavaScript is not supported in older browsers
JavaScript’s fancy features may not be accessible to all – text-readers, text-only browsers, accessibility issues
JavaScript can’t cross domains
JavaScript can’t ensure data security
JavaScript can’t access server data or scripts

15. Beware!!
When you develop pages containing JavaScript you have little control over the final appearance or functionality of your page.
The script is parsed/interpreted by the browser and the page content displayed according to browser (User Agent) settings and other variables.

16. Remember………
TEST YOUR PAGES IN AS MANY BROWSERS (AND OTHER PLATFORMS) AS POSSIBLE
Test in Mozilla Firefox (roots in Netscape), IE and Apple’s Safari
DON’T MAKE NAVIGATION OF YOUR WEBSITE DEPENDENT ON JAVASCRIPT!!!
ACCESSIBILITY IS A BIG ISSUE!!!

17. Text/Code Editors Simplest is NotePad or MAC version
Better to use a slightly more complex editor
Free downloads from
Look for
Freeware or Shareware
Small total file size

18. What to look for… Provide colour coding Assist in entering code
Code indentation
Validate syntax
Numbered lines
Code snippets
Debugging tools
Code and design views
Integrate with other languages – JavaScript, HTML, CSS, Java, ASP, PHP

19. Fundamentals of JavaScript
Using JavaScript with HTML pages
Where to put your code
Commenting your code
Special Characters and Escape Sequences
Reserved words

20. Parts of JavaScript Variables and Constants Types of Data
Naming Conventions
Operators
Statements and Expressions
Functions
Global Functions
User-Defined Functions
Objects – Properties, Methods, Event Handlers
Control Structures

21. Variables and Constants
Information used in JavaScript falls into one of two categories:
Variables: Items that can contain different values at different times during script execution. Start with the keyword var followed by name.
Constants: Contain the same value throughout the execution of the script.

22. Types of Data Data Type Name Description Examples Boolean bool
Either TRUE or FALSE and is not case sensitive – but commonly uppercase
TRUE, FALSE
Numeric/Floating point numbers
float
A fractional number with a decimal. May be negative and may use scientific notation
7.34, , 2.31e3
Numeric/Integers
Int
A whole number without a decimal. May be negative
43, 928, -4
Numeric/Null
null
The absence of any value
NULL
String
string
A series of characters (one of 256 letters, numbers and special characters) enclosed in either single or double quotation marks
“Mike”, “Seattle”, “1495 W. 18th St.”
Undefined
A named variable that has not been assigned a value

23. Naming Conventions See later
Beware use of predefined or reserved words when naming variables and constants. Their use will cause errors in the code.

24. Operators
See later
Having created a variable or a constant, you are going to want to give it a value by assignment, calculation or comparison.
JavaScript has defined a number of operators of various types:

25. Operators Operator Explanation Arithmetic
Performs arithmetic calculations on two operands which can be variables, numbers or a number and a variable
Assignment
Replace a value with another
Bitwise
Logical consequences turn specific bits in an integer on or off
Comparison
Compare two values and return TRUE or FALSE
Logical
Logical consequences
Other

26. Statements and Expressions
A statement is a line of code that is complete and correct in its syntax and performs a task.
Typically, a statement ends with a semi-colon
Often a single line of code ending with a semicolon
Can have many statement on a single line
Can have a statement spread over many lines
Statements contain one or more expressions
Expressions are anything that has a value!
Values are anything that can be assigned to a variable!

27. Functions
A function is a piece of script that does something and can be repeatedly called from a larger script
Global functions already exist
User-defined functions you need to write
Some functions require you to pass them values or arguments
Other functions simply return a value

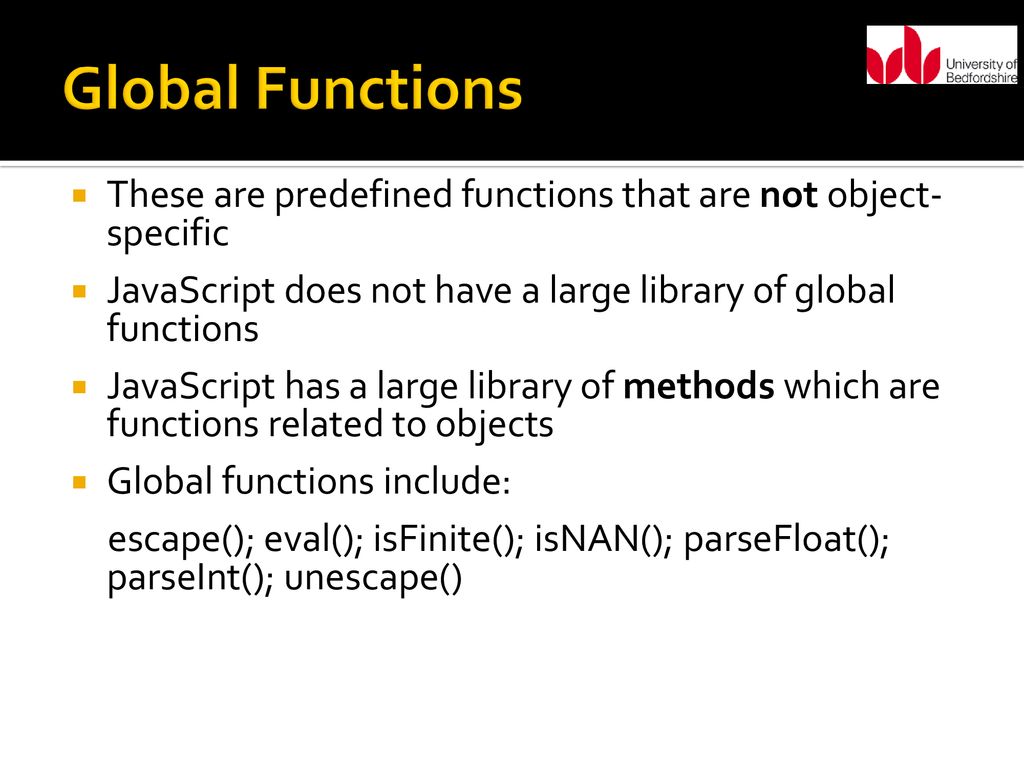

28. Global Functions
These are predefined functions that are not object-specific
JavaScript does not have a large library of global functions
JavaScript has a large library of methods which are functions related to objects
Global functions include:
escape(); eval(); isFinite(); isNAN(); parseFloat(); parseInt(); unescape()

29. User-Defined Functions
Allows you to repeatedly use the same code
Allows economical use of code – don’t have to copy to different parts of the page
Easy editing
Simply create a function containing the code you want to repeat – and call that function from everywhere you want to use it
Putting function in the header means that it won’t be run until it is called
User-defined functions can also have one or more arguments that are passed to them ,and may return a value after they are executed

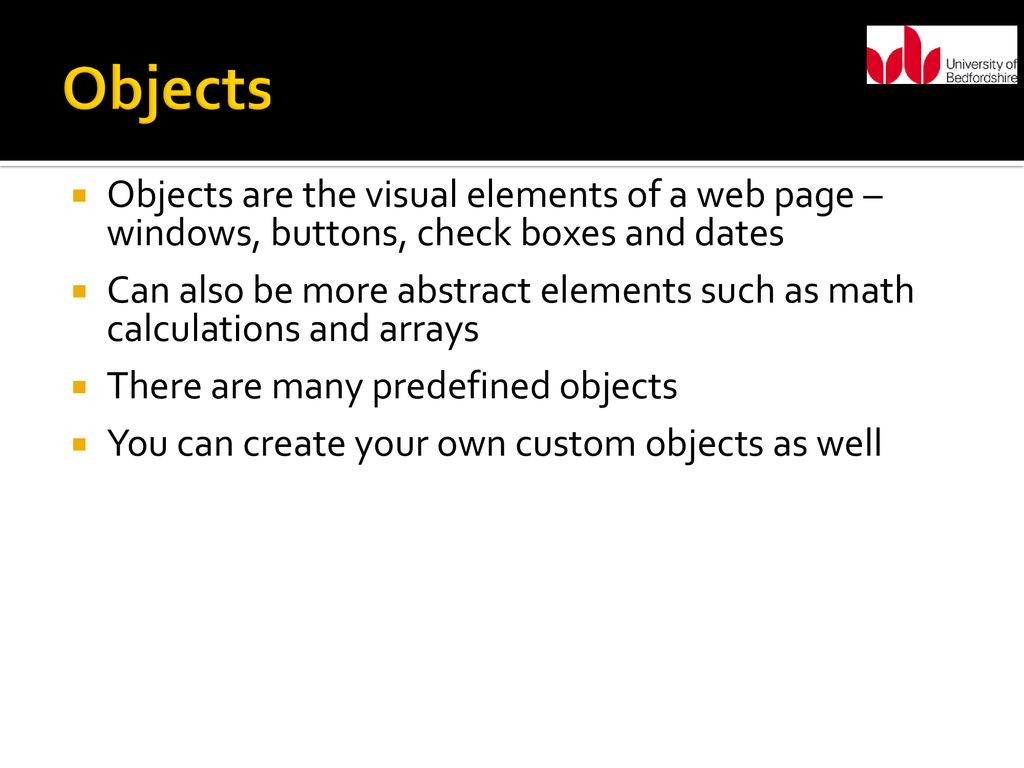

30. Objects
Objects are the visual elements of a web page – windows, buttons, check boxes and dates
Can also be more abstract elements such as math calculations and arrays
There are many predefined objects
You can create your own custom objects as well

31. Predefined Objects Identified by a keyword name – for example, window
You can have several instances of an object in a web page – each identified by a unique name
Each object can have properties (characteristics)
Each object can have methods (the things it can do) – for example, alert (), write()
Each object can have events (which effect it) – for example, mouse click
The relationship of an object to its constituents is shown by the use of the dot syntax

32. Properties
Objects have properties that allow you to describe them – distinguishing different occurrences of the same object from one another
For example you can modify a window by outer height and width, or inner display area
Some objects have only one property - for example, the string object has only one property – length.
Properties are applied to an object using the dot statement syntax:
objectname.propertyname = “value”

33. Methods Methods are actions that objects can perform
They can be considered predefined functions for objects
For example, to return the square root of three, use:
math.sqrt(3);
Another example:
window.alert(“Hello World”);

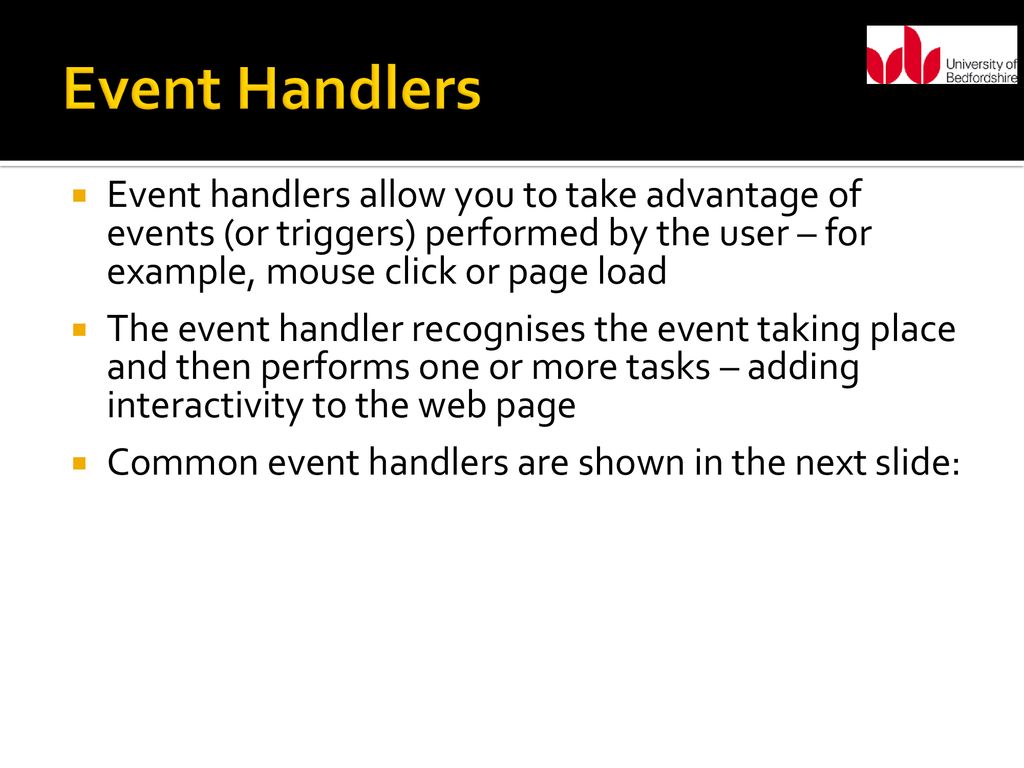

34. Event Handlers
Event handlers allow you to take advantage of events (or triggers) performed by the user – for example, mouse click or page load
The event handler recognises the event taking place and then performs one or more tasks – adding interactivity to the web page
Common event handlers are shown in the next slide:

35. Event Handlers Event Handler Event Trigger onAbort
An image’s loading is interrupted
onBlur
Focus is removed from an element
onChange
Contents of a form are changed
onClick
An element is single-clicked
onDblClick
An element is double-clicked
onDragDrop
An object is dragged-and-dropped into a window
onError
An error occurs when loading a web page or picture
onFocus
The user places the focus on an element
onKeyDown
The user presses a defined key
onKeyPress
The user presses and holds down a defined key
onKeyUp
The user releases a defined pressed key
onLoad
A web page completes loading in a browser

36. Event Handlers Event Handler Event Trigger onMouseDown
The user presses a mouse button
onMouseMove
The user moves the mouse pointer
onMouseOut
The user moves the mouse pointer from a link
onMouseOver
The user moves the mouse pointer to a link
onMouseUp
The user releases a mouse buton
onMove
A window or frame is moved
onOpen
A web page opens in a browser
onReset
A form is reset
onResize
A window or frame is resized
onSelect
A field in a form is selected
onSubmit
A user submits a form
onUnload
A user opens another web page

37. Control Structures
Simple scripts are executed from the first statement to the last statement without interruption
Often you will want the script to go one way or another – or re-execute a particular piece of code
This is the purpose of control structures:
if/else
while
do-while
for
switch

38. The logical flow of an if statement

39. The logical flow of an if-else statement

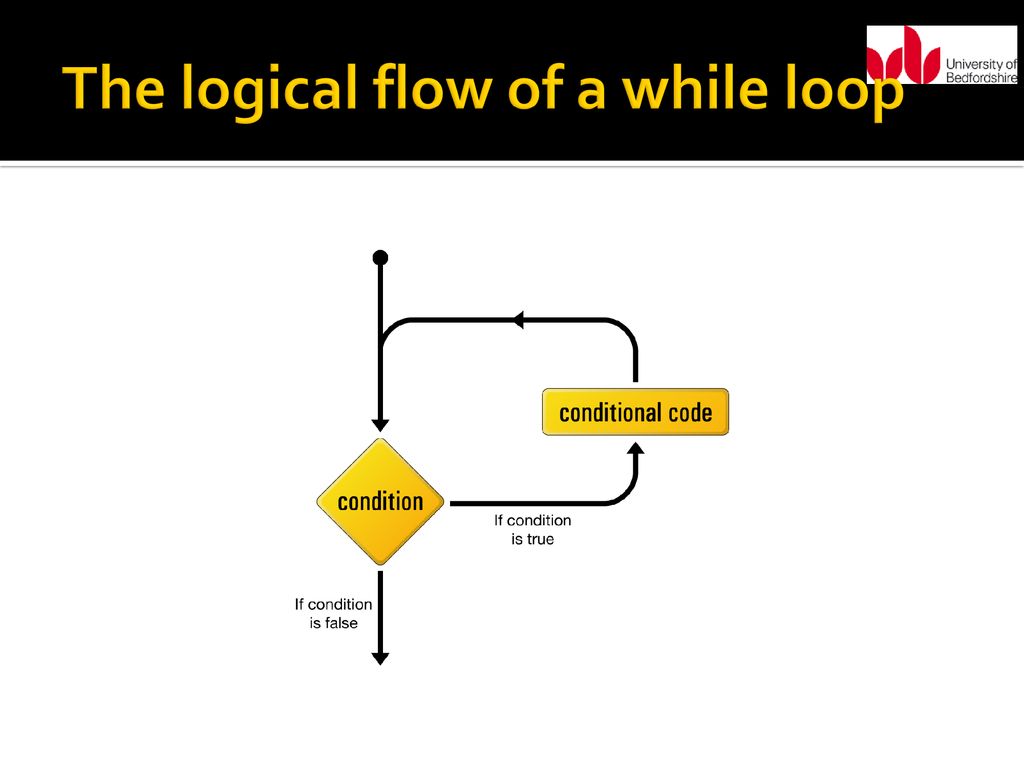

40. The logical flow of a while loop

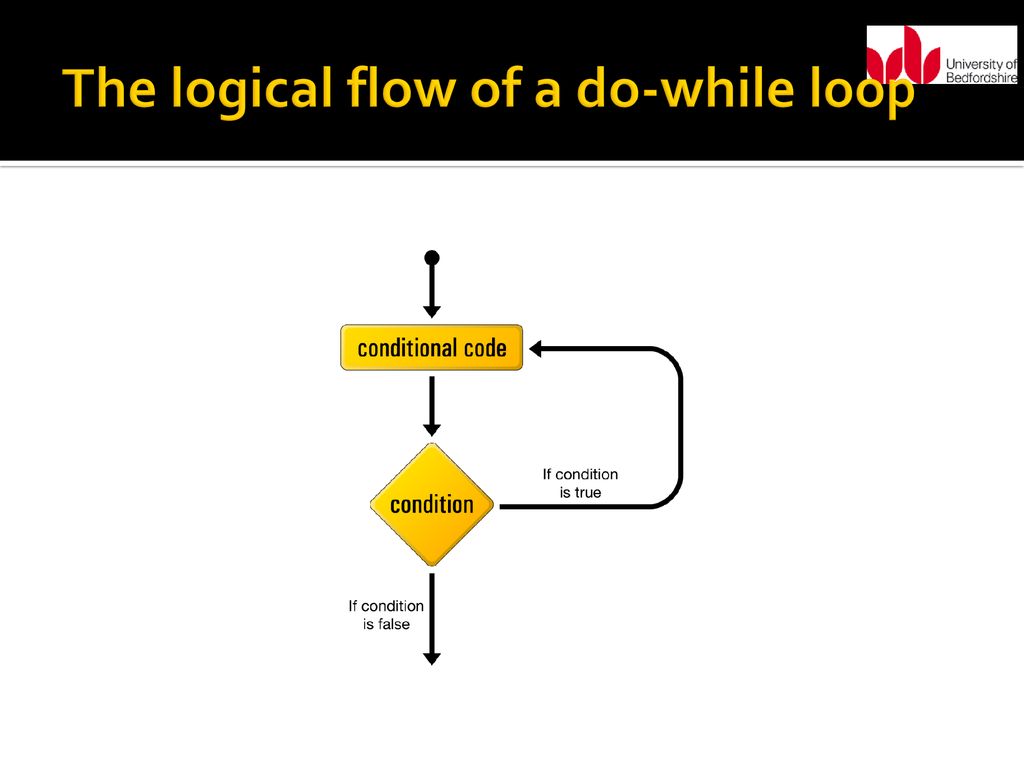

41. The logical flow of a do-while loop

42. The logical flow of a for loop

43. Where do you put your JavaScript?
<html>
<head>
<title>A Web Page Title</title>
<script type = "text/javascript">
// JavaScript goes here
</script>
</head>
<body>
// JavaScript can go here too
</body>
</html>

44. Where do you put your JavaScript?
<html>
<head>
<title>A Web Page Title</title>
<script type = "text/javascript“ src = “myjavascript.js”>
// JavaScript in external file
</script>
</head>
<body>
<script type = "text/javascript">
// JavaScript can go here too
</body>
</html>

45. JavaScript in <body> tag is executed as it is encountered…
<head>
<title>A Web Page Title</title>
<script type = "text/javascript">
// JavaScript Goes Here
</script>
</head>
<body>
document.write("hello");
document.write(" world");
</body>
</html>

46. Writing text to page <html> <body>
<script type="text/javascript">
document.write("Hello World!");
</script>
</body>
</html>

47. Adding comments to handle older browsers
<html>
<body>
<script type="text/javascript">
<!--
document.write("Hello World!");
//-->
</script>
</body>
</html>

48. Writing HTML tags on a page using JavaScript
<body>
<script type="text/javascript">
document.write("<h1>This is a header</h1>");
</script>
</body>
</html>

49. First Web Project <html> <head>
<title>My First Page</title>
<script type = "text/javascript">
function yetAnotherAlert(textToAlert) {
alert(textToAlert); }
yetAnotherAlert("This is my first JavaScript!");
</script>
</head>
<body>
</body>
</html>

50. First Web Project <html> <head>
<title>My First Page</title>
<script type = "text/javascript">
function yetAnotherAlert(textToAlert) {
alert(textToAlert); }
yetAnotherAlert("This is my first JavaScript!");
</script>
</head>
<body>
yetAnotherAlert("This function has been called from the body of the page!");
</body>
</html>

51. First Web Project <html> <head>
<title>My First Page</title>
<script type = "text/javascript“ src = “myscript.js”> </script>
</head>
<body>
<script type = "text/javascript">
yetAnotherAlert("This function has been called from the body of the page!");
</script>
</body>
</html>

52. First Web Project – What have we learned?
JavaScript code consists of lines (or statements)
Use the HTML <script> to embed code in HTML page
<script type = "text/javascript“>
Every line (statement) ends with ; (semi-colon)
Code on HTML page is read/interpreted line by line from the top of the page

53. First Web Project – What have we learned?
Can be embedded using the <script> tag in either the
<head>
<body>
An external JavaScript file can also be linked to a web page (.js extension).
<script type = "text/javascript“ src = “myscript.js”>
Don’t use the HTML <script> tag in the external .js file

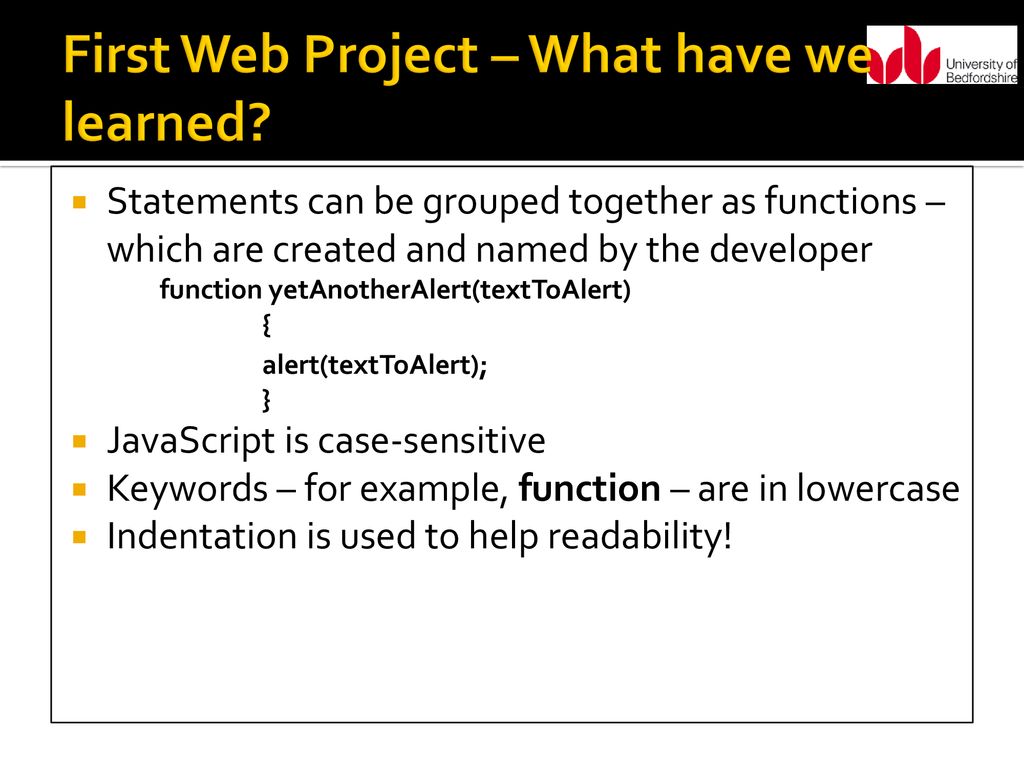

54. First Web Project – What have we learned?
Statements can be grouped together as functions – which are created and named by the developer
function yetAnotherAlert(textToAlert) {
alert(textToAlert); }
JavaScript is case-sensitive
Keywords – for example, function – are in lowercase
Indentation is used to help readability!

55. First Web Project – What have we learned?
Use curly braces { } to group statements into blocks
Code in functions is only run when functions are ‘called’
Functions can be called from the <head> or (more usually) the <body>
yetAnotherAlert("This is my first JavaScript!");
yetAnotherAlert("This function has been called from the body of the page!");

56. First Web Project – What have we learned?
The function name is always followed by ()
Arguments (or parameters) can be passed into a function:
function yetAnotherAlert(textToAlert) {
alert(textToAlert); }
yetAnotherAlert("This is my first JavaScript!");
Note the use of " " around literal strings.

57. First Web Project – What have we learned?
There are also pre-defined functions (or methods):
alert(“My name is Sue”); or
alert(textToAlert);
window.alert(“My name is Sue”)
window.alert(textToAlert);

58. Quick question!!
What is the purpose of using functions?

59. Variables Variables are containers for storing values (literals)
Can be used and re-used
Rules for naming
Begin with [a…z], [A…Z], or ‘_’
All subsequent characters [a…z], [A…Z], [1…9] or ‘_’
Variables are case sensitive
Should not use JavaScript keywords or reserved words

60. Good or Bad Variables? var bedfordvar1 = “Bedford1";
var var = “Bedford7";

61. JavaScript is ‘weakly typed’
You do not have to declare a datatype
You do not even have to declare the variable before use
However, it is good practice to declare variable first
Arrays are indexes of similar items. Items must have the same datatype. Powerful when used with loops.

62. Datatypes Datatypes: Null Integer (Decimal, Hexadecimal, Octal)
Float (Decimal integer, decimal point, numbers to right of decimal point, and possibly, exponent)
Boolean (datatype with two states only)
String – collection of characters – surrounded by double or single quotes

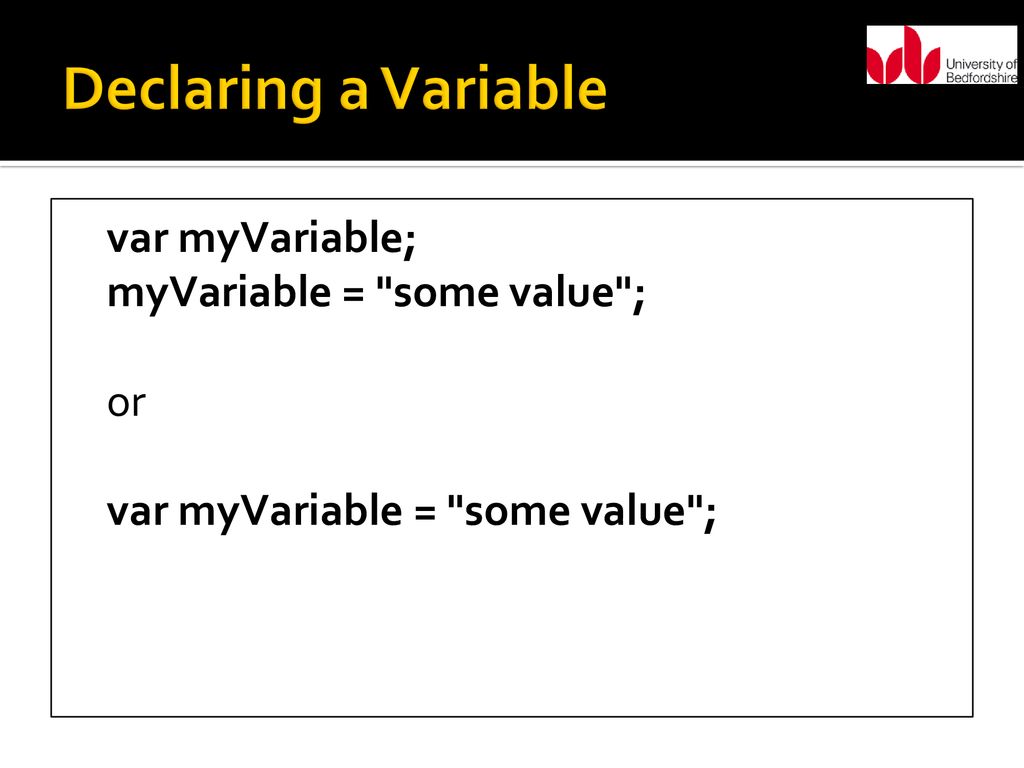

63. Declaring a Variable
var myVariable; myVariable = "some value"; or var myVariable = "some value";

64. <script language="JavaScript"> var myVariable = "Hello";
<head>
<script language="JavaScript">
var myVariable = "Hello";
</script>
</head>
<body>
We created a variable in the header.
<script language = “JavaScript”>
document.write(“The variable contains: “ +
myVariable);
</body>
Outputting a variable

65. Changing the value in a variable
<html>
<head>
</head>
<body>
<script type="text/javascript">
var firstname;
firstname="Fred";
document.write(firstname);
document.write("<br />");
firstname="Tom";
</script>
<p>The script above declares a variable, assigns a value to it, displays the value, changes the value, and displays the value again.</p>
</body>
</html>
Changing the value in a variable

66. What is a String?
Any sequence of characters – and can contain numbers, letters or other symbols
Surrounded by double or single quotes
Valid:
"Hello there"
'My Phone number is ‘
Non-valid:
"Hello'
What is your name?

67. Concatenating Strings
Combines two text strings into one longer text string: var myVariable = "ab" + "cd"; or var thisVar = “cd”; var myVariable = "ab" + thisVar;

68. Concatenating strings
<body>
<script language="JavaScript">
<!—
var myVariable = "Hello";
var anotherVariable = "there"
var finalResults = myVariable + " " + anotherVariable;
document.write(finalResults);
// -->
</script>
</body>
Concatenating strings

69. Three ways of outputting strings
<body>
<script language="JavaScript">
<!--
var myGreeting = “Hello”;
document.write(myGreeting);
document.write(“<br />My Name is Sue”);
window.alert(myGreeting + “\nMy Name is Sue”);
// -->
</script>
</body>
Three ways of outputting strings

70. String Character Codes
\ is the escape operator
\” will literally place a quotation mark in a string
\n is the new line character

71. Performing Calculations
Addition: For instance,
Subtraction: For instance, 20 – 10
Multiplication: For instance, 10 * 20
Division: For instance, 20 / 10
Can use complex expressions:
100 / 5 – 10
100 / (5 – 10)
var myVariable = 100 / 5;
var myVariable = 100 / thisVar;

72. <body>
<script language="JavaScript">
<!—
var myVariable = 100;
var anotherVariable = 200
var finalResults = myVariable + anotherVariable;
document.write(finalResults);
// -->
</script>
</body>

73. Operators
The assignment operator = is used to assign values to JavaScript variables.
The arithmetic operator + is used to add values together.
y=5;
z=2;
x=y+z;
What value does x contain?

74. Arithmetic Operators
Given that y=5, the table below explains the arithmetic operators:
Operator
Description
Example
Result +
Addition
x=y+2 -
Subtraction
x=y-2 *
Multiplication
x=y*2 /
Division
x=y/2 %
Modulus (division remainder)
x=y%2 ++
Increment
x=++y --
Decrement
x=--y

75. Arithmetic Operators
Given that y=5, the table below explains the arithmetic operators:
Operator
Description
Example
Result +
Addition
x=y+2
x=7 -
Subtraction
x=y-2
x=3 *
Multiplication
x=y*2
x=10 /
Division
x=y/2
x=2.5 %
Modulus (division remainder)
x=y%2
x=1 ++
Increment
x=++y
x=6 --
Decrement
x=--y
x=4

76. Assignment Operators
Given that x=10 and y=5, the table below explains the assignment operators:
Operator
Example
Same As
Result =
x=y +=
x+=y
x=x+y -=
x-=y
x=x-y *=
x*=y
x=x*y /=
x/=y
x=x/y %=
x%=y
x=x%y

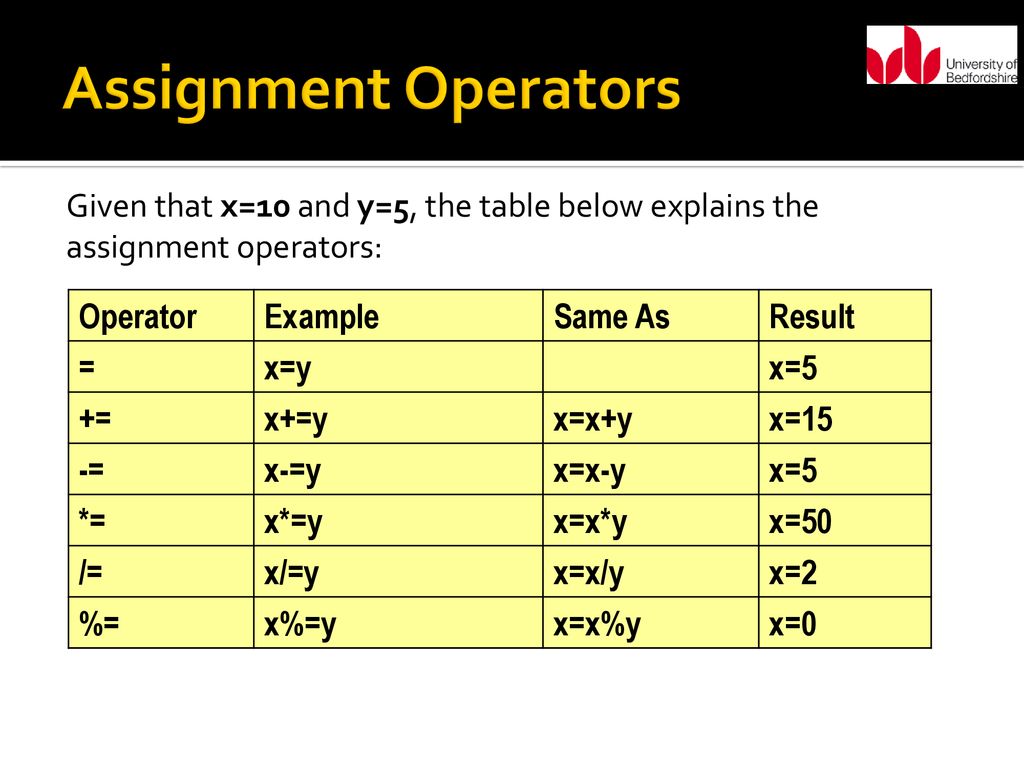

77. Assignment Operators
Given that x=10 and y=5, the table below explains the assignment operators:
Operator
Example
Same As
Result =
x=y
x=5 +=
x+=y
x=x+y
x=15 -=
x-=y
x=x-y *=
x*=y
x=x*y
x=50 /=
x/=y
x=x/y
x=2 %=
x%=y
x=x%y
x=0

78. What is the output? txt1="What a very"; txt2="nice day";
txt3=txt1+" "+txt2;

79. Adding Strings and Numbers
<body>
<script type="text/javascript">
x=5+5;
document.write(x);
document.write("<br />");
x="5"+"5";
x=5+"5";
x="5"+5;
</script>
<p>The common rule is: If you add a number and a string,
the result will be a string.</p>
</body>

80. Comparison and Logical Operators
Comparison and logical operators are used to test for true or false.
Comparison operators are used in logical statements to determine equality or difference between variables or values.
Logical operators are used in determine the logic between variables or values.

81. Comparison Operators
Given that x=5, the table below explains the comparison operators:
Operator
Description
Example ==
is equal to
x==8 is false
===
is exactly equal to (value and type)
x===5 is true x==="5" is false !=
is not equal
x!=8 is true
>
is greater than
x>8 is false
<
is less than
x<8 is true
>=
is greater than or equal to
x>=8 is false
<=
is less than or equal to
x<=8 is true

82. How Comparison Operators can be used:
Comparison operators can be used in conditional statements to compare values and take action depending on the result: if (age<18) document.write("Too young");

83. Logical Operators
Given that x=6 and y=3, the table below explains the logical operators:
Operator
Description
Example
&&
and
(x < 10 && y > 1) is true || or
(x==5 || y==5) is false !
not
!(x==y) is true

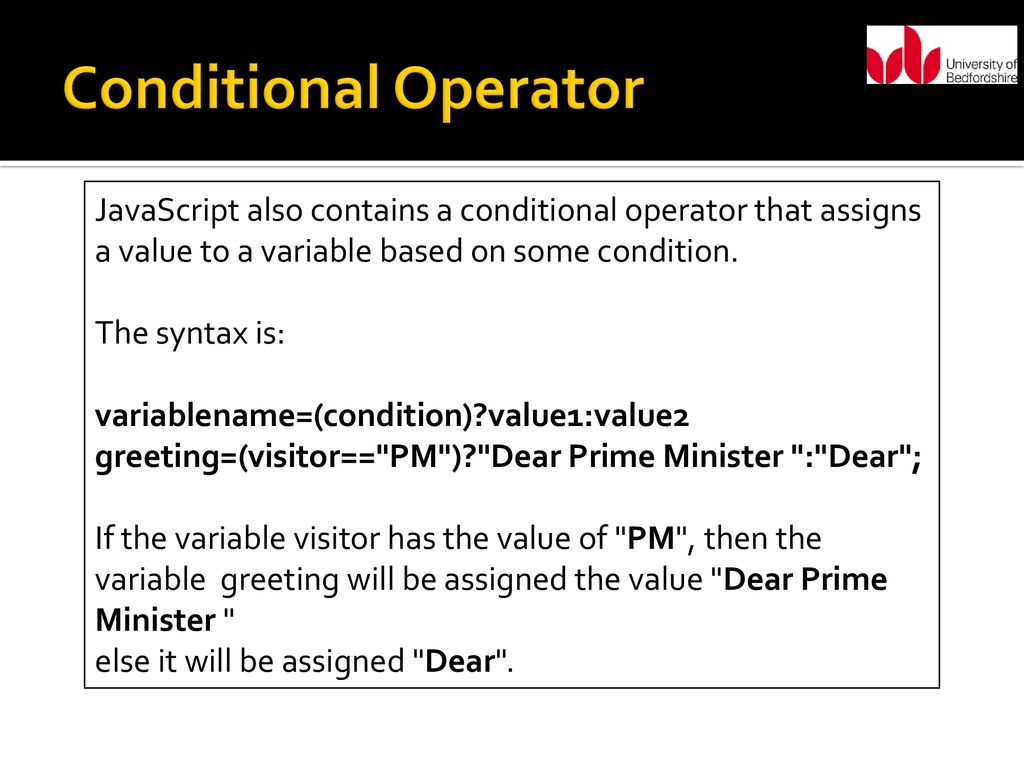

84. Conditional Operator
JavaScript also contains a conditional operator that assigns
a value to a variable based on some condition.
The syntax is:
variablename=(condition)?value1:value2
greeting=(visitor=="PM")?"Dear Prime Minister ":"Dear";
If the variable visitor has the value of "PM", then the variable greeting will be assigned the value "Dear Prime Minister "
else it will be assigned "Dear".

85. JavaScript Security Issues
reading/writing client files,
opening/closing user windows,
reading information from other browser windows
The Sand Box – JavaScript’s Security Model
Signed Scripts
Same-Origin Security Policy
Cross-Site Scripting (XSS)
SQL Injection
