1. Gene Linkage and Genetic Mapping4
Gene Linkage and Genetic Mapping

2. If two genes are on different chromosomes…

3. If two genes are on different chromosomes…
Half look like they got a set of the parents chromosomes…
And half look like they got a mix of both parents chromosomes…

4. Now suppose both gene A and B were next to each other on the same chromosome.
What happens to the ratios in this diagram?

7. Gene Mapping
Gene mapping determines the order of genes and the relative distances between them in map units
1 map unit = 1 cM (centimorgan)
Gene mapping methods use recombination
frequencies between alleles in order to determine the relative distances between them
Recombination frequencies between genes are inversely proportional to their distance apart
Distance measurement: 1 map unit = 1 percent recombination (true for short distances)

8. Fig. 4.6

9. Gene Mapping
Genes with recombination frequencies less than 50 percent are on the same chromosome = linked)
Linkage group = all known genes on a chromosome
Two genes that undergo independent assortment have recombination frequency of 50 percent and are located on nonhomologous chromosomes or far apart on the same chromosome = unlinked

10. Mapping the distance between two genes
Starting with pure breeding lines,
Cross Parent 1(AA BB) with Parent 2(aa bb)
So Parental chromosomes in the F1 have to be AB and ab
Now cross (AB ab) F1 progeny with (ab ab) tester to look for recombination on these chromosomes.
Suppose you Get……
AB ab 583 <parental
ab ab 597 <parental
Ab ab 134 <recombinant
aB ab 134 <recombinant total= 1448
so…. 268 recombinants /1448 progeny =
0.185 recombinants/progeny=
18.5% recombinants=
18.5 mu

11. Mapping (and ordering) three genes
Starting with pure breeding lines, Cross Parent 1(AA BB DD) with Parent 2(aa bb dd)
So you know the Parental chromosomes in the F1 have to be ABD and abc
Cross (ABD abd) F1 progeny with (abd abd) tester
Suppose you Get……
ABD abd 580 <parental
ABd abd 3
abD abd 5 <parental
abd abd 592
AbD abd 45 <recombinant
Abd abd 89
aBD abd 94
aBd abd 40 <recombinant total= 1448
Ab + aB = (45+89)+(94+40) recom
268 recom/1448 total =0.185
A-B =18.5mu
Bd + bD = (3+40)+(5+45)
93 recom/1448 total= 0.064
B-D =6.4mu
Ad + aD = (3+89)+(5+94)
191 recom/1448 total= 0.132
A-D =13.2mu
so the order must be A-----D---B

12. So How come 13.2 + 6.4 does not equal 18.5?
We missed the double recombinants on the first pass…
longer the distance, more potential to underestimate recomb freq.
(45+89)+(94+40)+2(3+5) recom
284recom/1448 total = 0.196
A-B =19.6mu
Cross (ABD abd) F1 progeny with (abd abd) tester
Suppose you Get……
ABD abd 580 <parental
ABd abd 3
abD abd 5 <parental
abd abd 592
AbD abd 45 <recombinant
Abd abd 89
aBD abd 94
aBd abd 40 <recombinant total= 1448
Ab + aB = (45+89)+(94+40) recom
268 recom/1448 total =0.185
A-B =18.5mu
A-----D---B

13. Interference = 1-Coefficient of coincidence
Chromosome interference: crossovers in one region decrease the probability of a second crossover close by
Coefficient of coincidence = observed number of double recombinants divided by the expected number \
Interference = 1-Coefficient of coincidence
If the two crossovers were independent,
we would expect that the probability of seeing two recombination events occur would be
between A-D AND between D-B
0.132 X = 0.008
For every 1448 progeny, this would be (1448x0.008)=12.23 double recombinants
We actually observed only (5+3)= 8 double recombinants
So the Coefficient of coincidence = observed / expected = 8/12.23 =0.65
Interference = 1-Coefficient of coincidence =
= 0.35

14. Mapping Genes in Human Pedigrees
Methods of recombinant DNA technology are used to map human chromosomes and locate genes
Genes can then be cloned to determine structure and function
Human pedigrees and DNA mapping are used to identify dominant and recessive disease genes
Polymorphic DNA sequences are used in human genetic mapping.

15. Genetic Polymorphisms
The presence in a population of two or more relatively common forms of a gene or a chromosome is called polymorphism
Changes in DNA fragment length produced by presence or absence of the cleavage sites in DNA molecules are known as restriction fragment length polymorphism (RFLP)
A prevalent type of polymorphism is a single base pair difference, simple-nucleotide polymorphism (SNP)
A genetic polymorphism resulting from a tandemly repeated short DNA sequence is called a simple sequence repeat (SSR)

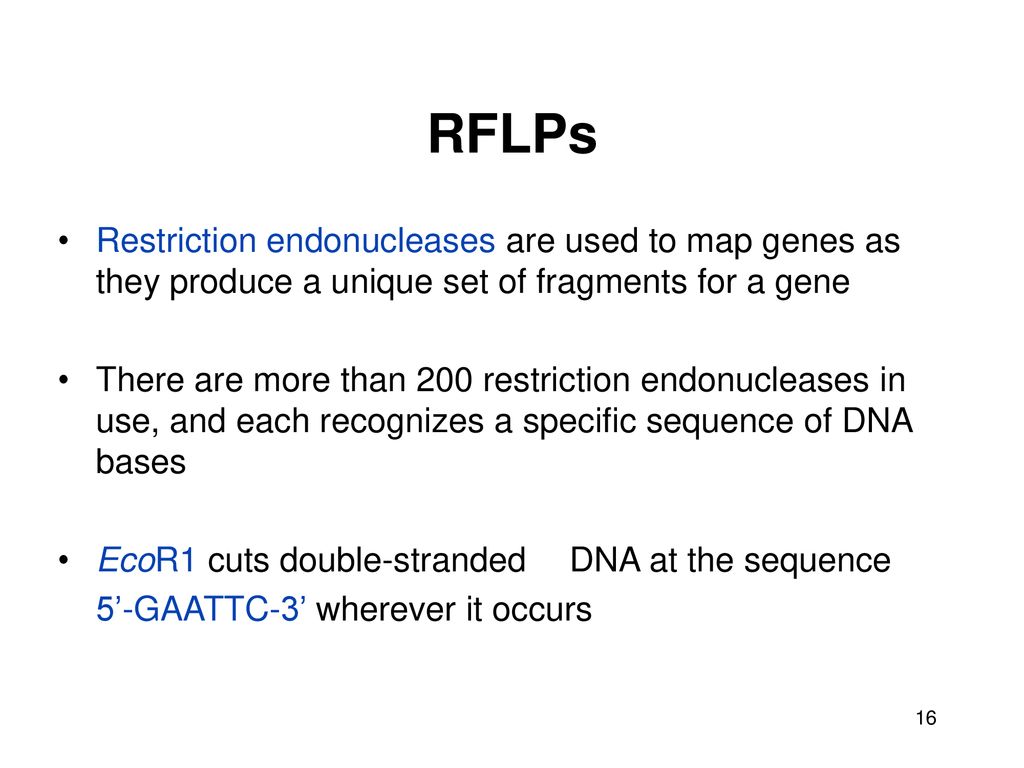

16. RFLPs
Restriction endonucleases are used to map genes as they produce a unique set of fragments for a gene
There are more than 200 restriction endonucleases in use, and each recognizes a specific sequence of DNA bases
EcoR1 cuts double-stranded DNA at the sequence
5’-GAATTC-3’ wherever it occurs

17. Fig. 4.18

18. RFLPs
Differences in DNA sequence generate different recognition sequences and DNA cleavage sites for specific restriction enzymes
Two different genes will produce different fragment patterns when cut with the same restriction enzyme due to differences in DNA sequence
Fig. 4.19

19. SNPs
Single-nucleotide polymorphisms (SNPs) are abundant in the human genome
Rare mutants of virtually every nucleotide can probably be found, but rare variants are not generally useful for family studies of heritable variation in susceptibility to disease
For this reason, in order for a difference in nucleotide sequence to be considered as an SNP, the less-frequent base must have a frequency of greater than about 5% in the human population.
By this definition, the density of SNPs in the human genome averages about one per 1300 bp

20. SSRs
A third type of DNA polymorphism results from differences in the number of copies of a short DNA sequence that may be repeated many times in tandem at a particular site in a chromosome
When a DNA molecule is cleaved with a restriction endonuclease that cleaves at sites flanking the tandem repeat, the size of the DNA fragment produced is determined by the number of repeats present in the molecule
There is an average of one SSR per 2 kb of human DNA

21. Mapping Genes in Human Pedigrees
One source of the utility of SNPs and SSRs in human genetic mapping is their high density across the genome
Additional source of utility of SSRs in genetic mapping is the large number of alleles that can be present in any human population.

22. Mapping Genes in Human Pedigrees
Human pedigrees can be analyzed for the inheritance pattern of different alleles of a gene based on differences in SSRs and SNPs
Restriction enzyme cleavage of polymorphic alleles that are different in RFLP pattern produces different size fragments by gel electrophoresis

23. A rare recessive disease that affects people late in life
is 90% linked to the RFLP marker on the gel below.
What’s the probability that II1 is a carrier of the disease? dd DD Dd
100%
What’s the probability that the grandchildren (row III) are carriers?
90% 10% 90%10% 10% 90% 90%

24. A rare recessive disease that affects people late in life
is 90% linked to the RFLP marker on the gel below.
What’s the probability that II1 is a carrier of the disease? dd DD Dd
100%
What’s the probability that the grandchildren (row III) are carriers?
10% 90% 10% 90% 90% 10% 10%

25. Tetrad Analysis
In some species of fungi, each meiotic tetrad is contained in a sac-like structure, called an ascus
Each product of meiosis is an ascospore, and all of the ascospores formed from one meiotic cell remain together in the ascus
Several features of ascus-producing organisms are especially useful for genetic analysis:
They are haploid, so the genotype is expressed directly in the phenotype
They produce very large numbers of progeny
Their life cycles tend to be short

26. Tetrad Analysis
In tetrads when two pairs of alleles are segregating, three patterns of segregation are possible
parental ditype (PD) = two parental genotypes
nonparental ditype (NPD) = only recombinant combinations
tetratype (TT) = all four genotypes observed

27. Tetrad Analysis
When genes are unlinked, the parental ditype tetrads and the nonparental ditype tetrads are expected in equal frequencies: PD = NPD
Linkage is indicated when nonparental ditype tetrads appear with a much lower frequency than parental ditype tetrads: PD » NPD
Map distance between two genes that are sufficiently close that double and higher levels of crossing-over can be neglected, equals
1/2 x (Number TT / Total number of tetrads) x 100

28. Neurospora: Ordered Tetrads
Ordered asci also can be classified as PD, NPD, or TT with respect to two pairs of alleles, which makes it possible to assess the degree of linkage between the genes
The fact that the arrangement of meiotic products is ordered also makes it possible to determine the recombination frequency between any particular gene and its centromere

29. Tetrad Analysis: Ordered Tetrads
Homologous centromeres of parental chromosomes separate at the first meiotic division
The centromeres of sister chromatids separate at the second meiotic division
When there is no crossover between the gene and centromere, the alleles segregate in meiosis I
A crossover between the gene and the centromere delays segregation alleles until meiosis II

30. The map distance between the gene and its centromere equals
1/2 x (Number of asci with second division segregation/ Total number of asci) x 100
This formula is valid when the gene is close enough to the centromere and there are no multiple crossovers

31. Gene Conversion
Most asci from heterozygous Aa diploids demonstrate normal Mendelian segregation and contain ratios of
2A : 2a in four-spored asci, or 4A : 4a in eight-spored asci
Occasionally, aberrant ratios are also found, such as
3A : 1a or 1A : 3a and 5A : 3a or 3A : 5a. The aberrant asci are said to result from gene conversion because it appears as if one allele has “converted” the other allele into a form like itself
Gene conversion is frequently accompanied by recombination between genetic markers on either side of the conversion event, even when the flanking markers are tightly linked
Gene conversion results from a normal DNA repair process in the cell known as mismatch repair
Gene conversion suggests a molecular mechanism of recombination

32. One of two ways to resolve the resulting structure, known as a Holliday junction, leads to recombination, the other does not
The breakage and rejoining is an enzymatic function carried out by an enzyme called the Holliday junction-resolving enzyme
