1. A Cost Effective Alternative for Rigid Foams
低成本硬泡环保发泡剂

2. Overview Ecomate Product Review Useage & Market Applications
Discontinuous Panels
Ecomate Spray Foam & Emissions
Considerations/FAQs
Ecomate’s Success & Availability

3. What is ecomate®? A liquid blowing agent or a foam expansion agent
An alternative blowing agent for rigid and flexible applications
Cost competitive & economical
Been in Commercial use since the past 10 years
Meets regulatory standards as an alternative in PU foams

4. Regulatory US EPA SNAP Approved RoHS and WEEE Compliant GRAS Approved
Non-Toxic
VOC-Exempt
Montreal & Kyoto Protocol Compliant
UL, FM & USCG Classified Systems

5. Properties & Comparison
Well-suited blowing agent for PUR & PIR foams
Similar to HCFC-141b
Liquid at room temperature
No special equipment needed when handling
Non-ozone depleting and virtually zero GWP

6. ecomate® Sector Usage

7. ecomate® China Various Applications
Rigid Foams –
Commercial Refrigeration- Chest freezers, bottle coolers, ice machines
Discontinuous Panels
Reefer Container Insulation / Cold Stores
Wood Imitation
Flexible Foams -
Automotive – ISF Steering Wheels / NVH Applications
Toys & Recreational

8. ecomate® Applications
Rigid Foams
Pour-In-Place Rigid Insulating Foams
Commercial Foodservice Equipment/ Commercial Refrigeration
Discontinuous Panels
Cold Stores
Houses – Modular
Transport
Continuous Panels
Flex Faced
Metal Faced
Block Foams
Sheets
Pipe Sections
Spray Foams
Industrial
Dwellings

9. Discontinuous Foam PUR/ PIR Block Foams
Discontinuous block foam, picture shows a comparison between HCFC141b (right) and Ecomate (left)
Ecomate foams can achieve 5 percent lower density, while maintaining foam strength
Lower picture shows cross section of the block, no discoloration apparent

10. Discontinuous Panels- Italy
Foaming trials were conducted in Italy at a large equipment supplier
Ecomate systems were used and standard densities were obtained as with a 141b system
Results:
Compressive Strength
180 kPa
Closed Cell Content
>95%
K-Value
0.023 W/m*K
Nominal Density
Core Density
Left Side
Center
Right Side
Panel “a”
40 kg/m3
34.35 kg/m3
39.70 kg/m3
36.82 kg/m3
Panel “b”
42.5 kg/m3
39.27 kg/m3
39.12 kg/m3
39.57 kg/m3

11. Discontinuous Panels – Vietnam
Discontinuous production of building panels in Vietnam
Demold time identical to HCFC141b
Insulation properties five percent lower compared to HCFC141b when tested at operating temperatures

12. Spray Foams – Industrial & Dwellings
Worldwide Use: Africa, Asia, Americas, Australia, China, Europe, etc.
Produces standard densities [32kg/m3 (2pcf)]
Can be processed through standard and/or existing equipment
Compatible with currently available raw materials - Polyesters, Mannichs, Sucrose, Amines, Surfactants & Catalysts
Mexican systems houses achieved successful trials (UNDP project)

13. Dimensional Stability
Spray Foam − Mexico
Density (kg/m3) 1” 2” 3”
Average
Core
31.58
32.51
34.58
32.89
Overall
34.59
38.13
42.27
38.33
λ-Value (W/m*K)
0.0220
0.0237
0.0229
Dimensional Stability
70°C (15 days)
No change
-19°C (15 days)

14. Spray Foam - Egypt Spray Foam trial run with Eco-spray R-3000
Good spray pattern and fine cell structure
Foam density g/l {2pcf – 2.6pcf}
λ- Value was W/m*K
Compressive Strength of 42g/l foam was 235 kPa (parallel to rise)
Dimensional stability of 32 and 42 g/l foam, no measurable -25 °C
Typical Sprayed thickness 100 – 250mm

15. Methyl Formate Concentration
Spray Emissions – 3rd Party Testing
Ecomate concentrations were measured at the spray operators as well as in the immediate vicinity
The results indicated that the ecomate concentration was below the recommended limit (250mg/m3)
Sample No.
Methyl Formate Concentration
Actual Flow Rate
Period of Sampling
Person/Area Sampled 1
3.1 mg/m3
65.8 ml/min
12:00-12:50
Spray Operator 2
1.6 mg/m3
70.3 ml/min
12:03-12:50
Assistant 3
4.8 mg/m3
71.3 ml/min
12:05-12:50
Static Sample on Center Pole

16. Spray Emissions – 3rd Party Testing
Spray Foam Example:
ecomate® emissions were recorded while spray job was in progress
The emissions were collected where the concentration was expected to be the highest
Results:
At the gun head: PPM
Over fresh rising foam: PPM
OSHA regulations: 100 PPM

17. System Emissions
Stored Systems in Drums/Totes

18. UNDP Validation Report

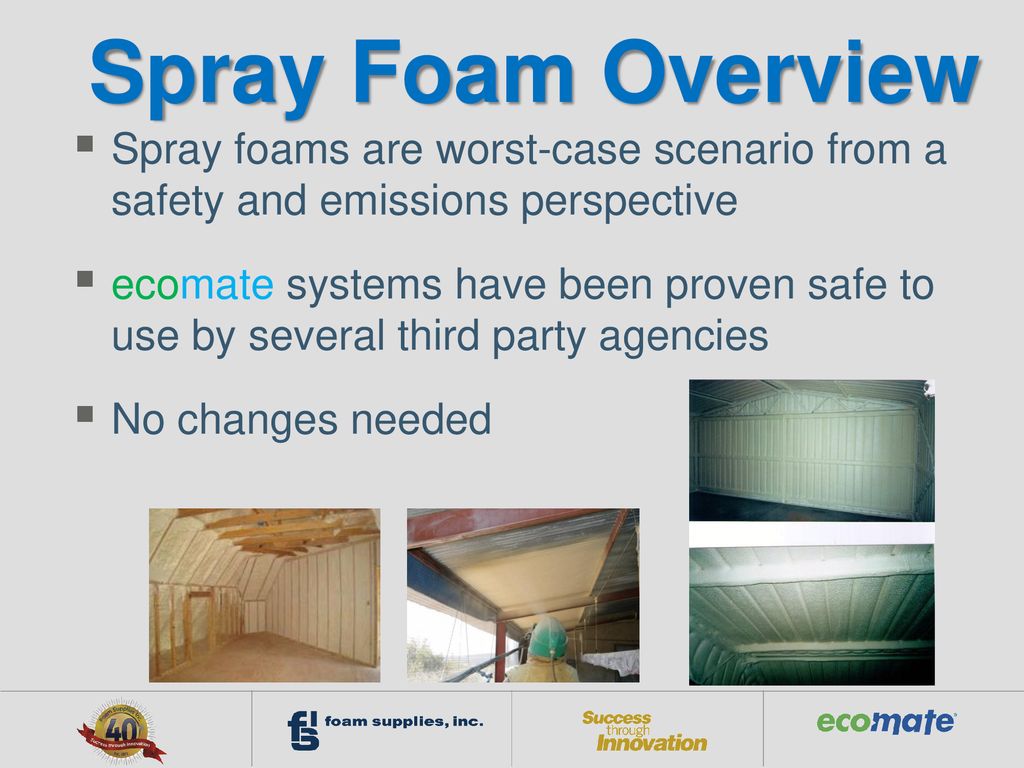

19. Spray Foam Overview
Spray foams are worst-case scenario from a safety and emissions perspective
ecomate systems have been proven safe to use by several third party agencies
No changes needed
Spray foams widely accepted to be worst case scenario from safety and emissions perspective. We have done intensive testing internally and externally.
Not once has there proven to be close to bean unsafe scenario.
It is safe to assume that if ecomate is safe in spray foam apps, that it will be safe for all other applications.

20. Considerations Not a Drop-in replacement for all systems
Optimization is REQUIRED!
Minimal Capital Expense
Fractional compared to hydrocarbon technology
Cost Efficient
Environmentally Benign
Meets Montreal Protocol
Meets Kyoto Protocol
Thermally Efficient
Flash Point
ecomate – pure form flammable -19⁰C flash point
ecomate – polyol blend nonflammable +70⁰C flash point
ecomate – mdi blend nonflammable +80⁰C flash point

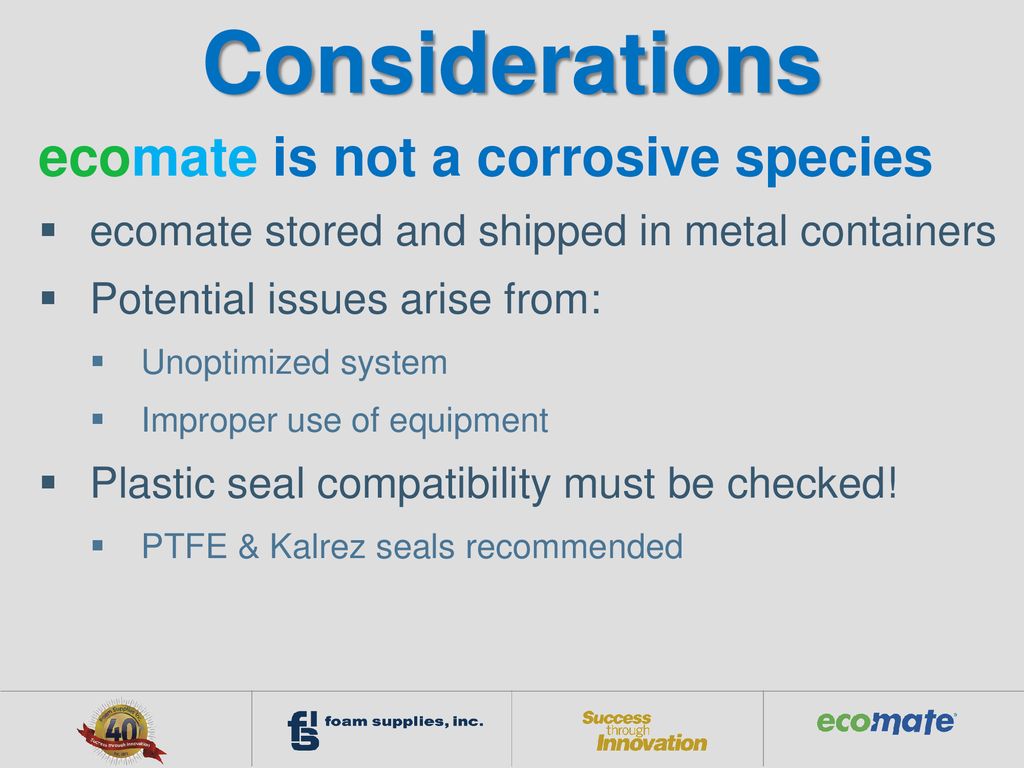

21. Considerations ecomate is not a corrosive species
ecomate stored and shipped in metal containers
Potential issues arise from:
Unoptimized system
Improper use of equipment
Plastic seal compatibility must be checked!
PTFE & Kalrez seals recommended

22. Is ecomate® - Flammable?
Pure ecomate is flammable
Ecomate blended systems are considered combustible just like 141b-blown systems
Why is this important?
ecomate® systems are safer to handle than flammables and Hydrocarbon/Pentane PU systems. In addition, systems made with ecomate have much lower shipping, handling & storage costs vs. Hydrocarbon/Pentane systems and other flammables.
Facilities equipped to handle 141b systems and/or isocyanates need little to no changes or upgrades. There is no need for large capital changes to facilities.
High Insurance premiums and costs associated with flammables and Hydrocarbon/Pentane PU systems are much lower for systems made with ecomate.

23. Is ecomate® Safe? YES Contributing factors
Chemical Nature
High Solubility
Low Volatility
Can be handled similar to HCFC-141b Systems
If adhering to current regulations and handling precautions for MDI ….user is covered and should have nothing to worry about.
User training & Safe Handling Guide
Stresses Basic “Best” Practices
Above & Beyond Requirements

24. Why is ecomate successful?
Compatible with all PU raw materials
Meets or exceeds energy standards
Can process through standard and/or existing equipment
No additional capital investment necessary
Available worldwide

25. ecomate® Availability – Worldwide

26. Conclusions Environmentally safe
More compatibilizing than other blowing agents
Minimal to no change in equipment
Ecomate spray foam (worst-case scenario) has been proven safe by multiple third party testing facilities
Not a Drop-in replacement for all systems
Optimization is recommended for success
Increasing the functionality of polyol blend
Changing the surfactant type and amount
Not all polyols OR surfactants are created equal

27. Thank you for your time.
