1. Microbes and biotechnology
Option F.1

2. Assessment statements
F.1.1 Outline the classification of living organisms into three domains.
F.1.2 Explain the reasons for the reclassification of living organisms into three domains.
F.1.3 Distinguish between the characteristics of the three domains.
F.1.4 Outline the wide diversity of habitat in the Archae, as exemplified by methanogens, thermophiles and halophiles.
F.1.5 Outline the diversity of Eubacteria, including shape and cell wall structure.
F.1.6 State, with one example, that some bacteria form aggregates that show characteristics not seen in individual bacteria.
F.1.7 Compare the structure of the cell walls of Gram-positive and Gram-negative Eubacteria.
F.1.8 Outline the diversity of structure in viruses including: naked capsid versus enveloped capsid; DNA versus RNA; and single stranded versus double stranded DNA or RNA.
F.1.9 Outline the diversity of microscopic eukaryotes, as illustrated by Saccharomyces, Amoeba, Plasmodium, Paramecium, Euglena and Chlorella.

3. The five kingdoms Established in 1959 by Robert Whittaker
Bacteria: single-celled organisms with no organized nucleus and no membrane-bound organelles
Protista: single-celled organisms with an organized nucleus and organelles each surround by a membrane
Fungi: multicellular organisms which obtain their food using extracellular digestion and have cell walls of chitin
Plants: multicellular organisms which obtain their food by photosynthesis and have cell walls of cellulose
Animals: multicellular organisms which obtain their food by feeding on other organisms and have no cell wall

4. Five kingdoms grouped into two categories
Prokaryotes: bacteria which have no organized nucleus and no membrane-bound organelles
Eukaryotes: all of the other kingdoms which have an organized nucleus

5. The three domains
Attempt by Carl Woese to improve the accuracy of the classification system based on studies of rRNA Eubacteria: ‘true’ bacteria, prokaryotes with no organized nucleus and no membrane-bound organelles.
Archaea: archaebacteria or ‘ancient’ bacteria are also prokaryotes; most live in extreme environments
Eukarya: single-celled and multicellular organisms which all have their DNA contained in a nucleus; plants, animals, protists, and fungi

6. Reasons for reclassification into three domains
rRNA is a molecule common to all organisms
Performs same function in all organisms
Coded for by DNA
By looking at variation in the sequence of rRNA, evolutionary relationships became apparent
Eubacteria and Archaea have different molecules making up their cell walls
E and A have different molecular structure of their cell membranes
E and A have different sequences of nucleotides in their rRNA

7. Characteristics of the three domains
Histones
Introns
Size of Ribosomes
Cell membrane lipids
Peptidoglycan in cell walls
Organelles
Eukarya
Present
Large subunits
(80S)
Unbranched hydrocarbons
Absent
Archaea
Histone-like proteins
Present in some
Small subunits
(70S)
Some branched hydrocarbons
Eubacteria

8. Homework What is the RNA world hypothesis?
Give supporting and refuting details for the hypothesis.
NO OPINIONS!!!

9. Diversity of habitat of Archaebacteria
Methanogens – use carbon dioxide to make methane; strict anaerobes; live in guts of termites and cattle, Siberian tundra, swamps rice fields, and in large intestines of dogs, pigs, and humans
Thermophiles – live in sulfur hot springs where the pH is very acidic and temperatures are up to 90°C; some live in hydrothermal vents up to 105°C
Halophiles – live in the Dead Sea, the Great Salt lake, and evaporated salt water ponds

10. Diversity of Eubacteria
Varieties of shape
Chain (strepto)
Cluster (staphylo)
Pair (diplo)
Aggregation
Vibrio fischeri emit light when in large groups, but not alone
Bioluminescence caused by turning on of gene by increased amount of signal molecule
Exist in light organs of squid
Bacteria senses high density based upon amt. of signal present called quorum sensing
Variety of cell wall
Gram +
Stain purple
Gram –
Stain pink
Three main shapes
Spheres (cocci)
Rods (bacilli)
Helices (spirilla)

11. Comparison of gram + and gram - bacteria
Cell wall structure
Gram + bacteria
(stain purple)
Gram – bacteria
(stain pink)
Complexity
Simple
Complex
Amount of peptidoglycan (protective sugar network)
Large amount
Small amount
Peptidoglycan placement
In outer layer of bacteria
Covered by outer membrane (protects from antibiotics)
Outer membrane
Absent
Present with lipopolysaccharides (toxic to host) attached

13. Diversity of structure of viruses
Are viruses alive?
Not cellular
Cannot reproduce without a host
Basic structure
Nucleic acid
DNA (double- or single-stranded)
RNA (double- or single-stranded)
Several enzymes
Protein coat (capsid)
Naked
Enveloped by membrane

14. Homework: Fill in chart
Organism
Nutrition
Locomotion
Cell wall
Chloroplasts
Cilia or flagella
Saccharomyces
Amoeba
Plasmodium
Paramecium
Euglena
Chlorella

15. Saccharomyces (yeast)
Ferments carbohydrates in flour or malt and gain energy from this digestion
Carbon dioxide gas (in bread) and ethanol (in beer) are by-produces
Fungi
Secrete enzymes outside their cells and absorb the produces of digestion back into the cell
Have chitin in cell wall

16. Amoeba Fluid state of cytoplasm enables it to change its shape easily
Pseudopodia wrap around a prey in order to trap it in a food vacuole for intracellular digestion

17. Plasmodium Parasitic heterotroph
Mosquitoes carry and infect humans causing malaria

18. Paramecium Ciliated heterotroph Intracellular digestion
Food taken into oral groove and passes to gullet

19. Euglena Both autotrophic and heterotrophic Contains chlorophyll
Has eyespot which facilitates movement towards light
Can absorb food from outside the cell
Has flagellum

20. Chlorella
Single-celled green algae
Non-motile
Cell wall of cellulose

21. Microbes and biotechnology
Option F.2

22. Assessment Statements
F.2.1 List the roles of microbes in ecosystems, including producers, nitrogen fixers and decomposers.
F.2.2 Draw and label a diagram of the nitrogen cycle.
F.2.3 State the roles of Rhizobium, Azotobacter, Nitrosomonas, Nitrobacter and Pseudomonas denitrificans in the nitrogen cycle.
F.2.4 Outline the conditions that favour denitrification and nitrification.
F.2.5 Explain the consequences of releasing raw sewage and nitrate fertilizer into rivers.
F.2.6 Outline the role of saprotrophic bacteria in the treatment of sewage using trickling filter beds and reed bed systems.
F.2.7 State that biomass can be used as raw material for the production of fuels such as methane and ethanol.
F.2.8 Explain the principles involved in the generation of methane from biomass, including the conditions needed, organisms involved and the basic chemical reactions that occur.

23. Role of microbes in ecosystems
Producers
Change inorganic molecules into organic molecules
Algae and some bacteria use chlorophyll to trap sunlight
Chemosynthetic bacteria use chemical energy
Nitrogen fixers
Bacteria remove nitrogen gas from the atmosphere and fix it into nitrates which are useable by producers
Decomposers
Breakdown detritus and release inorganic nutrients back into the ecosystems

24. The nitrogen cycle
Mutualistic nitrogen fixation: bacteria forms symbiotic relationship with a host plant and fix nitrogen for it (Ex.Rhizobium)
Free-living nitrogen fixation: live in soil (Ex. Azotobacter)
Industrial nitrogen fixation: burning of fossil fuels to produce fertilizer
Nitrification: ammonia turned into nitrites by bacteria (Ex. Nitrosomonas) and to turn nitrites into nitrates (Ex. Nitrobacter)
Active transport of nitrates: nitrates taken in by roots
Plants and animals: plants use nitrates to make their own proteins; animals feed on plants, digest and rearrange proteins to make their own proteins
Death and excretion: products of digestion and dead bodies contain molecules which contain nitrogen
Putrefaction: decomposers break down complex proteins and release nitrogen gas into the atmosphere
Denitrification: bacteria remove nitrates and nitrites and put nitrogen gas back into the atmosphere (Ex. Pseudomonas denitrificans)

25. Conditions which favor nitrification and denitrification
Carried out by Nitrosomonas (ammonia into nitrate)
Carried out by Nitrabacter (nitrite into nitrate)
Available oxygen
Neutral pH
Warm temperature
Denitrification
Carried out by Pseudomonas denitrificans (nitrates into nitrogen gas)
No available oxygen
High nitrogen input

26. Consequences of releasing raw sewage and nitrate fertilizer into rivers
High nitrates and phosphates fertilize the algae present in water
Increased growth of algae
Algae are decomposed by aerobic bacteria which use up the oxygen in the water (biochemical oxygen demand – BOD)
Water becomes low in oxygen and fish and other organisms which need oxygen die

27. Sewage treatment by saprotrophic bacteria
Stages of sewage treatment:
Inorganic materials are removed and organic matter is left
90% of the organic matter is removed by saprotrophic bacteria

28. Trickling filter system
Bed of stones 3-6 feet wide
Saprotrophic bacteria adhere to the stones and act on the sewage trickled over them until it is broken down
Cleaner water trickles out of the bottom of the bed
This flows to another tank where the bacteria are removed
The water is further treated with chlorine to finish the disinfectant process

29. Reed bed
Waste water provides water and the nutrients to the growing reeds
Reeds are then harvested for compost
Breakdown of organic waste is again accomplished by saprotrophic bacteria
Nitrate and phosphates released as a result of bacterial action are used as fertilizer by the reeds
Can only handle small sewage flow

31. Water Alert!

32. Homework
Fill in the blank: The three wastewater treatment plants in Mobile have a total design flow of _____ million gallons per day.
Read the following article:
What has been done in the countries aided by this project?

33. Sewage treatment video

34. Biomass can be used as raw material for the production of fuels such as methane and ethanol
To make biogas, manure and cellulose are put into a digester without oxygen
Anaerobic decomposition is performed by bacteria which occur naturally in the manure
Manure and cellulose are broken down into organic acids and alcohol
Organic acids and alcohol are broken down into carbon dioxide, hydrogen, and acetate
Finally two type of bacteria work on these to produce methane which can be used to run electrical machinery
Ammonia and phosphate are byproducts and can be used as fertilizer

35. Conditions to be kept constant in digester
No free oxygen
Constant temperature of 95 degrees F
pH (not too acidic)
Bacteria required for methanogenesis
Acidogenic bacteria convert organic matter to organic acids and alcohol
Acetogenic bacteria make acetate
Methanogenic bacteria create the methane

36. Topic F.3

37. Assessment Statements
F.3.1 State that reverse transcriptase catalyses the production of DNA from RNA.
F.3.2 Explain how reverse transcriptase is used in molecular biology.
F.3.3 Distinguish between somatic and germ line therapy.
F.3.4 Outline the use of viral vectors in gene therapy.
F.3.5 Discuss the risks of gene therapy.

38. Background information
Genetic material of virus can be RNA or DNA
An RNA virus is called a retrovirus
Flow of genetic information in a retrovirus is from RNA back to DNA
The enzyme which enables backwards transcription is reverse transcriptase

39. HIV life cycle HIV attaches to a host cell
RNA of the virus and the enzyme reverse transcriptase enter the host cell
Reverse transcriptase copies viral RNA into cDNA (complementary DNA)
cDNA makes a second strand which is a complement to the first strand of DNA; viral RNA is destroyed
New double-stranded viral DNA enters the nucleus of the host cell
If HIV is active, it will use this DNA to make more HIV viruses; they will then burst out of the cell and infect other cells

40. How reverse transcriptase is used in molecular biology
To make therapeutic proteins such as insulin and somatostatin
Human DNA molecule is taken from a pancreas cell
mRNA copies the DNA without the introns
Reverse transcriptase produces a new single strand of DNA called cDNA
The single strand replicates to make double-stranded DNA using DNA polymerase
Inserted into plasmid
Bacteria cell is stimulated to take up plasmid
Bacteria multiply and produce insulin
Insulin is harvested and used by diabetics

41. somatic and germ line therapy
Gene therapy aims to replace defective genes with effective ones which give the message to make the correct protein
Genes are delivered by vectors which are viruses that have been genetically engineered to infect certain cells in the patient
Somatic therapy – affects only the patient involved; may be possible to cure single-gene defects such as cystic fibrosis and hemophilia
Germ line therapy – changes gamete DNA, which would be passed to offspring

42. use of viral vectors in gene therapy
Treatment of a disease called severe combined immune deficiency disease (SCID)
Children do not produce enzyme ADA and thus have no immune system
In 1998 stem cells were withdrawn from kids with SCID
Cells mixed with a virus carrying normal form of gene that produces ADA
Virus transferred normal copy of gene into stem cells
Stem cells then infused back into bone marrow
Immune systems were restored

43. risks of gene therapy Virus vector may enter another cell by mistake
Virus vector might put gene in wrong place and cause mutation
Genes could be over-expressed and too much protein produced
Virus vector might stimulate immune reaction
Virus vector might be transferred from person to person
Children might be more sensitive

44. Benefits of gene therapy
Possibility of curing a disease caused by a single-gene or multiple genes

45. Microbes and food production

46. Assessment Statements
F.4.1 Explain the use of Saccharomyces in the production of beer, wine and bread.
F.4.2 Outline the production of soy sauce using Aspergillus oryzae.
F.4.3 Explain the use of acids and high salt or sugar concentrations in food preservation.
F.4.4 Outline the symptoms, method of transmission and treatment of one named example of food poisoning.

47. The successful making of bread, beer, and wine
Yeast was discovered as the fungus responsible for products
Saccharomyces cerevisae
Yeast uses sugars for energy and reproduces quickly by ‘budding’
Bud breaks off and forms a new yeast cell
Turns glucose into two molecules of ethanol and two molecules of carbon dioxide gas as waste product

48. Beer Source of glucose: grain Sweet liquid wort is made from malt
Hops are added and liquid is boiled and cooled
Fermentation by yeast produces beer containing ethanol and carbon dioxide

49. Wine Crushed grapes and yeast are put into a tank
Ethanol stays in the tank, while carbon dioxide escapes

50. Bread Fermentation of sugars in the dough by yeast
Carbon dioxide makes the dough rise
Baking in the oven kills the yeast, stops fermentation and evaporates the ethanol

51. Production of soy sauce
Soak soy beans, boil and drain
Mix a mash of soy beans with toasted wheat
Add a culture of Aspergillus oryzae
Incubate for 3 days at 85°F
Add salt and water and ferment for 3-6 months
Filter and pasteurize

52. Food preservation with sugar
Increasing sugar content of food preserves it because it is a dehydrating environment for bacteria, yeast, and mold
Boil fruit with sugar to kill microorganisms and dissolve sugar
Add some pectin so it will gel
Seal in hot sterile jars
No need to refrigerate

53. Food preservation with acid
Leave vegetables in a salt solution, then strain and rinse
Place raw vegetables in sterile jars
Pour hot vinegar and spices over the vegetables creating an acid environment
Put on lids and process in a hot water-bath to give a tight seal by creating a vacuum so that no mold can grow

54. Salmonella poisoning
Symptoms occur hrs after infection and last 4-7 days
Diarrhea
Fever
Abdominal cramps
Small # develop Reiter’s syndrome
Transmission
Improper hand washing after going #2
Improper cooking of food
Improper hand washing after touching feces of pets
Improper hand washing after handling reptiles
Raw meat cut on cutting board transferred to other food
Irrigation with contaminated water
Raw eggs
Unpasteurized milk or dairy products

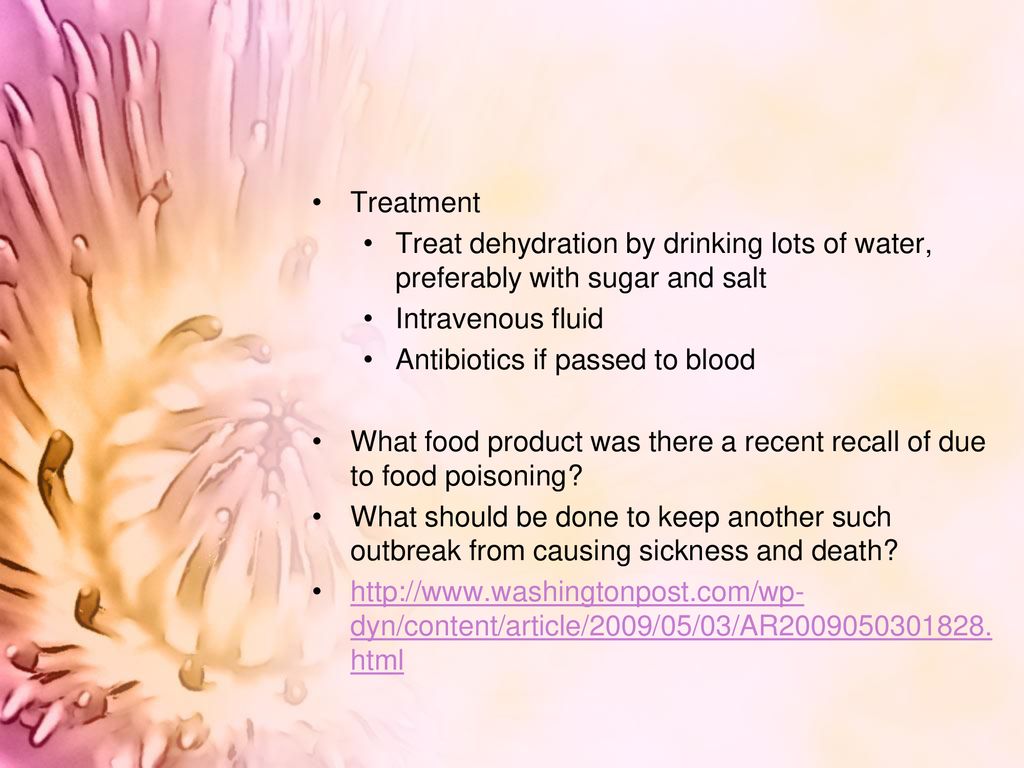

55. Treatment
Treat dehydration by drinking lots of water, preferably with sugar and salt
Intravenous fluid
Antibiotics if passed to blood
What food product was there a recent recall of due to food poisoning?
What should be done to keep another such outbreak from causing sickness and death?

56. Metabolism of microbes

57. Assessment Statements
F.5.1 Define the terms photoautotroph, photoheterotroph, chemoautotroph and chemoheterotroph.
F.5.2 State one example of a photoautotroph, photoheterotroph, chemoautotroph and chemoheterotroph.
F.5.3 Compare photoautotrophs with photoheterotrophs in terms of energy sources and carbon sources.
F.5.4 Compare chemoautotrophs with chemoheterotrophs in terms of energy sources and carbon sources.
F.5.5 Draw and label a diagram of a filamentous cyanobacterium.
F.5.6 Explain the use of bacteria in the bioremediation of soil and water.

58. Definitions
Photoautotroph – an organism that uses light energy to generate ATP and produces organic compounds from inorganic substances (Anabaena)
Photoheterotroph – an organism which uses light energy to generate ATP and obtains organic compounds from other organisms (Rhodobacter sphaeroides)
Chemoautotroph – an organism that uses energy from chemical reactions to generate ATP and produces organic compunds from inorganic substances (Nitrosomonas)
Chemoheterotroph – an organism that uses energy from chemical reactions to generate ATP and obtains organic compounds from other organisms (Saccharomyces)

59. Photoautotroph
Photoheterotroph
Energy source
Light
Light and organic compounds
Carbon source
Carbon dioxide
Organic compounds

60. Chemoautotroph
Chemoheterotroph
Energy source
Inorganic compounds
Organic compounds
Carbon source
Carbon dioxide

61. Anabaena Filamentous cyanobacterium
Lives on grass and in freshwater ponds
Two distinct and interdependent cell types
Heterocysts
Photosynthetic cells
Heterocysts fix nitrogen from dinitrogen in the air into nitrogen compounds such as ammonia which is used to make proteins
Photosynthetic cells produce carbohydrates
Akinete - spore-like cell capable of withstanding certain environmental extremes and of germination

62. Bioremediation
Use of bacteria and fungi to treat environments such as soil or water contaminated with polluting agents such as pesticides, oil and industrial solvents
The microorganisms derive energy for their own growth and reproduction

63. F.6
Microbes and disease

64. Assessment Statements
F.6.1 List six methods by which pathogens are transmitted and gain entry to the body.
F.6.2 Distinguish between intracellular and extracellular bacterial infection using Chlamydia and Streptococcus as examples.
F.6.3 Distinguish between endotoxins and exotoxins.
F.6.4 Evaluate methods of controlling microbial growth by irradiation, pasteurization, antiseptics and disinfectants.
F.6.5 Outline the mechanism of the action of antibiotics, including inhibition of synthesis of cell walls, proteins and nucleic acids.
F.6.6 Outline the lytic life cycle of the influenza virus.
F.6.7 Define epidemiology.
F.6.8 Discuss the origin and epidemiology of one example of a pandemic.
F.6.9 Describe the cause, transmission and effects of malaria, as an example of disease caused by a protozoan.
F.6.10 Discuss the prion hypothesis for the cause of spongiform encephalopathies.

65. Methods of transmission of pathogens
Food
Water
Aerial (water droplets in air)
Anima vectors
Puncture wounds
Sexual contacts

66. Intracellular infections
Example: Chlamydia
Live inside a cell of the host (epithelial cells which line genital tract)
When cells reproduce, bacterium splits out and moves into genital tract
Does not produce toxins (some people are asymptomatic)
Does not directly damage cells (may cause PID or infertility)
Not targeted by immune system

67. Extracellular infections
Example: Streptococcus
Lives in the host but outside a host cell
Produces toxins
Damages cells (produces invasins which split open and dissolve host cells)
Is targeted immediately by the immune system

68. Endotoxins and exotoxins
Lipopolysaccharides in walls of Gram- bacterium that causes fever and aches
Ex. Salmonella
Exotoxins
Specific proteins secreted by bacteria that causes symptoms such as muscle spasms and diarrhea
Ex. Clostridium tetani and Vibrio cholerae

69. Methods to control bacterial growth
Irradiation
Gamma radiation kills all microbes
Microwaves kill all microbes
UV radiation is weakest; kills all bacteria but leaves endospores
Disinfectants
Kills bacteria but not endospores
Damaging to mucous membranes and skin
Antiseptics
Less effective, but safe for skin
Pasteurization
Kills pathogens, but is bacteriostatic for nonpathogenic bacteria

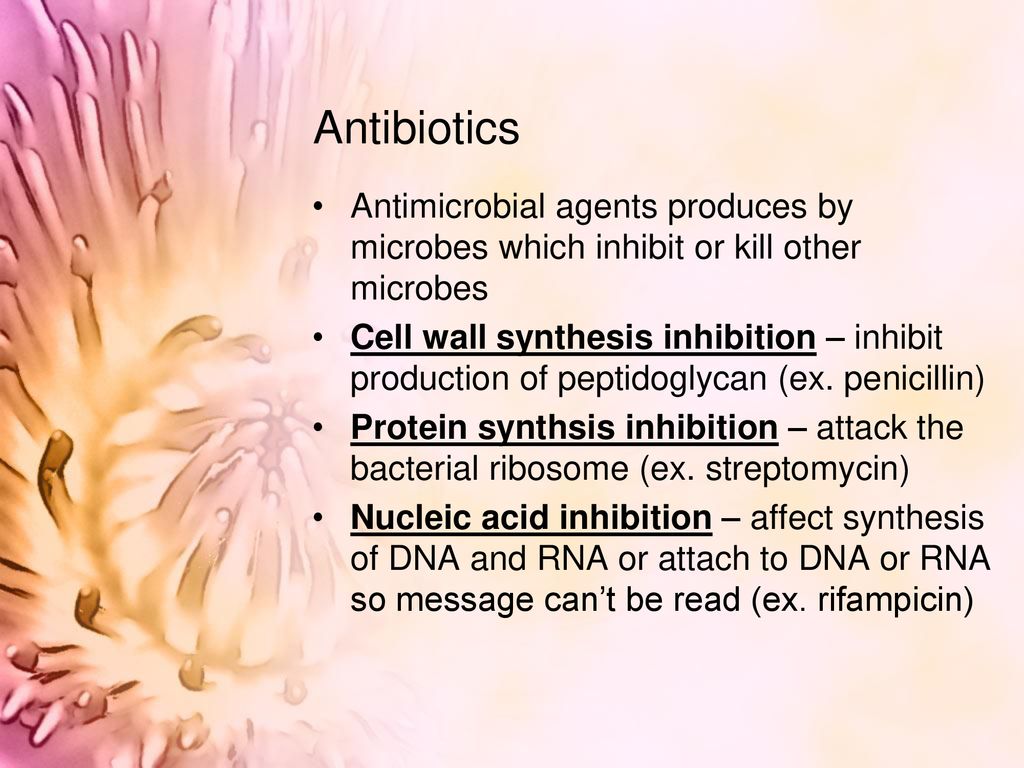

70. Antibiotics
Antimicrobial agents produces by microbes which inhibit or kill other microbes
Cell wall synthesis inhibition – inhibit production of peptidoglycan (ex. penicillin)
Protein synthsis inhibition – attack the bacterial ribosome (ex. streptomycin)
Nucleic acid inhibition – affect synthesis of DNA and RNA or attach to DNA or RNA so message can’t be read (ex. rifampicin)

71. Epidemiology
Study of the occurrence, distribution, and control of disease in a population
Occurrence - # of people with disease
Distribution – regions of the country/world where it is occurring
Control – best strategies to prevent its spread

72. Pandemic Worldwide infections Spanish flu (1918) Asian flu (1957)
Hong Kong flu (1968)

73. Spanish Flu Occurrence Killed 40-50 million people Distribution
Across the globe
Control
gauze masks were issued and directed to be worn in public
Public gatherings banned
Public institutions closed
Quarantine of patients with flu
Public education about hygiene
Use of disinfectants and sterilization methods
Development of vaccines

74. Lytic life cycle of influenza virus
Virus attaches to receptors on cell
Virus is taken into an endosome by endocytosis into the cytoplasm
Coat of virus is removed and viral RNA enters the cytoplasm
Viral RNA enters nucleus and makes mRNA
Some mRNA is transported to the cytoplasm where it makes viral proteins (translation)
Viral proteins are transported back to the nucleus to form a capsid around viral RNA
ER of the cell synthesizes viral envelope proteins
Viral envelope proteins are packaged at the Golgi apparatus and transported to the cell membrane
Viral nucleocapsid recognizes proteins on the membrane and buds off surround by the viral envelope proteins

75. Malaria Causes Plasmodium falciparum Plasmodium vivax Plasmodium ovale
Plasmodium malariae
Transmission
By female Anopheles mosquito
Plasmodia reproduce in gut of mosquito
Egg sac ruptures and releases cells called sporozoites which travel to salivary glands
When mosquito bites human, sporozoites enter bloodstream and travel to liver
Develop further and burst out of the liver to invade red blood cells

77. Symptoms
Anemia
Bouts of fever chills
Shivering
Pain in the joints
headache

78. Spongiform encephalopathies
Holes form in brain tissue
Similar to scrapie which is common in sheep
It jumped species barrier and was transmitted to cattle in their feed
Humans then contracted disease by eating contaminated meat
Variant Creutzfeldt-Jakob disease

79. Prion hypothesis
The casual agent for vCJD is caused by a virus with a nucleic acid core and a protein coat protecting and hiding the nucleic acid
Protein causes disease
Nucleic acids have not been found
Have witnessed proteins causing normal proteins to change shape which argues against model that only nucleic acids can code for the shape of proteins
