1. SEGMENTAL ANALYSIS OF CONGENITAL HEART DISEASE Murtaza Kamal 1

2. MAUDE ELIZABETH SEYMOUR ABBOTT 1936 McGill University, Canada 1 st systematic study Based on study of 1000 heart specimen 2

3. Richard Van praagh 1964 Pediatric Cardiologist Boston Children Hospital, Massachusetts Segmental approach to CHD 3

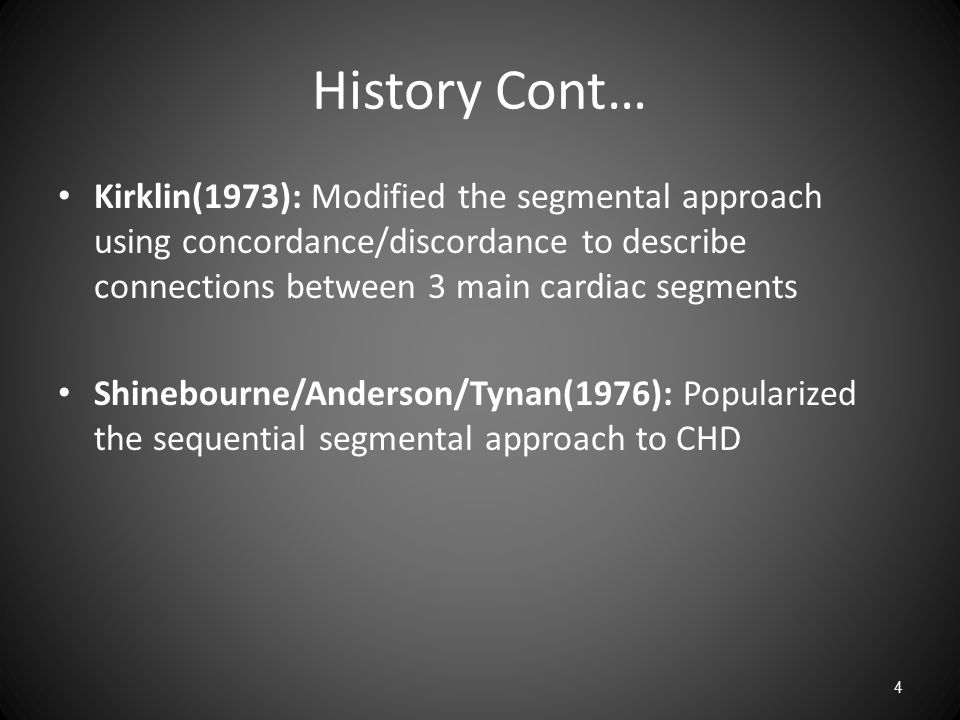

4. History Cont… Kirklin(1973): Modified the segmental approach using concordance/discordance to describe connections between 3 main cardiac segments Shinebourne/Anderson/Tynan(1976): Popularized the sequential segmental approach to CHD 4

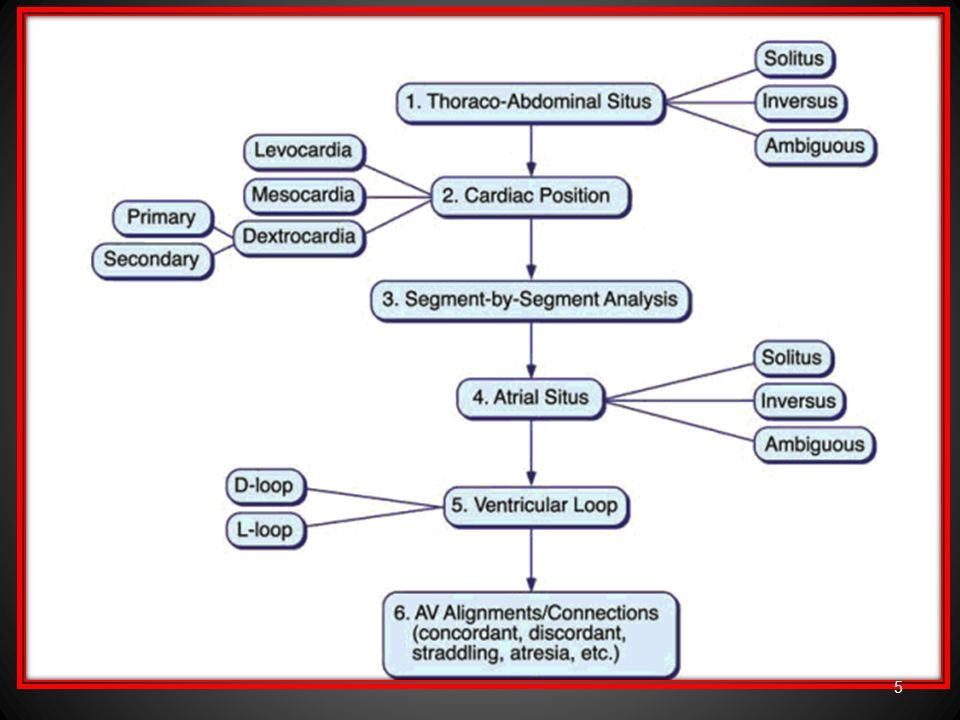

5. 5

6. 6

7. THORACO-ABDOMINAL SITUS Situs: Topology/ spatial position of structure 1 st segment evaluated is visceral situs Atrial and visceral situs considered together because they usually are concordant ( atrial and visceral situs are same) 7

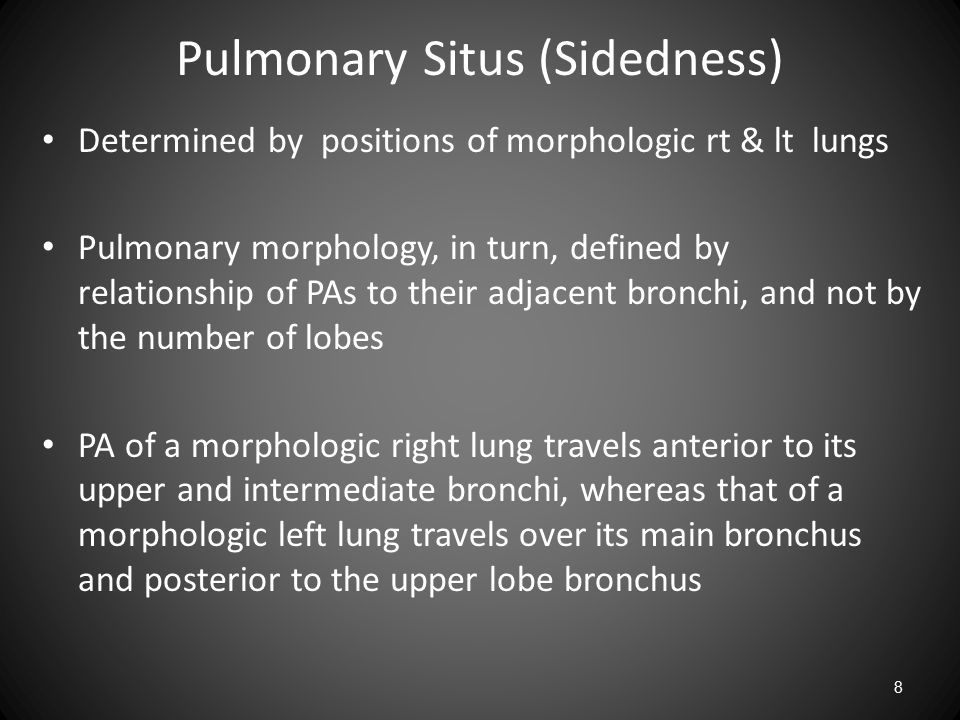

8. Pulmonary Situs (Sidedness) Determined by positions of morphologic rt & lt lungs Pulmonary morphology, in turn, defined by relationship of PAs to their adjacent bronchi, and not by the number of lobes PA of a morphologic right lung travels anterior to its upper and intermediate bronchi, whereas that of a morphologic left lung travels over its main bronchus and posterior to the upper lobe bronchus 8

9. Pulmonary Situs (Sidedness) Cont… Rt bronchus branches, then RPA crosses it LPA crosses lt bronchus, then it branches Clinically, pulmonary situs may be inferred by comparing relative lengths of 2 main bronchi, as measured on a CXR that shows an air bronchogram Distance from carina to origin of upper lobe bronchus is 1.5- 2.5 X greater for morphologic left lung than for right lung, and this ratio holds true regardless of the sidedness of the aortic arch 9

10. 10

11. The morphologically left bronchus is long, and it branches only after it has been crossed by its accompanying pulmonary artery, making the bronchus hyparterial. In contrast, the morphologically right bronchus is short, and is crossed by its pulmonary artery only after it has branched, giving an eparterial pattern of branching LR 11

12. 2D ECHO: STRUCTURE?? 12

13. 2D ECHO: STRUCTURE?? 13

14. 14

15. Cardiac malposition Often an integral part of complex associated anomalies of visceral atrial situs Prevalence 1 in 10, 000 live births Cardiac malpositions:  Dextrocardia  Mesocardia  Levocardia (isolated)  Ectopia cordis 15

16. Cardiac Malposition 16

17. 17

18. DEXTROCARDIA Detro position Dextro version Mirror image dextrocardia 18

19.  Dextroposition: Heart pushed/ pulled into right chest  Push:  Lt sided tension pneumothoax  Lt congenital lobar emphysema  Lt diaphragmatic hernia  Pull:  Hypoplasia/ agenesis of rt. lung DEXTROCARDIA 19

20. DEXTROCARDIA Cont… Dextroversion: Failure of pivoting of cardiac apex to left, frequently associated with A-V discordance Mirror-image dextrocardia with atrial situs inversus There may be major and complex pathology associated with this type of dextrocardia 20

21. 21

22. MESOCARDIA  Location of heart with cardiac base apex axis directed to midline of thorax or with ventricular apices equally directed to both right and left sides  This is often ignored as being infrequent and atypical 22

23. Isolated levocardia  Occurring in conjunction with situs inverses and situs ambiguous  An abnormal atrial and visceral situs, the heart is in its normal location in the left hemi thorax with the apex pointing to left 23

24. Ectopia Cordis Partially/ completely exteriorized Pentalogy of Cantrell: – 1. Deficiency of ant. Diaphragm – 2. Midline supra umbilical abdominal wall defect – 3. Defect in diaphragmatic pericardium – 4. CHD – 5. Defect of lower sternum 24

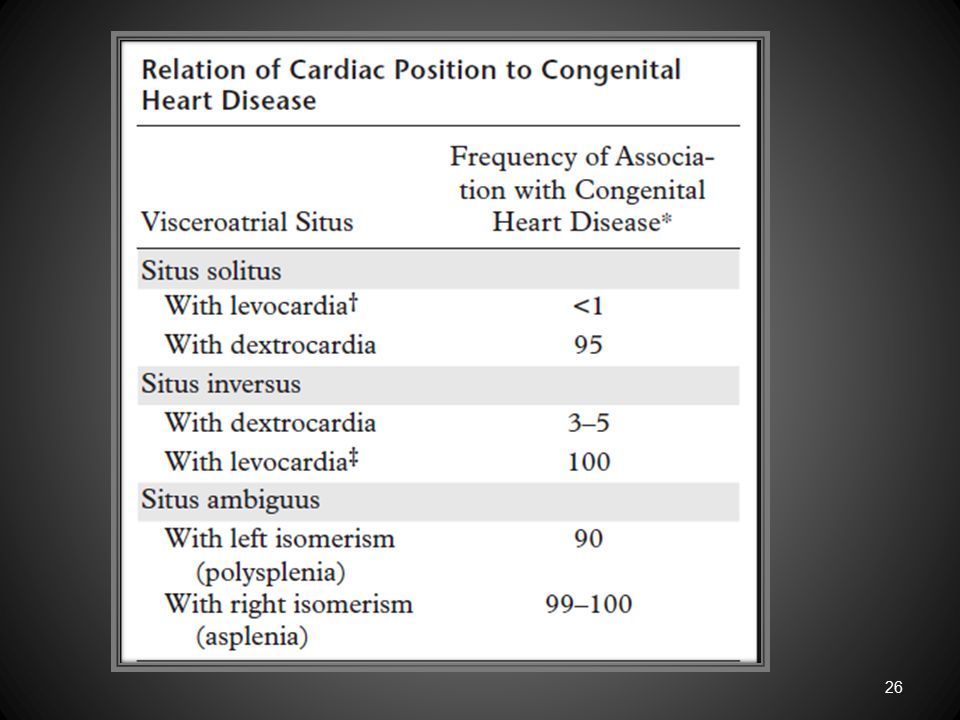

25. BASIC CARDIAC POSITIONS 95% CHD 100% CHD 3-5%CHD<1%CHD 25

26. 26

27. SEGMENT BY SEGMENT ANALYSIS 27

28. SEGMENT CONNECTION Great veins Atria Ventricles Great arteries Venoatrial Atrioventricular Ventriculoarterial 28

29. 29

30. 30

31. VENOUS SEGMENT Systemic veins: IVC, hepatic veins, SVC, CS Pulmonary veins HEPATIC VEINS: SC view, drains into RA CS – RA IVC – RA 31

32. Venous Segment Cont… ABNORMALITY OF IVC: Subcostal view Interrupted IVC (Polysplenia): Large azygous vein entering SVC seen along the spine in abdomen, can be either right or left sided Even then there is another vein draining into RA called: Suprahepatic IVC Suprahepatic IVC always drains into RA Suprahepatic IVC differentiated from IVC in being small and can’t be traced below liver 32

33. SVC SVC: Single right sided Subcostal view, high parasternal or suprasternal view LSVC: Connected to CS posteriorly/ laterally Border of LA (dilated CS) Directly visualized in a long axis plane Parasternal short axis images: Circular vessel anterior to LPA near bifurcation SVC less reliable than IVC for situs 33

34. CS & LSVC 34

35. Pulmonary veins Subcostal, suprasternal, apical Color Doppler: Distinguishes from atrial appendage 4 in number Left 2 veins may join: 3 entries into LA 35

36. ATRIAL SITUS  The identification of the morphologic right atrium is important for establishing atrial situs  Anatomic hallmark is the limbus of the fossa ovalis 36

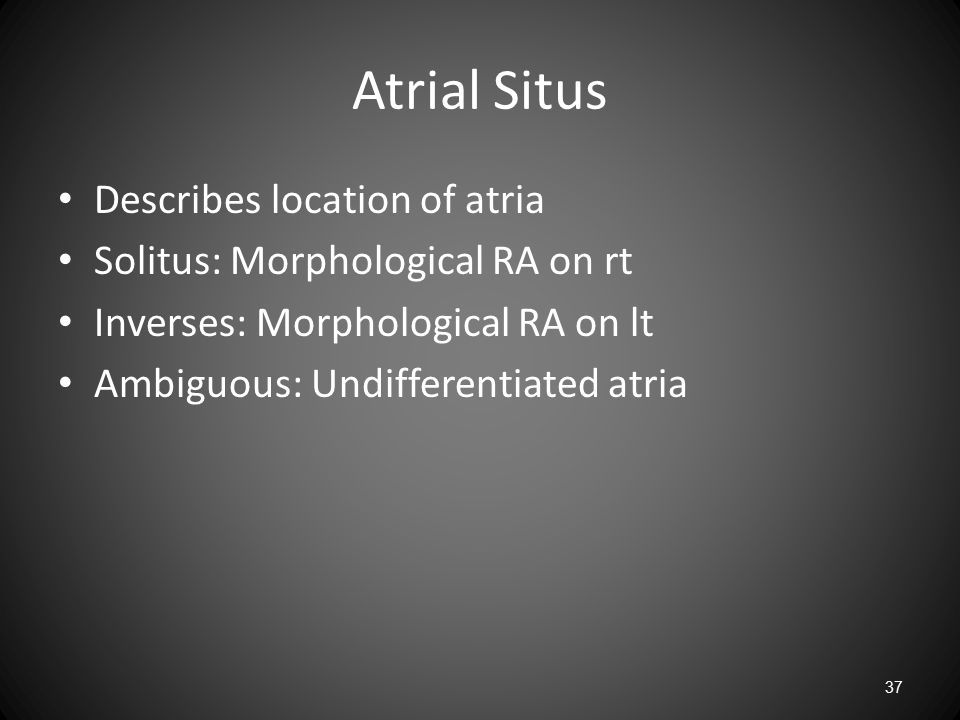

37. Atrial Situs Describes location of atria Solitus: Morphological RA on rt Inverses: Morphological RA on lt Ambiguous: Undifferentiated atria 37

38. Right atrium Left atrium SEPTUM: Limbus of fossa ovalis Flap valve of fossa ovalis APPENDAGES: Broad based, triangular, anterior Long and narrow, finger like, posterior MYOCARDIAL FEATURES: Crista terminalis, tinea sagittalis, extension of pectinate muscles towards AV valve Pectinate muscle confined to appendage VEINS: Receives IVC, suprahepatic IVC, SVC, coronary sinus Receives pulmonary veins 38

39. Right atriumLeft atrium 39

40. 40

41. Subcostal sagittal views demonstrating eustachian valve (arrow in A) and flap valve (arrow in B). 41

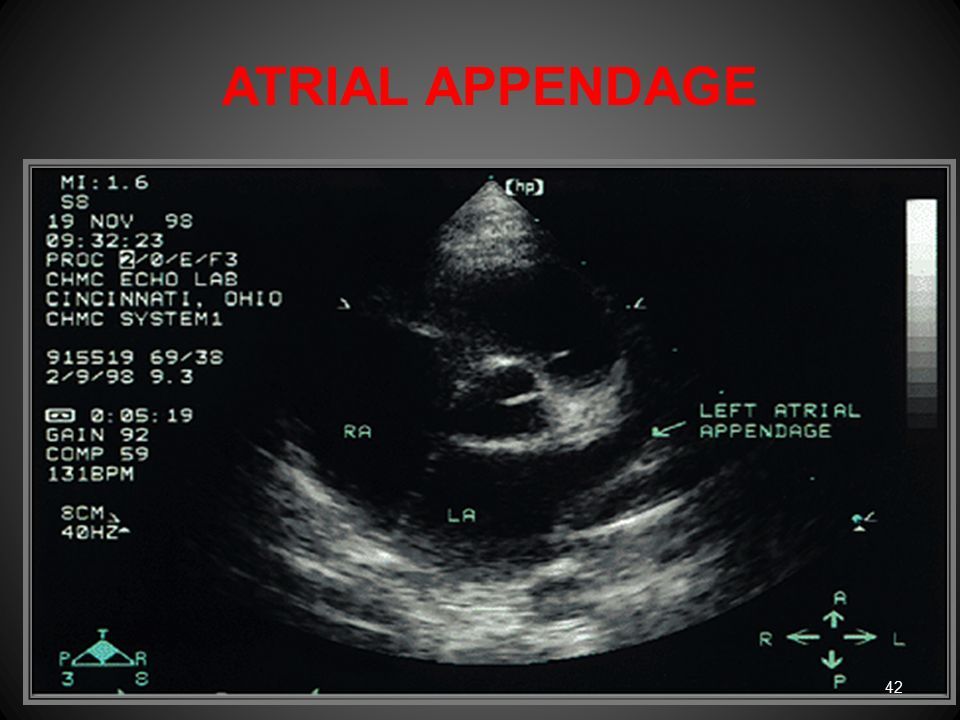

42. ATRIAL APPENDAGE 42

43. 43

44. Viscero atrial situs and its abnormality Isomerism of Lt atrial appendage: B/l lt atrial appendage: Smooth pectinate muscles Interrupted IVC: 85% Isomerism of Rt atrial appendage: B/l rt atrial appendage: Coarse pectinate muscles Abscent coronary sinus: 100% Abnormal relation of aorta and IVC 44

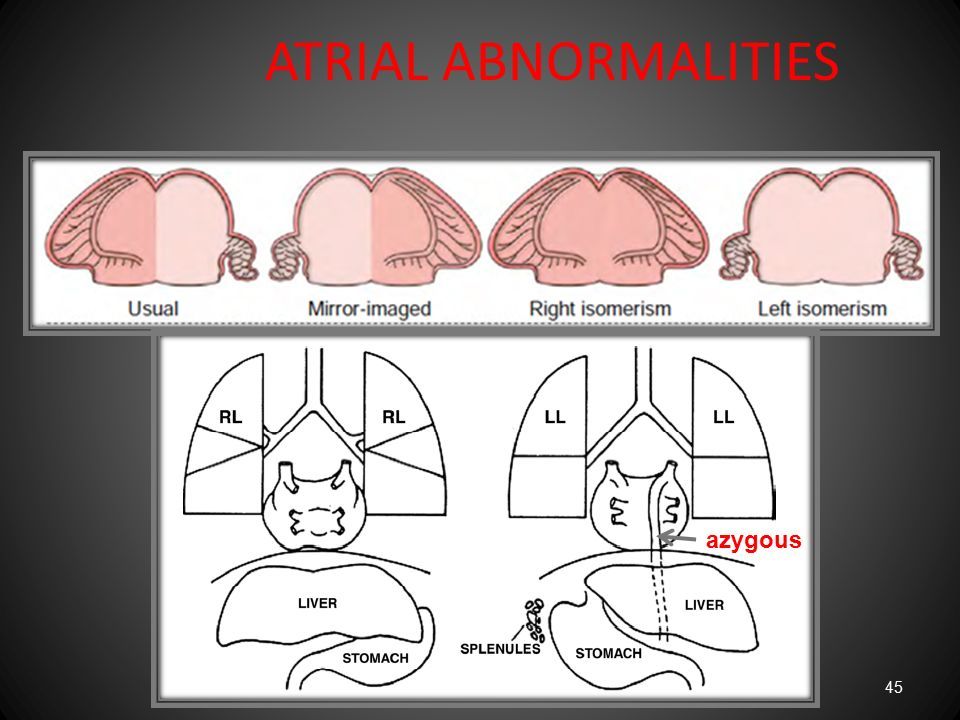

45. ATRIAL ABNORMALITIES azygous 45

46. 46

47. VENTRICULAR SITUS AND MORPHOLOGY Right ventricle Left ventricle Large apical trabeculations Small apical trabeculations Coarse septal surface Smooth upper surface Moderator band No moderator band Receives tricuspid valve Receives mitral valve Tricuspid-pulmonary discontinuity Mitral-aortic continuity Crescentic in cross section Circular in cross section Thin free wall (3-5 mm) Thick free wall (12-15 mm) 47

48. Apical four-chamber view in a patient with ventricular inversion with L-TGA 48

49. VENTRICULAR LOOPING After morphology  Determine looping Bulboventricular loop: Describes location of ventricles  d-Loop: Morphologic RV on right  l-Loop: Morphologic RV on left 49

50. VENTRICULAR LOOPING Cont…  Performed by imagining one is standing on the right ventricle side facing the right ventricular face of the interventricular septum  The palm of one hand is placed against the septum  The looping is determined by establishing which of the two hands allow the thumb to point into the atrioventricular valve and the fingers to point into the outflow tract  If rt. hand meets criteria: d-looped, if lt hand meets criteria: l-looped 50

51. The palmar surface of the right hand can be placed on the septal surface of the normal morphologically right ventricle with the thumb in the inlet component and the fingers extending into the ventricular outlet. (d-ventricular loop.) 51

52. The mirror-imaged normal heart. In this setting, it is the palmar surface of the left hand that can be placed on the septal surface of the morphologically right ventricle with the thumb in the inlet and the fingers in the outlet. (l-ventricular loop) 52

53. VENTRICULAR LOOPING Cont…  In general, convexity of aorta points to the position of the right ventricle and thus helps indicate bulboventricular loop  Definitive indicator of bulboventricular loop, however, is relative positioning of ventricular inlets/ AV valves  Thus, in a d-loop the tricuspid valve is to the right of the mitral valve, and in an l-loop the tricuspid valve is to the left of the mitral valve  In a normal d-loop the apex pivots to the left hemithorax; in a "normal" l-loop (i.e., one in the setting of situs inversus) the apex pivots to the right hemithorax 53

54. SINGLE VENTRICLE Single ventricle: Determined by morphology of ventricle Single vent of RV morphology: Hypo plastic LV remnant, posterior to main ventricular chamber LV morphology: Rudimentary RV, anterior 54

55. 55

56. 56

57. AV Connections and AV Valve Morphology  First see: Bi/uni ventricular connection  If double see: AV concordance/discordance  If single ventricle see: Double inlet, single inlet, common inlet 57

58. 50% rule  Anderson et al: Rule of 50% for determining whether a cardiac chamber is a ventricle  For the assessment of AV connections, an atrium is considered to join the ventricle into which >50% of the valve orifice empties  This rule states that a chamber is a ventricle if it receives 50% more of an inlet  The inlet consists of the fibrous ring of the AV valve and need not always include a patent AV valve with well formed valve leaflets 58

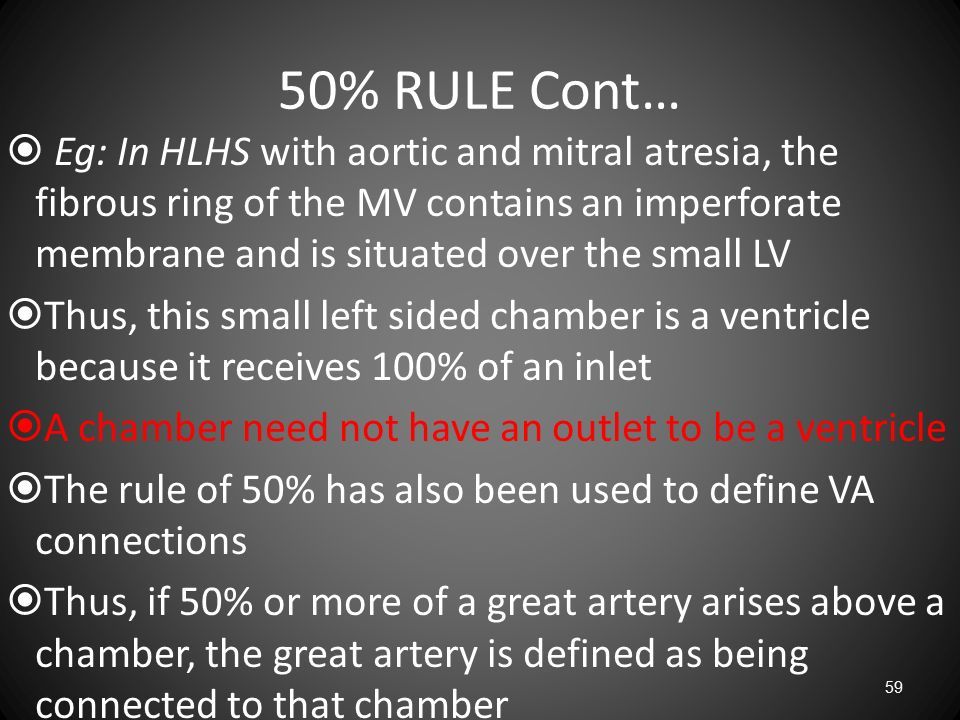

59. 50% RULE Cont…  Eg: In HLHS with aortic and mitral atresia, the fibrous ring of the MV contains an imperforate membrane and is situated over the small LV  Thus, this small left sided chamber is a ventricle because it receives 100% of an inlet  A chamber need not have an outlet to be a ventricle  The rule of 50% has also been used to define VA connections  Thus, if 50% or more of a great artery arises above a chamber, the great artery is defined as being connected to that chamber 59

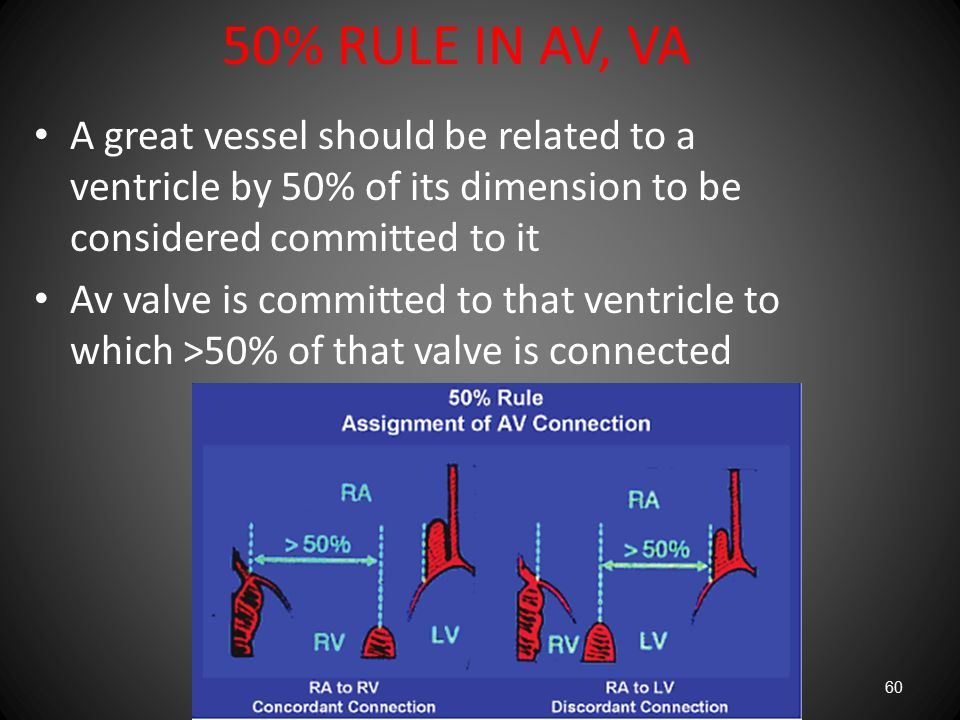

60. 50% RULE IN AV, VA A great vessel should be related to a ventricle by 50% of its dimension to be considered committed to it Av valve is committed to that ventricle to which >50% of that valve is connected 60

61. SINGLE VENTRICLE 61

62. ATRIOVENTRICULAR VALVE MORPHOLOGY Tricuspid valve Mitral valve Septal chordal attachments No septal chordal attachments Low septal annular attachment High septal annular attachment Triangular orifice (midleaflet) Elliptical orifice (midleaflet) Three leaflets Two leaflets Several papillary muscles Two large papillary muscles Empties into right ventricle Empties into left ventricle 62

63. ATRIOVENTRICULAR CONNECTIONS 63

64. OVERRIDING AV VALVE Abnormality of AV valve alignment or connection in which one valve annulus opens into another chamber through a VSD 64

65. STRADDLING A feature of the tensor apparatus (chordae tendineae and papillary muscles) of an AV valve and indicates anomalous insertion into the contralateral ventricle, either along its septum or its free wall 65

66. 66

67. 67

68. VENTRICULOARTERIAL CONNECTION If Ao from LV and PA from RV: Concordant If Ao from RV and PA from LV: Discordant Origins of Ao and PA are evident on PLAX view, sweeping the transducer inferiorly from the basal short-axis view, A5CV and SC coronal and sagittal views 3 rd type of VA connection: Double outlet, almost always from RV Final type of VA connection: Single outlet (truncus arteriosus) 68

69. VA Connection Aorta: Coronary artery Carotids Absence of proximal division PA: Bifurcation 69

70. Parasternal short-axis images demonstrating different relationships between the great vessels. An echocardiogram from an infant with tetralogy of Fallot and pulmonary atresia demonstrates the identifying features of a pulmonary artery (MPA) with its bifurcation into right and left pulmonary arteries (RPA, LPA). The great vessels are normally related 70

71. 71

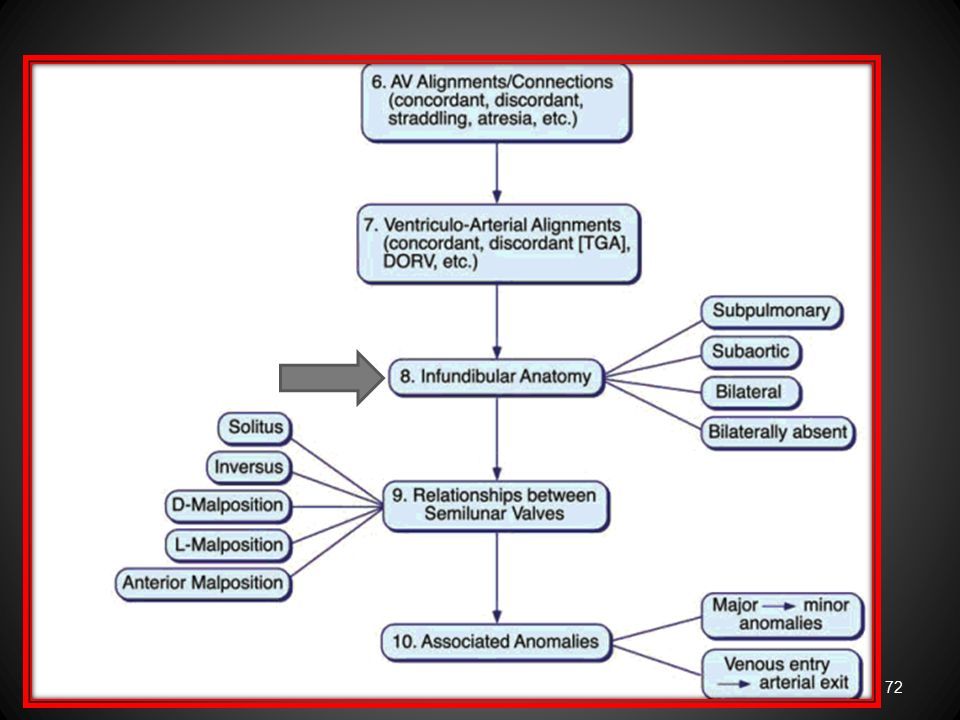

72. 72

73. CONAL MORPHOLOGY Conus/ infundibulum: Cavitary space formed by muscular segment of heart that connects ventricles with great arteries and separates the AV and semilunar valves Abnormalities in conal development consist of variations in the presence, length and diameters of subpulmonary and subaortic conus These variations can lead to (or be associated with) complex malformations, such as TOF, IAA,TGA and DORV 73

74. Subpulmonary conus - Best identified in subcostal views In normal heart: Conus- Nearly vertical tubular outflow portion of RV Separated from nearly horizontal right ventricular inflow portion by distinct muscle bands These muscle bands form a near- circular rim formed by parietal band anteriorly, crista supraventricularis posteriorly, and septal band medially and prohibit PV to AV valve continuity 74

75. Conus Cont…  Subaortic conus is evident on subcostal coronal and sagittal views  Persistence of subaortic conus and involution of subpulmonic conus is the usual conal relationship in d- (or l- ) TGA  Persistence of subaortic conus prohibits continuity of the aortic valve to either AV valve, and involution of subpulmonary conus allows continuity between PV and both AV valves in TGA 75

76. BILATERAL CONUS  B/l persistence of the subarterial conus usually results in DORV  Because the main goal of surgical correction of DORV is to connect the aorta with the morphologic left ventricle through VSD, it is important to determine the conal relationships with each other and with the great vessels 76

77. BILATERAL CONUS When 2 coni are present, their relationship may be classified as either anterior/posterior or side-by-side With the anterior/posterior conal relationship, the ventricular septal defect is usually subaortic; with the side-by-side relationship, the defect is usually subpulmonic The conal relationship can be determined by subcostal coronal and sagittal imaging with anterior/posterior and left/right sweeping, respectively 77

78. ABSENT CONUS  A rare type of d- transposition can exist in the context of bilaterally deficient subarterial conus  This results in an unusual heart in which d-TGA exists with a doubly committed VSD and a posterior aorta  Associated with DOLV 78

79. 79

80. SEMILUNAR VALVES 80

81. Great Artery Relations  8 basic types of great artery relationships are possible based on the aortic and pulmonary valve positions at the level of the semilunar valves Right posterior aorta (normally related) Right lateral aorta (side by side) Right anterior aorta (d-malposed) Directly anterior aorta Left anterior aorta (l-malposed) Left lateral aorta (left side by side) Left posterior aorta (inverted normal) Directly posterior aorta. 81

82. 82

83. 83

84. ARCH OF AORTA  Unexpected position of aortic arch: Well recognized associated anomaly of conditions such eg. TOF/ Truncus  Distinction should be made b/w position of arch and side of descending aorta, particularly in describing vascular rings  Side of aortic arch depends on whether it passes to right or left of the trachea  Position of descending aorta is defined relative to vertebral column 84

85. ARCH OF AORTA Cont…  Aorta lies more posterior in center of  Visualized in PLAX,PSAX, A5CV,SC, and suprasternal notch views  Arch best seen in subcostal oblique view and suprasternal views  Side of arch diagnosed by sweeping transducer in suprasternal long-axis view and noting the relationship of the arch to the trachea, the rings of which resemble a stack of coins 85

86. This transducer position allows visualization of the ascending aorta (Asc), aortic arch (Arch), origin of the brachiocephalic vessels (arrows), descending thoracic aorta (Dsc), and right pulmonary artery (*). ARCH OF AORTA LONG-AXIS 86

87. The short-axis view of the aortic arch is obtained by rotating the transducer clockwise, which also allows visualization of the right pulmonary artery (RPA) in its long-axis format, located inferiorly to the aortic arch (Arch). Inferior to RPA is the left atrial (LA) cavity with connections of the four pulmonary veins (arrows SHORT-AXIS VIEW 87

88. 88

89. FINAL DIAGNOSIS SS, LEVOCARDIA, NORMAL SYSTEMIC & PULMONARY VENOUS COMMUNICATIONS, NRGAs, AV & VA CONCORDANCE, INTACT IA & IV SEPTUM, NO PDA, GOOD SIZED CONFLUENT BPAs, NORMAL ARCH, NO COA, NORMAL CORONARIES, NORMAL SIZED CHAMBERS, GOOD BV FUNCTION, NO VEGETATION/ CLOT OR PE 89

90. THANKS FOR UR PATIENCE 90
