1 Experiment IS444: Exploring Halo Effects in the Scattering of 11Be on a Heavy Target at REX-ISOLDE
L. Acosta1, M.A.G.Álvarez2, M.V.Andrés2, C. Angulo3, M.J.G. Borge4, J.M. Espino2, L.M.Fraile5, H. Fynbo6, D. Galaviz4, J. Gómez-Camacho2, H.B. Jeppesen5, B. Jonson7, I. Martel1, A. Moro2, I. Mukha2, T. Nilsson7, G. Nyman7, F. Pérez-Bernal1, R. Raabe8, K. Riisager5, D. Rodríguez1, K. Rusek9, O. Tengblad4, M. Turrión4 and the REX-ISOLDE collaboration Aarhus6 - CERN5 - Göteborg7 - Huelva1 - Leuven8 - Louvain la Neuve3 Madrid4 - Sevilla2 - Warsaw9 -Collaboration

2 Why 11Be? Best halo nucleus is 11Li (B2n = 295 keV) But short T1/2 (8.5 ms) Low production at REX. Measured 2n-Halo 6He Next is 11Be (J = 1/2+). Bn = 504(6) keV Long T1/2 (13.8 s). Extremely weakly bound 1st state (Bn=184 keV , J = 1/2-). Strongly coupled to the g.s. via dipole force Hansen, Jensen & Jonson Ann. Rev. Nucl. Part . Sci, 45 (1995) t = 168(17) fs B(E1) = 0.36(3) W.u. Millener et al., PRC 28(83) 497 1s rrms = 6.0 fm p rrms = 5.7 fm

3 Motivation Halo nuclei, such as 11Be, are special.
The reaction mechanism involving halo nuclei are rather different from “normal” nuclei. The dominant reaction channels for halo nuclei are elastic scattering and break-up. Accurate measurements of elastic scattering and break-up are essential to understand the reaction mechanism of halo nuclei.

4 Experimental Setup Nov-06
11Be 6 DSSDs (42-44 μm, 16x16 strips) 5 1 16 6 16 1 1 16 3 6 PADs ( 1500 μm) 4 16 1 1 16 2 1 16 1

5 Results of preliminary IS444 run
Experimental Setup 11Be produced with a Ta-foil target Purified 20Ne for the REX-Trap Beam: 11Be at 2.91 MeV/u. Intensity: pps Beam time: h (120Sn) h (124Sn) h (197Au). Targets: 3.5 mg/cm2 120Sn; 0.35 mg/cm2 124Sn; 0.5 mg/cm2 197Au Detector setup: 6 DSSD telescopes, ( ) µm.

6 Particle identification

7 Quasi-elastic scattering
(gs+ 300 keV ½- )

8 Ratio of 10Be break-up to 11Be quasi-elastic
Break-up probability Ratio of 10Be break-up to 11Be quasi-elastic

9 Energy distribution of 10Be fragments

10 What have we learnt from IS444 run?
We can measure the scattering of 11Be on 120Sn, and separate 10Be events. We cannot separate 11Be excitation. We cannot measure backward angles. The quasi-elastic cross sections seem to deviate from Rutherford, as predicted by coupling to the continuum. More statistics is needed, for larger angles. Break probability is very large, even larger than expected from CDCC calculations. Measurements at larger angles are needed, to see the trend. The target thickness of 3.5 mg/cm2 blurs the separation between elastic and break-up events. A thinner target is desirable. The energy distribution of the break-up fragment could be measured. A better energy resolution is desirable to compare with theoretical calculation and disentangle the reaction mechanism.

11 Proposed Experiment 11Be produced with a Ta-foil target
Purified 20Ne for the REX-Trap Beam energy: MeV/u Thinner target: 120Sn 1.2 mg/cm improve energy resolution Reference target 197Au 1 mg/cm reference Rutherford cross sections Angular coverage between 15 and 70 degrees Thinner ΔE detectors 20 μm thick

12 Proposed Experiment 20 mm 40 mm 15-450 45-700

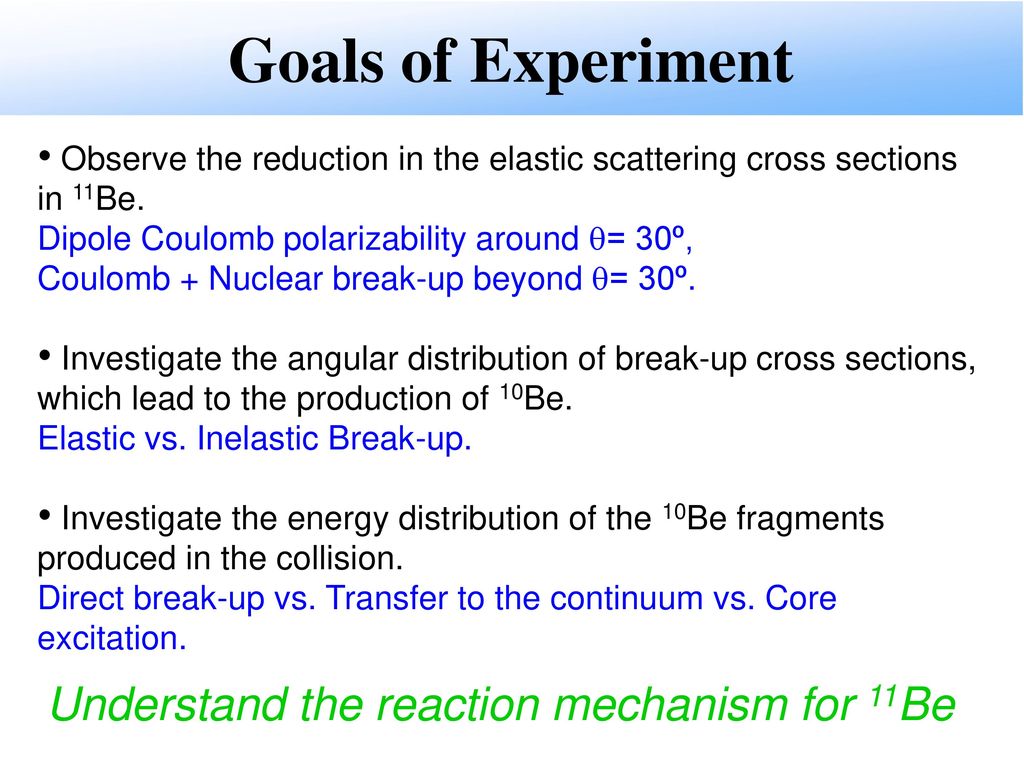

13 Goals of Experiment Observe the reduction in the elastic scattering cross sections in 11Be. Dipole Coulomb polarizability around = 30º, Coulomb + Nuclear break-up beyond = 30º. Investigate the angular distribution of break-up cross sections, which lead to the production of 10Be. Elastic vs. Inelastic Break-up. Investigate the energy distribution of the 10Be fragments produced in the collision. Direct break-up vs. Transfer to the continuum vs. Core excitation. Understand the reaction mechanism for 11Be

14 Events expected in our setup assuming I=3 104 pps
Beam Time Request Events expected in our setup assuming I=3 104 pps N.Events/h 16-26 deg 27-37 deg 50-70 deg Elastic 691 130 15 Break-up 10.5 9.6 4.3 Stable beam, 12C: 3 shifts. Stable beam, 9Be at 2.91MeV/u: 3 shifts. Beam 11Be at 2.91 MeV/u: 19 shifts.

15 Elastic Scattering: 6He + 208Pb @ 22 MeV
One channel calculations ( ) unable to describe the scattering data Coupling to the continuum needed ( ) : Dipole polarizability Nuclear Contributions

16 Inelastic excitation and break-up
High probability for: Inelastic excitation (- - -) Break-up ( ) These probabilities depend strongly on the properties of the halo neutron Data on LLN obtained with similar set-up allowed to obtain accurate data on breakup probability.

17 11Be on 3.5 mg/cm2 120Sn

18 MeV/u on 120Sn at 55º

19 Effect of target thickness
120Sn 1.2 mg/cm² 120Sn 3.5 mg/cm² Better separation of the two process

20 Particle identification
120Sn 3.5 mg/cm²
