1. CompSci 280 S2 2107 Introduction to Software Development
GUI

2. Today’s Agenda Topics: Reading: Introduction GUI in Java GUI in Python
Window Builder
GUI in Python
PyQt5
Reading:
Download & Install Window Builder to Eclipse
Download PyQt5
PyQt5 Tutorial
Lecture16

3. 1.Introduction Basic GUI Programming Concepts
A graphical user interface (GUI) presents a user-friendly mechanism for interacting with an application.
Pronounced “GOO-ee”
Gives an application a distinctive “look-and-feel.”
Conventional programming:
sequence of operations is determined by the program
what you want to happen, happens when you want it
Event-driven programming:
sequence of operations is determined by the user’s interaction with the application’s interface
anything that can happen, happens at any time
Application
output
input
Application
Widgets
The User
draw
output
input
callbacks
GUI-based
Lecture16

4. 2.GUI in Java Implementing GUI in Java
The Java Foundation Classes (JFC) are a set of packages encompassing the following APIs:
AWT – Abstract Windows Toolkit (java.awt package)
The older version of the components
Rely on “peer architecture”…drawing done by the OS platform on which the application/applet is running
Considered to be “heavy-weight” components using native GUI system elements
Swing (Java 2, JDK 1.2+) (javax.swing package)
Newer version of the components
No “peer architecture”…components draw themselves
Most are considered to be “lightweight” that do not rely on the native GUI or OS
Lecture16

5. 2.GUI in Java Containment Hierarchy
Most UI are created by nesting controls (aka widgets/ UI elements) into other controls (containers)
Containment hierarchy: the way the controls of a UI are nested
windows: actual first-class citizens of desktop; also called top-level containers examples: frame, dialog box
components: GUI widgets examples: button, text box, label
containers: logical grouping for components example: panel
Top-Level Container:
JFrame (or JDialog or JApplet)
Pane: JContentPane
Container: JScrollPane
Component: JButton
Lecture16
Component: JList

6. 2.GUI in Java Simple GUI-based Input/Output: JOptionPane
Most applications use windows or dialog boxes (also called dialogs) to interact with the user.
JOptionPane (package javax.swing) provides prebuilt dialog boxes for input and output (note: the user cannot interact with the rest of the application while dialog is displayed.)
Displayed via static JOptionPane methods.
For example, we use two input dialogs to obtain integers from the user and a message dialog to display the sum of the integers the user enters.
String num1 = JOptionPane.showInputDialog("Enter first integer");
String num2 = JOptionPane.showInputDialog("Enter second integer");
int sum = Integer.parseInt(num1) + Integer.parseInt(num2);
JOptionPane.showMessageDialog(null, "The sum is " + sum,
"Sum of Two Integers", JOptionPane.PLAIN_MESSAGE);
import javax.swing.*
Lecture16

7. 2.GUI in Java JFrame - is a Window, a Container
A frame is a graphical window that can be used to hold other components.
A JFrame object is a window with a border and a title bar.
The visible area of a JFrame object is a Container which means that we will be able to add components, such as a JPanel object, to the JFrame object.
Note: components are added to the top of a lightweight AWT Container – it is called the content pane.
Most windows that can contain Swing GUI components are instances of class JFrame or a subclass of JFrame.
You can use “new JPanel()” to create a panel for grouping components into a container, which can then be added to another container
Use the add(Component) method to add a component to the panel.
getContentPane().add(emptyLabel);
JPanel p = new JPanel();
p.add(new JButton("OK"));
Lecture16

8. 2.GUI in Java BorderLayout
BorderLayoutDemo.java
Places components in up to five areas: north, east, south, west, and center
These areas are specified by the BorderLayout constants:
PAGE_START
PAGE_END
LINE_START
LINE_END
CENTER
All extra space is placed in the center area
Note: alternate ways of writing:
add(component, BorderLayout.CENTER)
add(button, BorderLayout.NORTH)
Container pane = getContentPane();
pane.setLayout(new BorderLayout());
JButton button = new JButton("Button 1 (PAGE_START)");
pane.add(button, BorderLayout.PAGE_START);
button = new JButton("Button 3 (LINE_START)");
pane.add(button, BorderLayout.LINE_START);
...
Lecture16

9. 2.GUI in Java Building GUI with WindowBuilder
WindowBuilder is composed of the following major components
Source View
Design View
Component Tree
Property Pane
Palette
Wizards
Toolbars & Context Menus
Lecture16

10. 2.GUI in Java Widgets & Layout Managers
Fully supports all standard widgets and layout managers as well as select third-party widgets and layout managers
Lecture16

11. 2.GUI in Java Graphical Menu Editing
Supports WYSIWYG Graphical Menu Editing
Graphical edit menubars and menuitems
Use drag/drop to rearrange menus
Direct edit menu labels
Lecture16

12. 2.GUI in Java WindowBuilder - Installation
Visit the following link:
Check your version of Eclipse and click the “Link” button
Copy the URL at the top of the page
Start Eclipse
Choose Help -> “Install New Software”
Copy the link into “Work with”
Select Swing Designer, SWT Designer and WindowBuilder Engine
Click the “Next button”
Lecture16

13. 2.GUI in Java WindowBuilder – Create a new Application
File>New>Java Project
Enter a name for your project
Project Layout:
It is a good idea to choose: “Use project folder as root for sources and class files (i.e. .java and .class files are all in the same folder in your workspace (Workspace is the place where your projects are created and stored. E.g. C:\Users\name\workspace
click ‘Finish’
New -> Other -> WindowBuilder -> Swing Designer -> JFrame (Add a JFrame to your project)
Choose a package and class name
Lecture16

14. 2.GUI in Java WindowBuilder User Interface
Palette of GUI controls
Containment hierarchy
Visual GUI editor
Source code of the GUI
Properties of selected control
Lecture16

15. 2.GUI in Java Creating components
Switch between code and UI using the tabs at the bottom of the editor
Source / Design
Select “contentPane” in Components view
In Properties view: set the Layout to …
BorderLayout, OR
“(absolute)” to allow free placement of controls
Add components from the Palette view
Drag & drop
Click on the JFrame and Right-click, choose Test/Preview, or
Run the application using “Run” as Java app
Lecture16

16. 2.GUI in Java Event Handlings
Events occur when the user interacts with the UI. The appropriate event- handling code is then executed.
In order to know when events occur, event handlers must first be added to your components.
Event handler: method that is called when a particular event occurs
Event handler is method in “event listener” object
For each type of event a particular method of a particular event listener
Adding an Event Handler
Double-click on the button, an action event listener will be created and will switch to the Source view and go directory to the handler method.
btnNewButton.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent arg0) {
//complete this }
});
Lecture16

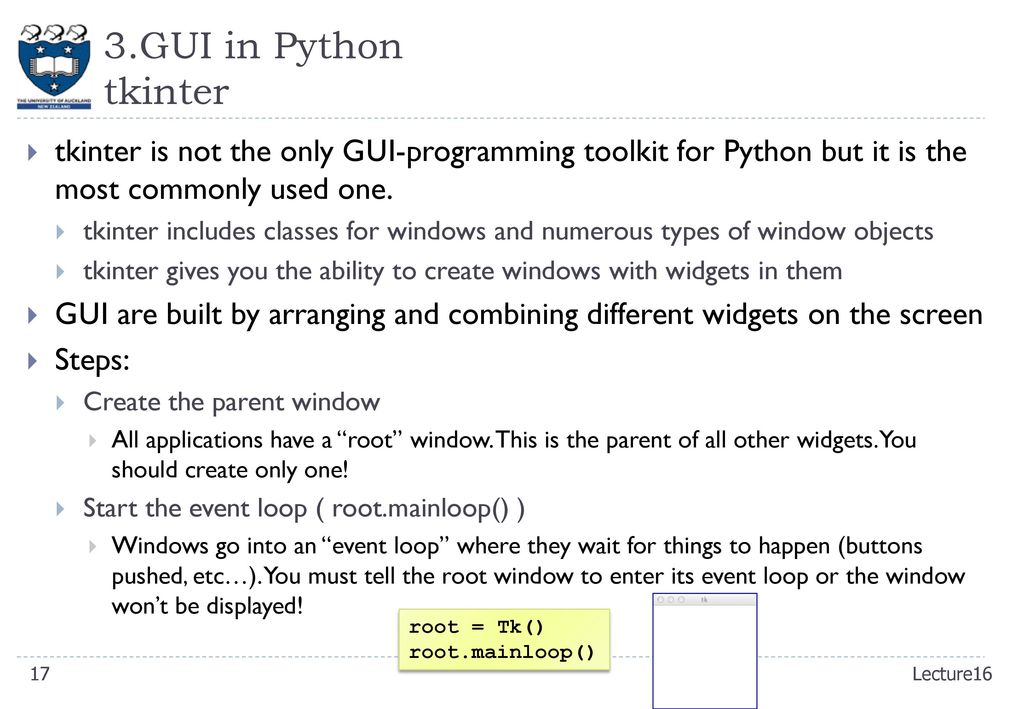

17. 3.GUI in Python tkinter
tkinter is not the only GUI-programming toolkit for Python but it is the most commonly used one.
tkinter includes classes for windows and numerous types of window objects
tkinter gives you the ability to create windows with widgets in them
GUI are built by arranging and combining different widgets on the screen
Steps:
Create the parent window
All applications have a “root” window. This is the parent of all other widgets. You should create only one!
Start the event loop ( root.mainloop() )
Windows go into an “event loop” where they wait for things to happen (buttons pushed, etc…). You must tell the root window to enter its event loop or the window won’t be displayed!
To display one or more lines of text in a label widget
root = Tk()
root.mainloop()
Lecture16

18. 3.GUI in Python A first tkinter program
A first program using tkinter.
Note:
This window is the top level window to which we will add other components (widgets).
In this program, the variable, root, represents the top level window.
from tkinter import * #import the tkinter module
def main():
root = Tk() #Create an empty window
root.mainloop() #Pause the code and do nothing
#until the window is closed
main()
Lecture16

19. 3.GUI in Python Widgets
Widgets are objects which can be added to our top level window. These will allow the user to interact with the program. Some widget examples:
Example: Add a Label
Create a label
When creating the Label widget we need to pass the top level windows, root, (in which the label will be placed) as the first argument.
We also need to pass the text which is to be displayed inside the Label.
Define the position of the label ( hello.pack() )
Tell the label to place itself into the root window and display.
Start the event loop ( root.mainloop() )
Buttons, Checkbuttons, Radiobuttons, Menubuttons,
Entry (for text field entries)
Message (for displaying text messages to the user)
Labels (text captions, images)
Frames (a container for other widgets)
Scale, Scrollbar
Canvas (for drawing shapes, …)
Text (for displaying and editing text) and others..
root = Tk()
hello = Label(root, text="Hello world!")
hello.pack()
root.mainloop()
Lecture16

20. 3.GUI in Python Layout Management
Place label widgets on top of each other and centre them
The job of arranging the widgets in the window!
When we pack widgets into the window they always go under the previous widget
Python has other geometry managers (instead of pack) to create any GUI layout you want
Grid – lets you specify a row, column grid location and how many rows and columns each widget should span
root = Tk()
a_label1 = Label(root, text = "A Label widget in a window")
a_label2 = Label(root, text = "Another one")
a_label3 = Label(root, text = "And more!")
a_label1.pack()
a_label2.pack()
a_label3.pack()
root = Tk()
go_label = Label(root, text='Go')
go_label.grid(row=0, column=0)
stop_label = Label(root, text='Stop')
stop_label.grid(row=1, column=1)
root.mainloop()
Lecture16

21. 3.GUI in Python Event Handling
Button:
To activate a button and enable it to respond to clicks, set command to an event-handling method
A Python function or method can be associated with a button. This function or method will be executed, if the button is pressed in some way.
from tkinter import *
class App:
def __init__(self, master):
frame = Frame(master)
frame.pack()
self.button = Button(frame,text="QUIT", fg="red",command=quit)
self.button.pack(side=LEFT)
self.slogan = Button(frame,text="Hello",command=self.write_slogan)
self.slogan.pack(side=LEFT)
def write_slogan(self):
print("Tkinter is easy to use!")
root = Tk()
app = App(root)
root.mainloop()
The write_slogan() method is associated to the button click event.
Lecture16

22. 3.GUI in Python PyQt5
PyQt is a multi-platform GUI toolkit. It has approximately ~1000 classes divided into a set of ~38 modules.
QtCore contains the core classes, including the event loop and Qt’s signal and slot mechanism.
QtGui contains classes for windowing system integration, event handling, 2D graphics, basic imaging, fonts and text.
QtWidgets contains classes that provide a set of UI elements to create classic desktop-style user interfaces.
Lecture16

23. 3.GUI in Python Installation
Go to the following link to download PyQt5.
Note: check your Python Version in your own machine.
E.g. PyQt5-5.5-gpl-Py3.4-Qt5.5.0-x64.exe for Python Version 3.4
Install the program
Start PyQt5
Go to C:\python34\Lib\site-packages\PyQt5\
Double-click “designer.exe”
Choose a templet from the existing templets
Note: The designed form is saved as demo.ui. This design is translated into Python equivalent by using pyuic5 command line utility.
pyuic5 –x demo.ui –o demo.py
Lecture16

24. PyQt5 A Simple Example: import sys from PyQt5.QtCore import *
from PyQt5.QtGui import *
from PyQt5.QtWidgets import *
def window():
app = QApplication(sys.argv)
win = QDialog()
b1= QPushButton(win)
b1.setText("Button1")
b1.move(50,20)
b1.clicked.connect(b1_clicked)
b2=QPushButton(win)
b2.setText("Button2")
b2.move(50,50)
b2.clicked.connect(b2_clicked)
win.setGeometry(100,100,200,100)
win.setWindowTitle("PyQt")
win.show()
sys.exit(app.exec_())
def b1_clicked():
print ("Button 1 clicked")
def b2_clicked():
print ("Button 2 clicked")
Lecture16

25. PyQt5 Creating an application
def main():
app = QApplication(sys.argv)
w = MyWindow()
w.showMaximized()
w.resize(400, 200)
sys.exit(app.exec_())
if __name__ == "__main__":
main()
Step 1:
Create an application
Create and show the main window
Run the event loop then exit
Step 2:
Create the main window
Extends QWidget
Write the constructor: def __init__(self, *args):
Creating a child widget and place it in a layout
class MyWindow(QWidget):
def __init__(self, *args):
QWidget.__init__(self, *args)
...
Lecture16

26. PyQt5 Widgets QLabel QPushButton
QLineEdit: a widget is a one-line text editor.
QTextEdit: a widget that is used to edit and display both plain and rich text.
QMessageBox
okButton = QPushButton("OK")
cancelButton = QPushButton("Cancel")
self.nameLabel = QLabel("Name:")
self.nameEdit = QLineEdit()
Lecture16

27. PyQt5 Using Layouts
Layouts manage child widgets and are responsible for:
Updating their sizes and positions
Providing default and minimum sizes
Horizontal, vertical and grid layouts:
QHBoxLayout()
QVBoxLayout()
QGridLayout()
oneButton = QPushButton("One")
twoButton = QPushButton("Two")
threeButton = QPushButton("Three")
layout = QHBoxLayout(self)
layout.addWidget(oneButton)
layout.addWidget(twoButton)
layout.addWidget(threeButton)
Lecture16

28. PyQt5 Event Handling
Widgets used to build the GUI interface act as the source of such events. Each PyQt widget, which is derived from QObject class, is designed to emit ‘signal’ in response to one or more events.
The signal on its own does not perform any action. Instead, it is ‘connected’ to a ‘slot’. The slot can be any callable Python function.
In PyQt, connection between a signal and a slot can be achieved in different ways. Following are most commonly used techniques:
oneButton.clicked.connect(self.show_one)
def show_one(self):
self.messageEdit.setText("ONE")
Lecture16
