1. MPI Basics

2. MPI MPI = Message Passing Interface
Specification of message passing libraries for developers and users
Not a library by itself, but specifies what such a library should be
Specifies application programming interface (API) for such libraries
Many libraries implement such APIs on different platforms – MPI libraries
Goal: provide a standard for writing message passing programs
Portable, efficient, flexible
Language binding: C, C++, FORTRAN programs

3. The Program
#include <stdio.h> #include <string.h> #include "mpi.h" main(int argc, char* argv[]) { int my_rank; /* rank of process */ int p; /* number of processes */ int source; /* rank of sender */ int dest; /* rank of receiver */ int tag = 0; /* tag for messages */ char message[100]; /* storage for message */ MPI_Status status; /* return status for */ /* receive */ /* Start up MPI */ MPI_Init(&argc, &argv); /* Find out process rank */ MPI_Comm_rank(MPI_COMM_WORLD, &my_rank);

4. The Program /* Find out number of processes */
MPI_Comm_size(MPI_COMM_WORLD, &p);
if (my_rank != 0) {
/* Create message */
sprintf(message, "Greetings from process %d!",
my_rank);
dest = 0;
/* Use strlen+1 so that '\0' gets transmitted */
MPI_Send(message, strlen(message)+1, MPI_CHAR,
dest, tag, MPI_COMM_WORLD);
} else { /* my_rank == 0 */
for (source = 1; source < p; source++) {
MPI_Recv(message, 100, MPI_CHAR, source, tag,
MPI_COMM_WORLD, &status);
printf("%s\n", message); }
/* Shut down MPI */
MPI_Finalize();
} /* main */

5. General MPI programs #include <mpi.h>
main( int argc, char** argv ) {
MPI_Init( &argc, &argv );
/* main part of the program */ /*
Use MPI function call depend on your data partitioning and the parallelization architecture */
MPI_Finalize(); }

6. MPI Basics
MPI’s pre-defined constants, function prototypes, etc., are included in a header file. This file must be included in your code wherever MPI function calls appear (in “main” and in user subroutines/functions) :
#include “mpi.h” for C codes
#include “mpi++.h” * for C++ codes
include “mpif.h” for f77 and f9x codes
MPI_Init must be the first MPI function called
Terminates MPI by calling MPI_Finalize
These two functions must only be called once in user code.

7. MPI Basics
MPI’s pre-defined constants, function prototypes, etc., are included in a header file. This file must be included in your code wherever MPI function calls appear (in “main” and in user subroutines/functions) :
#include “mpi.h” for C codes
#include “mpi++.h” * for C++ codes
include “mpif.h” for f77 and f9x codes
MPI_Init must be the first MPI function called
Terminates MPI by calling MPI_Finalize
These two functions must only be called once in user code.

8. MPI Basics
C is case-sensitive language. MPI function names always begin with “MPI_”, followed by specific name with leading character capitalized, e.g., MPI_Comm_rank. MPI pre-defined constant variables are expressed in upper case characters, e.g., MPI_COMM_WORLD.

9. Basic MPI Datatypes
MPI datatype C datatype MPI_CHAR signed char MPI_SIGNED_CHAR signed char MPI_UNSIGNED_CHAR unsigned char MPI_SHORT signed short MPI_UNSIGNED_SHORT unsigned short MPI_INT signed int MPI_UNSIGNED unsigned int MPI_LONG signed long MPI_UNSIGNED_LONG unsigned long MPI_FLOAT float MPI_DOUBLE double MPI_LONG_DOUBLE long double

10. MPI is Simple MPI_Init MPI_Finalize MPI_COMM_size MPI_COMM_rank
Many parallel programs can be written using just these six functions, only two of which are non-trivial:
MPI_Init
MPI_Finalize
MPI_COMM_size
MPI_COMM_rank
MPI_Send
MPI_Recv

11. Initialization Initialization: MPI_Init() initializes MPI environment
Must be called before any other MPI routine (so put it at the beginning of code)
Can be called only once; subsequent calls are erroneous.
int MPI_Init(int *argc, char ***argv)

12. Termination MPI_Finalize() cleans up MPI environment
Must be called before exits.
No other MPI routine can be called after this call, even MPI_Init()

13. Termination MPI_Finalize() cleans up MPI environment
Must be called before exits.
No other MPI routine can be called after this call, even MPI_Init()

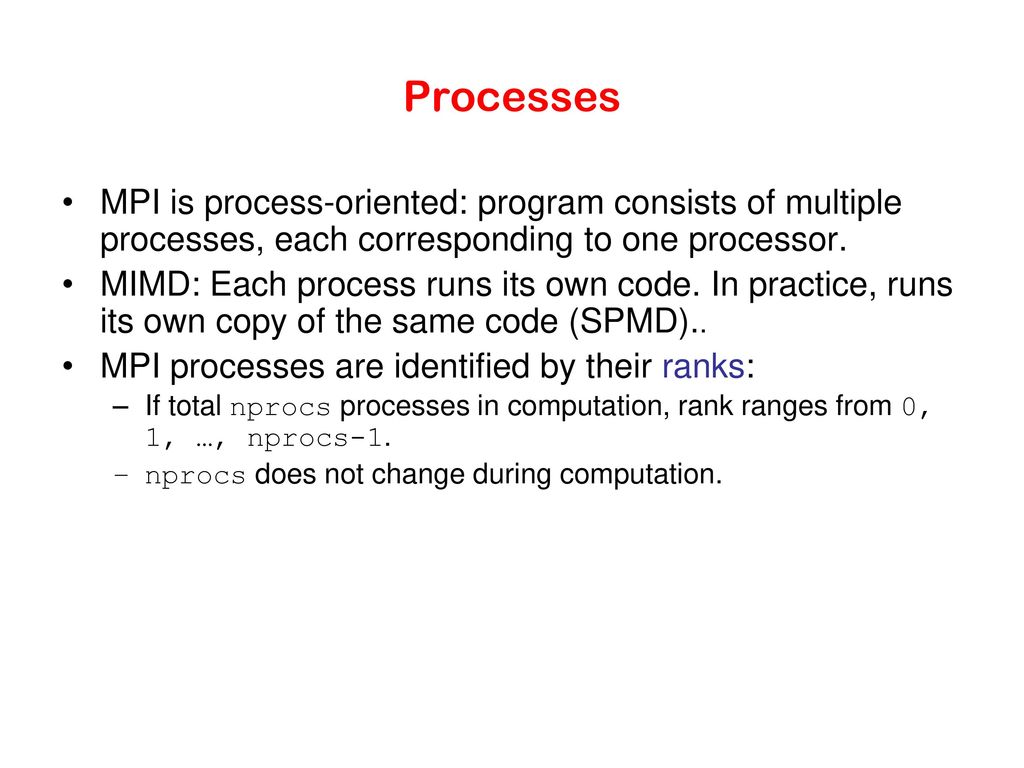

14. Processes
MPI is process-oriented: program consists of multiple processes, each corresponding to one processor.
MIMD: Each process runs its own code. In practice, runs its own copy of the same code (SPMD)..
MPI processes are identified by their ranks:
If total nprocs processes in computation, rank ranges from 0, 1, …, nprocs-1.
nprocs does not change during computation.

15. Communicators
Communicator: is a group of processes that can communicate with one another.
Most MPI routines require a communicator argument to specify the collection of processes the communication is based on.
All processes in the computation form the communicator MPI_COMM_WORLD.
MPI_COMM_WORLD is pre-defined by MPI, available anywhere
Can create subgroups/subcommunicators within MPI_COMM_WORLD.
A process may belong to different communicators, and have different ranks in different communicators.

16. Size and Rank Number of processors: MPI_COMM_size()
Which processor: MPI_COMM_rank()
Can compute data decomposition etc.
Know total number of grid points, total number of processors and current processor id; can calculate which portion of data current processor is to work on.
Ranks also used to specify source and destination of communications.
int my_rank, ncpus;
MPI_Comm_rank(MPI_COMM_WORLD, &my_rank);
MPI_Comm_size(MPI_COMM_WORLD, &ncpus);

17. Compile and Run Program
Compile the MPI program
mpicc –o greetings greetings.c
After compiling, a executable file greetings is generated.
If running on the head node
mpirun –np 4 ./greetings
Greetings from process 1!
Greetings from process 2!
Greetings from process 3!
This is NOT allowed in HPC supercomputers.

18. PBS scripts PBS: Portable Batch System A cluster is shared with others
Need to use a job submission system
PBS will allocate the job to some other computer, log in as the user, and execute it
Useful Commands
qsub : submits a job
qstat : monitors status
qdel : deletes a job from a queue

19. A Job with PBS scripts
vi myjob1 #!/bin/bash #PBS -N job1 #PBS -q production #PBS -l select=4:ncpus=1 #PBS -l place=free #PBS -V cd $PBS_O_WORKDIR mpirun -np 4 -machinefile $PBS_NODEFILE ./greetings

20. Submit Jobs Submit the job qsub myjob1 283724.service0
Check the job status
Qstat
PBS Pro Server andy.csi.cuny.edu at CUNY CSI HPC Center
Job id Name User Time Use S Queue
service0 methane_g michael.green R qlong8_gau
service0 methane_g michael.green R qlong8_gau
service0 BEAST_serial edward.myers :38: R qserial
service0 2xTDR e.sandoval H qlong16_qdr

21. Submit Jobs See the output cat job1.o283724 Greetings from process 1!
See the error file
Cat job1.e283724

22. PBS scripts
production is the normal queue for processing your work N <job_name> The user must assign a name to each job they run. Names can be up to 15 alphanumeric characters in length. -l select=<chunks>: A chunk is a collection of resources (cores, memory, disk space etc…). -l ncpus=<cpus> The number of cpus (or cores) that the user wants to use on a node. -l mem=<mem>mb This parameter is optional. It specifies how much memory is needed per chunk. If not included, PBSpro assumes a default memory size on a per cpu (core) basis. -l ngpus=<gpus> The number of graphics processing units that the user wants to use on a node (This parameter is only available on Penzias).

23. PBS scripts
-l place=<placement> This parameter tells PBSpro how to distribute requested chunks of resources across nodes. placement can take one of three values: free, scatter or pack.
If you select free, PBSpro will place your job chunks on any nodes that have the required number of available resources.
If you select scatter, PBSpro will schedule your job so that only one chunk is taken from any virtual compute node.
If you select pack, PBSpro will only schedule your job to take all the requested chunks from one node (and if no such node is available job will be queued up)
