1. FEE for TPC MPD__NICA JINR
Yu.Zanevsky, A.Bazhazhin, S.Bazilev , S.Chernenko, G.Cheremukhina,
V.Chepurnov, O.Fateev, S. Razin, V.Slepnev, A. Shutov, V. Vereschagin, V.Zryuev
JINR, Dubna
S. Chernenko, NECC2011, September 13, 2011 1

2. MPD NICA
S. Chernenko, NECC2011, September 13, 2011 2

3. Time Projection Chamber (TPC)
TPC parameters
Size: 3.4 m (length) x 2.2 m (diameter)
Drift Length: 150cm
# of samples: 50
Electric field: 140V/cm
Magnetic field: 0.5 T (max.)
Gas: 90% Argon + 10% Methane (atm+2mbar)
Readout: 2x12 sectors (MWPC+pads or GEM)
Pad size – 4x10mm in inner sector area
6x12mm in outer sector area
Total # of pads: ~80000
Performance
Spatial resolution: srf~300 mm sz~ 2 mm
Two track resolution < 1 cm
Momentum resolution Dp/p < 3% (0.2<p<1 GeV/c)
dE/dx resolution < 8%
TPC prototyping has already started
S. Chernenko, NECC2011, September 13, 2011 3

4. MPD TPC prototyping (2) MPD TPC read-out specification
Field Cage
Rods
Diameter mm
Length mm
Wall thickness - 2 mm
Material – Kevlar
Readout – MWPC:
6x12 & 4x10 mm pads
Gas – Ar/CH4 (80/20)
MWPC readout
MPD TPC read-out specification
Readout: 2x12 sectors
Pad size: 5x12,5mm
Total # of pads: ~80.000
S. Chernenko, NECC2011, September 13, 2011 4 4 4

5. Front End Electronics Requirement
Total number of channels
MIP, noise < 1000e-
Dynamic Range………………… (10 bits)
Shaping time …………………….. ~200ns (smooth shape, S/N)
Sampling …………… MHz
Tail cancellation (after 1 s)…… < 1%
Temperature……………………… ~ 0.10 C (stable drift velocit)
Pcons …………………..……………..40mW/ch
S. Chernenko, NECC2011, September 13, 2011

6. Front End Electronics Component Base
FEE for TPC_MPD
two ASICs from ALICE TPC : PASA (analogue)
- ALTRO (digital)
REASONS
- availability (total needed number of channels )
- reliability
- good experience ● ALICE ~ chs
● STAR ~ chs (recent upgrade)
- no long R&D
S. Chernenko, NECC2011, September 13, 2011

7. STAR FEE Upgrade based on ALTRO+PASA (DAQ1000 )
> 10 times faster
DAQ 1000
Old TPC features
Zero suppression done at FEE in the Altro
Event transfer times smaller
Combined with slightly faster link, will allow rates ~ hz
Event Buffering on FEE
TPC stays alive as long as throughput is < max
Deadtime only caused by TPC Drift..
0.004% dead / hz readout
Zero suppression done at RB in the DAQ room
Full ~460, bit words transferred over each fiber.
10ms readout time every event. 100hz max rate.
No event buffering on FEE
TPC dead during digitization & readout time.
1% dead / hz readout.
S. Chernenko, NECC2011, September 13, 2011

8. Data flow (rate) Track Signals readout Induced charge on pads
Pad Plane Prototype
~ chs
Data flow (rate)
- event
(Z-suppresion  10% occupancy)
- 6kHz trigger  5 TPC
~ 2 Gb per chamber
- fast trtransmission + on-line data
reduction (upgrade STAR, ~100times) to
FEE
S. Chernenko, NECC2011, September 13, 2011

9. 64 chs FEE for TPC_MPD ALTRO ALTERA (control) TPC__MPD Readout
L1: 6 kHz
4 CHIPS x
16 CH / CHIP
4CHIPS x
16 CH / CHIP
drift region
40 ms
Front-end
Bus
ALTRO
Digital
Circuit
gating grid
PASA
Readout
controller
ADC
RAM
anode
wire
80.000PADS
pad
plane
CUSTOM IC
(CMOS 0.35mm)
CUSTOM IC (CMOS 0.25mm )
CSA
SEMI-GAUSS. SHAPER
1 MIP = 4.8 fC
S/N = 30 : 1
DYNAMIC = 30 MIP
BASELINE CORR.
TAIL CANCELL.
ZERO SUPPR.
10 BIT
< 10 MHz
MULTI-EVENT
MEMORY
GAIN = 12 mV / fC
FWHM = 190 ns
S. Chernenko, NECC2011, September 13, 2011 9

10. Processing in PASA & ALTRO
- FWHM – 190ns
- Baseline restoration after 1ms:
~ 5 % in amplifier / shaper
~ 0.1% in dig. chip
FWHM ~ 190ns
PASA
ALTRO
- Baseline corrections
- Tail cancellation
S. Chernenko, NECC2011, September 13, 2011 10

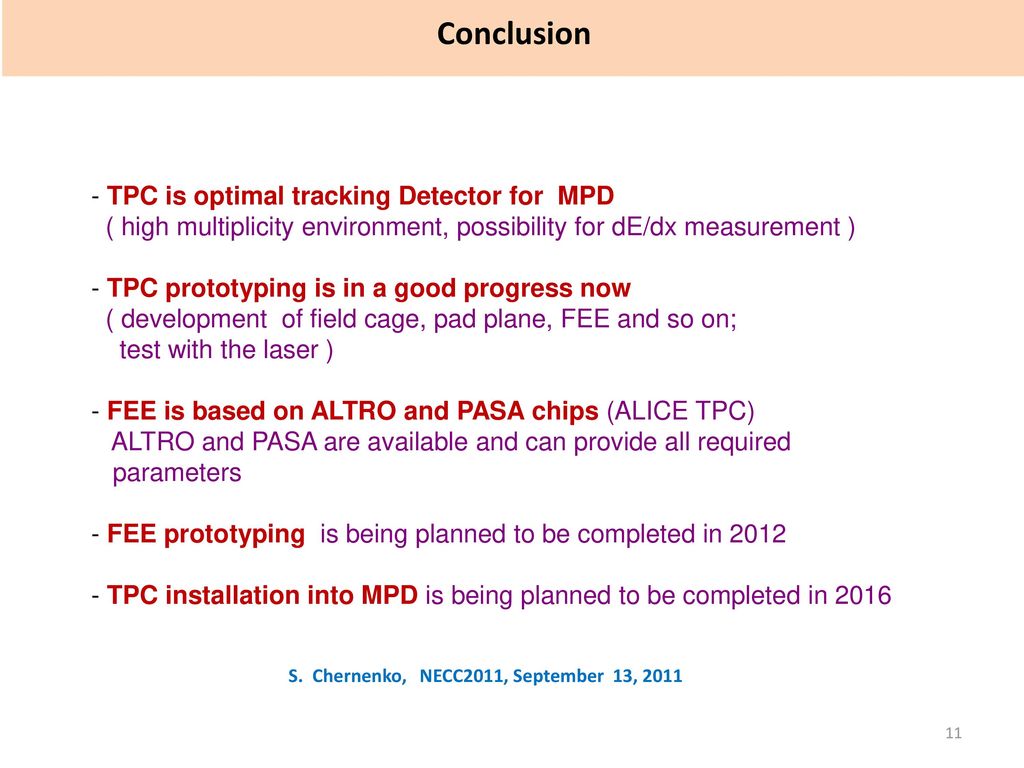

11. Conclusion - TPC is optimal tracking Detector for MPD
( high multiplicity environment, possibility for dE/dx measurement )
- TPC prototyping is in a good progress now
( development of field cage, pad plane, FEE and so on;
test with the laser )
- FEE is based on ALTRO and PASA chips (ALICE TPC)
ALTRO and PASA are available and can provide all required
parameters
- FEE prototyping is being planned to be completed in 2012
- TPC installation into MPD is being planned to be completed in 2016
S. Chernenko, NECC2011, September 13, 2011 11
