1. IBM Spectrum Protect Plus
Presenter Name
Presenter Title
IBM Systems Storage

2. Disclaimer
IBM's statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM's sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code, or functionality. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion.

3. Introducing IBM Spectrum Protect Plus
The new data protection offering from IBM
Pre-announcement: August 22, 2017
First public viewing: VMworld US 2017
General Availability (GA): 4Q 2017
Primary use cases
Data Protection for virtual machines, applications
Disaster Recovery
Data Reuse
(Test/Dev, DevOps, Reporting, Analytics, etc…)
IBM is announcing an exiting new data protection offering, as part of the Spectrum Family.
The new solution is called IBM Spectrum Protect Plus, and it is focused on protection and recovery of virtual environments. The first public announcement will be on Aug. 22nd, followed shortly thereafter by a dedicated booth with public demonstrations at VMworld in Las Vegas.
The key use case will be data protection for virtual machines and applications, however Spectrum Protect Plus will also focus on disaster recovery and data re-use use cases such as test-dev, reporting and so on.

4. What Is Spectrum Protect Plus?
Simplified Data Recovery and Data Access Solution for Virtual Environments
Simple and light weight, easy to deploy, configure and manage
Pre-defined policy based service level
Secure, self-service (RBAC) administration
Enterprise proven, scalable
Leverage your backup data for new data reuse use cases
Data recovery and reuse automation
Easily fits your budget
Modern
Easy
Fast
Low Cost
So what is Spectrum Protect Plus?
Spectrum Protect Plus is the future of IBM’s data recovery and data reuse portfolio. The key value areas are highlighted on the right: Spectrum Protect Plus is modern technology that is easy to use, fast, fast to deploy, fast to configure, and enables fast backup, through snapshots, fast recovery, and low cost.
It’s focused on virtual machine protection for both VMware and Hyper-V environments.
Unlike a lot of products, you don’t have to be a backup expert to use Spectrum Protect Plus. It’s very simple and intuitive to use. Now thru secure, self-service administration, the data protection administrator can set service levels for their backup data and put the power of data recovery and access in the hands of the people that need it.
The software is simple to deploy and can be ready to go in as little as 15 minutes by installing a pre-built virtual machine. You can deploy it as a standalone solution, or as part of your Spectrum Protect environment.
And finally, you’ll realize a rapid time to value and after some simple configuration can be up and running in a little as an hour, compared to some solutions that can take weeks to deploy and require costly professional services.

5. The Future of Data Protection: Secondary Data Management
Applications and Storage
Data Protection Platform
Secondary Storage and Reuse
Simple Backup Store
Traditional Applications
Native format
Fast recovery
Any storage
Orchestration
Protection
Optimization
Analytics
Hypervisors & Cloud Platforms
Disk
Cloud
Dedupe / compress
Tiering / air gap DR
Long-term retention
Tape
Object
New Applications
Application consistent
Snapshot APIs
Storage and
Hyperconverged Systems
Track & leverage copies
DevOps
Migration / Hybrid cloud
Storage and
Hyperconverged Systems
So, why Spectrum Protect Plus?
If we look at the future of where data protection is going – the answer becomes more obvious.
On the left hand side of this chart you see a number of ways in which data is created in the data center today.
Today, this data not only needs to be protected, but needs to be leveraged with new use cases.
Today’s data protection platform needs to provide secure, service level based protection for the data and also be able to provide analysis around the data, quickly with new capabilities such as snapshots in an automated fashion and provide access to this data for new use cases in any data center or the cloud.
The platform also needs to be able to support any backup medium such as disk, tape, cloud or object and take advantage of storage efficiency solutions such as dedupe or compression, tiering and enable long-term retention.
Components Run Anywhere: On Premises or In Cloud

6. 6 Key Spectrum Protect Plus Attributes
SLA policy-based data protection
Gold, Silver, Bronze pre-configured
Custom policy creation as needed
Instant data recovery or data access
Support for multiple use cases: Test/Dev, DevOps, reporting, analytics, training, etc.
Roles-based access; user self-service
Simple to use, anyone can manage
VM, database or application admin
Light weight: Installs in less than 15 minutes, configured in under an hour
Extends the capabilities of Spectrum Protect for virtual environments
Stand alone – great for small environments
Integrated with Spectrum Protect for long term data retention
Global search and restore
Search across all virtual machine data at once (VMware and Hyper-V)
Restore from search: files, VMs, VMDKs
Exploits VM and application API’s
Creates application consistent or crash consistent data copies
Supporting further data reduction with compression and de-duplication
If you look at the key attributes for Spectrum Protect Plus – they would be the following:
First, is the ability to have SLA based data protection policies set
Next, the solution is extremely simple to use
The solution has global file search and restore capabilities across all your files and virtual machine data
The solution enables instant data recovery and access for new use cases
Next Spectrum Protect Plus can be integrated w/ Spectrum Protect to enable long term retention
And utilizes restful API’s to take advantage of direct communication with the applications and integrate into other tools.

7. Policy Driven, SLA-Based Automation
Service Levels
Select, click and done simplicity
Select recovery service level and apply to VMs
SLAs pre-defined or create- your-own
Unprotected VMs identified in dashboard view
Set it and forget it
Gold
Silver
Bronze
Starting with SLA based protection policies, one key to Spectrum Protect Plus is it’s “pick, click and done simplicity.” It’s really as easy as selecting the recovery service level that you require, either picking from one of the pre-defined gold, silver and bronze SLAs, or custom creating your own to meet your needs. Then you apply that service level to one or more virtual machines. And you’re done!
If you miss any VMs, the dashboard view will quickly identify any that were missed so you can correct them and make sure you’re covered.
Custom

8. Simple, Secure SLA Based Self-Service Management
Easily assign functionality based on user roles
Reduces load on IT staff
End-users prefer self- service models
Safe and secure access
Backup Admin
VM Admin
Developer
Help Desk
So not only is it simple for backup or storage admins to set policies to create data copies, today’s data protection solution needs to enable anyone who has the proper credentials to recover or access copies of backup data for different use cases. The solution comes with multiple pre-defined access roles. This means you can assign product functionality based on user types. For example, a backup admin can be given full access to the solution, while a software developer may be limited to only bringing up copies of specific data sets. Similarly, perhaps a help desk employee is granted access to only recovery capability, and not the ability to set schedules or define policies.
With the proper application of role-based access, you can even move to a self-service model. IT doesn’t have to be involved in every request for recovery or copy delivery. This can greatly reduce the load on the IT staff, who often spend a great deal of time on repetitive tasks such as copy delivery.

9. Global Search and Recover
Unified, Google-like search across files and objects
Search across VMware and Hyper-V in a single operation
Locate files, VMs, datastores
Easy restore from search
Part of the secret sauce behind Spectrum Protect Plus is a meta-data catalog that indexes and records all protected data and VMs, and provides you unified, google-like search across the entire protected environment. You can optionally index files as well, giving you file-level search and restore for select VMs or all of them. It even lets you search across VMware and Hyper-V environments in a single operation. This global search is a significant advancement over other solutions that only allow you search within a single virtual machine.

10. Instant Data and VM Recovery
Data Loss Scenarios
Recover rapidly from snapshot copies
Suitable for all recovery use cases
Multiple recovery points for all VMs
No waiting for streaming restores
Application consistent backup, recovery, cloning
Ransomware
Human Error
Hardware Failure
Data Corruption
Backups are stored as snapshot images, and that means you can recover data very quickly. There is no need to run a streaming restore that copies data from a target device. You just access backups directly and immediately from a simple mount point.
Spectrum Protect Plus recoveries can be used to restore operations in any data loss scenario, whether it’s a system locked by ransomware, inadvertent data deletion through human error, hardware failures, data corruption, or any of the other thousand ways you can lose critical data.
Because data copies can be created fast and frequent, you have multiple recovery points to give you better RPOs

11. Long-term Retention Using Spectrum Protect
Retention Options
Automated copy transfer to Spectrum Protect*
Long-term retention / tier to cloud
Single-step recovery
Meets legal and regulatory compliance needs
CBT / RCT data movement
Disk
Tape
Cloud
Object Store
A major competitive advantage Spectrum Protect Plus has is its integration with Spectrum Protect. While organization need the fast and efficient capabilities of Protect Plus for day to day operational recovery and data access, many organizations still need to keep data for longer periods of time to meet regulatory or compliance goals. Data can be copied directly from Spectrum Protect Plus to Spectrum Protect, and from there it can moved to any of the numerous storage tiers supported by Spectrum Protect, including disk, a wide range of tape devices, multiple cloud data stores, and object storage, including IBM Cloud Object Storage. Keep in mind the client needs to be running 8.1 or higher – this is a good reason to get your clients to upgrade.
Recovery from any of these tiers is a single-step operation.
* Need to be running Spectrum Protect 8.1 or better

12. Multi-Use Data Access More than just recovery operational recovery
Data Access Use Cases
More than just recovery operational recovery
Derive business value from your protected data
Spin up VMs and VMDKs for easy, secure data access for multiple use cases
Test/Dev
Reporting
Traditional backup data can utilize as much as 4 times the amount of storage capacity as your primary storage. No longer can businesses afford to have this data sitting around and not taking advantage of it. And while data protection is the main use case for Spectrum Protect Plus, it’s more than just a backup solution. You can use it to derive real business value from your protected data. With Protect Plus, you can quickly and easily spin up virtual machines or mount VMDKs as read-write clones. These can then be used for any situation where users need access to data. Examples of this are DR, test-dev, reporting or analytics. Because Spectrum Protect Plus is also enabled with a RESTful API, it can even be used as part of a DevOps workflow, helping to enhance modern, automated software development processes.
Analytics
DevOps

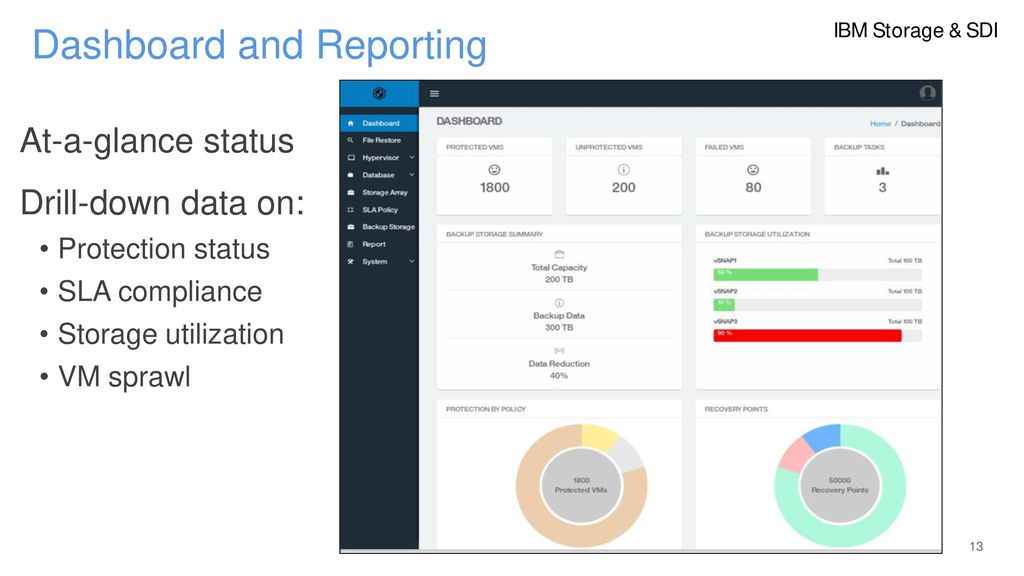

13. Dashboard and Reporting
At-a-glance status
Drill-down data on:
Protection status
SLA compliance
Storage utilization
VM sprawl
Lastly, and not part of our “top 6” value adds, but important all the same is the Spectrum Protect Plus user interface. It has a sharp, modern look and feel, including a dashboard that gives you at-a-glance status of your entire protection environment. You can see information about protection status, SLA compliance and storage utilization all in one place.

14. Spectrum Protect Plus Architecture
Applications and Storage
Data Protection Platform
Scalable Storage Pool
Backups Stored as Read/Write Snapshots
Spectrum Protect Plus vSnap Storage Manager
Secondary Storage and Reuse
Tiering to
Disk
Tape
Cloud
Object
Optional
Simple deployment as a virtual machine image
Integrated storage management
Spectrum Protect Plus Server
Policies
Catalog
VMware
Hyper-V
API Calls
Instant Restore
Block-Level Incremental Forever Backup
Operations
Recovery
Multi-Purpose Data Access
Test/Dev
Reporting
Analytics
DevOps
With all that background, now let’s put the pieces in place and diagram the Spectrum Protect Plus architecture to see how this works.
We start with the key components in place: the virtual environments (on the left), the Spectrum Protect Plus virtual machine deployed, and the storage component, a scalable storage pool built on a combination of Spectrum Protect Plus software and any storage. This storage pool can run on either a virtual or physical server.
[First click] The Spectrum Protect Plus management VM will communicate with the virtual environments. This is part of the backup scheduling as well as cataloging processes.
[Second click] Protect Plus then kicks off a block-level forever backup to the storage pool. Each backup is stored as a read/write snapshot.
[Third click] You can then use any backup image to restore, whether back to the virtual environment for recovery, or for any of the multi-purpose use cases that were discussed earlier.
[Fourth click] Finally, if desired, you can tier data to Spectrum Protect, onto multiple different storage options.
