1
CS 2410 Introduction to GUI Development in Java Lecture 2 Transition from C++ to Java
Dr. Young-Woo Kwon Slides from UMBC CMSC 34
2
Important Java Concepts and Terminology
JRE is the Java Runtime Environment and it creates a virtual machine within your computer known as the JVM (Java Virtual Machine). JRE is specific to your platform and is the environment in which Java byte code is run. JDK (formerly SDK) is the Java Development Kit. JDK = JRE + development tools Java SE is the Java Platform Standard Edition, which you will be using in this course to build stand alone applications. To learn more about JDK, JRE, etc., visit java/javase/tech/index.html
3
Important Java Concepts
Everything in Java must be inside a class. Every file may only contain one public class. The name of the file must be the name of the class appended to the java extension. Thus, Hello.java must contain one public class named Hello.
4
C++ File Structure We typically have header files (*.h, *.hpp) and a source file (*.c, *.cpp) There is no coloration between the name of the file and the classes (if any) defined within
5
C++ Example – factorial.h
#ifndef _FACTORIAL_H_ #define _FACTORIAL_H_ int factorial(int n); #endif
6
C++ Example – factorial.c
#include "factorial.h" int factorial(int n) { int result = 1; for(int i = n; i > 0; i--) { result *= i; } return result;
7
C++ Example – example1.c #include <iostream>
#include "factorial.h" using namespace std; int main(int argc, char** argv) { int n = 4; cout << "factorial(" << n << "): " << factorial(n) << endl; exit(0); }
8
Running and Compiling C/C++
C++ Code Linux binary Windows binary Linux executable executable Project Library for Linux for Windows Linux C/C++ compiler Windows C/C++ compiler Linux C/C++ linker Windows C/C++ linker
9
g++ example1.o factorial.o
C++ Compilation To run: a.out a.out Compilation in C++ is done by compiling each of the *.C files, to produce *.o files The object files are then linked to create an executable which can be run directly g++ example1.o factorial.o example1.o factorial.o g++ -c example1.C g++ -c factorial.C example1.C factorial.H factorial.C
10
Java File Structure No separate header file – all code is in a *.java file No duplication of method signature in declaration (*.h) and definition (*.c) to keep in sync No guarding of files to prevent against multiple includes A file must contain a class of the same name By convention files/classes start with a capital letter Enforced consistency No code lives outside of any class
11
Java Main Signature Main signature is a bit different No return value
Only 1 argument to main – a String array public static void main(String[] args)
12
Java Factorial Example
public class Factorial { public static void main(String[] args) { int n = 4; System.out.print("factorial("); System.out.print(n); System.out.print("): "); System.out.println(factorial(n)); } static int factorial(int n) { int result = 1; for(int i = n; i > 0; i--) { result *= i; return result;
13
Running and Compiling Java
Code Bytecode JRE for Linux JRE for Windows Java compiler Hello.java javac Hello.java Hello.class java Hello Java interpreter translates bytecode to machine code in JRE JRE contains class libraries which are loaded at runtime.
14
Java Compilation In Java, *.java files are compiled into *.class files
These *.class files contain what is known as “bytecode” Bytecode does not get run directly Bytecode is not linked to produce an executable Instead, this bytecode is interpreted and executed by another program known as the Java Virtual Machine (JVM) Bytecode can be run on any platform having a JVM
15
Java Compilation & Execution
*.java files are compiled using the javac command The class files are then executed using the java command Note no .class specified when running To run: java Factorial Factorial.class javac Factorial.java Factorial.java
16
Methods in Java The main method has a specific signature.
Example: “Hello world!” Program in Java public class Hello { public static void main(String args[]) System.out.println(“Hello world!”); } Notice no semi-colon at the end!
17
Methods in Java (cont.) All methods must be defined inside a class.
Format for defining a method: [modifiers] return_type method_name([param_type param]*) { statements; } For main, modifiers must be public static, return type must be void, and the parameter represents an array of type String, String []. This parameter represents the command line arguments when the program is executed. The number of command line arguments in the Hello program can be determined from args.length.
18
Static Method Invocation
Methods are invoked using the dot notation. Methods are either static or instance methods. Static methods do not have access to instance data. Static methods are typically invoked using the class name as follows: Math.random(); Static methods may also be invoked by an instance of the class in which the static method is defined.
19
Instance Method Invocation
Create an instance of the class and have object invoke method. System.out is an object in the System class that is tied to standard output. We invoke the println() and print() methods on the object to write to standard output. System.out.println(“Hello world!”);
20
Instance Method Invocation (cont.)
The println and print methods have been overloaded so that they can convert all 8 of Java’s primitive types to a String. The + sign is overloaded to work as a concatenation operator in Java if either operand is a String. int x =15, y = 16; System.out.println(x + y + “/” + x + y); Answer is 31/1516
21
Instance Method Invocation (cont.)
To invoke an instance method, you must first create an instance of the class (an object) and then use the object to invoke the method. StringBuffer phrase; phrase = new StringBuffer(“Java is fun”); phrase.replace(8,11, “cool”); System.out.println(phrase); Prints “Java is cool”. If said phrase.replace(8,10, “cool”), would print “Java is cooln”.
22
Data Types There are two types of data types in Java – primitives and references. Primitives are data types that store data. References, like pointers and references in C++, store the address of an object, which is encapsulated data. int x = 5; Date d = new Date(); 5 x int d FEO3 Date ref Date obj
23
Primitive Data Types Java has 8 primitive data types which always allocate the same amount of memory in JVM. Integral byte – 8 bits short – 16 bits int – 32 bits – default for integer literals long – 64 bits int x = 5; short y = 03; long z = 0x L;
24
Primitive Data Types (cont.)
Floating point double - 64 bits - default for literal decimal value double d = ; double db = 123.5E+306; float - 32 bits - literal value must contain a F or f to avoid compiler errors float f = 32.5f;
25
Primitive Data Types (cont.)
Logical boolean - 1 bit boolean a = true; boolean b = 5 < 3; Textual char- 16 bit - Unicode char c = ‘A’; char d = ‘\u04a5’ char e = ‘\t’; char f = 96;
26
Primitive Types Like C++, Java has a built-in boolean type
C++ uses the keyword bool, whereas Java used the keyword boolean Both use the values true and false Unlike C++, you cannot assign non-boolean types into booleans boolean x = 1 results in a compiler error
27
Primitive Types Like C++, Java defines a character type
Just like C++, Java uses the char keyword to declare this type Character literals are defined using single quotes such as 'a'
28
Primitive Types Integer types are pretty much the same, both provide the following types A C++ short int is a Java short A C++ int is a Java int A C++ long int is a Java long There are no unsigned variants in Java Unlike C++, if you want to assign a higher precision number into a lower precision container you must explicitly down cast… int i = ; short s = (short)i;
29
Primitive Types Like C++, Java has both float and double types
The same down casting rules that applied with integer types applies to doubles and floats also So if you want to assign a double into a float you must cast it to be a float Additionally, Java assumes that floating point literals are doubles by default If you want to create a literal you can tack on an “f” to the literal to declare it of a float type float f = f;
30
Reference Data Types Reference data types contain an address and function like pointers without the complex syntax. In the following code, the second line does not call a copy constructor, but rather you will have two references pointing to the same object. Date d = new Date(); Date e = d; Java tackled the problem of memory leaks in C++ by not allowing the programmer to have direct access to the memory (i.e. no more pointer arithmetic), checking array bounds at runtime, and having a garbage collector in the JVM that periodically reallocates memory that is not referenced.
31

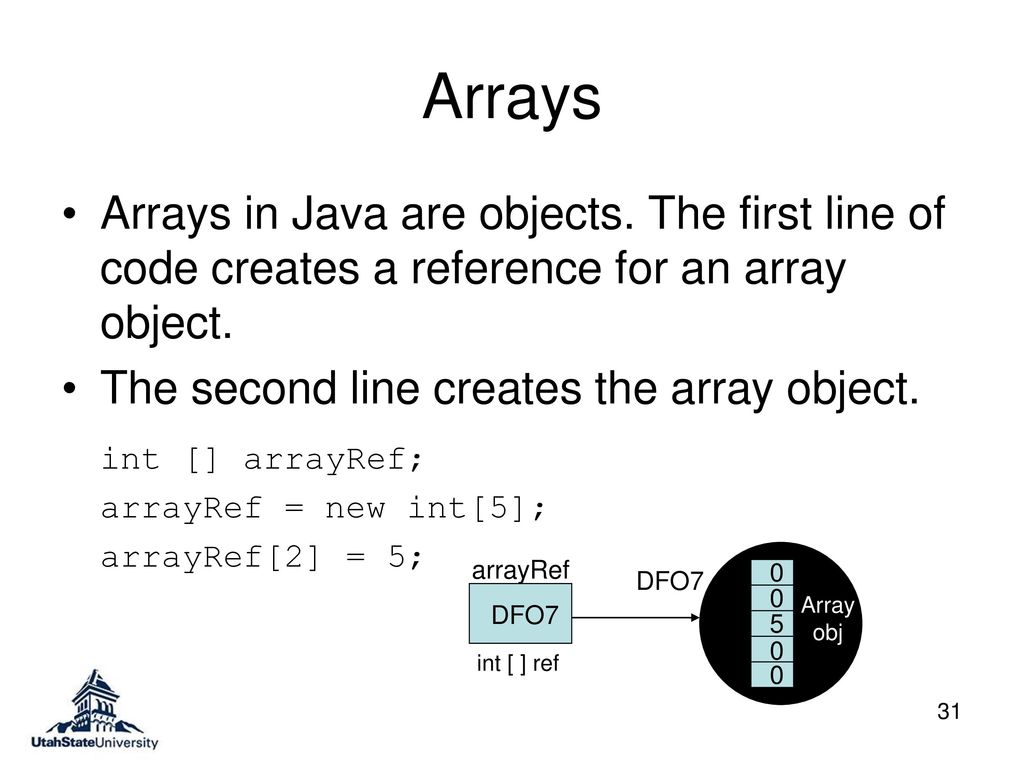

Arrays Arrays in Java are objects. The first line of code creates a reference for an array object. The second line creates the array object. int [] arrayRef; arrayRef = new int[5]; arrayRef[2] = 5; int [ ] ref arrayRef DFO7 Array obj 5
32
Arrays (cont.) All primitive data in an array is initialized to its zero value. boolean - false char – ‘\u0’ byte, short, int, long, float, double – 0 All references are initialized to null. All arrays have a length property that gives you the number of elements in the array. args.length is determined at runtime
33
Arrays (cont.) An array of objects is an array of object references until the objects are initialized. Point pArray [] = new Point[5]; pArray[2] = new Point(); Point [ ] ref pArray CDO8 Array obj null AB12 Point obj
34
Arrays (cont.) Arrays may also be initialized when they are declared using the following syntax. int intArray[]={1,2,3,4,5}; Point pArray[]={ new Point(1,2), new Point(3,4), new Point(5,6) };
35
Arrays (cont.) Because arrays are objects and the name of an array is its reference, arrays in Java can grow or shrink upon reassignment. Also, the location of the square brackets can change. int [] aArr = new int[5]; int bArr [] = new int[3]; bArr = aArr; // now both are pointing // to same array and have // length of 5
36
Arrays (cont.) The System class provides an arraycopy method that performs a shallow copy of one array to another. Use System.arraycopy to copy an array of primitive data, not for an array of references. System.arraycopy(srcArray, 4, destArray, 3, 2); number of elements Index in source Index in target
37
Arrays (cont.) The declaration of array is carried through a comma separated list. The following declares two integer arrays. int [] a, b;
38
Multidimensional Arrays
The following declares a two-dimensional array, a reference. int [][] twodim; The following creates the array with twenty elements initialized to 0. twodim = new int [4][5]; The following does both at the same time. Notice the array is not rectangular. int [][] twodim2 = {{1,2,3}, {3,4}, {5,6,7,8}};
39
Multidimensional Arrays (cont.)
A pictorial rendition of twodim2. Array obj 1 2 3 twodim2 Array obj of array refs Array obj 3 4 int [ ] [ ] ref Array obj 5 6 7 8 Each element is an int [] ref
40
Java Naming Conventions
Class name are in UpperCamelCase Member names are lowerCamelCase Method names are lowerCamelCase
41
Examples Classes and Interfaces
StringBuffer, Integer, MyDate Identifiers for methods, fields, and variables _name, getName, setName,isName, birthDate Packages java.lang, java.util, proj1 Constants PI, MAX_NUMBER For classes the names should be nouns in mixed case with the first letter of any word being capitalized. Interfaces are capitalized as are classes. The identifiers for methods should be verbs with the first letter in lowercase. Words are separated by capital letters. Fields and variables should begin with lowercase letter or _ . Words are separated by capital letters. Limit use of $ because has special meaning for inner classes. Packages are nouns in lowercase. Constants should be all upper case with words separated by _. Object constants can use mixed-case letters.
42
Comments Java supports three types of comments.
C style /* multi-liner comments */ C++ style // one liner comments Javadoc /** This is an example of a javadoc comment. These comments can be converted to part of the pages you see in the API. */
43
The final modifier Constants in Java are created using the final modifier. final int MAX = 9; Final may also be applied to methods in which case it means the method can not be overridden in subclasses. Final may also be applied to classes in which case it means the class can not be extended or subclassed as in the String class.
44
Packages Only one package per file.
Packages serve as a namespace in Java and create a directory hierarchy when compiled. Classes are placed in a package using the following syntax in the first line that is not a comment. package packagename; package packagename.subpackagename;
45
Packages (cont.) Classes in a package are compiled using the –d option. On the following slide, you will find the command to compile the code from the Proj1/src directory to the Proj1/bin directory.
46
Packages (cont.) It is common practice to duplicate the package directory hierarchy in a directory named src and to compile to a directory named bin. javac –d ../bin proj1/gui/Example.java Proj1 proj1 src bin gui Example.java Example.class The following command is run from the src directory: The java compiler will build the directory hierarchy in the directory which you specify after the switch. Thus, in this example it is building the directory hierarchy in the ../bin directory.
47
Packages (cont.) By default, all classes that do not contain a package declaration are in the unnamed package. The fully qualified name of a class is the packageName.ClassName. java.lang.String To alleviate the burden of using the fully qualified name of a class, people use an import statement found before the class declaration. import java.util.StringBuffer; import java.util.*; By default, you are allowed to reference classes in the current directory and in the java.lang package without having to use the fully qualified name.
48
Packages Like C++, Java provides a mechanism to organize code
Packages are similar to namespaces in C++ but have different syntax and conventions In Java classes need not be explicitly be under a package, in which case the default package will be used Though, this practice is discouraged
49
Namespaces in C++ namespace A { class Foo { // minimal class }; }
int main(int argc, char** argv){ A::Foo aFoo(); return 0;
50
Packaging Conventions
Typically package names consist of lowercase letters and/or numbers Multiple words are usually separated by periods In the real world most projects use something called reverse domain name notation edu.usu.cs.cs2410.ClassName Use this as another method to group your code into logical chunks
51
Using a Package Using a file in a package is very similar to that of C++ In C++ we might have something like… In Java, the syntax is different – we use the import keyword, drop the angle brackets, and the file extension #include <sys/socket.h> import java.util.Date;
52
Fields and Methods In Java you have fields and methods. A field is like a data member in C++. Method is like a member method in C++. Every field and method has an access level. The public, private, and protected keywords have the same functionality as those in C++. public protected private (package) There are no non-member methods in Java because all methods must be defined in a class.
53
Access Control private default protected public Same package Modifier
Same class Subclass Universe
54
Access Control for Classes
Classes may have either public or package accessibility. Only one public class per file. Omitting the access modifier prior to class keyword gives the class package accessibility. Instances (or objects) of public classes can be created and manipulated by code in classes from any package. Instance of classes that have package accessibility may only be created and manipulated by code in classes of the same package.
55
Classes In Java, all classes at some point in their inheritance hierarchy are subclasses of java.lang.Object, therefore all objects have some inherited, default implementation before you begin to code them. String toString() boolean equals(Object o) Overriding the toString method allows for the object to be printed by the print and println methods to the programmer’s specification. Default behavior of equals compares the addresses of the host object (the object calling the method) and the parameter object, and is also typically overridden.
56
Classes (cont.) Unlike C++ you must define the accessibility for every field and every method. In the following code, the x is public but the y gets the default accessibility of package since it doesn’t have a modifier. public int x; int y; There is no grouping for accessibility as in C++
57
Java Differences Since Java doesn’t split the declaration and implementation, all code is inline No semi-colon at the end of the class declaration Access explicitly attached to each method this is not a pointer, but a reference, so we use the this. instead of this-> notation
58
C++ Class Declaration #ifndef _DATE_H_ #define _DATE_H_ class Date {
private: int m_month; int m_day; int m_year; public: Date(int month, int day, int year); int GetMonth() const; int GetDay() const; int GetYear() const; void SetMonth(int month); void SetDay(int day); void SetYear(int year); }; #endif
59
C++ Class Definition #include "Date.H" Date::Date(int month, int day,
int year) { this->m_month = month; this->m_day = day; this->m_year = year; } int Date::GetMonth() const { return this->m_month; int Date::GetDay() const { return this->m_day; int Date::GetYear() const { return this->m_year; } void Date::SetMonth(int month) { this->m_month = month; void Date::SetDay(int day) { this->m_month = day; void Date::SetYear(int year) { this->m_year = year;
60
Java Class Declaration & Definition
public class Date { private int month; private int day; private int year; public Date(int month, int day, int year) { this.month = month; this.day = day; this.year = year; } public int getMonth() { return this.month; public int getDay() { return this.day; public int getYear() { return this.year; } public void setMonth(int month) { this.month = month; public void setDay(int day) { this.day = day; public void setYear(int year) { this.year = year;
61
Instance and Local Variables
Unlike C++ you must define everything within a class. Like C++, variables declared outside of method are instance variables and store instance or object data. The lifetime of the variable is the lifetime of the instance. variables declared within a method, including the parameter variables, are local variables. The lifetime of the variable is the lifetime of the method.
62
Static Variables A class may also contain static variables and methods. Similar to C++… Static variables store static or class data, meaning only one copy of the data is shared by all objects of the class. Static methods do not have access to instance variables, but they do have access to static variables. Instance methods also have access to static variables.
63
Instance vs. Static Methods
have static as a modifier, can access static data, can be invoked by a host object or simply by using the class name as a qualifier. Instance methods can access instance data of the host object, must be invoked by a host object, contain a this reference that stores the address of host object. Host object is the object which is invoking the method.
64
Pass By Value or By Reference?
All arguments are passed by value to a method. However, since references are addresses, in reality, they are passed by reference, meaning… Arguments that contain primitive data are passed by value. Changes to parameters in method do not effect arguments. Arguments that contain reference data are passed by reference. Changes to parameter in method may effect arguments.
65
Constructors Similar to C++, Java will provide a default (no argument) constructor if one is not defined in the class. Java, however, will initialize all fields (object or instance data) to their zero values as in the array objects. Like C++, once any constructor is defined, the default constructor is lost unless explicitly defined in the class. Default constructor is a no arg constructor
66
Constructors (cont.) Similar to C++, constructors in Java
have no return value, have the same name as the class, initialize the data, and are typically overloaded. Unlike C++, a Java constructor can call another constructor using a call to a this method as the first line of code in the constructor.
67
Expressions and Control Flow
Java uses the same operators as C++. Only differences are + sign can be used for String concatenation, logical and relative operators return a boolean. Same control flow constructs as C++, but expression must return a boolean. Conditional if(<boolean expression>){…}else if(<boolean expression>){…}else{…} switch(variable){case 1: …break; default:…} Variable must be an integral primitive type of size int or smaller, or a char
68
Control Flow Constructs (cont.)
Iterative while (<boolean expression>) { … } do { … } while (<boolean expression>); for( <initialize>; <boolean expression>; <update>) { … } break and continue work in the same way as in C++. May use labels with break and continue as in C++.
69
Control Flow Constructs (cont.)
Enhanced for loop since Java 5 for iterating over arrays and collections. public class EnhancedLoop { public static void main(String []a ) Integer [] array = {new Integer(5),6,7,8,9}; for (int element: array){ element+= 10; System.out.println(element); } element is a local variable First for loop prints 15,16,17,17,19.. Notice implicit call to constructor in the Integer class that takes one int. Second loop prints 5, 6, 7, 8, 9.
70
C++ Inheritance In C++ we can extend a class, by specifying the superclasses using a “:” notation at the time of declaration
71
C++ Inheritance Base Vehicle class (header)… #ifndef _VEHICLE_H_
#define _VEHICLE_H_ #include <string> using namespace std; class Vehicle { private: string m_make; string m_model; public: Vehicle(string make, string model); string GetMake() const; string GetModel() const; }; #endif
72
C++ Inheritance Base Vehicle class (implementation)…
#include "Vehicle.H" #include <iostream> using namespace std; Vehicle::Vehicle(string make, string model) { this->m_make = make; this->m_model = model; } string Vehicle::GetMake() const { return this->m_make; string Vehicle::GetModel() const { return this->m_model;
73
C++ Inheritance A derived Car class (header)… #ifndef _CAR_H_
#define _CAR_H_ #include "Vehicle.H" #include <string> using namespace std; class Car : public Vehicle { private: bool m_fourWheelDrive; public: Car(string make, string model, bool fourWheelDrive); bool HasFourWheelDrive() const ; }; ostream& operator << (ostream& os, const Car& c); #endif
74
C++ Inheritance A derived Car class (implementation)… #include "Car.H"
#include <iostream> using namespace std; Car::Car(string make, string model, bool fourWheelDrive): Vehicle(make, model) { this->m_fourWheelDrive = fourWheelDrive; } bool Car::HasFourWheelDrive() const { return this->m_fourWheelDrive; ostream& operator << (ostream& os, const Car& c) { os << (c.HasFourWheelDrive() ? "4WD" : "2WD") << " " << c.GetMake() << " " << c.GetModel(); return os;
75
C++ Inheritance A derived Airplane class (header)…
#ifndef _AIRPLANE_H_ #define _AIRPLANE_H_ #include "Vehicle.H" #include <string> using namespace std; class Airplane : public Vehicle { private: string m_varient; public: Airplane(string make, string model, string varient); string GetVarient() const; }; ostream& operator << (ostream& os, const Airplane& a); #endif
76
C++ Inheritance A derived Airplane class (implementation)…
#include "Airplane.H" #include <iostream> using namespace std; Airplane::Airplane(string make,string model,string varient): Vehicle(make, model){ this->m_varient = varient; } string Airplane::GetVarient() const { return this->m_varient; ostream& operator << (ostream& os, const Airplane& a) { os << a.GetMake() << " " << a.GetModel() << " " << a.GetVarient(); return os;
77
Java Inheritance Uses the extend keyword instead of the “:” notation
See access table for visibility of members in base class Use super() to invoke base class constructor Use super.method() notation to invoke a method on the base class
78
Java Inheritance A Vehicle base class… public class Vehicle {
private String make; private String model; public Vehicle(String make, String model) { this.make = make; this.model = model; } public String getMake() { return make; public String getModel() { return model;
79
Java Inheritance A derived Car class…
public class Car extends Vehicle { private boolean fourWheelDrive; public Car(String make, String model, boolean fourWheelDrive) { super(make, model); this.fourWheelDrive = fourWheelDrive; } public boolean hasFourWheelDrive() { return this.fourWheelDrive; public String toString() { return (this.fourWheelDrive ? "4WD" : "2WD") + " " + this.getMake() + " " + this.getModel();
80
Java Inheritance A derived Airplane class…
public class Airplane extends Vehicle { private String varient; public Airplane(String make, String model, String varient) { super(make, model); this.varient = varient; } public String getVarient() { return this.varient; public String toString() { return this.getMake()+" "+this.getModel()+" "+ this.varient;
81
Java Inheritance Vehicle Java avoids the “diamond problem” by not permitting multiple inheritance Car Airplane AirplaneCar
82
Interface Java provides a construct known as an Interface
Similar to a pure virtual class in C++ Classes in Java “implement” may implement one or more interfaces Interfaces typically define a set of operations (method signatures) which the class must implement Interfaces my have static members
83
Interface Why use interfaces?
Interfaces are good for defining the set of operations a given type of structures should implement This is a good practice, as it allows you to swap out/in anything that implements that interface with minimal code changes Even more powerful when utilized in conjunction with Java’s version of templates
84
Java Interface Example
A simple Java Interface declaration… Note that this is of type interface, not class public interface Animal { public void talk(); }
85
Java Interface Example
A Cat class which implements this interface… public class Cat implements Animal { public void talk() { System.out.println("Meow"); }
86
Java Interface Example
A Cat class which implements this interface… public class Dog implements Animal { public void talk() { System.out.println("Arrrfff!"); }
87
Java Interface Example
The driver class… Note that we never have a handle on these animals as a Cat or Dog, just an animal As long as we call just the Animal interface methods, we can add as many Animal types as we want and not need to change any code public class Kennel { public static void main(String[] args) { Animal[] kennel = {new Cat(), new Dog()}; for(Animal a : kennel) { a.talk(); }
88
Exceptions Java handles exceptions like C++. Different from C++…
Place try block around problem code and a catch block immediately following try block to handle exceptions. Different from C++… Java uses a finally block for code that is to be executed whether or not an exception is thrown. Java has a built-in inheritance hierarchy for its exception classes which determines whether an exception is a checked or an unchecked exception. You may declare that a method throws an exception to handle it. The exception is then passed up the call stack. Java forces the programmer to handle a checked exception at compile time.
89
Exception Hierarchy Unchecked exceptions are derived from RuntimeException. Checked exceptions are derived from Exception. Error are also unchecked exceptions, but may not derive from it. Throwable Exception Error IOException RuntimeException checked unchecked unchecked checked
90
Handling the Exception Example
public class HandleExample { public static void main(String args[]) try { String name = args[0]; System.out.println(args[0]); } catch (IndexOutOfBoundsException e){ System.out.println(“Please enter name ” “after java HandleExample”); } finally { System.out.println(“Prints no matter what”); } If you don’t provide command line arguments then with throw the exception and prints “Please enter name after java HandleExample\n” + “Prints no matter what”.
91
Passing up the Exception
In Java you may pass the handling of the exception up the calling stack by declaring that the method throws the exception using the keyword throws. This is necessary for compilation if you call a method that throws a checked exception such as the Thread.sleep method. The Java API lists the exceptions that a method may throw. You may see the inheritance hierarchy of an exception in the API to determine if it is checked or unchecked.
92
Passing up the Exception Example
public class PassUpExample { public static void main(String [] args){ System.out.println(“Hello”); try passback(); }catch(InterruptedException e) System.out.println(“Caught InterruptedException”); } System.out.println(“Goodbye”); public static void passback() throws InterruptedException Thread.sleep(3000); main is obligated to handle the exception since it is a checked exception This method passes exception up call stack This program will only print “Hello” and “Goodbye”. An InterruptedException would be generated by another program sending an Interrupt signal to the PassUpExample program. This method throws a checked exception
93
Javadoc Comments Like C++, Java supports both C style (/* */) and C++ style end of line comments However, Java introduces another type of comment style know as a Javadoc comment These special can be analyzed by the javadoc tool and HTML documentation can be automatically generated /** * This is a javadoc comment */
94
Javadoc Tags The first sentence in the Javadoc comments is used to provide a high-level description of that member/method/class The rest of the paragraph will be shown in a more detailed section in the generated documentation Additionally, Javadoc supports tags which identify the attributes of the function such as… @param name description @return description See the following for more details about javadoc…
95
A Javadoc Example /** * This function takes in a Celsius temperature and * returns its Fahrenheit equivalent. * celsius degrees Celsius to be converted the Fahrenheit equivalent * of the Celsius temperature provided */ public double celsiusToFahrenheit(double celsius) { return 9.0 / 5 * celsius + 32; }
96
Javadoc Generation To generate the Javadoc generation you need to run the javadoc tool $ javadoc Test.java Loading source file Test.java... Constructing Javadoc information... Standard Doclet version 1.6.0_02 Building tree for all the packages and classes... Generating Test.html... Generating package-frame.html... Generating package-summary.html... Generating package-tree.html... Generating constant-values.html... Building index for all the packages and classes... Generating overview-tree.html... Generating index-all.html... Generating deprecated-list.html... Building index for all classes... Generating allclasses-frame.html... Generating allclasses-noframe.html... Generating index.html... Generating help-doc.html... Generating stylesheet.css... $
97
Generated HTML Documentation
Example method listed in method summary… Detailed method description…
