Fish Diseases PRINCIPLES OF AQUACULTURE (AKU3201).

Similar presentations


Presentation on theme: "Fish Diseases PRINCIPLES OF AQUACULTURE (AKU3201)."— Presentation transcript:

1 Fish Diseases PRINCIPLES OF AQUACULTURE (AKU3201)

2 1

3 2

4 HostEnvironment - Stocking density- Poor sanitation -Handling- Changes in pH, salinity -Transport temperature etc. -Chemotherapy -Nutrition -Behaviour Disease agent - Pathogen/ non-pathogen -Opportunistic pathogen Factors affecting fish health 3 Disease Host Disease agent Env

5 Physical barrier (skin, scales, exoskeleton, shell, mucous membranes) 1) Host susceptibility 4

6 Physical Signs Blistered areas Swollen bellies Popped-out eyes Bloody (hemorrhaged) areas on fins Discoloration or erosion of body parts Excessive mucus Growths on the body 5 Behavioral Signs Failure to feed properly Flashing (turning on their sides) Rubbing on the bottom Gathering around the water inflow Reduced vitality Gasping at the surface

7 Physiological defences - Immune system, detoxification by liver -Nutritional well-being Age (Young more susceptible) Spawners – stress due to their reproductive functions 6

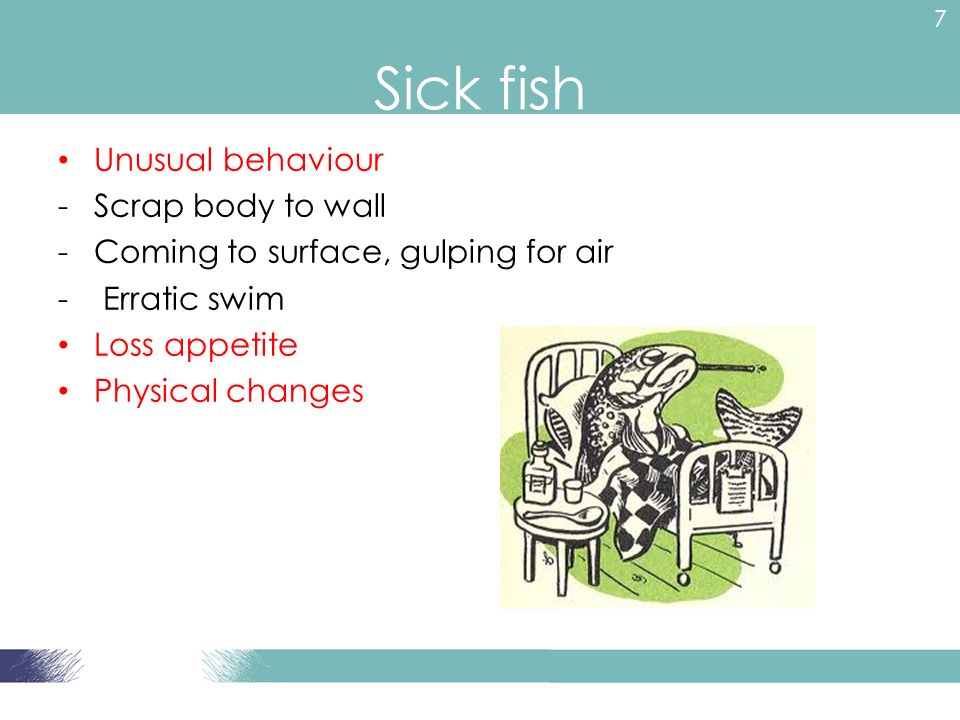

8 Unusual behaviour -Scrap body to wall -Coming to surface, gulping for air - Erratic swim Loss appetite Physical changes Sick fish 7

9 8

10 9

11 Exophthalmia (Pop-eye) Diseases 10

12 Extended belly 11

13 Haemorrhage 12

14 13

15 14

16 15

17 16

18 Crucial role in disrupting the balance between host & pathogen Environmental stress => pathogen & host react = disease occur 2) Environment 17

19 Stress -Anoxia = absence of oxygen -Fright -Anaesthesia -Temperature changes -Injury -Pollution 18

20 High stocking density Restricted spaces – cages/tanks, raceway Large quantity of concentrated feeds/ fertilizer 19

21 2) Environment 20 Do not exceed carrying capacity – stocking density Always monitor water quality Maintain proper DO, pH, alkalinity, temperature Check accumulation of organic debris, nitrogenous waste (ammonia, nitrite), hydrogen sulfide Remove pond bottom sludge, dry & lime

22 21 Temperature changes – fluctuation day & night Poikilothermic Hatchery -Closed system -If temp. drops, used heater

23 Potential pathogens always present in aquatic environment 3) Disease agent 22

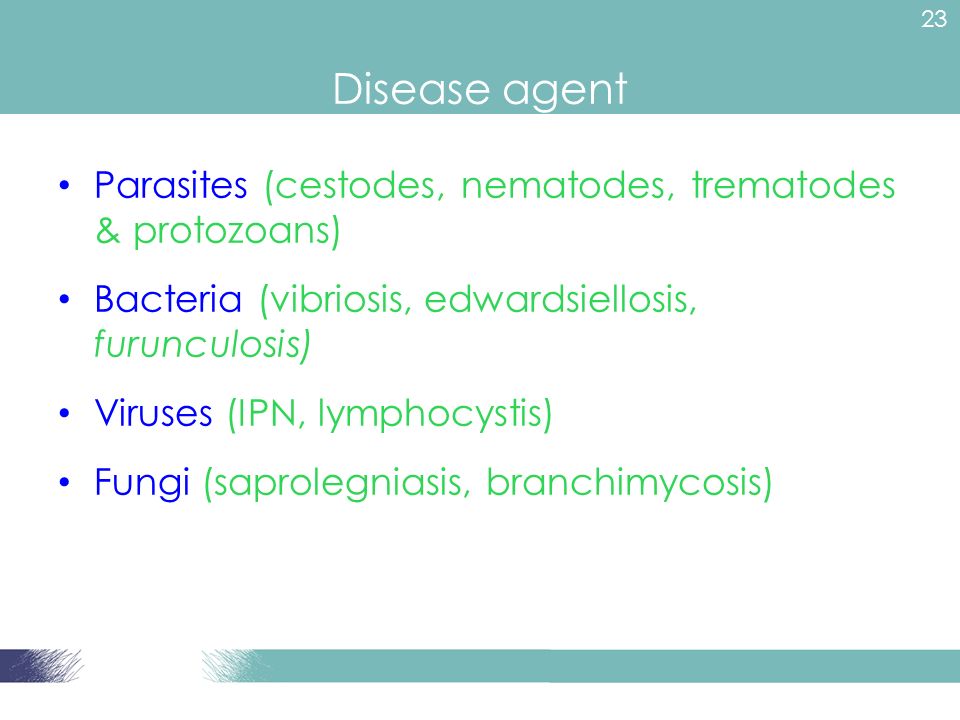

24 Parasites (cestodes, nematodes, trematodes & protozoans) Bacteria (vibriosis, edwardsiellosis, furunculosis) Viruses (IPN, lymphocystis) Fungi (saprolegniasis, branchimycosis) Disease agent 23

25 Common entry point 1) Wound in skin  Bacteria/viral infections => fungal infection 2)Gills  Pathogen enter body through delicate & thin epithelium  Protozoa establish themselves on them 3) Digestive tract  Bacteria penetrate intestinal lining  Protozoa 24

26 Most common cause of fish mortalities Especially in larvae & fingerling stages Multiply rapidly without intermediate host Attach themselves to the host – special organ such as suckers 1) Parasites 25

27 Penetrate host to multiply & invade vital organs Invade through ingestion, skin rupture, transgression of gill lamellae, penetration to the egg membrane 26

28 Protozoan: Ichthyopthirius multifiliis 27

29 Copepod : Argulus, Lernaea 28

30 Isopod (Sea lice) 29

31 Monogenean parasites 30 Dactylogyrus

32 31 Gyrodactylus

33 Nematode 32

34 Vibriosis - Vibrio harveyi 2) Bacterial disease 33

35 Vibrio anguillarum Vibrio alginolyticus 34

36 Quorum sensing 35

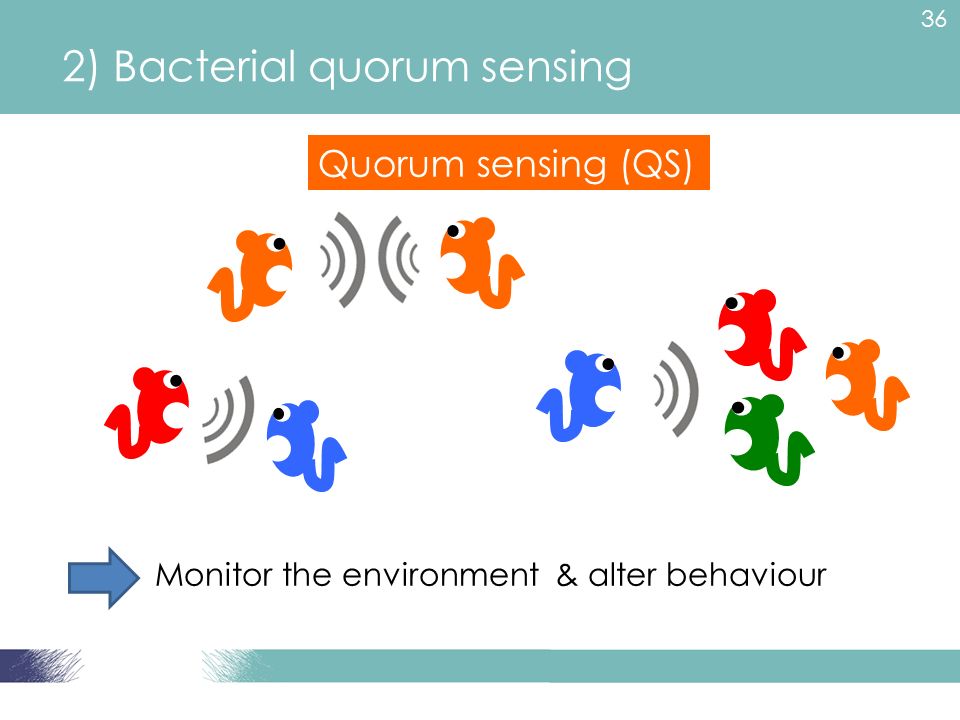

37 Monitor the environment & alter behaviour 2) Bacterial quorum sensing Quorum sensing (QS) 36

38 Signal molecules 2) Bacterial quorum sensing Diseases – controlled by QS AHL 37 (Found in 70 different G- bacterial species) BHL AHL

39 38

40 Aeromonas -Aeromonas hydrophila -Aeromonas salmonicida 39

41 Furunculosis 40

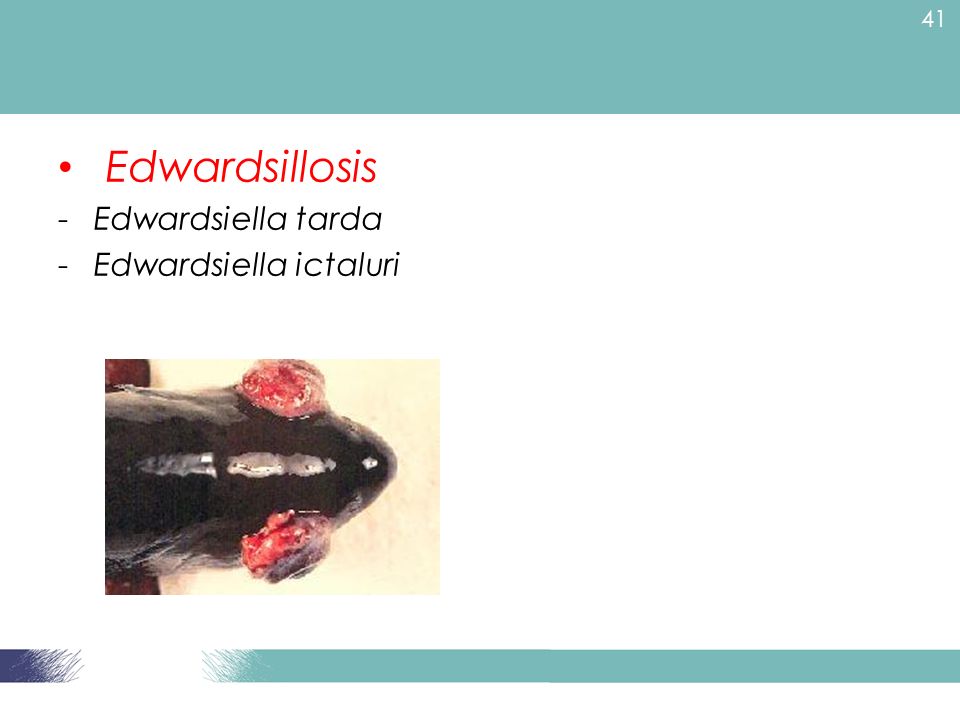

42 Edwardsillosis -Edwardsiella tarda -Edwardsiella ictaluri 41

43 How to identify bacterial isolates 42

44 Cotton swab 43

45 44

46 45

47 46

48 Biochemical test 47

49 Molecular techniques 48

50 49

51 ELISA (Enzyme-linked immunosorbent assay) Serology 50 Antigen – Antibody Enzyme = Sensitive method

52 Infectious pancreatic necrosis (IPN) 3) Viral disease 51

53 Lymphocystis 52

54 White spot 53

55 54

56 4) Fungal disease 55

57 56

58 57

59 58

60 59

61 Case study- Malaysia 60

62 Mass mortality June- August 61

63 Import- export Exotic disease Stress during transport Fish weak & susceptible to disease How to overcome 1)Discourage/ ban import of live fish 2)Quarantine & sterilize the fish 3)Purchase from reliable source 4)Seed free from disease Spread of disease between country 62

64 63

65 Spread of disease in pond/cages -Through water channel -Spread pond to pond -No barrier -Water current -Dead fish thrown into open waters -Other animals as carrier -Equipments 64

66 1) Integrated health management 2) Health inspection & disease monitoring 3) Disease treatment 4) Sanitation 5) Immunization 6) Genetic resistance to disease 7) Farm disinfection Solution to fish disease 65

67 Guidelines for prevention, control & eradication Correction of disease-causing & disease spreading conditions Adoption & implementation of policies & regulations by the state – need cooperative effort 1) Integrated health management 66

68 Always monitor & record health status, water quality etc. – corrective measures can be taken One trained person & basic facilities to undertake regular health & environmental monitoring - if expensive then twice a year inspection 2) Health inspection & disease monitoring 67

69 Chemotherapy – temporary, effect on biofiter Antibiotic – resistant bacteria Vaccines – specific to certain fish 3) Disease treatment 68

70 Maintain good sanitation Good culture practices Monitor water supply –ozonation, UV, chlorination Egg disinfection 4) Sanitation 69

71 70

72 Quarantine – particularly to prevent the introduction of communicable disease - Facilities located away from farm -Need to disinfect all facilities = chlorination 71

73 Mechanism of antibody production Antibody = specific immunoglobulin (modified protein) produced in response to & reacts specifically with an antigen (foreign substance that stimulate the formation of antibodies) Vaccines contains antigens that are generally attenuated or killed disease agents. When administered to a host, they stimulate the production of specific antibodies or non-specific resistance to that particular disease agent 5) Immunization 72

74 Vaccination -Immersion = small fish -Spray-shower = fish larger than 4g -Injection = intra-peritoneal -Retain immunity ~300 days 73

75 Disease resistant strains through genetic breeding Select strains with disease resistant High level of genetic diversity + hybrid vigour 6) Genetic resistance to disease 74

76 Disease outbreak = Farmer destroy stock & disinfect rearing facilities Easier fro small, well-controlled facilities e.g., hatcheries, tank, raceways. Earthern pond = difficult 7) Farm disinfection 75

77 During transportation -Minimize physical injury – use smooth net -Avoid sharp edge tank -Stop feeding 12-24h to reduce metabolism & excretion - Provide high oxygen level - Salt at 0.3-1% to minimize osmotic stress -Anesthesia if necessary -Put bag into Styrofoam box -Acclimatization- bag left floating for 30 minutes Special care during transportation 76

78 Quarantine new fish – check for pathogen Remove dead fish from system Dispose dead fish properly Good sanitation practices 77

79 78

80 Ketapang leaves 79

81 Improve water quality o 80

82 Biosecurity= Steps taken to keep disease from a farm & to prevent the transmission of disease within an infected farm to neighboring farm. Consideration on initial facility layout design Breeder => hatchery => growout (need to ensure biosecurity measures) Need to have SOP Isolation, sanitation & control Closed system Open system? Biosecurity 81

83 1)Reduce the risk of disease introductions 2)Minimise the spread of diseases on-farm or to new areas 3)Promote fish health 4)Protect economic investment 5)Protect human health Biosecurity 82

84 1)Avoid the introduction of certain pathogens into an aquaculture facilities a)Purchase from a producing selling certified specific pathogen-free (SPF) stock b)SPF = special stock of animals that are kept in specific pathogen free facilities under rigorious monitoring system c) Problem: Only few spp. of SPF e.g. shrimp -Shrimp have primitive immune system -No workable vaccine Biosecurity 83

85 d) Tilapia & Pangasius no SPF but have vaccine e) Vaccinated Pathogen Free seed-stock (VPF) VPF = Fish vaccinated when they are healthy & before exposure to the nature f) Have own in house broodstock/spawning facilities g) Have a quarantine/ isolation facilities 84

86 2) Provide a pathogen- free water source -Mechanical filtration -Chemical treatment -UV filtration -Ozonation -Well- water -Biological treatment 85

87 86

88 Drum-filter = filtration of suspend solids in closed system 87

89 Protein skimmer = remove dissolved organic matter in water 88

90 3) Disease monitoring -Always monitor for clinical signs of disease -Regular scheduled health evaluation -Sampled for diagnostic health techniques -Treat if warranted 89

91 4) Disinfection - Strict adherence to cleaning & disinfection techniques -Foot bath & hand wash -Container with disinfectant for nets etc. -Separate equipments (nets, feed bucket) -Disinfect vehicles -E.g disinfectant = Hypochlorite -Maintain good husbandry practices 90

92 91

93 First chlorine, then thiosulphate to nuetralize chlorine 92

94 93

95 Good aquaculture practices (GAP) -Improved production, food safety assurance & preservation of environments Hazard Analysis Critical Control Point (HACCP) Standard sanitation & operating procedures (SSOP) 94

96 Malaysian Aquaculture Farm Certification Scheme Sijil Pensijilan Ladang Akuakultur Malaysia (SPLAM) -Encourage Good Aquaculture Practice & emphasize implementation of HACCP - Aquaculture entrepreneurs need to fulfill requirements & criteria set by DOF -Make application, undergo a review audit & final approval - Valid for two years SPLAM 95

97 Official recognition to aquaculture entrepreneurs who have practiced GAP & environmental friendly concepts Objective SPLAM 96

98 97
