1. Workshop E-Line, pRoom Panel, E-Suite 15.06.2016

2. 2 Workshop model and Exercises for today Equipment: E-Line CPU (PCD1.M2220-C15) and one RIO module (PCD1.G50x0-A20) Programmable room Web Panel and one E-Line prog. Modules (PCD1.G3600-C15) USB cable, PG5 V 2.2.xxx, E-Suite V2 Topics: E-Line CPU and E-Line RIO as main controlling (zone regulation) and then the 4,3 Room Panel with free programmable module (room regulation) Learn the new CPU and make “Device settings” and a small “Fupla program” for communication with the E-Line RIO module S-Bus communication with E-Line Lib. free programmable E-Line Module with E-Suite Lib. S-Bus communication with E-Suite Lib. Daniel KeinathSaia Burgess Controls | www.saia-pcd.com

3. 3 Functionalities local override  Use the manual values in your program (Ex. BACnet)  Operate the override operating level via panel or Internet  Setup without PCD program possible Saia Burgess Controls | www.saia-pcd.com Security levelOperation on module Operation via S- Bus 0No 1YesNo 2YesReduced 3Yes 4NoYes

4. 4 Exercises E-Line CPU, S-Bus network, E-Line RIO Saia Burgess Controls | www.saia-pcd.com

5. 5 Exercises E-Line CPU and S-Bus network Create a new project Device configuration E-Line CPU Service key for Web etc: SBC S-Bus Station number: 110 RS-485 (Port 0) Gateway function: Yes Baudrate: 115200 Ethernet setting IP address: 192.168.12.90 Sub mask: 255.255.255.0 Small Fupla program S-Bus initialization “EL S-Bus Master” (E-Line library) and for diagnostic “EL-Diag devices” (E-Line library) additional broadcast clock (S-Bus standard Library) Please test with the “PG5 online Debug” the network for example the RIO module is present on the network Notes: Broadcast clock helps for auto baud mechanism Daniel KeinathSaia Burgess Controls | www.saia-pcd.com

6. 6 Exercises E-Line RIO Fupla program (new page) Fbox for the PCD1.G50x0-A20 Make one test button (public symbol) for the DI0 Notes: The Inputs EN and Man must be “1” Web application (WE8) for the room panel Create a Start view (start.htm) Make a second side for the RIO template Test this application and play with the settings Use the room panel for the visualization Daniel KeinathSaia Burgess Controls | www.saia-pcd.com

7. 7 Exercises E-Line RIO Settings in pPanel Network TCP/IP address: 192.168.12.91 Subnet mask: 255.255.255.0 Web Connection Start Page: start.htm Remote host IP:192.168.12.90 System settings Order of file search: remote before local Display Rotation 180° Daniel KeinathSaia Burgess Controls | www.saia-pcd.com

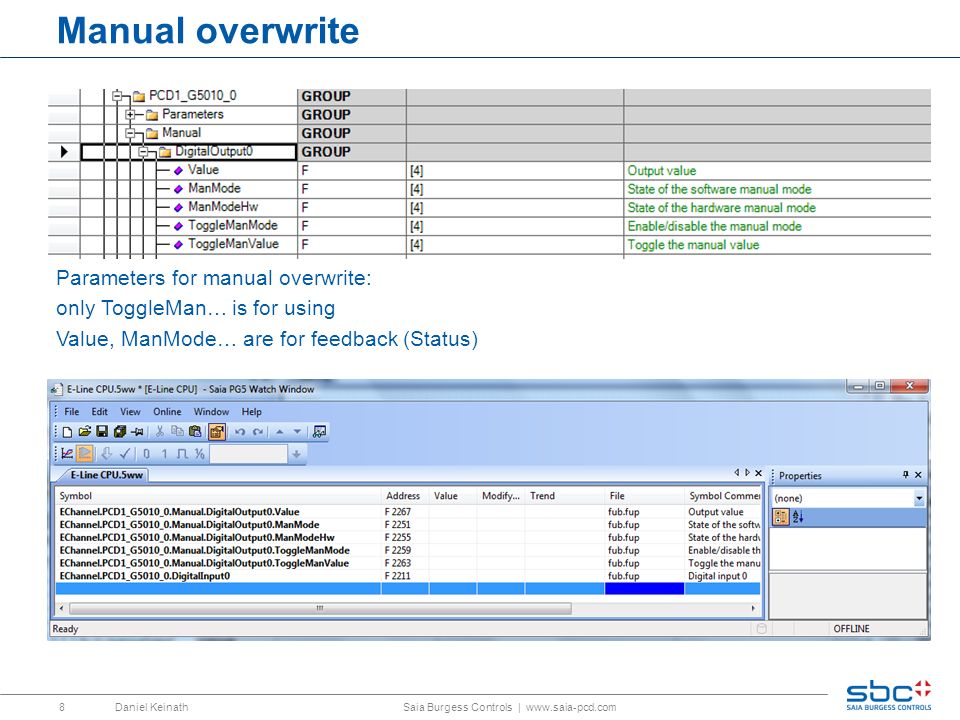

8. 8 Manual overwrite Parameters for manual overwrite: only ToggleMan… is for using Value, ManMode… are for feedback (Status) Daniel KeinathSaia Burgess Controls | www.saia-pcd.com

9. 9 Saia Burgess Controls | www.saia-pcd.com

10. 10 Saia PCD1 E-Line for room automation Room automation with E-Line Serie Features: Installation-friendly design for electro cabinets (DIN 43880) free programmable autonomous operation 24 V AC / DC 2 terminals per analog input Status display for DI / DO without battery Restrictions: without automation server reduced instruction set reduced media Product number key (ASN key)

11. 11 S-Bus Address setting The S-Bus address can be set by switches or by device configuration. In case of device configuration, the switches need to be set at 99, otherwise the switches have priority. Device configuration For easy installation set the device configuration to auto baud and download the settings. Attach the device to the S-Bus network and do the commissioning remote via the PCD. Commissioning Example: 1.Power ON with switch position 10 (EEPROM content is also 10) -> Display S-Bus -> 10 2.Download config with S-Bus 4 -> display S-Bus -> 10: EEPROM content is updated but not taken into account 3.Switch position 99 -> Display S-Bus -> 4: EEPROM content is used 4.Switch position 10 -> Display S-Bus -> 10: EEPROM content is updated 5.Switch position 99 -> Display S-Bus -> 10: EEPROM content is used

12. 12 IO Data definition  IOs are represented by predefined symbols. Take them from the Device configurator.  Direct access by I and O media is not supported. IO Data access Drag and drop Symbols from Device Conf. to Fupla

13. 13 Resources Application focus  Room automation  Decentralized control stations for district heating / cooling plants PLC Program (None Volatile Flash memory)  64k Program  COB 0, COBSEG, XOB 10, 12,13 and 16  50 PBs with maximum calling hierarchy of 10 PBs  16 ROM Text / DB  IEEE floating point  SASI Mode C without interpreted text (EnOcean, MP-Bus…)  No Graphtec and no Media pointer instructions, no Download in Run PLC Media (Volatile RAM without battery back up)  2000 Registers  2000 Flags  200 Timer / Counter  5K Byte memory for 16 RAM Text / DB  Real time clock, cyclically synchronized by the PCD  500 Elements of EEPROM memory for parameter (media) backup

14. 14 Supported Fbox libraries I Standard

15. 15 Supported Fbox libraries II Application

16. 16 Supported Fbox libraries III If you used not supported Fboxes… In this case please use “HVC Init 4” FBox ! For example you place the not supported “HVC Init 8” FBox After a built You get the following error message: With duple click on the message you go directly to the false page It is not possible to have more information on the error message, but you can see you have placed Fboxes how are not supported. Please have a look to the list of supported Fboxes or make this small test.

17. 17 E-Suite Fbox library  Solutions for standard components like switches, blinds and dimmer and room control loops  Parameter Backup / Restore *

18. 18 E-Suite V2 Fbox library introduction Perfect for room and zone-automation applications Fboxes for electrical and HVC applications Set point selection in dependence of room states Optimized data exchange New E-Suite V2 Variant (V2.0.100) PG5 Version V2.1 + V2.2 Installation an parallel to V1 (beta lib possible) E-Suite V2 usable in all PCD Controllers (PCD3.M,PCD2.M,PCD1.M, PCD1 E-Line prog. modules, PCD7 pPanels, PCD3.T,…) Note: Symbols will be per default as not public symbol This helps for create your own FUPLA templates If you give the Fbox one Name than it generates automatically public symbols *

19. 19 E-Suite V2 Structure and initialization Group by use case 1. you must have one HVC Init Fbox from the HVC Library PLC/CPU system HVC 8 E-Line prog. Modules HVC 4 2. you must place one of the Init Fboxes from the E-Suite Library Note: ES Backup Restore Media is only for E-Line programmable modules and 4,3 pRoom Panel! *

20. 20 E-Suite Fbox library - Parameter Backup / Restore Volatile RAM without battery back up 500 Elements of EEPROM memory for parameter (media) backup FBox for programmable E-Line devices to backup and restore adjust parameters “EL Backup Restore Media” FBox for programmable E-Line devices to backup and restore adjust parameters. For Backup and restore the FBox Enable Input “En” must be set. EEPROM chips have a limited amount of write cycles (typically 100.000). Backup triggered by the FBox input writes all parameters to the EEPROM. For backup of only changed parameters in runtime the cycle time adjust parameter shall be used. For more Information please have a look to the Help of this Library!

21. 21 E-Suite V2 communication Modbus device is master station E-Suite Modbus RTU driver with reduced functionality. It is optimized to interface with room operation units based on Modbus RTU using a subset of Modbus commands. This implementation is compatible with all Saia PCD Systems supporting serial RS-485 interfaces. S-Bus for fast data exchange with E-Line modules all CPUs and pPanels (master) E-Line programmable modules (slave) “SASI Initialization” FBox must be placed before Alternative "SASI S-Bus Master" It can not be used with "SASI S-Bus Extended". More details Fbox help! *

22. 22 E-Suite V2 electrical Fboxes for electrical application A set of Fbox provide solutions for electrical applications like light and sun blind. Electric installations require free combinations from different switches to several actuators. Input Fbox (sensors values) to send an adjustable Commands or Events Cmd Fboxes (program values) for a specific command like ON, OFF, TOGGLE and so on from application program Output FBox (actor) to receive commands and control the actor for switching elements (Relay, Triac,...),… *

23. 23 E-Suite V2 general Fboxes and HVC Fboxes for general Room control needs to follow different scenarios according to the use case of the room. For this we have Mode Control (The FBox represents different standard modes in a Register value) Mode Enable (The FBox sets the En output according to adjustable conditions) Fboxes for HVC application Set of FBox for HVC applications with Set Point selection, heating and cooling and output control functions. SetPoint (provides a set of set points and dead bands for following control loops) Valve (0-10 V for analogue valves, 6-Way for analogue 6-Way valves, PWM for Thermal Valves) Ventilation (for Fan Coils as well as analogue Ventilators or VAV controllers with Inputs for heating, cooling and air quality controls loops) *

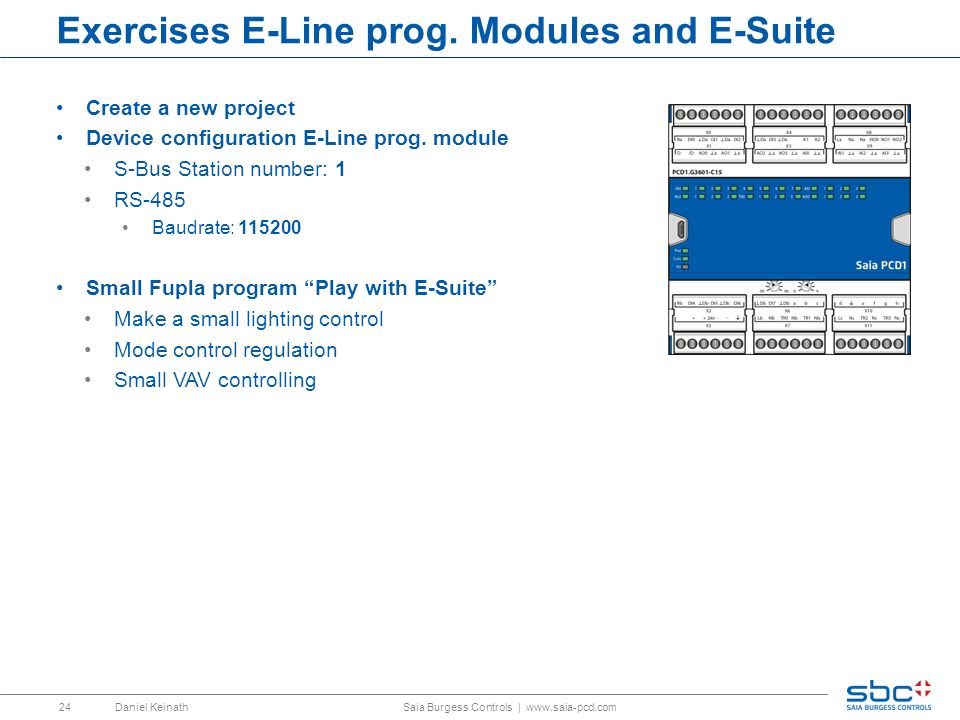

24. 24 Exercises E-Line prog. Modules and E-Suite Create a new project Device configuration E-Line prog. module S-Bus Station number: 1 RS-485 Baudrate: 115200 Small Fupla program “Play with E-Suite” Make a small lighting control Mode control regulation Small VAV controlling Daniel KeinathSaia Burgess Controls | www.saia-pcd.com

25. 25 SBC – PPTX Template | www.saia-pcd.com PCD1.G3601-C15 Example Mode Control Application for a room automation system

26. 26 4.3” pWeb Panel as room controller Exercise: IO-Data exchange with the PCD1.G3601-C15 device Implement the data exchange with the E-Line, use the Com Box Test the application in Fupla online, check the data exchange with the E-Line Module Systemkatalog | Kapitel A1 – Automationsstationen | PCD1 S-Bus Web Prog IO Driver

27. 27 4.3” pWeb Panel as room controller head station Exercise: IO-Data exchange with the PCD1.G360x-C15 device Data exchange with the E-Line, use the Com Box Systemkatalog | Kapitel A1 – Automationsstationen | PCD1 Data exchange Master (Panel)

28. 28 4.3” pWeb Panel as room controller head station Exercise: IO-Data exchange with the PCD1.G360x-C15 device Ddata exchange with the E-Line, use the Com Box Test the application in Fupla online, check the data exchange with the E-Line Module Systemkatalog | Kapitel A1 – Automationsstationen | PCD1 Data exchange E-Line (PCD1.G3601-C15)

29. 29 Daniel KeinathSaia Burgess Controls | www.saia-pcd.com
