The Grinder A load-testing framework 30.11.2006 - Daniel Maier.

Similar presentations


Presentation on theme: "The Grinder A load-testing framework 30.11.2006 - Daniel Maier."— Presentation transcript:

1 The Grinder A load-testing framework 30.11.2006 - Daniel Maier

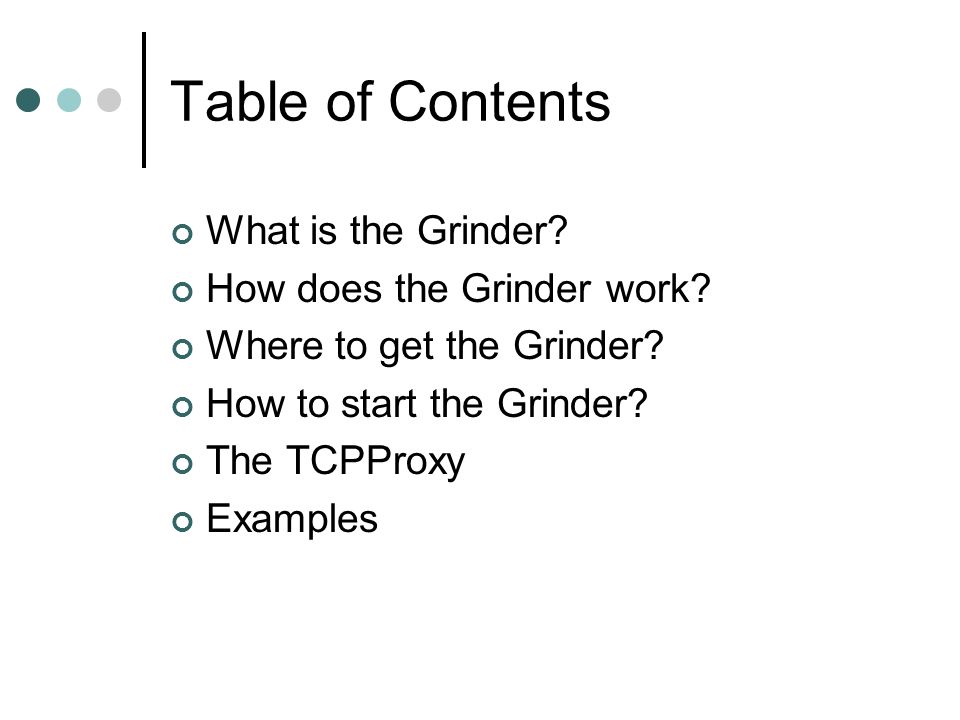

2 Table of Contents What is the Grinder? How does the Grinder work? Where to get the Grinder? How to start the Grinder? The TCPProxy Examples

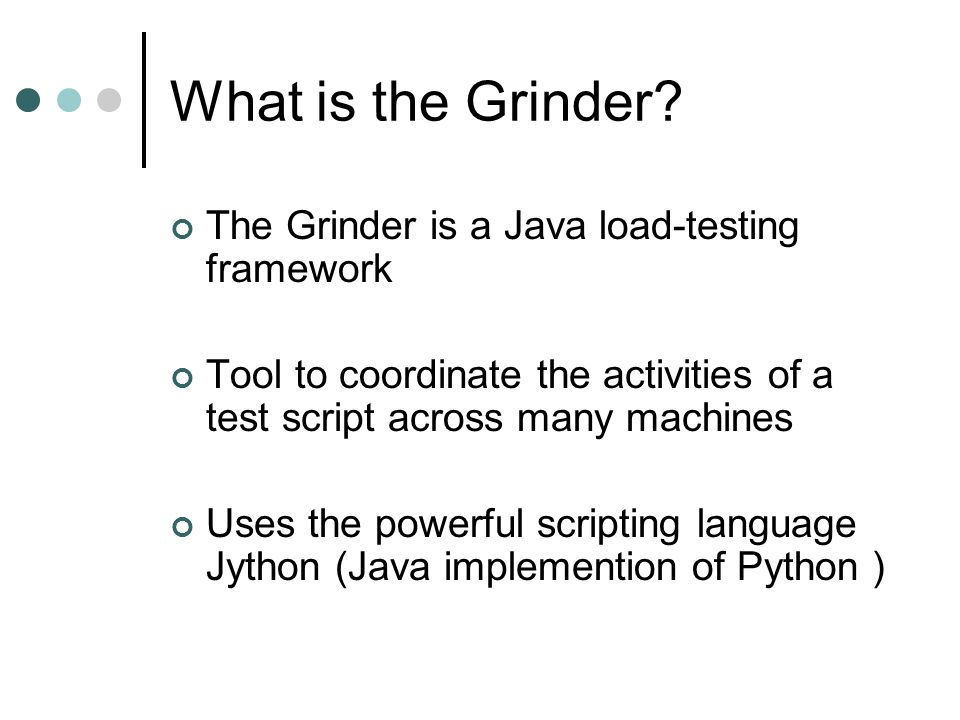

3 What is the Grinder? The Grinder is a Java load-testing framework Tool to coordinate the activities of a test script across many machines Uses the powerful scripting language Jython (Java implemention of Python )

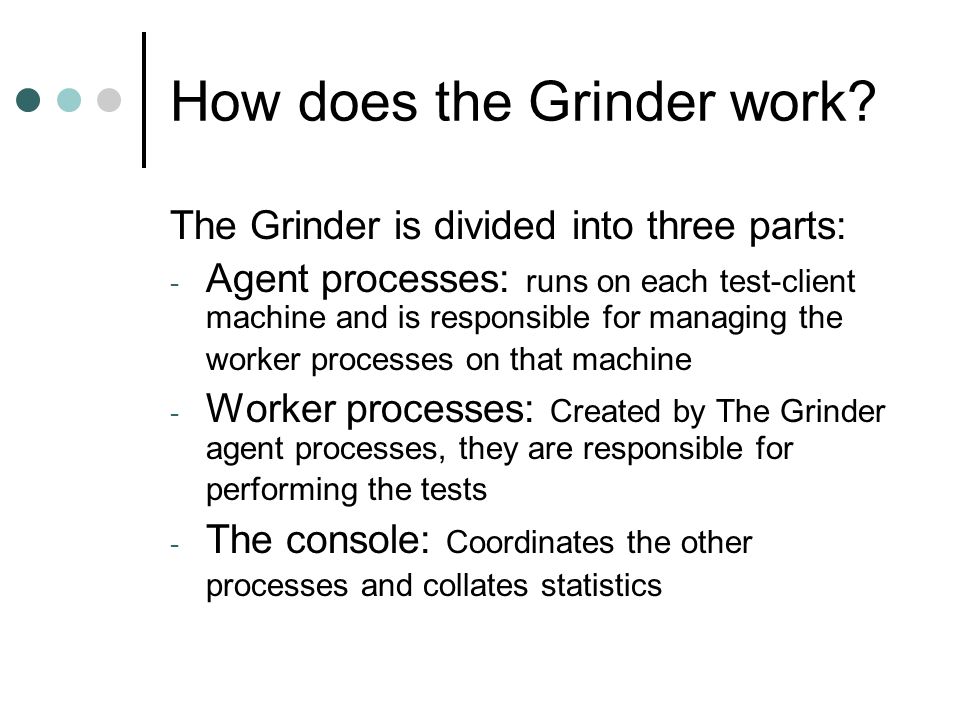

4 How does the Grinder work? The Grinder is divided into three parts: - Agent processes: runs on each test-client machine and is responsible for managing the worker processes on that machine - Worker processes: Created by The Grinder agent processes, they are responsible for performing the tests - The console: Coordinates the other processes and collates statistics

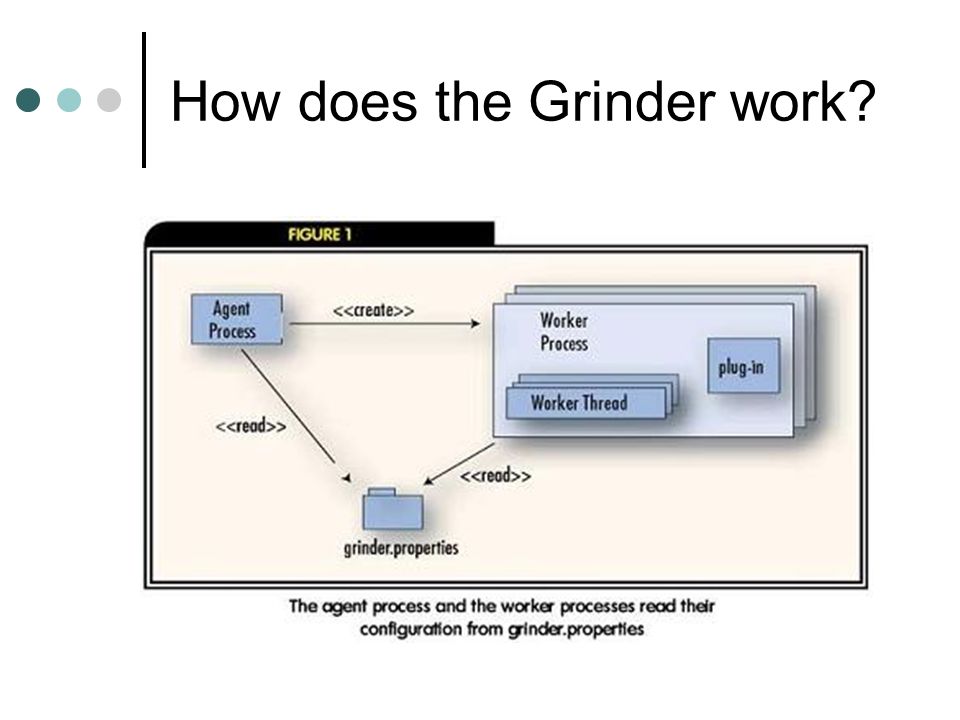

5 How does the Grinder work?

6 Where to get the Grinder? Official Project Page: http://grinder.sourceforge.net Newest version is The Grinder 3 (beta version)

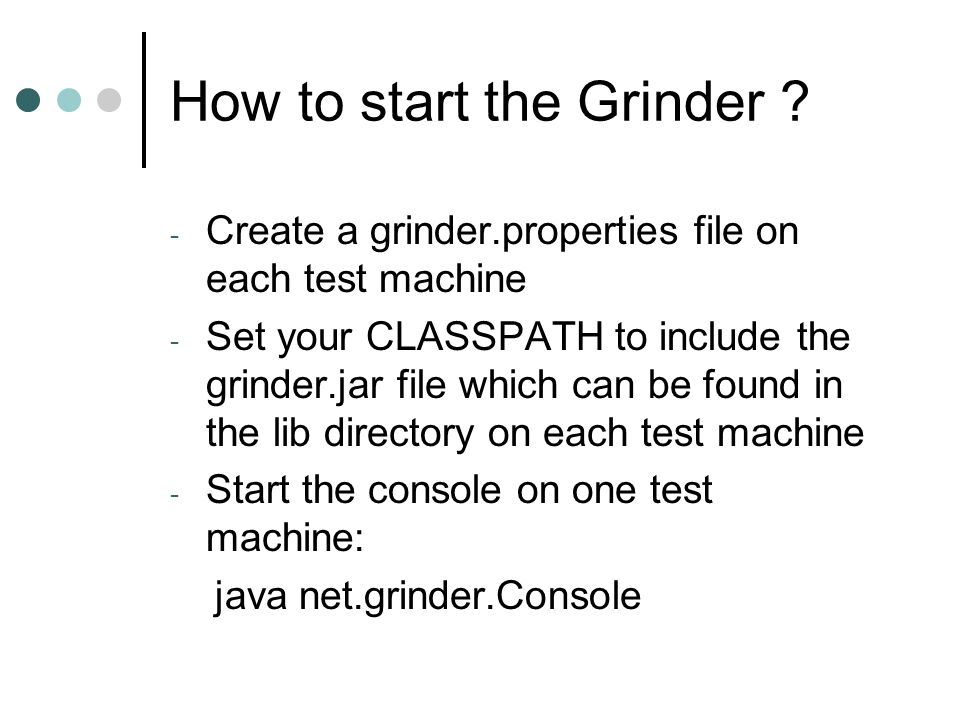

7 How to start the Grinder ? - Create a grinder.properties file on each test machine - Set your CLASSPATH to include the grinder.jar file which can be found in the lib directory on each test machine - Start the console on one test machine: java net.grinder.Console

8 How to start the Grinder ? - Start an agent processs on each test machine: java net.grinder.Grinder - Start the agent processes by using the console

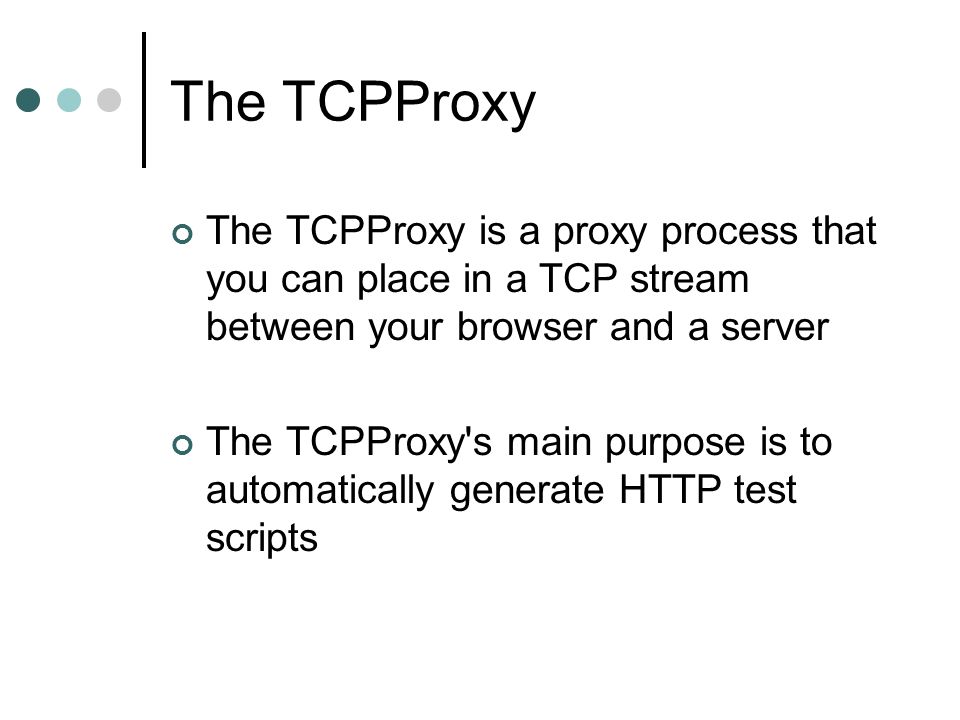

9 The TCPProxy The TCPProxy is a proxy process that you can place in a TCP stream between your browser and a server The TCPProxy's main purpose is to automatically generate HTTP test scripts

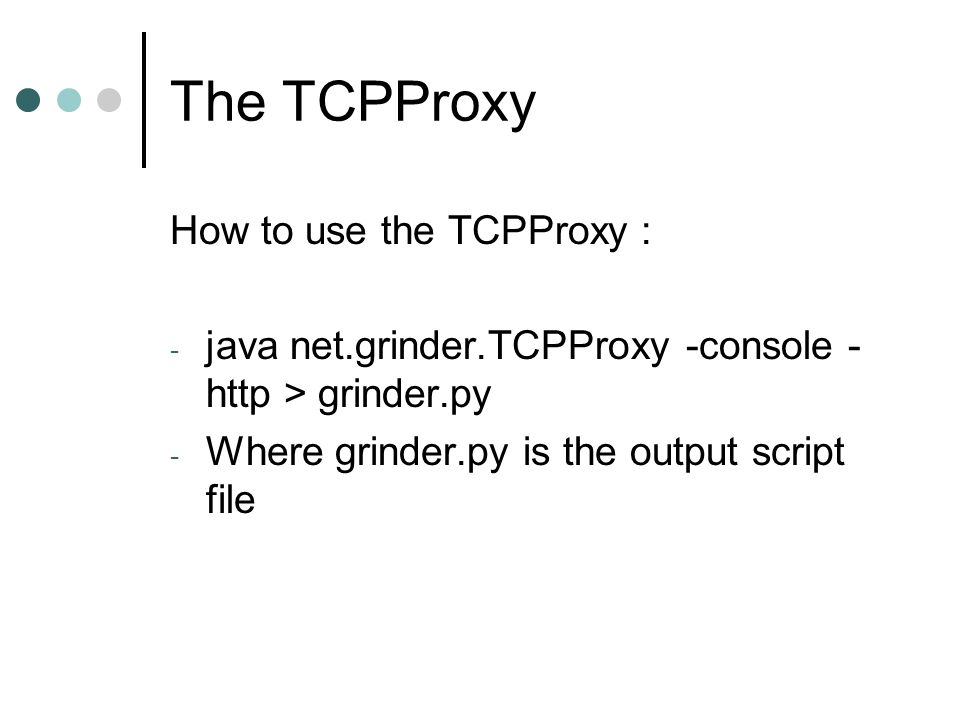

10 The TCPProxy How to use the TCPProxy : - java net.grinder.TCPProxy -console - http > grinder.py - Where grinder.py is the output script file

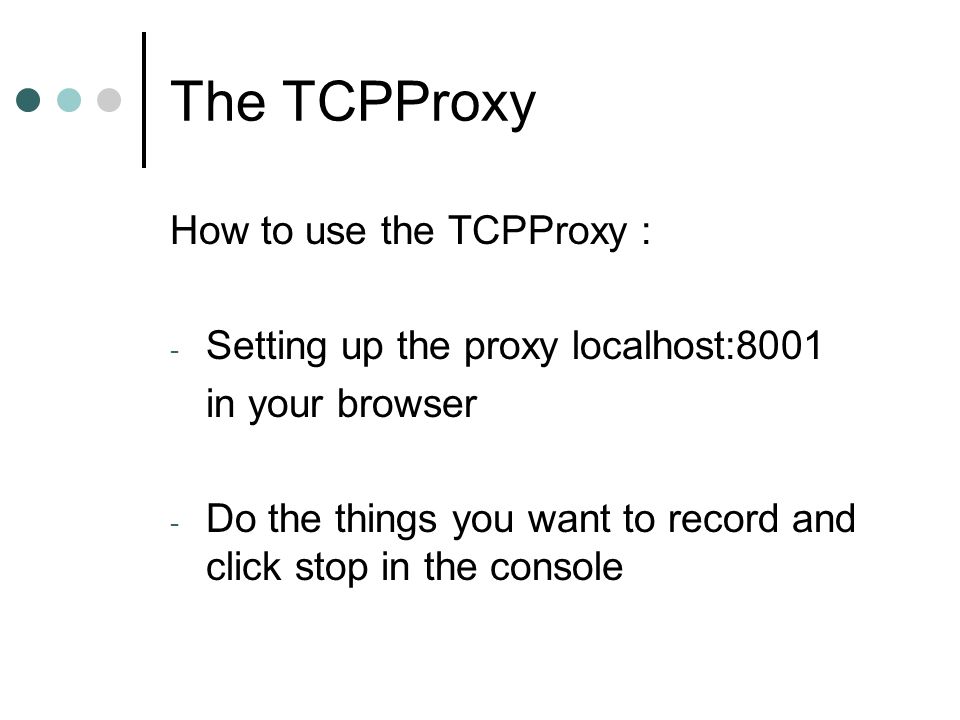

11 The TCPProxy How to use the TCPProxy : - Setting up the proxy localhost:8001 in your browser - Do the things you want to record and click stop in the console

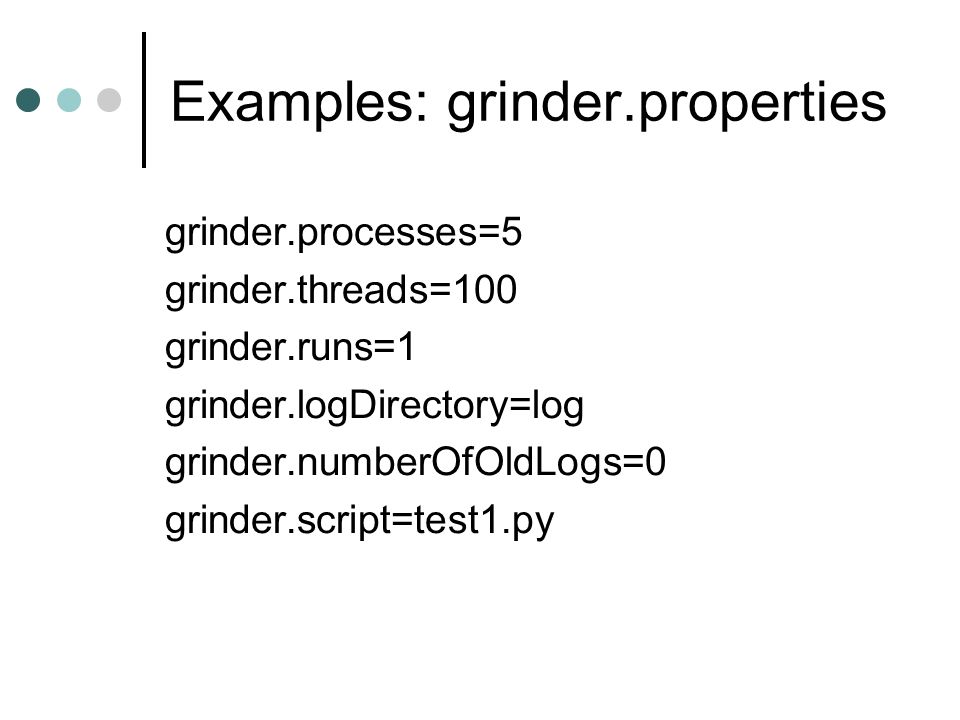

12 Examples: grinder.properties grinder.processes=5 grinder.threads=100 grinder.runs=1 grinder.logDirectory=log grinder.numberOfOldLogs=0 grinder.script=test1.py

13 Examples: Test Script # This example shows how many HTTP interactions can be grouped as a # single test by wrapping them in a function. from net.grinder.script.Grinder import grinder from net.grinder.script import Test from net.grinder.plugin.http import HTTPRequest from HTTPClient import NVPair # We declare a default URL for the HTTPRequest. request = HTTPRequest(url = "http://localhost:9998") def page1(): request.GET('/addcontact.php') request.GET('/index.html') request.GET('/aufgabe4.html') page1Test = Test(1, "First page").wrap(page1) class TestRunner: def __call__(self): page1Test()

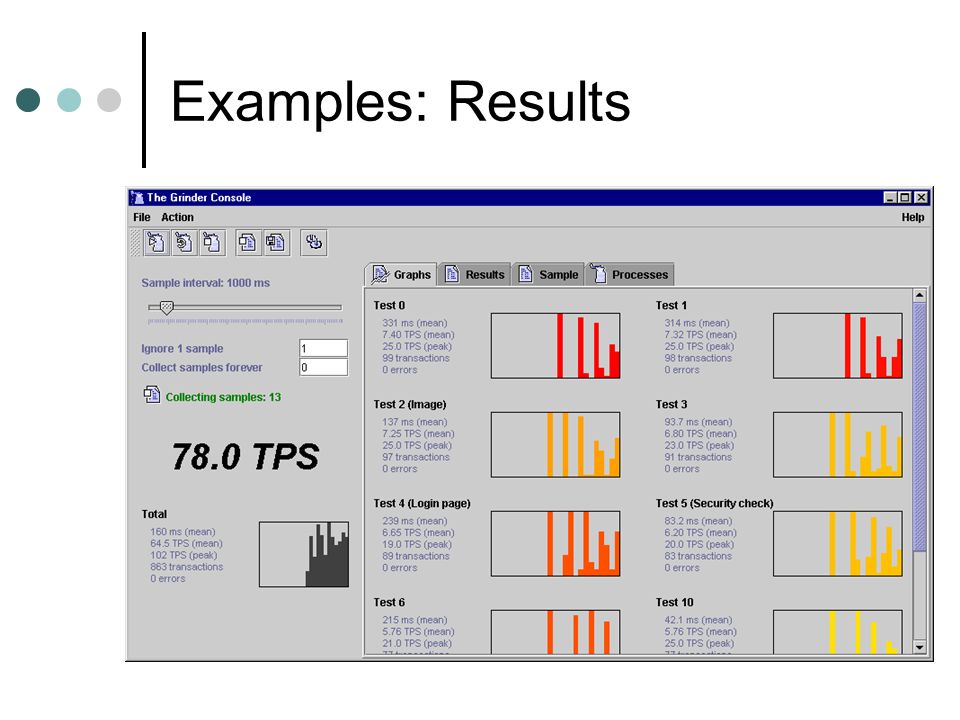

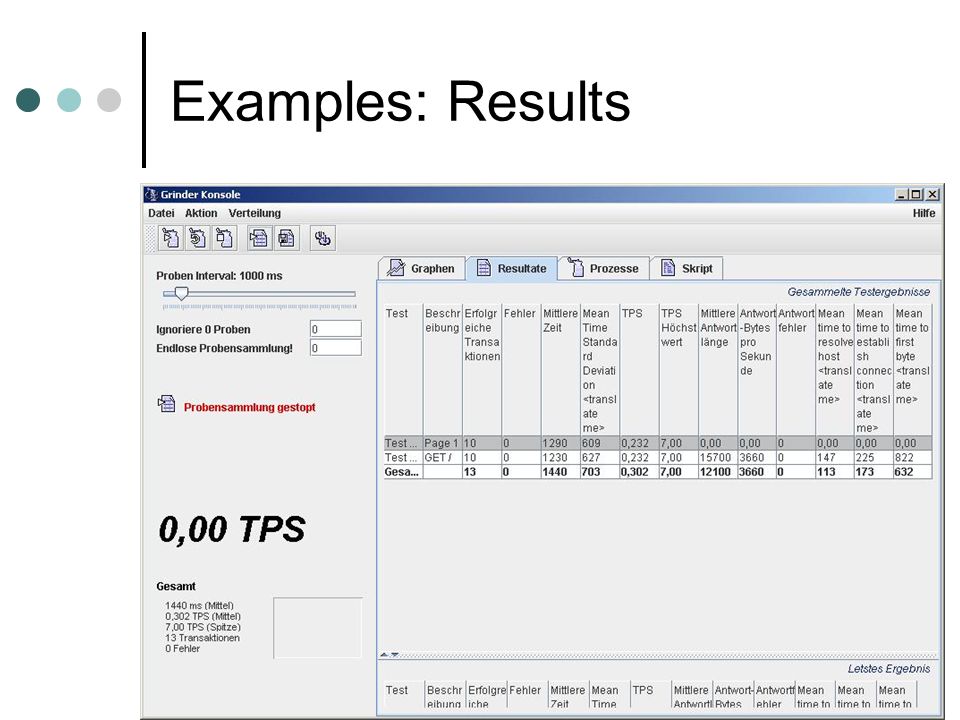

14 Examples: Results

15
