1. C vs C++

2. Oops Advantages simplicity: software objects model real world objects, so the complexity is reduced and the program structure is very clear; modularity: each object forms a separate entity whose internal workings are decoupled from other parts of the system; modifiability: it is easy to make minor changes in the data representation or the procedures in an OO program. Changes inside a class do not affect any other part of a program, since the only public interface that the external world has to a class is through the use of methods; extensibility: adding new features or responding to changing operating environments can be solved by introducing a few new objects and modifying some existing ones; maintainability: objects can be maintained separately, making locating and fixing problems easier; re-usability: objects can be reused in different programs. Provides a clear modular structure for programs. This makes it good for defining abstract datatypes, where implementation details are hidden and the unit has a clearly defined interface. Provides a good framework for code libraries, where supplied software components can be easily adapted and modified by the programmer. This is particularly useful for developing graphical user interfaces. Makes it easy to maintain and modify existing code, as new objects can be created with small differences to existing ones.

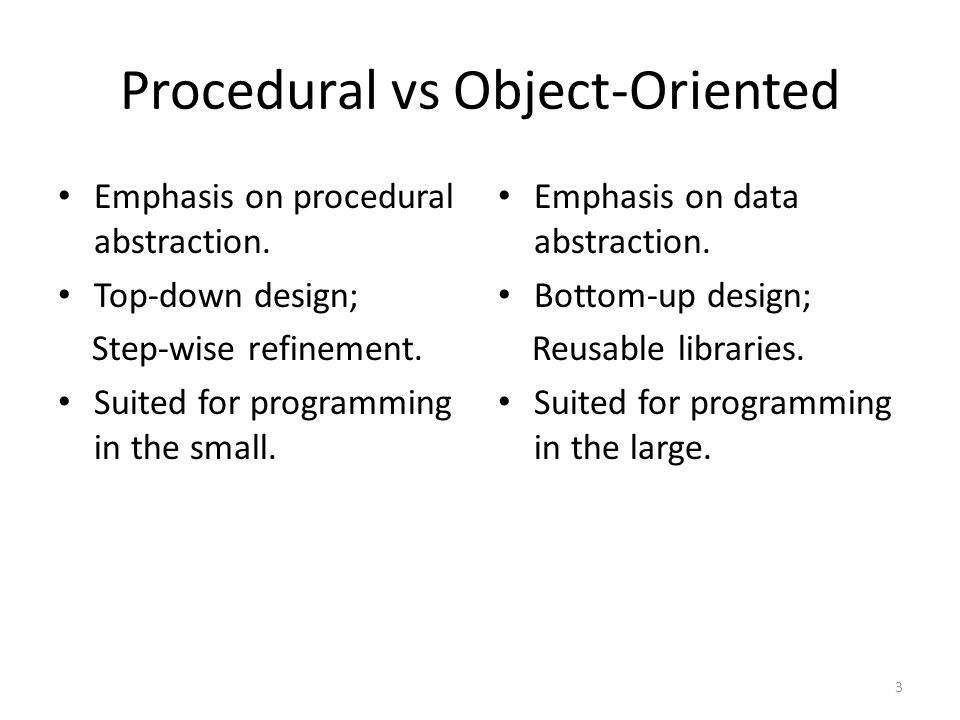

3. 3 Procedural vs Object-Oriented Emphasis on procedural abstraction. Top-down design; Step-wise refinement. Suited for programming in the small. Emphasis on data abstraction. Bottom-up design; Reusable libraries. Suited for programming in the large.

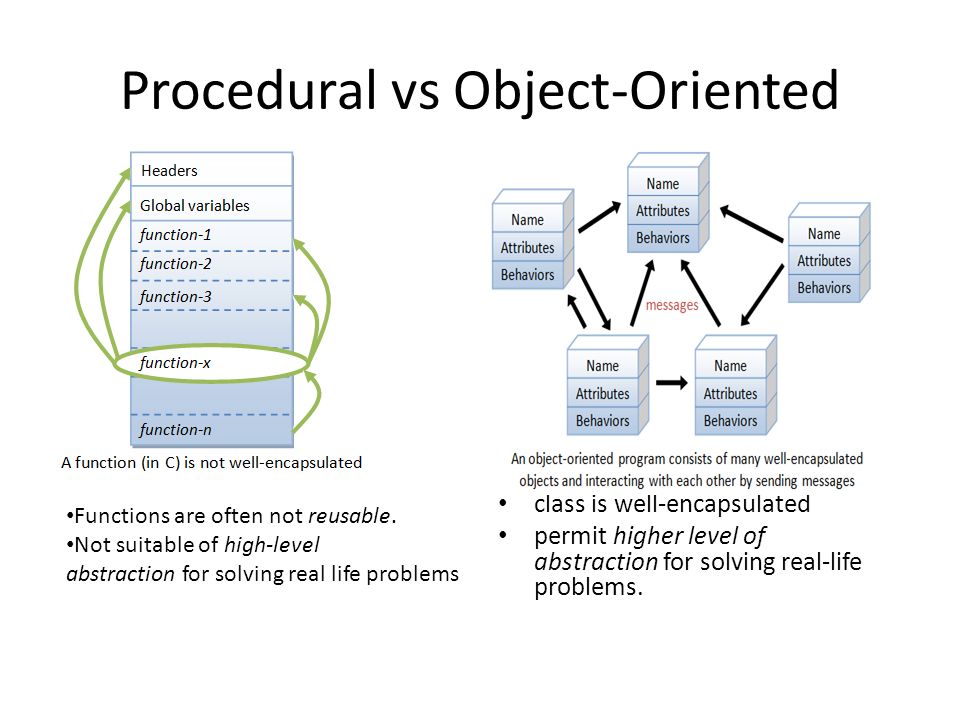

4. Procedural vs Object-Oriented easier to reuse these classes class is well-encapsulated permit higher level of abstraction for solving real-life problems. Functions are often not reusable. Not suitable of high-level abstraction for solving real life problems

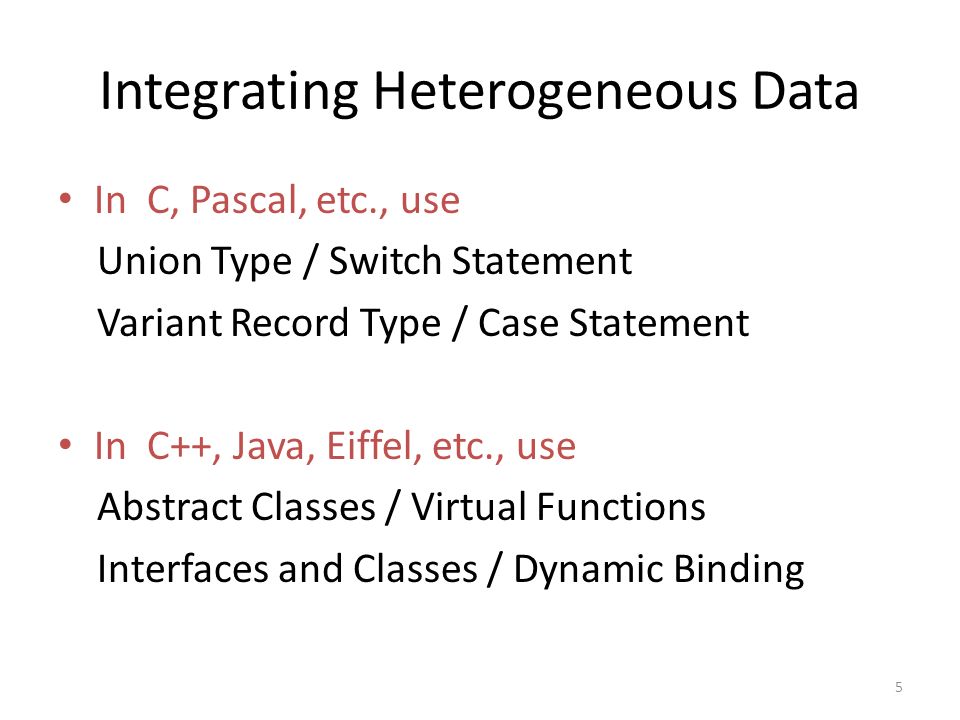

5. 5 Integrating Heterogeneous Data In C, Pascal, etc., use Union Type / Switch Statement Variant Record Type / Case Statement In C++, Java, Eiffel, etc., use Abstract Classes / Virtual Functions Interfaces and Classes / Dynamic Binding

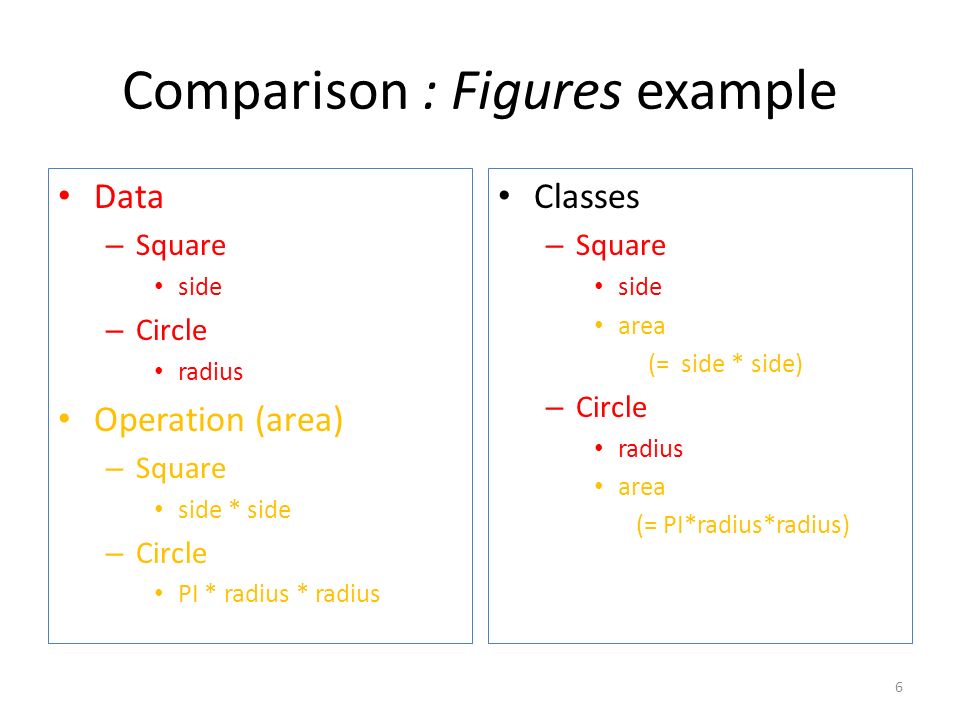

6. 6 Comparison : Figures example Data – Square side – Circle radius Operation (area) – Square side * side – Circle PI * radius * radius Classes – Square side area (= side * side) – Circle radius area (= PI*radius*radius)

7. 7 Adding a new operation... Data Operation (area) Operation (perimeter) – Square 4 * side – Circle 2 * PI * radius Classes – Square... perimeter (= 4 * side) – Circle... perimeter (= 2 * PI * radius)

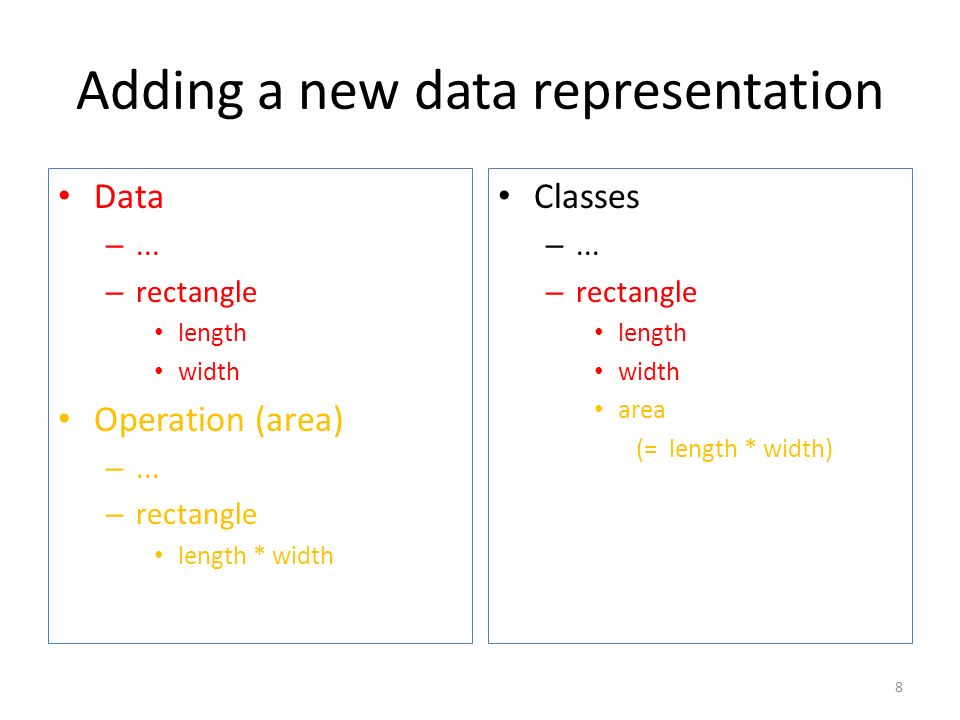

8. 8 Adding a new data representation Data –... – rectangle length width Operation (area) –... – rectangle length * width Classes –... – rectangle length width area (= length * width)

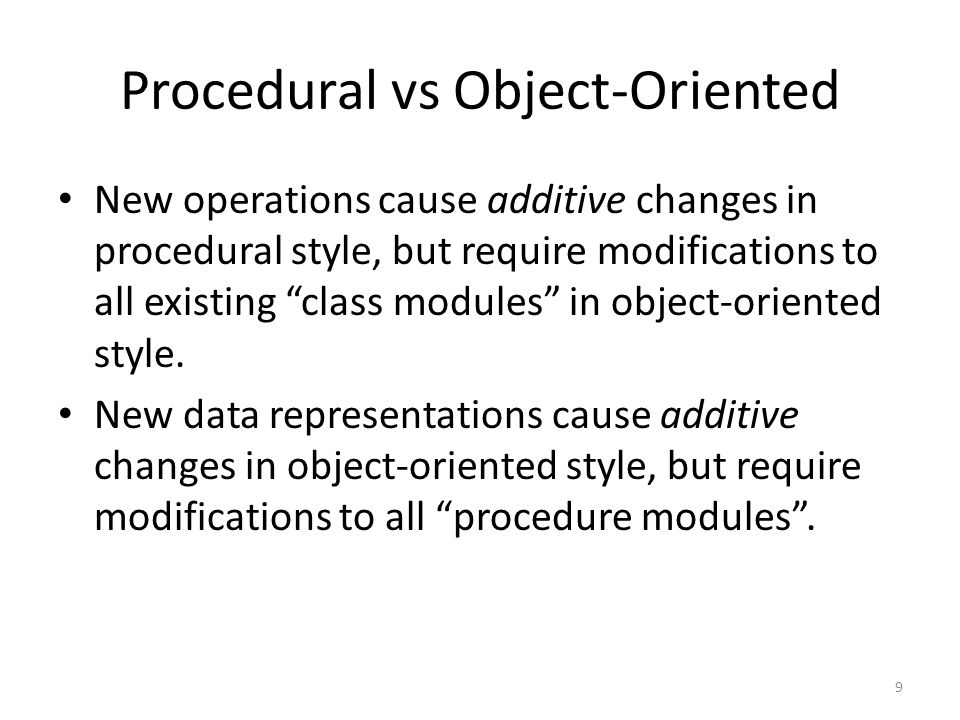

9. 9 Procedural vs Object-Oriented New operations cause additive changes in procedural style, but require modifications to all existing “class modules” in object-oriented style. New data representations cause additive changes in object-oriented style, but require modifications to all “procedure modules”. New data representations cause additive changes in object-oriented style, but require modifications to all “procedure modules”.

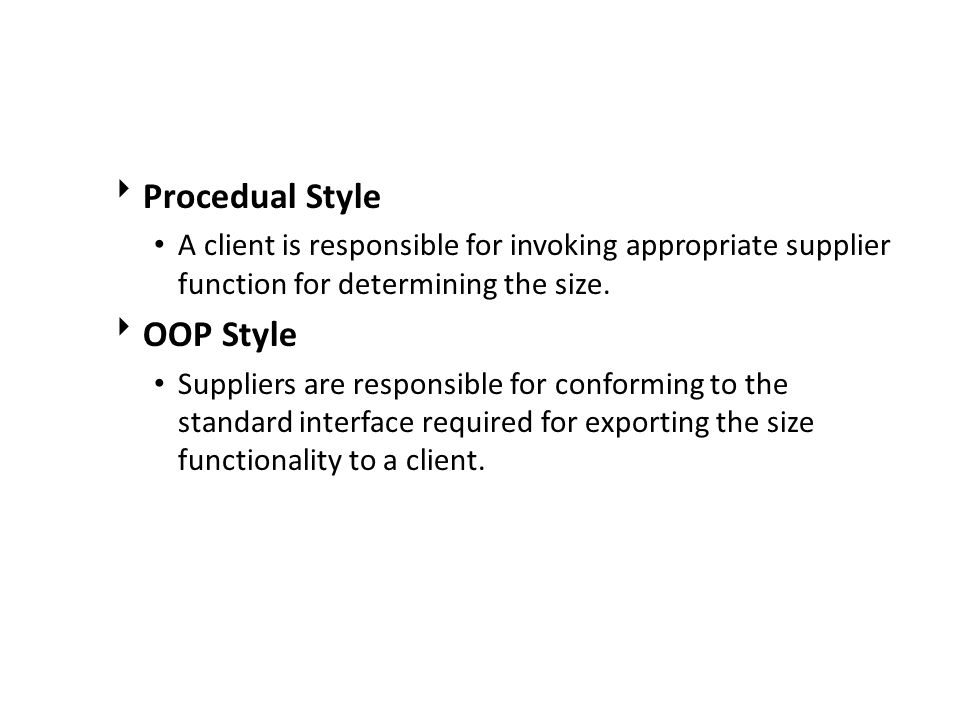

10.  Procedual Style A client is responsible for invoking appropriate supplier function for determining the size.  OOP Style Suppliers are responsible for conforming to the standard interface required for exporting the size functionality to a client.

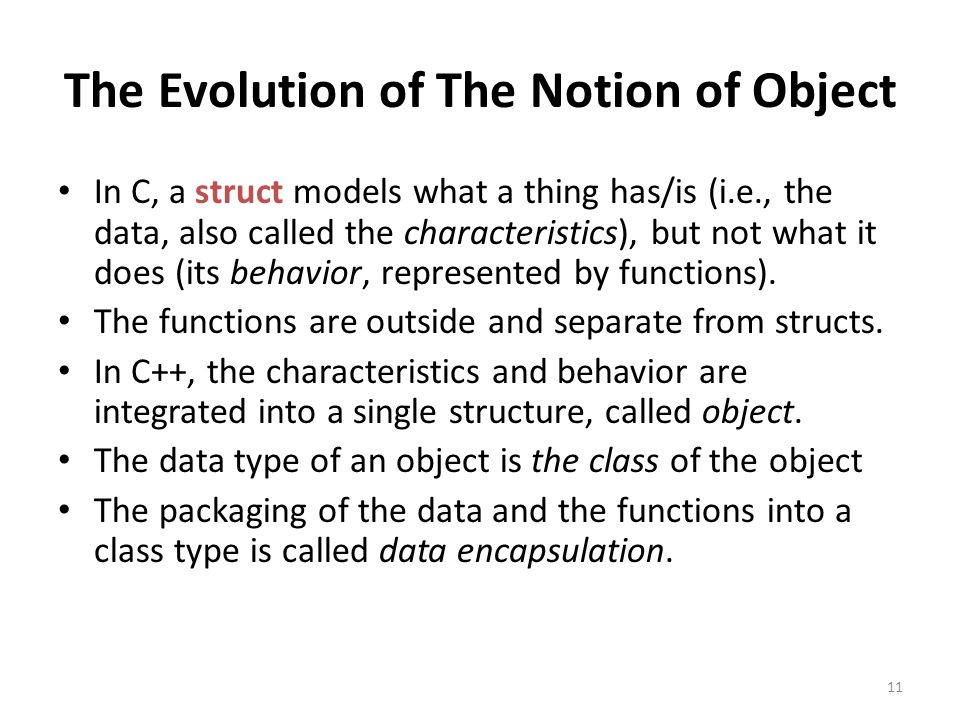

11. 11 The Evolution of The Notion of Object In C, a struct models what a thing has/is (i.e., the data, also called the characteristics), but not what it does (its behavior, represented by functions). The functions are outside and separate from structs. In C++, the characteristics and behavior are integrated into a single structure, called object. The data type of an object is the class of the object The packaging of the data and the functions into a class type is called data encapsulation.

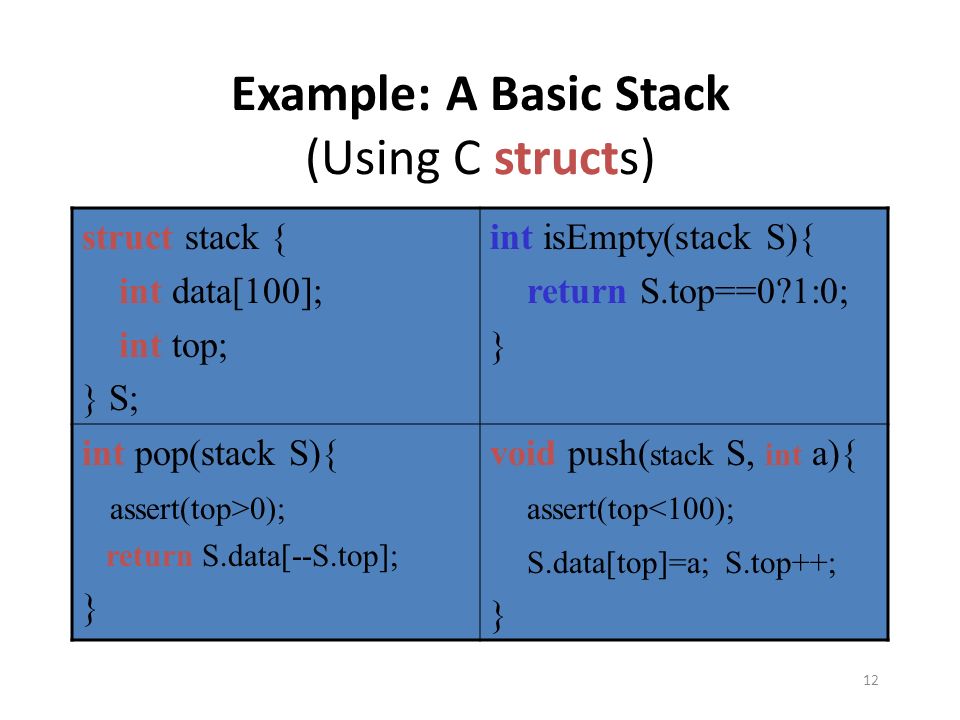

12. 12 Example: A Basic Stack (Using C structs) struct stack { int data[100]; int top; } S; int isEmpty(stack S){ return S.top==0?1:0; } int pop(stack S){ assert(top>0); return S.data[--S.top]; } void push( stack S, int a){ assert(top<100); S.data[top]=a; S.top++; }

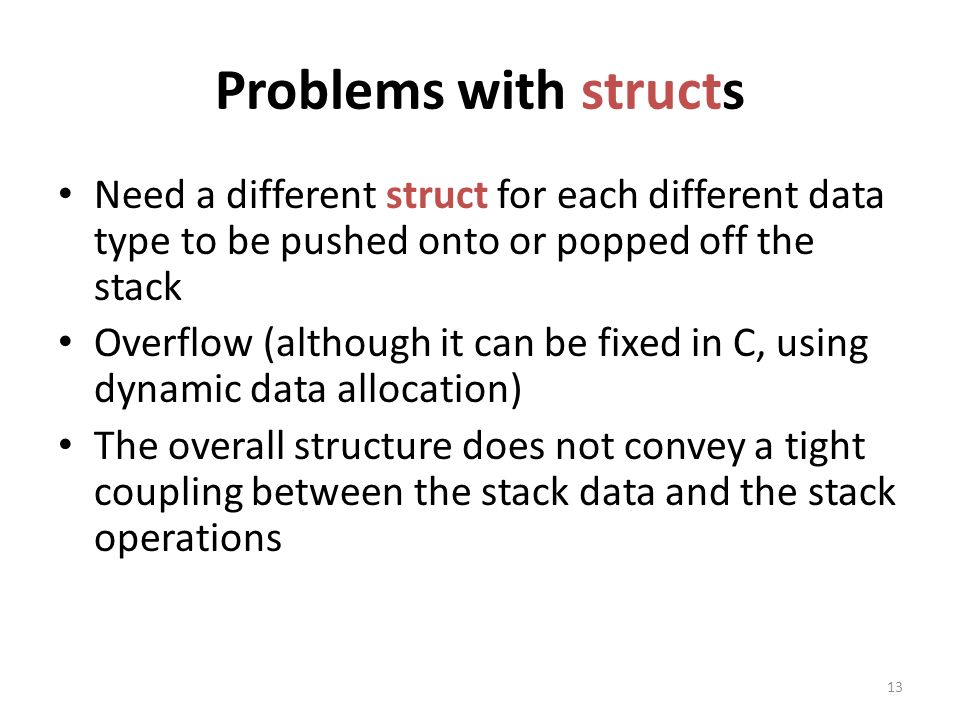

13. 13 Problems with structs Need a different struct for each different data type to be pushed onto or popped off the stack Overflow (although it can be fixed in C, using dynamic data allocation) The overall structure does not convey a tight coupling between the stack data and the stack operations

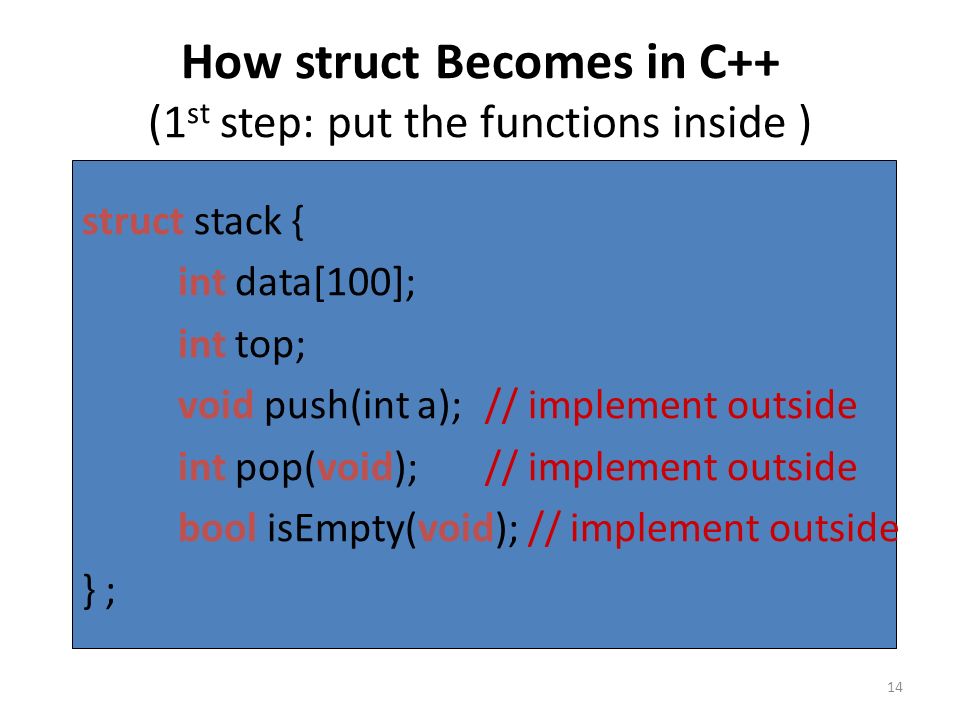

14. 14 How struct Becomes in C++ (1 st step: put the functions inside ) struct stack { int data[100]; int top; void push(int a); // implement outside int pop(void); // implement outside bool isEmpty(void); // implement outside } ;

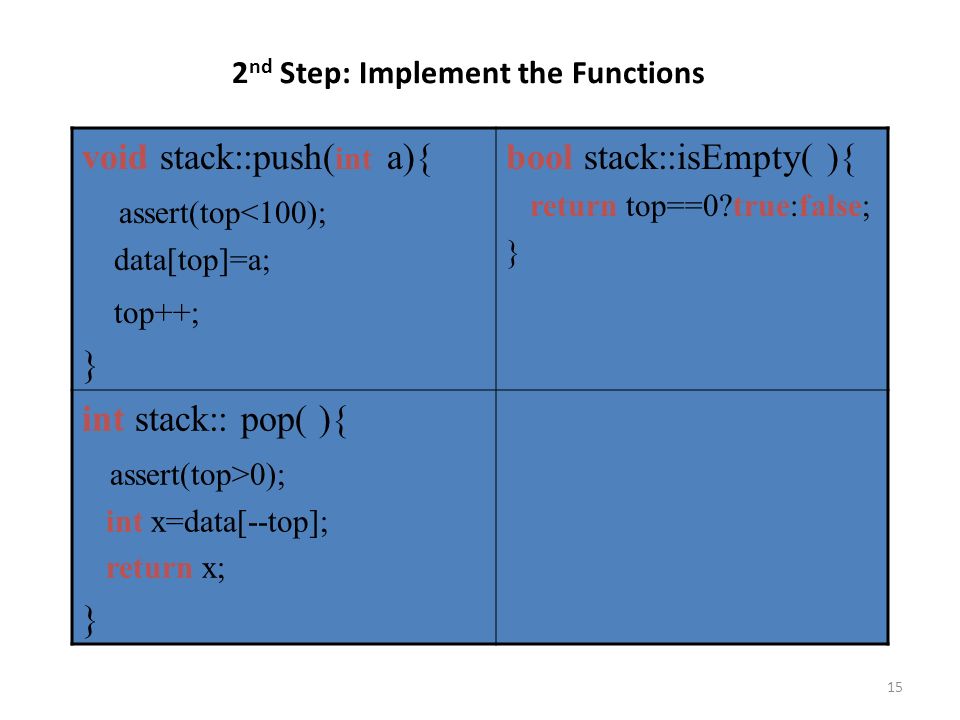

15. 15 2 nd Step: Implement the Functions void stack::push( int a){ assert(top<100); data[top]=a; top++; } bool stack::isEmpty( ){ return top==0?true:false; } int stack:: pop( ){ assert(top>0); int x=data[--top]; return x; }

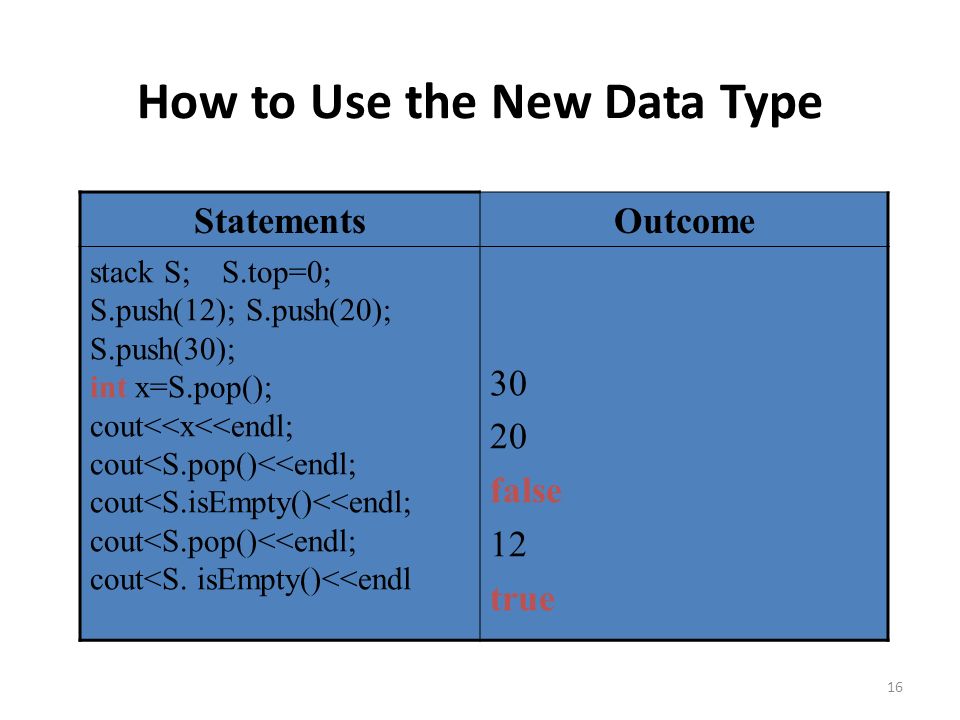

16. 16 How to Use the New Data Type StatementsOutcome stack S; S.top=0; S.push(12); S.push(20); S.push(30); int x=S.pop(); cout<<x<<endl; cout<S.pop()<<endl; cout<S.isEmpty()<<endl; cout<S.pop()<<endl; cout<S. isEmpty()<<endl 30 20 false 12 true

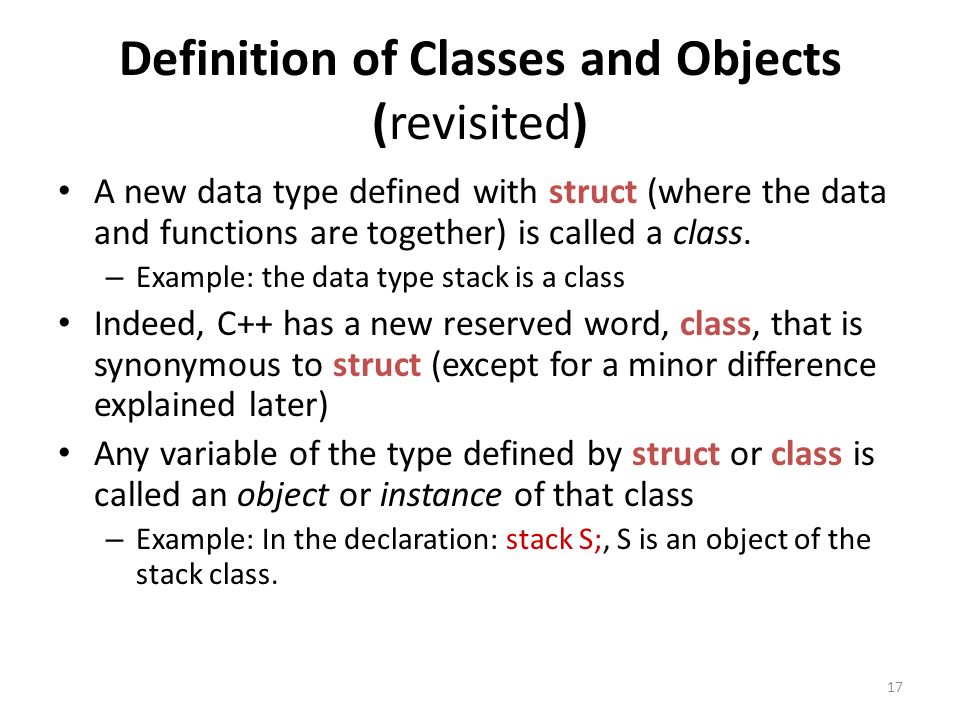

17. 17 Definition of Classes and Objects (revisited) A new data type defined with struct (where the data and functions are together) is called a class. – Example: the data type stack is a class Indeed, C++ has a new reserved word, class, that is synonymous to struct (except for a minor difference explained later) Any variable of the type defined by struct or class is called an object or instance of that class – Example: In the declaration: stack S;, S is an object of the stack class.

18. 18 Definition of Members The declared variables inside structs are called the data fields in C. In C++, the declared variables and functions inside structs/classes are called members: – member variables – member functions (also called methods)

19. 19 Data Hiding: Context Note that users of a stack object can access directly the members data[] and top For example, a user can do: But notice that the 3 stack operations are all the users need. They do need to access top directly Also, this free access can cause problems: – If a user is not careful or is malicious, such a direct access to S.top can invalidate the stack operations’ outcome – It also limits the implementer from evolving/modifying the implementation of the data type S.top -= 3;

20. 20 Data Hiding: Private and Public sections C++, and other object-oriented programming languages, allow the programmer to designate certain members of a class as private, and other members as public. Private members cannot be accessed from outside the class, while public members can Private members are hidden (thus the term data hiding)

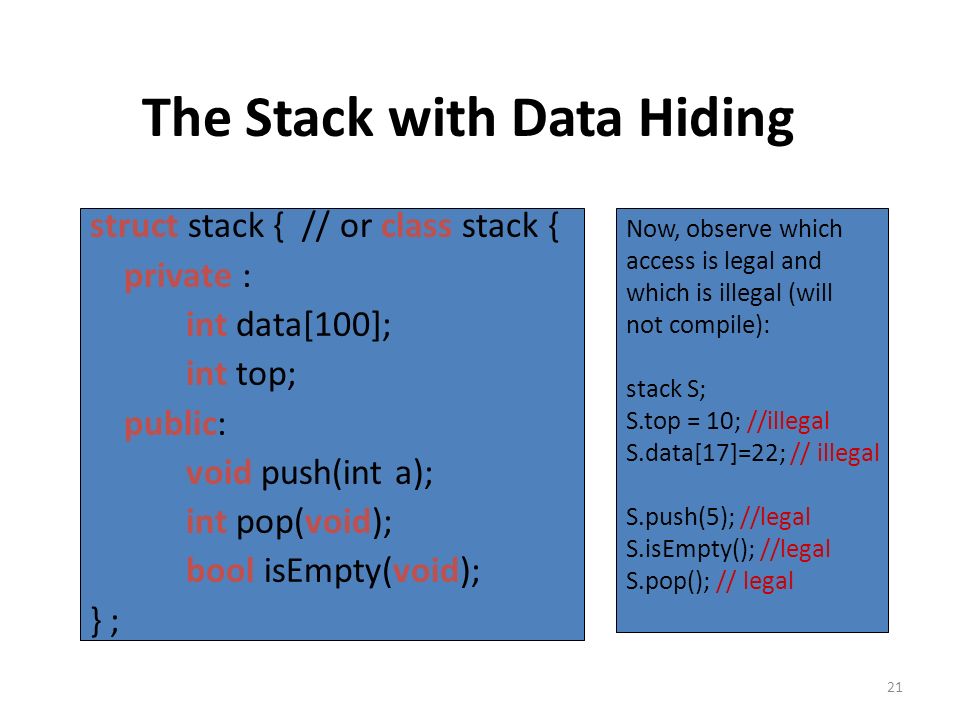

21. 21 The Stack with Data Hiding struct stack { // or class stack { private : int data[100]; int top; public: void push(int a); int pop(void); bool isEmpty(void); } ; Now, observe which access is legal and which is illegal (will not compile): stack S; S.top = 10; //illegal S.data[17]=22; // illegal S.push(5); //legal S.isEmpty(); //legal S.pop(); // legal

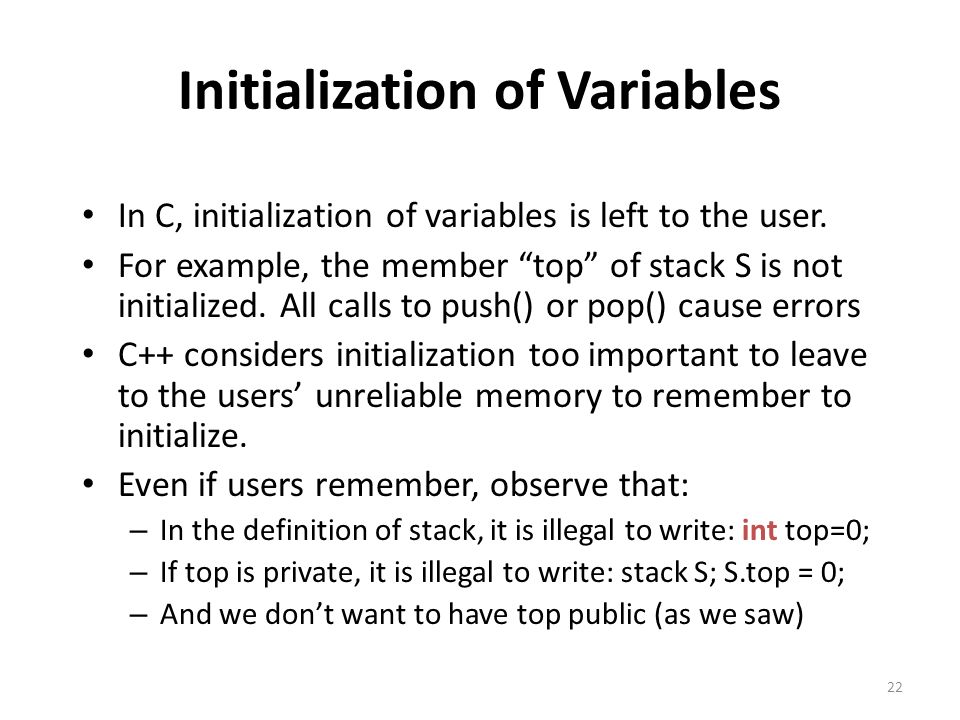

22. 22 Initialization of Variables In C, initialization of variables is left to the user. For example, the member “top” of stack S is not initialized. All calls to push() or pop() cause errors C++ considers initialization too important to leave to the users’ unreliable memory to remember to initialize. Even if users remember, observe that: – In the definition of stack, it is illegal to write: int top=0; – If top is private, it is illegal to write: stack S; S.top = 0; – And we don’t want to have top public (as we saw)

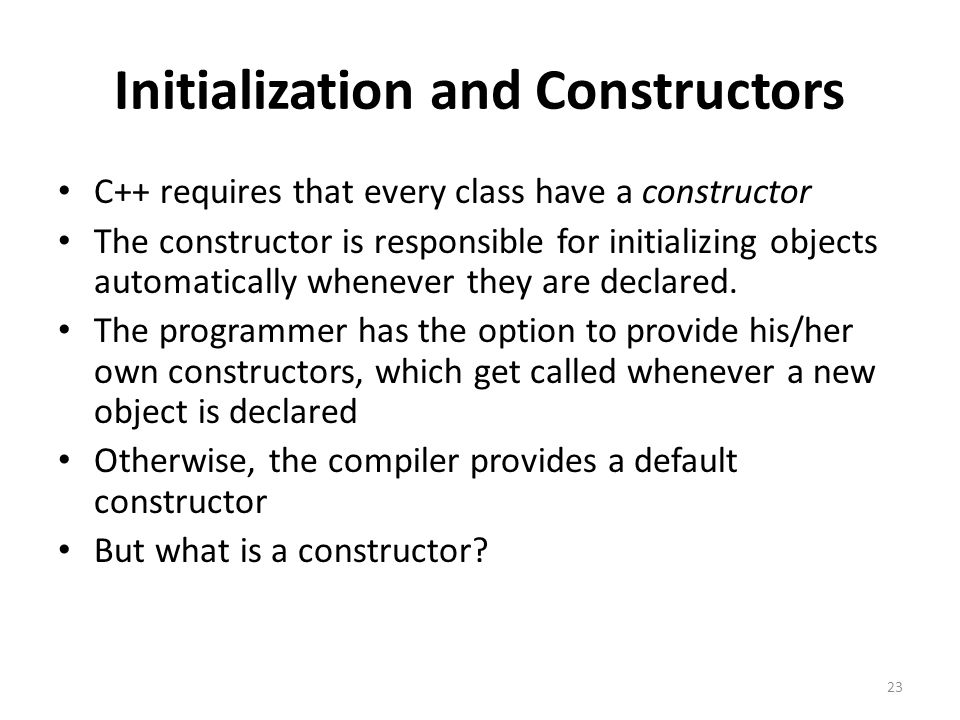

23. 23 Initialization and Constructors C++ requires that every class have a constructor The constructor is responsible for initializing objects automatically whenever they are declared. The programmer has the option to provide his/her own constructors, which get called whenever a new object is declared Otherwise, the compiler provides a default constructor But what is a constructor?

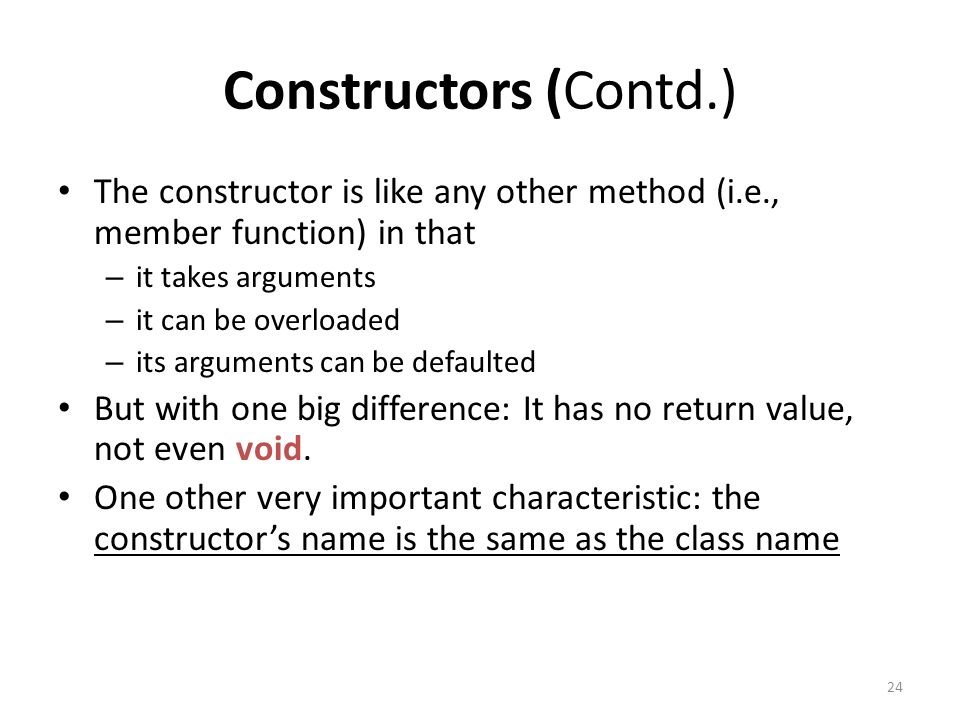

24. 24 Constructors (Contd.) The constructor is like any other method (i.e., member function) in that – it takes arguments – it can be overloaded – its arguments can be defaulted But with one big difference: It has no return value, not even void. One other very important characteristic: the constructor’s name is the same as the class name

25. 25 Constructor of the Stack Class class stack { private : int data[100]; int top; public: stack(); // the constructor void push(int a); …// the other functions } ; // constructor: initializes // top to 0. stack::stack(){ top=0; } // the implementation of // the other functions is // the same as before

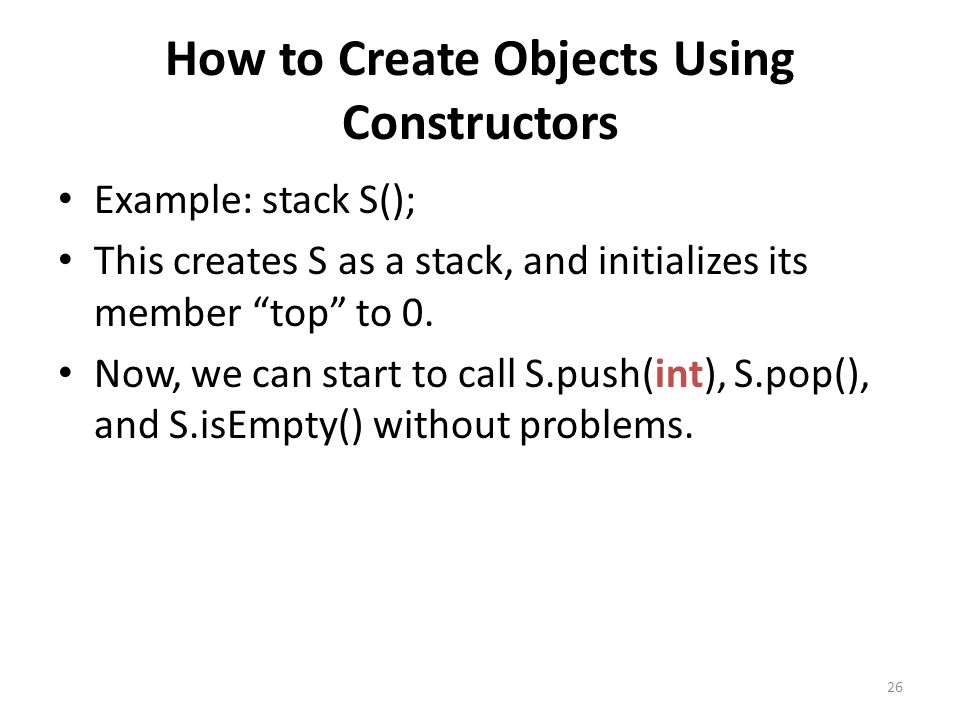

26. 26 How to Create Objects Using Constructors Example: stack S(); This creates S as a stack, and initializes its member “top” to 0. Now, we can start to call S.push(int), S.pop(), and S.isEmpty() without problems.

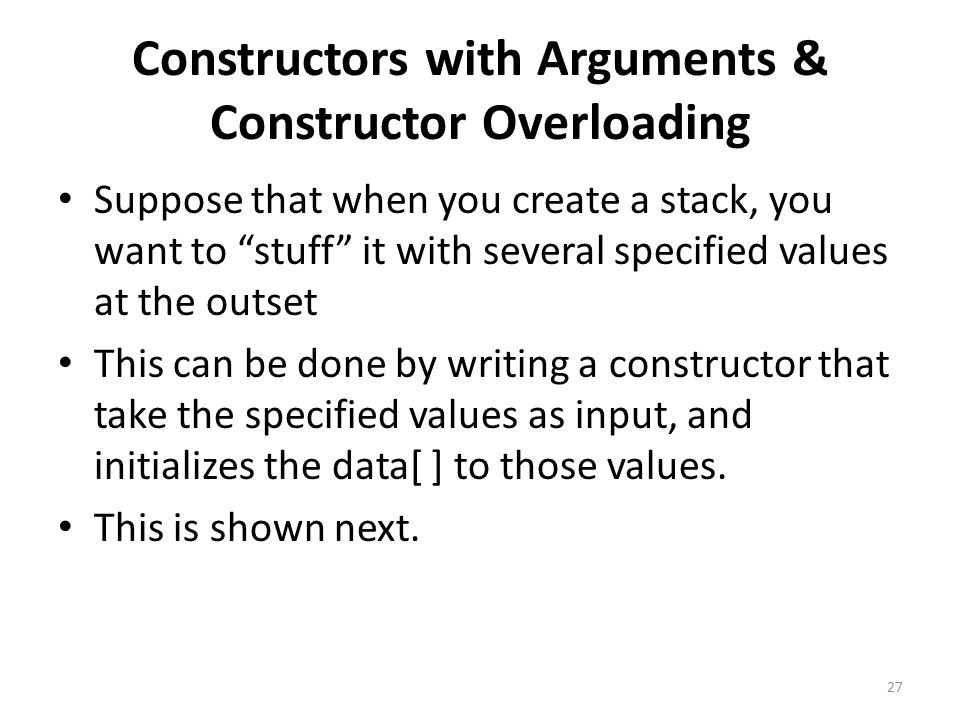

27. 27 Constructors with Arguments & Constructor Overloading Suppose that when you create a stack, you want to “stuff” it with several specified values at the outset This can be done by writing a constructor that take the specified values as input, and initializes the data[ ] to those values. This is shown next.

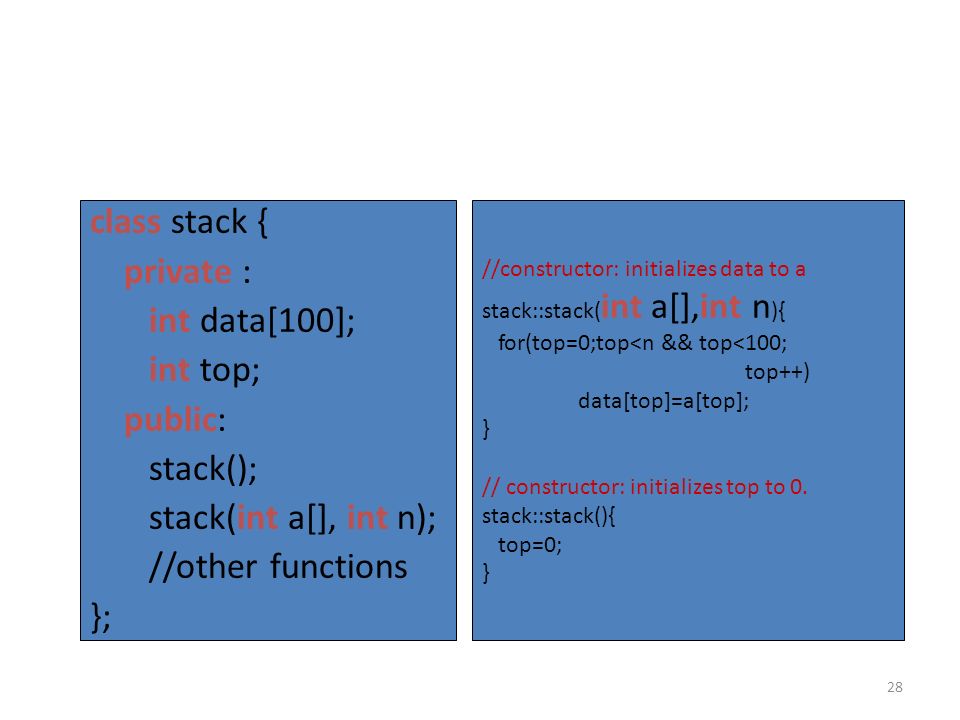

28. 28 class stack { private : int data[100]; int top; public: stack(); stack(int a[], int n); //other functions }; //constructor: initializes data to a stack::stack( int a[],int n ){ for(top=0;top<n && top<100; top++) data[top]=a[top]; } // constructor: initializes top to 0. stack::stack(){ top=0; }

29. 29 Stack Overflow and Solution So far, the stack example we have cannot hold more than 100 values. If we push more than that many, the stack overflows. To overcome this limit, we can use dynamic arrays (with new), and maintain a capacity indicator This is implemented next

30. 30 class stack { private : int *dataptr; int top; int capacity; public: stack(int cap=100); stack(int a[], int n); int getCapacity() { return capacity;} void push(int b); int pop(); bool isEmpty() { return top==0;} }; //constructor: sets capacity to // max(2n,100); stores a[] in stack stack::stack( int a[],int n ){ capacity = (2*n>100)?2*n:100; dataptr = new int [capacity]; for(top=0;top<n;top++) dataptr[top]=a[top]; } // constructor: initializes top to 0, // and capacity to cap if provided // & >0, otherwise to 100. stack::stack(int cap){ top=0; capacity = (cap>0)?cap:100; dataptr = new int[capacity]; }

31. 31 void stack::push(int b){ if (top < capacity) dataptr[top++]=b; else{ // double the capacity, copy // current contents to new array, // delete old array, and push b on // top of the new array capacity *=2; int *newptr=new int [capacity]; for(int k=0;k<capacity/2;k++) newptr[k]=dataptr[k]; delete [] dataptr; dataptr = newptr; dataptr[top++]=b; } Inline Functions: Note that the methods isEmpty() and getCapacity() are implemented inside the class. Such functions are called inline functions. Inline functions should be limited to very simple implementations.

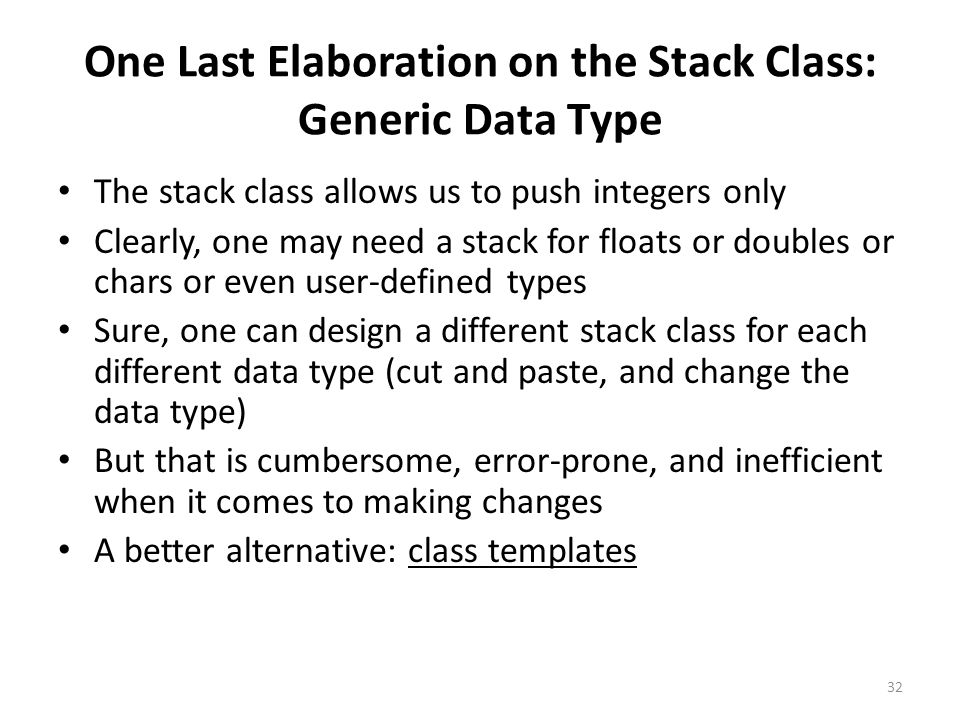

32. 32 One Last Elaboration on the Stack Class: Generic Data Type The stack class allows us to push integers only Clearly, one may need a stack for floats or doubles or chars or even user-defined types Sure, one can design a different stack class for each different data type (cut and paste, and change the data type) But that is cumbersome, error-prone, and inefficient when it comes to making changes A better alternative: class templates

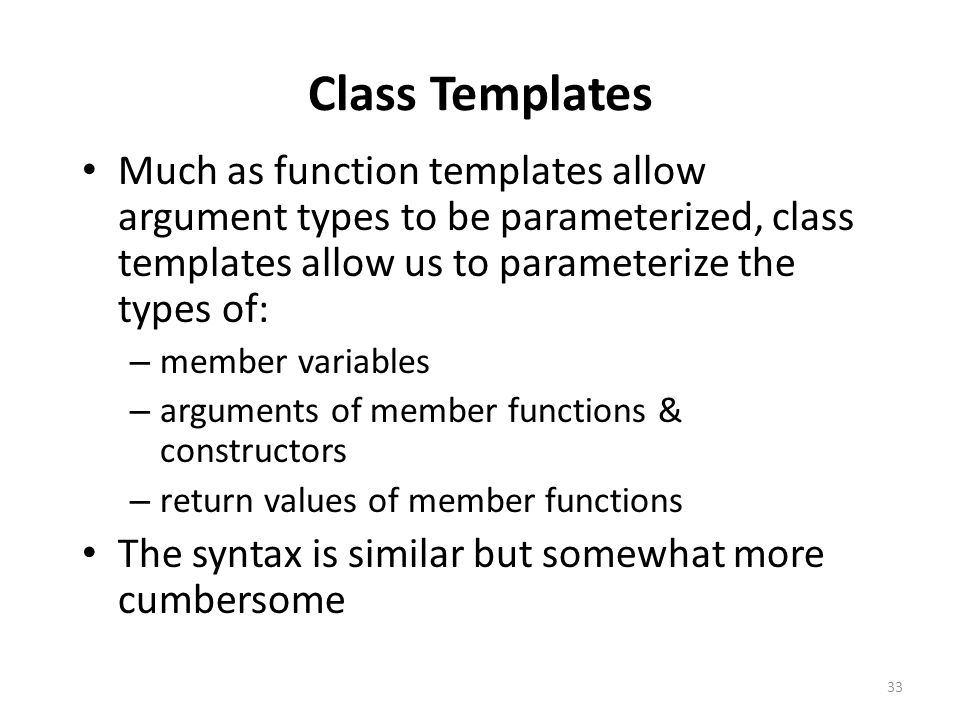

33. 33 Class Templates Much as function templates allow argument types to be parameterized, class templates allow us to parameterize the types of: – member variables – arguments of member functions & constructors – return values of member functions The syntax is similar but somewhat more cumbersome

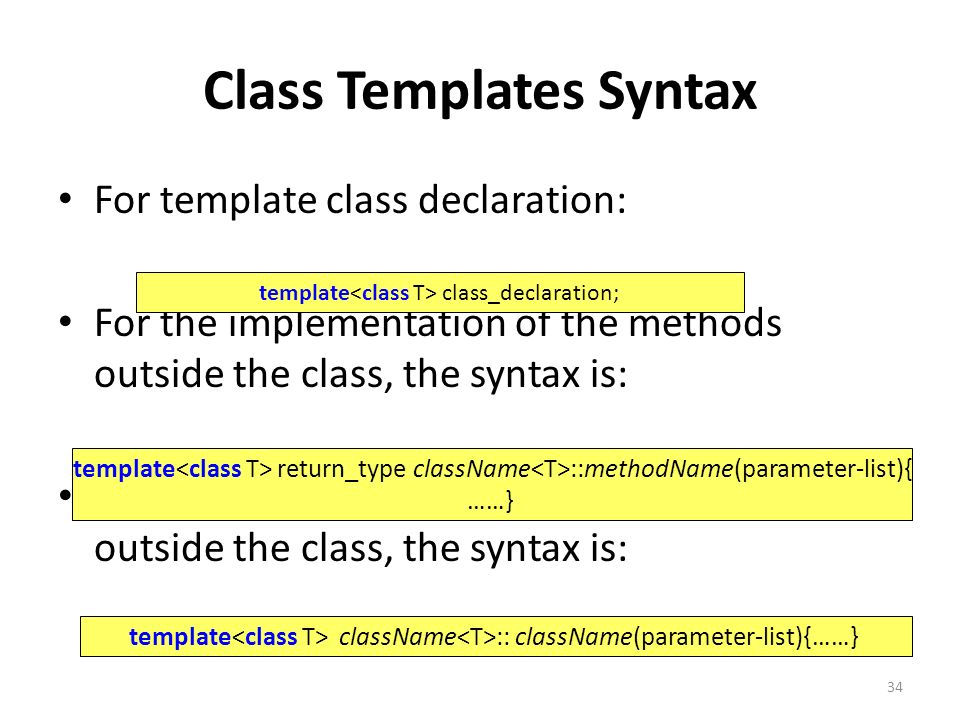

34. 34 Class Templates Syntax For template class declaration: For the implementation of the methods outside the class, the syntax is: For the implementation of the constructors outside the class, the syntax is: template class_declaration; template return_type className ::methodName(parameter-list){ ……} template className :: className(parameter-list){……}

35. 35 template class stack { private : T *dataptr; int top; int capacity; public: stack(int cap=100); // as before stack(T a[], int n); // new int getCapacity() {return capacity;} void push(T b); T pop() {assert(top>0); return dataptr[--top];} bool isEmpty() {return top==0;} }; Stack as a Template Class

36. 36 //constructor: sets capacity to max(2n,100). // It then initializes stack to a[]. template stack ::stack( T a[],int n ){ capacity = (2*n>100)?2*n:100; dataptr = new T [capacity]; for(top=0;top<n;top++) dataptr[top]=a[top]; } // constructor: initializes top to 0, and capacity to cap // if provided & >0, otherwise to 100. template stack ::stack(int cap){ top=0; capacity = (cap>0)?cap:100; dataptr = new T[capacity]; }

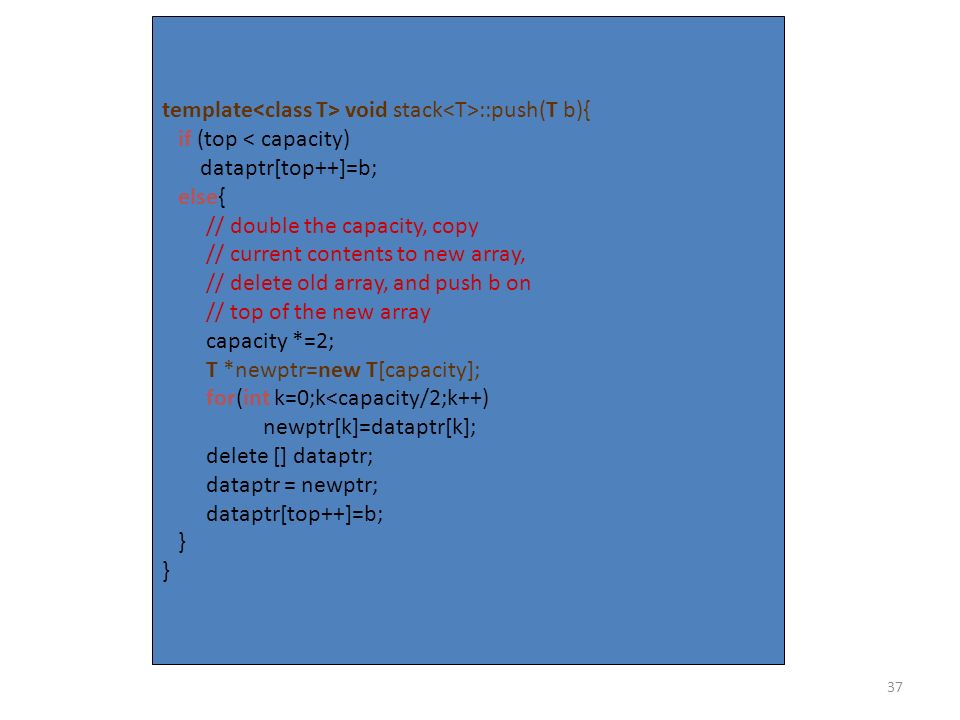

37. 37 template void stack ::push(T b){ if (top < capacity) dataptr[top++]=b; else{ // double the capacity, copy // current contents to new array, // delete old array, and push b on // top of the new array capacity *=2; T *newptr=new T[capacity]; for(int k=0;k<capacity/2;k++) newptr[k]=dataptr[k]; delete [] dataptr; dataptr = newptr; dataptr[top++]=b; }

38. 38 A Complete Program Using Template Stacks #include using namespace std; // template stack definition goes here int main(int argc, char *argv[]){ stack intS(5); // a stack of integers cout<<"intS capacity after construction = "<<intS.getCapacity()<<endl; int x[]={2,3,7,8,-10,14,5}; for (int i=0;i<7;i++) intS.push(x[i]); cout<<"intS capacity after pushing 7 elements="<< intS.getCapacity(); cout<<“\nEmptying intS: "; while (!intS.isEmpty()) cout<<intS.pop()<<"; "; cout<<endl;

39. 39 stack stringS(5); // a stack of strings stringS.push("hi"); stringS.push("there"); cout<<"Emptying stringS: "; while (!stringS.isEmpty()) cout<<stringS.pop()<<"; "; cout<<endl; double y[]={3.14,9.8,1.42,12}; stack doubleS(y,4); // a stack of doubles cout<<"doubleS capacity="<<doubleS.getCapacity()<<endl; cout<<"Emptying doubleS: "; while (!doubleS.isEmpty()) cout<<doubleS.pop()<<"; "; cout<<endl; }

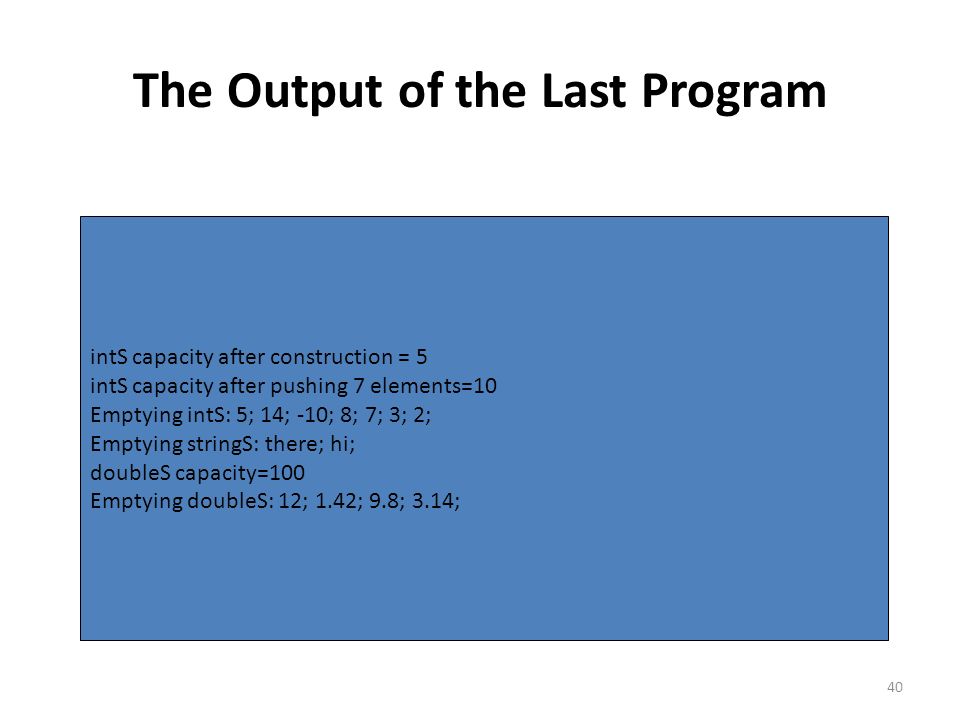

40. 40 The Output of the Last Program intS capacity after construction = 5 intS capacity after pushing 7 elements=10 Emptying intS: 5; 14; -10; 8; 7; 3; 2; Emptying stringS: there; hi; doubleS capacity=100 Emptying doubleS: 12; 1.42; 9.8; 3.14;
