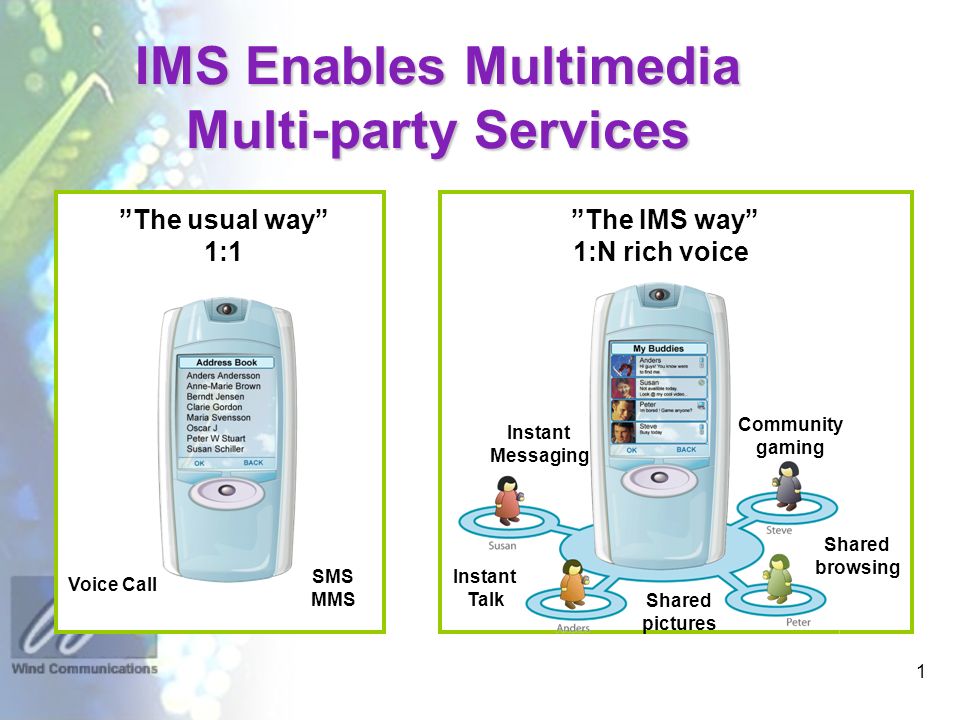

1. 1 IMS Enables Multimedia Multi-party Services ”The usual way” 1:1 Voice Call SMS MMS ”The IMS way” 1:N rich voice Instant Talk Shared pictures Shared browsing Community gaming Instant Messaging

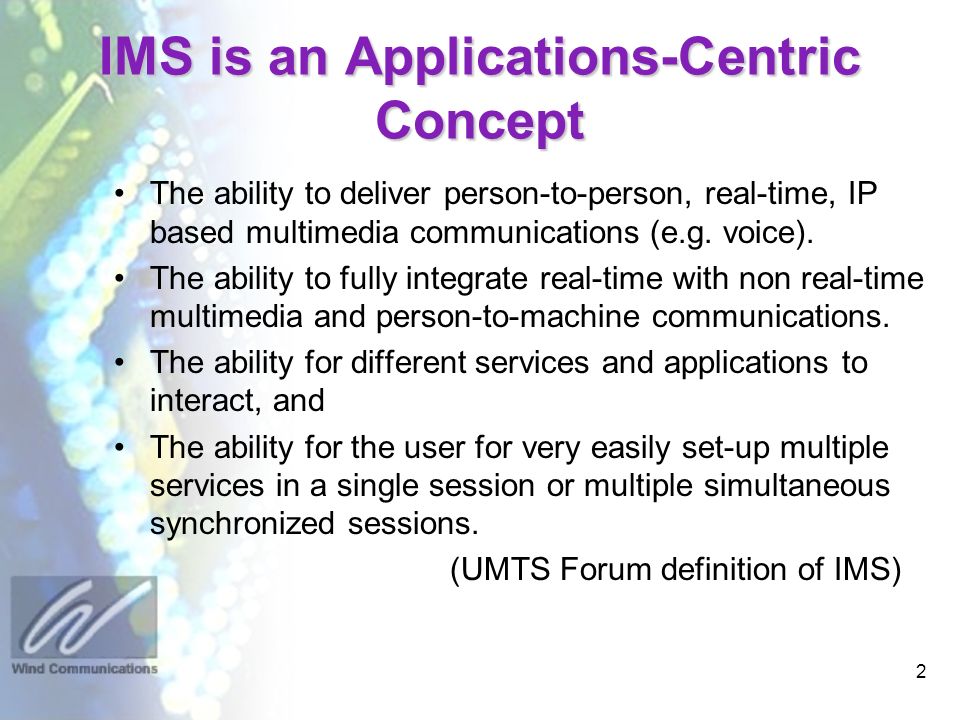

2. 2 IMS is an Applications-Centric Concept The ability to deliver person-to-person, real-time, IP based multimedia communications (e.g. voice). The ability to fully integrate real-time with non real-time multimedia and person-to-machine communications. The ability for different services and applications to interact, and The ability for the user for very easily set-up multiple services in a single session or multiple simultaneous synchronized sessions. (UMTS Forum definition of IMS)

3. 3 IP multimedia services The four key changes Richer person-to-person communication –IP will increase usage through reachability of users, seamless usage of different communication types and easy-to-use group communications. Richer interaction between media streams –Easy integration and interworking of different IP-based services. Service mobility –Consistent services over various different access networks increase usage and reduce churn. Easier service creation and integration –Well defined open APIs and programming languages enable service creation by 3rd party developers.

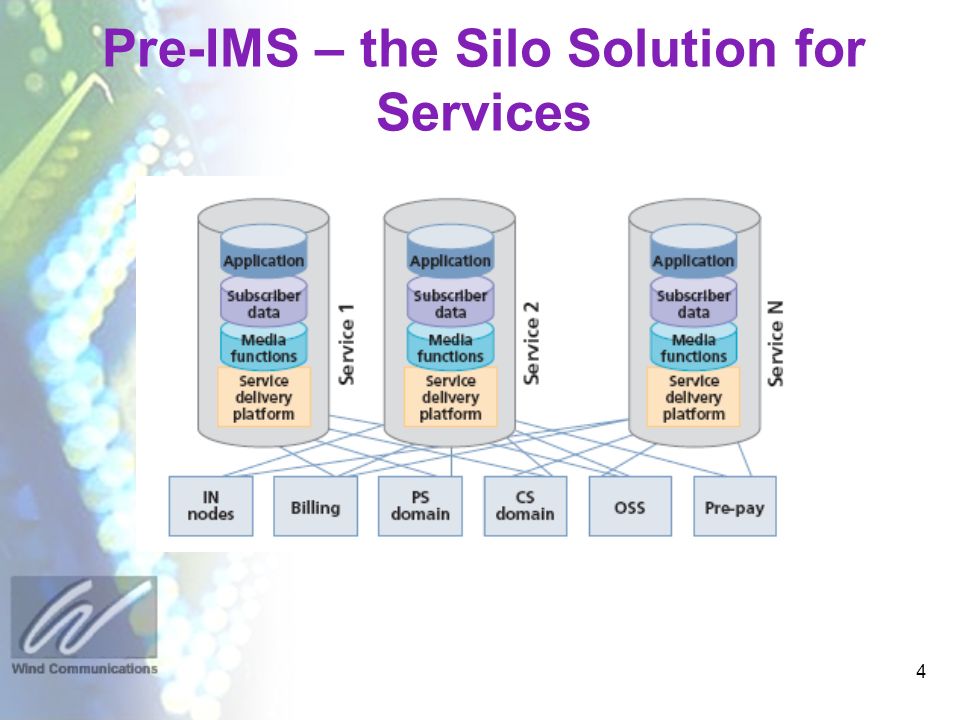

4. 4 Pre-IMS – the Silo Solution for Services

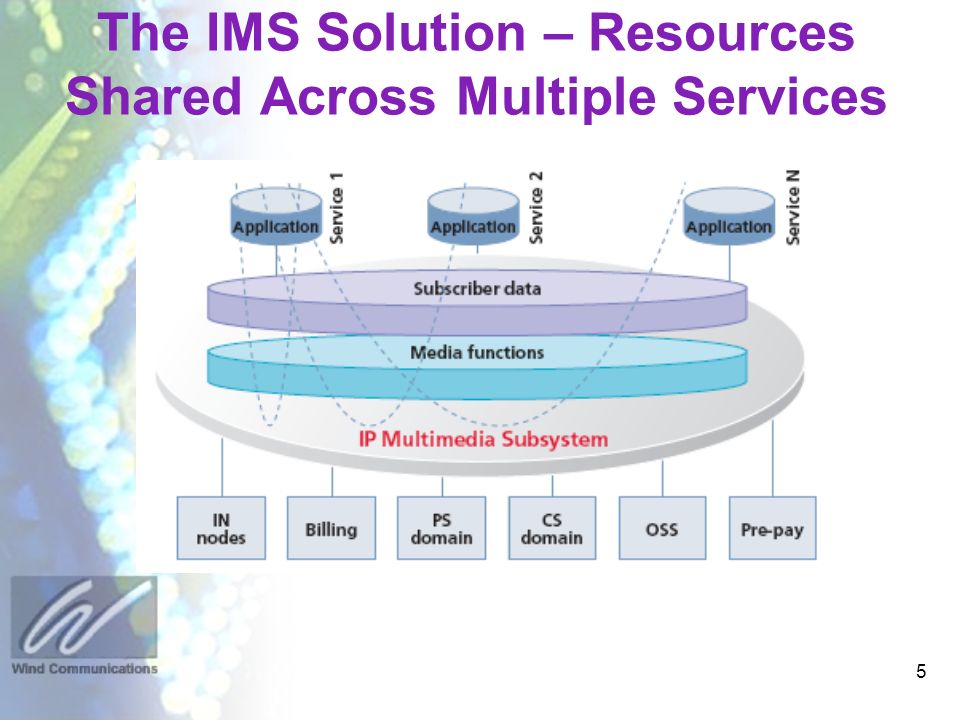

5. 5 The IMS Solution – Resources Shared Across Multiple Services

6. מחלקת הדרכה ופיתוח ארגוני 6 Demand for new 3G Multimedia Services

7. 7 Push-to-Talk over cellular (PoC) Other key PoC features include: group calls are possible as well as one-to-one calls like internet instant messaging models, presence information is normally associated with PoC services, PoC voice offerings are typically priced below normal mobile phone calls call hold times are typically much shorter the ‘always-on’ nature of data networks makes for near instant call set-up times that mean PoC services are very easy to use. PoC provides users with a distinctly different user experience to traditional voice, delivering a ‘walkie-talkie’ style service.

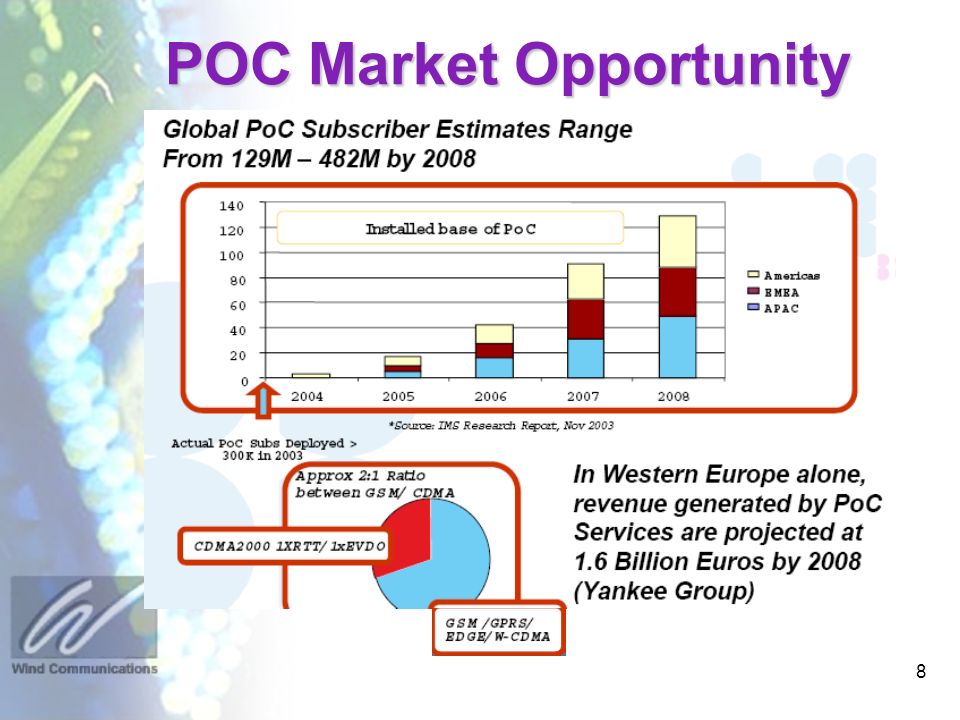

8. 8 POC Market Opportunity

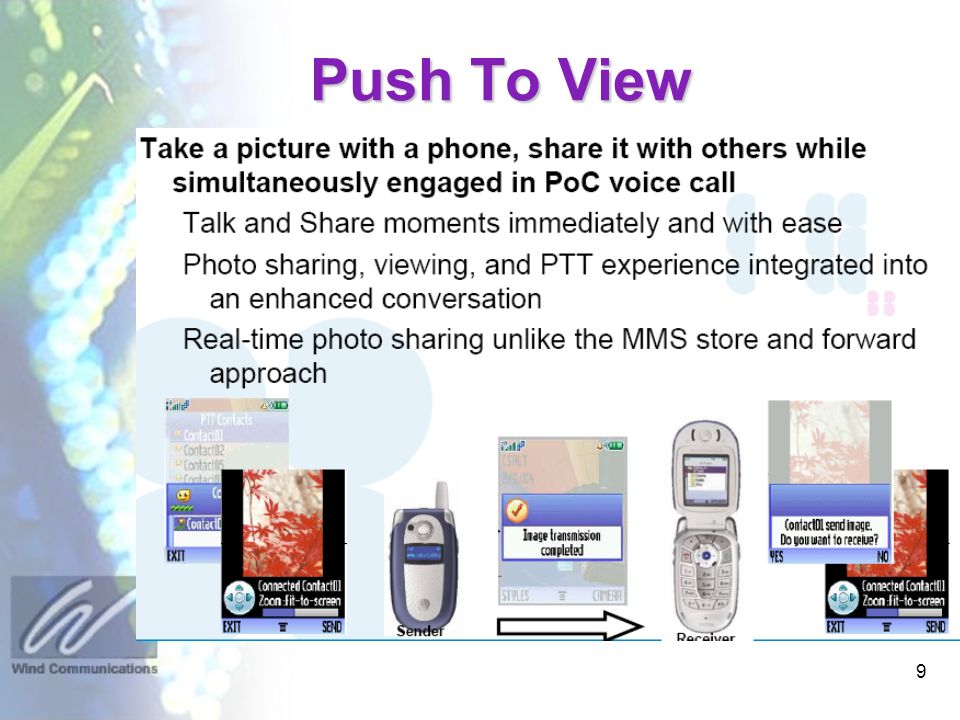

9. 9 Push To View

10. Video Share Video Share is essentially one-way live video streaming that lets users share live video streams or video recordings while on a mobile call. Basically, a Video Share session comprises the following steps: –Circuit-switched call setup –Capability query –Invitation procedure (SIP) –Video transmission (RTP) –Teardown of video session –Teardown of circuit-switched call Video Share is the first real IMS client application to be deployed by operators around the world for commercial use, mainly because it does not require servers in the network besides IP access and network registration.

11. Rich Communication Suite The Rich Communication Suite Initiative is an effort of a group of operators, network and terminal vendors to launch a set of interoperable services based on IMS Operators: Orange, Telecom Italia, Telefonica, TeliaSonera, AT&T, NTT DoCoMo, Telenor, Telstra, SFR, SK Telecom Vendors: Nokia, Nokia Siemens Networks, Samsung Sony-Ericsson, Ericsson, Alcatel-Lucent, Motorola, LG Main features of Rich Communication Suite Phase 1: –Rich Call: calls enhanced with media sharing –Enhanced phone book, contacts enhanced with capabilities and rich presence, –Enhanced messaging, conversational messaging experience. Plan is to have RCS devices in the shops in 2009

13. 13 Video Sharing is a multimedia service that allows people to view a live video or a video clip in real time during a normal voice call on their mobile phone. Sent from one phone to the other, both speakers can see the same video and discuss it, and then end the Video Sharing without ending the voice call. Nokia Video Sharing - Turbo Call

14. 14 France Telecom - Siemens Bicycle Courier Family Communication POC Mobile Presence Manager IM VOIP POC – Push to Talk Over Cellular IM – Instant Messaging

15. 15 UMTS - Agenda Introduction and principles UMTS Architecture UMTS Services IP Multimedia Subsystem (IMS) Architecture and Services High Speed Downlink/Uplink Packet Access (HSDPA/HSUPA) UMTS Future

16. 16 HSDPA HSDPA is a packet based data service in W-CDMA downlink with data transmission up to 8-10 Mbps over 5MHz bandwidth in W-CDMA downlink. This improved performance is based on: –Adaptive modulation and coding –A fast scheduling function, which is controlled in the base station (Node-B) rather that by the RNC. –Fast retransmission

17. 17 Video Download

18. מחלקת הדרכה ופיתוח ארגוני 18 HSDPA High speed with full mobility

19. 19 HSDPA System Architecture

20. 20 Capacity Improvement of HSDPA

21. 21 HSDPA Technology - Summary

22. HSUPA High Speed Uplink Packet Access – Fast Node-B uplink scheduling – Fast Hybrid ARQ – Optional short transmission time interval – Long TTI needed for coverage – Adaptive spreading factor – Power control and soft handover retained – Peak rate: 5.76 Mbps 22

23. 23 UMTS - Agenda Introduction and principles UMTS Architecture UMTS Services IP Multimedia Subsystem (IMS) Architecture and Services High Speed Downlink Packet Access (HSDPA) UMTS Future

24. מחלקת הדרכה ופיתוח ארגוני 24 UMTS Release 6 Multimedia Broadcast Multicast Service (MBMS) Enhanced Uplink for Dedicated Channels (EUDCH) IMS enhancements WLAN integration QoS improvements Wideband AMR speech codec (i.e. to support wideband speech like music)

25. מחלקת הדרכה ופיתוח ארגוני 25 Multimedia Broadcast Multicast Service (MBMS) The MBMS is a unidirectional point-to-multipoint service. Transmitting the same data to multiple recipients allows network resources (wireless and wireline) to be shared. MBMS is provided over a broadcast or multicast service area which can cover the whole network or be a small geographical area such as a shopping mall or sports stadium allowing for region specific content distribution. Examples of broadcast services are advertisements for upcoming or ongoing Multicast services or localized advertisements such as ads for attractions or shops within the broadcast area.

26. 26 MBMS Service Modes Broadcast mode Delivers MBMS data to all interested users within a requested service area and with a requested QoS Doesn’t care whether users are within the service area or not Multicast mode Delivers MBMS data to all interested users within a requested service area and with a requested QoS Interested user have to register with the MBMS service to receive data and will be authenticated based on a subscription Radio resources are used only in cells with registered users Users can be charged for the MBMS services using different tariff models Unauthorized reception is prevented

27. 27 MBMS Architecture

28. 28 MBMS Data Distribution Tree Radio Access Network Core Network

29. 29 UMTS - סיכום UMTS הינה ארכיטקטורת הדור השלישי אליה מתפתחת רשת ה- GSM. במקביל לארכיטקטורה זו מתפתחת גם CDMA 2000 המהווה המשך ל- CDMA 1 (רשת הדור השני האמריקנית). רשת ה- UMTS תאפשר קצבי שידור מהירים מאוד להעברת נתונים שיגיעו עד 384 Kbps למכשירי קצה ניידים ועד 2 Mbps לתחנות נייחות קבועות. רשת ה- UMTS תאפשר תמיכה באפליקציות וידאו מסוגים שונים. ארכיטקטורת ה- UMTS כוללת שלוש שכבות נפרדות –שכבת היישומים –שכבת הבקרה –שכבת הקישוריות (העברת המידע) ארכיטקטורת ה- UMTS מתקדמת בשלבים להתבססות מלאה על פרוטוקול ה- IP (עליו מתבססת בין השאר רשת ה- Internet).
