1. ELA Forum 4.6.041 The basis, objective and content of SNEL - EN81-80 The basis, objective and content of SNEL - EN81-80 Michael Savage

2. ELA Forum 4.6.042 The objective of SNEL is to upgrade the existing portfolio of lifts in Europe to today’s state of the art for safety and thereby reduce accidents!!

3. ELA Forum 4.6.043 Background for SNEL Thanks to the EU Commission the fantastic “New Approach concept” was established in the EU for removing barriers to trade for new products placed on the market. This resulted in the publication of the Lift Directive 95/16/EC. The Lifts Directive also makes reference to the EU Recommendation 95/216/EC (doc. L213 page 1) to improve the safety of existing lifts.

4. ELA Forum 4.6.044 Background for SNEL After experiencing an excellent application of the Lift Directive, the best way forward for the EU Recommendations was considered since it is not mandatory. It was felt that an EN Standard based on risk assessment was needed. This concept was duly accepted by CEN/TC10 and SNEL was born.

5. ELA Forum 4.6.045 CEN/TC10/WG10 which prepared SNEL included experts from: Industry Notified Bodies Consumer Association (ANEC) Insurance Companies SNEL (EN81-80) received 100% positive vote by all countries!! SNEL - EN81-80

6. ELA Forum 4.6.046 Highlights of SNEL SNEL is based on risk assessment The proposed SNEL corrective actions are based on high medium and low risk SNEL allows a step by step upgrading SNEL allows Member State filtering of requirements SNEL includes a safety audit check list allowing an independent check of all existing installations SNEL - EN81-80

7. ELA Forum 4.6.047 EN81-80:2003 Safety rules for the construction and installation of lifts - Existing lifts - Part 80: Rules for the improvement of safety of existing passenger and goods passenger lifts (SNEL - Safety Norm for Existing Lifts ) EN81-80 is now officially published!! SNEL - EN81-80

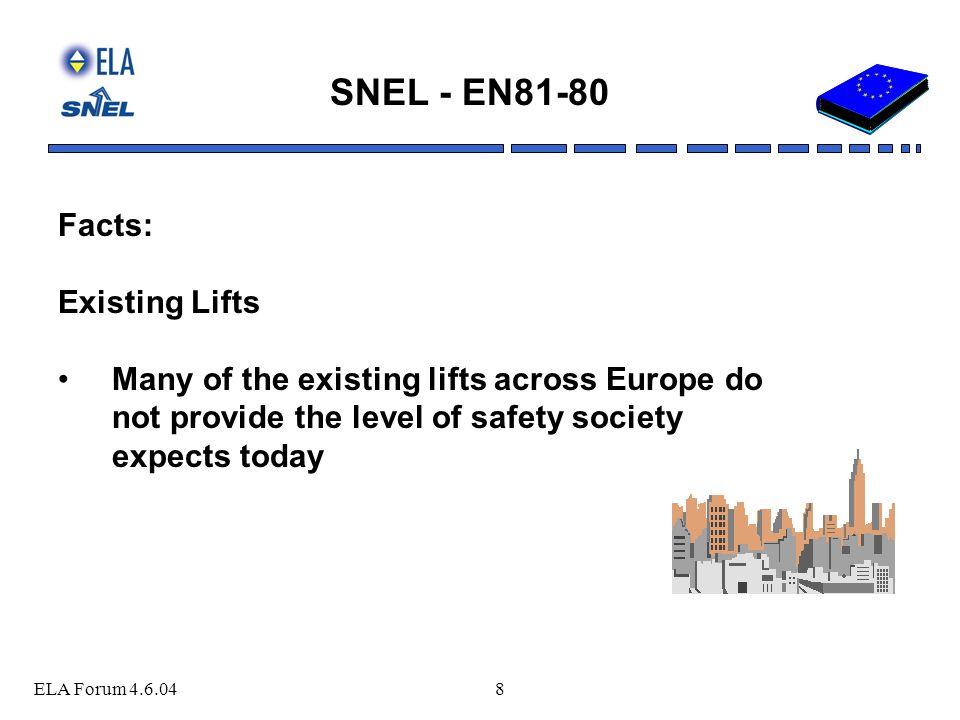

8. ELA Forum 4.6.048 Facts: Existing Lifts Many of the existing lifts across Europe do not provide the level of safety society expects today SNEL - EN81-80

9. ELA Forum 4.6.049 Facts: Existing Lifts (cont.) Individual national code development has led to different levels of safety across Europe but all countries agree that older existing lifts (e.g. pre 1997) are not as safe as new ones SNEL - EN81-80

10. ELA Forum 4.6.0410 EN81 series of Standards The Delta shall be determined by the National authorities 19201979 19851998 Technology R & D 200020102001 Step by step improvement of safety standards for lifts Safety Existing lifts EN 81-1 EN 81- 1/2 EN 81 series prEN 81-80 Difference in level of safety country by country SNEL - EN81-80

11. ELA Forum 4.6.0411 Facts: Existing Lifts (cont.) The needs of disabled and elderly people need to be addressed access to lifts use of lifts SNEL - EN81-80

12. ELA Forum 4.6.0412 Facts: Existing Lifts (continued) Lifts are for use by everyone, whether alone or un- supervised Their safety is not in the direct users control Therefore they have to be independently safe!!! SNEL - EN81-80

13. ELA Forum 4.6.0413 The series of EN81 standards for lifts was used as the basis of today’s state of the art for safety for SNEL in particular EN81-1/2 -Basic safety prEN81-21- New lifts in existing buildings EN81-28-Remote Alarm EN81-70-Access and use by disabled persons prEN81-71-Vandal resistant lifts prEN81-73-Behaviour of lifts in the event of fire SNEL - EN81-80

14. ELA Forum 4.6.0414 Scope of EN81-80 Rules for improving the safety of existing lifts with the aim of reaching an equivalent level of safety to that of a newly installed lift, by the application of today’s state of the art for safety. NOTE : Due to building design etc. it may not be possible in all cases to reach today’s state of the art. SNEL - EN81-80

15. ELA Forum 4.6.0415 Contents of EN81-80: Contents Foreword SNEL - EN81-80

16. ELA Forum 4.6.0416 Contents of EN81-80: (cont.) SNEL - EN81-80

17. ELA Forum 4.6.0417 Contents of EN81-80: (cont.) SNEL - EN81-80

18. ELA Forum 4.6.0418 Contents of EN81-80: (cont.) Bibliography SNEL - EN81-80

19. ELA Forum 4.6.0419 Prioritising the risks Risk analysis - 74 hazardous scenarios were addressed and accidents which have occurred in Europe reviewed SNEL - EN81-80

20. ELA Forum 4.6.0420 Extreme Medium High Low SNEL - EN81-80

21. ELA Forum 4.6.0421 National Filtering and step by step Implementation SNEL - EN81-80

22. ELA Forum 4.6.0422 No. of passenger and goods lifts 1957198619791998 14,000 2002 BS 5655 (EN81) BS 5655 (EN81)BS EN81 BS 2655 58,000 lifts 35,000 High Medium Low BS 2655 (1957) National major code or regulation changes 6, 22, 32, 35, 42, 49, 60, 62, 67 17, 23, 29, 30, 33, 43, 44, 47, 48, 51, 59, 61, 65, 66, 70, 71 1, 5, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 21, 24, 25, 27, 28, 31, 36, 37, 39, 41, 46, 50, 52, 53, 57, 58, 63, 64, 68, 69 1, 5, 27, 41, 58, 68, 17,29, 33, 47, 59, 61,65,66, 70 32, 35, 60 1, 5, 27, 41, 58, 68 17, 29, 33, 47, 65, 66 32, 35 5 33, 29 Risk Notes: 1. prEN81-21/70/71/73 not considered (e.g. disabled, vandalism, fire recall) 2. 21,24,27,37,39,44,46,53, 68 partially applied in UK from 1957 3. Total 207,000 lifts (Approx.) 4. Number of lifts removed from service or modernised since 1957 not known 1970 BS 2655 BS 2655 (1970) 1, 5, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 21, 24, 25, 27, 28, 41, 46, 52, 53, 57, 58, 63, 64, 68, 17, 23, 29, 30, 33, 43, 44, 45, 47, 48, 51, 59, 61, 65, 66, 70, 71 6, 22, 32, 35, 42, 49, 60, 62, 67 100,000 Lifts UK Lift Installations Example of National Filtering SNEL - EN81-80

23. ELA Forum 4.6.0423 SNEL - EN81-80

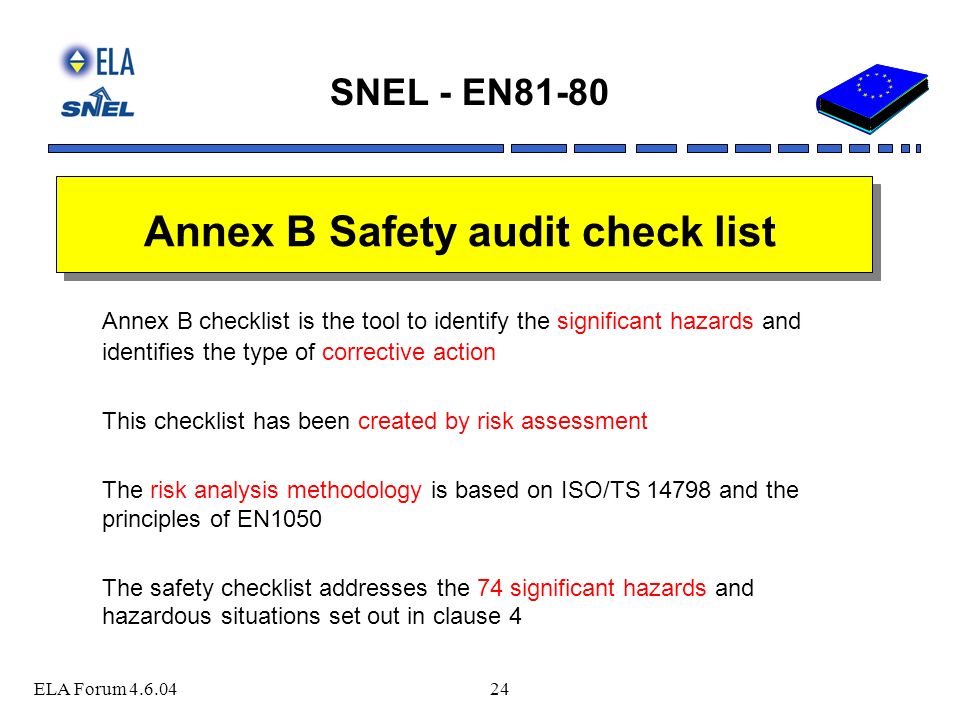

24. ELA Forum 4.6.0424 Annex B Safety audit check list Annex B checklist is the tool to identify the significant hazards and identifies the type of corrective action This checklist has been created by risk assessment The risk analysis methodology is based on ISO/TS 14798 and the principles of EN1050 The safety checklist addresses the 74 significant hazards and hazardous situations set out in clause 4 SNEL - EN81-80

25. ELA Forum 4.6.0425  Yes  No Fit lockable main switches as defined in - EN 81-1:1998, 13.4.2 or - EN 81-2:1998, 13.4.2 High  Yes  No 5.13.1Presence of lockable main switches in machine room 65  Yes  No 1. Fit electric equipment with casings in accordance with EN 81-1:1998, 13.1.2 or - EN 81-2:1998, 13.1.2 providing a degree of protection of at least IP 2X 2. Fit markings as defined in - EN 81-1:1998, 13.5.3.3 or - EN 81-2:1998, 13.5.3.3 on connection terminals if the voltage exceeds 50 V 3. Fit a notice warning maintenance personnel that there may still be a voltage present when the main supply of the individual controller is switched off in group controllers High  Yes  No 5.13.1Protection against electric shock (IP2X) Protection and marking of electrical equipment 64 RemarksPossible measure to be adopted Protective measure(s) (Risk reduction measure) Priority level Requirement Fulfilled Clause Items to be checked Nr. Table B.1 — check list example 5.13Electrical installations and appliances SNEL - EN81-80

26. ELA Forum 4.6.0426 Some of the benefits for building owners and lift users brings the safety of existing lifts up to today’s state of the art for safety makes buildings more lettable reduces risk of accidents and claims by users users of buildings are safer SNEL - EN81-80

27. ELA Forum 4.6.0427 Question: Do you expect the lifts you ride in throughout Europe and the world to be equally safe??? SNEL - EN81-80

28. ELA Forum 4.6.0428 I am sure you do!!! SNEL - EN81-80

29. ELA Forum 4.6.0429 Then let’s make them equally safe by applying SNEL EN81-80 throughout Europe!!! SNEL - EN81-80

30. ELA Forum 4.6.0430 Thanks to the EU Commission vision for considering existing lifts via a Recommendation, Europe can make another major step forward to improve the safety of these lifts, for all of society, by adopting SNEL - EN81-80 !!! SNEL - EN81-80

31. ELA Forum 4.6.0431 Thank you for your attention SNEL - EN81-80
