1. The NBS BIM Toolkit Dr Stephen Hamil – Director of Design and Innovation

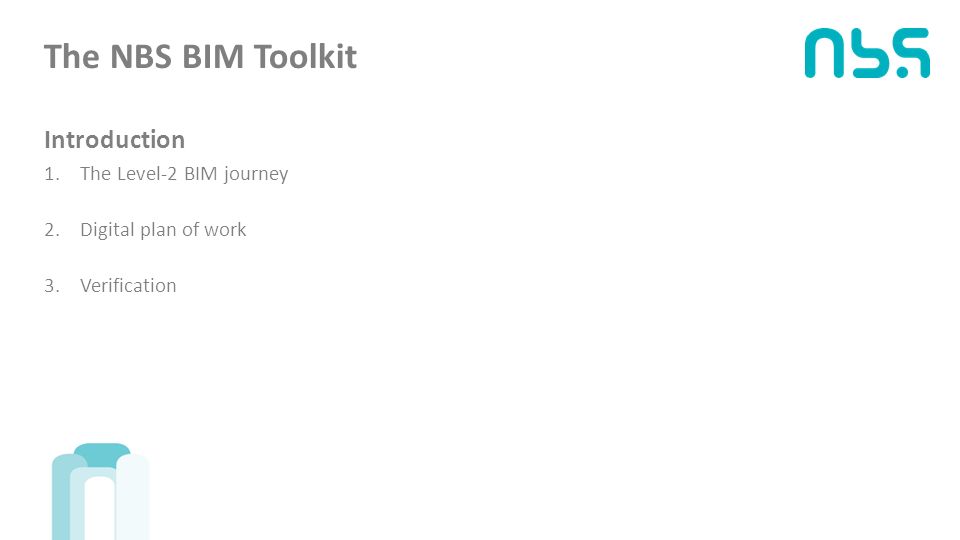

2. The NBS BIM Toolkit Introduction 1.The Level-2 BIM journey 2.Digital plan of work 3.Verification

3. 1. The Level-2 BIM journey

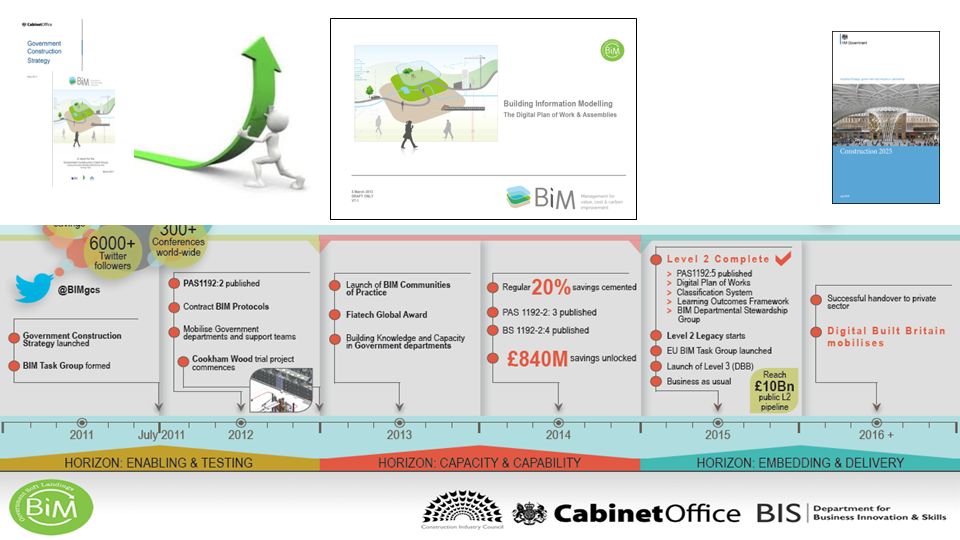

4. 2011 2015

6. How to traditionally describe construction dataPLQ: How Many Legs Do I Have?

7. Putting too much information into the model too soon may restrict both the design and supply chain options for others in the team and leads to other forms of waste with the inherent costs incurred by both the supplier and the client. It also places constraints on the supply chain to offer compliant alternative designs, offering better asset or value performance. DPOW = Goldilocks Principle

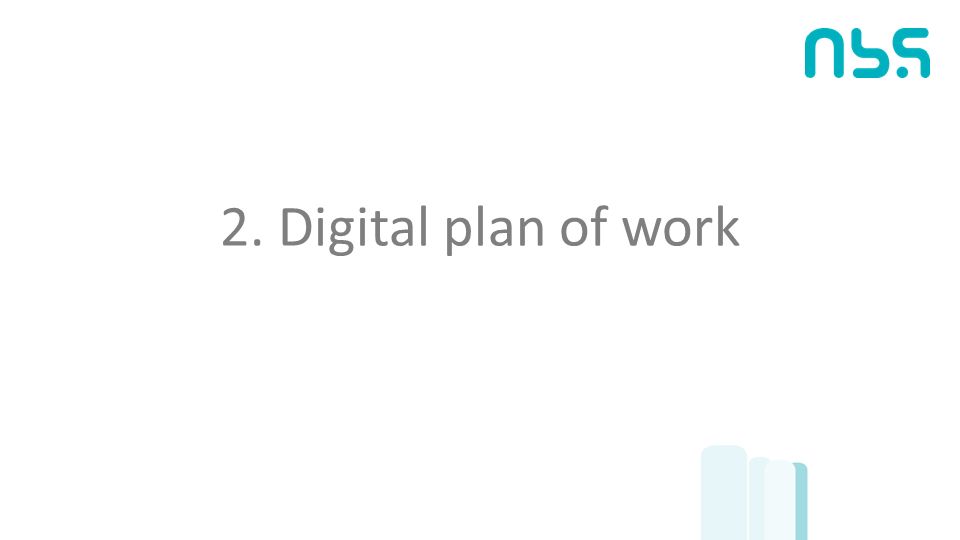

8. 2. Digital plan of work

9. The NBS BIM Toolkit – The Team Core team Steering team Clients

10. The Level-2 BIM package How will the BIM Toolkit benefit those working within the level-2 BIM process? Standards are freely available at - http://shop.bsigroup.com/BIMhttp://shop.bsigroup.com/BIM Standards are freely available at - http://shop.bsigroup.com/BIMhttp://shop.bsigroup.com/BIM

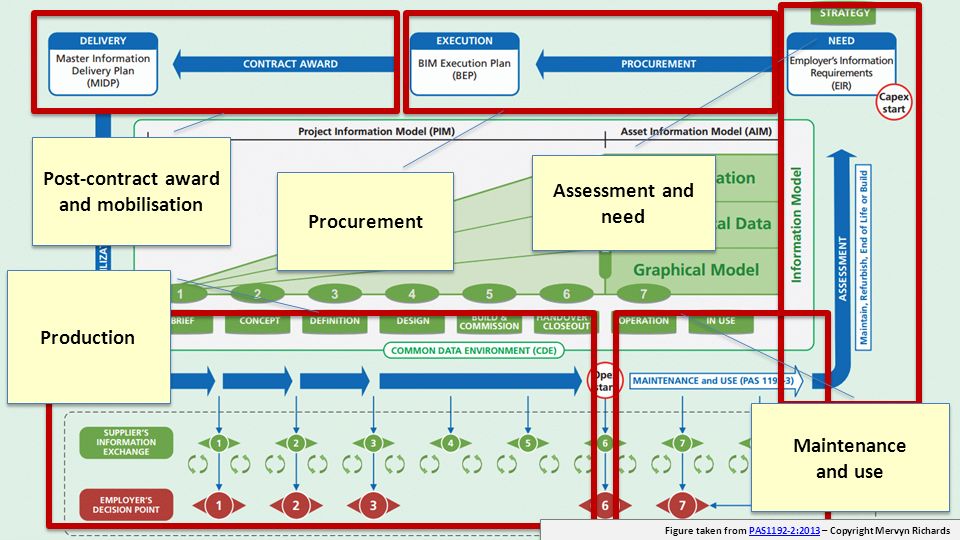

11. Assessment and need Procurement Post-contract award and mobilisation Production Maintenance and use Figure taken from PAS1192-2:2013 – Copyright Mervyn RichardsPAS1192-2:2013 Figure taken from PAS1192-2:2013 – Copyright Mervyn RichardsPAS1192-2:2013

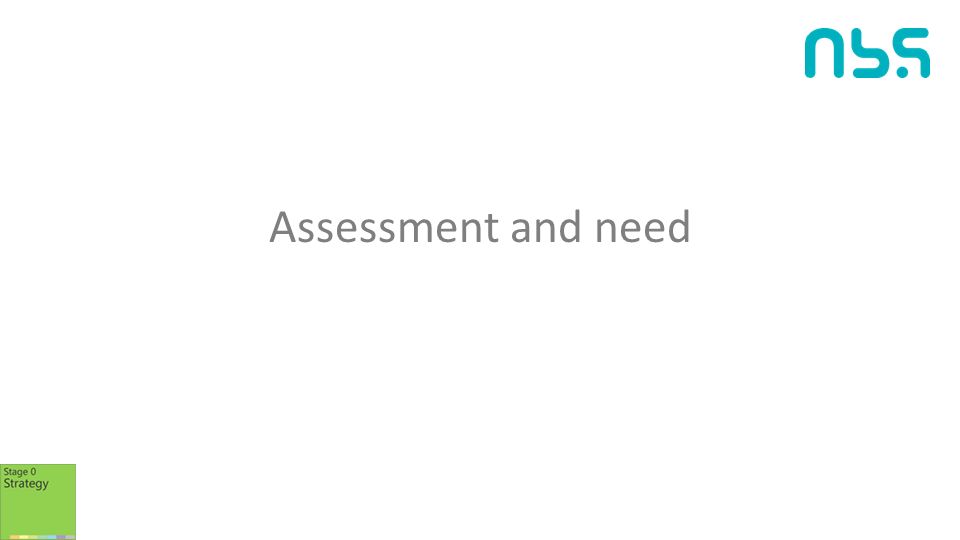

12. Assessment and need

13. Figure taken from PAS1192-2:2013 – Copyright Mervyn RichardsPAS1192-2:2013 Figure taken from PAS1192-2:2013 – Copyright Mervyn RichardsPAS1192-2:2013 Assessment and need

14. Overview Client determines their plain language questions (determines the need) Client produces their employer’s information requirements (Required information to meet the needs as defined in PLQs) Information requirements aligned to the project stages This is part of the tender documentation

15. A collection of projects A collection of projects

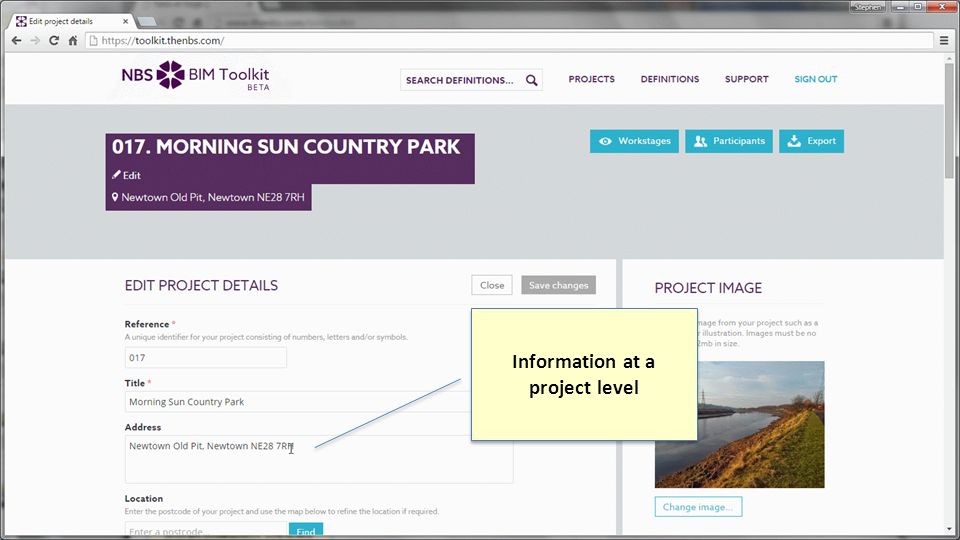

16. Information at a project level

17. Information at a stage level Information at a stage level

18. At the start of the project the client has not assembled their team

19. At strategy/brief stage it is possible to determine information needs

20. Template tasks can be modified, removed and added to

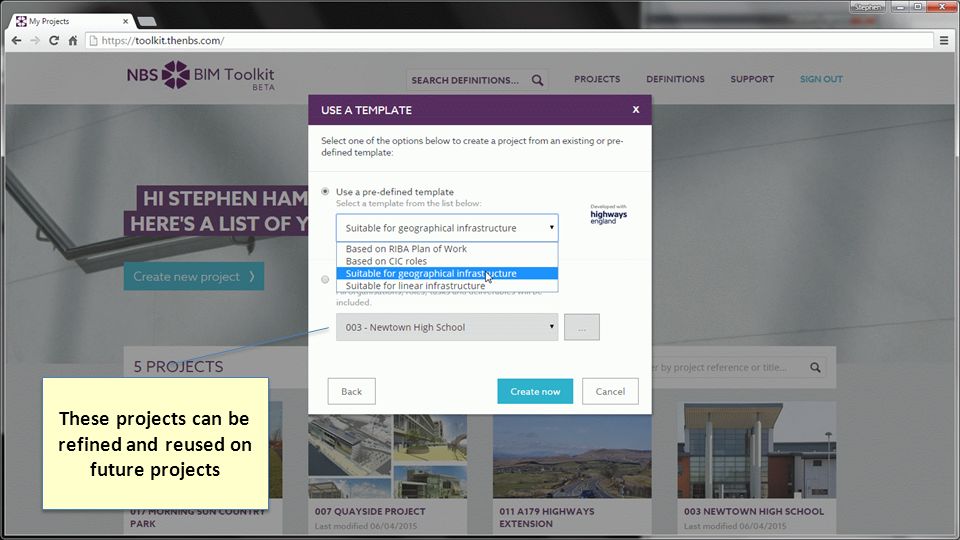

21. These projects can be refined and reused on future projects

22. Tasks and deliverables are assigned to roles prior to the team being assembled This information may be exported

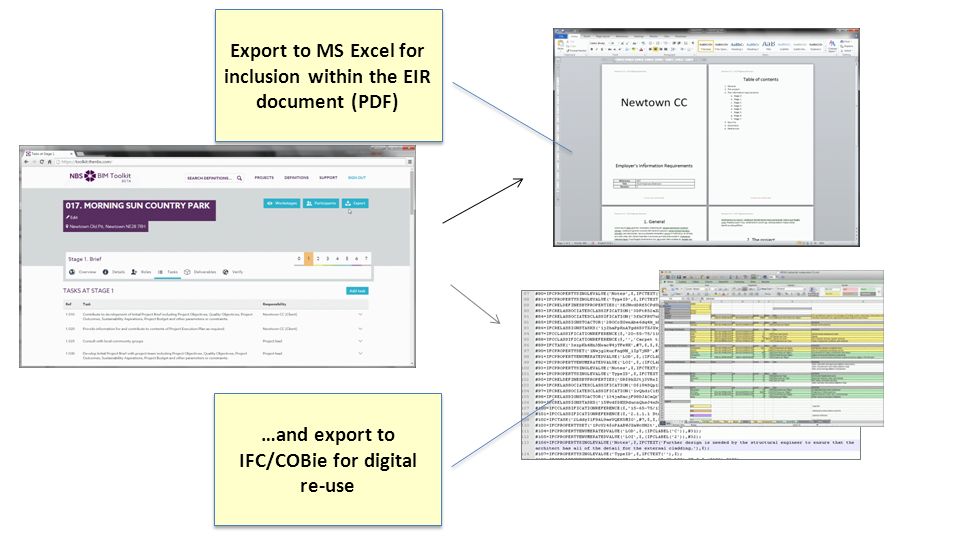

23. Export to MS Excel for inclusion within the EIR document (PDF) …and export to IFC/COBie for digital re-use

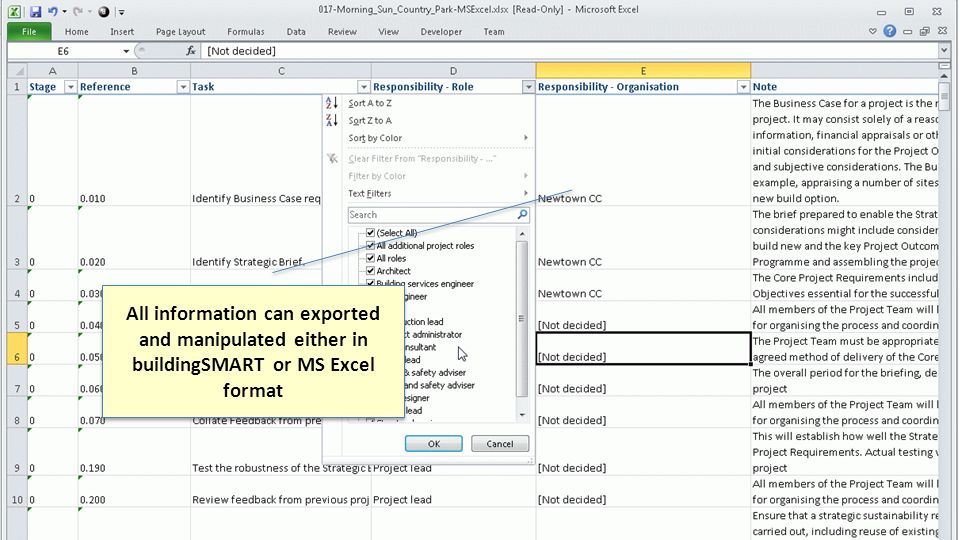

24. All information can exported and manipulated either in buildingSMART or MS Excel format

25. At a basic level – it can easily be inserted into an MS Word EIR

26. Procurement

28. Overview Bidders respond with their pre-contract BIM execution plan Proposed responsibility of bidders supply-chain is provided The client can compare these against their original information requirements Selection can take place

29. The proposed roles have been assigned The proposed project team has been added Each item, at each stage has a party responsible The bidder

30. Export to MS Excel for inclusion within the BEP document (PDF) …and export to IFC/COBie for digital re-use

31. Pre-contract award and mobilisation

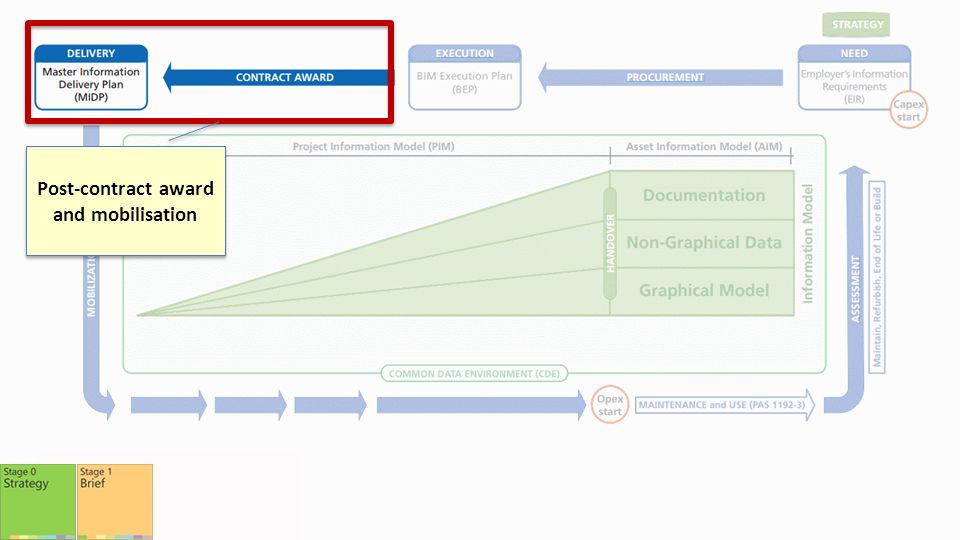

32. Post-contract award and mobilisation

33. Production

35. Overview The federated Project Information Model begins to grow dPOW defines the what, the when and who Information exchanges between supply-chain Information delivery to the client as agreed in EIR Documented classification and data structure allows for verification

36. Moving into the design phases the team is now assembled and the information requirements grow

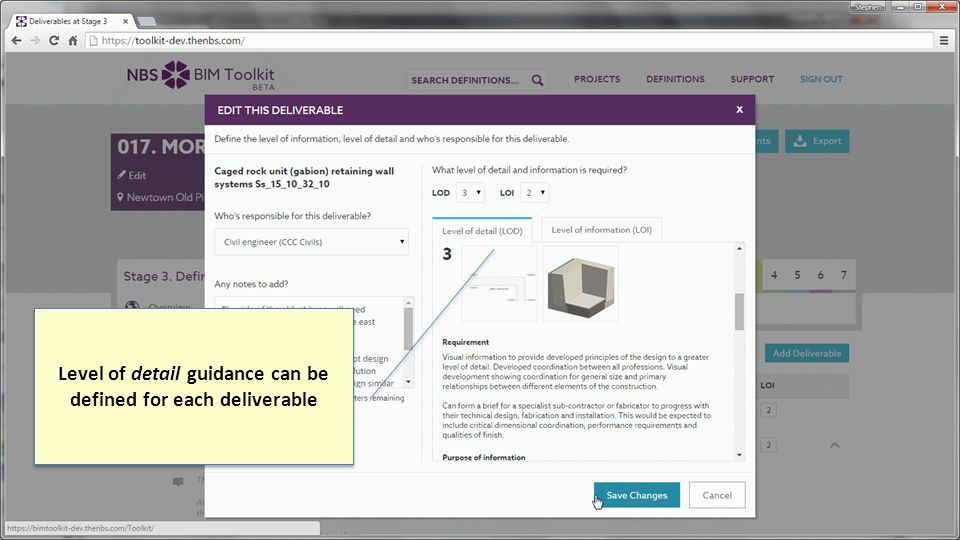

37. Level of detail guidance can be defined for each deliverable

38. Level of information guidance can be defined for each deliverable

39. A definitions library of over 5,700 items across all construction disciplines will be provided

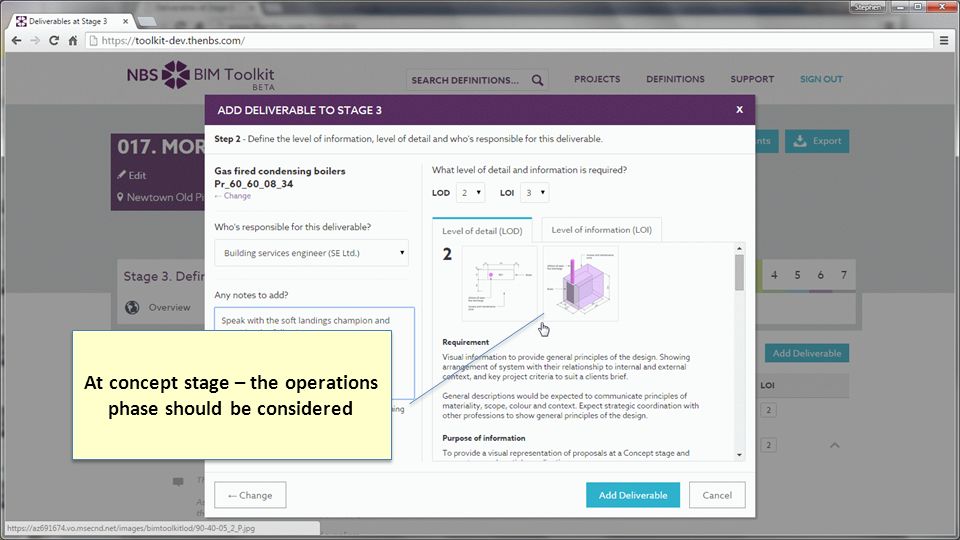

40. At concept stage – the operations phase should be considered

41. At the technical design stage more geometric detail is required

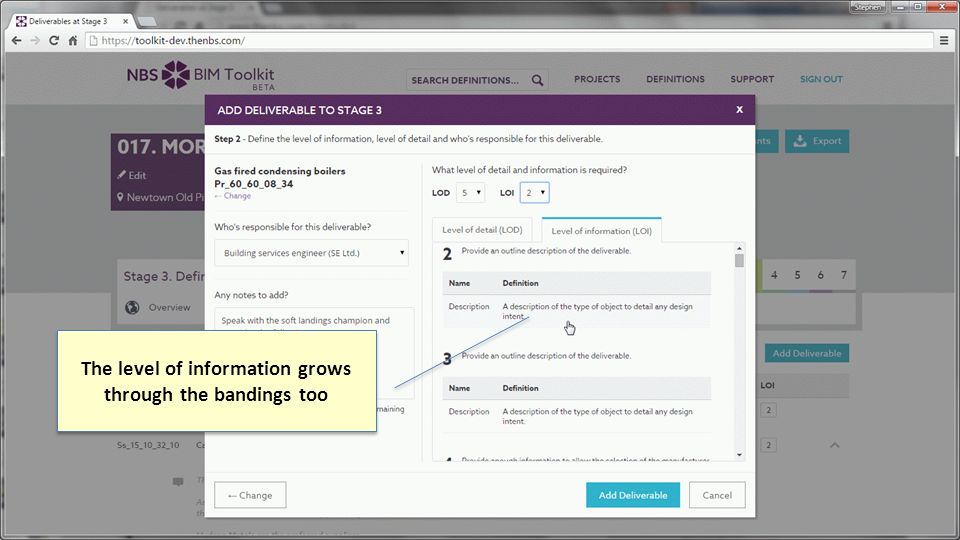

42. The level of information grows through the bandings too

43. LOI-6 contains the standard COBie properties for transfer to the asset management systems

44. Steel stair systems

45. Concrete pilecap system

46. Steel framing system

47. Roof framing system

48. Concrete underpining systems

49. RICS were part of the core team and have provided classification mappings to NRM1

50. Rules of measurement from RICS NRM1 Rules of measurement from RICS NRM1

51. Benchmark costs from RICS BCIS Benchmark costs from RICS BCIS

52. Filter by Uniclass 2015 classification tables

53. At an early stage space requirements may be specified

54. Classification – Uniclass 2015

55. Browse classifications

56. Classification tables widget

57. Advanced search technology is used to take the complexity away from classification

58. What has been asked for What has been asked for What has been provided What has been provided

59. Maintenance and in use

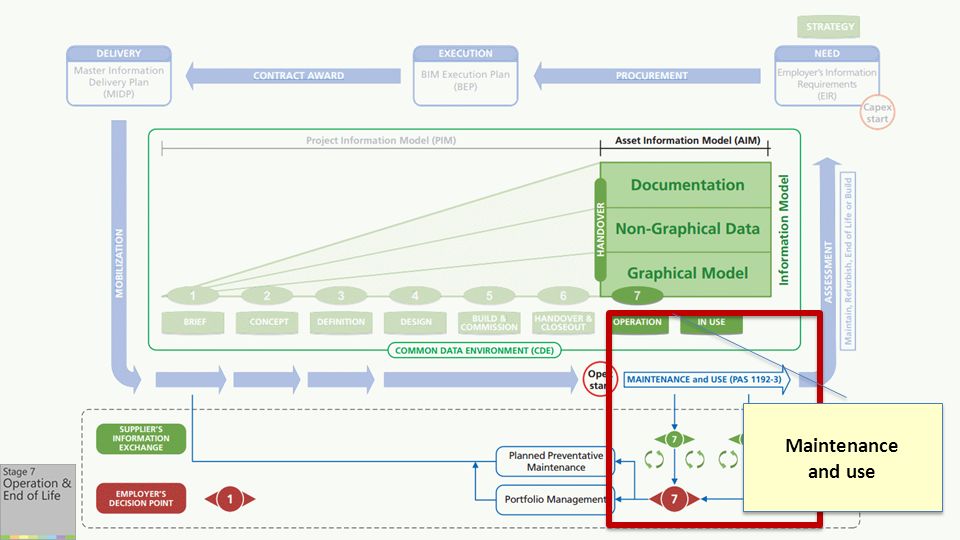

60. Maintenance and use

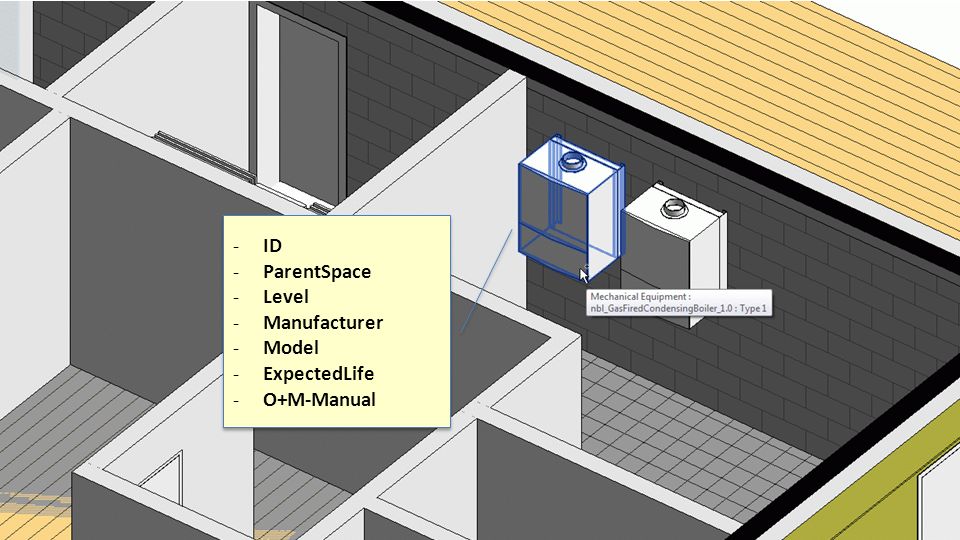

61. -ID -ParentSpace -Level -Manufacturer -Model -ExpectedLife -O+M-Manual -ID -ParentSpace -Level -Manufacturer -Model -ExpectedLife -O+M-Manual

62. 3. Verification & Validation of BIM Submissions

63. Overview & Background R&D funded by Innovate UK Built on the xBIM platform Open source toolkit for open BIM Led by BIM Academy at Northumbria Developed by the XbimTeam Collaborative BIM development Built on BuildingSmart data model – IFC Community based, royalty free.

64. COBie, IFC COBie Submission COBie, IFC COBie Requirements

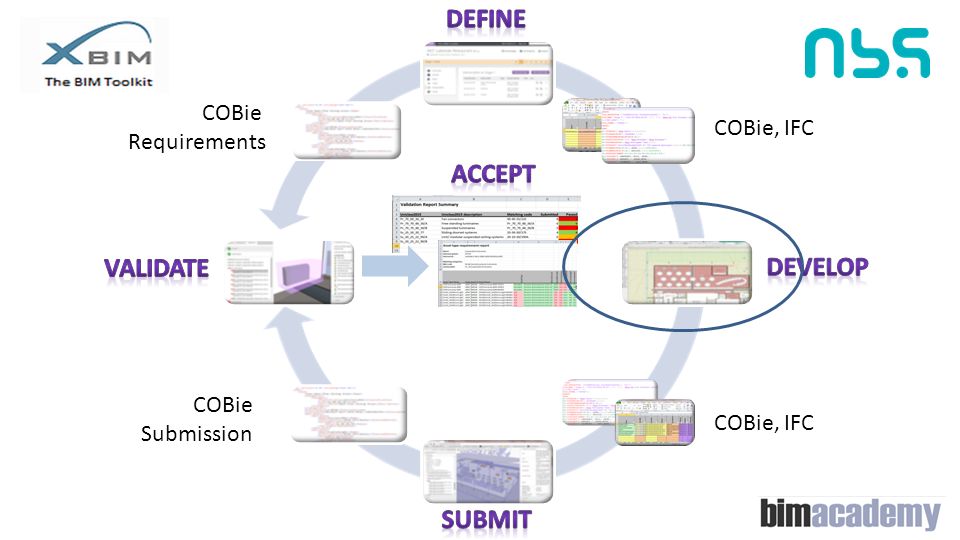

68. COBie, IFC COBie Submission COBie, IFC COBie Requirements

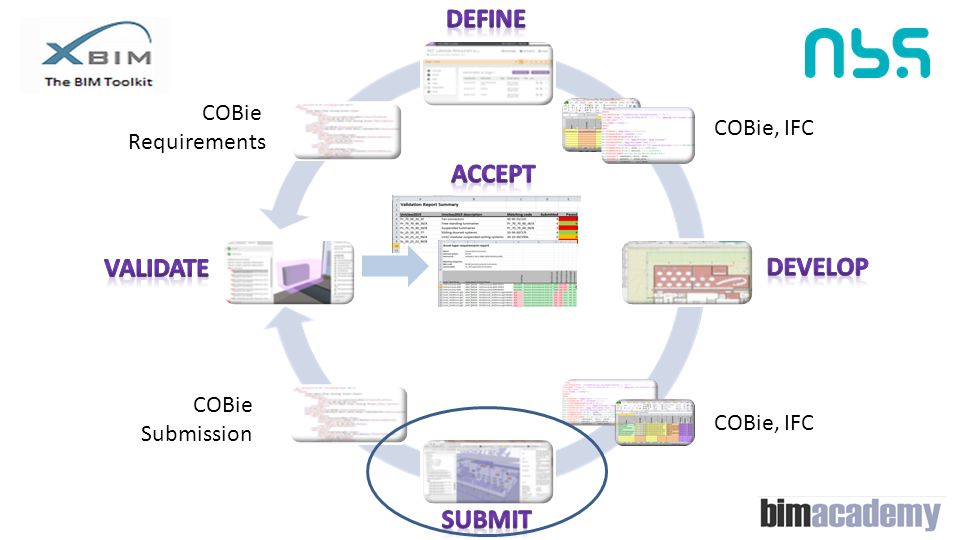

72. COBie, IFC COBie Submission COBie, IFC COBie Requirements

73. COBie, IFC COBie Submission COBie, IFC COBie Requirements

76. COBie, IFC COBie Submission COBie, IFC COBie Requirements

77. Simple Submission Report

78. Community support needed xBIM is an Open Platform Royalty free, open source Several key organisations actively engaged 4Projects, NBS, AEC3, Metz Architects, eDocuments, B&ES Designed and built on, and for, IFC No Compatibility or portability issues Construction & IT industry engagement welcomed Steve.Lockley@BIMAcademy.ac.uk www.OpenBIM.org www.github.com/xBimTeam

79. The NBS BIM Toolkit An industry story

80. Summary

81. The NBS BIM Toolkit Summary 1.A clear central strategy for information procurement 2.A free-to-use digital plan of work tool for UK Level-2 BIM 3.Verification of information using well-structured open data

82. The NBS BIM Toolkit theNBS.com/BIMToolkit
