AL Physics Circular Motion
3

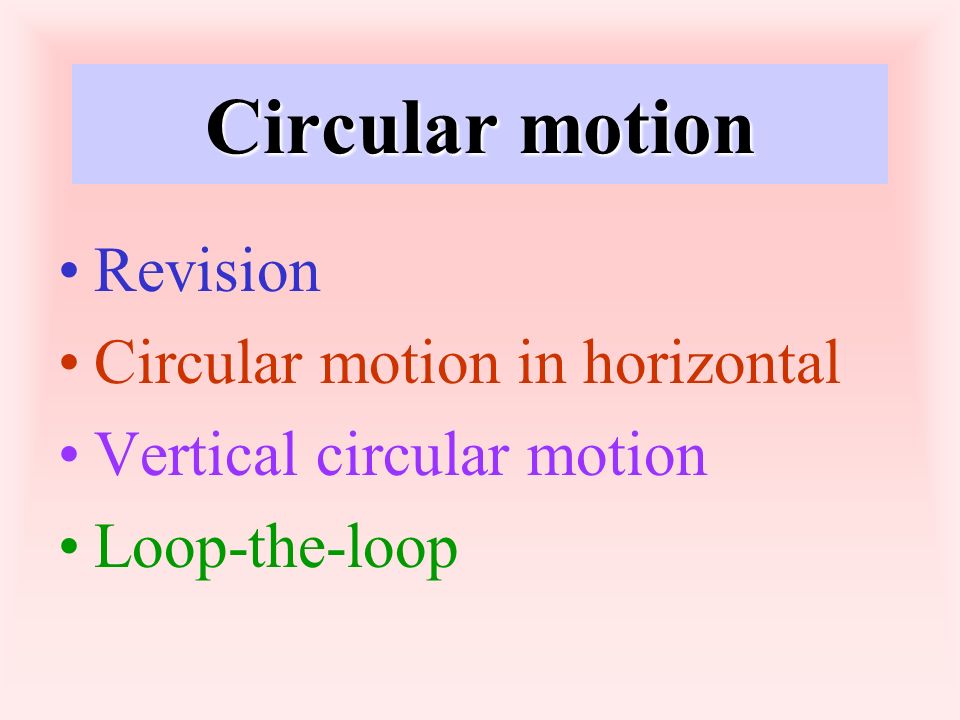

Circular motion Revision Circular motion in horizontal Vertical circular motion Loop-the-loop
4

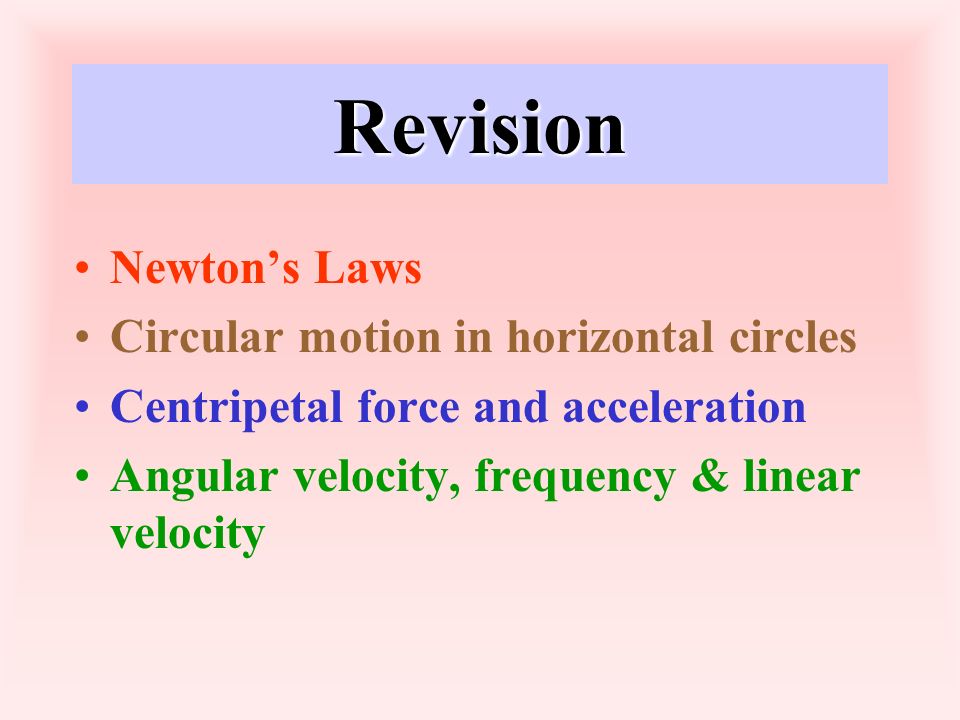

Revision Newton’s Laws Circular motion in horizontal circles Centripetal force and acceleration Angular velocity, frequency & linear velocity
5

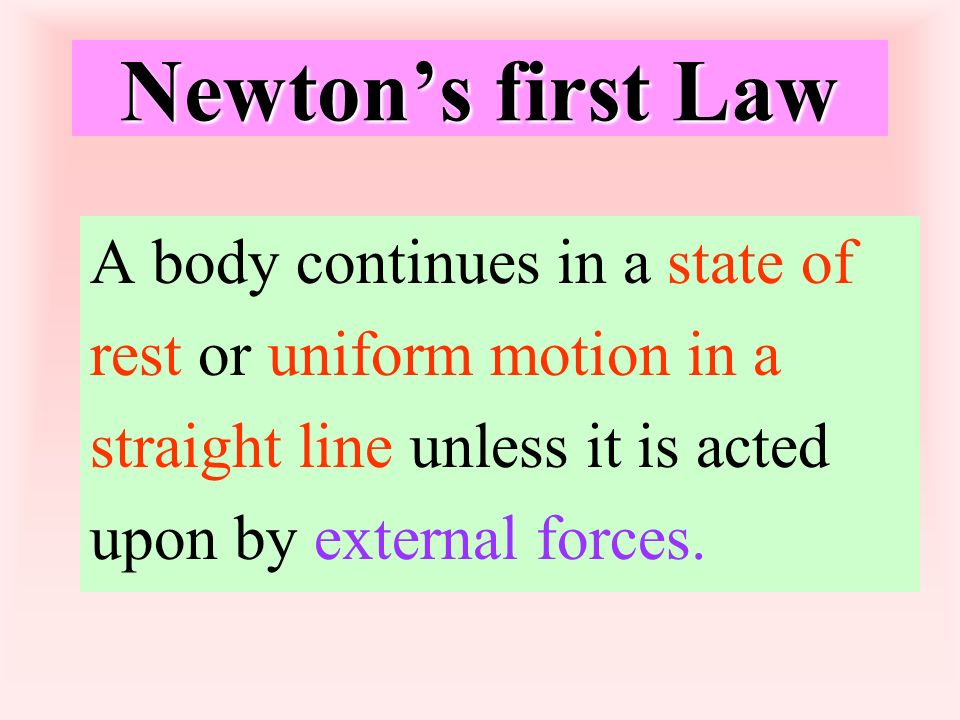

Newton’s first Law A body continues in a state of rest or uniform motion in a straight line unless it is acted upon by external forces.
6

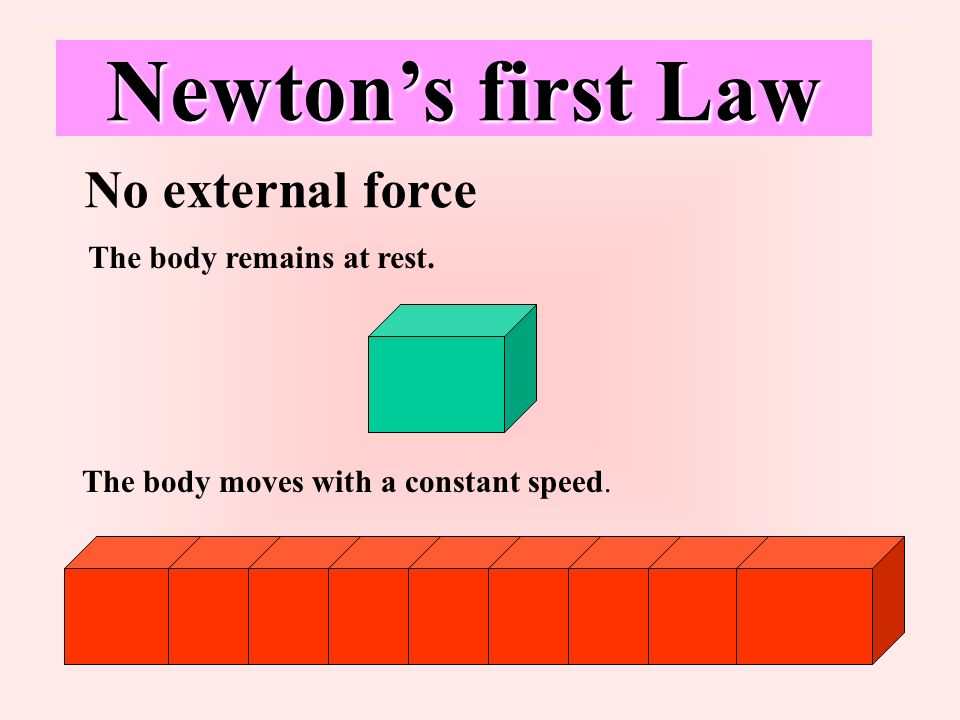

No external force The body remains at rest. The body moves with a constant speed. Newton’s first Law
7
The rate of change of momentum of a body is proportional to and in the same direction as the resultant force that acts on it. Newton’s second Law
8

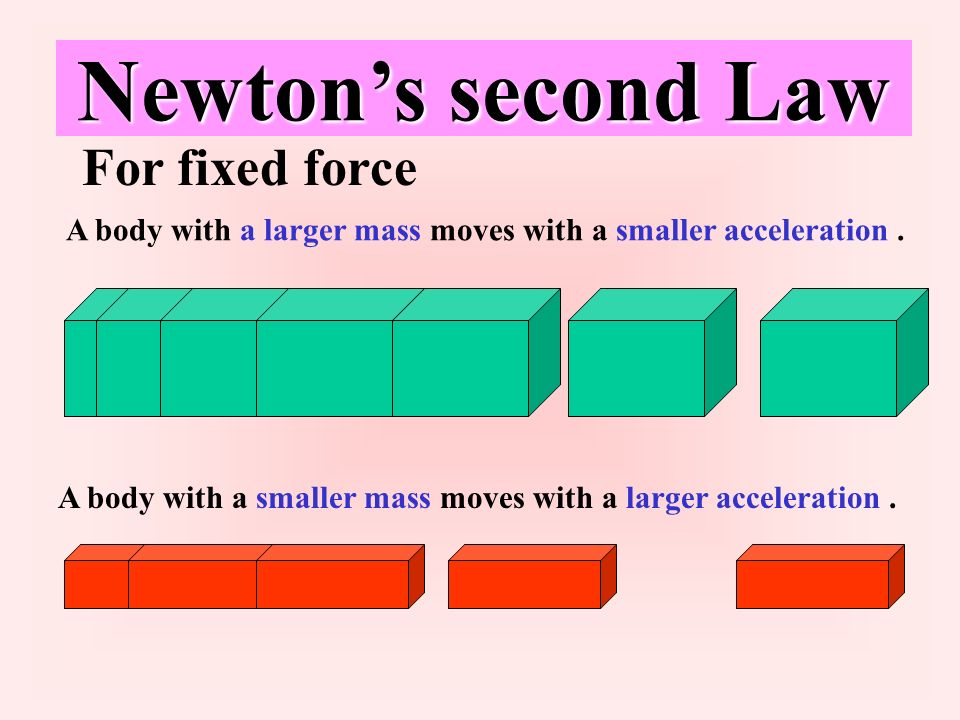

For fixed force A body with a larger mass moves with a smaller acceleration. A body with a smaller mass moves with a larger acceleration. Newton’s second Law
9

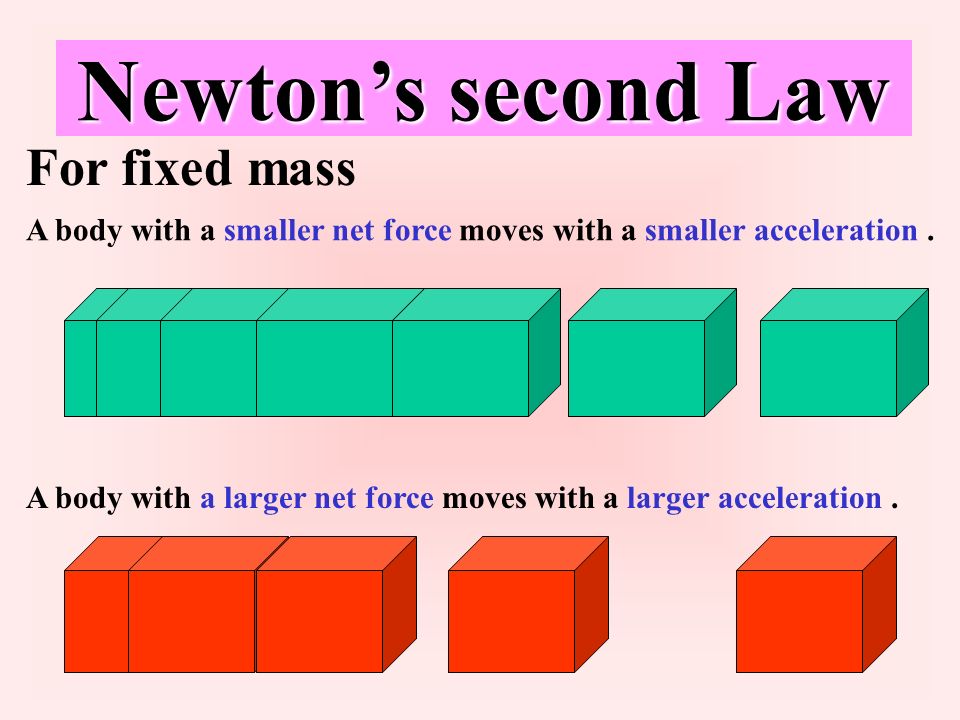

For fixed mass A body with a smaller net force moves with a smaller acceleration. A body with a larger net force moves with a larger acceleration. Newton’s second Law
10

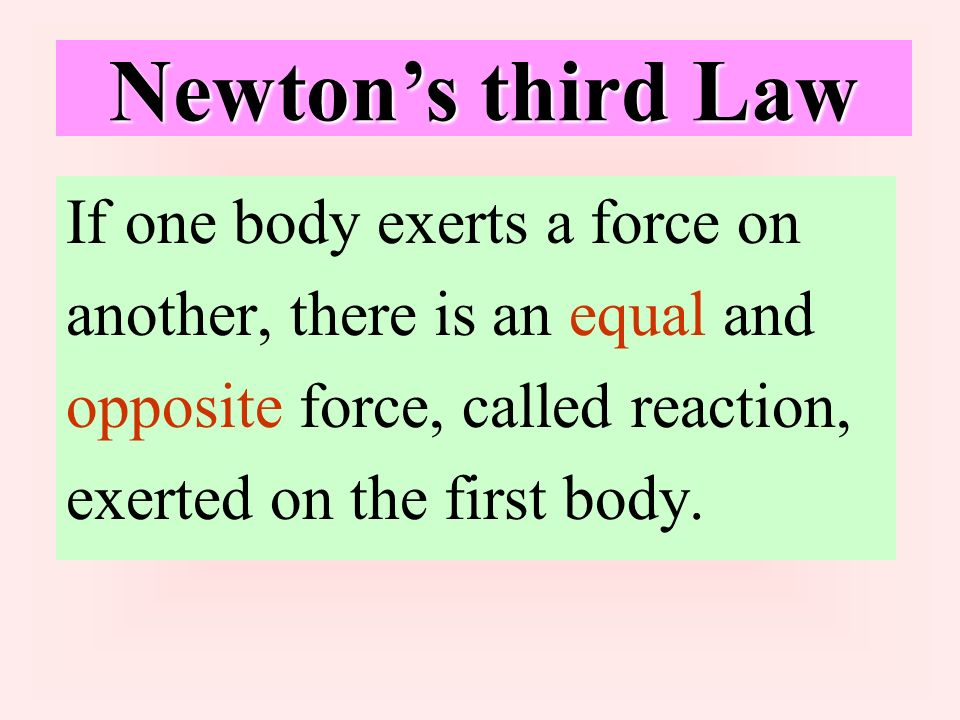

If one body exerts a force on another, there is an equal and opposite force, called reaction, exerted on the first body. Newton’s third Law
11

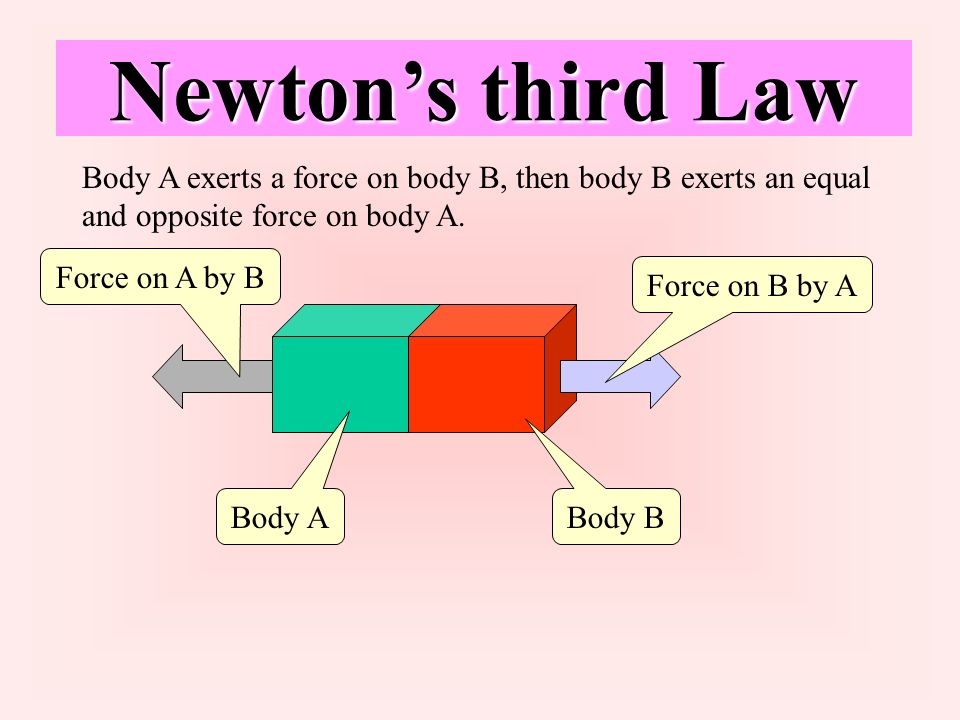

Body A exerts a force on body B, then body B exerts an equal and opposite force on body A. Newton’s third Law Body A Body B Force on B by AForce on A by B
12

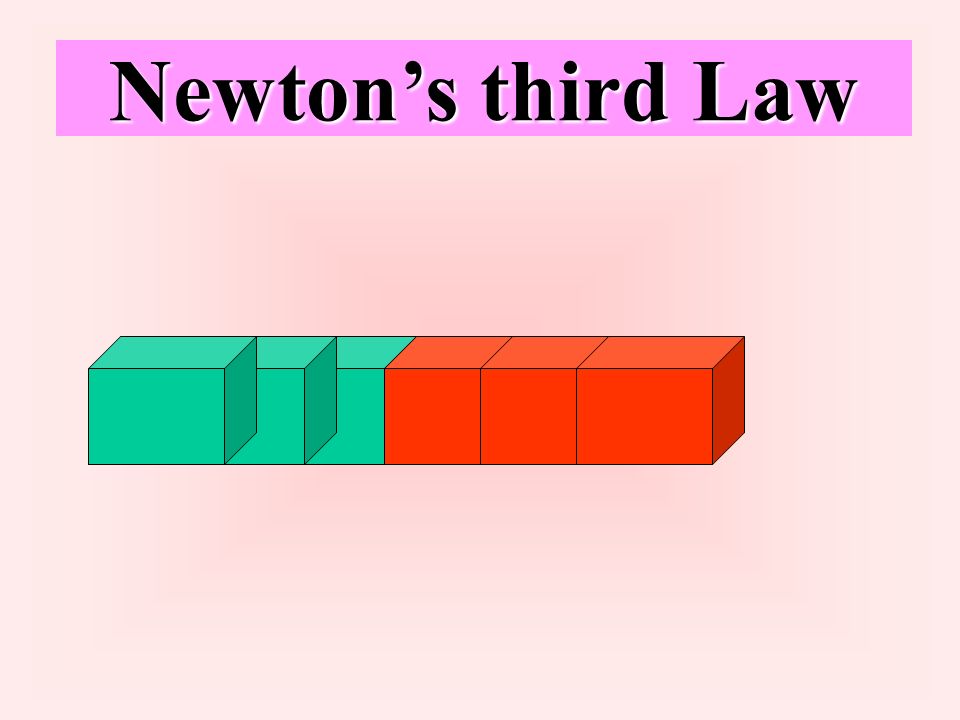

Newton’s third Law
13

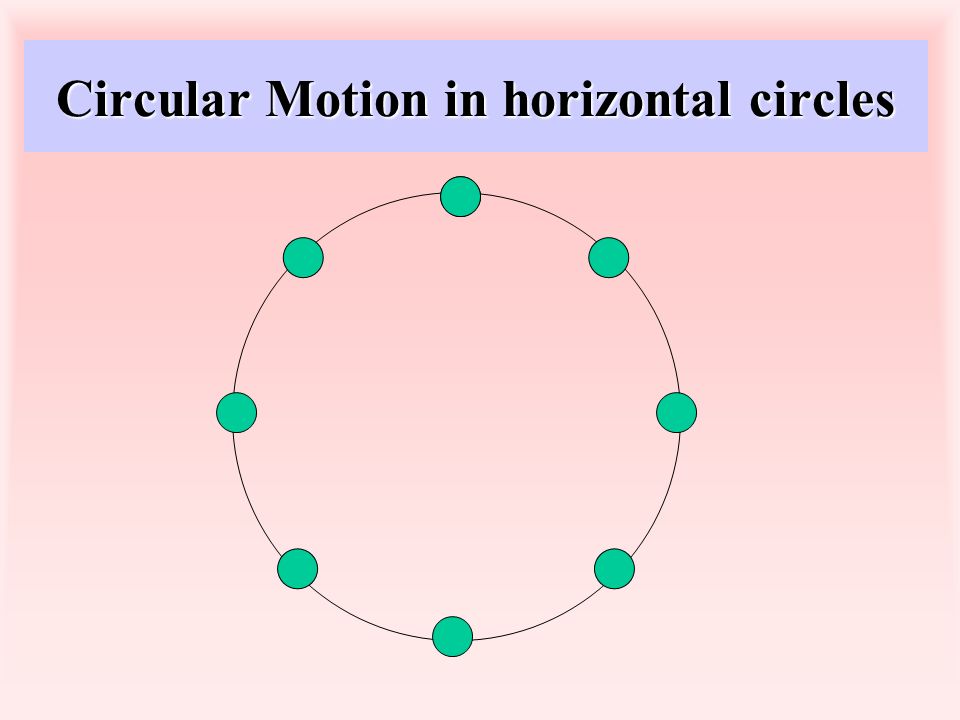

Circular Motion in horizontal circles
14
Angular velocity = / t Linear velocity v = r Centripetal force F = m r 2 = m v 2 / r Centripetal acceleration a = r 2 = v 2 / r
15

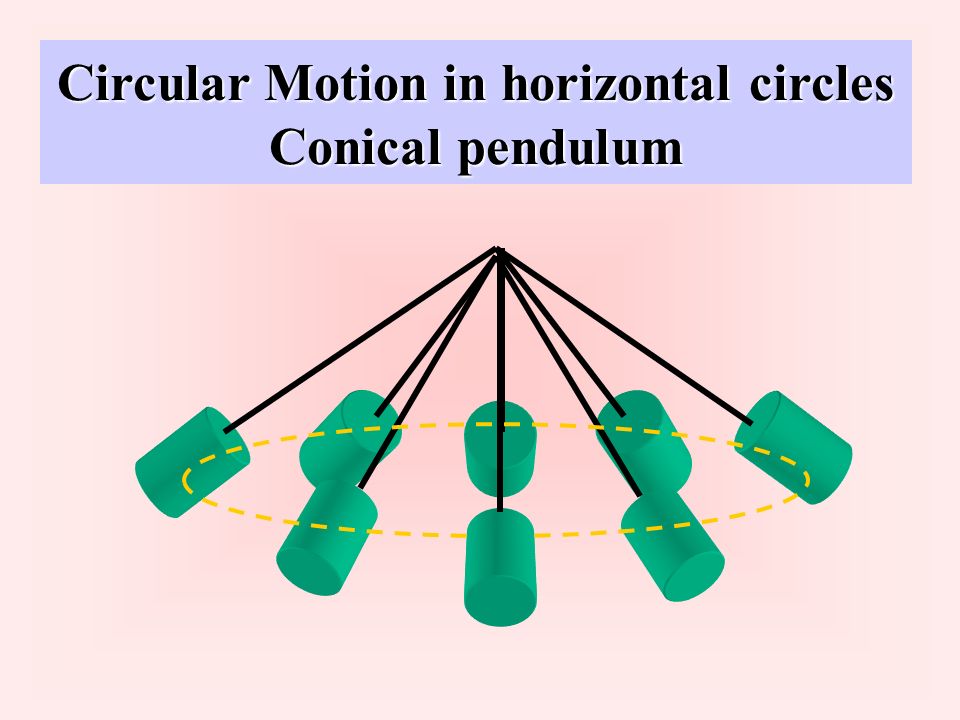

Circular Motion in horizontal circles Conical pendulum
16

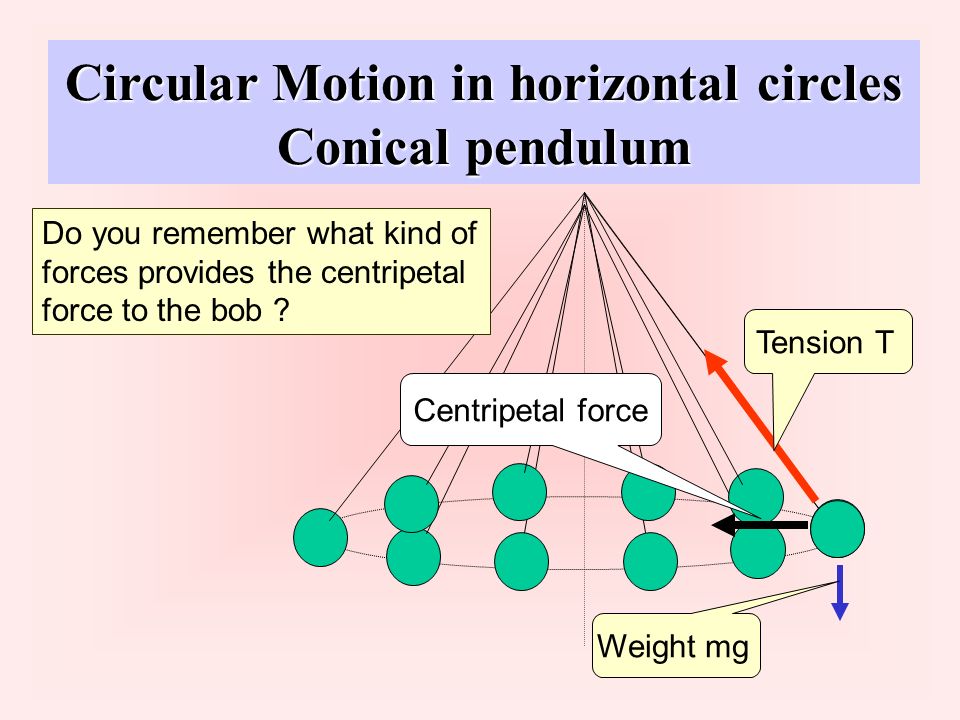

Do you remember what kind of forces provides the centripetal force to the bob ? Tension T Weight mg Centripetal force
17

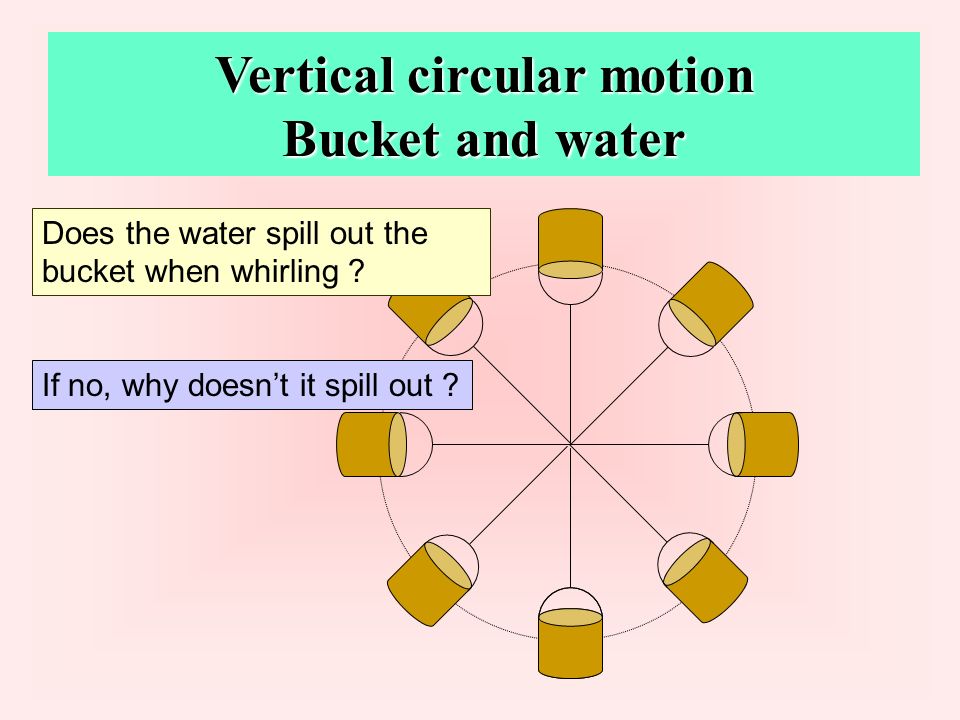

Vertical circular motion Bucket and water Does the water spill out the bucket when whirling ? If no, why doesn’t it spill out ?
18
Vertical circular motion Bucket and water What kind of motion does the bucket perform ? Vertical circular motion What kind of force provides the centripetal force F c to the bucket ? Tension T Weight mg
19
Vertical circular motion Bucket and water What kind of force provides the centripetal force F c to the bucket at the highest position ? F c = T + mg Tension T Weight mg
20

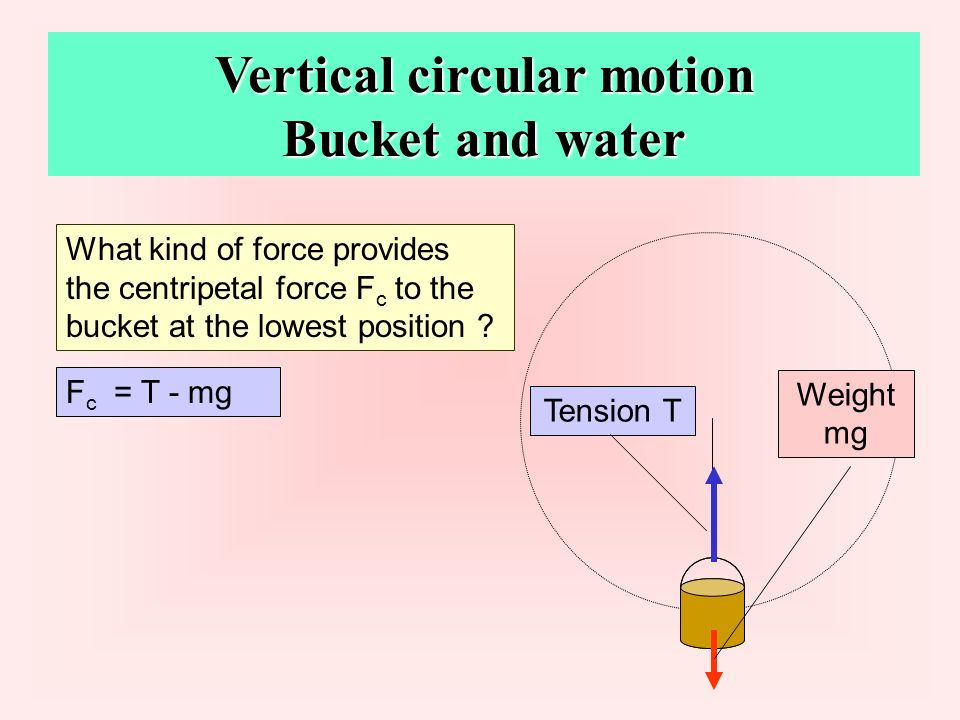

Vertical circular motion Bucket and water What kind of force provides the centripetal force F c to the bucket at the lowest position ? F c = T - mg Tension TWeight mg
21

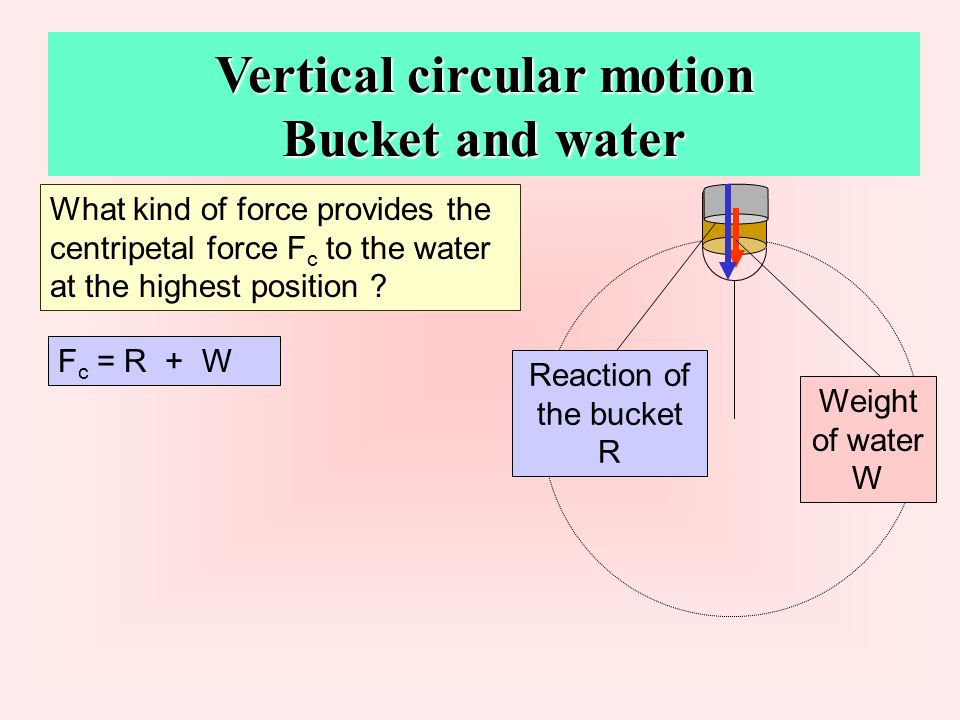

Vertical circular motion Bucket and water What kind of force provides the centripetal force F c to the water at the highest position ? F c = R + W Reaction of the bucket R Weight of water W
22

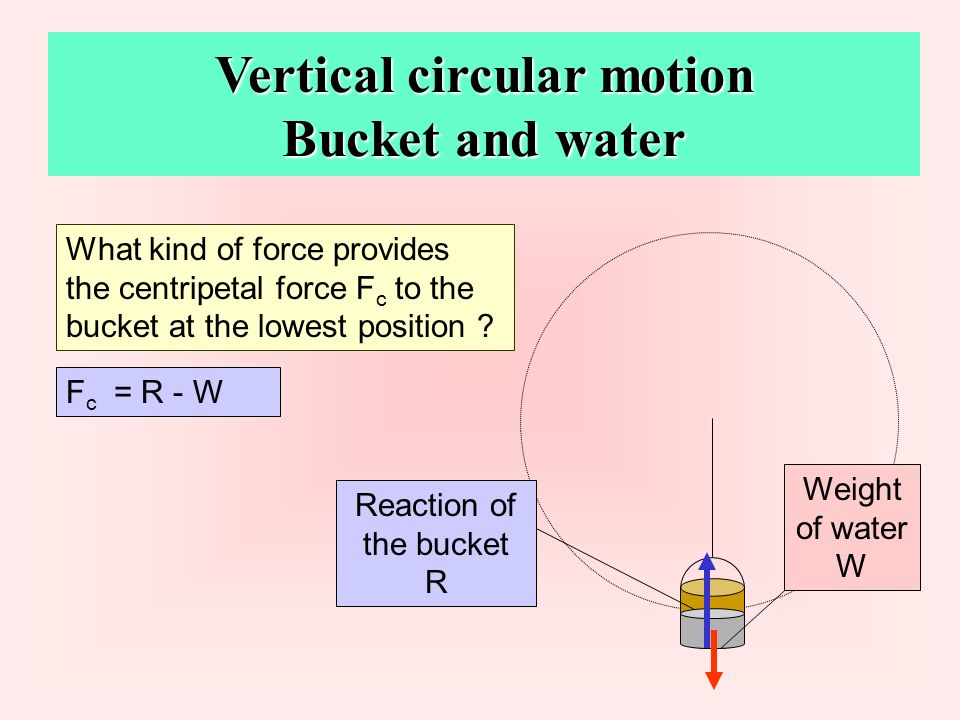

Vertical circular motion Bucket and water What kind of force provides the centripetal force F c to the bucket at the lowest position ? F c = R - W Reaction of the bucket R Weight of water W
23

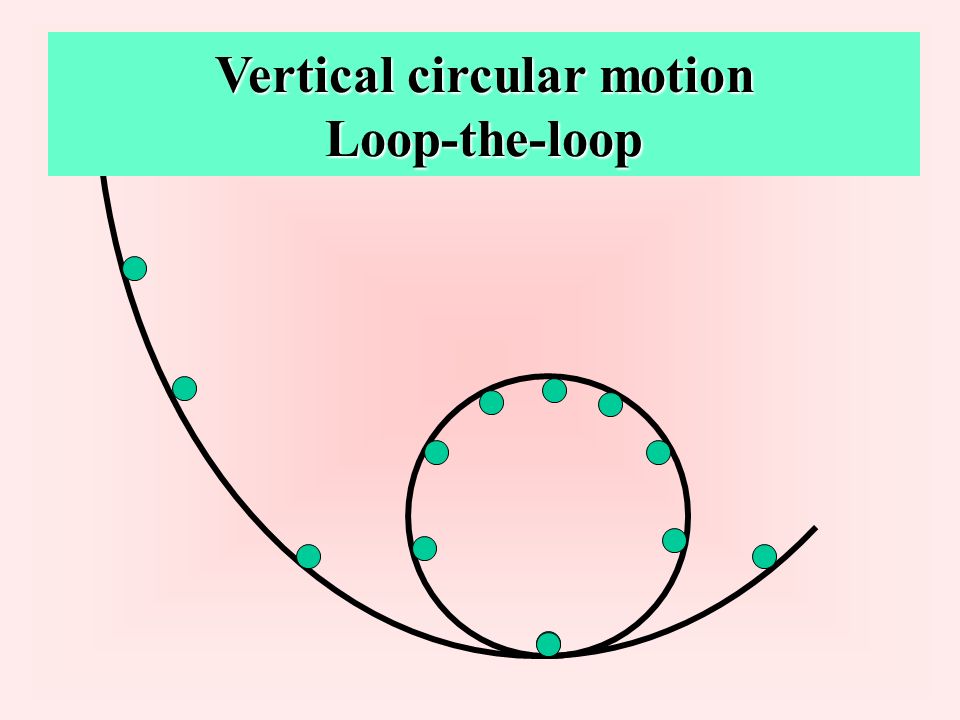

Vertical circular motion Loop-the-loop
24

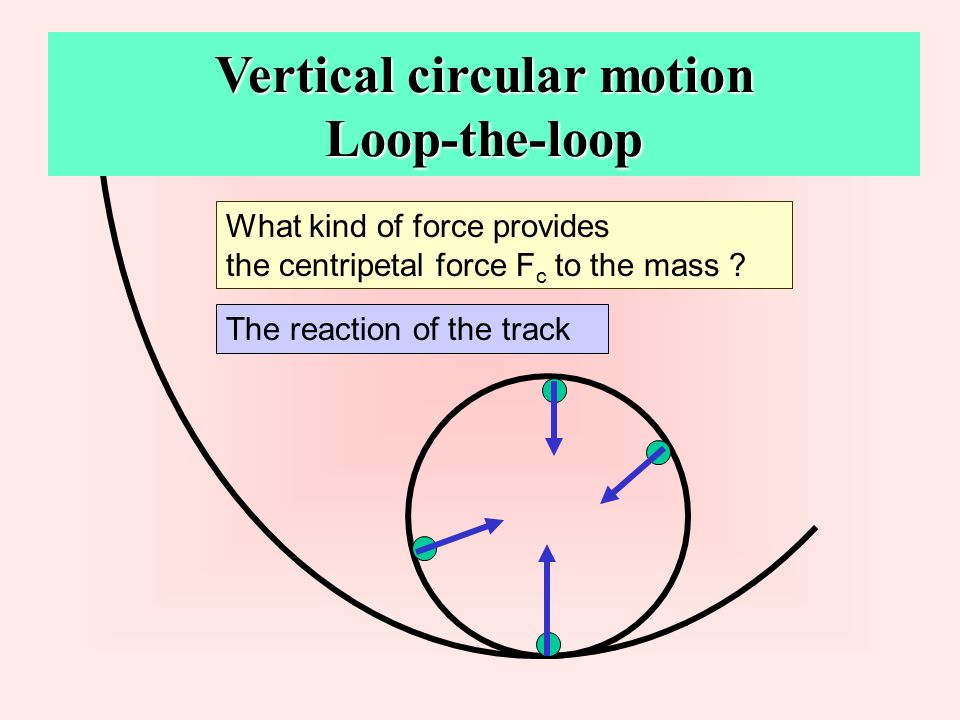

What kind of force provides the centripetal force F c to the mass ? The reaction of the track
25

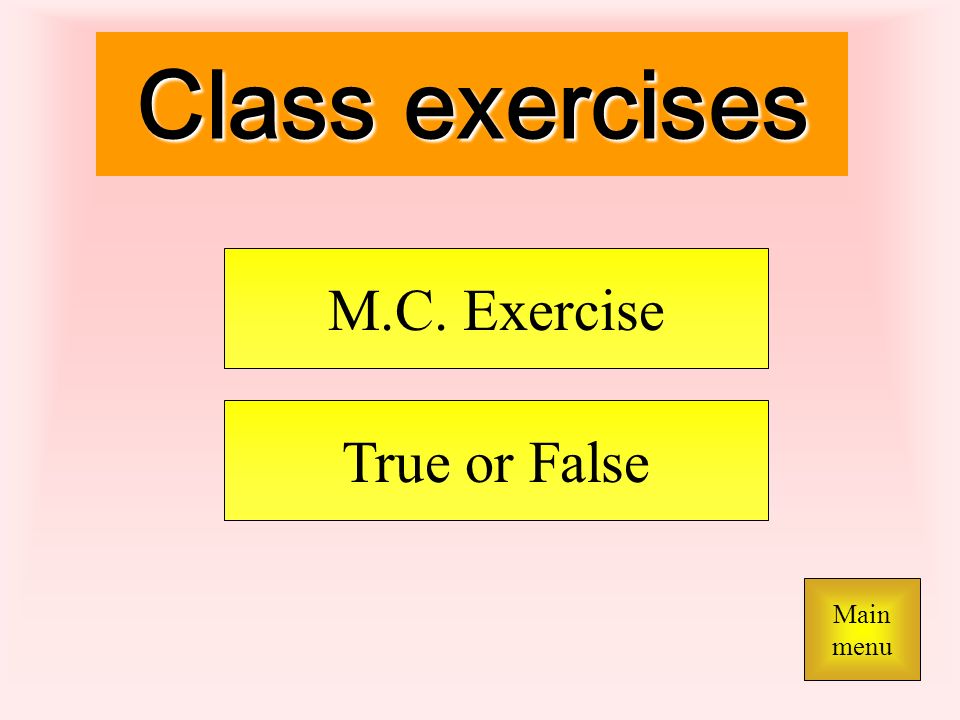

M.C. Exercise Class exercises Main menu True or False
26

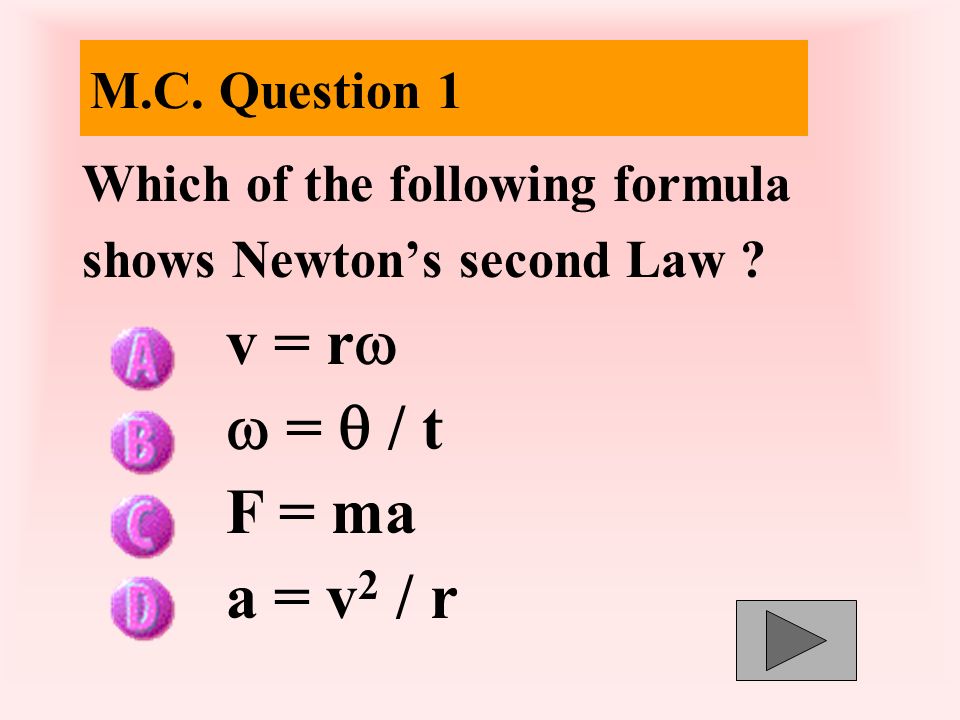

M.C. Question 1 Which of the following formula shows Newton’s second Law ? v = r = / t F = ma a = v 2 / r
27
M.C. Question 2 At which position is the tension on the bucket largest ?
28
True or False Question 1 True False If the angular velocity of the bucket at the top position is too small, water may spill out.
29

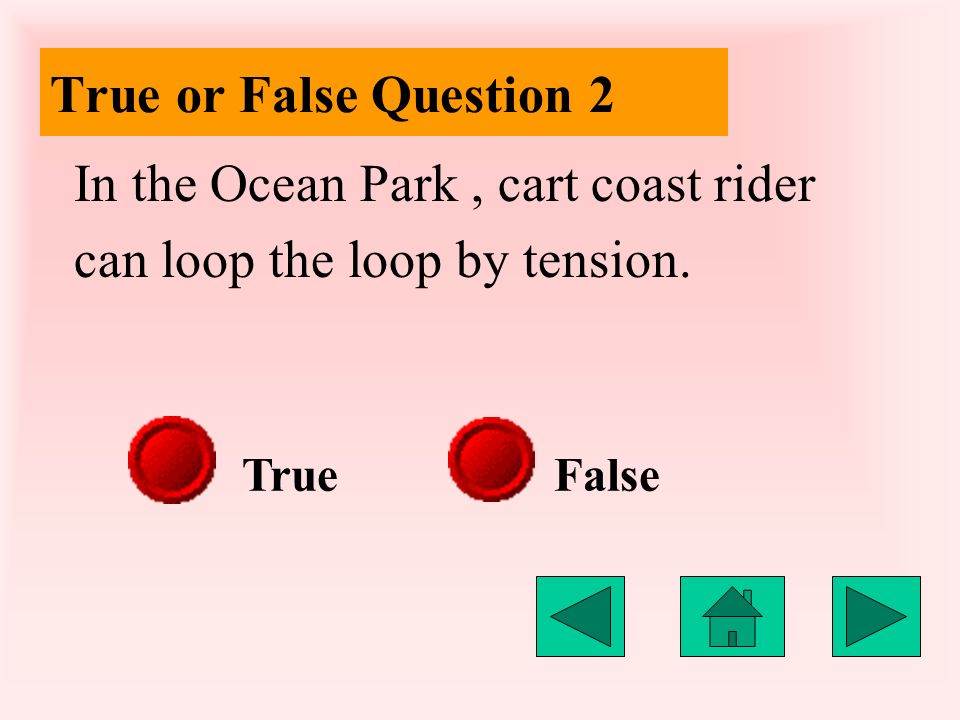

TrueFalse In the Ocean Park, cart coast rider can loop the loop by tension. True or False Question 2
30
You are wrong. Try again ! return Sorry ! Sorry !
31
Correct ! Return
