1. www.giga-net.co.uk GIGANET LAN ENTERPRISE CABLING SOLUTIONS. 107380C E301870 NO 2015-567A NO 2015-568A

2. www.giga-net.co.uk COMPANY OVERVIEW The Giganet brand:  Manufactured to International quality standards  Price performance solutions  25 years performance warranty  LAN Enterprise cabling Solutions  Smart Building solutions  Data Centre solutions  Certified installer training

3. www.giga-net.co.uk PRESENTATION OUTLINE Giganet Copper Category 7A Giganet Copper Category 6A Giganet Copper Category 6 UTP Giganet Faceplates Giganet Fibre Optics Systems Giganet Cabinets Giganet Cable Management Web Smart Giga Lite switches Giganet LAN Trunking Solutions Giganet Tools & Testers Giganet Certified Training Giganet Warranty Statement

4. www.giga-net.co.uk GIGANET COPPER CATEGORY 7A SYSTEM The Giganet Category 7A 1000Mhz S/FTP LSOH and S/FTP PVC cable has been designed and manufactured to exceed TIA/EIA 568-B 2.1, ISO /IEC 11801: 2002 and CENELEC performance requirements. The cable is ideal for 10 Gigabit networks. Each cable consists of 4 pairs individually wrapped in a covering of high quality, strong, aluminum/polyester foil tape providing an individual screen for each pair. These sub units are then cabled together, with the pairs set to different lay lengths to ensure optimum performance. An overall braid screen is applied to provide further immunity to outside noise and to mitigate any risk of alien cross talk. The Cat 7A system supports emerging and convergence applications, performance and ease of termination. White Orange Aluminum Foil White Green White Brown White Orange Rip Code Jacket

5. www.giga-net.co.uk GIGANET COPPER CATEGORY 6A SYSTEM  Provides for extra margin of performance for high band width applications.  Reduced EMI to support 500 Mhz.  Designed to reduce alien cross talk.  Port oriented protects pin arrays from dust and enhances contact reliability.  Exceeds 10G channel and component requirement.  Provides enhanced EMI protection & improved alien crosstalk and return loss.  Easy Termination cap for quick installation  Designed to easily & quickly snap in and out of wall outlets and patch panels.  Full port numbering identification and individual pre-printed port labelling area. Keystone Jack Modules Patch Panel Twisted-Pair Cable Patch Cords White Orange Aluminum Foil White Green White Brown White Orange Rip Code conductor Drain wire LSOH Jacket

6. www.giga-net.co.uk GIGANET COPPER CATEGORY 6A SYSTEM Giganet Pre-Terminated Category6A Trunking Assemblies  6 or 12 legged cable bundles LSZH cable jacket  Factory terminated and tested  Rapid Deployment  High Performance and Reliability  Fast and easy installation with reduced labor costs  Pulling eye to ease Installation  Qualified for PoE and PoE+ IEEE 802.3at.  Pre-terminated assemblies are eligible for Giganet warranty.

7. www.giga-net.co.uk GIGANET COPPER CATEGORY 6 SYSTEMS  Enhanced Gigabit Support at 250Mhz  Ideal for Horizontal runs from Work Area to Floor Distributor  Compact low profile design with LSA style termination block.  Shuttered Module to prevent dust contamination.  Six port block for easy management.  19” High Density Patch Panels available in 24 / 48 Ports.  Termination using low impact KRONR tool.  Quick and easy installation  Stranded Patch Cords available in different Lengths and color.  Suitable for high density blade network equipment. Keystone Jack Modules LJ6C & Euro Modules Patch Cords Patch Panel Cat 6 UTP Cable

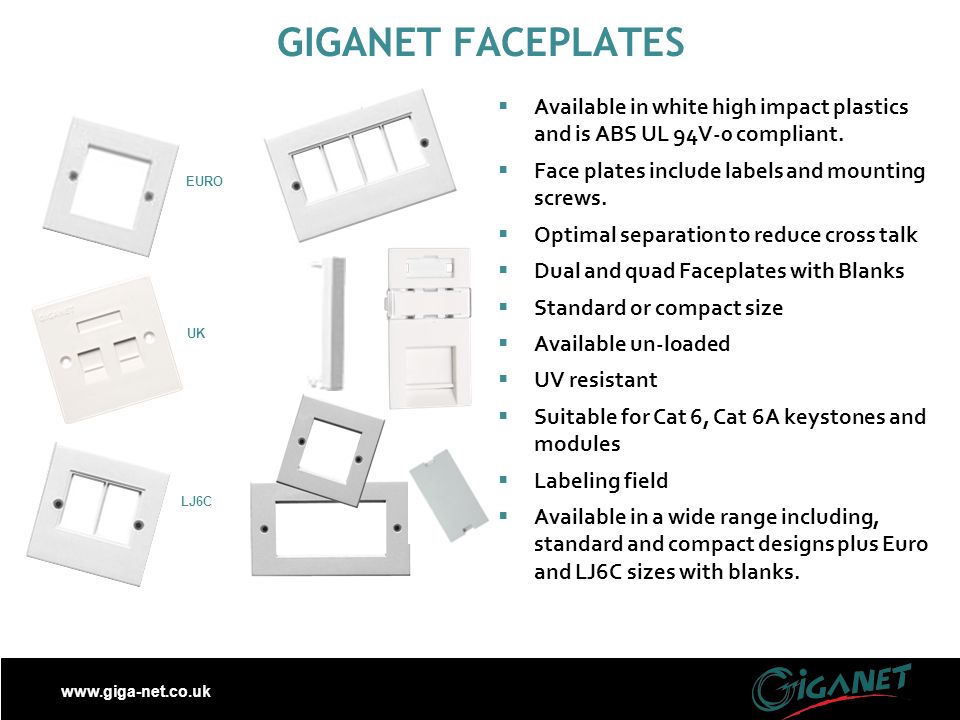

8. www.giga-net.co.uk GIGANET FACEPLATES  Available in white high impact plastics and is ABS UL 94V-0 compliant.  Face plates include labels and mounting screws.  Optimal separation to reduce cross talk  Dual and quad Faceplates with Blanks  Standard or compact size  Available un-loaded  UV resistant  Suitable for Cat 6, Cat 6A keystones and modules  Labeling field  Available in a wide range including, standard and compact designs plus Euro and LJ6C sizes with blanks. EURO UK LJ6C

9. www.giga-net.co.uk GIGANET FIBRE OPTICS SYSTEMS  Compliant with IEEE 802.3 & TIA-492 10G standards  Ideal for High Speed LAN Backbone, SAN and FTTD  Single Mode 9/125um Steel Armored / Direct burial Loose Tube Cable for Campus & Metro Ethernet  Multi-Mode 50/125um Tight Buffered for Riser backbone  Pre-loaded fibre Trays to support high density SC, LC Adaptors with fibre trays and splicing Kit  Fibre Patch Boxes SC Duplex 2 to 8 Ports  Single Mode and multi-mode fibre Patch cords and Pigtails in SC/LC/MTRJ combinations  Fibre SC, LC, MTJR Low insertion loss connectors for Cold Cure  Fibre Adaptors for in-line extension of fibre optic cable

10. www.giga-net.co.uk GIGANET CABINETS WALL MOUNT:  Double section for the two-part wall mount rack  One section for the network standard wall mount rack  Frame structure, max loading 60kg  The frame can be moved according to the requirement  Wall and stand installation type, optional caster and support feet for stand installing  Quick open side door with lock easy to install and maintain  Top and bottom wire path  Optional 120mm axial motor 1 piece or 2 pie FLOOR STANDING:  Elegance look, technically profound 800kg maximum carrying capacity  Available in both glass and mesh door  Wire path on the top and bottom can be closed Install caster and support feet at the same time  High grade handle and lock  Wire groove with Wide cable manager on the two sides  Adjustable Mounting Posts  Detachable composite structure, more convenient for being shipped. Wall Mount 6U,9U,12U15U,18U FloorStanding 22U,27U,32U,39U,42U

11. www.giga-net.co.uk GIGANET CABLE MANAGEMENT  Total Solution for Racks and Cable Management  Available in 1U & 2U Plastic and Metal for Rack Mount Installations for 19” Cable management  Superior Horizontal & Vertical Front & Rear Cable Management  Conceals Patch Cords & Cable  Different sizes, Covers and Blanks  Duct Panel with Covers  Hanger Type Panel  Cable Ring Management  Cage Nuts Included 1 Unit Hanger type Panel (Metal) 2 Unit Hanger type Panel (Metal) 1 Unit Hanger type Panel (Plastic) 1 Unit Duct Panel W/Cover (Plastic) 1 Unit Black Brush Strip Panel 2 Unit Hanger type Panel (Plastic) 2 Unit Duct Panel W/Cover (Plastic)

12. www.giga-net.co.uk GIGALITE WEB SMART SWITCHES Performance and Scalability The GGS 2800 Series is a range of web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large. Besides powerful software features, the switches provide a complete solution from 1G to 10G, including both non-PoE and PoE options. Continuous Availability IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, which ensures a faster recovery from failed links, enhancing overall network stability and reliability. Multi Management The GGS 2800 Series supports CLI, Web, SNMP v1/v2c/v3, and Telnet management to provide multiple network management access. The switch supports a private MIB for detailed information. This new Giga Lite switch also supports management functions through both IPv4 and IPv6. Comprehensive QoS Eight egress queues per port enables differentiated management of up to eight traffic types. Traffic is prioritized according to 802.1p or DSCP, giving optimal performance to real-time applications such as voice and video. Enhanced Security Port Security allows access to a switch port based on MAC address. This limits the total number of devices from using a switch port and protects from MAC flooding attacks. Smart Network Deployment Automatic Voice VLAN for quick deployment of VoIP, and automatic Video VLAN to help deploy your IP-based surveillance system. Static routing helps you set simple routes for control of your network resources. GGS-2804-28P GGS-2804-28T POE SWITCH NON POE SWITCH

13. www.giga-net.co.uk CABLE TRAYS:  Fast and simple on site installation.  Flush smooth surface and edges  Open trays allow air circulating to keep wiring cool and make it easy for easy cable identification. TRUNKING AND KNOCKOUTS:  Galvanized steel provides a durable, scratch resistance coating that maintains the integrity of overall corrosion protection system.  Metal trunking is much quicker and safer to install. Cable Trays Trunking and Knockouts GIGANET LAN TRUNKING SOLUTIONS

14. www.giga-net.co.uk GIGANET TOOLS & TESTERS  Tools for both Copper and Fibre Installations  Cable Stripper  Automatic 110 High Impact Tool  Krone Low Impact Punch down Tool  Mini copper LAN Tester  Crimping Tool  Precise Cutter & Stripper  Scissors for Cutting Kevlar of fibre optic cable  All in one Tool Kit  110 Multi-pair high Impact Tool  Fibre Termination Kit

15. www.giga-net.co.uk GIGANET CERTIFIED TRAINING  Certified Training for Installers & Designers  In-depth Theory & Practical’s on Copper & Fibre Optics  Training Modules based on International Standards & Regulations  Training helps in Designing and implementing Converged Networks  Qualified Instructors  Certified Installers are eligible to offer 25 Years Extended warranty  Project Assistance for Certified Installers  Comprehensive Exam.

16. www.giga-net.co.uk GIGANET WARRANTY STATEMENT  Warranty Duration: 25 Years Performance assurance and product warranty  Product Coverage: All Cable and connectivity  Remedy: Replace non conforming products  System Performance: System warranted for transmission performance applicable to cabling category / Class  Limits to warranty: No warranty if products are counterfeit, outside channel, damaged & unauthorised alteration

17. www.giga-net.co.uk  Manufactured to High quality standards  Both Cable and connectivity certified for Delta 3P and UL.  End to end Copper and Fibre solutions.  Full range of containment and cabinets to support installation of both passive and active devices.  Certified Installer Training.  YOUTUBE videos for installers onsite.  25 Years warranty to cover both Material and labour. Benefits of Giganet LAN Enterprise Solutions.

18. www.giga-net.co.uk  Commercial Bank of Ghana  United Nations (UNHCR) – Kenya  British American Tobacco – Kenya  Ericsson – Kenya  Serena Hotels and Lodges – Kenya & Tanzania  Post Bank of Kenya  Dubai Oasis – UAE  National Museum – Kenya  And many more…….. Available on REF MEA Reference Sites:

19. www.giga-net.co.uk HIGH PERFORMANCE STRUCTURED CABLING SOLUTIONS FOR CONVERGED NETWORKS THANK YOU FOR YOUR TIME ANY QUESTIONS?
