1. AVIVA™ ELECTRIC BIKES VIPER ASSEMBLY INSTRUCTIONS Aviva™ - For A New Way Of Life

2. Lift Bike straight up and out of the carton. You will have also 1 tool kit, 2 pedals, bag with directions on battery care and extra fuses,1 seat and any accessories that you ordered.

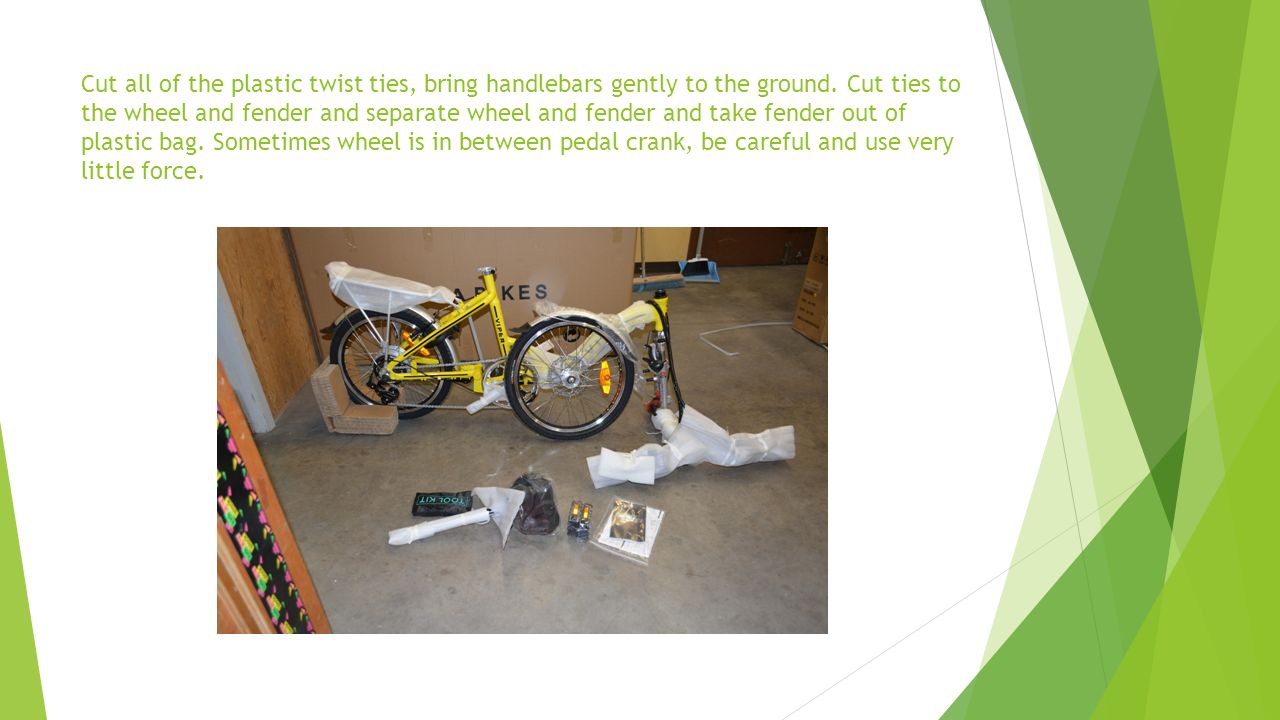

3. Cut all of the plastic twist ties, bring handlebars gently to the ground. Cut ties to the wheel and fender and separate wheel and fender and take fender out of plastic bag. Sometimes wheel is in between pedal crank, be careful and use very little force.

4. Twist the front fork so the black protrusions are facing front. If you twist it correctly the wire to the light will get longer with more slack. Take the nuts on both sides of the wheel and loosen them as much as you can to allow it to fit into fork. Take the black plastic fork protector off of the forks and place the wheel in the fork.

5. Make sure that the large disc is on the right side of the fork, as you face the forks. Washers on the axle should be on the outside of the fork and the protruding washer should face all of the way down in-between the forks(this will happen almost automatically) then hand tighten both sides. Tighten with wrench provided. This is the time that you can take the packaging off the back wheel and lower the kick stand.

6. Disc Brake: Clip the tie and take bag off of disc brake and the 2 Allen bolts provided. Slide the disc brake over the disc. This is relatively simple and the opening slides around the brake. The disc brake will match up to the 2 holes and use the 2 Allen bolts provided to tighten the brake to the frame with the Allen wrench provided.

7. Take center bolt off of fork that is holding the light on. Cut the black plastic tie off of it. Slide the fender through the fork from behind, from back to front. Remove plastic protector on tab. Make sure that the fender supports are lowered down and not in the way.

8. Make sure the fender tab is closest to the fork, then the light, finally the washer. Tighten with Allen wrench provided. Make sure that you center the fender when tightening the bolt. Light also has to be upright and centered.

9. Take the fender supports and attach to the screws as shown in the picture. Tighten both sides. Make sure that on the disc brake side, the wire for the brake is behind the support as shown in the left picture.

10. Take the wrapping off of the handlebars and the black cap off the spindle at bottom. Hold onto the gray bottom of spindle that was covered by the cap and make sure that the handle bar spindle goes straight into the hole which is above the forks. Tighten bolt but not too tight Use your judgment on how perpendicular the handlebars are to the front wheel. Face the rear of the bike with the front tire between your feet and straighten the handlebars. Now tighten firmly Make sure handlebars that fold when tighten are with metal tab in the horizontal position and firmly.

11. Loosen the clamp for the seat post and after lowering seat tighten 2 -3 times and make sure that it is firm but not too tight. Next unwrap pedals and make sure that you put left on left side and right on the right side. Left pedal goes in counter- clockwise and the right pedal goes in clockwise. Tighten with wrench provided.

12. AVIVA™ ELECTRIC BIKES How to Install the lithium-Ion Battery Aviva™ - For A New Way Of Life

13. Push tab down on seat and bend forward. Slide down the battery in the channel attached to the frame. Make sure that there are no keys in the battery!

14. Take key and place in bottom lock and turn the key clockwise to lock the battery to the bike and take the key out. Next, take the key and place it in the top lock switch and turn it to the on position.

15. Finally place the seat back in the locked and level position and you are finnished.

16. This is a fully assembled Aviva Viper Contact us by email or phone if you have any questions or need any help: Email : sales@avivabikes.com Phone 401-523-4100
