1. Introduction Your role Communicating risk Conclusions Radiation risks

2. Introduction Your role Communicating risk Conclusions Radiation risks Introduction Role of the referring provider Understanding radiation risks Communicating risk to families Conclusion

3. Introduction Your role Communicating risk Conclusions Radiation risks

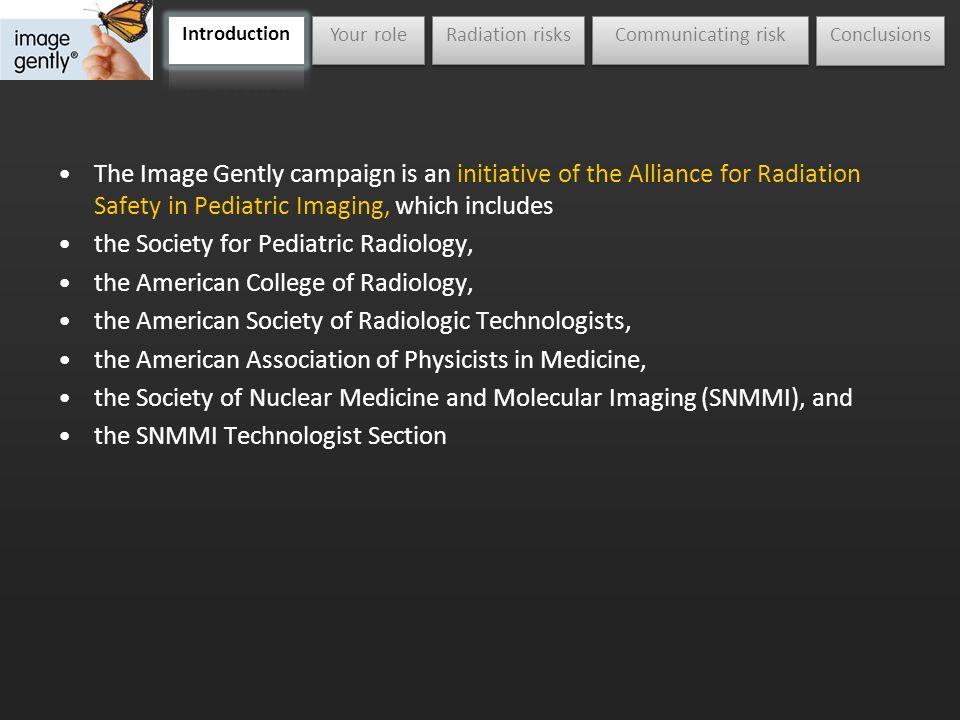

4. Introduction Your role Communicating risk Conclusions Radiation risks The Image Gently campaign is an initiative of the Alliance for Radiation Safety in Pediatric Imaging, which includes the Society for Pediatric Radiology, the American College of Radiology, the American Society of Radiologic Technologists, the American Association of Physicists in Medicine, the Society of Nuclear Medicine and Molecular Imaging (SNMMI), and the SNMMI Technologist Section

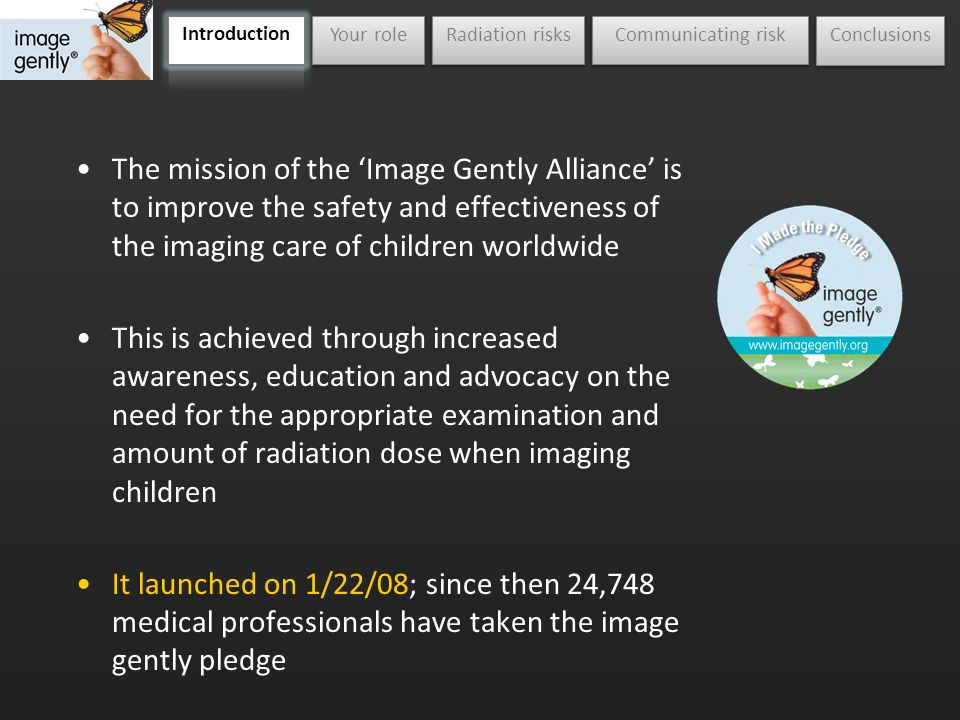

5. Introduction Your role Communicating risk Conclusions Radiation risks The mission of the ‘Image Gently Alliance’ is to improve the safety and effectiveness of the imaging care of children worldwide This is achieved through increased awareness, education and advocacy on the need for the appropriate examination and amount of radiation dose when imaging children It launched on 1/22/08; since then 24,748 medical professionals have taken the image gently pledge

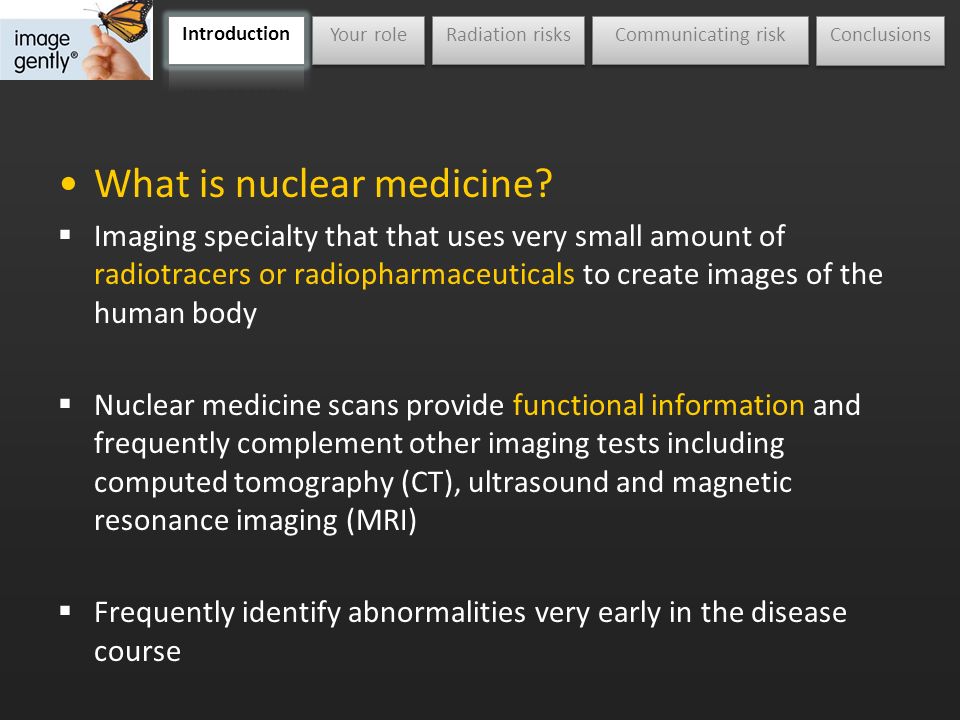

6. Introduction Your role Communicating risk Conclusions Radiation risks What is nuclear medicine?  Imaging specialty that that uses very small amount of radiotracers or radiopharmaceuticals to create images of the human body  Nuclear medicine scans provide functional information and frequently complement other imaging tests including computed tomography (CT), ultrasound and magnetic resonance imaging (MRI)  Frequently identify abnormalities very early in the disease course

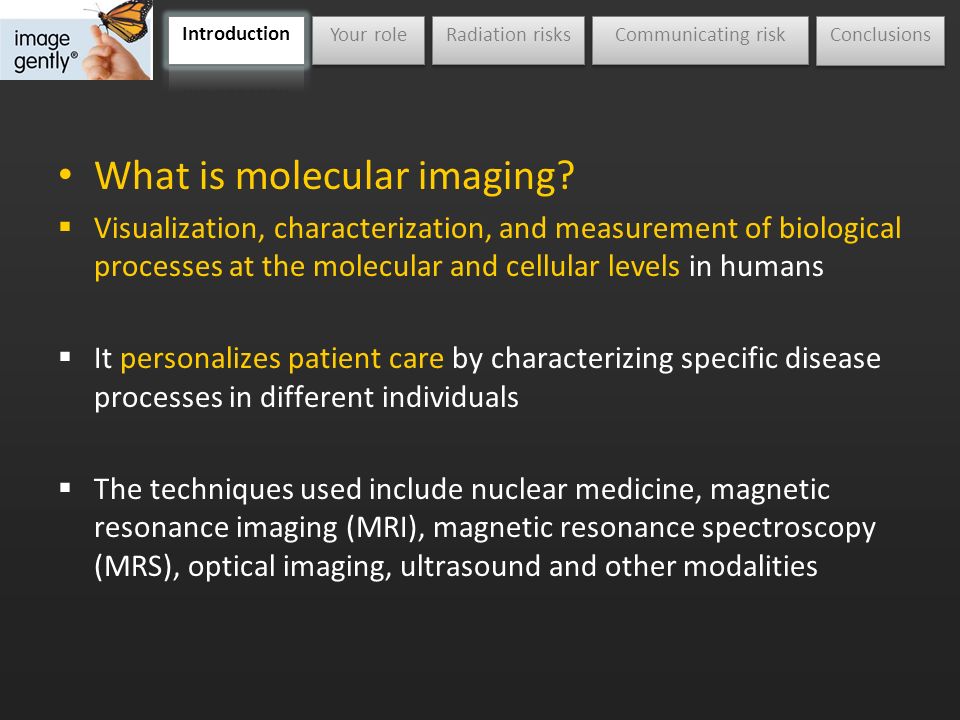

7. Introduction Your role Communicating risk Conclusions Radiation risks What is molecular imaging?  Visualization, characterization, and measurement of biological processes at the molecular and cellular levels in humans  It personalizes patient care by characterizing specific disease processes in different individuals  The techniques used include nuclear medicine, magnetic resonance imaging (MRI), magnetic resonance spectroscopy (MRS), optical imaging, ultrasound and other modalities

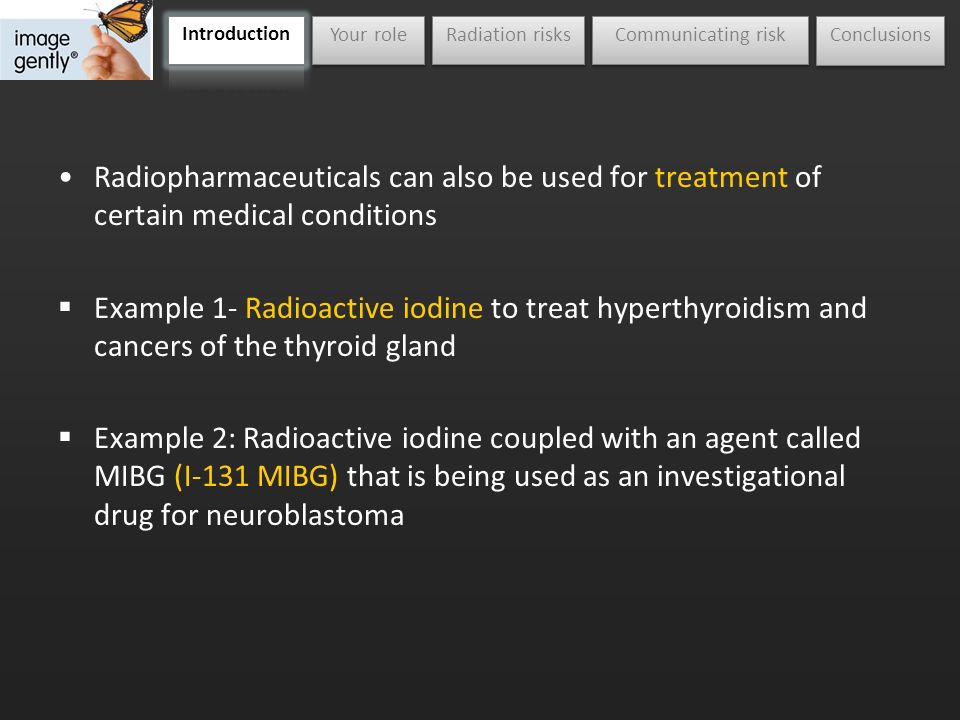

8. Introduction Your role Communicating risk Conclusions Radiation risks Radiopharmaceuticals can also be used for treatment of certain medical conditions  Example 1- Radioactive iodine to treat hyperthyroidism and cancers of the thyroid gland  Example 2: Radioactive iodine coupled with an agent called MIBG (I-131 MIBG) that is being used as an investigational drug for neuroblastoma

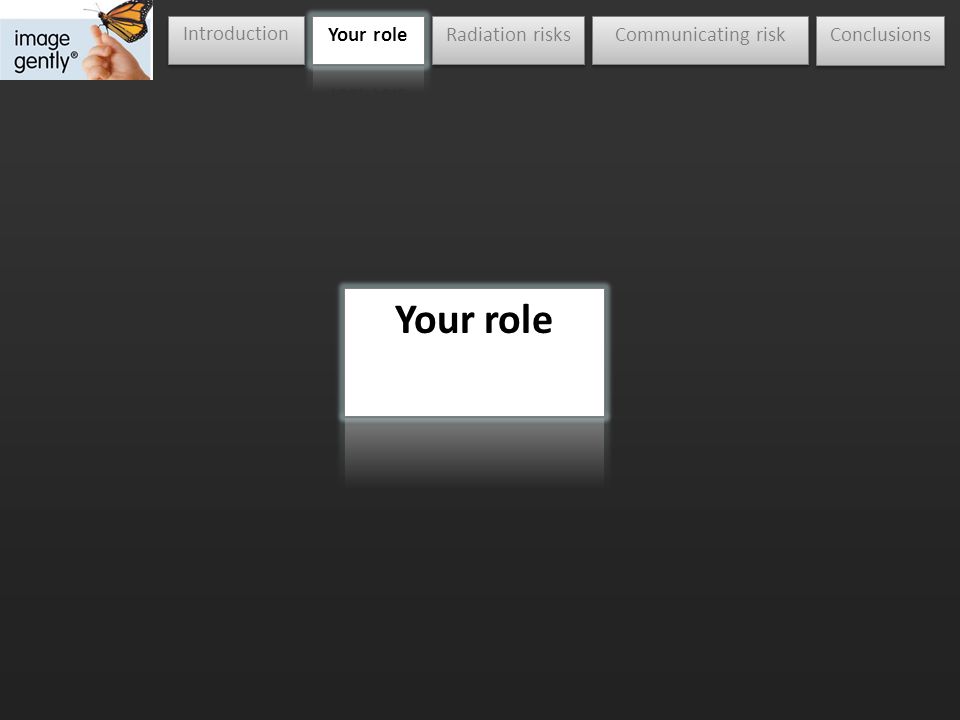

9. Introduction Your role Communicating risk Conclusions Radiation risks

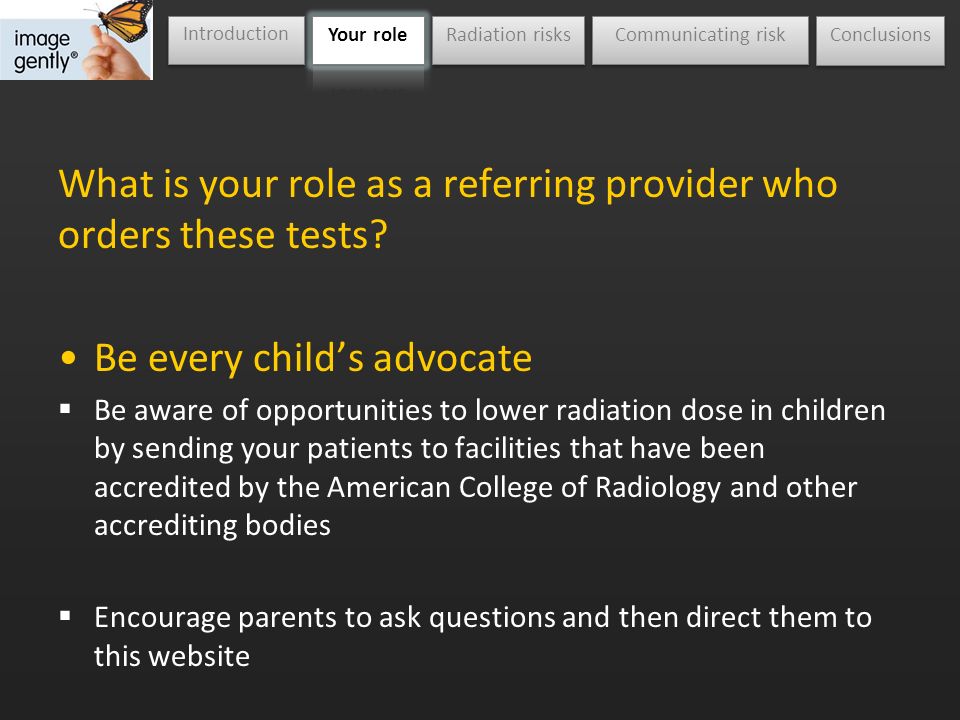

10. Introduction Your role Communicating risk Conclusions Radiation risks What is your role as a referring provider who orders these tests? Be every child’s advocate  Be aware of opportunities to lower radiation dose in children by sending your patients to facilities that have been accredited by the American College of Radiology and other accrediting bodies  Encourage parents to ask questions and then direct them to this website

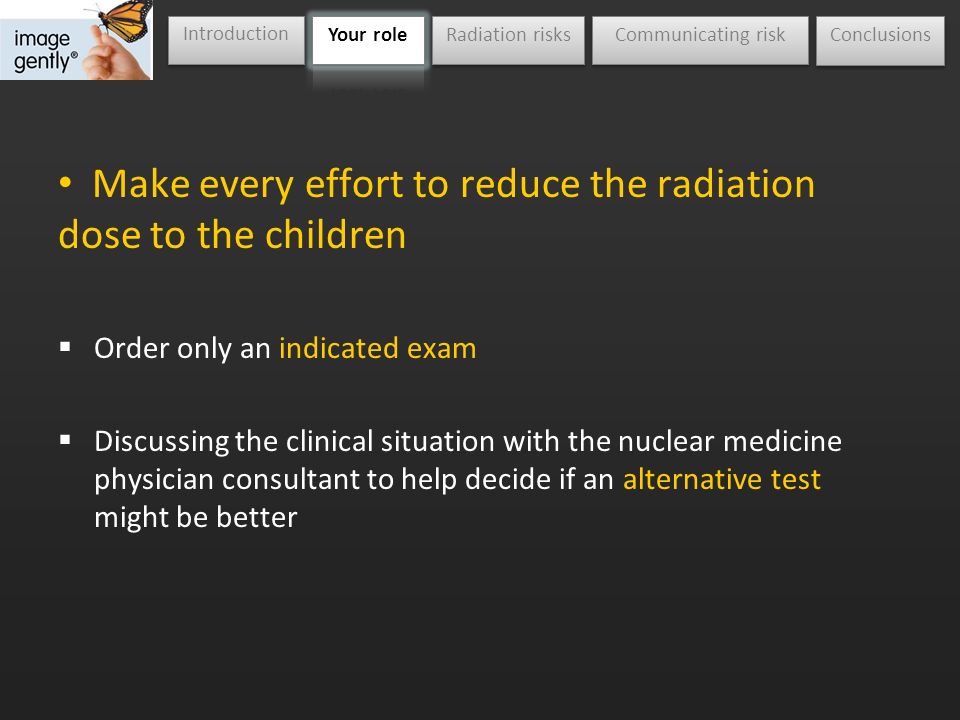

11. Introduction Your role Communicating risk Conclusions Radiation risks Make every effort to reduce the radiation dose to the children  Order only an indicated exam  Discussing the clinical situation with the nuclear medicine physician consultant to help decide if an alternative test might be better

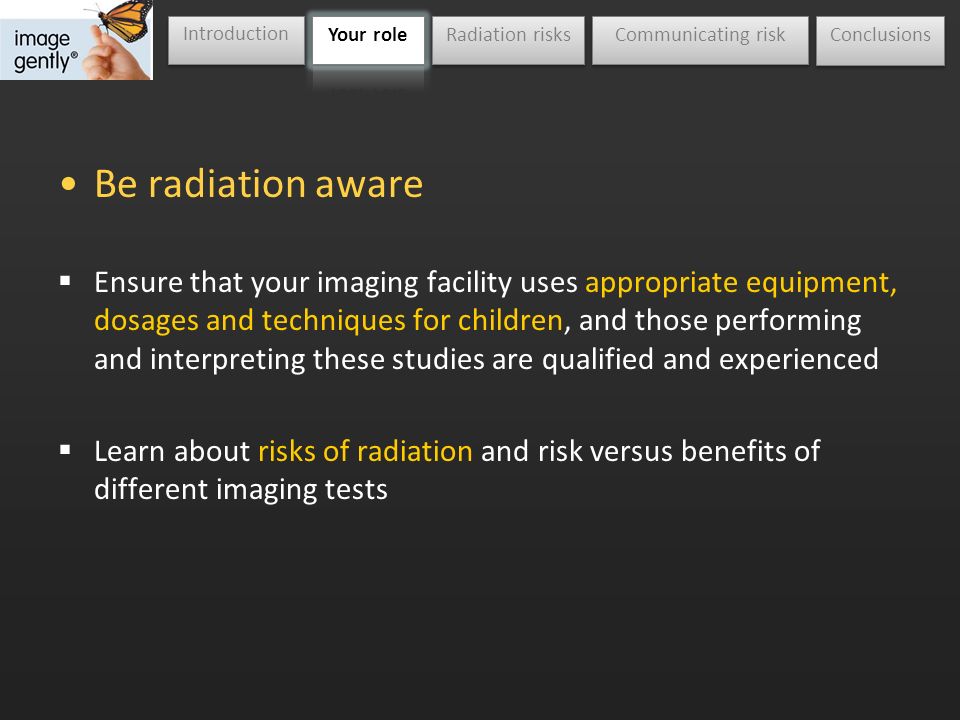

12. Introduction Your role Communicating risk Conclusions Radiation risks Be radiation aware  Ensure that your imaging facility uses appropriate equipment, dosages and techniques for children, and those performing and interpreting these studies are qualified and experienced  Learn about risks of radiation and risk versus benefits of different imaging tests

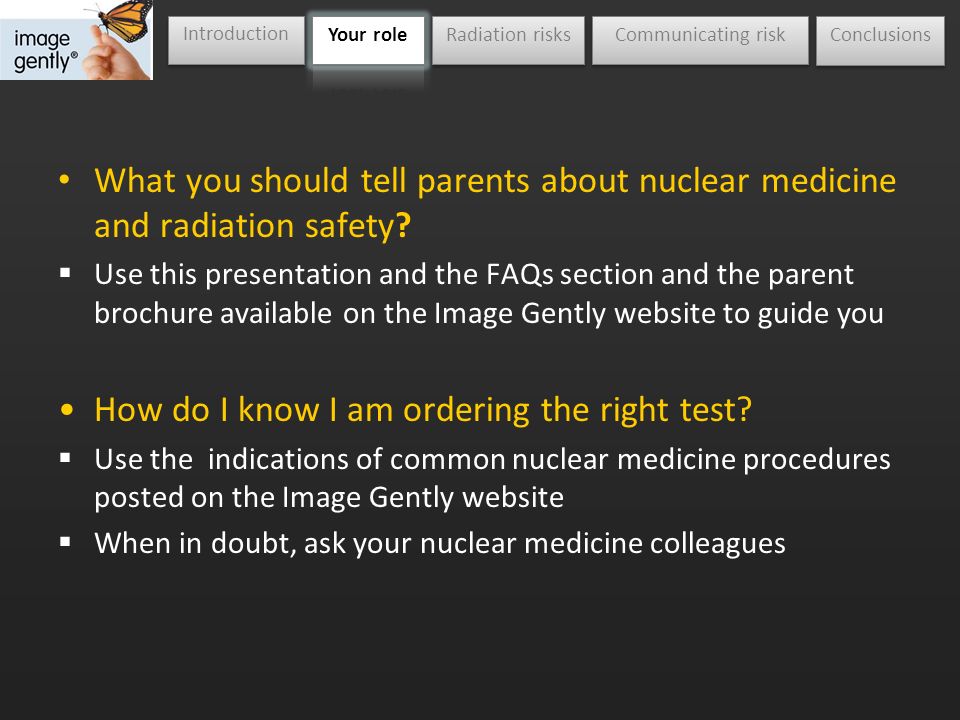

13. Introduction Your role Communicating risk Conclusions Radiation risks What you should tell parents about nuclear medicine and radiation safety?  Use this presentation and the FAQs section and the parent brochure available on the Image Gently website to guide you How do I know I am ordering the right test?  Use the indications of common nuclear medicine procedures posted on the Image Gently website  When in doubt, ask your nuclear medicine colleagues

14. Introduction Your role Communicating risk Conclusions Radiation risks

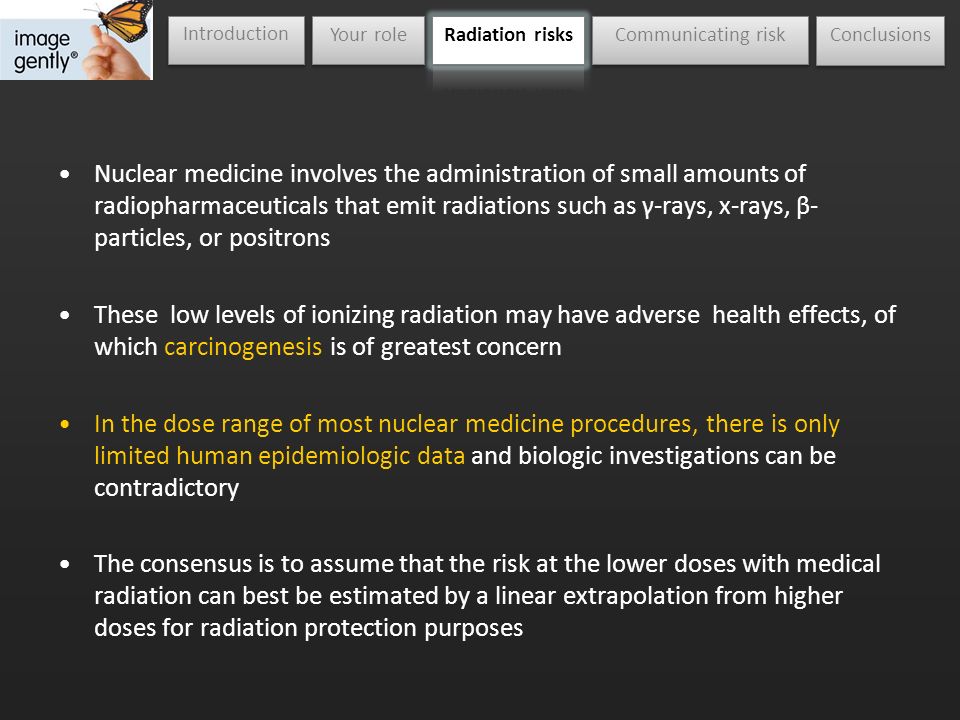

15. Introduction Your role Communicating risk Conclusions Radiation risks Nuclear medicine involves the administration of small amounts of radiopharmaceuticals that emit radiations such as γ-rays, x-rays, β- particles, or positrons These low levels of ionizing radiation may have adverse health effects, of which carcinogenesis is of greatest concern In the dose range of most nuclear medicine procedures, there is only limited human epidemiologic data and biologic investigations can be contradictory The consensus is to assume that the risk at the lower doses with medical radiation can best be estimated by a linear extrapolation from higher doses for radiation protection purposes

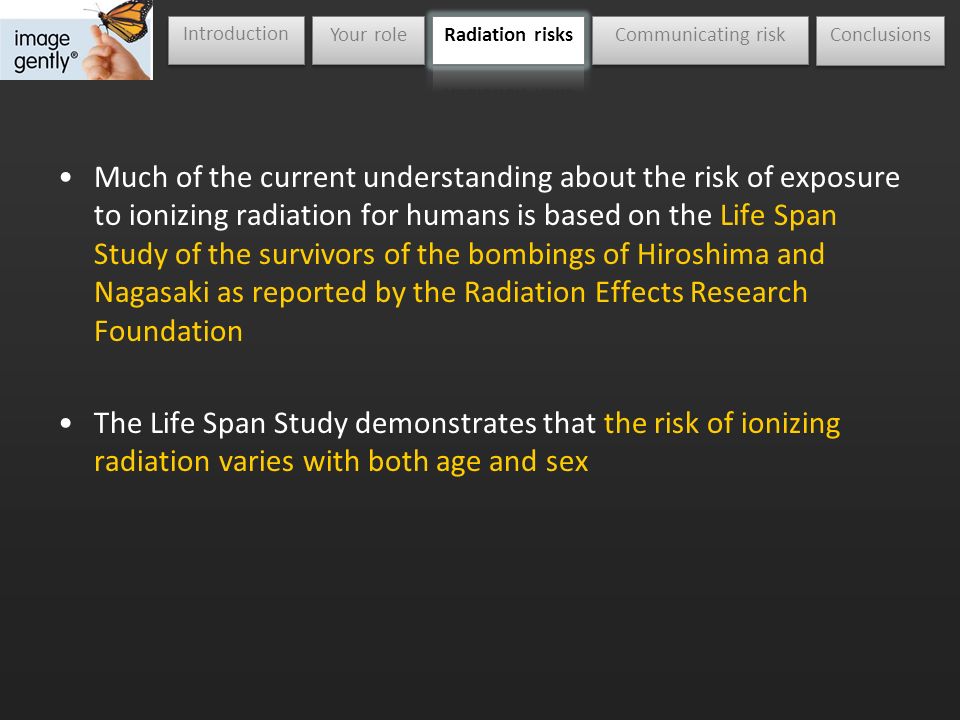

16. Introduction Your role Communicating risk Conclusions Radiation risks Much of the current understanding about the risk of exposure to ionizing radiation for humans is based on the Life Span Study of the survivors of the bombings of Hiroshima and Nagasaki as reported by the Radiation Effects Research Foundation The Life Span Study demonstrates that the risk of ionizing radiation varies with both age and sex

17. Introduction Your role Communicating risk Conclusions Radiation risks Younger subjects have a significantly higher risk than older subjects for most cancers  Actively growing tissues of younger subjects are more radiosensitive  Younger subjects have a longer life span that allows for a longer time for the risk to manifest  Girls demonstrated a higher risk for cancer induction than boys which is, in large part, attributable to the excess risk of breast cancer

18. Introduction Your role Communicating risk Conclusions Radiation risks Radiation dose may be different in children as compared to adults due to patient size, organ size and orientation and organ distribution of administered radiopharmaceutical When the administered activity is scaled by weight, the radiation dose to the patient is slightly less for smaller patients than for larger patients

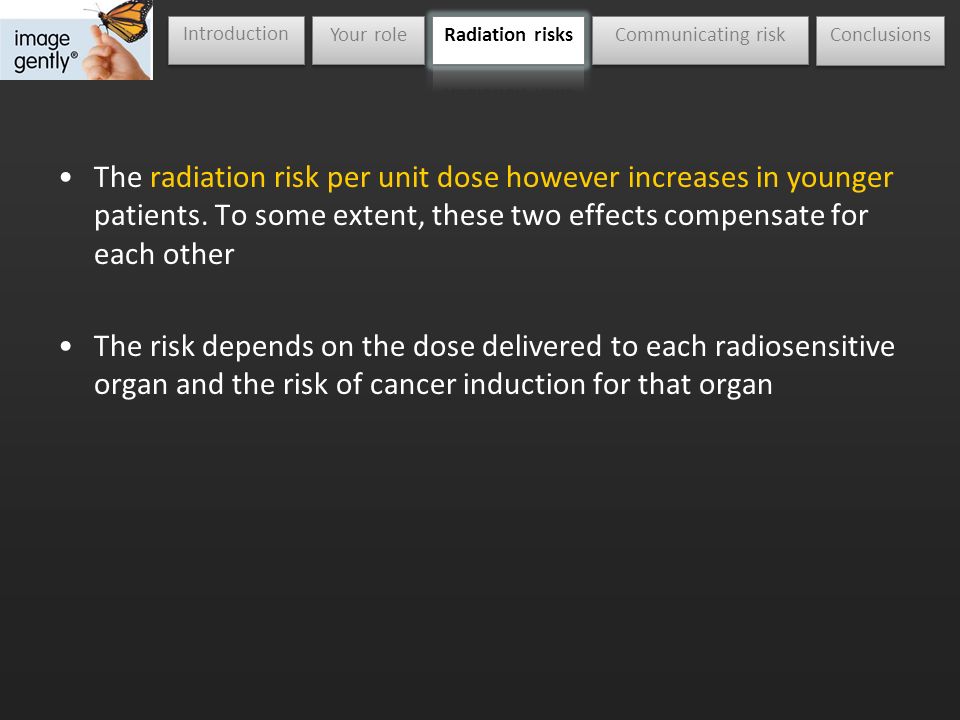

19. Introduction Your role Communicating risk Conclusions Radiation risks The radiation risk per unit dose however increases in younger patients. To some extent, these two effects compensate for each other The risk depends on the dose delivered to each radiosensitive organ and the risk of cancer induction for that organ

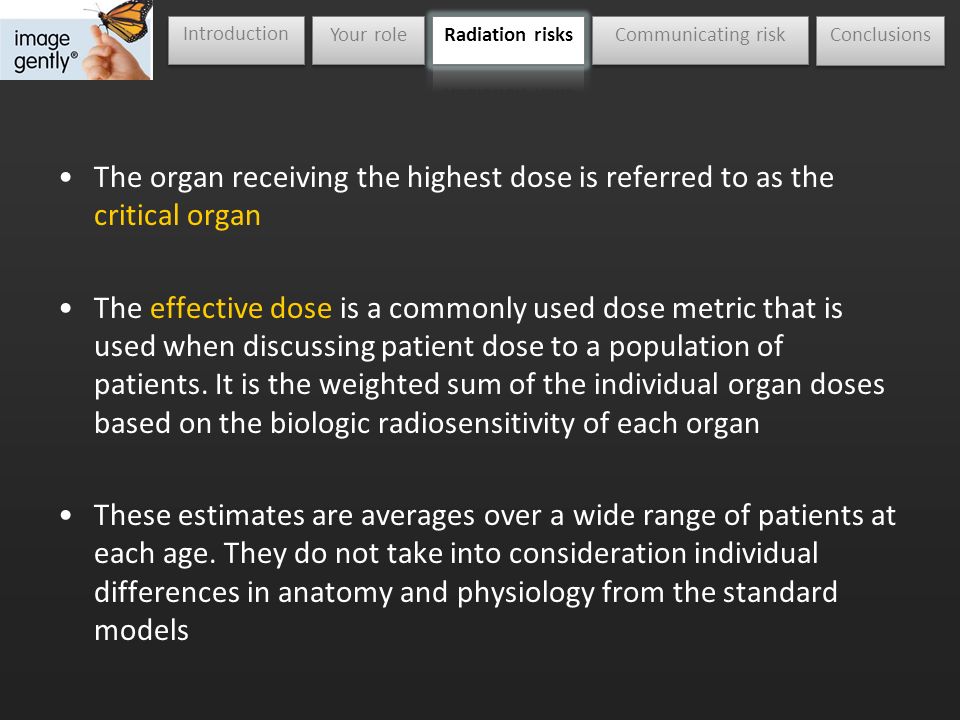

20. Introduction Your role Communicating risk Conclusions Radiation risks The organ receiving the highest dose is referred to as the critical organ The effective dose is a commonly used dose metric that is used when discussing patient dose to a population of patients. It is the weighted sum of the individual organ doses based on the biologic radiosensitivity of each organ These estimates are averages over a wide range of patients at each age. They do not take into consideration individual differences in anatomy and physiology from the standard models

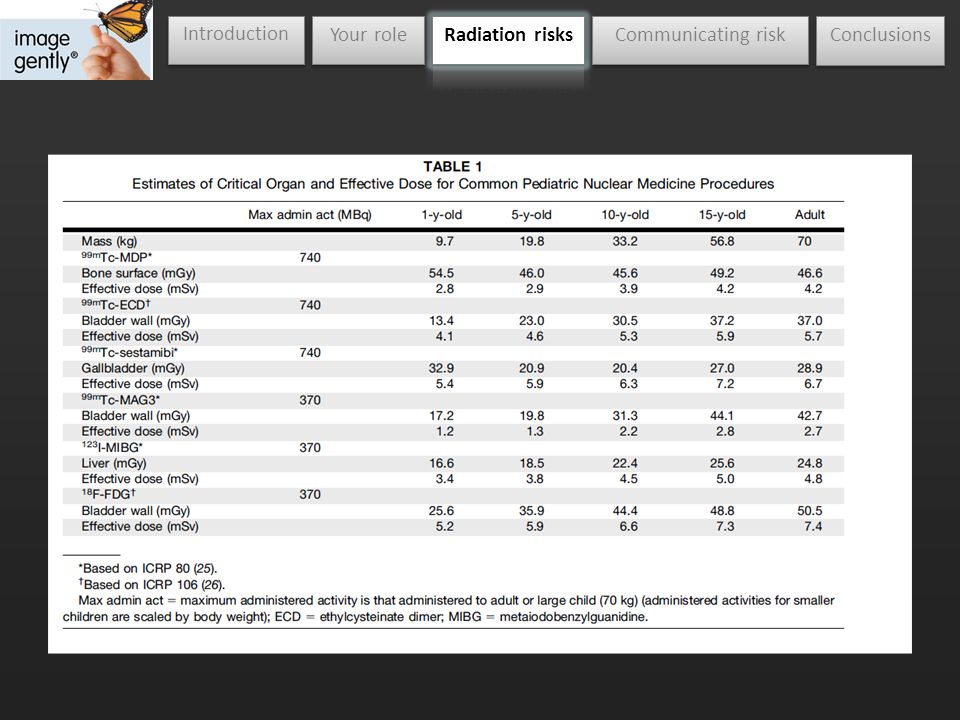

21. Introduction Your role Communicating risk Conclusions Radiation risks

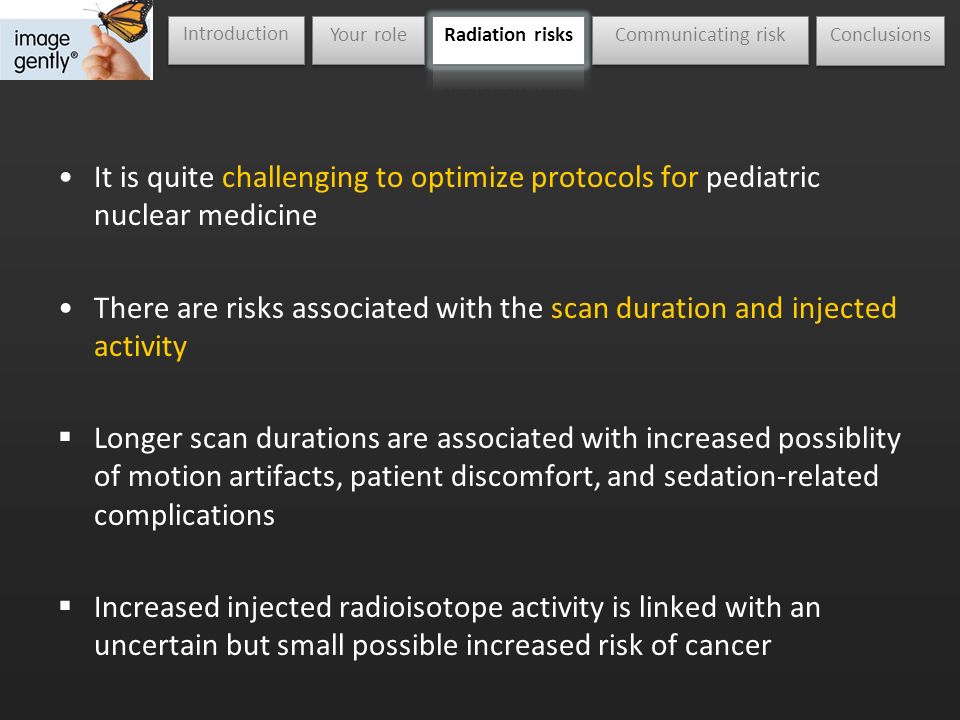

22. Introduction Your role Communicating risk Conclusions Radiation risks It is quite challenging to optimize protocols for pediatric nuclear medicine There are risks associated with the scan duration and injected activity  Longer scan durations are associated with increased possiblity of motion artifacts, patient discomfort, and sedation-related complications  Increased injected radioisotope activity is linked with an uncertain but small possible increased risk of cancer

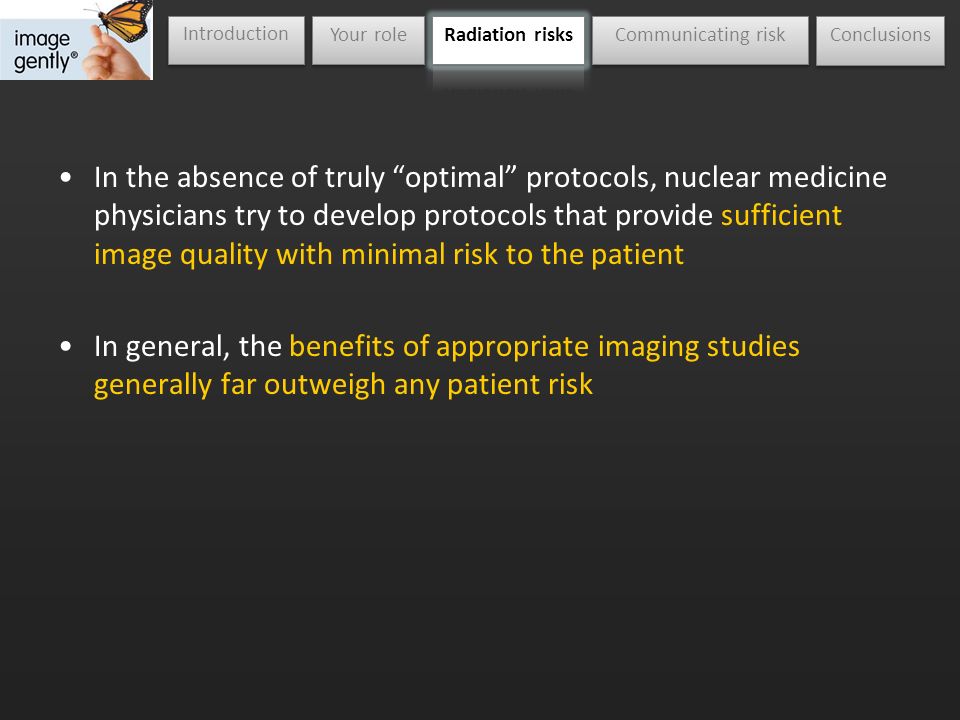

23. Introduction Your role Communicating risk Conclusions Radiation risks In the absence of truly “optimal” protocols, nuclear medicine physicians try to develop protocols that provide sufficient image quality with minimal risk to the patient In general, the benefits of appropriate imaging studies generally far outweigh any patient risk

24. Introduction Your role Communicating risk Conclusions Radiation risks

25. Introduction Your role Communicating risk Conclusions Radiation risks Media reports and the general public are increasingly interested in risks from medical radiation There is particular concern for young children because they are more sensitive to radiation than adults for most cancers It is extremely important that you as a member of patient care team be able to effectively communicate with patients and families about the medical use of radiation, radiation dose and risks involved

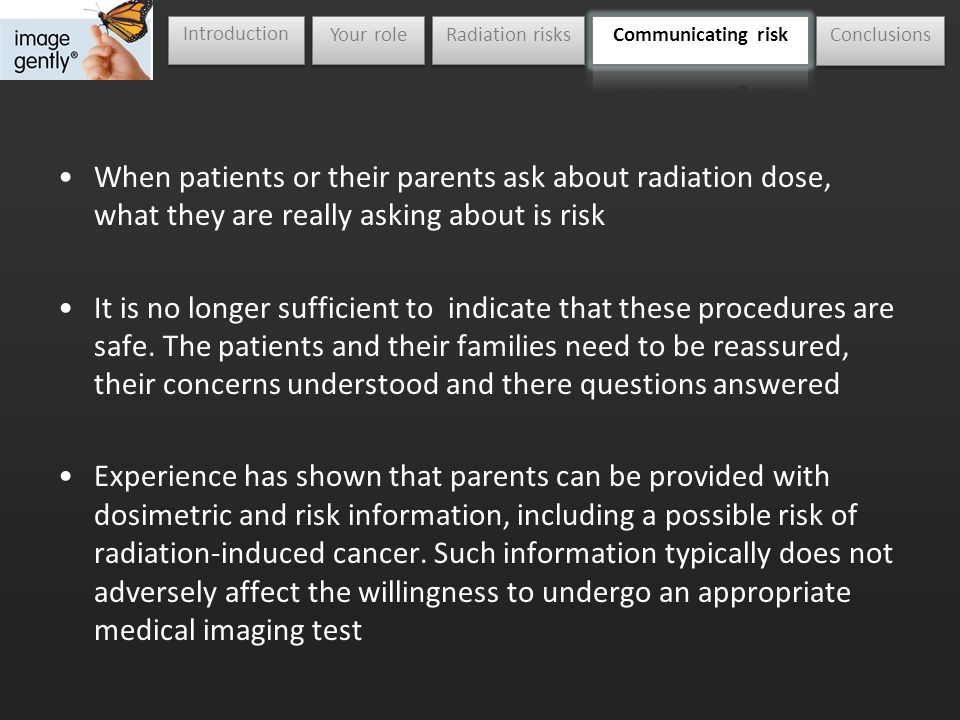

26. Introduction Your role Communicating risk Conclusions Radiation risks When patients or their parents ask about radiation dose, what they are really asking about is risk It is no longer sufficient to indicate that these procedures are safe. The patients and their families need to be reassured, their concerns understood and there questions answered Experience has shown that parents can be provided with dosimetric and risk information, including a possible risk of radiation-induced cancer. Such information typically does not adversely affect the willingness to undergo an appropriate medical imaging test

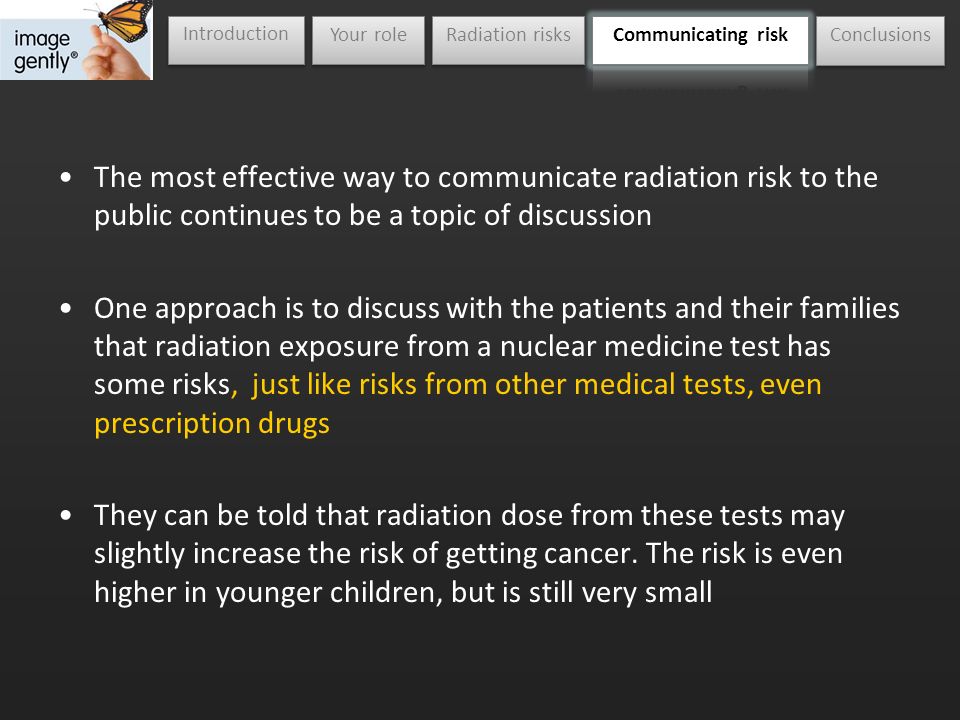

27. Introduction Your role Communicating risk Conclusions Radiation risks The most effective way to communicate radiation risk to the public continues to be a topic of discussion One approach is to discuss with the patients and their families that radiation exposure from a nuclear medicine test has some risks, just like risks from other medical tests, even prescription drugs They can be told that radiation dose from these tests may slightly increase the risk of getting cancer. The risk is even higher in younger children, but is still very small

28. Introduction Your role Communicating risk Conclusions Radiation risks It can be explained that the radiation dose to their child from a nuclear medicine procedure is in a similar range of many other radiologic tests. It is also comparable to the exposure that that individuals get from natural background radiation in 1 year

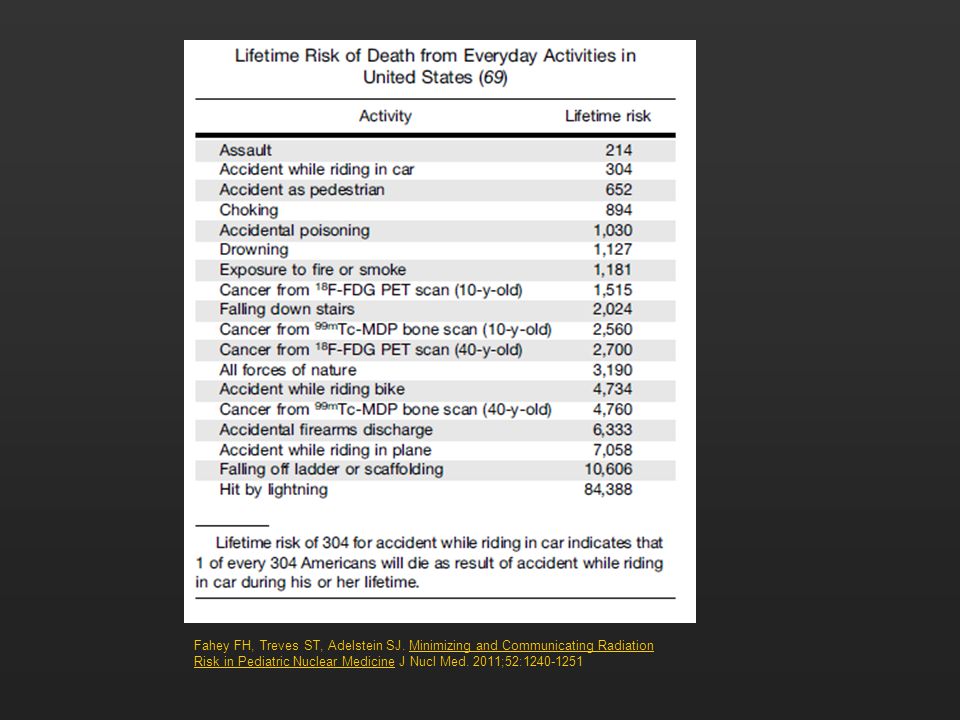

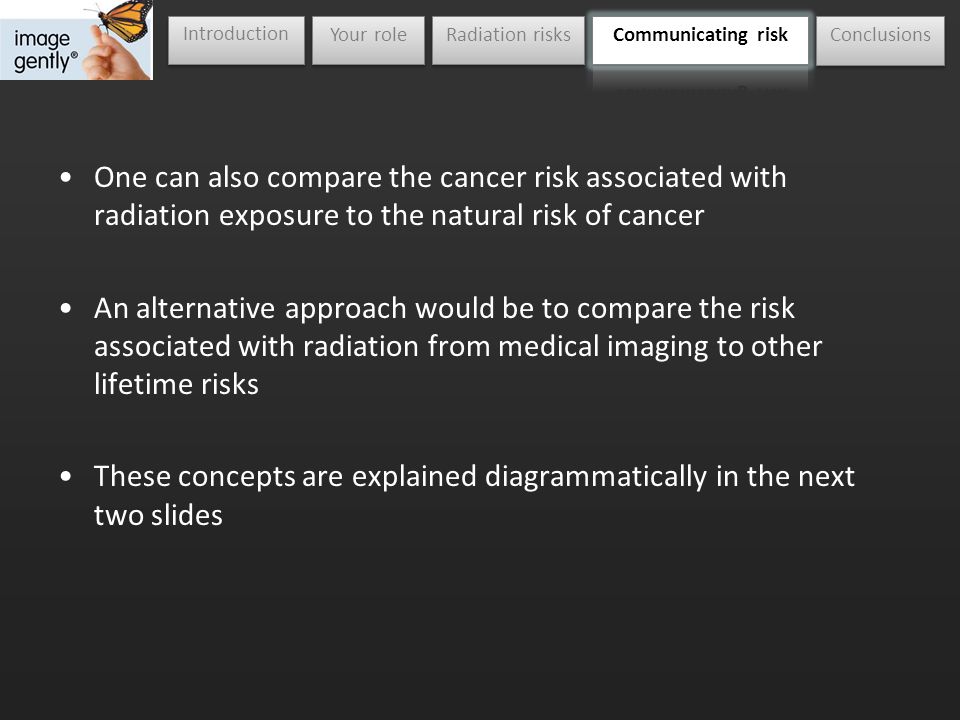

29. Introduction Your role Communicating risk Conclusions Radiation risks One can also compare the cancer risk associated with radiation exposure to the natural risk of cancer An alternative approach would be to compare the risk associated with radiation from medical imaging to other lifetime risks These concepts are explained diagrammatically in the next two slides

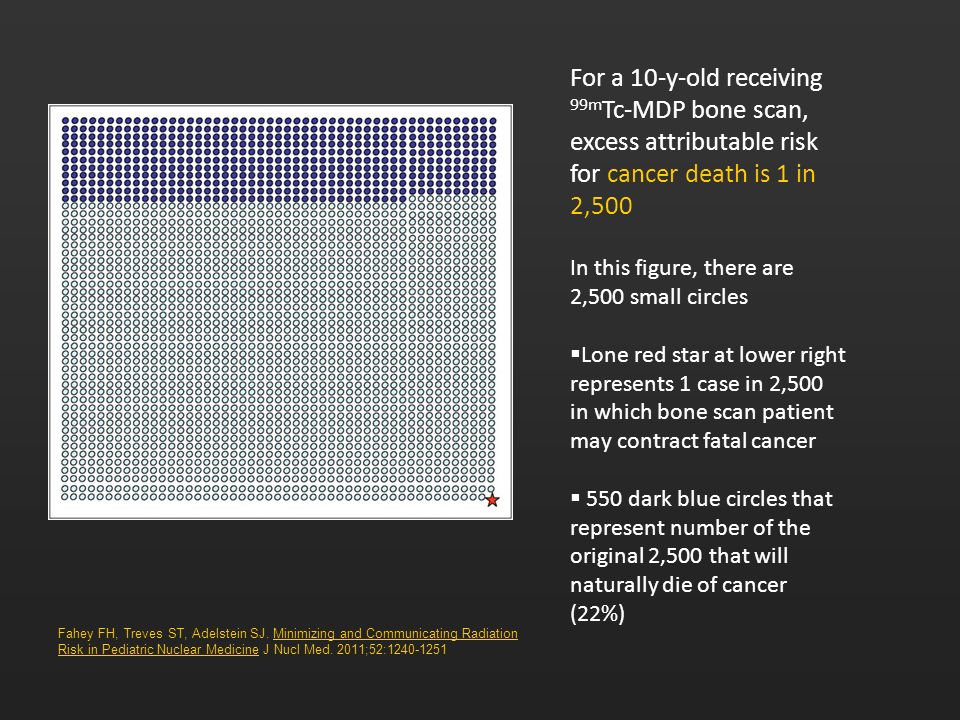

30. For a 10-y-old receiving 99m Tc-MDP bone scan, excess attributable risk for cancer death is 1 in 2,500 In this figure, there are 2,500 small circles  Lone red star at lower right represents 1 case in 2,500 in which bone scan patient may contract fatal cancer  550 dark blue circles that represent number of the original 2,500 that will naturally die of cancer (22%) Fahey FH, Treves ST, Adelstein SJ. Minimizing and Communicating Radiation Risk in Pediatric Nuclear Medicine J Nucl Med. 2011;52:1240-1251

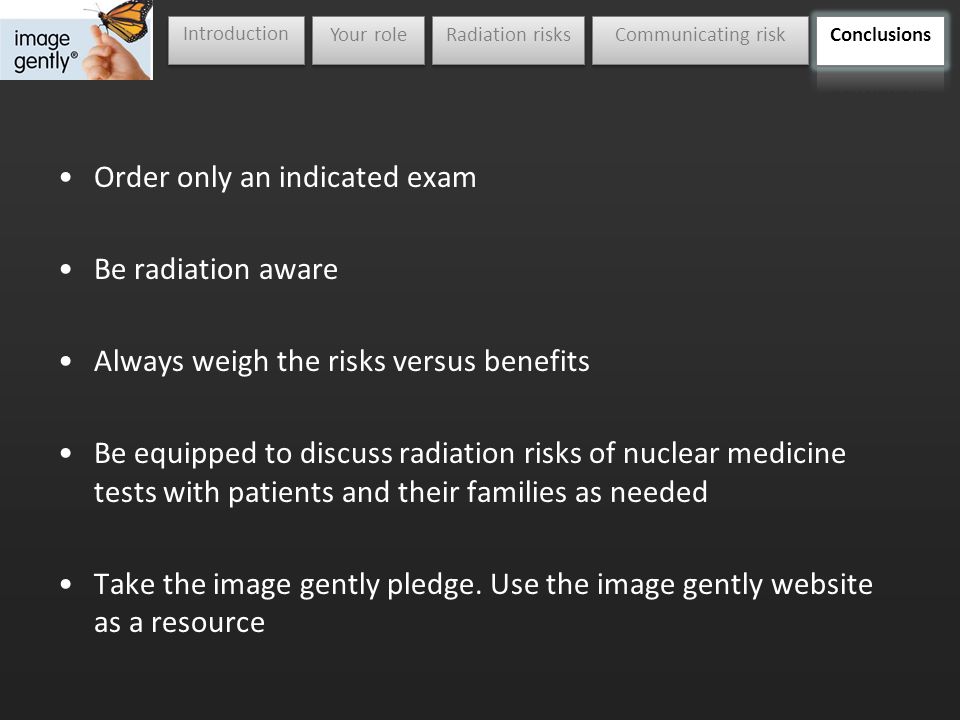

32. Introduction Your role Communicating risk Conclusions Radiation risks Order only an indicated exam Be radiation aware Always weigh the risks versus benefits Be equipped to discuss radiation risks of nuclear medicine tests with patients and their families as needed Take the image gently pledge. Use the image gently website as a resource

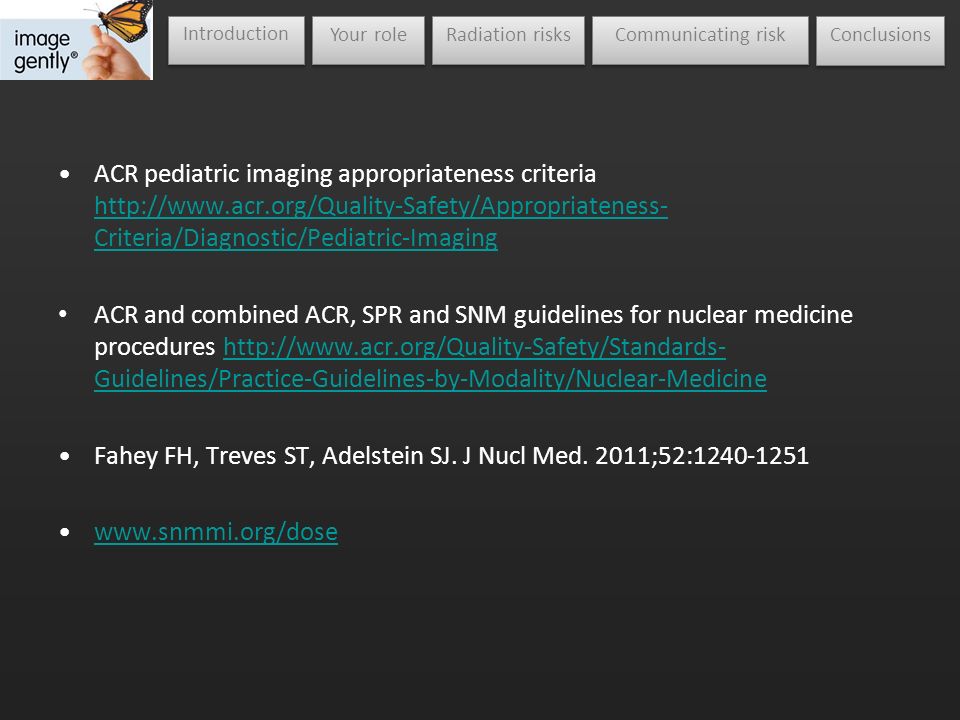

33. Introduction Your role Communicating risk Conclusions Radiation risks ACR pediatric imaging appropriateness criteria http://www.acr.org/Quality-Safety/Appropriateness- Criteria/Diagnostic/Pediatric-Imaging http://www.acr.org/Quality-Safety/Appropriateness- Criteria/Diagnostic/Pediatric-Imaging ACR and combined ACR, SPR and SNM guidelines for nuclear medicine procedures http://www.acr.org/Quality-Safety/Standards- Guidelines/Practice-Guidelines-by-Modality/Nuclear-Medicinehttp://www.acr.org/Quality-Safety/Standards- Guidelines/Practice-Guidelines-by-Modality/Nuclear-Medicine Fahey FH, Treves ST, Adelstein SJ. J Nucl Med. 2011;52:1240-1251 www.snmmi.org/dose
