1. Eye Structure and Seeing Light

2. The eye is like a camera: Light enters, is focused on a surface, and a picture is made. Light enters your eye through a clear portion of the sclera (the tough, white, outer covering of the eye), called the cornea.

3. The cornea is curved, so it slightly bends the light as it goes through. Light then passes through the aqueous humor (a clear fluid for eye nourishment, in the anterior chamber) and through the pupil. The pupil is simply a hole in the iris.

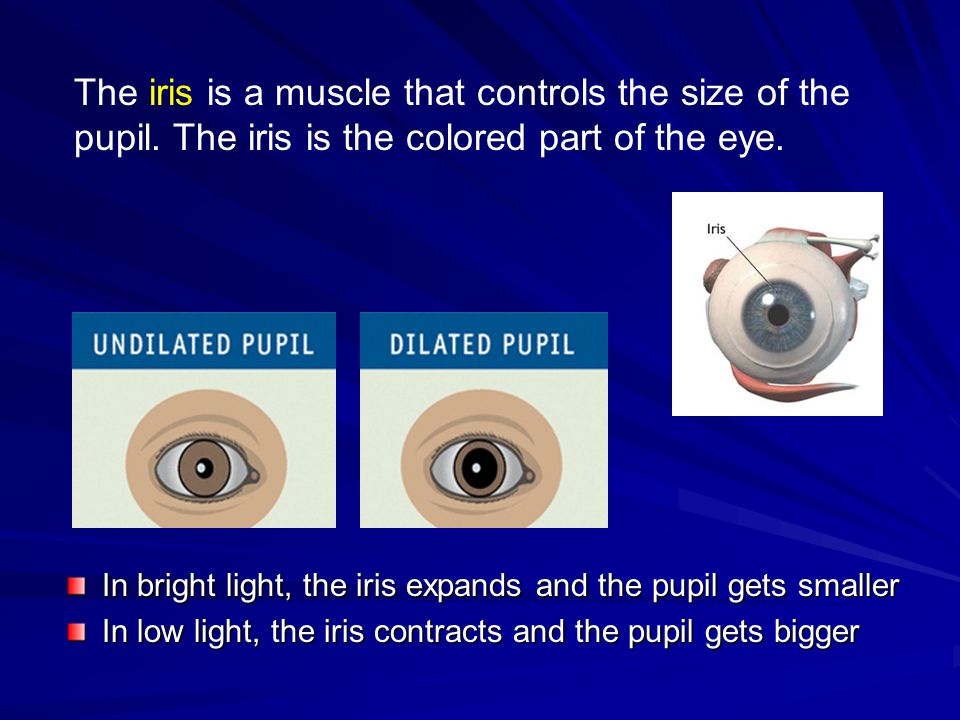

4. The iris is a muscle that controls the size of the pupil. The iris is the colored part of the eye. In bright light, the iris expands and the pupil gets smaller In low light, the iris contracts and the pupil gets bigger

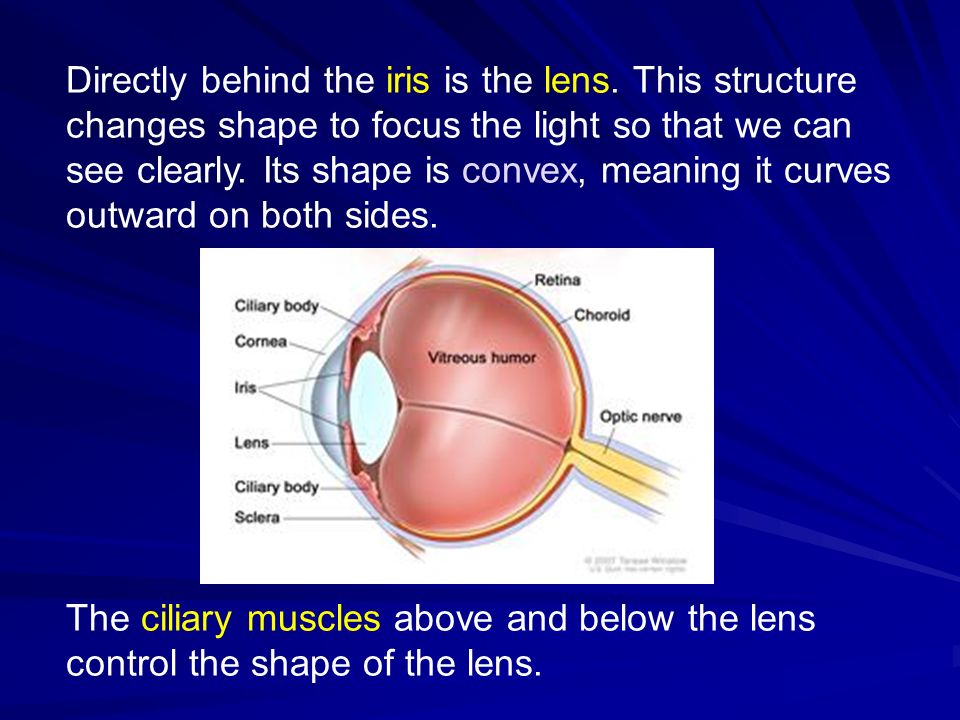

5. Directly behind the iris is the lens. This structure changes shape to focus the light so that we can see clearly. Its shape is convex, meaning it curves outward on both sides. The ciliary muscles above and below the lens control the shape of the lens.

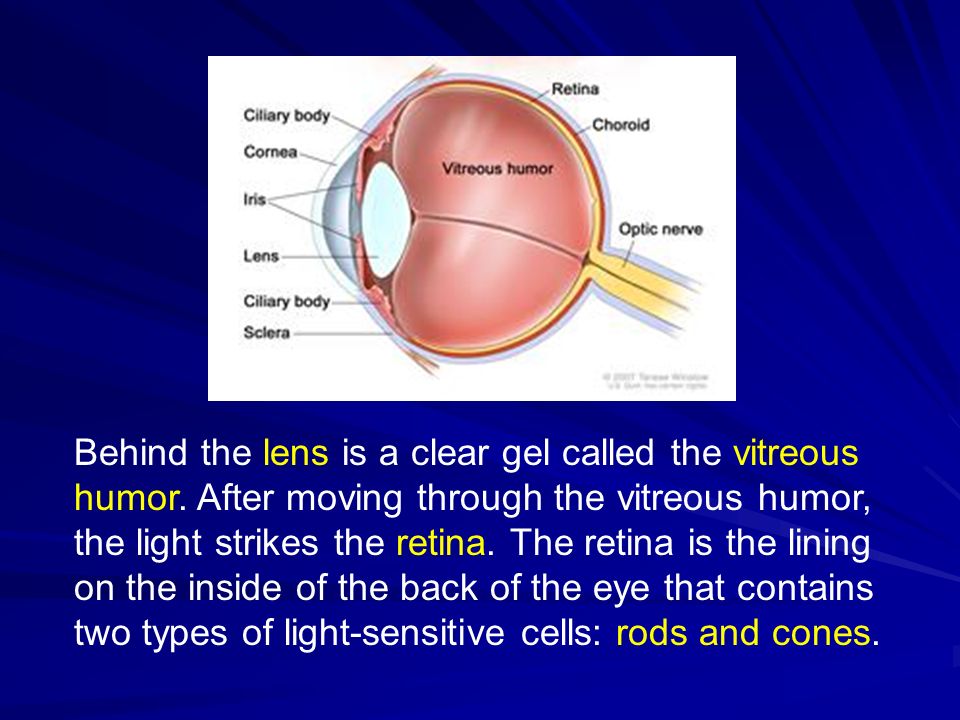

6. Behind the lens is a clear gel called the vitreous humor. After moving through the vitreous humor, the light strikes the retina. The retina is the lining on the inside of the back of the eye that contains two types of light-sensitive cells: rods and cones.

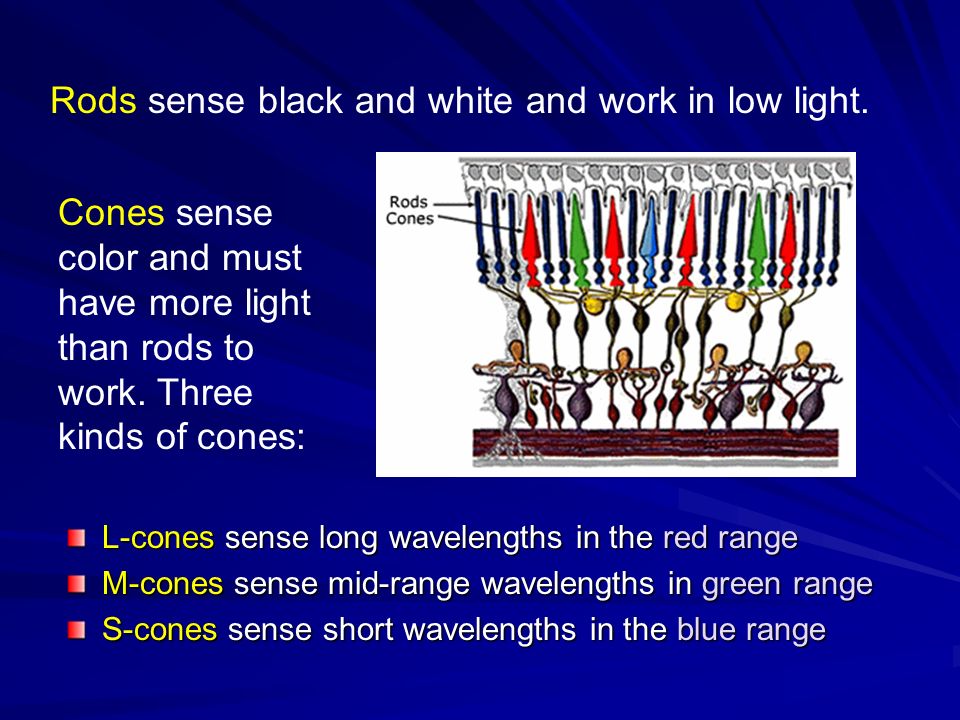

7. Rods sense black and white and work in low light. L-cones sense long wavelengths in the red range M-cones sense mid-range wavelengths in green range S-cones sense short wavelengths in the blue range Cones sense color and must have more light than rods to work. Three kinds of cones:

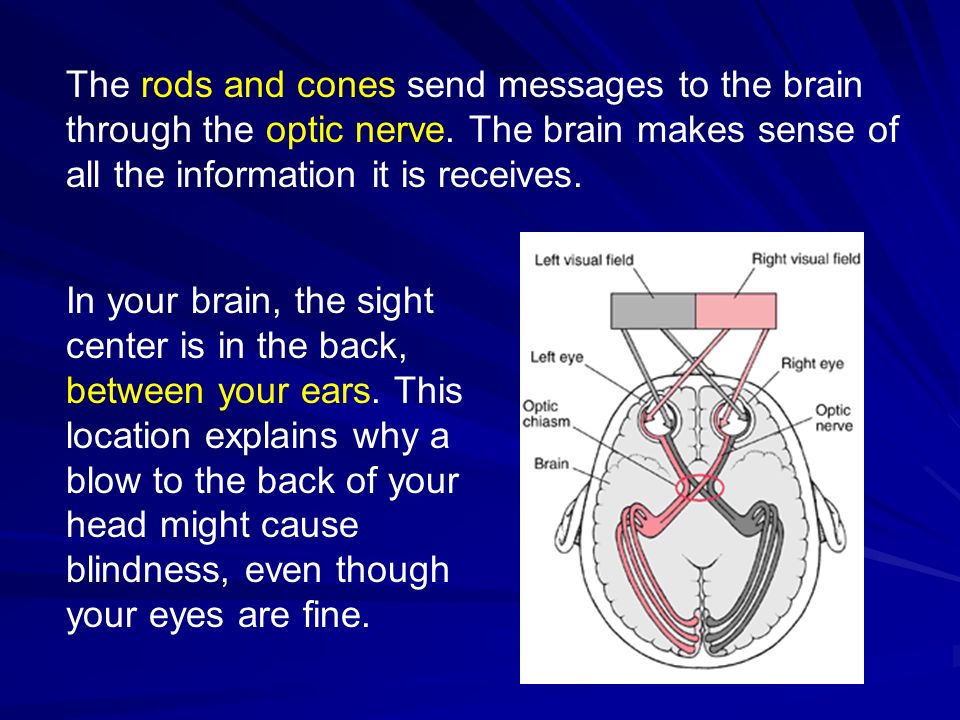

8. The rods and cones send messages to the brain through the optic nerve. The brain makes sense of all the information it is receives. In your brain, the sight center is in the back, between your ears. This location explains why a blow to the back of your head might cause blindness, even though your eyes are fine.

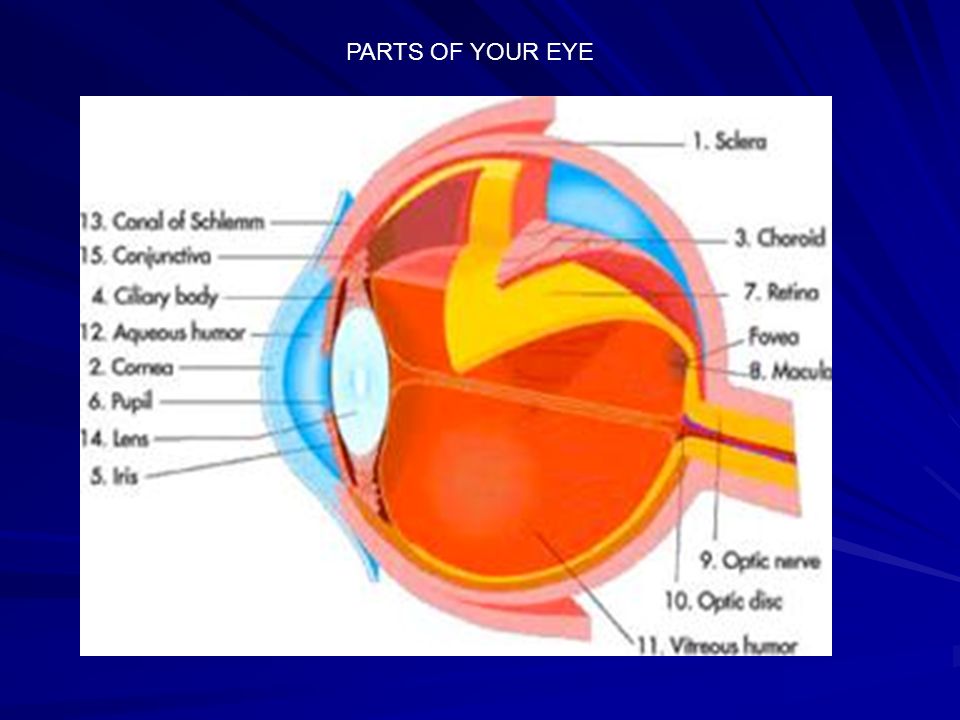

9. PARTS OF YOUR EYE

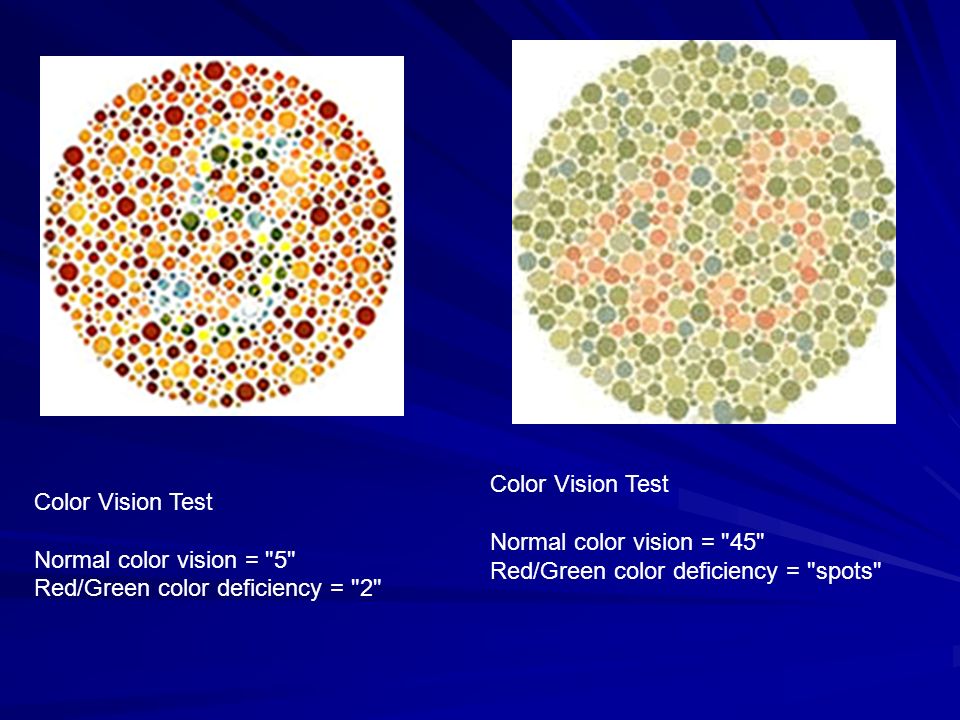

10. Color Vision Test Normal color vision = "5" Red/Green color deficiency = "2" Color Vision Test Normal color vision = "45" Red/Green color deficiency = "spots"

11. 1.Genetic (you are born with these types) Sometimes a cone is missing, or the cone does not recognize the correct wavelengths of light. L- and M-cone problems result in red-green color blindness, the most common. Two Causes of Color Blindness

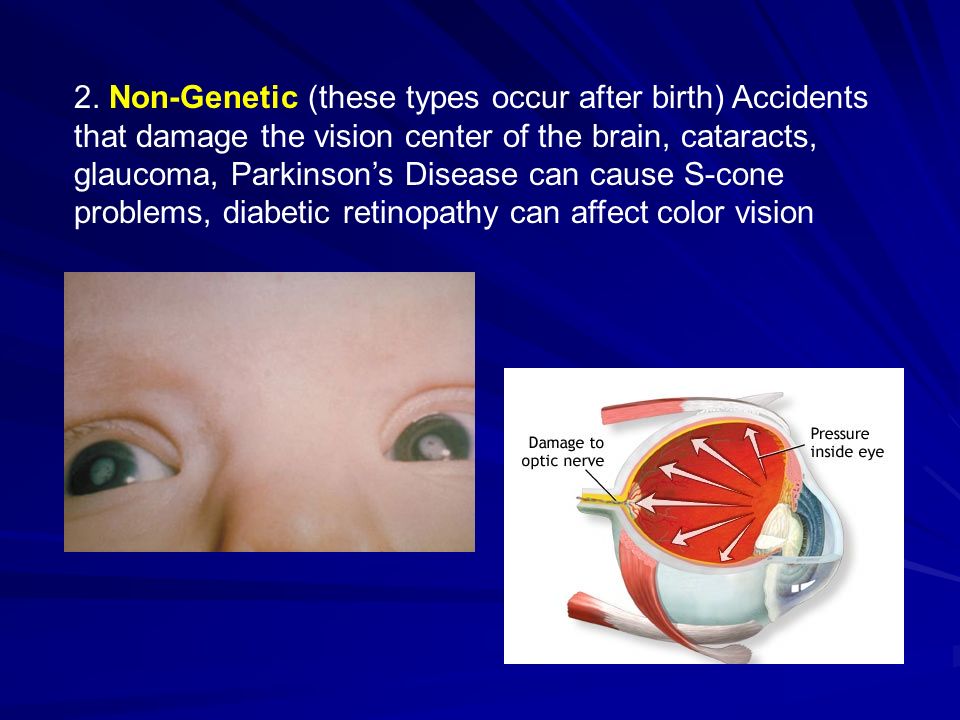

12. 2. Non-Genetic (these types occur after birth) Accidents that damage the vision center of the brain, cataracts, glaucoma, Parkinson’s Disease can cause S-cone problems, diabetic retinopathy can affect color vision

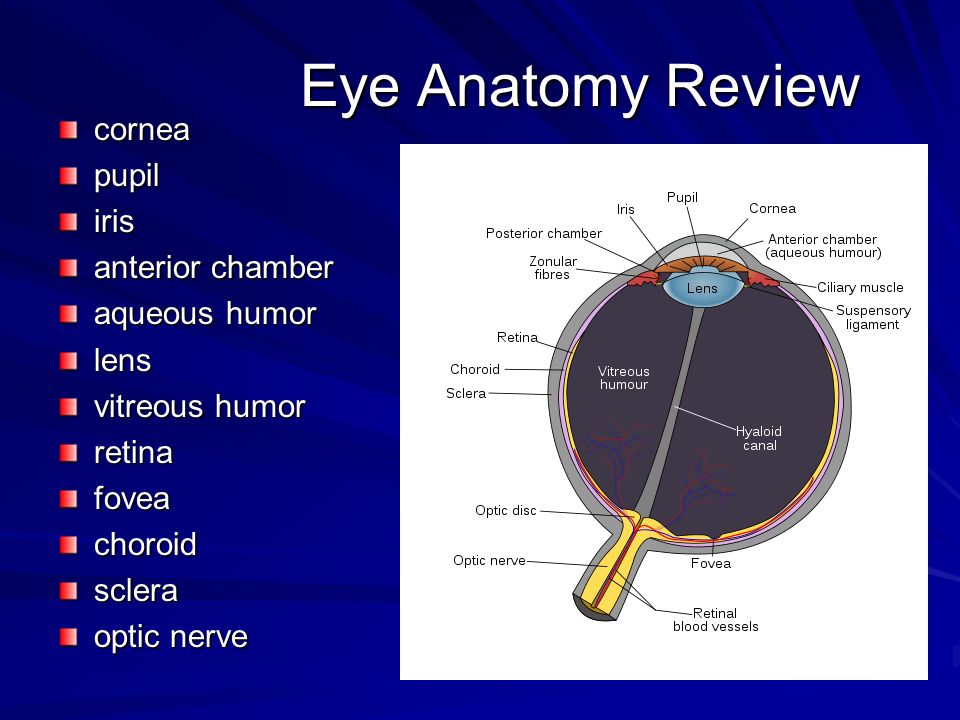

13. Eye Anatomy Review corneapupiliris anterior chamber aqueous humor lens vitreous humor retinafoveachoroidsclera optic nerve

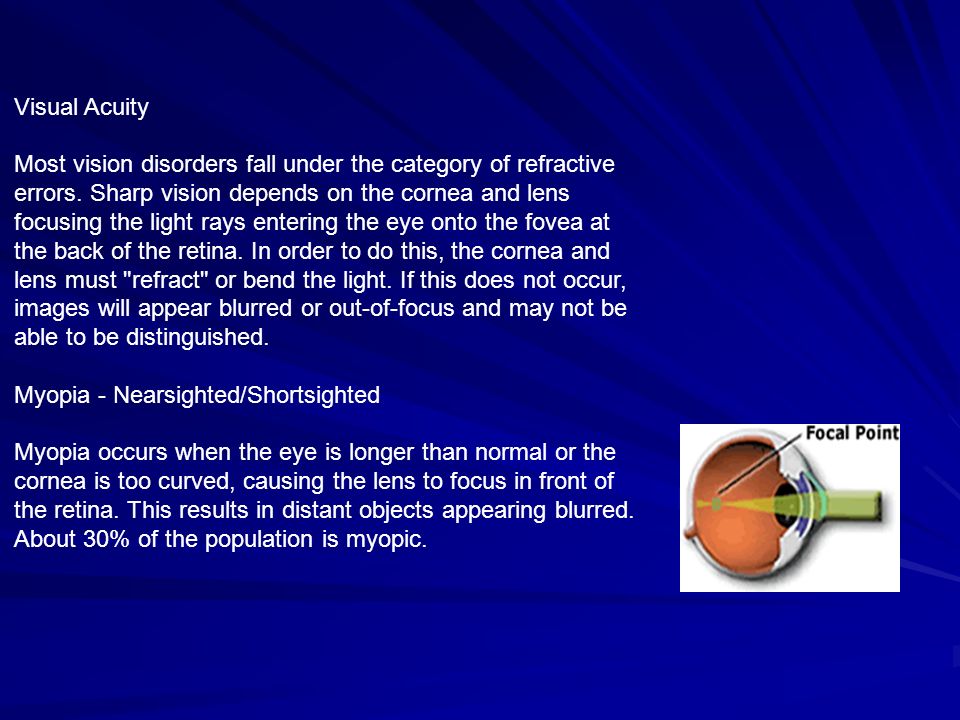

14. Visual Acuity Most vision disorders fall under the category of refractive errors. Sharp vision depends on the cornea and lens focusing the light rays entering the eye onto the fovea at the back of the retina. In order to do this, the cornea and lens must "refract" or bend the light. If this does not occur, images will appear blurred or out-of-focus and may not be able to be distinguished. Myopia - Nearsighted/Shortsighted Myopia occurs when the eye is longer than normal or the cornea is too curved, causing the lens to focus in front of the retina. This results in distant objects appearing blurred. About 30% of the population is myopic.

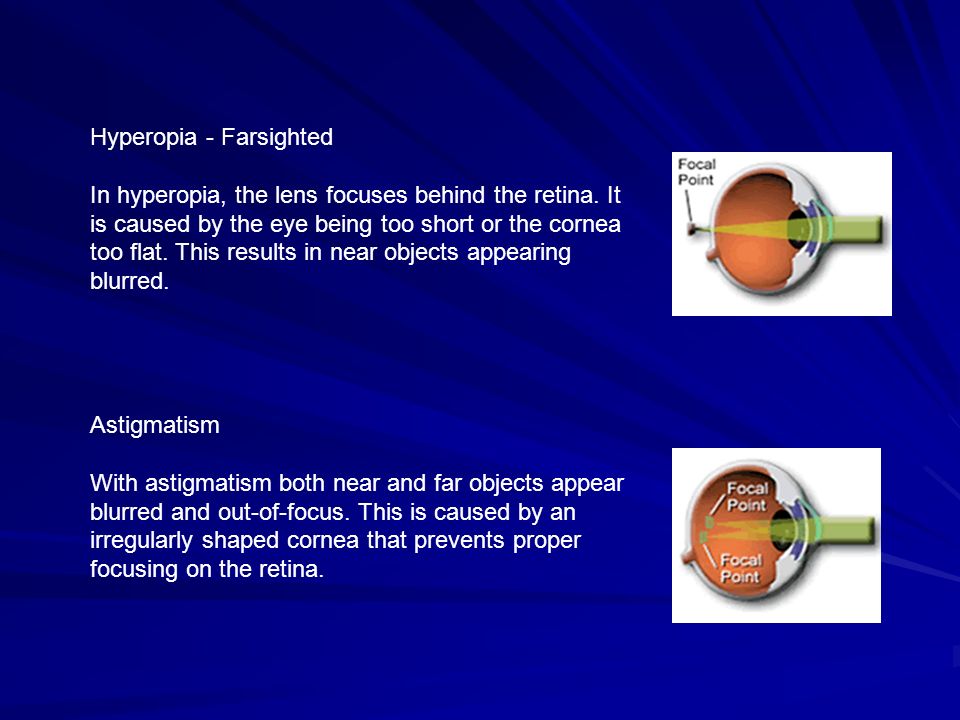

15. Hyperopia - Farsighted In hyperopia, the lens focuses behind the retina. It is caused by the eye being too short or the cornea too flat. This results in near objects appearing blurred. Astigmatism With astigmatism both near and far objects appear blurred and out-of-focus. This is caused by an irregularly shaped cornea that prevents proper focusing on the retina.

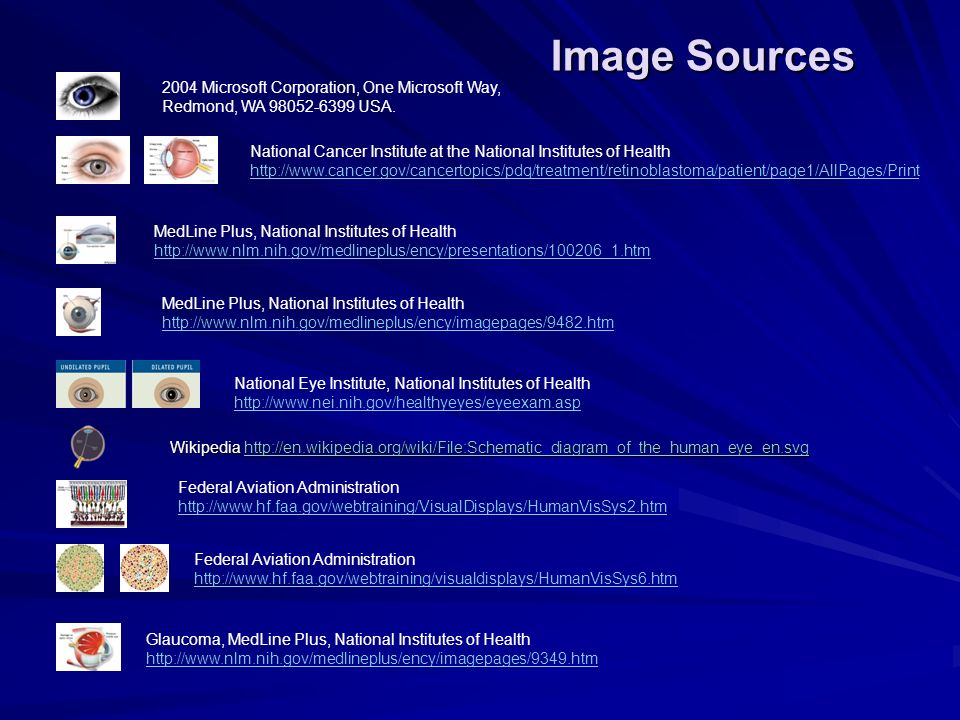

16. Wikipedia http://en.wikipedia.org/wiki/File:Schematic_diagram_of_the_human_eye_en.svg http://en.wikipedia.org/wiki/File:Schematic_diagram_of_the_human_eye_en.svg 2004 Microsoft Corporation, One Microsoft Way, Redmond, WA 98052-6399 USA. National Cancer Institute at the National Institutes of Health http://www.cancer.gov/cancertopics/pdq/treatment/retinoblastoma/patient/page1/AllPages/Print http://www.cancer.gov/cancertopics/pdq/treatment/retinoblastoma/patient/page1/AllPages/Print Image Sources National Eye Institute, National Institutes of Health http://www.nei.nih.gov/healthyeyes/eyeexam.asp http://www.nei.nih.gov/healthyeyes/eyeexam.asp MedLine Plus, National Institutes of Health http://www.nlm.nih.gov/medlineplus/ency/presentations/100206_1.htm http://www.nlm.nih.gov/medlineplus/ency/presentations/100206_1.htm MedLine Plus, National Institutes of Health http://www.nlm.nih.gov/medlineplus/ency/imagepages/9482.htm http://www.nlm.nih.gov/medlineplus/ency/imagepages/9482.htm Federal Aviation Administration http://www.hf.faa.gov/webtraining/VisualDisplays/HumanVisSys2.htm http://www.hf.faa.gov/webtraining/VisualDisplays/HumanVisSys2.htm Federal Aviation Administration http://www.hf.faa.gov/webtraining/visualdisplays/HumanVisSys6.htm http://www.hf.faa.gov/webtraining/visualdisplays/HumanVisSys6.htm Glaucoma, MedLine Plus, National Institutes of Health http://www.nlm.nih.gov/medlineplus/ency/imagepages/9349.htm http://www.nlm.nih.gov/medlineplus/ency/imagepages/9349.htm
