3. Page 3 01: Brand Introduction 02: System Overview and Configuration 03: Signature Features and Application 04: Component Parts and Accessories 05: Installation and Commissioning 06: Typical Customer Enquiries GB40 Glass Bridge

4. Page 4  SIMRAD – professional performance  Robust proven technology as used by professionals  Easy to install, operate and maintain  Modern sleek design, combining ruggedness and style  Fully integrated marine electronic packages with a “family design”. Instruments, navigation, steering, fish finding, communication and more  Flexible system combinations to fit any vessel Simrad Brand Introduction The Simrad brand offers:

5. Page 5 Boat Builders – looking for high-end brand name electronics to complement their brand strategy – Fully integrated display solutions – International service Technical Dealers – looking for high-end brand name electronics requiring professional sales and installation – Backed up by major brand End Customers – High-end motor and sail yacht owners looking for semi-custom electronic solutions – Backed up by a major brand without the risk and expense of custom solutions Simrad Target Market The Simrad brand is targetted for:

6. Page 6 New Simrad GB40 Glass Bridge Integrated Network System for larger Sail & Power Yachts…

7. Page 7  Chartplotter with 2D and 3D cartography  Radar  Fishfinder  Engine data  Instrument data  Video in – camera surveillance and film  Video out – DVI and RGB  Music juke box GB40 System Introduction GB40 is a true multi-function flexible navigation solution

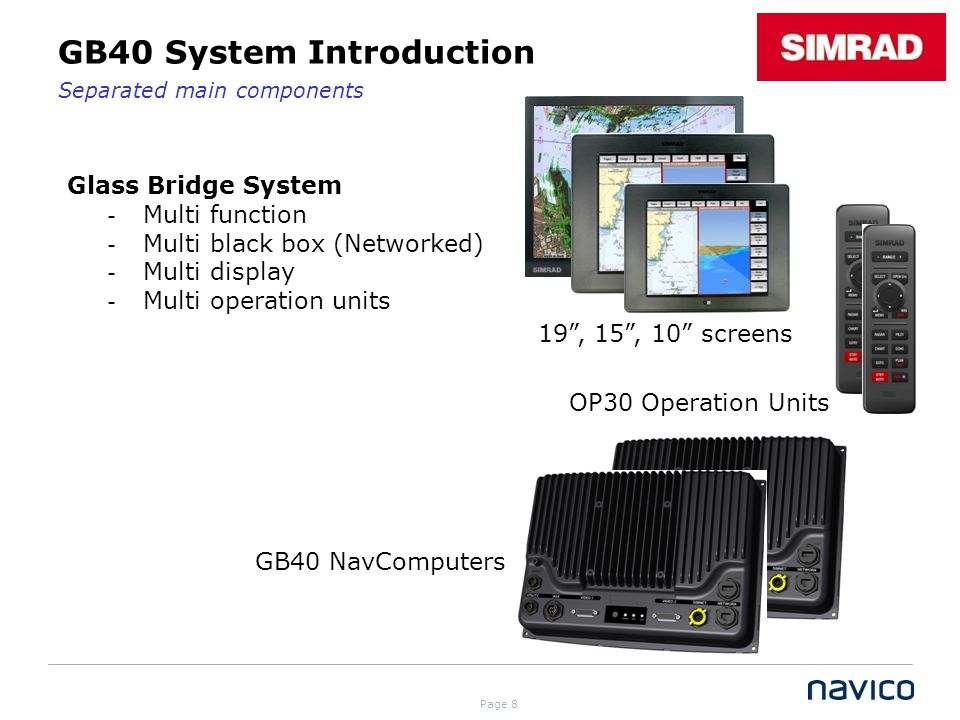

8. Page 8 Glass Bridge System - Multi function - Multi black box (Networked) - Multi display - Multi operation units 19”, 15”, 10” screens GB40 NavComputers OP30 Operation Units GB40 System Introduction Separated main components

9. Page 9 Boat Size Price Point (1000$) 30 feet45 feet60 feet C G H6 110 feet RAYMARINE A E 1 30 GB60 Glass Bridge GB40 Glass Bridge NX40/45 NavStation® series SIMRAD GB40 Positioning..a perfect solution for a 35 to 70 feet vessel

10. Page 10 Motor and sailing yachts ranging from 35ft to 70ft GB40 Positioning The target market for the GB40 is:

11. Page 11 Station 1 Station 2 Radar Processor Ethernet Linker TV Cameras Echosounder SimNet Data GB40 Glass Bridge GB40 is a true multi-function flexible navigation solution

12. Page 12 – Modular design concept allows precise matching of customer requirements for multi-screen, radar, echosounder etc. (Only pay for the functions you want or need) – Maximum active screen area for the size of the display – Separate control unit – Hide-away NavComputer – SimNet networking and control Signature Features and Applications GB40 key features: SimNet

13. Page 13 – Flexible concept from single screen to multiple screens and NavComputers – Chartplotter system can be expanded with radar and echosounder – Configure system to precisely match the customers requirements (Only pay for the functions you need) GS10 GPS/WAAS SimNet Antenna Station 1 Operation Unit Station 2 Display 1Display 2 RB Display 1 Display 2 NavComputer 2 NavComputer 1 Ethernet Linker Operation Unit Signature Features and Applications GB40 key features:

14. Page 14 – DI10 and DI15 displays can be fully integrated into a dashboard – Network distributed:  Cartography  Radar  Fishfinder  Video cameras  Music – Display with ‘analog gauges’ for engine data, battery status and tank levels or presentation of other important data – Built-in Entertainment System  Internal storage of digital music and video  Add CD/DVD player  Play from external hard drive or USB memory stick Signature Features and Applications GB40 key features:

15. Page 15 – C-Map MAX Pro, preloaded – Instant 2D chart zoom – Sophisticated 3D presentation combines:  Land elevation data  Satellite photos  Bathymetric sea floor data A stunningly beautiful virtual earth display that visually represents the environment around, above and below the vessel. Gives incredible level of situational awareness and increases safety C-Map MAX Pro Signature Features and Applications GB40 key features:

16. Page 16 C-Map MAX Pro Cartography GB40 Screen Examples: Signature Features and Applications GB40 key features:

17. Page 17 Network distributed functions – HD digital radar  High-definition  Multi-color  Mini-ARPA – 10 targets – C-MAP MAX Pro charts  Vector charts  Satellite photo overlay  Entrance photos  Radar overlay – AIS data presentation – avoid collision  Target presentation on chart  Target data  Collision guard – Digital echosounder  Dual frequency 50/200kHz  600 W and 1,000 W – Video presentation  Full screen  In a window Signature Features and Applications GB40 key features:

18. Page 18 – Direct pushbuttons to access Chart, Radar and Echo main pages – Toggle between main pages – 17 pre-defined pages in total ALL PAGES CAN BE EDITED BY THE USER ! Signature Features and Applications GB40 key features:

19. Page 19 – Easy access to all full-page functions and setup using the PAGES key Signature Features and Applications GB40 key features:

20. Page 20  Each GB40 NavComputer features three video outputs, Video1: DVI-D output for the master display and Video2: DVI-I with DVI-D for the second display and RGB output for monitor.  Up to six Networked GB40 NavComputers can be added for multi-display operation. Model #SpecificationImageP/N GB40 NavComputer  10 – 32 V DC  2 x DVI-D + 1 x RGB Output  Preloaded – MAX-PRO  50 GB HD  SimNet AA010010 Component Parts and Accessories GB40 NavComputer

21. Page 21 Model #Size & ResolutionInterfaceMax. cable length DI10 Display 10.4” TFT SVGA (800 x 600) (Fixed resolution) DVI20 m DI15 Display 15” TFT XGA (1024 X 768) (Fixed resolution) DVI20 m MO19 Monitor 19” TFT SXGA (1280 X 1024) (Can scale to SVGA or XGA input resolution) DVI or RGB 8 m (DVI) 25 m (RGB) Component Parts and Accessories Displays and monitor

22. Page 22 - Direct keys for main functions - Up to six OP30 to one GB40 - Can be mounted anywhere - Fully watertight - Operates in or out of cradle - Connects via SimNet, power and signal - 1.5 m SimNet cable Component Parts and Accessories OP30 Operation Unit

23. Page 23 Main parts included package:  GB40 NavComputer  OP30 Operation Unit  10, 15 or 19* inch screen  3 m (1.8 m*) video cable  SimNet Kit Multi-joiner Power cable with termination 5 m SimNet cable Termination plug Note: GPS antenna is optional 12V Component Parts Main system

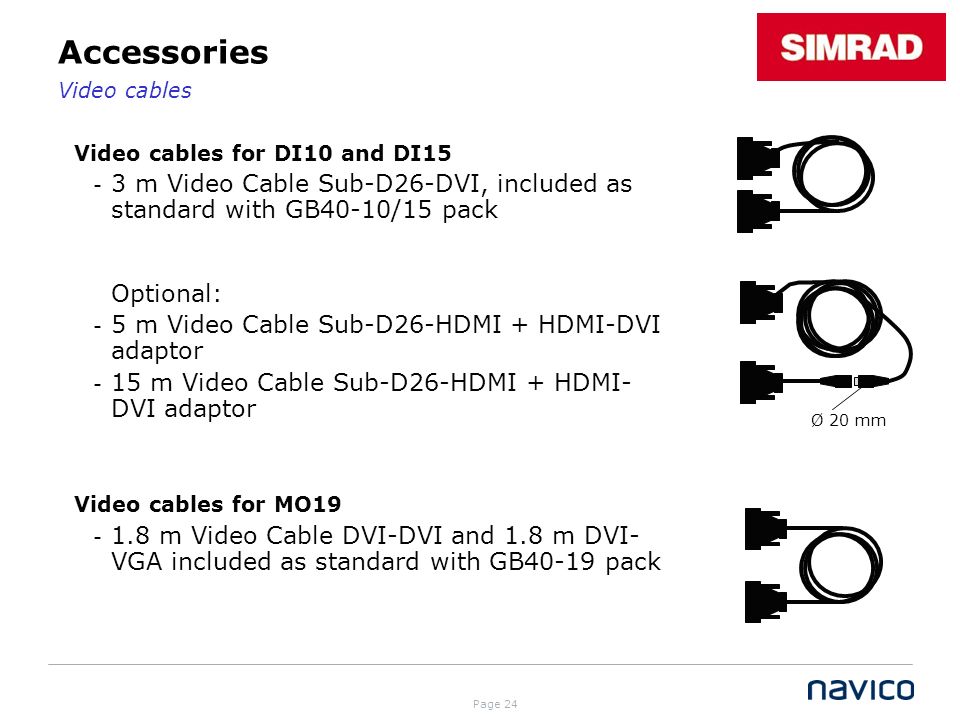

24. Page 24 Video cables for DI10 and DI15 - 3 m Video Cable Sub-D26-DVI, included as standard with GB40-10/15 pack Optional: - 5 m Video Cable Sub-D26-HDMI + HDMI-DVI adaptor - 15 m Video Cable Sub-D26-HDMI + HDMI- DVI adaptor Video cables for MO19 - 1.8 m Video Cable DVI-DVI and 1.8 m DVI- VGA included as standard with GB40-19 pack Accessories Video cables Ø 20 mm

25. Page 25 GS10 SimNet GPS/WAAS Antenna - 12-channel GPS receiver - WAAS and EGNOS capability - Connects via SimNet - 5.5 m SimNet cable - Surface mount capability - 1¼” mount adaptor Accessories GPS antenna

26. Page 26 Navico Broadband Radar – BR24 FMCW 18” (45 cm) 24 NM Note: Pack includes Radar Interface Box and 15 m cable Navico Radar Interface Box Accessories Radar Systems

27. Page 27 SIMRAD Radome packs – DX42S 2 kW 18” (45 cm) 24 NM – DX64S 4 kW 24” (60 cm) 48 NM Note: Pack includes radar processor and 15 m cable Open Scanner packs – TX06S-1 6 kW 4’ (1.2 m) 64 NM – TX10S-1 10 kW 6’ (1.8 m) 72 NM – TX25S-1 25 kW 7’ (2.1 m) 96 NM Note: Pack includes radar processor and 20 m cable Navico Network Radar Processor. Dedicated for each scanner size Accessories Radar Systems

28. Page 28 Navico Echosounder black box processor - Power output 600 W/1 kW - Transducer auto detect (600 W or 1 kW) - 50 and 200 kHz dual or single frequency operation - High impedance single line for 200/50 kHz Accessories Echosounder

29. Page 29 Model #SpecificationEchosounderPart Number EB40  200/50 kHz – 600/1 kWAA010011 Model #SpecificationTransducersPart Number M89  200/50 kHz – 1 kW (Very Low Q) Available directly from Airmar M260  200/50 kHz – 1 kW (Very Low Q) AA002016 B260  200/50 kHz – 1 kW (Low Q) AA002660 SS260  200/50 kHz – 1 kW (Low Q) Available directly from Airmar B258  200/50 kHz – 1 kW (Moderate High Q) AA002657 B744V  200/50 kHz – 600 W (High Q) AA002008 B744VL  200/50 kHz – 600 W (High Q) Available directly from Airmar Accessories Sounder transducers

30. Page 30 Model #SpecificationTransducersPart Number TH-Bronze  200/50 kHz – 600 W AA002018 TH-Nylon  200/50 kHz – 600 W AA002017 TM nylon  200/50 kHz – 600 W Speed/Depth/Temp AA002077 ST650/B17  Speed pulses / Water temp AA002007 ST650/P17  Speed pulses / Water temp NS001007 Accessories Sounder transducers

31. Page 31 Navico 8-Port Ethernet Linker - Connects up to eight Ethernet devices - GB40 NavComputers - Navico Radar System - Navico Echosounder - Video Server (cameras) Accessories Ethernet Linker

32. Page 32 Navico 4 Port USB Hub - Connects up to 4 USB devices to main unit - C-Map Hardware Key - Mouse or trackball - Keyboard - Navico DVD-CD player - USB Flash Drive Accessories USB hub

33. Page 33 Color Video Camera - High-resolution - Watertight - Infrared – Night vision AXIS 241Q Video Server - 4-channel composite video input Connect up to four cameras - Distributed via network. Video data is distributed to all connected NavComputers The GB40 includes an interface for the AXIS video server and AXIS network cameras 206 and 211. However, the AXIS products are not in the Navico program, but must be purchased locally Accessories Camera and video server

34. Page 34 AI50 AIS Receiver – AIS targets are visualized on the GB40 screen AT10 SimNet/NMEA0183 adaptor – Interface to NMEA0183 products AT10HD Heading Data converter – Interface SimNet heading data to Radar Processor. Comes with connector Simrad Magnetic Rate Compass – Precise heading data for radar overlay and MARPA WR20 Remote Commander – Nav info in the palm your hand! Note: WR20 will display data from the GB40, but it does not control the GB40 system Accessories SimNet products

35. Page 35 GB40-10 System - with 10” display  Function: Single Station Chartplotter  Content: DI10 - 10.4” Display, GB40 NavComputer, OP30 Operation unit, 3 m video cable GB40-15 15” System - with 15” display  Function: Single Station Chartplotter  Content: DI15 - 15” Display, GB40 NavComputer, OP30 Operation unit, 3 m video cable GB40-19 19” System - with 19” display  Function: Single Station Chartplotter  Content: DI19 - 19” Monitor, GB40 NavComputer, OP30 Operation unit, 2 x 1.8 m video cable (1 x DVI and 1 x VGA) GB40 Glass Bridge System configurations

36. Page 36 SimNet Network Data DVI Interface GB40 NavComputer OP30 GS10 SimNet WAAS-GPS Antenna Optional Displays and Monitor: DI10 10” Display DI15 15” Display MO19 19” Monitor GB40 Basic System Layout Single station

37. Page 37 Station 1 GB40 NavComputer OP30 GS10 SimNet WAAS-GPS Antenna Optional OP30 Station 2 Both displays must have same resolution (size) Both displays will show the same image SimNet Network Data DVI Interface GB40 Basic System Layout Dual station

38. Page 38 Station 1 GB40 NavComputer OP30 GS10 SimNet WAAS-GPS Antenna Optional OP30 Station 2 Note: The two displays must have same resolution (size) Monitor is scalable and can be used in conjunction with both 10 and 15 inch systems All screens will show the same image Monitor or TV SimNet Network Data DVI Interface RGB connection GB40 Basic System Layout Multi display

39. Page 39 SimNet Network Data DVI Interface Ethernet Network Data Display 1 GB40 NavComputer 1 Control 2 GS10 SimNet WAAS-GPS Antenna Optional Control 1 Display 2 GB40 NavComputer 2 Ethernet Displays can have different resolution (size) Displays can show individual images Two GB40s offer a higher degree of redundancy GB40 Basic System Layout Dual system

40. Page 40 SimNet Network Data DVI Interface Ethernet Network Data Slave Display 2 GB40 NavComputer 2 Slave Master Control GS10 SimNet WAAS-GPS Antenna Optional Slave Control 2 Master Display GB40 NavComputer 1 Master Ethernet Master and slave displays can have different resolution (size) and show individual images Slave displays must have same resolution and will show same image Two GB40s offer a higher degree of redundancy Slave Display 1 Slave Control 1 GB40 Basic System Layout Dual system

41. Page 41 Station 1 OP30 Station 2 Display 2ADisplay 2B Radar Processor Display 1A Display 1B NavComputer 2 NavComputer 1 Ethernet Linker OP30 Displays 1A and 2A must have same resolution (size) Displays 1B and 2B must have same resolution Displays A and B can show individual images Two GB40 offer a higher degree of redundancy GB40 Basic System Layout Dual display dual system

42. Page 42 Installation and Commissioning

43. Page 43 Power 10-32 V DC Utility NMEA0183 Alarm AUX Audio in/out Video1 DVI-D Video2 DVI-I (DVI-D + RGB) SimNet Control Interfacing Ethernet Radar Echosounder Other BB Cameras DVD USB Chart Key Mouse etc. GB40 NavComputer Connections

44. Page 44 The DI10 & DI15 Displays can be installed as:  Flush Mount  Rear Flush Mount  Bracket Mount Flush MountRear Flush MountBracket Mount GB40 Display Installation DI10 and DI15

45. Page 45 The GB40 operates with two different networks:  SimNet (medium speed) for control and sharing navigational data  Ethernet (high speed) for distribution of data from radar, echosounder and video cameras For the GB40 to operate properly the Ethernet has to operate. This can be a network device or the included ’Loopback’. Normal network with Ethernet Linker. Must be ON No network. Ethernet loopback is required for system to function normally Minimum network with crossover ’adaptor’ or ’off the shelf’ crossover cable. Network device must be ON GB40 Installation Network connections

46. Page 46 12/24V DC* 12V DC only A B/B* C H F D E G AGB40 NavComputer BDI10 or DI15, 10” or 15” Display Unit B*B* MO19, 19” Monitor, 24V DC only COP30 Operation Unit DChart Hardware Key EEthernet Loopback FSimNet Multi Joiner. Power plug with termination GSimNet Termination Plug HGS10 SimNet GPS Antenna - Optional GB40 Glass Bridge Minimum system requrement

47. Page 47 12/24V DC* 12V DC only A B/B* C H F D E I J G AGB40 NavComputer BDI10 or DI15, 10” or 15” Display Unit B*B* MO19, 19” Monitor, 24V DC only COP30 Operation Unit DChart Hardware Key EEthernet connection with crossover cable FSimNet Multi Joiner. Power plug with termination GSimNet Termination Plug HGS10 Active SimNet GPS Antenna – Optional I1 kW Network Sounder JTransducer GB40 with Sounder Minimum system requrement

48. Page 48 12/24V DC* 12V DC only A B/B* C H F D J I 12/24V DC* E G AGB40 NavComputer BDI10 or DI15, 10” or 15” Display Unit B*MO19, 19” Monitor, 24V DC only COP30 Operation Unit DChart Hardware Key EEthernet connection with crossover cable FSimNet Multi Joiner. Power plug with termination GAT10HD Compass data converter HGS10 Active SimNet GPS Antenna – Optional INetwork Radar Processor or interface for broadband *Note the individual 12/24V Requirement JRadar Scanner, radome or open scanner SimNet system with heading sensor GB40 with Radar Minimum system requrement

49. Page 49 12/24V DC* 12V DC only A B/B* C H G D E 12/24V DC* M J I L K F AGB40 NavComputer BDI10 or DI15, 10” or 15” Display Unit B* MO19, 19” Monitor, 24 V DC only COP30 Operation Unit DChart Hardware Key EEthernet connection FSimNet Multi Joiner GSimNet Termination Plug HOptional GS10 antenna INetwork Radar Processor or interface for Broadband * Note the individual 12/24V Requirement JRadar Scanner, radome or open scanner K1 kW Network Sounder LTransducer M8-Port Ethernet Linker GB40 with Sounder and Radar Minimum system requrement

50. Page 50 12/24V DC* 12V DC only A B/B* C H F D C 12/24V DC* E B/B* G AGB40 NavComputer B2 x DI10 or 2 x DI15 10” or 15” Display Units. Do not mix B*MO19 19” Monitor 24V DC only. Can be mixed in any combination COP30 Operation Unit DChart Hardware Key EEthernet Loopback FSimNet Multi Joiner GSimNet Termination Plug or further SimNet network HOptional GS10 antenna GB40 Multi Screen System Minimum system requrement

51. Page 51 12/24V DC 12V DC only A B C G F D C 12/24V DC E B C B* I Power source G F AGB40 NavComputer B2 x DI10 or 2 x DI15 10” or 15” Display Units. Do not mix B*B* MO19 19” Monitor or standard VGA monitor COP30 Operation Unit DChart Hardware Key EEthernet Loopback FSimNet Multi Joiner GSimNet Termination Plug or further SimNet network HGS10 Active SimNet GPS Antenna – Optional IDual Monitor Y cable: DVI-I to DVI-D and RGB (monitor) GB40 Multi Screen System Minimum system requrement

52. Page 52 12/24V DC* 12V DC only A B C H F D C 12/24V DC* E B G AGB40 NavComputer – Master with Chart License Key A* GB40 NavComputer - Slave BDI10, DI15 or MO19 Screens COP30 Operation Unit DChart Hardware Key EEthernet Linker FSimNet Multi Joiner GSimNet Termination Plug or further SimNet network HOptional GS10 antenna A* GB40 Multi Dual System Minimum system requrement

53. Page 53 Screens Spec DI10 and DI15Spec MO19 Power Supply10 – 32VDC24VDC (21 – 32V DC) Environment ProtectionIPX6 IPX6 when flush mounted (from front only) Resolution DI10: 10.4” TFT SVGA bonded DI15: 15” TFT XGA bonded 19” TFT SXGA bonded Video input1 x Proprietary DVI-D InputDVI-D, RGB, Composite and S-video Power On/Off & Dimmer ControlVia OP30 Operation unit+/- key on monitor NavComputer Spec. GB40 NC Power Supply10 – 32VDC Environment ProtectionIPX6 Digital/Analog Video Outputs 1 x DVI-D (Digital only) 1 x DVI-I (DVI-Digital and Analog RGB) SimNet (NMEA2000)1 Port, 1 SimNet load Ethernet1 Port USB 2.01 Port NMEA01831 x In/Out Port Audio OutLine out (Stereo) Alarm output< 250mA, 30VDC Speed log/temp.From SimNet or via Echosounder box KeypadOP30 operation unit InterfaceSimNet (12 V only), 2 SimNet loads Keypad Beeper>80dBA@0.5m BacklightRed (Night) Environment ProtectionIPX6 GB40 Technical Specifications

54. Page 54 C-Map MAX Pro The GB40 Glass Bridge system comes with a complete pre-loaded C-MAP MAX Pro data base, with free access to the world background chart. Full local area details are unlocked by a USB Hardware Key which must be programmed for the individual local areas by an authorized Simrad dealer. Unlock codes can be obtained from C-MAP via telephone or e-mail. A more automatic route is in progress. The Chart Key is to be inserted/connected to the NavComputer. For multi- systems it must be connected to the master unit only. GB40 Chart System C-MAP MAX Pro

55. Page 55 First year A license for C-Map MAX Pro includes a one-year free update of the purchased areas. For updating, a unique code for the purchased areas must be loaded onto a USB stick from the GB40. The USB stick is then to be connected to a PC and uploaded from the C-MAP data base via the internet. Reconnecting the stick to the GB40 and activating the upload function, automatically updates the purchased areas with the latest data. Following years The present plan is to update like above, but go via a dealer as the update is no longer free. C-Map MAX Pro GB40 Chart System Chart updates

56. Page 56 Future software enhancements for both the NavComputer, Radar processor and Echosounder black boxes are easily installed by downloading the relevant software to a USB hard drive or flash drive, connecting this to the USB port on your GB40 NavComputer and then activating the automatic upgrade function. The Upgrade function is located in the Setup menu. GB40 System Upgrading Upgrades via the USB port

57. Page 57 After the electronics have been installed the GB40 system must be setup for control unit(s), various data sources and master slave relations.  Press the ON/OFF key on the GB40 which is to be the master unit. All OP30s are assigned to this GB40 during start up  Hold down the PWR and MENU keys for 3 seconds on the OP30 which is to operate the second GB40. The OP30 will then reset and ready to be assigned to the next GB40  Power on the second GB40 on the ON/OFF key. The free OP30 will automatically be assigned  Follow the onscreen instructions for selecting master unit  Activate automatic data source selection when prompted or via the setup menu  Check data to be present from available sensors; GPS antenna, temperature etc.  Press RADAR to check radar black box, if applicable  Press ECHO to check echosounder black box, if applicable  Check other connected sensors, camera, engine etc., if applicable  Power system up and down a couple of times GB40 Commissioning Pre-commissioning after installation

58. Page 58 Before the boat is handed over to the customer, please ensure the following actions are taken:  Check that purchased regional charts are installed, updated and operative  Check the GPS position update function  Check the 50 kHz and 200 kHz echosounder function, if applicable  Activate radar and let it run in standby for 30 minutes before 1 st TX. Not applicable for Broadband Radar  Check normal radar operation  Adjust heading offset and range (timing)  Check radar overlay and Mini-ARPA function  Check all interface functions, AIS, instrument, engine, cameras etc.  Power system up and down a couple of times GB40 Commissioning Final commissioning prior to customer takeover

59. Page 59 In the event of product failure within the first three months, we recommend replacing the defective product or item and returning it to ELC (manufacturer) for thorough inspection/replacement GB40 Service Service and repair

60. Page 60  Extremely flexible system concept  10”, 15” and 19” bonded sunlight viewable screens  Up to three screens can be connected directly to one NavComputer  Separate keypad offers multiple and flexible operation positions and ensures maximum active screen area for size of monitor  Advanced C-Map MAX Pro, updates via internet (1 year free)  IPX6 Water Resistant  Radar option, Broadband, 2-25 kW radome and open scanners  10 target MARPA  600/1000 W automatic transducer sensing echosounder module  Extensive range of system upgrade modules and extras  Easy network installation and setup – Ethernet and SimNet GB40 Glass Bridge Unique Sales Points

61. Page 61 Typical Customer Enquiries

62. Page 62  Can I have different images shown on the two displays connected to my GB40? – No, a GB40 will only generate one image which is distributed to all displays  Can I connect a 10” and a 15” display to my GB40? – No, both displays must have same size (resolution). But you can replace one display with a monitor, which is able to change resolution  Can I use a DI10 or DI15 as a monitor for a PC? – No, the displays require special power-on and control signals  Is it possible to connect a third party AIS receiver with NMEA0183 output? – No, the GB40 will receive AIS data via SimNet only GB40 Typical Customer Questions

63. Page 63  I am not able to zoom into the chart and/or some on-screen ’keys’ do not function – It is most likely that the Ethernet function is missing. What’s required is either the Ethernet loopback or a functioning Ethernet Linker or other network device, radar or sounder via crossover cable  The OP30 will not control the GB40 system – The OP30 may not be assigned correctly to the main unit. Hold down the POWER and MENU keys for 5-6 seconds to reset the unit and switch off the GB40 on the ON/OFF key. Disconnect USB keyboard and mouse/trackball if connected. Turn unit on again by the OP30 POWER key  I have no detailed charts available – The GB40 comes preloaded with a full chart data base. For full regional details you need to purchase a C-Map license from your local dealer. The license is stored on a hardware key which must be connected to the main unit GB40 Typical Customer Questions
