The 50th anniversary of the mainframe

The 50th anniversary of the mainframe
NYC Linux on z Customer Council The 50th anniversary of the mainframe System z – Security in the Cloud Presented by: J Alyn Ward zSecurity Technical Specialist World-wide Enablement Team © 2014 IBM Corporation

“Traditional” Cloud Environment
Bluemix z/OS Employees Contractors Consultants Citizens Business Partners Customers

System z in the Cloud z/VM Linux on z Linux on z z/OS Employees
Bluemix Linux on z Linux on z z/OS IMS CICS DB2 z/VM Employees Contractors Consultants Citizens Business Partners Customers

Cloud Computing Delivery Models
Flexible Delivery Models Public … Service provider owned and managed Access by subscription Delivers select set of standardized business process, application and/or infrastructure services on a flexible price per use basis. Private … Privately owned and managed. Access limited to client and its partner network. Drives efficiency, standardization and best practices while retaining greater customization and control Cloud Services Cloud Computing Model Hybrid … Access to client, partner network, and third party resources .…Standardization, capital preservation, flexibility and time to deploy .… Customization, efficiency, availability, resiliency, security and privacy___ ORGANIZATION CULTURE GOVERNANCE ...service sourcing and service value 4 4

The Layers of IT-as-a-Service
Collaboration CRM/ERP/HR SAAS Business Processes Industry Applications Software as a Service Web 2.0 Application Runtime Java Runtime PAAS Middleware Database Development Tooling Platform as a Service Servers Data Center Fabric IAAS Networking Storage Infrastructure as a Service 5

Different Clouds, Different Responsibilities
The Cloud Curtain Collaboration CRM/ERP/HR SAAS Business Processes Industry Applications Software as a Service Customer Control The Cloud Curtain Web 2.0 Application Runtime Java Runtime PAAS Middleware Database Development Tooling Customer Control Platform as a Service Servers Data Center Fabric Curtain IAAS Networking Storage Customer Control Infrastructure as a Service 6 6

Traditional On-Premises
Infrastructure as a Service Platform as a Service Software as a Service Applications Applications Applications Applications Data Data Data Data Runtime Runtime Runtime Runtime Middleware Middleware Middleware Middleware O/S O/S O/S O/S Virtualization Virtualization Virtualization Virtualization Servers Servers Servers Servers Now, we know that most clients are going to need more than just infrastructure support. We also know that for certain workloads and applications, not everything will move to a cloud environment. Cloud is all about the trade-offs. If you’re willing to trade in customization for a more standard environment, then you’ll get the benefits of lower-costs and faster time to value. And that is really what happens as you move up the stack from traditional IT to infrastructure to platform to software as a service. You are willing to accept more standardized, automated solutions, but in return you also lower your Capex and Opex. I call this “value for savings” when you bring CPU costs down to pennies per hour. But I think the front office benefits of optimizing your business processes can be even more valuable. By creating a standard catalog of services you can achieve productivity enhancements of 2 times, 3 times and even 10 times. [Switch Image] Storage Storage Storage Storage Networking Networking Networking Networking Vendor Manages in Cloud Client Manages Standardization; OPEX savings; faster time to value

Security as a Potential Market Differentiator: Different Workloads have Different Risk Profiles
High Mission-critical workloads, personal information High value / high risk workloads need Quality of protection adapted to risk Direct visibility and control Significant level of assurance Private Analysis & simulation with public data Need for Security Assurance Hybrid Today’s clouds are primarily here: Lower risk workloads One-size-fits-all approach to data protection No significant assurance Price is key Training, testing with non-sensitive data Transparent Security: Infrastructure enables client to stay in control, ie, security is transparent and verifiable. Minimizes client trust, minimizes provider risk, but maximizes technology costs. Implicit Security: Provider acts as trusted guardian, client cannot directly inspect and verify security. Maximizes client trust, maximizes provider risk, but reduces technology costs. Low Public Low-risk Mid-risk High-risk Business Risk 8

System z Cloud Scenario #1: Private Cloud with Linux on z
Multiple workloads from distributed platforms consolidated into a single, scalable footprint utilizing Linux on z Employees Linux on z Linux on z Linux on z Contractors Consultants z/VM Web servers, portals, applications and data reside on the VM’s on System z utilizing zLinux Theoretically, this would be equivalent to a VMWare ESX server type of deployment Likely, it would only involve applications and data accessible by an organization’s employees, contractors and consultants.

System z Cloud Scenario #2: Private Cloud with Linux & z/OS
Multiple workloads from distributed platforms consolidated into a single, scalable footprint utilizing Linux on z and leveraging critical System z transactions and data Linux on z z/VM Employees Contractors Consultants z/OS IMS CICS DB2 Web servers, portals, applications and data would reside on one, or more, VM’s utilizing zLinux and on z/OS. Examples: CICS transactions running under z/OS accessing databases running on zLinux Java applications running on zLinux accessing databases running on z/OS Java applications running on zLinux “kicking off” CICS transactions on z/OS As in the first scenario, it likely would only involve applications and data accessible by an organization’s employees, contractors and consultants.

System z Cloud Scenario #3: Hybrid Cloud (IaaS and PaaS)
Enterprise applications moved to public cloud environments, including IaaS and PaaS, and integrating with Systems of Record deployed on System z within the enterprise Linux on z z/VM z/OS IMS CICS DB2 PaaS Bluemix IaaS Employees Cloud applications are “reaching back to” the System z to either execute CICS transactions on z/OS or access databases on z/OS or zLinux Private cloud scenario where it would only involve applications and data accessible by an organization’s employees, contractors and consultants or Public cloud scenario where the applications are being accessed by customers, clients, citizens, etc. Contractors Consultants Citizens Business Partners Customers

System z Cloud Scenario #4: Hybrid Cloud (SaaS)
Enterprises consuming SaaS applications delivered from the Cloud, which integrate with Systems of Record deployed on System z within the enterprise Linux on z z/VM z/OS IMS CICS DB2 SaaS Employees SaaS applications are “reaching back to” the System z to either execute CICS transactions on z/OS or access databases on z/OS or zLinux Private cloud scenario where it would only involve applications and data accessible by an organization’s employees, contractors and consultants or Public cloud scenario where the applications are being accessed by customers, clients, citizens, etc. Contractors Consultants Citizens Business Partners Customers

Typical Client Security Requirements
Governance, Risk Management, Compliance 3rd-party audit (SAS 70(2), ISO27001, PCI) Client access to tenant-specific log and audit data Effective incident reporting for tenants Visibility into change, incident, image management, etc. SLAs, option to transfer risk from tenant to provider Support for forensics Support for e-Discovery Application and Process Application security requirements for cloud are phrased in terms of image security Compliance with secure development best practices Physical Monitoring and control of physical access People and Identity Privileged user monitoring, including logging activities, physical monitoring and background checking Federated identity / onboarding: Coordinating authentication and authorization with enterprise or third party systems Standards-based SSO Data and Information Data segregation Client control over geographic location of data Government: Cloud-wide data classification Network, Server, Endpoint Isolation between tenant domains Trusted virtual domains: policy-based security zones Built-in intrusion detection and prevention Vulnerability Management Protect machine images from corruption and abuse Government: MILS-type separation Based on interviews with clients and various analyst reports 13 13

Fortunately IBM’s System z is Highly Secure
Highly secure platform for virtual environments and workloads 80% of all active code runs on the Mainframe1 80% of enterprise business data is housed on the Mainframe1 This makes the Mainframe a desirable target for hackers Security is built into every level of the System z structure Processor Hypervisor Operating system System z security features address compliance Identity and access management Hardware and software encryption Communication security capabilities Extensive logging and reporting of security events Communications Storage Applications Extensive security certifications (e.g., Common Criteria and FIPS 140) including EAL5+ But today’s mainframe must interoperate in a complex environment including cloud, mobile, big data and social networking and is susceptible to multiple vulnerabilities Build on last bullet: But the mainframe is exposed to multiple common security vulnerabilities Outdated or insufficient security strategies on z/OS, including UNIX on z/OS (USS), that don’t acknowledge modern z/OS connectivity Many internal users have unintended access to facilities in z/OS that bypass controls and therefore should be tightly managed: specialized executable libraries (APF) techniques that bypass tape controls access to production data from less secure development and test environments facilities in z/OS UNIX environment (USS) Universal Access Authority (UACC) in RACF Unmonitored specialized programs (SVCs) These unintentional privileged users become unexpected targets for identity theft Source: IBM Pre-Sale Mainframe Security Health Checks 1Source: 2013 IBM zEnterprise Technology Summit

http://www.vm.ibm.com/security/zvminteg.html Certification: z/VM
Statement of System Integrity Common Criteria z/VM 5.1 certified 2Q 2005 EAL 3+ for LSPP & CAPP z/VM 5.3 certified 3Q 2008 EAL 4+ for LSPP & CAPP z/VM 6.1 certified 1Q 2013 EAL 4+ for OSPP – LS –VIRT Every other release, does this work for everyone? 15 15

Certification: Logical Partition (LPAR)
IBM eServer zSeries 900 (z900) 12/02 Common Criteria EAL4/EAL5 IBM eServer zSeries 800 (z800) 5/03 Common Criteria EAL4/EAL5 IBM eServer zSeries 990 (z990) 10/04 Common Criteria EAL4/EAL5 IBM eServer zSeries 890 (z890) 6/05 Common Criteria EAL4/EAL5 IBM System z9 109 3/06 Common Criteria EAL5 IBM System z9 EC & BC 8/06 Common Criteria EAL 5 IBM System z10 EC & BC 5/09 Common Criteria EAL 5 IBM System zEnterprise 196 & 114 3/12 Common Criteria EAL 5 IBM System zEnterprise EC12 & BC12 Common Criteria EAL 5+ Helps assure you have a certified stack on top of the 16 16

Certification: Linux on System z Distributions
Version Certification Level Status Novell SUSE SLES 8 CAPP – EAL 3 + Complete SLES 9 CAPP – EAL 4 + SLES 10 SLES 11 SP2 OSPP – EAL 4 + RedHat RHEL 3 RHEL 4 RHEL 5 CAPP / LSPP – EAL 4 + RHEL 6.2 OSPP – EAL 4 + (w/ SFR for MLS) RHEL 7.1 In assessment Moved to the point releases, as we notice customer are more likely to move a point release, typically a more stable release. 17 17

RACFVM Security Controls
Mixed-case passwords and long phrases Virtual Switches and Guest LANs VLANs Minidisks Shared memory Shared virtual machines Spool files Control and auditing of security-relevant events can be configured through Discretionary or Mandatory Access Controls Terminals (restricted login) Multiple security zones (projects) Security clearances within zones Certain commands (e.g. STORE HOST) Control Program interfaces Full audit: interface, command, virtual machine The z/VM Control Program (CP) manages authorization and authentication based upon roles and privileges. An ESM extends z/VM’s capabilities by providing both a finer granularity of control and the ability to enact more complete isolation of guests and projects … all in a consolidated interface. An External Security Manager wraps around z/VM and provides a finer grain of control on commands, as well as far more extensive auditing. z/VM’s ESM of choice is RACFVM, which is a version of the z/OS RACF. Their capabilities are similar, and they come from a common code base, so the ideas translate from one operating system to another. Note that IBM does *NOT* recommend sharing a RACF database between a z/VM system and a z/OS system – they will understand one another, but their security contexts tend to be very different, and the requirements for making the sharing work may be prohibitive. RACF enhances the VSWITCH technology mentioned earlier by allowing the system administrator to define a virtual machine as being a part of a VMLAN group. It can take zoning a step further by using “Mandatory Access Controls” – a system-wide set of rules which effectively “color-code” all the resources on the system. It’s through a combination of MAC and DAC (Discretionary Access Controls … ACLs and whitelists and the like) that one can implement multi-tenancy on a single z box: you could put Coca Cola and Pepsi on the same machine, and never the twain shall meet. An ESM can return one of three possible answers to a security control request: “Authorization granted.” “Defer security decision to Native CP.” “Authorization denied.” Note that the decision to defer to CP can be overrode with the appropriate configuration changes.

Integrity of Virtual Machines
The z/VM System Integrity Statement: The z/VM Control Program enforces the separation of virtual machines, and manages the ability to touch memory. The point to emphasize here is the guest of virtual machines. For those unfamiliar with virtualization, it’s tempting to think that there can be data collisions in between two guests. In fact, System z enforces guest isolation at the hardware instruction level. The SIE instruction, whether you’re operating first or second level, is a container in which virtual addresses are used and operations are carried out. Summary: a guest will be completely isolated from another guest, unless a system administrator grants special access in the USER DIRECTORY. Review the “z/VM System Integrity Statement and Definition” at the URL above. CP Real Memory

VSWITCH and VLANs z/VM z/OS DB2 LPAR 1 LPAR 2 web web db web db db app
A Virtual Switch is a special form of Guest LAN controlled by the z/VM Control Program (CP). It understands IEEE VLAN technology, so you can configure them to understand particular LANs that already exist on your network. This also means that you can have guest virtual servers isolated into different zones – a web app can talk to a web app reasonably well, but an app cannot talk to, say, DB2 running under z/OS in another LPAR without passing through a firewall of some sort. You could put all outward-facing programs in one LPAR, and all inward-facing programs in another LPAR, and the databases in another LPAR … but z/VM’s networking is controllable to the point where that isn’t necessary. To internet With 1 VSWITCH, 3 VLANs, and a multi-domain firewall

Distributions Embracing Security
Hardening Secure shell Virtual Private Network Enhanced Audit Capability Enhanced Authentication Options Enhanced Firewall Management Intrusion Detection Systems Cryptographic Libraries and Access to Hardware Host and Network Scanning Tools Certifications 11 years ago when linux started and traction in the market was gaining, it was deployed that everything was initial deployed, telnet, ftp, webserver came running out of the box. It was great, running, and everyone was happy. As a server environment, you want everything off and start up what you need to require to help secure your env. We worked with SUSE and REDHAT to incorporate these functions into the linuxs releases. 21 21

Linux on System z Security Building Blocks
Access Control SELinux, AppArmor, sudo, IBM Security Access Manager & WebSeal, CA's eTrust Access Control & Web Access Anti-Virus/Anti-Spam ClamAV, OpenAntiVirus, AmaViS, MIMEDefrag, TrendMicro’s ServerProtect & ScanMail, Network Associates, Roaring Penguin’s CanIt Directory Services Open LDAP, NIS/NIS+, IBM Directory Server, CA's eTrust Directory, PADL’s XAD, Quest’s VAS Digital Certificates Freeware PKI, z/OS PKI Services Firewall IPTables/NetFilter, IBM/ISS PSL* for Linux on System z, webApp.Secure Intrusion Detection Snort, AIDE, Snare, PortSentry, TripWire, OSSec, LIDS, IPLog, IBM/ISS PSL* for Linux on System z, PredatorWatch, SafeZoneNet Note, Key technologies have been covered over the years working with vendors ongoing development Open Source Vendor * Proventia Server for Linux 22 22

Linux on System z Security Building Blocks
Secure Network Communications OpenSSH, GnuPG (OpenPGP compliant), USAGI IPv6, FreeS/WAN, CA's eTrust VPN, SecureAgent Software, PGP Command Line Secure Socket Layer (SSL) OpenSSL, PKCS#11, GSKIT System Hardening Bastille, Tiger, RedHat, Novell SuSe Secure Data dm-crypt, ppdd, CFS, Network Associates' e-Business Server Distributed Policy Management IBM Security Access Manager, CA's eTrust Directory Proxy Server Proxy Suite from SuSE, IBM Edge Server Note, Key technologies have been covered over the years working with vendors ongoing development Open Source Vendor 23 23

System z Security Solutions System z Security solutions to address specific needs in the marketplace based on areas identified as key areas for Security. Solutions consist of HW, SW & Services Enterprise Key Management Pillar - Advanced Crypto Services Provider (ACSP) Leverages z/OS, ICSF, & Crypto Express hardware to centralize operational keys on z/OS for distributed applications Enterprise Key Management Pillar - Crypto Analytics Tool (CAT) Builds on EKMF foundation & provides insight on key usage and potential crypto key exposures Key Management: Focus on management of keys & certificate while meeting compliance standards and audit reviews Enterprise Key Management Foundation (EKMF) – Available Provide a centralized key management solution that leverages clients’ investments IBM System z Hardware Cryptography for the ultimate protection of sensitive keys and meeting compliance standards Compliance: Focus on keeping ahead of industry standards for System z – enabling our systems to be compliant to the latest standards and make passing audits easier – e.g. – PCI Compliance IBM Payment Card Industry Hardware Collection – Available The IBM Payment Card Industry Compliance collection is the basis in establishing a highly secure management hardware cryptographic model 24 24

Linux on System z Cryptography
Security on System z Linux on System z Cryptography 25

Integrated System z processor based Crypto: CPACF
The Central Processor Assist for Cryptographic Function (CPACF) is available on every processor unit defined as a central processor (CP). Provides a set of symmetric cryptographic functions that cab be used to enhance the encryption and decryption performance of clear-key operations for: Secure Sockets Layer (SSL), Virtual Private Networks (VPN) and Applications not requiring a high level of security such as Federal Information Processing Standard (FIPS) Security Level 4. CPACF is explicitly enabled using a no-charge enablement feature (#3863). Secure hash algorithms (SHA-1, SHA-224, SHA-256, SHA-384, and SHA-512) are shipped enabled on all servers with processor units (PUs) defined as CPs, IFLs, zIIPs, or zAAPs. The CP Assist for Cryptographic Function offers: For data privacy and confidentiality Data Encryption Standard (DES) Triple Data Encryption Standard (TDES) Advanced Encryption Standard (AES) for 128-bit, 192-bit, and 256-bit keys For data integrity Secure Hash Algorithms SHA-1: 160 bit SHA-2: 224, 256, 384, and 512 bit For message authentication codes (MAC) Single-length key MAC Double-length key MAC Core2 Core0 Core4 L3C 1 MCU L3C 0 GX Core1 Core3 Core5 zEC12 CP 26

Integrated System z Coprocessor Crypto: Crypto Express4S
Crypto Express4S represents the latest generation cryptographic feature Designed to complement the cryptographic capabilities of the CPACF. The Crypto Express4S: Tamper-sensing and tamper-responding – "zeroizes" if a tamper is detected Programmable cryptographic feature providing a secure cryptographic environment Can be configured in one of three ways using the Hardware Management Console (HMC) panels: IBM Common Cryptographic Architecture (CCA) coprocessor Secure key operations User-defined extension (UDX) services to implement custom cryptographic functions and algorithms Applies only when configured as an IBM CCA coprocessor Configured as an Accelerator, it is optimized for: Secure Sockets Layer (SSL) acceleration using clear key RSA operations. IBM Enterprise PKCS #11 (EP11) Coprocessor – new with the zEC12 processor Designed to provide open industry standard cryptographic services. EP11 is based on PKCS #11 specification v2.20 and more recent amendments Designed to meet the rigorous FIPS Security Level 4 and Common Criteria EAL 4+ certifications. Designed to meet public sector and European Union requirements where standardized crypto services and certifications are needed. 27

z/VM and Hardware Cryptography Virtualization
Virtual machines have access to CPACF Crypto Card Support, starting with the CryptoExpress 2 feature Available to guest virtual servers Accelerator mode, coprocessor mode, and (CEX4S) EP11 modes Clear key, secure key, and protected key operations for guests Managed in the CP User Directory – dedicate domains to a virtual machine z/VM has native TLS Support in its TCP/IP stack z/VM System SSL and CPACF z/VM supports Encrypted-Read and Encrypted-Write of data to/from the 3592 Model E05 tape drives (and C06 Control Unit) Operations can be transparent after configuration (if using default keys); guests are unaware Requires use of an “out of band” Encryption Key Manager (EKM) CPACF can be used by any virtual machine. The z/VM SSL Server, which protects TCP/IP traffic in the CMS space (not the Linux space), uses CPACF. Any guest that can able CPACF can use it; it is not controlled by the directory. z/VM controls a guest’s ability to use the Crypto Cards. Either a guest can use a domain dedicated to it in the User Directory, or it can use a domain from a queue of Shared Domains. A CMS guest (a pure z/VM virtual machine) or a second-level z/VM guest won’t make use of the Crypto cards. Today, they’re specifically for use by guest virtual servers (e.g., Linux).

RAS in the Linux on System z Crypto Device Driver
crypto requests submitted by user space applications: Program submits crypto request with IOCTL to /dev/z90crypt. Linux crypto device driver selects most appropriate adapter for request supports requested function has most capacity left Linux crypto device driver submits request to selected adapter. If request fails crypto DD will retry on same adapter (if reasonable) crypto DD will retry on an alternative appropriate adapter If all recovery options in device driver fail crypto DD will present error code If the libica clear key crypto library observes an error code on rsa or random requests it will use a software fallback function. RSA_modexpo RSA_crt CCA request read random no /dev/z90crypt /dev/hwrng kernel crypto DD crypto request scheduler IOCTL , a mechanism to talk between the user address space and kernel. LIBICA will route to SW if it can (clear key requests) CEX3A CEX2A CEX3C 29 29

Update on Crypto Express 4S Support
Linux Toleration Support CEX4A adapter is recognized as and works like CEX3A CEX4C adapter is recognized as and works like CEX3C available in RHEL 6.2 and SLES 11 SP2 available for RHEL 5.9 and SLES 10 SP4 per maintenance update Linux Exploitation support initially only for accelerator and CCA coprocessor personalities displays HW type 10 and shows CEX4A and CEX4C in sysFS lszcrypt displays ap_functions attribute in sysFS, human readable in lszcrypt supersedes toleration support available with RHEL 6.4 and SLES 11 SP3 targeted for SLES 12 and RHEL 7 z/VM support CEX4A, CEX4C both dedicated and shared guest support CEX4P only dedicated support APAR VM65007 for versions 5.4, 6.1 and 6.2 CEX4C sharing requires APAR VM65308 Linux Toleration Support: Why do we do this toleration support. We do not preannounce HW. We have to be done 6 months prior to a distribution GAing, up to a year. 30 30

Clear Key / Secure Key / Protected Keys
Key may be in the clear, at least briefly, somewhere in the environment Least secure as the key may be visible to application logic Crypto engines built directly into the System z CP support clear key operations Secure Key Key value does not exist in the clear outside of the HSM Keys are encrypted or "wrapped" by a hardware Master Key that resides in the System z Crypto Express coprocessor Secure, tamper resistant boundary of the Crypto Express coprocessor card Protected Key Key value does not exist outside of physical hardware – keys not visible to OS or applications Used by the System z CPACF for high speed secure processing of crypto operations Exclusive to System z

Load Balancing Secure Key Requests in the Crypto DD
Program submits crypto request with IOCTL to /dev/z90crypt Secure key crypto requests are typically directed to a specific adapter Linux crypto device driver support directs requests to an adapter set CCA requests to any CCA coprocessor Device driver then selects the adapter with most capacity left Resulting in increased crypto capacity for applications RAS in crypto device driver for secure key request CCA library provides a programming interface to set a target adapter to “any coprocessor” Note: all potential target adapters must be of same/compatible types all potential target adapters must have the same state manage adapters only while application offline no retained keys crypto requests submitted by user space applications: RSA_modexpo RSA_crt CCA request read random no /dev/z90crypt /dev/hwrng kernel crypto DD crypto request scheduler Remind them that if they have multiple card, in order to route them to either, they need to have the same Master key. Retained Keys on Linux for system z should be avoided. If using them and routed functions to the other crd will not work. And how do you back up your retained keys? Need to consider persistent key stores, Java, PKCS11, CCA, etc. CEX3A CEX4C CEX4C 32 32

Current Linux on System z Crypto Stack
openssh (ssh, scp, sftp) Apache (mod_ssl) Apache (mod_nss) IBM C/C++ SW. Customer C/C++ SW using PKCS#11 WAS Customer Java/JCE SW Customer CCA SW Application Layer NSS GSKIT JCA/JCE Standard Crypto Interfaces ICC IBMPKCS11Impl openssl / libcrypt Opencryptoki (PKCS#11) ibmca engine ica token cca token System z HW Crypto Libraries ICA (libica) CCA (libcsulcaa) In Linux 2.6 Kernel, they added support for kernel primitives. Is 2.6 and later, the crypto primitives can be backed automatically by the CPACF. If Ipsec and DM-Crypt are compiled for Z, you get the CPACF exploitation automatically when available. Kernel Operating System IPsec dm-crypt Kernel crypto framework zcrypt device driver System z backend Hardware CPU Crypto Adapters CPACF (DES, 3DES, AES, SHA, PRNG) Accelerator (RSA) EP11 Co-Processor CCA Co-Processor (RSA, RNG, ECC) clear key protected key secure key 33 33

Remote EP11 Crypto Stack Java API JCA cross platform solution
PKCS#11 API via openCryptoki (version 3.0) new ICSF token for openCryptoki (open source, cross platform) new LDAP service in z/OS with EP11 support Timeline released to open source push open source code into distributions z/OS part to be included in in z/OS 2.1 IBMPKCS11 Impl C/C++ API openCryptoki (PKCS#11) ICSF token network z/OS with EP11 Server (LDAP) 34 34

Latest on Linux on System z Crypto Stack
openssh (ssh, scp, sftp) Apache (mod_ssl) Apache (mod_nss) IBM C/C++ SW. Customer C/C++ SW using PKCS#11 WAS Customer Java/JCE SW Customer CCA SW Application Layer NSS GSKIT JCA/JCE Standard Crypto Interfaces ICC IBMPKCS11Impl openssl / libcrypt via network opencryptoki (pkcs#11) ibmca engine ica token cca token icsf token z/OS EP11 server System z HW Crypto Libraries ICA (libica) CCA (libcsulcaa) Server that sits and runs on LDAP for 2.1 Remote Crypto see, z/OS 2.1 RFA Kernel Operating System IPsec dm-crypt Kernel crypto framework zcrypt device driver System z backend Hardware CPU Crypto Adapters CPACF (DES, 3DES, AES, SHA, PRNG) Accelerator (RSA) EP11 Co-Processor CCA Co-Processor (RSA, RNG, ECC) clear key protected key secure key 35

openCryptoki Key Stores
openCryptoki stores token objects (keys, certificates) “with” the token PKCS#11: token objects are persistent objects (e.g. keys, certificates) for ICA, CCA, EP11 tokens: stored in an encrypted file associated with the token (access permissions should be restricted to the token owner) access to (private) token objects is USER PIN protected JCA can access openCryptoki key store via PKCS11IMPLKS key store (access requires USER PIN) The CCA token does not support retained keys. The EP11 token does not support retained keys 36 36

EKMP-ACSP Components – Crypto as a Service
The IBM EKMP- ACSP is a client/server solution that enables distributed platforms to use cryptographic hardware on a System z resulting in a cost effective use of available cryptographic capacity; and centralized key storage on System z helping simplify key management Distributed Platforms (System i/p/x or third party) Server with IBM Crypto Hardware Business Application ACSP Client ACSP Server IBM Crypto Hardware Secure channel Here's a different view of the ACSP componments – and the platforms and environents. The left hand side of the page shows the client platforms supported by ACSP that communicate via a protected channed to the ACSP server. As you can see from the right hand side of the slide – the ACSP server supports multiple hardware and OS environments – where IBM HW cryptography is supported ACSP client platforms AIX, i5, Linux, Windows PureSystems (in reality any Java platform) ACSP client APIs CCA in Java and C PKCS#11, JCE Transport network IP SSL/TLS protected (client/server auth,) ACSP server platform System z: z/OS (CEX3/4) System p: AIX (4765) System x: SLES, RHEL (4765) PureSystems

Crypto Health Checks Linux Health Checker (LNXHC)
a framework & tool to check whether the set up of a system is correct or follows best practices the set of checks is extensible adaptable profiles to match set of applicable checks to customer environment provides indications of problems found Explanation of the problems hints to resolve problems Crypto health checks to validate crypto configuration: crypto_cca_stack crypto_cpacf crypto_opencryptoki_ckc crypto_opencryptoki_ckc_32bit crypto_opencryptoki_skc crypto_opencryptoki_skc_32bit crypto_openssl_ibmca_config crypto_openssl_stack crypto_openssl_stack_32bit crypto_z_module_loaded User Framework Health checks are for the entire systems not just crypto of security. This checks plug into that framework and can be extended by customers as needed. Health Checker Collect system information Generate results Target system Plug-ins Health Checks Consumers Report 38 Notification © 2013 IBM Corporation 38

Public Key Infrastructure (PKI)
Public/Private Key Pair Confidentiality and Data Integrity RACF’s Digital Certificate Support Life Cycle Management (create, manage, store, distribute, verify) z/OS as Certificate Authority (trusted third party) SSL Support System z z/OS z/VM Linux: CA/PKI Administration CA Server HTTPD Linux: Web Server Windows RACF PKI Services Sign for data integrity Browser Linux: End User Linux is an exploiter of z/OS PKI. Using IEDN for guest communication, physical security. Also allows PKI services to stretch into the zBX environments for additional exploitation on X and P for appservers, webservers, etc. Encrypt for confidentiality Linux RACF DB Browser LPAR Workstation HW Crypto Manageme nt of PKI Services Browser 39 39

Centralized Authentication & User Management
Common Client – PAM Integrated LDAP Server on z/OS and z/VM LDAP backed by RACF or DB2® or BFS System z z/VM z/OS Linux ITDS (LDAP) PAM Linux Linux PAM DB2 or Linux PAM Distributed ITDS (LDAP) RACF Linux Linux PAM Mapping Distributed Identities on RACF, get PAM as part of Linux. PAM calls LDAP, verified identities. LDAP can be backed by DB2, RACF. RACF get authentication. DB2 get NSS data, home directory, what shell are you using, etc. or PAM PAM BFS RACF Linux LPAR PAM 40 40

Redbook: Enterprise Multiplatform Auditing (SG247472)
Centralized Audit System z Common Client – auditD with plug-in Integrated LDAP Server on z/OS and z/VM LDAP backed by RACF z/VM z/OS or z/VM Linux auditD Plug- in ITDS (LDAP) Linux Linux auditD Plug-in auditD Plug-in Linux Distributed Audit Demon (open source) that is distributed, uses LDAP Xops, to centralize audit info from linux guests to a centralize z/OS or zVM. Back end, any audit analysis tools you use on z/OS or z/VM can also run on your linux audit data. auditD Linux RACF Plug-in auditD Plug-in LPAR Redbook: Enterprise Multiplatform Auditing (SG247472) 41 41

IBM Enterprise Key Management Foundation for Integrated Key Management
IBM Enterprise Key Management Foundation powered by DKMS Centralized key lifecycle management with single point of control, policy, reporting, and standardized processes for compliance EMV & PCI Standards EKMF provides proven experience in the enterprise key management space Capabilities tailored to the needs of the banking and finance community Adherence to key banking and finance standards Trusted Key Entry (TKE) workstation provides a secure environment for the management of crypto hardware and host master keys SKLM for z/OS provides proven key serving and management for self encrypting tape and disk storage capabilities to devices The capabilities of EKMF, TKE, and SKLM provides an optimum solution that addresses the needs of multiple client and marketplace needs Tape devices Enterprise Tape Library EKMF SKLM Disk Storage Array TKE for Crypto Express Hardware management EKMF for application key management IBM’s EKMF provides the foundation for Integrated and Extensible Key Management

Introducing EKMP – Crypto Analytics Tool (CAT)
The IBM EKMP - Crypto Analytics Tool (CAT) collects crypto information from a z/OS, analyzes it and delivers reports and tree view of key material Solution Summary - CAT is a tool that collects all kinds of crypto information from various sources on IBM System z. It then performs correlations and analysis that are presented to the user in a comprehensible fashion bringing a complete overview of the crypto system on z (current setup, possible security issues, real time use of crypto, etc) Requirements – Bill of Materials z196/z114/EC12/BC12 z/OS ICSF Version 1.13 or higher DB2 V 9.1 or higher IBM Enterprise Key Management Foundation - Installation & Configuration Enterprise Key Management Foundation Licenses and Service EKMP – Crypto Analytics Tool (CAT) Solution Benefits Control – Clients need to have control over which applications are using which cryptographic functions and keys Up to date view – Clients need to be able to monitor the keys and functions being used by their users as well as be able to highlight possible security issues Determines if weak keys are being used

Introducing IBM Payment Card Industry Hardware Collection
The IBM PCI Hardware Collection configuration supports critical System z environments while delivering the Ultimate Security with an extensive range of unique System z Security Solution Summary The IBM Payment Card Industry Compliance collection is the basis in establishing a highly secure management hardware cryptographic model. Composition of Offering: CryptoExpress 3/4S Trusted Key Workstation (TKE) SmartCard Reader SmartCard The Trusted Key Entry Workstation, Smart Card & Crypto Card combination provide the highest level of protection of data while addressing the robust and comprehensive PCI Standards business need to adhere to. Business outcomes “If you don’t have a Mainframe but are committed to centralized databases, Linux, Java, SOA and/or WebSphere, there’s an option here that might make your future a lot simpler, especially with respect to securing the data and IT infrastructure end to end. Don’t fall for the mythology; take a closer look at why the Mainframe may be the best vehicle to achieving your PCI DSS goals.” Source: Joe Clabby, The Clipper Group Captain’s Log, Oct. 31, 2007 Solution Benefits Helps to simplify management of System z hardware cryptographic coprocessors, simplifies processor migrations and improves the security of cryptographic keys.

Poodle SSL Vulnerability Attack
The POODLE attack (which stands for "Padding Oracle On Downgraded Legacy Encryption") is a man-in-the-middle exploit which takes advantage of Internet and security software clients' fallback to SSL 3.0 – CVE ID’s: CVE , CVE To mitigate POODLE attack: Completely disable SSL 3.0 on both the client side and the server side However, some old clients and servers do not support TLS 1.0 and above. Thus, browser and server implementation of TLS_FALLBACK_SCSV is encouraged, which will make downgrade attacks impossible Implement "anti-POODLE record splitting". It splits the records into several parts and ensures none of them can be attacked. However the problem of the splitting is that, though valid according to the specification, it may also cause compatibility issues due to problems in server-side implementations

X-Force Assessment of SSL Vulnerability
X-Force Assessment: Medium Risk *CVSS: Consequences: Obtain Information Remedy: Customers are encouraged to disable SSLv3 Base Score: 4.3 Access Vector: Network Access Complexity: Medium Authentication: None Confidentiality Impact: Partial Integrity Impact: Availability Impact: Temporal Score: 3.5 Exploitability: Unproven Remediation Level: Workaround Report Confidence: Confirmed

Poodle SSL Vulnerability Mitigation
Opera 25 has implemented this mitigation in addition to TLS_FALLBACK_SCSV. Google's Chrome browser and their servers already support TLS_FALLBACK_SCSV, and Google stated in October, 2014 it is planning to remove SSL 3.0 support from their products completely within a few months Mozilla will also disable SSL 3.0 in Firefox 34, which will be released in November 2014, and add support of TLS_FALLBACK_SCSV in Firefox 35 Microsoft has published the security advisory to explain how to disable SSL 3.0 in Internet Explorer and Windows OS, and in October 29, 2014, Microsoft released "Fix it" which disables SSL 3.0 in Internet Explorer on Windows Vista / Server 2003 and above and announced the plan to disable SSL 3.0 by default in their products and services within a few months Some web sites have dropped support of SSL 3.0 to prevent the POODLE attack, such as CloudFlare, and Wikimedia NSS version , released on October 3, 2014, and , released on October 27, 2014, introduced support for TLS_FALLBACK_SCSV, and NSS will disable SSL 3.0 by default in April OpenSSL versions 1.0.1j, 1.0.0o and 0.9.8zc, released on October 15, 2014, introduced support for TLS_FALLBACK_SCSV. LibreSSL version 2.1.1, released on October 16, 2014, disabled SSL 3.0 by default

IBM Guidance on SSL Vulnerability
The IBM Product Security Incident Response Team (PSIRT) is a global team that manages the receipt, investigation and internal coordination of security vulnerability information related to IBM offerings IBM is analyzing its products to determine which ones may be affected by this vulnerability and those that still rely on it have a mandate to migrate off of it. Please actively monitor both your IBM Support Portal for available fixes and mitigations and this blog for additional information IBM recommends that you review your entire environment to identify areas that enable the SSLv3 protocol and take appropriate mitigation and remediation actions. The most immediate mitigation action that can be taken is disabling SSLv3. You should verify disabling SSLv3 does not cause any compatibility issues

Threat Vulnerability Exploitation Protection
IBM’s GX and XGS IPS are able to detect and protect from the Poodle vulnerability as well as the variant that was identified shortly there after In addition to protecting systems from the attack, the GX and XGS IPS we are able to identify any systems still using SSL v3 over the network Other IDS/IPS vendors (i.e. Juniper, McAfee, etc.) may offer this same capability – check with your IDS/IPS vendor!

IBM Server and Software Support for TLS
System z z/TPF: OpenSSL does not properly enforce the no-ssl3 build option. Servers that are configured with this option could accept and complete an SSL handshake. An attacker could then use this vulnerability to perform unauthorized actions and obtain data Workarounds and Mitigations None Remediation/Fixes Apply APAR PJ42658 IBM strongly suggests that all System z customers be subscribed to the System z Security Portal to receive the latest critical System z security and integrity service

WebSphere: For all releases and versions of Apache based IBM HTTP Server, IBM recommends disabling SSLv3 For all releases and versions of WebSphere Application Server, SSLV3 users will want to disable SSLV3 using IBM JDK, both Full Profile and Liberty Profile. This will disable SSLv3 by default If you have SSL hard coded in your application code, such as SSLContext.getInstance("SSL") then you should install the interim fixes since the current implementation defaults that context to SSLv3. The interim fix is an enhancement in the IBM JDK You should also consider the options listed in the IBM Security Bulletin for a full solution

WebSphere MQ: IBM WebSphere MQ - All versions SSLv3 users will want to disable SSLv3 on WebSphere MQ servers and clients and switch to using the TLS protocol UNIX, Linux and Windows Use of TLS protocol is enforced by enabling FIPS compliance mode. Enabling FIPS compliance mode disables SSLv3 connections from being accepted by the IBM WebSphere MQ listener DB2 By default, DB2 does not use TLS/SSL for client-server communication and therefore, potential exposure only exists if you are using TLS/SSL. A TLS/SSL connection using a malformed certificate chain could cause the server process to hang or crash. Remediation/Fixes The recommended solution is to apply the appropriate fix for this vulnerability.

Lotus Notes/Domino: IBM has released Interim Fixes that implement TLS 1.0 with TLS_FALLBACK_SCSV for HTTP to protect against the POODLE attack. Implementing TLS 1.0 for Domino will protect against the POODLE attack and will allow browsers to still connect to Domino after they have been changed to address the POODLE attack. IBM has provided Interim Fixes for the following Domino releases: 9.0.1 Fix Pack 2 - 8.5.3 Fix Pack 6 - 8.5.2 Fix Pack 4 - 8.5.1 Fix Pack 5 - Note: For any Domino release, a proxy server in front of Domino to handle TLS communication will also address this issue. Select a proxy server that disables SSLv3 or prevents downgrading a TLS communication down to SSLv3. Domino 9.0x for Windows has a proxy solution by including the IBM HTTP Server (IHS) that supports TLS

Mainframe Administration Compliance and Auditing
5454 5454 Mainframe Security Management Vision Mainframe Security Intelligence System z identity and access context, real-time event correlation Mainframe Governance, Risk and Compliance Regulations, IT Security Policies and Third Party Integrations Mainframe Administration Mainframe Compliance and Auditing Effective user and access control administration for z/OS Simplifies user and resource management Offers a Windows GUI to administer security Provides automated monitoring, analysis and auditing Enforces compliance best practices and security policy Provides intrusion detection and generates real time alerts This is IBM’s strategy for mainframe security management Start with the hardware, the data, the application, the native security element and extends to the mainframe as a cloud computing platform Working with that are tools to easy the mainframe security administration and the tools to automate the mainframe security monitoring, auditing and compliance reporting Integrating these components is enterprise security intelligence, not just mainframe And sitting on top of that is enterprise Governance, Risk and Compliance Mainframe Data Applications RACF Cloud Computing

Resource Access Control Facility (RACF) The foundation of mainframe security
Authentication Authorization Administration Auditing Administration Administration Enables application and database security without modifying applications Data & Applications Applications Can reduce security complexity and expense: Central security process that is easy to apply to new workloads or as user base increases Tracks activity to address audit and compliance requirements Networks Networks RACF z/OS z/OS Integration with distributed system security domain Checking for “Best Practices” with z/OS HealthChecker Serving mainframe enterprises for over 30 years Architecture Architecture Hardware Hardware

Securing the Cloud Environment
IaaS PaaS SaaS So, let’s talk about the security requirements for such a powerful and dynamic environment. You will need to be able to: Secure the hypervisor, i.e. z/VM Provide administrator access to the VM’s Be able to Provision users to the applications and data Manage and Control access to the applications and data Monitor, Alert, Audit and Report on accesses to and attempted access to the applications and data Detect and Prevent against vulnerabilities, threats, malware and fraud Safeguard the data and protect from data loss Does this sound familiar?

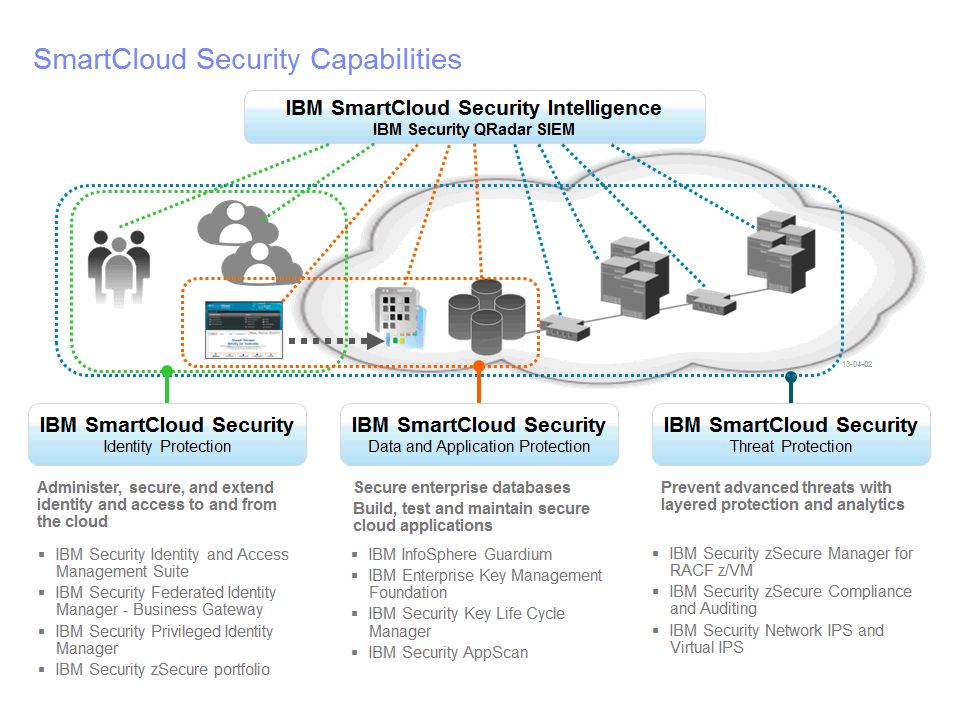

Integrated Security for Today’s Business Environment
Mobile - Social Access customer data through your mobile device Securely store critical customer information in your enterprise cloud Analyze customer information to gain insight around suspected fraud Improve economics through hardware based cryptography and centralized enterprise key management Mitigate risk with comprehensive auditing and reporting Assurance that MSP‘s multi-tenanted public and private cloud workloads remain securely isolated through industry leading certifications Confidence that your assets are protected with intrusion detection and secured communications Synergy between Linux on System z and z/OS via exploiting the centralized security capabilities present in z/OS SSL transactions up to 19K/sec Security is arguably the most important part of your enterprise. After all, without it, your business can’t be successful. System z offers you end to end security, access controls, compliance and auditing from the your mobile device through the system of record into your Cloud environment and can secure the customer data you are accessing all over secured communications on your network. System z provides cost effective options for encrypting and securing transactions by offering high speed, secure encryption with the cryptographic coprocessors and on chip crypto operations. Clients can manage risk and assure compliance with a comprehensive suite of products to assist with user authorization, auditing and reporting. With FIPS Level4 certified Cryptographic HW, IBM provides the most secure tamper sensing, tamper resistant security module available in the market. As clients look to deploy mission critical workloads into public and private clouds, System Z offers an industry leading EAL5+ certification, giving MSPs the assurance that public and private clouds environments remain isolated, or air gaped, in a multi-tenanted environment and data that between LPARs cannot be compromised. Linux on System Z has a differentiation over other Linux environments in that is can take of advantage of the high speed system z encryption technologies, exploit z/OS PKI using IEDN and allow the mapping of Distributed Identities on RACF through a LDAP to verify identities. This brings to Linux on Z the strengths of scalability, availability and the auditing capabilities of RACF. High-end security is a primary requirement for the current and next generation of Mainframes and we continue bring rich new technologies to System z to support emerging business opportunities in Analytics, Mobile, Social, and Cloud that depend on a secure infrastructure. FIPS Level 4 certified Crypto Coprocessor EAL5+ Certification 57 57

Identity Protection Insight
Enterprise hybrid cloud adoption requires integrated security solutions Identity Protection Insight Software as a service (SaaS) Enable users to connect securely to SaaS SaaS access governance Identity federation Secure connectivity and data movement to SaaS Data tokenization Secure proxy to SaaS Application control Monitoring and risk profiling of enterprise SaaS usage Monitor SaaS usage Risk profiling of SaaS apps Compliance reporting Platform as a Service (PaaS) Integrate identity and access into services and applications DevOps access management Authentication and authorization APIs Build and deploy secure services and applications Database encryption App security scanning Fraud protection and threats Log, audit at service and application level Monitor services and platform Service vulnerabilities Infrastructure as a Service (IaaS) Manage cloud administration and workload access Privileged user management Access management of web workloads Identity federation for B2B Protect the cloud infrastructure to securely deploy workloads Storage encryption Network protection ‒ firewalls, IPS Host security, vulnerability scanning Security monitoring and intelligence Monitor hybrid cloud infrastructure Monitor workloads Log, audit, analysis and compliance reporting Note: Listed capabilities in the above table are examples of capabilities, and not a comprehensive list 58

Security Solutions for System z Cloud Scenarios
Private Cloud with Linux on Z Private Cloud with Linux & z/OS Hybrid Cloud (IaaS and PaaS) Hybrid Cloud (SaaS) People & Identity: Identity Management Yes Privileged ID Management Possibly Federated Directory Services Federated ID Management Likely not Access Management for Web Access Management for Mobile Applications: Application Vulnerability Data: Database Protection Encryption Key Management

Security Solutions for System z Cloud Scenarios
Private Cloud with Linux on Z Private Cloud with Linux on Z & z/OS Hybrid Cloud (IaaS and PaaS) Hybrid Cloud (SaaS) Infrastructure: IDS/IPS Yes zSecure: Admin No Audit Alert Command Verifier Visual Manager for RACF z/VM Possibly CICS Toolkit Fraud: Fraud Prevention Intelligence/Analytics: SIEM

Linux on System z Redbook
Introduction Hardware, z/VM and Storage Configuration The z/VM security management support utilities Configuring and using the System z LDAP servers For both z/OS and z/VM Authentication and access control Cryptographic hardware Clear and secure key and CPACF Physical and infrastructure security on System z Protecting the HMC, system configuration, disk security, z/VM minidisks, firewall Security implications of z/VM SSI and LGR Best Practices Where to find: Single System Image and Live Guest Relocation - zVM technology to take a running guest and move it to another running z/VM. Think of LLBEAN or some other order being submit and they need to apply service to the server and the guest with the order is moved to another z/VM, customer doesn’t notice any change as his order is placed. 62 62

Backup Slides

IBM Security zSecure Manager for RACF z/VM Overview
Cloud Hypervisor Security IBM Security zSecure Manager for RACF z/VM Overview Helps ensure security by automating auditing and administration and allowing users to: Ensure compliance with security policy and regulatory requirements Reduces administrative costs Lower overhead in performing audit and compliance tasks Help improve completeness and accuracy of the identification of security events of audit interest Help improve the integrity of vital z/VM assets Lower administrative costs 66

IBM Security zSecure Manager for RACF z/VM key features
Cloud Hypervisor Security IBM Security zSecure Manager for RACF z/VM key features Combined administration and audit functionality for the z/VM environment: Automate complex, time consuming z/VM security management tasks with simple, one-step actions that can be performed without detailed knowledge of RACF commands Create comprehensive audit trails without substantial manual effort (RACF SMF records & more) from both z/VM & Linux for System z Quickly identify and prevent problems in RACF before they become a threat to security and compliance Help ease the burden of database consolidation Generate customized reports

Federated Directory Services
Cloud Directory Services Federated Directory Services IAM Analytics & Security Intelligence Directories, Databases, Files, SAP, Web Services, Applications Directory Services Search Federated Directory Service Access Oracle - Multiple directories - traditional VD, performance affected by the weak link - No SIEM integration Radiant Logic - Strong, mature VD - Invested in Federated SSO Dell - Strong VD - Struggling with acquisition integration - De-investing in Access ForgeRock - Sun centric - Open source, not highly scalable Microsoft - Windows centric IBM - Single SDI package to support Identity silo use cases including virtual directory scenarios - additional value offered with SDI including Whitepages, SCIM support - SIEM integration - Flexible pricing Enterprise Directory (hybrid, virtual) Cloud Intgr. (SCIM) Authentication (multi-directory) 68

IBM Security Identity Manager
Cloud Identity Management IBM Security Identity Manager Real-time insider fraud detection with integrated IAM Analytics and Security Intelligence IAM Analytics & Security Intelligence Identity Management Identity Change Access Policy Access Certification Accounts Updated On/Off-premise Resources Detect and Correct Local Privilege Settings HR Systems/Identity Stores Applications Data Cloud Mobile User Provisioning (B2E, B2B) Failed Audits (B2E, B2B) Governance (CrossIdeas)

IBM Security Access Manager
Cloud Access Management IBM Security Access Manager Security Team Application Team Manage consistent security policies Consumers Web Applications and Portal Access Management On/Off-premise Resources Internet Applications Data Employees BYOD CA - Siteminder + Layer 7 EMC - leads with RBA F5 - leads with threat Ping/Okta/SFDC - targeting Cloud SSO Cloud Mobile Web Access (B2E, B2C, WAF) Mobile Access (BYOD, B2C) Risk Access (B2B, B2C) Fed. SSO (B2B, B2C) 70

Federated Identity Management
Cloud Federation Tivoli Federated Identity Manager – Made for clouds On Premise Cloud Stacks Off Premise Cloud Stacks Federated Identity Management IT Administrator External IdPs Enterprise IdPs Enterprise Applications Cloud Applications Cloud Access (B2E, B2C) Cloud Administration Fed. SSO (B2B, B2C) BYO ID (B2C) Details Provides out-of-the-box integration with TAMeb and WebSphere Application Server as “point-of-contact” servers - designed for integration with other identity providers. Tools for user enrollment and web access management Supports customizable points of contact to manage identities across multiple cloud patterns. Supports wide variety of Federated Single Sign On protocols including user-centric identity support (SAML 1.[01]/2.0, WS-Federation 1.[13], Liberty ID-FF 1.[12], Information Card Profile 1.0, OpenID 1.1/2.0) WS-Trust based security token services WS-Trust 1.2/1.3 Supported token types: LTPA, Username, SAML 1.0/1.1./2.0, RACF Passticket, X.509 Certificate, Kerberos (Kerberosv5_AP_REQ/GSS_Kerberosv5_AP_REQ) End-to-end identity propagation across Portal, DataPower and Federated ESBs Simplifies integration to Java, .NET, mainframe environments Integration with Cloud Services such as IBM LotusLive, Google Apps, salesforce.com, etc. Offered as TFIM, TFIM for z/OS, and TFIM Business Gateway packages. (TFIM Business Gateway helps quickly and securely establish FSSO with an existing application environment

Cloud Administrator Access Management
Privileged Identity Management: Centralized management of privileged and shared identities Addressing insider threat with privileged users access management Business challenge Track and audit activities of privileged users (e.g., root, financial app administrators) for effective governance IBM Security Privileged Identity Management Key solution highlights Check in / check out using secure credential vault Control shared access to sensitive user IDs Request, approve and re-validate privileged access Reduce risk, enhance compliance Track usage of shared identities Provide increased accountability and audit trail Automated password management Automated checkout of IDs, hide password from requesting employee, automate password reset to eliminate password theft Databases ID IBM security solution New Privileged Identity Management (PIM) solution providing complete identity management and enterprise single sign-on capabilities for privileged users

IBM Guardium Provides Real-Time Database Security & Compliance
Cloud Data Protection IBM Guardium Provides Real-Time Database Security & Compliance Continuous, policy-based, real-time monitoring of all database activities, including actions by privileged users Database infrastructure scanning for missing patches, misconfigured privileges and other vulnerabilities Data protection compliance automation Key Characteristics Single Integrated Appliance Non-invasive/disruptive, cross-platform architecture Dynamically scalable SOD enforcement for DBA access Auto discover sensitive resources and data Detect unauthorized & suspicious activity Granular, real-time policies Who, what, when, how Prepackaged vulnerability knowledge base and compliance reports for SOX, PCI, etc. Growing integration with broader security and compliance management vision z/OS Integration with LDAP, IAM, SIEM, TSM, Remedy, … The crown jewels of any business are in the database. Financial information, Customer information, and intellectual property are all house in the data base. 95% of Fortune 1000 companies store their data on System z. These customers must comply w/ strict restrictions on how to protect that data. IBM acquired the industry-leading technology vendor Guardium in 2009 to complete these capabilities. Guardium enables IBM clients to maintain trusted information infrastructures by continuously monitoring access and activity to protect high-value databases against threats from legitimate users and potential hackers. Additionally, Guardium also assesses the vulnerability of the database infrastructure itself to ensure their continued highest level of security. Guardium’s real-time database monitoring and vulnerability assessment platform helps clients safeguard their data, monitor database activity across heterogeneous environments, and reduce operational costs by automating regulatory compliance tasks. Guardium automates the lifecycle protection that data. Automating the security and compliance lifecycle regardless of the type of data. Detect the classify data, detect vulnerability and configuration flaws. Provides centralized reporting capability where you can aggregate all audit, security and compliance data Also very scalable. Doesn't require changes in the DB or infrastructure. We’ve seen customer manage 10K+ databases with a Guarduim implementation This is a very important part and very relevant part to implementing an E2E mainframe security framework It does this using a single integrated appliance, which can be configured as a Collector, a Central Policy Manager, or Vulnerability Assessment Server with the simple use of license keys. The key to monitoring non-intrusively is the STAP, which is a light-weight kernel shim that goes on the DB server, and taps all DB traffic (operations, data, errors.. Inbound and outbound). No DB, app, or network changes are necessary. All this traffic is collected at the Collector, which runs policy against it and provides real-time alerting. If you want to also control or block traffic the STAP can be configured as an SGATE. The Central Policy Manager is the central point of control for all collectors. You may notice that all major DB infrastrutures and some major applications are supported. z/OS z/OS 73 73 73

EKMF and SKLM for Integrated Key Management
Cloud Data Protection EKMF and SKLM for Integrated Key Management IBM Enterprise Key Management Foundation powered by DKMS Centralized key lifecycle management with single point of control, policy, reporting, and standardized processes for compliance All new keys are generated on the secured workstation by users authenticated with smart cards. The EKMF Workstation includes a IBM 4765. Trusted Key Entry (TKE) workstation provides a secure environment for the management of crypto hardware and host master keys The EKMF Browser application features monitoring capabilities and enables planning of future key handling session to be executed on the workstation. The central repository contains keys and metadata for all cryptographic keys produced by the EKMF workstation. This enables easy backup and recovery of key material. ISKLM for z/OS provides proven key serving and management for self encrypting tape and disk storage capabilities to devices Tape devices Enterprise Tape Library EKMF ISKLM Disk Storage Array TKE for Crypto Express Hardware management EKMF for application key management IBM provides the foundation for Integrated and Extensible Key Management 74

Application security concerns in Cloud environments
Cloud Application Security Application security concerns in Cloud environments Applications natively connected to the Cloud and remotely accessible to outsiders increase the attack surfaces Rapid pace of development and provisioning of Web services puts pressure on developers to deliver functionality on-time and on-budget – but not to develop secure applications Security tests executed just before launch adds time and cost to fix vulnerabilities late in the process Growing number of web applications but small security staff Most enterprises scan ~10% of all applications Continuous monitoring of production apps limited or non-existent Unidentified vulnerabilities and risk

Network Intrusion Prevention
Cloud Threat Protection Network intrusion protection is a primary building block in Cloud security Firewall Network Intrusion Prevention Datacenter Protect both applications and network from being exploited Control protocols and applications Monitor traffic for anomalous traffic patterns Protect users from being attacked (e.g., through malicious documents) Prove compliance with regulation requirements (e.g., PCI) Enforce corporate policy with employees and 3rd parties (e.g., consultants) Monitor network traffic for sensitive information leaving the company Prevent data from being stolen from databases via web applications A web application firewall usually addresses inbound access to web applications; specialized coverage Protection for HTTP/HTTPS protocols Watching inbound web traffic over TCP ports 80 and 443 Limited performance The IPS can address inbound and outbound access; broader coverage Protection for many protocols and a wide range of attacks Wire speed Per packet inspection Where firewalls block and allow traffic through, IDS/IPS detect and look at that traffic in close detail to see if it is an attack. IDS/IPS systems are made up of sensors, analysers and GUI’s in order to do their specialised job. 76

Cloud Fraud Protection
Problems We Solve Online Banking TRX ATO Fraud from Customer Device Fraud from Criminal Device Customer Criminal Cross Channel Fraud Attack WWW Credentials, Data Attack Employee APEX Going back more than 5 years ago, just when institutions had become satisfied with securing their customer-facing apps with various perimeter controls (VPN, WAF, etc), criminals began writing zero-day financial malware (Zeus, SpyEye, etc) designed to infect customers/other 3rd parties in order to (1) automate tampering of transactions and (2) steal credentials for use online or cross-channel. This malware quickly became the source of most online fraud and credential theft. It routinely bypasses AV, strong authentication, and behavioral analysis and can compromise end user systems at the kernel, memory, and application layers. We’ve done great job in past 5 years helping customers solve this problem by stopping the threat early before the attack can be executed. Similar types of attacks (APTs, advanced malware) are now compromising your employee machines, vast majority of time introduced via an exploit. The original form of corporate malware protection for employees was A/V which relies on blacklisting, as we know not effective. More recently came sandboxing/whitelisting/HIPPS that look at application behavior. Problem here is that while right goal is to track application behavior, these approaches are easy to trick because they just look at the result of the behavior – i.e. what is’ trying to do. And, whitelisting, for example is difficult to deploy and manage. So, we developed “next generation” application control that looks at the what AND the why. TRX Fraud from Employee Device Wire, ACH, Internal Apps Malware Install Credential Phishing 77

Leverage advanced analytics across all stages of the attack
Cloud Intelligence and Analytics Leverage advanced analytics across all stages of the attack Monitor everything Logs, network traffic, user activity Correlate intelligently Connect the dots of disparate activity Prioritize for action Attack high-priority incidents Detect anomalies Unusual yet hidden behavior We’ve seen how clients are using a combination of zSecure Audit and Alert, Guardium on z/OS, RACF and other SMF based facilities to act as feed mechanisms into QRadar to proivide a single real-time view of security events across the entire enterprise.

QRadar provides security visibility and Security Intelligence
Cloud Intelligence and Analytics QRadar provides security visibility and Security Intelligence IBM X-Force® Threat Information Center Real-time Security Overview w/ IP Reputation Correlation This is an example of a QRadar dashboard; can be easily customizable to add, remove or modify content All of the elements of IBM’s end-to-end security solution for the mainframe plug into QRadar. This now gives you the ability to correlate an attempted SQL injection though a distributed web server with the atypical movement of data from the mainframe. More on that particular example in a moment. Inbound Security Events Real-time Network Visualization and Application Statistics Identity and User Context 79

QRadar and zSecure Integration
6 DSM 6 DSM 1 DSM

System z QRadar Integration: zSecure vs. legacy integration
zSecure (Alert & Audit) integration Legacy z/OS integration Real Time Event Capture Yes, via Alert No, only historical SMF data Extended User/Resource Information Yes No Inputs: RACF ACF2 Top Secret DB2 CICS z/OS UNIX FTP, Telnet Dataset Access PDS Member updates IK zSecure provides real time input; Legacy only accesses historical SMF datasets zSecure adds descriptions to events, Legacy provides no descriptions zSecure provides a wide range of input; Legacy only provides RACF records zSecure provides more comprehensive input, improving the quality of the analysis Bottom line: the customer gets what they pay for. 81

New zSecure Adapters for QRadar SIEM vs zSecure Audit
Capability zSecure Adapters zSecure Audit Collects and formats information from over 40 different IBM System z SMF record types - such as, z/OS, RACF, ACF2, Top Secret, DB2, and CICS events. Yes Additional SMF record types generated by IBM z/OS® and its sub-systems, for data set access, z/VM, PDS member updates and deletes, UNIX file activity, FTP, Telnet and other TCP/IP activity and many others. Adds enriched descriptive audit information about the user and the resource from the security database and zSecure system snapshot information Support for more frequent collection than once a day – job available for use with scheduling software Additional QRadar reporting, including customization using CARLa No Additional SMF analysis and reporting for QRadar SIEM Compliance testing framework: STIG (RACF and ACF2); GSD331 / iSEC; PCI DSS; Custom regulations/compliance points Auditing and reporting: z/OS subsystems and operating features – USS, CICS, IMS, DB2, ComServer, ESMs, TCP/IP, FTP, Telnet, MQ, TLMS, TWS, VTAM, Guardium and many others; Audit vulnerability testing 82

System z Cloud Scenario #1: Private Cloud with Linux on z
Multiple workloads from distributed platforms consolidated into a single, scalable footprint utilizing Linux on z Employees Linux on z Linux on z Linux on z Contractors Consultants z/VM So, going back to this first scenario, lets take a look at how security solutions detect and prevent exploitations of security vulnerabilities.

Break into application to get AppID
Cloud Security – the Total Picture Anatomy of an attack: Preventing losses and closing security gaps example Look at application logs and access history Social Engineer privileged user id (PID) for Joe.Admin 3 Hacker uses the AppID from non-App server impersonating Joe.Admin to request large number of credit card numbers 1 5 Break into application to get AppID Unnoticed stolen PID logs on from new unknown rogue IP over time 4 2 Hacker changes config settings, creates back door for later use 6 Hacker (Rogue Sources) Auth server WebSphere Internet DB2 Sensitive Data RACF Web servers RK DSM User IDS/IPS Trusteer 9 8 AppScan 7 Detects attempted exploitations of security vulnerabilities Prevents intrusion attacks such as SQL injections, cross site scripting Provides zero day protection against security vulnerabilities Detects abnormal activity violating comprised credentials Detects and prevents attempts at account takeover Detects application vulnerabilities Alert IDS/IPS to modify protection policies Alert QRadar with raised severity 84

Break into application to get AppID
Cloud Security – the Total Picture Anatomy of an attack: Preventing losses and closing security gaps example Look at application logs and access history Social Engineer privileged user id (PID) for Joe.Admin 3 Hacker uses the AppID from non-App server impersonating Joe.Admin to request large number of credit card numbers 1 5 Break into application to get AppID Unnoticed stolen PID logs on from new unknown rogue IP over time 4 2 Hacker changes config settings, creates back door for later use 6 Hacker (Rogue Sources) Auth server WebSphere Internet DB2 Sensitive Data RACF Web servers RK DSM User QRadar zSecure 8 Guardium Correlates App ID violation with Joe.Admin activity Open ticket to fix compromised AppID and investigate Joe.Admin Determine new rogue sources Detect abnormal activity violating several security policies Alert QRadar with raised severity 9 Detect abnormal activity violating several data access policies Block specific request Alert QRadar with raised severity 7 85

System z – Security in the Cloud
Summary: System z in the Cloud Cloud – 3 delivery models: Private Cloud Public Cloud Hybrid Cloud Cloud – 3 layers: IaaS PaaS SaaS Security Domains: Identity Data Security Intelligence and Analytics System z – 4 Typical Scenarios: Private Cloud with Linux on z Private Cloud with Linux and z/OS Hybrid Cloud (IaaS & PaaS) Hybrid Cloud (SaaS) Linux on z Linux on z z/OS IMS CICS DB2 z/VM Applications Infrastructure
