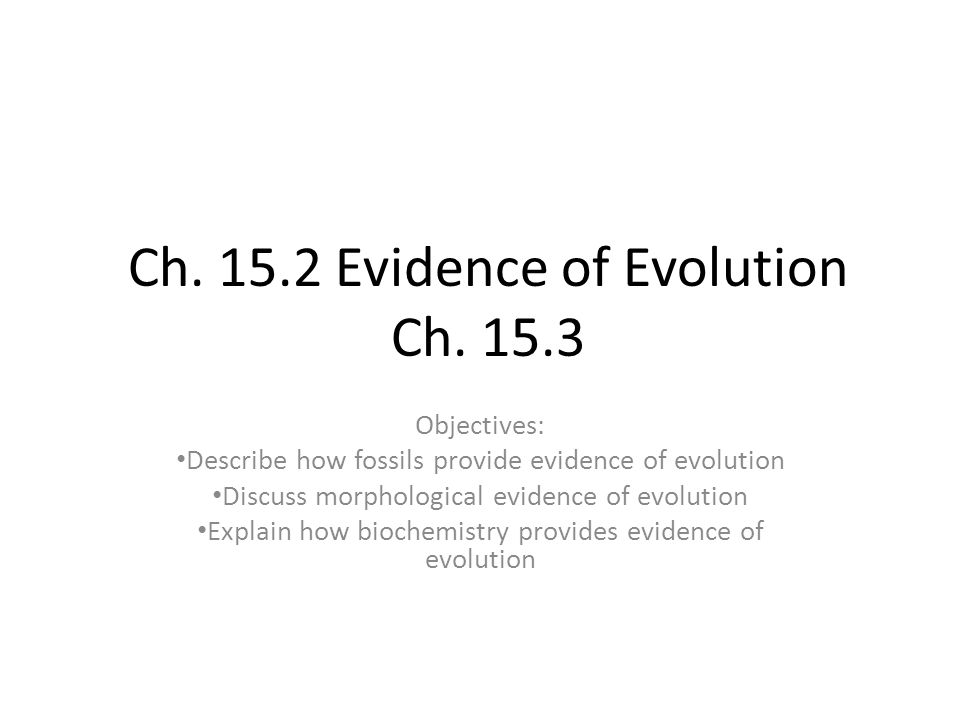

2. Ch. 15.2 Evidence of Evolution Ch. 15.3 Objectives: Describe how fossils provide evidence of evolution Discuss morphological evidence of evolution Explain how biochemistry provides evidence of evolution

3. Evidence supporting evolution Fossil record – shows change over time Anatomical record – comparing body structures homology & vestigial structures embryology & development Molecular record – comparing protein & DNA sequences Artificial selection – human caused evolution

4. 1. Fossil record Layers of rock contain fossils – new layers cover older ones creates a record over time – fossils show a series of organisms have lived on Earth over a long period of time

5. Fossils shape ideas about evolution Fossils: direct or indirect remains of organisms preserved in media such as sedimentary rock, amber, ice, or tar Ammonite casts –Fossilized organic matter in a leaf Ice Man”

6. Fossils tell a story… the Earth is old Life is old Life on Earth has changed

7. Fossils tell a story… the Earth is old Life is old Life on Earth has changed

8. What has the fossil record shown us? The creatures alive today haven’t always been around Different species lived in the past OBSERVATION

9. Land Mammal ? ? ? ? Where are the intermediate fossils? Ocean Mammal Someone’s idea of a joke! But the joke’s on them!! Complete series of transitional fossils We found the fossil — no joke!

10. Evolution from sea to land 2006 fossil discovery of early tetrapod – 4 limbs Missing link from sea to land animals

11. 2. Anatomical record Animals with different structures on the surface But when you look under the skin… It tells an evolutionary story of common ancestors

12. Compare the bones The same bones under the skin – limbs that perform different functions are built from the same bones

13. Homologous structures Structures that come from the same origin homo- = same -logous = information Forelimbs of human, cats, whales, & bats – same structure on the inside – same development in embryo – different functions on the outside – evidence of common ancestor

14. But don’t be fooled by these…  Analogous structures  look similar  on the outside  same function  different structure & development  on the inside  different origin  no evolutionary relationship Solving a similar problem with a similar solution How is a bird like a bug?

15. Analogous structures  Dolphins: aquatic mammal  Fish: aquatic vertebrate  both adapted to life in the sea  not closely related Watch the tail!

16. Vestigial organs structure—a body structure in a present-day organism that no longer serves its original purpose, but was probably useful to an ancestor. Hind leg bones on whale fossils Why would whales have pelvis & leg bones if they were always sea creatures? Because they used to walk on land!

17. Comparative embryology Development of embryo tells an evolutionary story – similar structures during development all vertebrate embryos have a “gill pouch” at one stage of development

18. 3. Molecular record 1002030405060708090100110120 LampreyFrogBird Dog MacaqueHuman 32845 67 125 Comparing DNA & protein structure – everyone uses the same genetic code! DNA  compare common genes  compare common proteins  compare common genes  compare common proteins number of amino acids different from human hemoglobin

19. Building “family” trees Closely related species are branches on the tree — coming from a common ancestor

20. How do we know natural selection can change a population? – we can recreate a similar process – “evolution by human selection” 4. Artificial selection “descendants” of wild mustard

21. Selective Breeding Humans create the change over time “descendants” of the wolf

22. Artificial Selection gone bad! Unexpected consequences of artificial selection Pesticide resistance Antibiotic resistance

23. Insecticide resistance Spray the field, but… – insecticide didn’t kill all individuals variation – resistant survivors reproduce – resistance is inherited – insecticide becomes less & less effective

24. Adaptations: Evidence for Evolution an adaptation is any variation that aids an organism’s chances of survival in its environment. According to Darwin’s theory, adaptations in species develop over many generations Learning about adaptations in mole-rats can help you understand how natural selection has affected them.

25. Structural adaptations arise over time camouflage, an adaptation that enables species to blend with their surroundings. Because well- camouflaged organisms are not easily found by predators, they survive to reproduce.

26. Structural adaptations arise over time Mimicry is a structural adaptation that enables one species to resemble another species. Predators may learn quickly to avoid any organism with their general appearance

27. Physiological adaptations can develop rapidly In general, most structural adaptations develop over millions of years. However, there are some adaptations that evolve much more rapidly. The evolution of insecticide resistance is an example of natural selection in action

28. Convergent evolution 3 groups with wings – Does this mean they have a recent common ancestor? Flight evolved 3 separate times — evolving similar solutions to similar “problems” Flight evolved 3 separate times — evolving similar solutions to similar “problems” NO! They just came up with the same answer!

29. Convergent evolution led to mimicry Why do these pairs look so similar? Monarch male poisonous Viceroy male edible flybeemothbee Which is the fly vs. the bee? Which is the moth vs. the bee?

30. The Evolution of Species Significant changes in the gene pool could lead to the evolution of a new species over time. The evolution of new species, a process called speciation occurs when members of similar populations no longer interbreed to produce fertile offspring within their natural environment.

31. The Evolution of Species Geographic isolation occurs whenever a physical barrier divides a population. A new species can evolve when a population has been geographically isolated. Reproductive isolation can result in speciation Reproductive isolation occurs when formerly interbreeding organisms can no longer mate and produce fertile offspring A change in chromosome numbers- polyploidy can lead to speciation

32. Speciation rates Gradualism is the idea that species originate through a gradual change of adaptations Some evidence from the fossil record supports gradualism. In 1972, Niles Eldredge and Stephen J. Gould proposed a different hypothesis known as punctuated equilibrium. This hypothesis argues that speciation occurs relatively quickly, in rapid bursts, with long periods of genetic equilibrium in between.
