1. Geological Survey of Finland www.gsf.fi 1 Finland Digital Field Data Capture at the Geological Survey of Finland Vesa Nykänen Bedrock and Mineral Resources, Rovaniemi

2. Geological Survey of Finland www.gsf.fi 2 National geoscience expert agency Ministry of Trade and Industry Personnel approx. 780 Annual expenditure 44 M€, income 8 M€ Offices: Espoo, Kuopio and Rovaniemi Programmes Bedrock and raw materials Land use and environment Geological Survey of Finland

3. www.gsf.fi 3 MANAGEMENT GROUP BOARD MINISTRY OF TRADE AND INDUSTRY DIRECTOR GENERAL ESPOO UNIT KUOPIO UNIT ROVANIEMI UNIT GEOSERVICE CENTRE INFORMATION RESOURCES MANAGEMENT FINANCE AND ADMINIS- TRATION PROJECTS DIRECTOR’S STAFF BEDROCK AND MINERAL RESOURCES QUATERNARY DEPOSITS AND ENVIRONMENTAL GEOLOGY GEOPHYSICAL RESEARCH MINERALOGICAL LABORATORY GIS SERVICES BEDROCK AND MINERAL RESOURCES LAND USE AND ENVIRONMENT IT AND INFORMATION SERVICES ADMINISTRATION GEOLABORATORY TECHNICAL SERVICES GEOPHYSICAL SERVICES IT SERVICES INFORMATION SERVICES APPLICATION DEVELOPMENT PLANNING ACCOUNTING PERSONNEL BEDROCK AND MINERAL RESOURCES LAND USE AND ENVIRONMENT IT AND INFORMATION SERVICES ADMINISTRATION GTK Organization 1.1.2002

4. Geological Survey of Finland www.gsf.fi 4 GIS Applications For Map Production, Data Analyses and Map Data Management Mostly used GIS software in GTK  ArcView 3.2 – main desktop-GIS software  ArcInfo 8.0 – main GIS software used in GTK ->ArcGIS 8  Ermapper – for raster data (mainly for geochemical)  MapInfo – other desktop-GIS software  Oasis (GeoSoft) – for geophysical data Database software  Oracle, ArcSDE

5. Geological Survey of Finland www.gsf.fi 5 Map Production  Ongoing Geological Mapping Programmes  Bedrock Maps 1: 100 000  Maps of Quaternary Deposits 1 : 20 000  Thematic Map Production 1999-2001 (some examples)  Haavisto-Hyvärinen et all. 2001. Nuuksio lake upland: geological outdoor map and guidebook 1 : 25 000  Puustinen et all. 2000. Metallic mineral deposits map of Finland 1:1 000 000  Arkimaa et all. 2000. Proterozoic black shale formations and aeromagnetic anomalies in Finland, 1 : 1 000 000  Johansson et all. 2000. Ivalojoki - Saariselkä 1 : 50 000 = Geological outdoor map 1 : 50 000  Ekdahl, E. (ed.) & Philippov, N. (ed.) 1999. Raahe-Ladoga Zone structure-lithology, metamorphism and metallogeny : a Finnish-Russian cooperation project 1996-1999.  Map 3: Metallogeny of the Raahe-Ladoga Zone 1:1 000 000  Map 2: Metamorphism of the Raahe-Ladoga Zone 1:1 000 000  Map 1: Structural-lithology of the Raahe-Ladoga Zone 1:1 000 000

6. Geological Survey of Finland www.gsf.fi 6 Bedrock maps scale 1 : 100 000  1 : 100 000 bedrock mapping started 1946  First numerical maps 1990  200 map sheets ready and most of them are now available also in numerical form  Mapping 2000 1617 km 2

7. Geological Survey of Finland www.gsf.fi 7 Maps of Quaternary Deposits  The mapping of Quaternary deposits on the scale 1:20 000/1:50 000 started on 80’s  900 km 2 mapped year 2000  Year 2000 183 new map sheets has been digitized

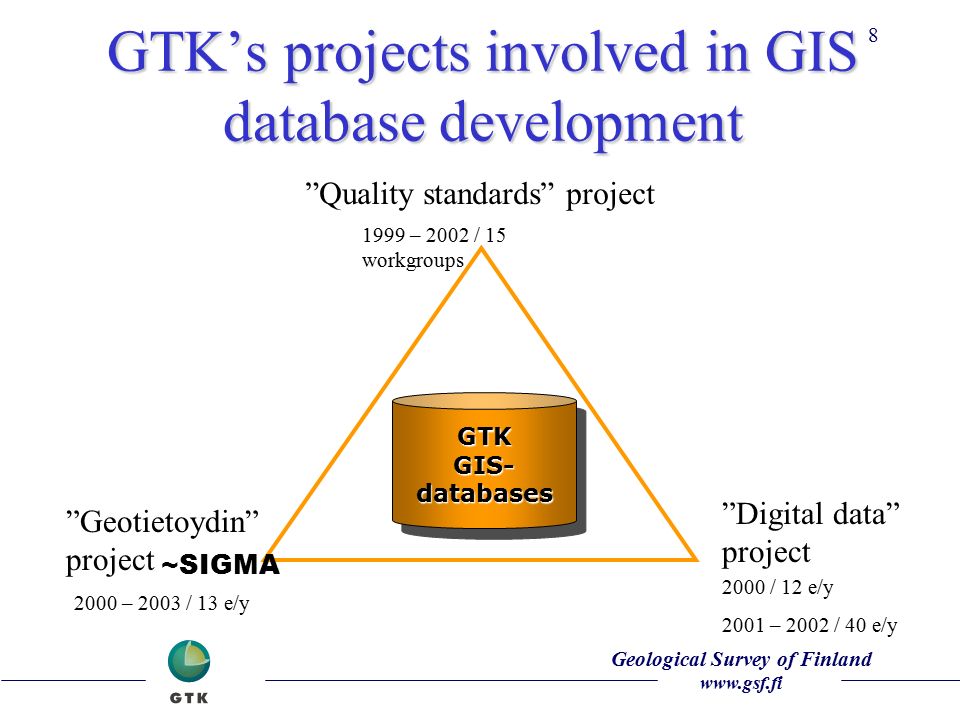

8. Geological Survey of Finland www.gsf.fi 8 GTK’s projects involved in GIS database development ”Geotietoydin” project ”Quality standards” project ”Digital data” project 2000 / 12 e/y 2001 – 2002 / 40 e/y 2000 – 2003 / 13 e/y 1999 – 2002 / 15 workgroups GTKGIS-databasesGTKGIS-databases ~SIGMA

9. Geological Survey of Finland www.gsf.fi 9Geotietoydin-project A GIS-based data management system will be carried out for all geological field and map data with ArcGIS 8.1 in 2000 - 2003 The system is based on Oracle 8i (9i) database, where both locational and attribute information will be saved as nation-wide themes through ArcSDE gateway

10. Geological Survey of Finland www.gsf.fi 10Geotietoydin-project Contents of geological feature and attribute databases will be reorganized according to the work of object model-project reports (1998 – 1999) Requirements set by GTK’s quality-project to data collection and management will be taken into consideration All existing data will be imported to Geodatabases

11. Geological Survey of Finland www.gsf.fi 11 Why use digital field data capture? data validation while collected better control of field work reduces data transcription errors control of the quality of positioning speed of data collection faster field data distribution

12. Geological Survey of Finland www.gsf.fi 12 Maps, reports Geological features modeling project NumericalobservationdatabasesNumerical map databases 1:20 000 1:100 000 1:250 000 1:1000 000 NumericalobservationdatabasesNumerical map databases 1:20 000 1:100 000 1:250 000 1:1000 000 Field observations, mapping Thematic maps Quality standards, handbooks and appendices Numerical products Digital data project GEOTIETOYDIN Geological Data and Products ’old data’ ’new data’

13. Geological Survey of Finland www.gsf.fi 13 Tested software for field data capture ArcPad (www.esri.com)www.esri.com FieldWorker (www.fieldworker.com)www.fieldworker.com MapLT (www.gisnetsf.com)www.gisnetsf.com

14. Geological Survey of Finland www.gsf.fi 14 ArcInfo ClientsClients Oracle 8i (GeoDatabase) (GeoDatabase) ServicesServices ArcIMS ArcView MS Access (PersonalGeoDatabase) (PersonalGeoDatabase) Geotietoydin CheckOut / CheckIn ArcEditor ArcSDE Web Java Applet, Servlet Shape ArcPadArcPad

15. Geological Survey of Finland www.gsf.fi 15 ArcPad data model Main data storage is based on Oracle 8i (9i) database, where both locational and attribute information are saved as nation-wide themes through ArcSDE gateway Geodatabase data model is used in Oracle Geodatabase feature classes are directly converted to shapefiles for Pocket PC/ArcPad users

16. Geological Survey of Finland www.gsf.fi 16 ArcPad data model Geodatabase classes (joined with relationships in Geodatabase) are converted to dbase-files (.dbf) and the one-to-many relations must be programmed in ArcPad (there is no ”join”-property) Value domains in Geodatabase are converted to.dbf- files and they can be directly linked to specified attribute in ArcPad 6 Application Builder

17. Geological Survey of Finland www.gsf.fi 17 ArcPad data model

18. Geological Survey of Finland www.gsf.fi 18 ArcPad application development User interfaces are designed with ArcPad 6 Application Builder which is installed on Windows NT or Windows 2000 Application Builder has some restrictions: –text editor is too simple –application doesn’t always work when editing xml- files with other text editor –path-definitions must be changed when transferring applications to Pocket PC device –Pocket PC emulator is missing from development environment

19. Geological Survey of Finland www.gsf.fi 19 ArcPad application development Programming is done mainly with XML and VBScript If needed, components will be programmed with embedded Visual Basic (VBCE) Applications are transferred with ActiveSync to PocketPC device

20. Geological Survey of Finland www.gsf.fi 20 Inserting ArcPad-data to Geodatabase Unique ObjectID is used in Geodatabase to link spatial feature to it’s attributes in class-tables (one-to-many relationships) This fact is taken into consideration when transferring data from ArcPad to Geodatabase: one feature and it’s related attributes are transferred at the same time to give them the same Unique ObjectID

21. Geological Survey of Finland www.gsf.fi 21MapLT a light mapping application that runs in mobile devices like PDA's and mobile phones (for example Compaq iPAQ and Nokia Communicator 9210) MapLT is written in Java and can be installed into EPOC and Windows CE devices -> platform independent User-friendly API is available for software developers, so you can even create your own mapping client! relatively low price, but requires a lot of coding

22. Geological Survey of Finland www.gsf.fi 22FieldWorker Excellent Electronic Forms Maps GPS Receivers Digital Photos

23. Geological Survey of Finland www.gsf.fi 23 Base requirements for the hardware rugged long lasting batteries data saved automatically if battery runs out connection to main database map interphase reasonable price -> 1500 – 3000 € /unit

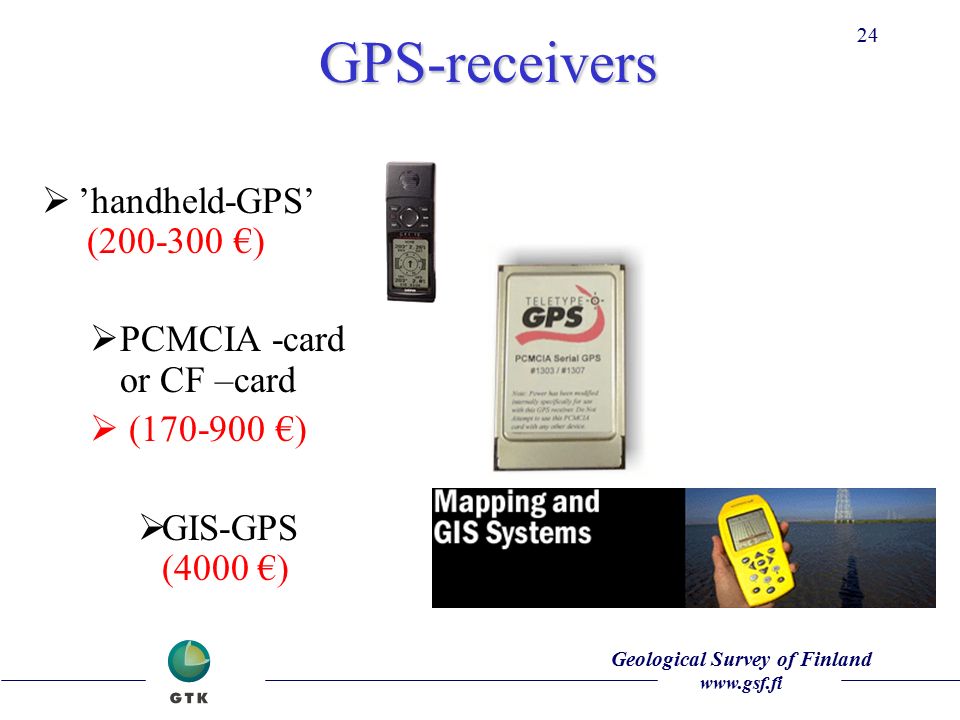

24. Geological Survey of Finland www.gsf.fi 24GPS-receivers  ’handheld-GPS’ (200-300 €)  PCMCIA -card or CF –card  (170-900 €)  GIS-GPS (4000 €)

25. Geological Survey of Finland www.gsf.fi 25 Field computers operating systems: WinCe (or PocketPC) or Win97/98/2000 map interphase defines the size of the display rugged computers rare in the markets (but are coming) in some cases ordinary laptop can be used (vehicles)

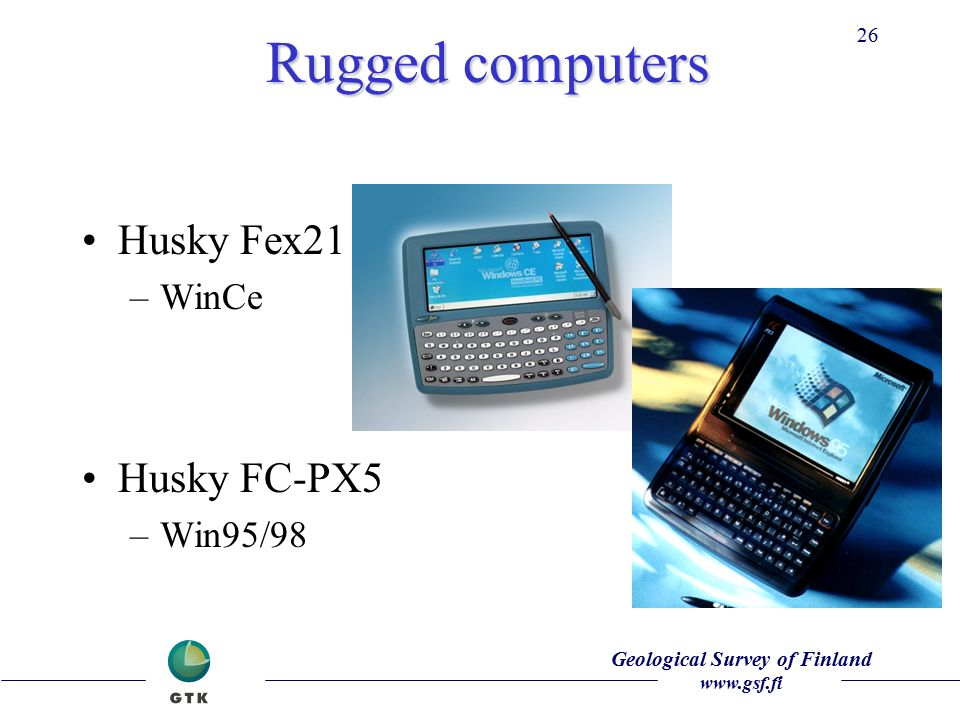

26. Geological Survey of Finland www.gsf.fi 26 Rugged computers Husky Fex21 –WinCe Husky FC-PX5 –Win95/98

27. Geological Survey of Finland www.gsf.fi 27 Rugged computers Fujitsu PenCentra Hitachi HPW-630ETR

28. Geological Survey of Finland www.gsf.fi 28 Rugged computers TimbaTec Ce TimbaTec Pocket

29. Geological Survey of Finland www.gsf.fi 29Conclusions GTK is still at the testing stage -> decision on which software to be used needs to be done soon ArcPad is a strong candidate (but an expensive one) FieldWorker does not support raster maps, but gives good forms MapLT would be platform independent and relatively cheap, but requires a lot of programming hardware is developing fast -> it has been worth waiting for the improvements
