1. Carbon Abatement Showcase Leeds, March 2 nd 2011

2. Welcome Derek Allen, Technology Strategy Board Carbon Abatement Showcase

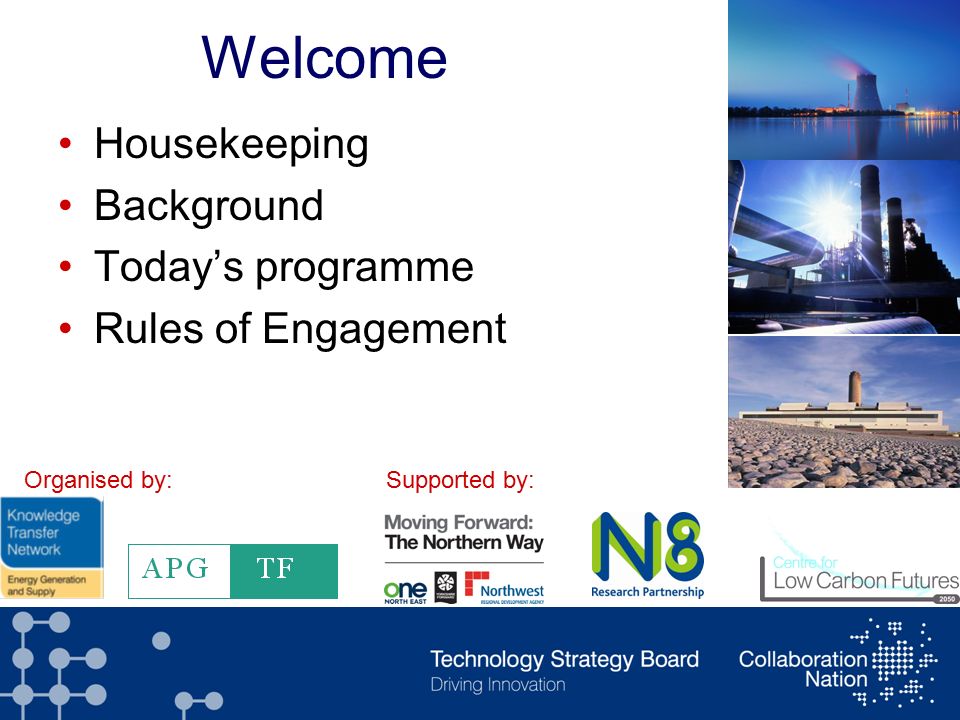

3. Welcome Housekeeping Background Today’s programme Rules of Engagement Organised by:Supported by:

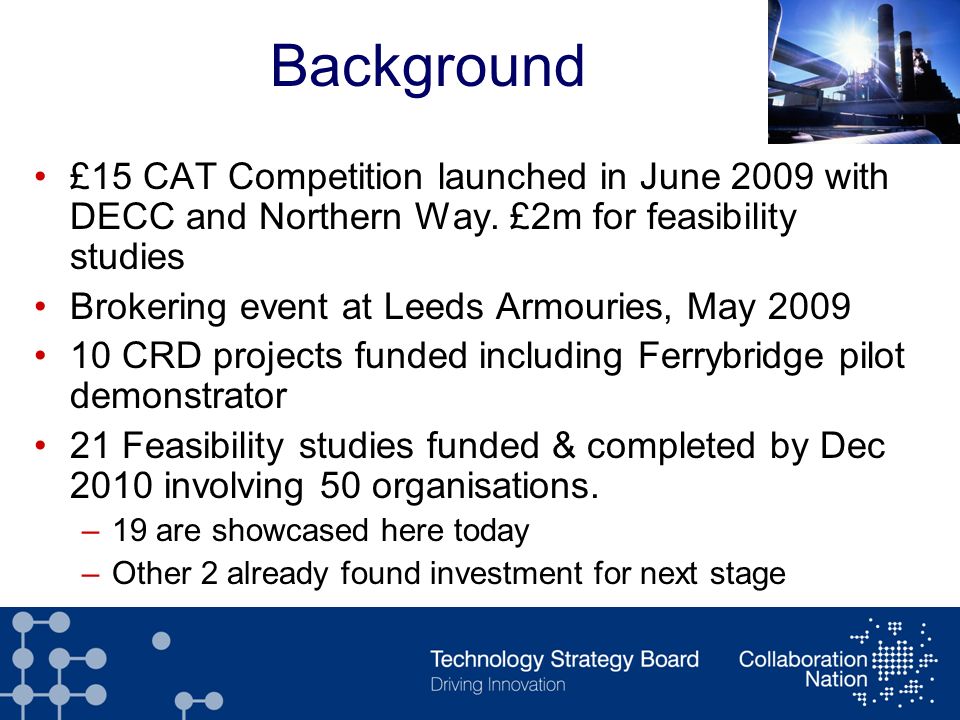

4. Background £15 CAT Competition launched in June 2009 with DECC and Northern Way. £2m for feasibility studies Brokering event at Leeds Armouries, May 2009 10 CRD projects funded including Ferrybridge pilot demonstrator 21 Feasibility studies funded & completed by Dec 2010 involving 50 organisations. –19 are showcased here today –Other 2 already found investment for next stage

5. Programme 10.00-10.15 Welcome 10.15-10.20 Chairman 10.20-11.00 Project profiles 1 11.00-11.30 Tea & networking 11.30-12.20 Project profiles 1 12.20-13.40 Lunch & networking 13.40-14.20 Market place 1 14.20-15.00 Tea & networking 15.00-15.30 Market place 2 15.30-15.45 Next steps 15.45-17.00 Networking reception

6. Rules of Engagement There are no rules Not a conference No formal Q&A Showcase and network event Aided by brochure & posters Flexible and informal Questionnaire

7. Chairman Philip Sharman, Chairman of APGTF & Director Technology and External Affairs, Alstom Power Carbon Abatement Showcase

8. Project Presentations Part 1 Carbon Abatement Showcase

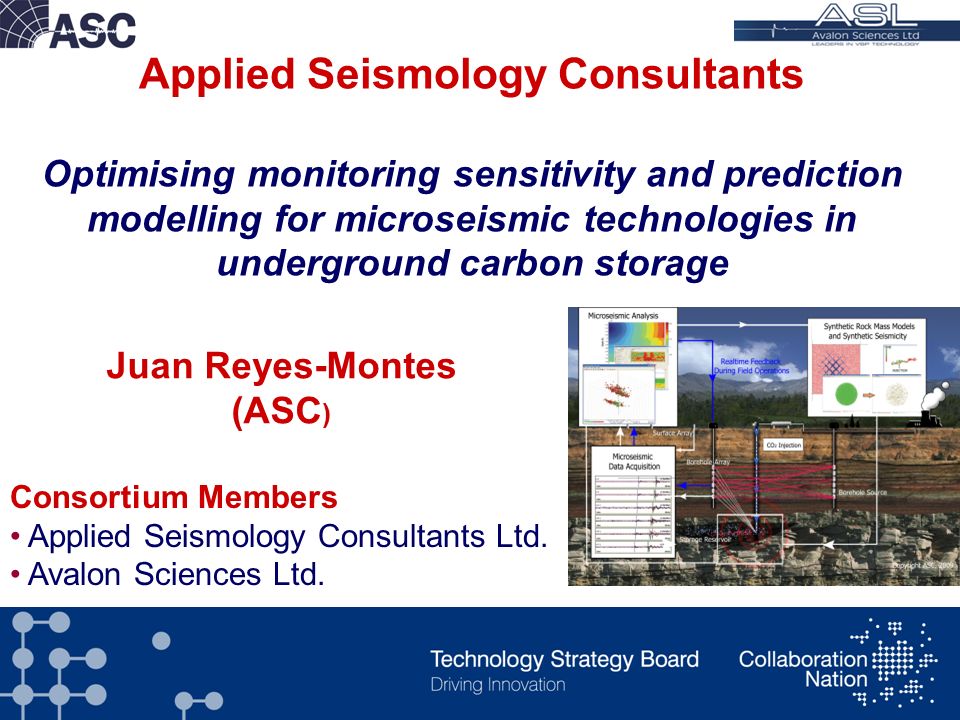

9. Applied Seismology Consultants Optimising monitoring sensitivity and prediction modelling for microseismic technologies in underground carbon storage Consortium Members Applied Seismology Consultants Ltd. Avalon Sciences Ltd. Juan Reyes-Montes (ASC )

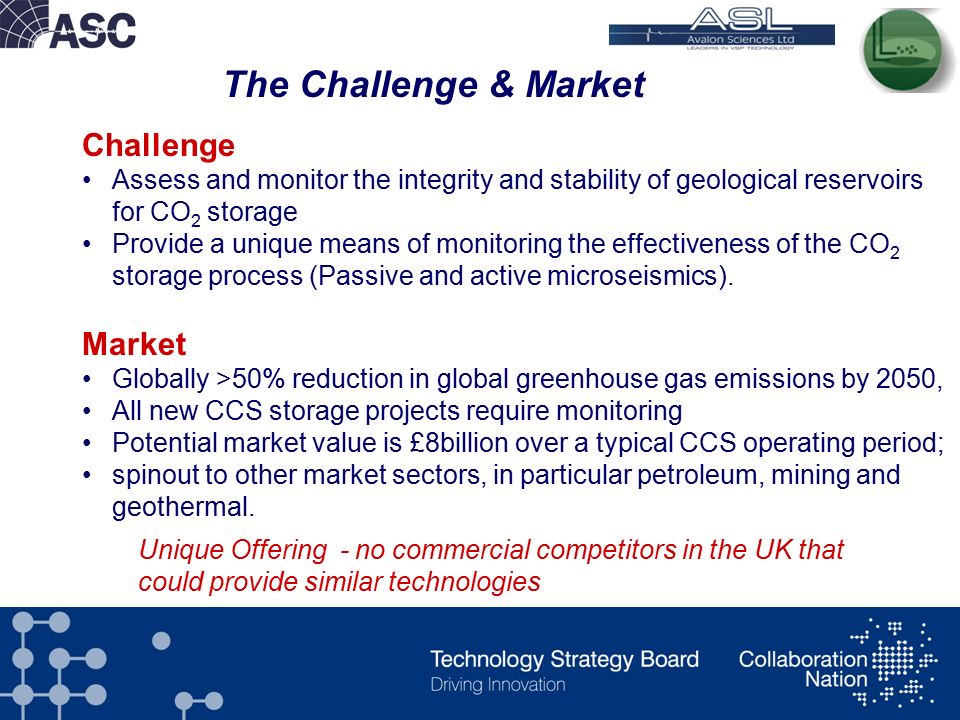

10. The Challenge & Market Challenge Assess and monitor the integrity and stability of geological reservoirs for CO 2 storage Provide a unique means of monitoring the effectiveness of the CO 2 storage process (Passive and active microseismics). Market Globally >50% reduction in global greenhouse gas emissions by 2050, All new CCS storage projects require monitoring Potential market value is £8billion over a typical CCS operating period; spinout to other market sectors, in particular petroleum, mining and geothermal. Unique Offering - no commercial competitors in the UK that could provide similar technologies

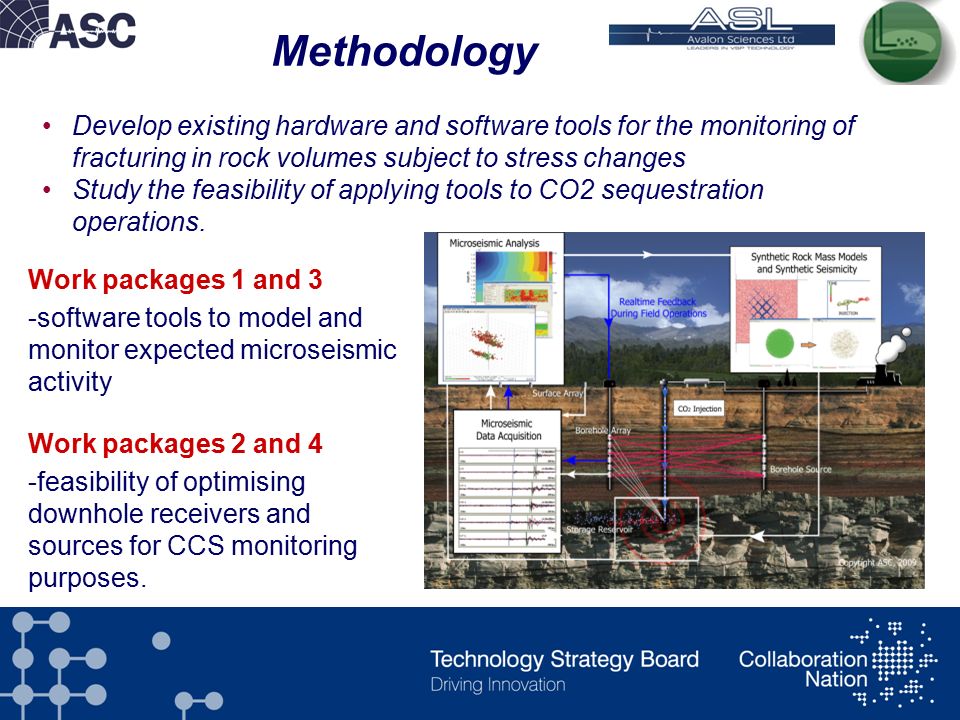

11. Methodology Develop existing hardware and software tools for the monitoring of fracturing in rock volumes subject to stress changes Study the feasibility of applying tools to CO2 sequestration operations. Work packages 1 and 3 -software tools to model and monitor expected microseismic activity Work packages 2 and 4 -feasibility of optimising downhole receivers and sources for CCS monitoring purposes.

12. Key Findings/results Work Package 1 - Numerical modellingWork Package 2 – Geochain Slim Receiver System Work Package 4 - Downhole Source ‘Sparker’ Synthetic seismicity Time Magnitude Modelled cracks Location methods using master events and S-wave polarisation Work Package 3 - Advanced Processing and Interpretation Tools Visualiser for active source surveys in InSite Seismic Processor integration Vacuum flask Sensor pack Rigid inter tool connections fitted to each Geochain slim downhole receiver Sparker firing head in water tank Sparker firing head lowered into well head Recorded traces from Geochain Slim Combination Existing technologies adapted and successfully commercialised to monitor under conditions typical of deep geological storage of CO 2 The application of numerical models to this problem demonstrated their capability for future specific full scale storage projects.

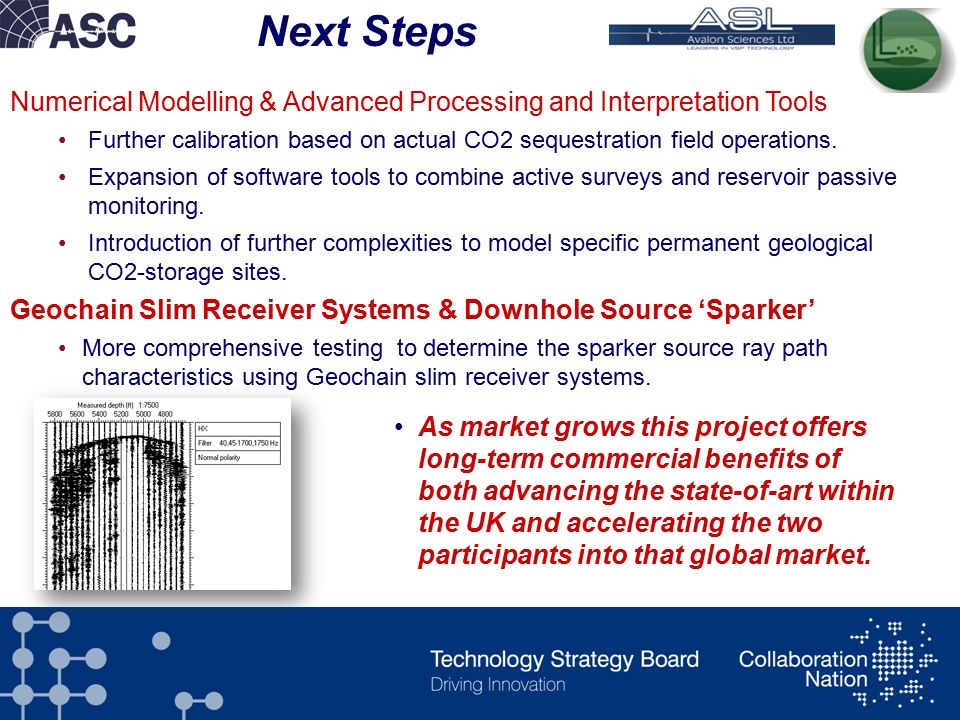

13. Next Steps Numerical Modelling & Advanced Processing and Interpretation Tools Further calibration based on actual CO2 sequestration field operations. Expansion of software tools to combine active surveys and reservoir passive monitoring. Introduction of further complexities to model specific permanent geological CO2-storage sites. Geochain Slim Receiver Systems & Downhole Source ‘Sparker’ More comprehensive testing to determine the sparker source ray path characteristics using Geochain slim receiver systems. As market grows this project offers long-term commercial benefits of both advancing the state-of-art within the UK and accelerating the two participants into that global market.

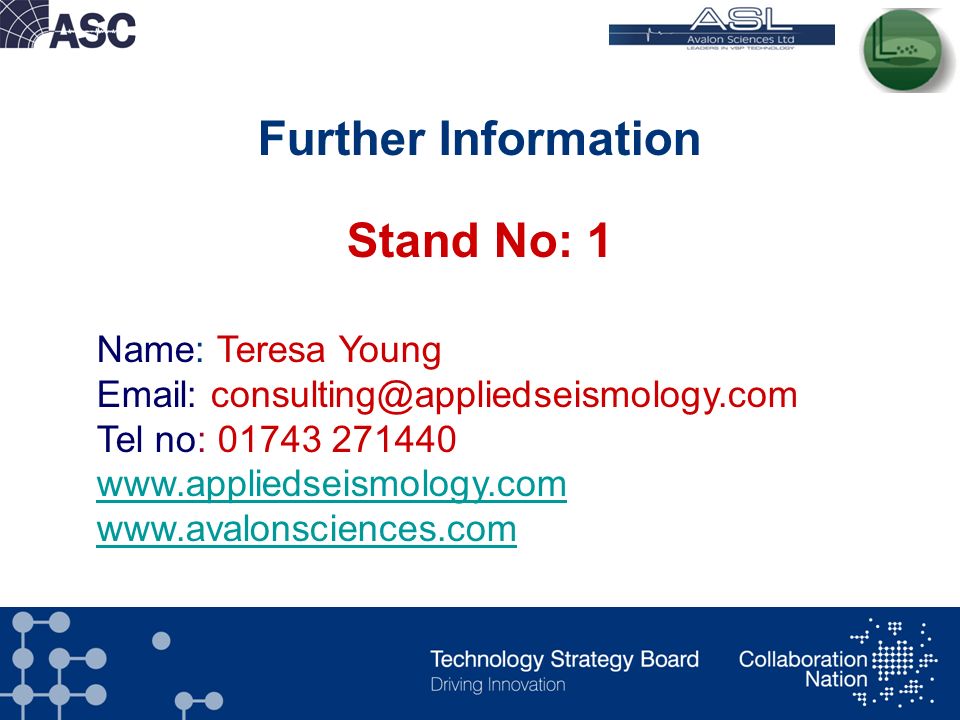

14. Further Information Stand No: 1 Name: Teresa Young Email: consulting@appliedseismology.com Tel no: 01743 271440 www.appliedseismology.com www.appliedseismology.com www.avalonsciences.com

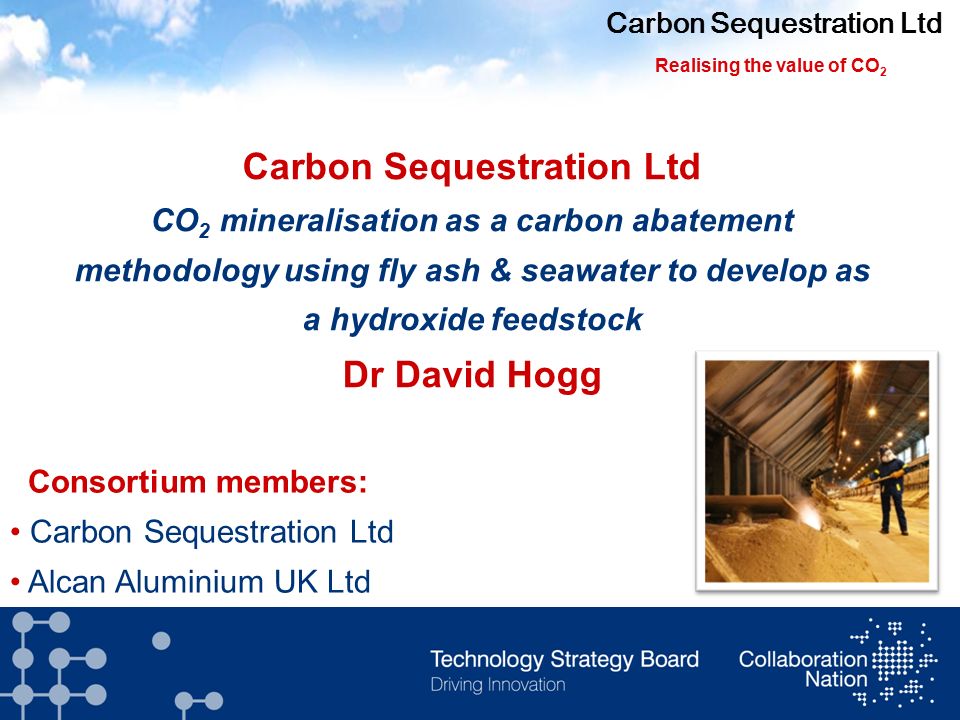

15. Carbon Sequestration Ltd Realising the value of CO 2 Carbon Sequestration Ltd CO 2 mineralisation as a carbon abatement methodology using fly ash & seawater to develop as a hydroxide feedstock Dr David Hogg Consortium members: Carbon Sequestration Ltd Alcan Aluminium UK Ltd

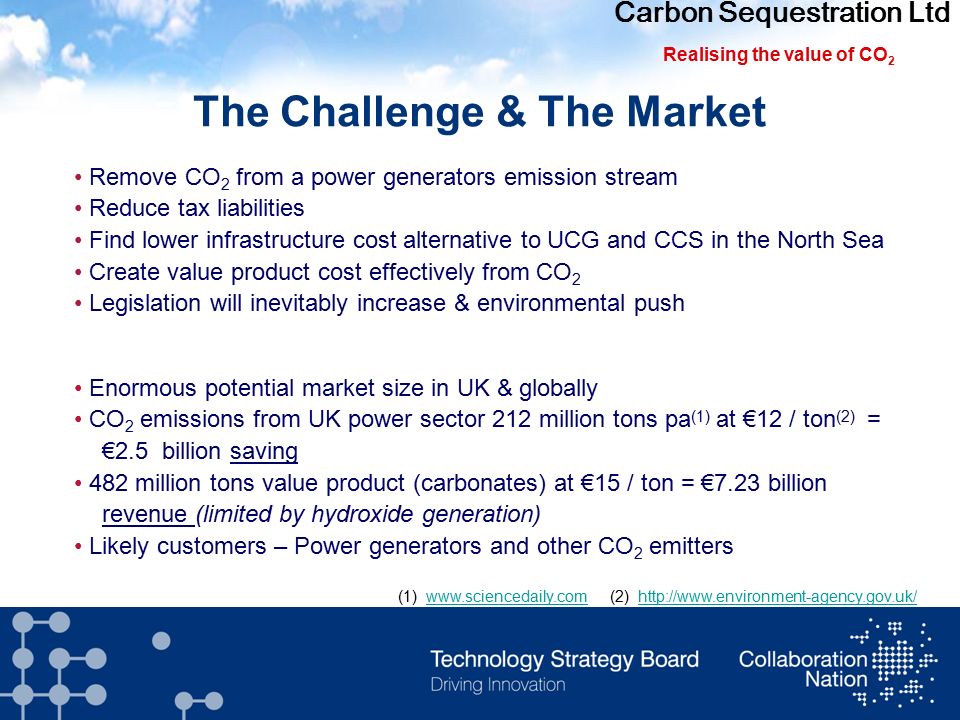

16. Remove CO 2 from a power generators emission stream Reduce tax liabilities Find lower infrastructure cost alternative to UCG and CCS in the North Sea Create value product cost effectively from CO 2 Legislation will inevitably increase & environmental push Enormous potential market size in UK & globally CO 2 emissions from UK power sector 212 million tons pa (1) at €12 / ton (2) = €2.5 billion saving 482 million tons value product (carbonates) at €15 / ton = €7.23 billion revenue (limited by hydroxide generation) Likely customers – Power generators and other CO 2 emitters (1) www.sciencedaily.com (2) http://www.environment-agency.gov.uk/www.sciencedaily.comhttp://www.environment-agency.gov.uk/ Carbon Sequestration Ltd Realising the value of CO 2 The Challenge & The Market

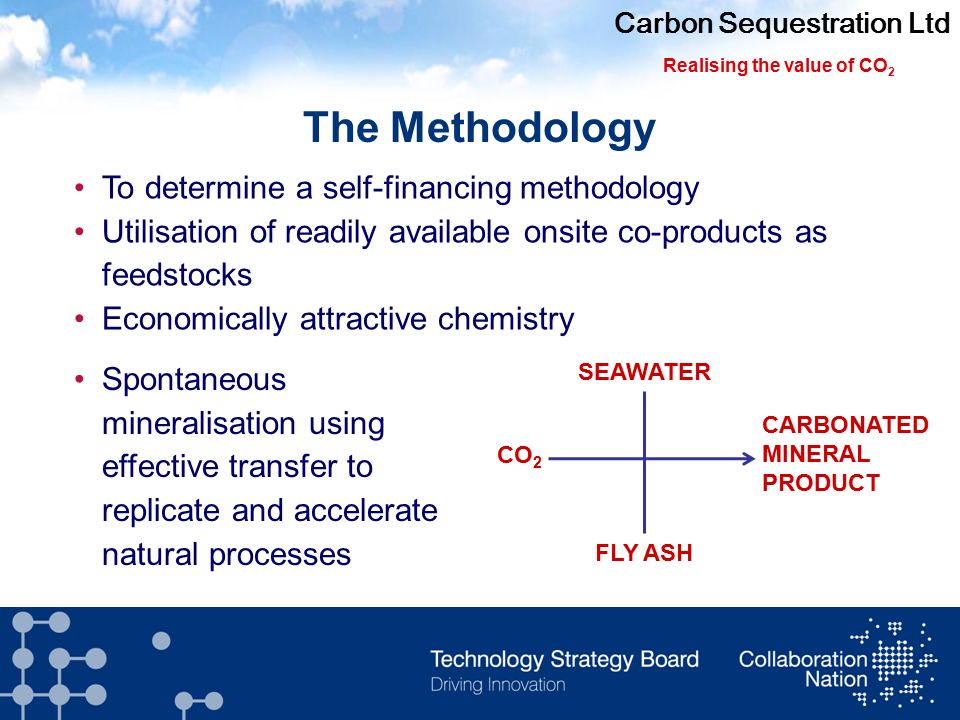

17. To determine a self-financing methodology Utilisation of readily available onsite co-products as feedstocks Economically attractive chemistry The Methodology SEAWATER CO 2 FLY ASH CARBONATED MINERAL PRODUCT Carbon Sequestration Ltd Realising the value of CO 2 Spontaneous mineralisation using effective transfer to replicate and accelerate natural processes

18. Quantitative CO 2 conversion on a continuous basis Reaction conversion measured in minutes Controlled pH leading to enhanced rate NOx / SOx removal facilitated Was it successful? Proven by academic theoretical research Proven on laboratory bench scale Proven on laboratory scale up to 70 litre (purpose-designed vessel) Intellectual Property has been registered Carbon Sequestration Ltd Realising the value of CO 2 Key Results

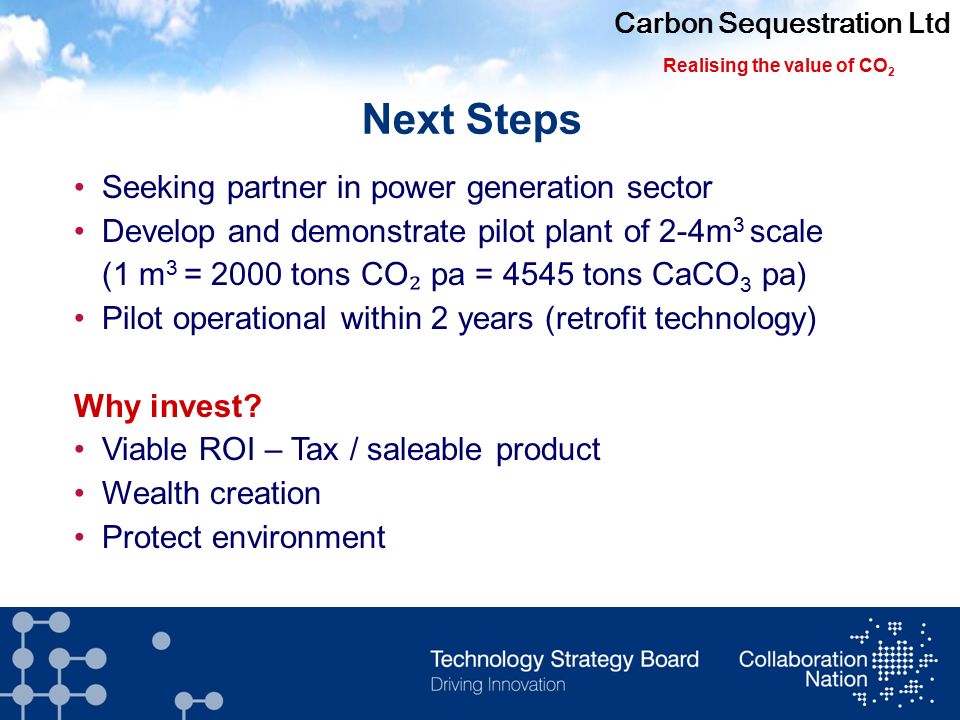

19. Seeking partner in power generation sector Develop and demonstrate pilot plant of 2-4m 3 scale (1 m 3 = 2000 tons CO ₂ pa = 4545 tons CaCO 3 pa) Pilot operational within 2 years (retrofit technology) Why invest? Viable ROI – Tax / saleable product Wealth creation Protect environment Next Steps Carbon Sequestration Ltd Realising the value of CO 2

20. Contact Name: Dr David Hogg Email:davidhogg@carbondioxidesequestration.co.uk Tel no: +44 (0) 7590 961117 www: www.carbondioxidesequestration.co.uk Further Information Stand 03 Carbon Sequestration Ltd Realising the value of CO 2

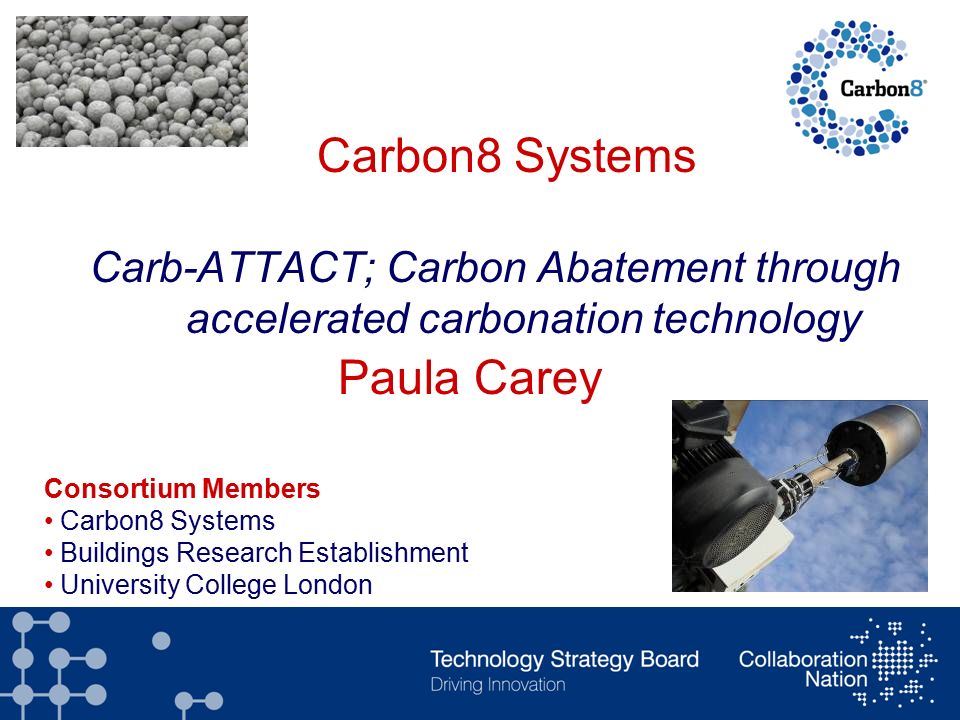

21. Carbon8 Systems Carb-ATTACT; Carbon Abatement through accelerated carbonation technology Paula Carey Consortium Members Carbon8 Systems Buildings Research Establishment University College London

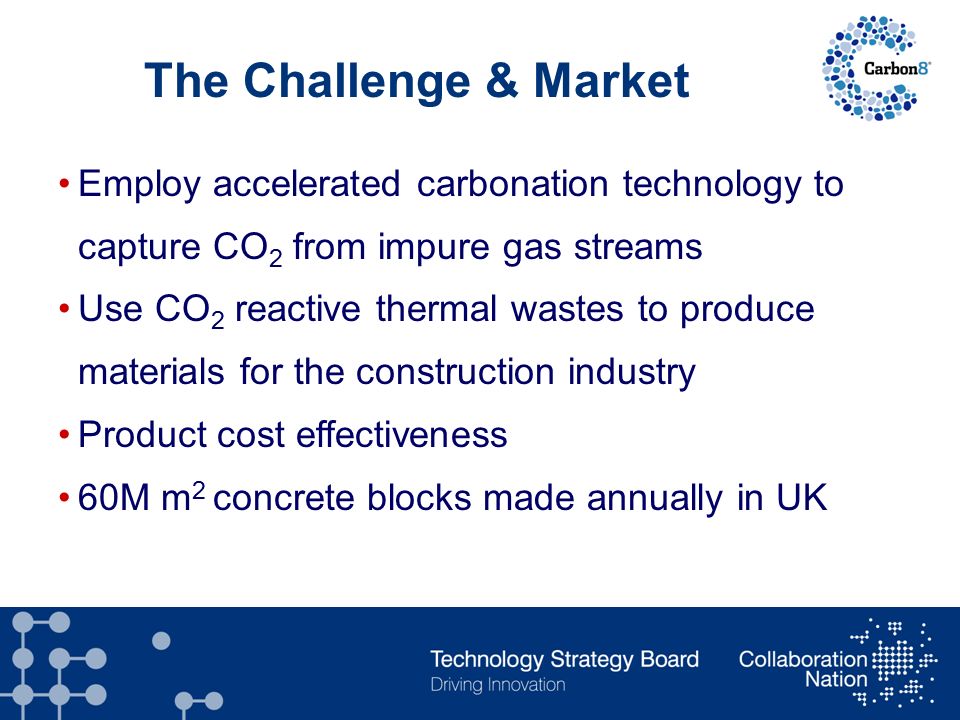

22. The Challenge & Market Employ accelerated carbonation technology to capture CO 2 from impure gas streams Use CO 2 reactive thermal wastes to produce materials for the construction industry Product cost effectiveness 60M m 2 concrete blocks made annually in UK

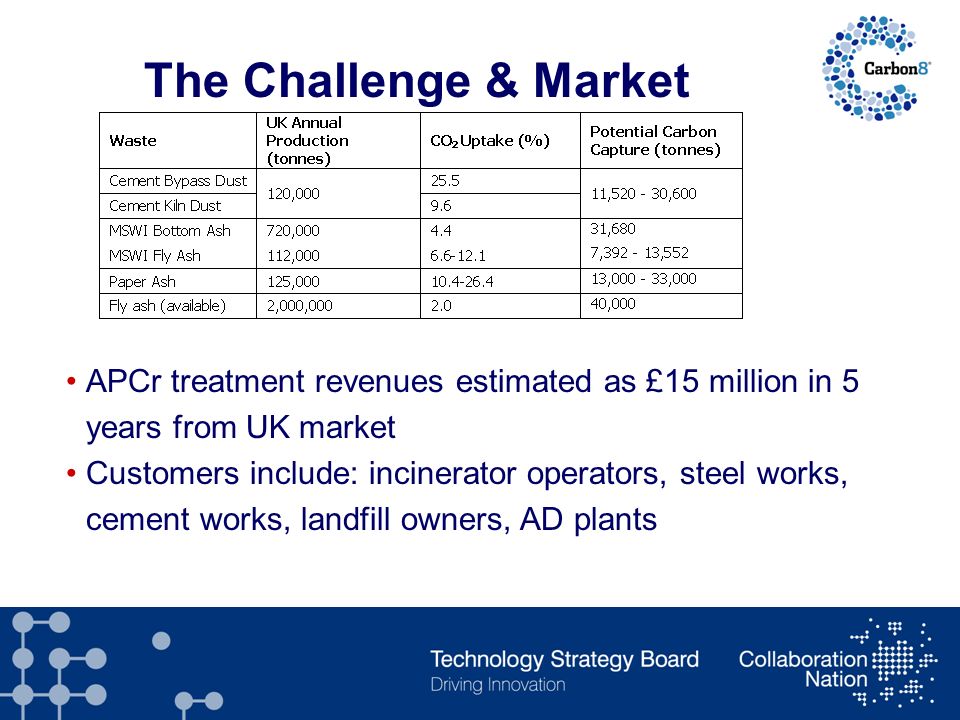

23. The Challenge & Market APCr treatment revenues estimated as £15 million in 5 years from UK market Customers include: incinerator operators, steel works, cement works, landfill owners, AD plants

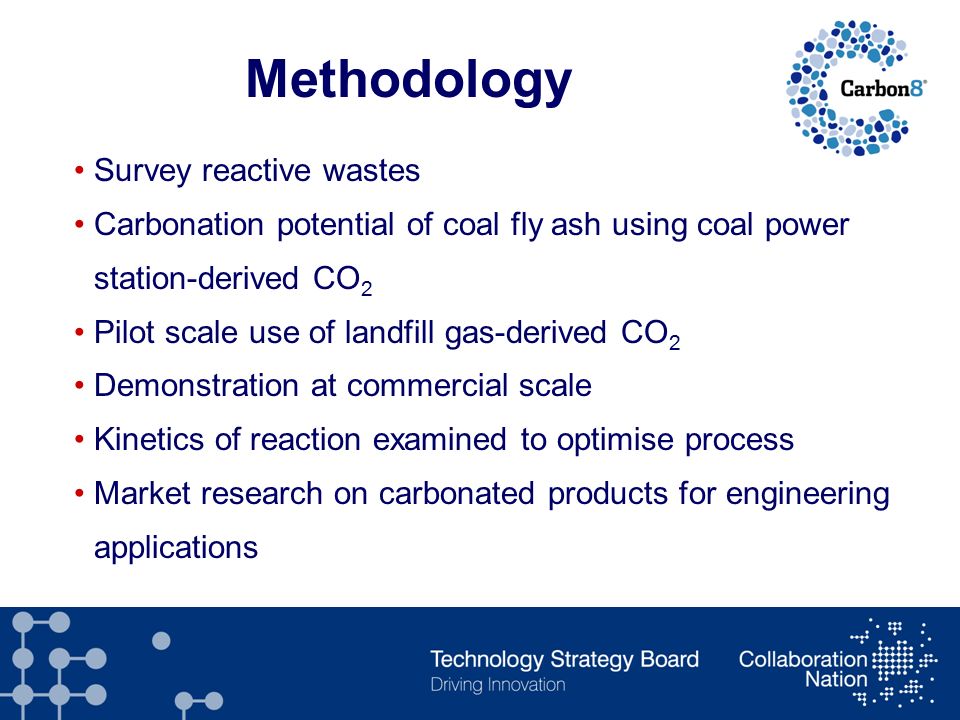

24. Methodology Survey reactive wastes Carbonation potential of coal fly ash using coal power station-derived CO 2 Pilot scale use of landfill gas-derived CO 2 Demonstration at commercial scale Kinetics of reaction examined to optimise process Market research on carbonated products for engineering applications

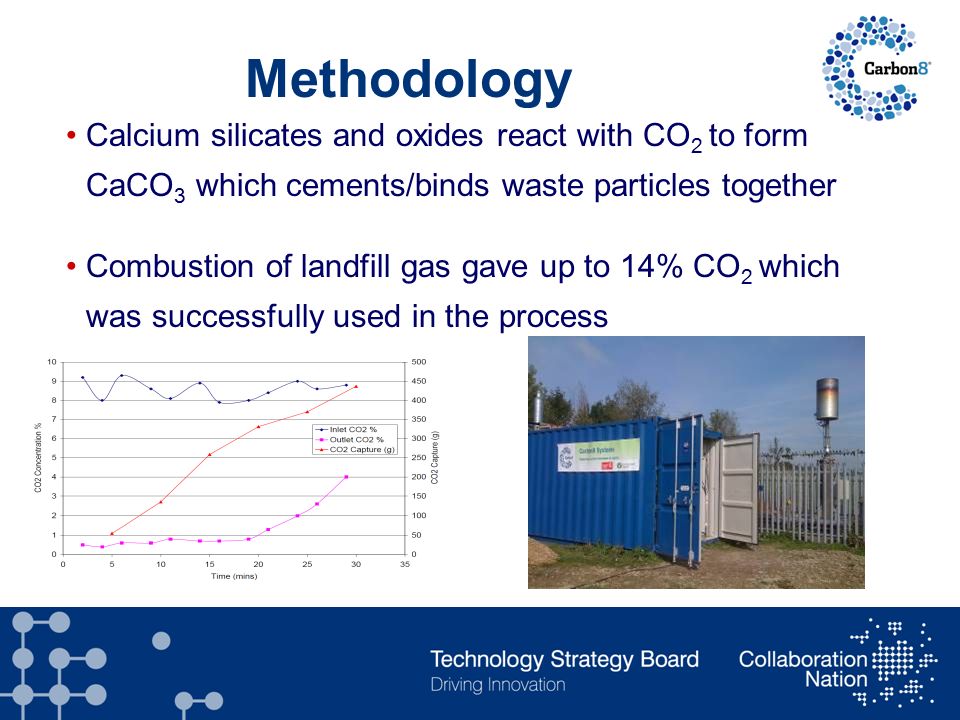

25. Methodology Calcium silicates and oxides react with CO 2 to form CaCO 3 which cements/binds waste particles together Combustion of landfill gas gave up to 14% CO 2 which was successfully used in the process

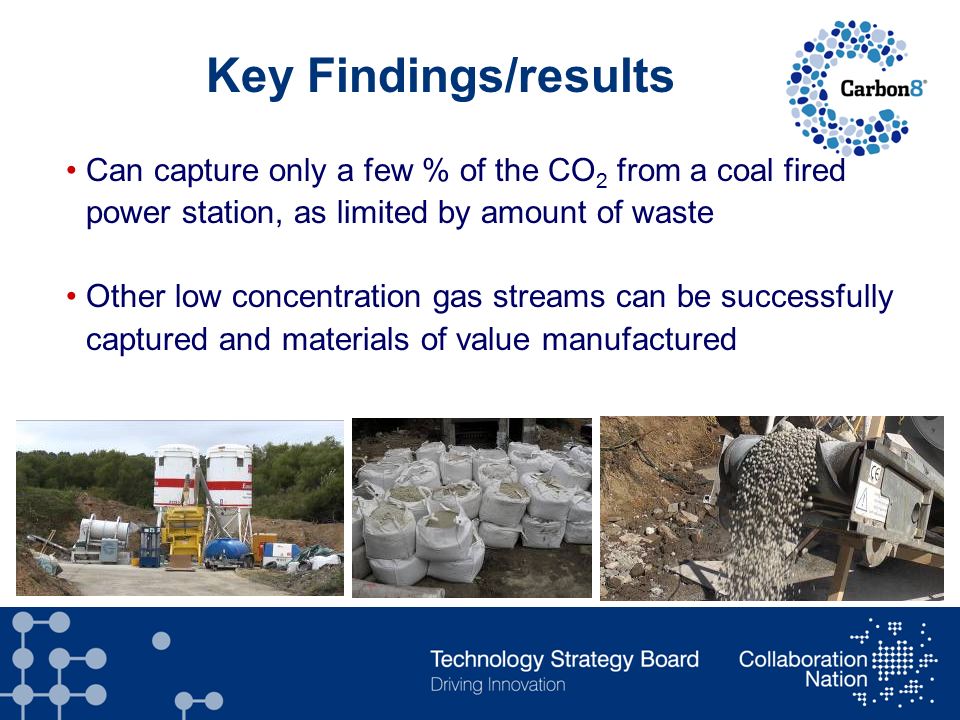

26. Key Findings/results Can capture only a few % of the CO 2 from a coal fired power station, as limited by amount of waste Other low concentration gas streams can be successfully captured and materials of value manufactured

27. Next Steps Full-scale process at steel or EfW plant (CO 2 and waste) Increase the uptake of CO 2 in waste Test products for other end uses (asphalt) Facilitated a new company to treat APC residues, full-scale trial and manufacture of 200T of aggregate for blocks Partners with waste, CO 2 and finance for plant needed For carbon capture, 12-18 months to full commercial plant Business model derives value from: landfill avoidance, saleable product and carbon capture

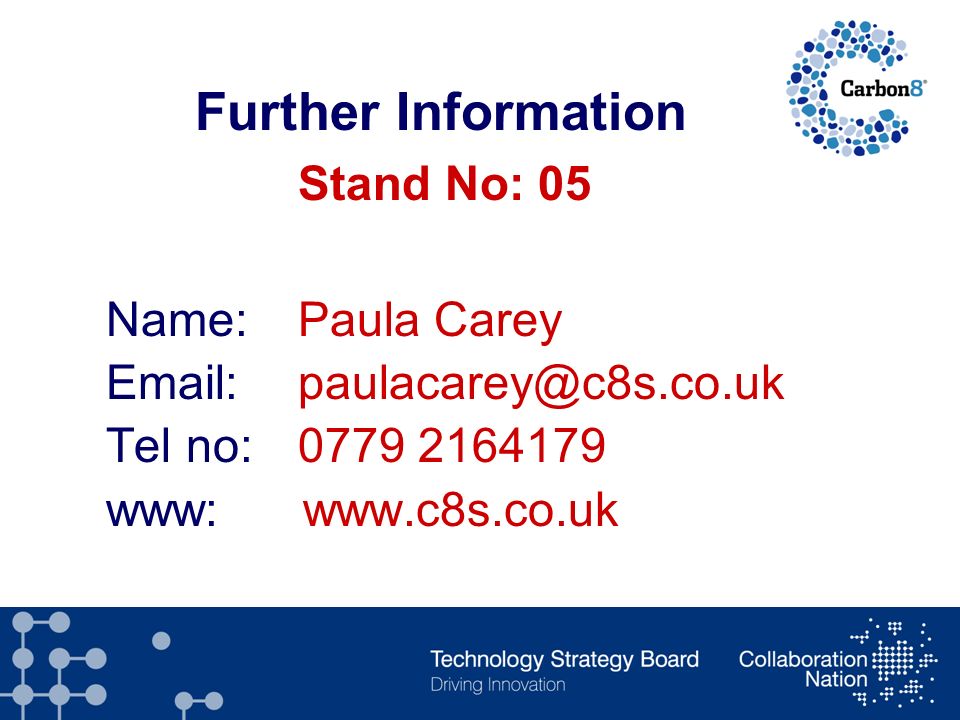

28. Further Information Stand No: 05 Name:Paula Carey Email:paulacarey@c8s.co.uk Tel no: 0779 2164179 www: www.c8s.co.uk

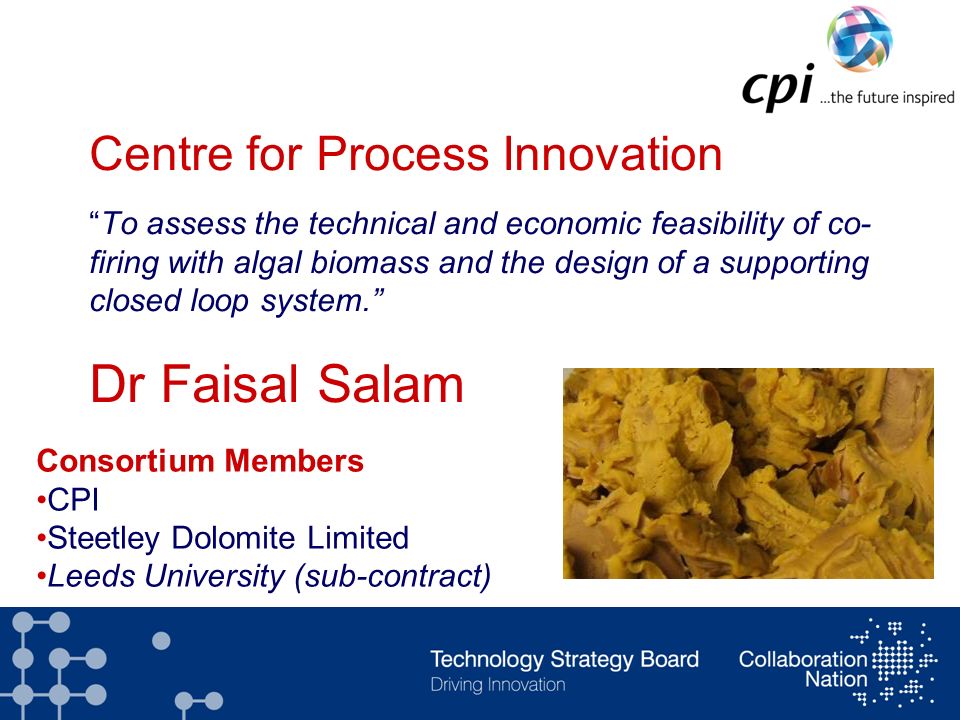

29. Centre for Process Innovation “To assess the technical and economic feasibility of co- firing with algal biomass and the design of a supporting closed loop system.” Dr Faisal Salam Consortium Members CPI Steetley Dolomite Limited Leeds University (sub-contract) Insert Image representative of project

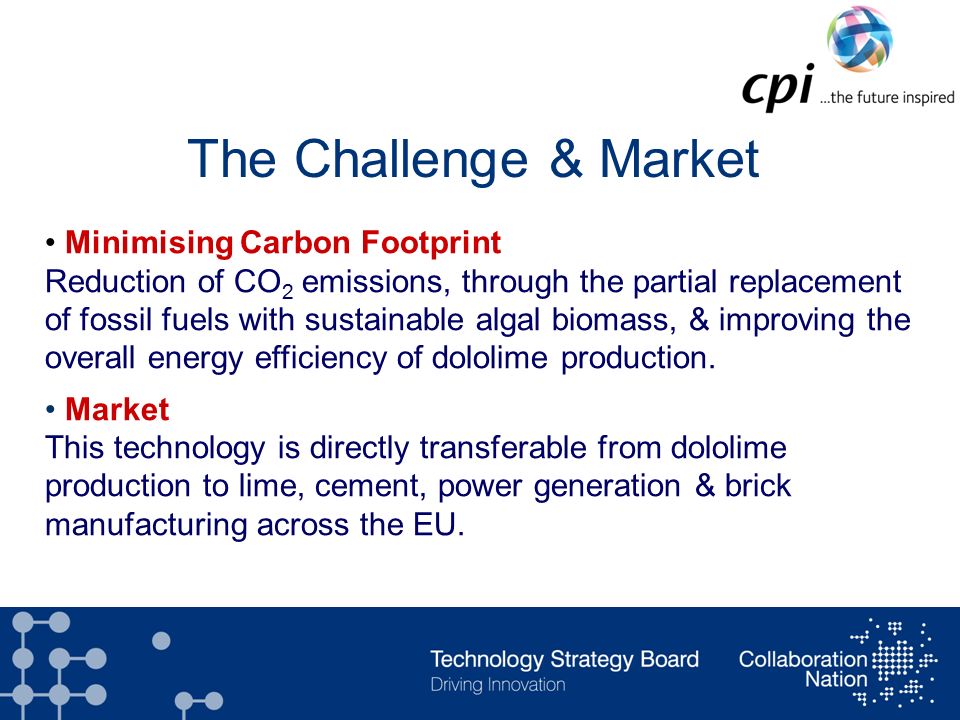

30. The Challenge & Market Minimising Carbon Footprint Reduction of CO 2 emissions, through the partial replacement of fossil fuels with sustainable algal biomass, & improving the overall energy efficiency of dololime production. Market This technology is directly transferable from dololime production to lime, cement, power generation & brick manufacturing across the EU.

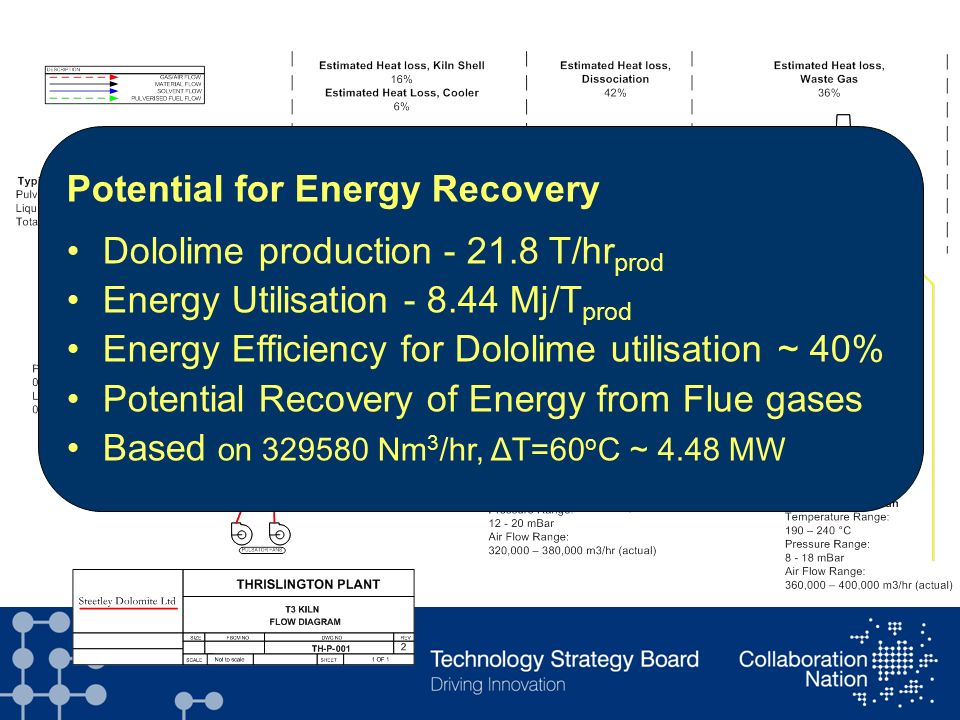

31. Potential for Energy Recovery Dololime production - 21.8 T/hr prod Energy Utilisation - 8.44 Mj/T prod Energy Efficiency for Dololime utilisation ~ 40% Potential Recovery of Energy from Flue gases Based on 329580 Nm 3 /hr, ΔT=60 o C ~ 4.48 MW

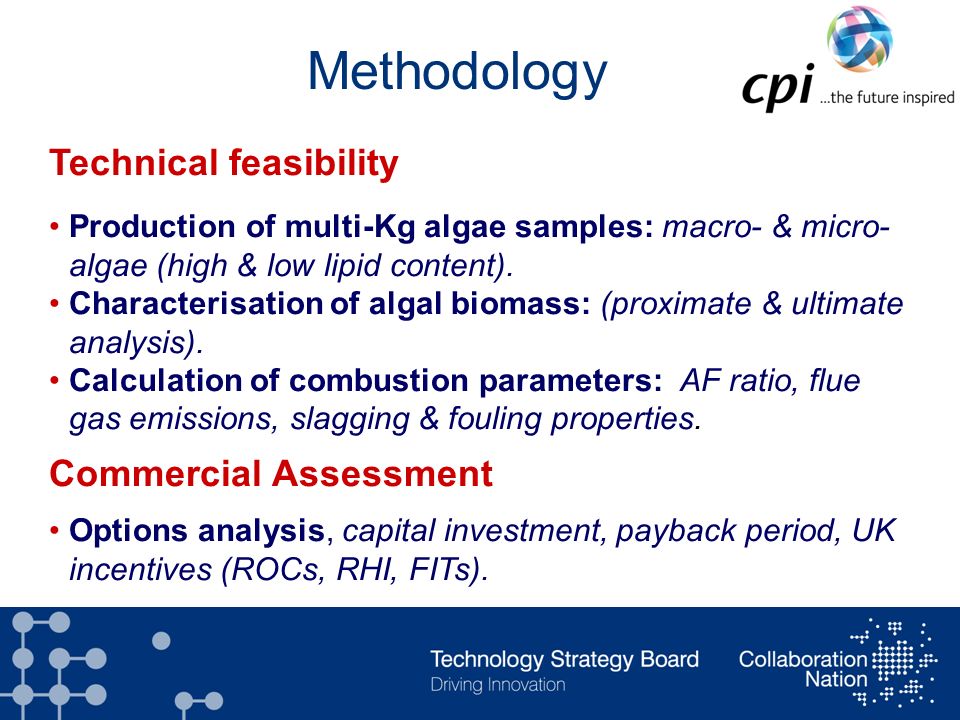

32. Methodology Technical feasibility Production of multi-Kg algae samples: macro- & micro- algae (high & low lipid content). Characterisation of algal biomass: (proximate & ultimate analysis). Calculation of combustion parameters: AF ratio, flue gas emissions, slagging & fouling properties. Commercial Assessment Options analysis, capital investment, payback period, UK incentives (ROCs, RHI, FITs).

33. Key Findings Insert Company Logo Co-firing with algal biomass is technically feasible. Direct substitution limits ~15%. Development of an energy recovery system represents a significant opportunity to improve plant efficiency. Post demonstration, the proposed co-firing & energy recovery strategies are commercially viable. Typical Low NOx Burner

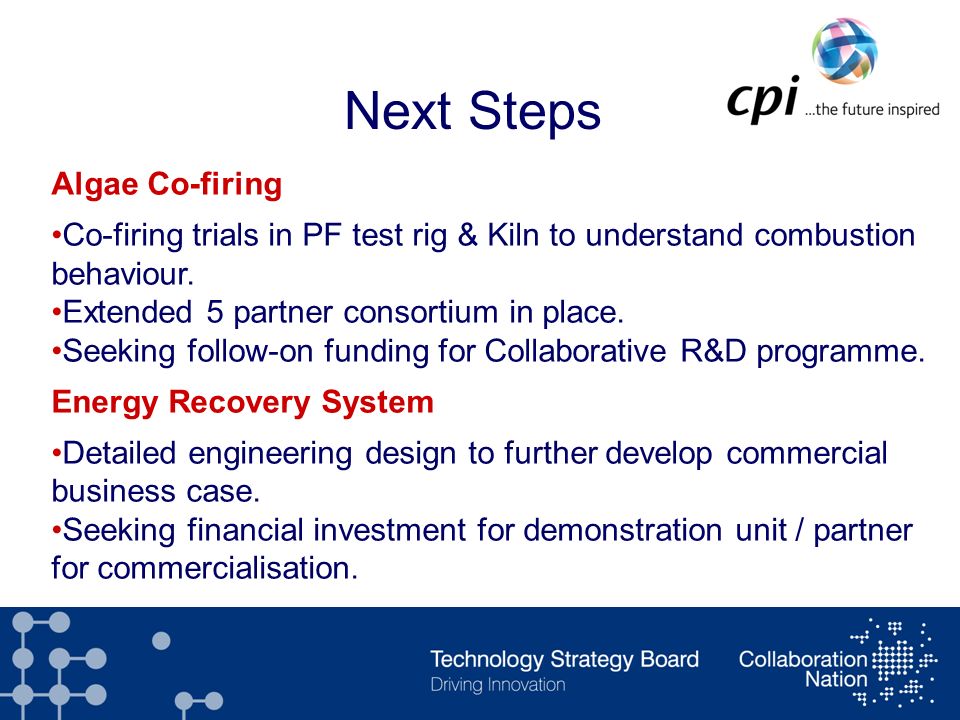

34. Next Steps Insert Company Logo Algae Co-firing Co-firing trials in PF test rig & Kiln to understand combustion behaviour. Extended 5 partner consortium in place. Seeking follow-on funding for Collaborative R&D programme. Energy Recovery System Detailed engineering design to further develop commercial business case. Seeking financial investment for demonstration unit / partner for commercialisation.

35. Further Information Stand No: 06 Contact: Dr. Lois Hobson email: lois.hobson@uk-cpi.com Tel: +44(0)7554439681 www: www.uk-cpi.com Insert Company Logo

36. Break and Networking Carbon Abatement Showcase

37. Project Presentations Part 2 Carbon Abatement Showcase

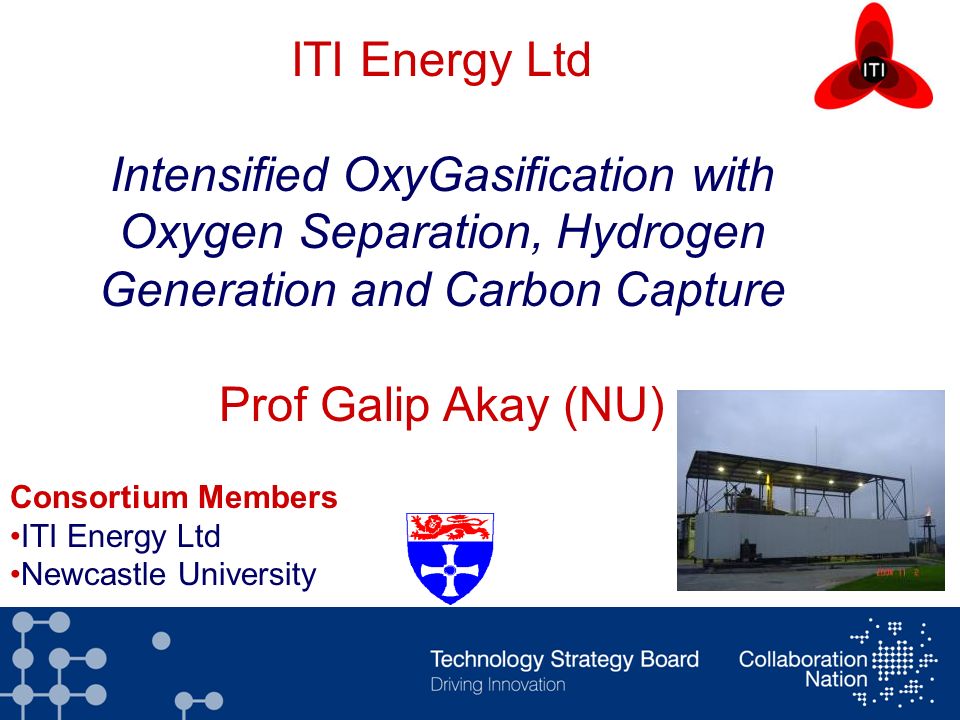

38. Consortium Members ITI Energy Ltd Newcastle University ITI Energy Ltd Intensified OxyGasification with Oxygen Separation, Hydrogen Generation and Carbon Capture Prof Galip Akay (NU)

39. The Challenge & Market Objective: To development an OxyGasification Technology Reasons: Efficient process with carbon capture Market size: Applicable to all thermal energy conversions Customers: Power generation, Syngas-to-Liquid fuel /chemicals conversion

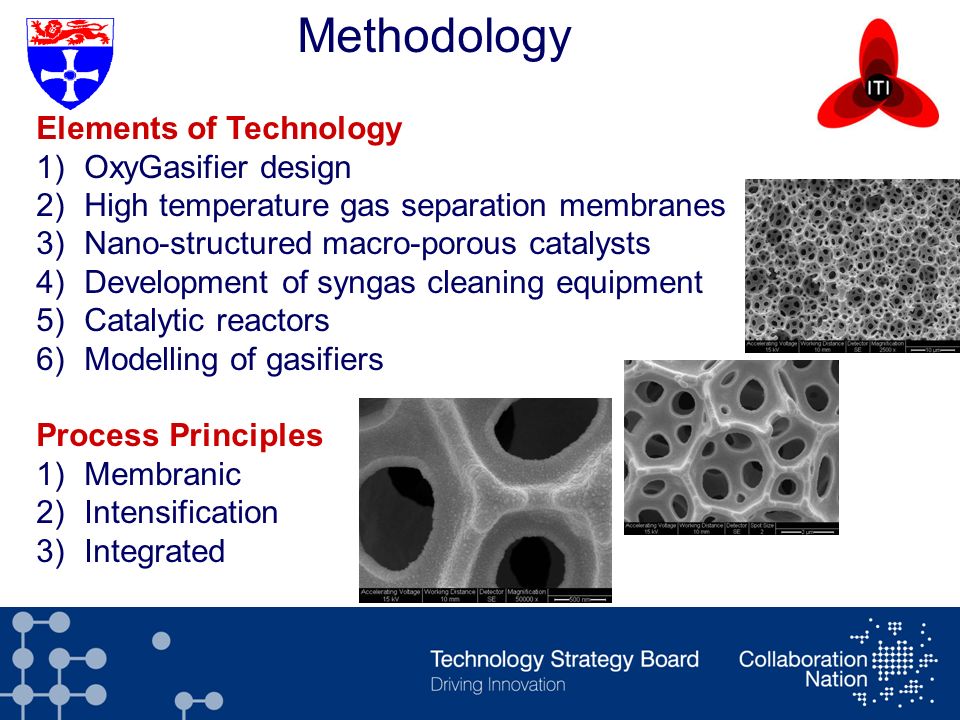

40. Methodology Elements of Technology 1)OxyGasifier design 2)High temperature gas separation membranes 3)Nano-structured macro-porous catalysts 4)Development of syngas cleaning equipment 5)Catalytic reactors 6)Modelling of gasifiers Process Principles 1)Membranic 2)Intensification 3)Integrated

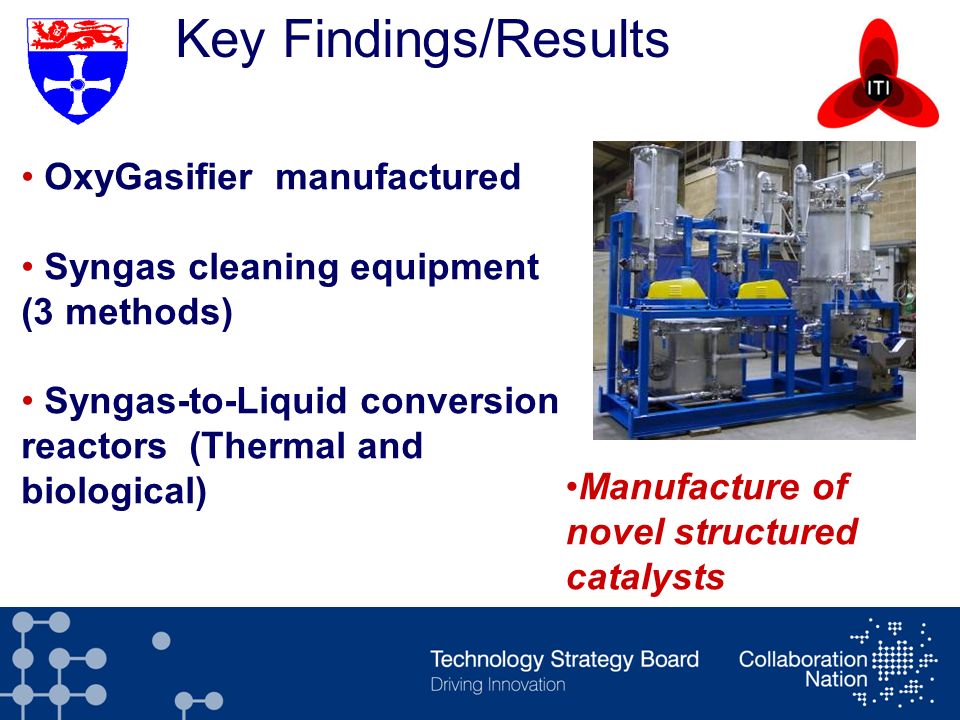

41. Key Findings/Results OxyGasifier manufactured Syngas cleaning equipment (3 methods) Syngas-to-Liquid conversion reactors (Thermal and biological) Manufacture of novel structured catalysts

42. Next Steps Numerous global patents granted and applied for Scope for genuine and open collaboration Genuine business proposition Type of support sought 1)Joint venture with end users or existing manufacturers 2)Start-up company based on existing IPR and research (funded by EU for the next 3 years at ca. £1.5m) 3)Further collaborative R&D towards commercialisation

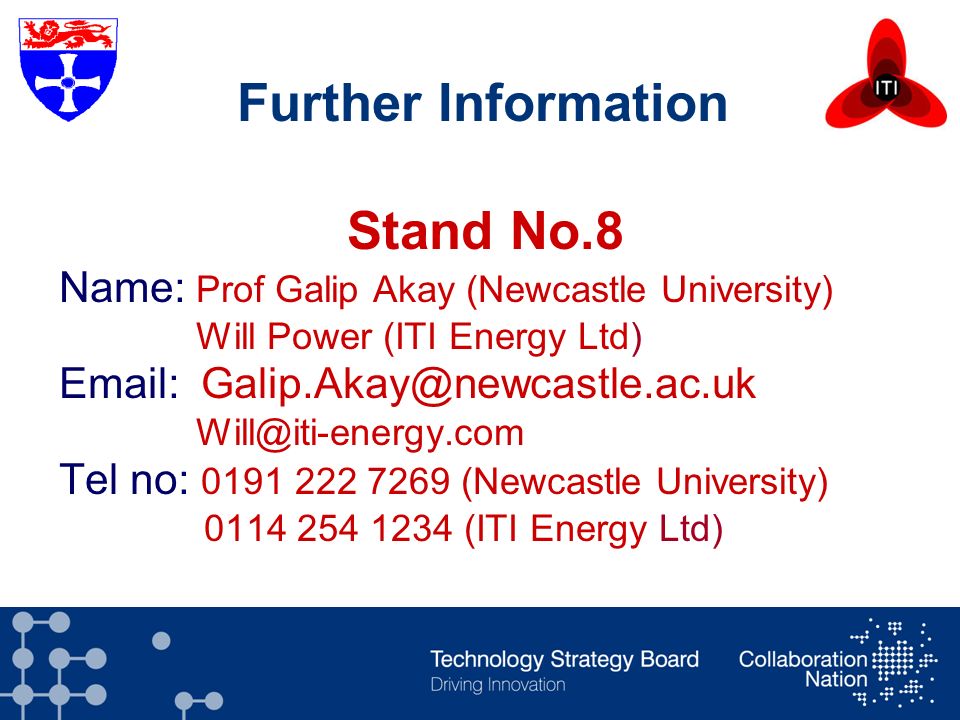

43. Further Information Stand No.8 Name: Prof Galip Akay (Newcastle University) Will Power (ITI Energy Ltd) Email: Galip.Akay@newcastle.ac.uk Will@iti-energy.com Tel no: 0191 222 7269 (Newcastle University) 0114 254 1234 (ITI Energy Ltd)

44. Lindhurst Engineering Bio-Gas From Microbial Fuel Cell To Tackle Carbon Emissions From The Diary Industry Martin Rigley Consortium Members Lindhurst Engineering Arla Foods UK University of Nottingham

45. The Challenge & Market Current methods of dealing with the organic content in industrial effluents is costly and wastes the potential energy contained therein. The project demonstrated a technology called a microbial fuel cell (MFC) where the organic content is converted into bio-gas. The UK produces over 100 million tonnes of organic material per year that could be used to produce bio-gas. Potential markets exist in agriculture, food & drink and industries producing high organic content waste.

46. Methodology Microbial Fuel Cells (MFC) utilise an anode and cathode where the anode harbours a microbial culture that reduces the organic content by up to 70% without aeration. OUT ANODE CATHODE IN Bacteria CO2 H2 e-e- e-e- CO2 H2 H+H+

47. Key Findings/Results 70% reduction of organics in solution to bio-gas per day 66% reduction in nitrate per day, that converts the slurry into grey water Developed IP to reduce anode and cathode costs by 90 to 95% as opposed to traditional methods The 1000 litre scaled up unit produced results comparable with the original laboratory unit......a success

48. Key Findings/Results Dairy farm with 200 cows: 2-5 % electricity 2-5 % electricity 75-87 % biogas nitrogen reduced to <50 mg/L nitrogen reduced to <50 mg/L 1.5 GWh of energy in slurry 1.5 GWh of energy in slurry 75 MWh £ 3,700 75 MWh £ 3,700 1,200 MWh £ 24,000 1,200 MWh £ 24,000 Savings in water storage £90,000 Savings in water storage £90,000 95 % Nitrogen removal Organic fertilizer (~22tons N) £10,000 Organic fertilizer (~22tons N) £10,000

49. Next Steps Optimization of the 1000 litre MFC Scale up to a commercial production unit Investigate harvesting dead bacterial loading as a potential organic fertilizer product We need funding/partners now to take the MFC through optimization and scalability Looking to get this to market within two years (we have a potential site for the first commercial unit) Investors have a chance to buy into three potential revenue streams; bio-gas/ fertilizer/ production of grey water

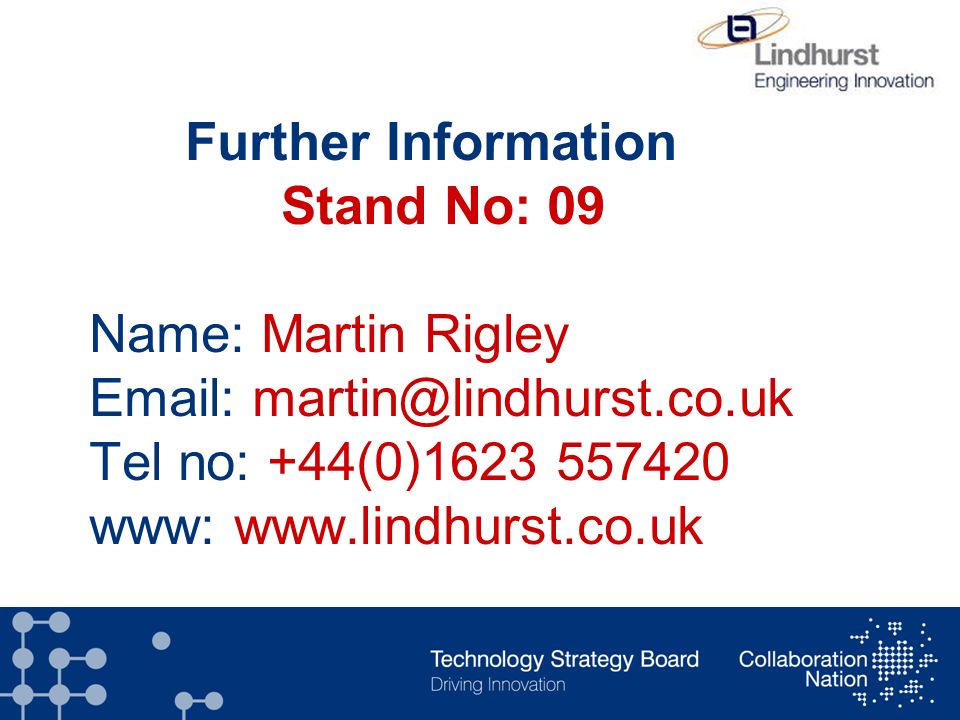

50. Further Information Stand No: 09 Name: Martin Rigley Email: martin@lindhurst.co.uk Tel no: +44(0)1623 557420 www: www.lindhurst.co.uk

51. Newcastle University Synthesis of cyclic carbonates from power station exhaust gas Professor Michael North Consortium Members Newcastle University Doosan Power Systems SSE Noviatec

52. The Challenge & Market Demonstrate that cyclic carbonates could be prepared from power station flue gas Develop carbon capture and utilization as a cost effective alternative to carbon capture and storage Cyclic carbonates have numerous applications including: Electrolytes for lithium-ion batteries Fuel additives Sustainable solvents Potential demand up to 44Mtonne per annum (22 Mtonne CO 2 ). Customers – chemicals companies and fixed site CO 2 producers

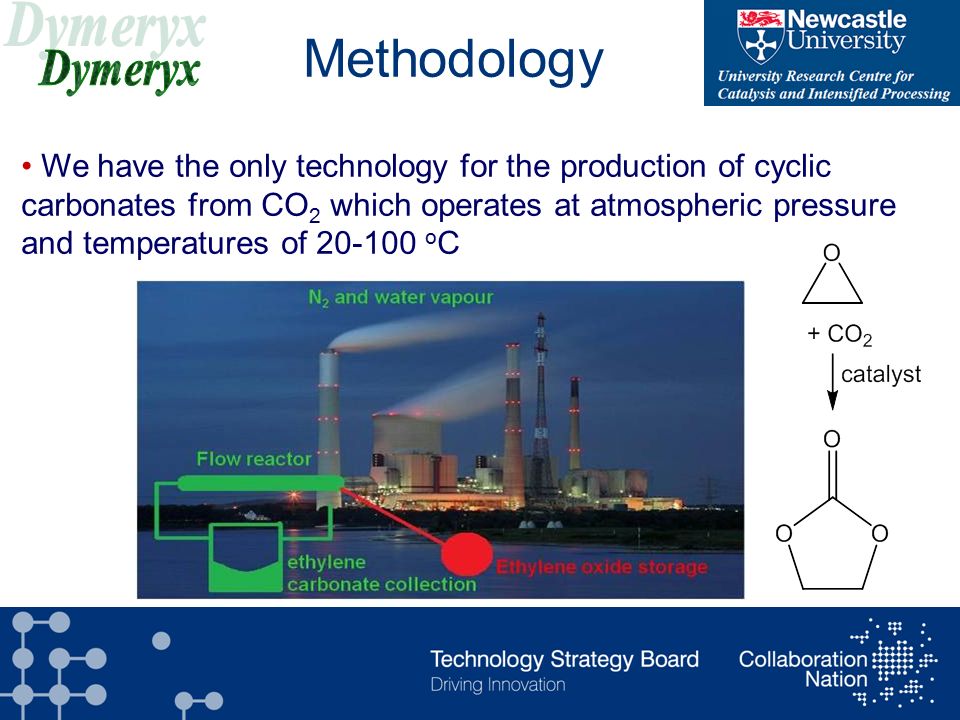

53. Methodology We have the only technology for the production of cyclic carbonates from CO 2 which operates at atmospheric pressure and temperatures of 20-100 o C

54. Key Findings/ results Flue gas impurities have no detrimental effect on the technology If implemented on existing coal or gas fuelled power stations, the technology could produce a profit of >£1.4 Billion over 15 years at current prices and would be profitable even if cyclic carbonate price reduced by 40%

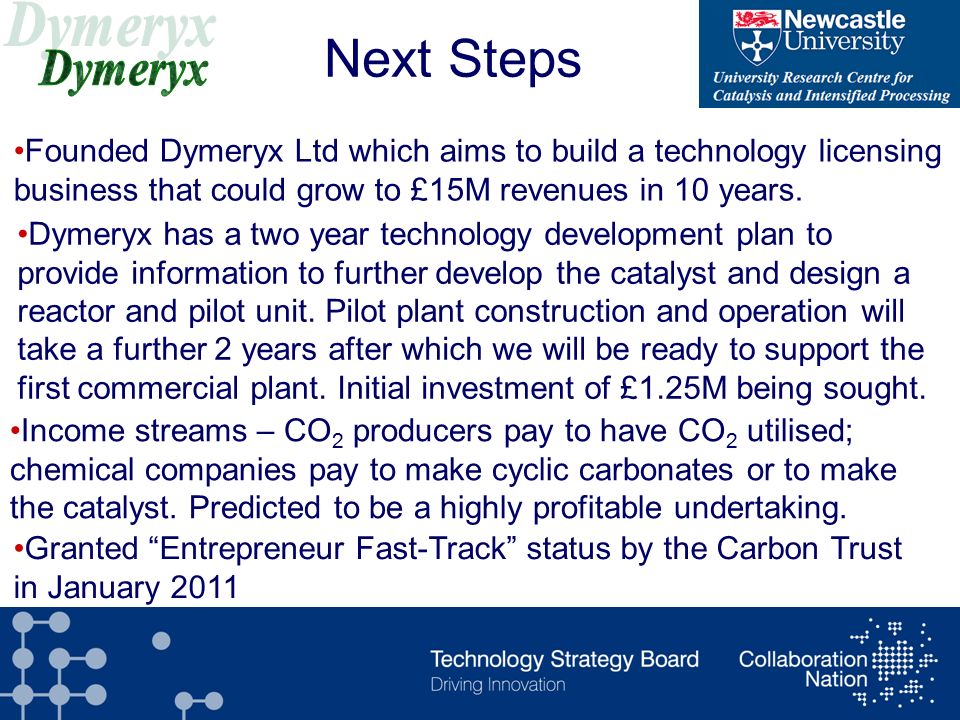

55. Next Steps Founded Dymeryx Ltd which aims to build a technology licensing business that could grow to £15M revenues in 10 years. Dymeryx has a two year technology development plan to provide information to further develop the catalyst and design a reactor and pilot unit. Pilot plant construction and operation will take a further 2 years after which we will be ready to support the first commercial plant. Initial investment of £1.25M being sought. Income streams – CO 2 producers pay to have CO 2 utilised; chemical companies pay to make cyclic carbonates or to make the catalyst. Predicted to be a highly profitable undertaking. Granted “Entrepreneur Fast-Track” status by the Carbon Trust in January 2011

56. Further Information Stand No:11 Name: Professor Michael North Email: michael.north@ncl.ac.uk Tel no: 0191 2227128 http://www.staff.ncl.ac.uk/michael.north/

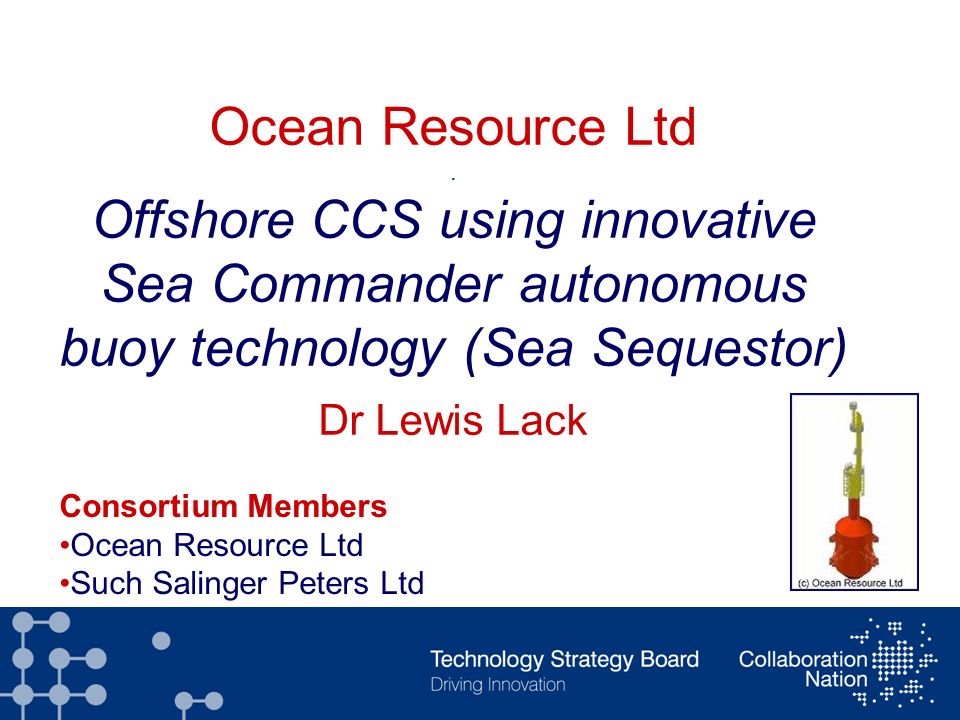

57. Ocean Resource Ltd. Offshore CCS using innovative Sea Commander autonomous buoy technology (Sea Sequestor) Dr Lewis Lack Consortium Members Ocean Resource Ltd Such Salinger Peters Ltd

58. CC-T-S carboncapture transport storage CC S

59. The Challenge & Market How to reduce the cost of offshore CO2 storage? Can buoys provide re-usable movable infrastructure Challenge Market Customers 10-50 SeaSequestor systems across the North Sea Many more around the world : Indian Subcontinent, Australasia, Gulf of Mexico? CO2 storage companies? Oil / Gas companies for add-on EOR

60. Methodology Explored the technical requirements Developed systems and costed them Based on proven components CO2 transport vessels Wellhead injection facilities Stable control and monitoring buoy (Subsea buffer storage*)

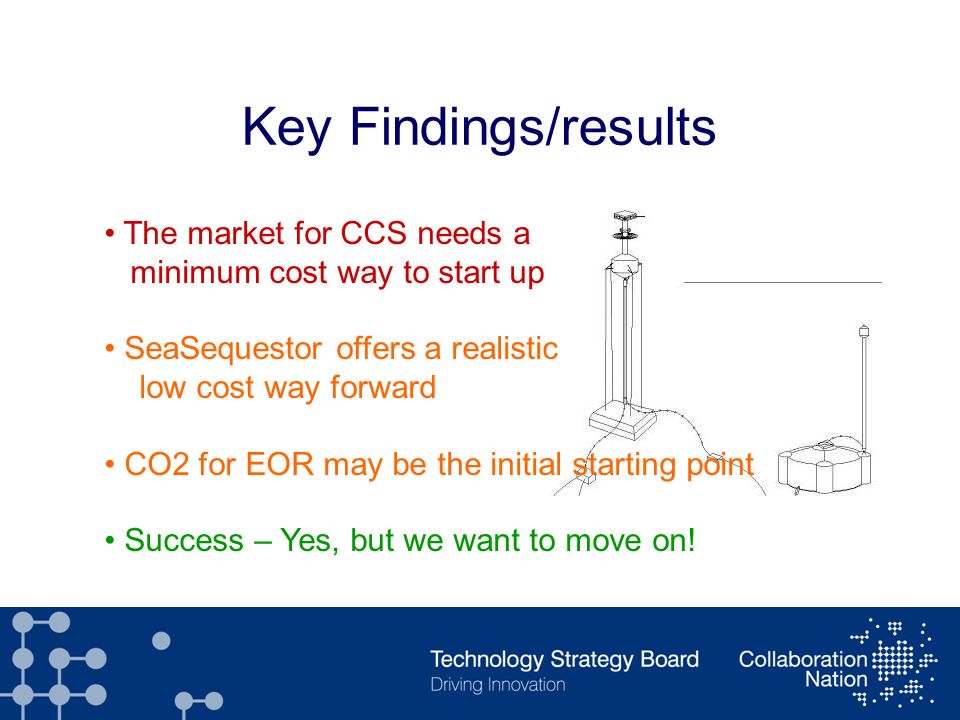

61. Key Findings/results The market for CCS needs a minimum cost way to start up SeaSequestor offers a realistic low cost way forward CO2 for EOR may be the initial starting point Success – Yes, but we want to move on!

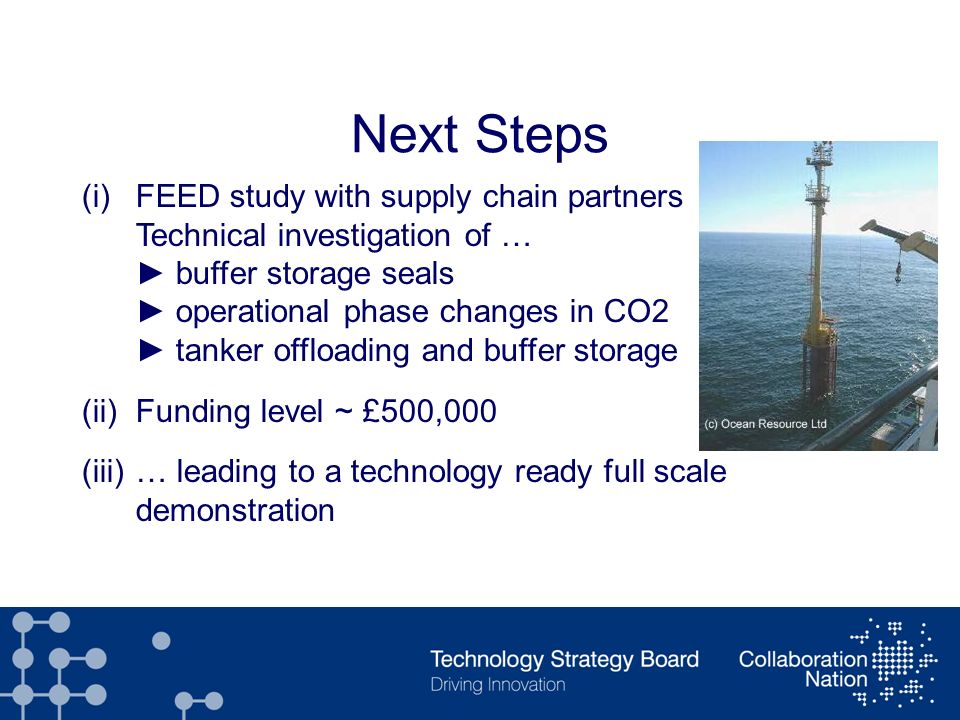

62. Next Steps (i)FEED study with supply chain partners Technical investigation of … ► buffer storage seals ► operational phase changes in CO2 ► tanker offloading and buffer storage (ii)Funding level ~ £500,000 (iii)… leading to a technology ready full scale demonstration

63. Why Invest? This is the key Initiator for CCS Transport and sequestration offshore - It eliminates use of uncertain and costly pipelines - It is a re-usable technology that can be redeployed - It provides add-on EOR for existing platforms

64. Further Information Stand No: 13 Contact: Dr Lewis Lack Email: lewislack@oceanresource.co.uk Tel no: 0844 35 111 62 www: www:oceanresource.co.uk www.buoysolutions.com

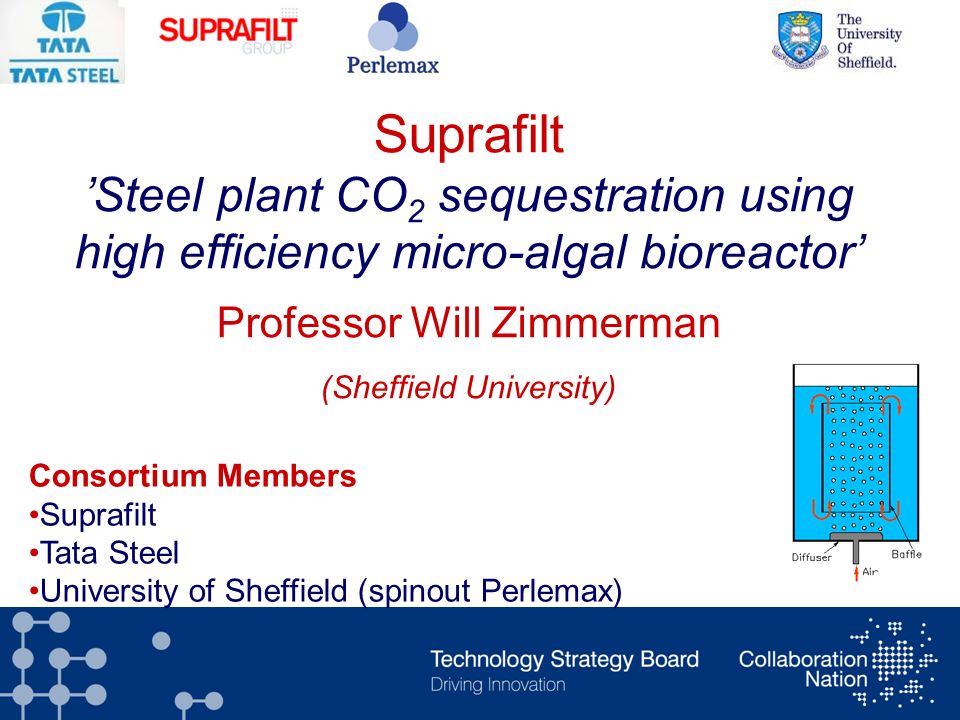

65. Suprafilt ’Steel plant CO 2 sequestration using high efficiency micro-algal bioreactor’ Professor Will Zimmerman (Sheffield University) Consortium Members Suprafilt Tata Steel University of Sheffield (spinout Perlemax)

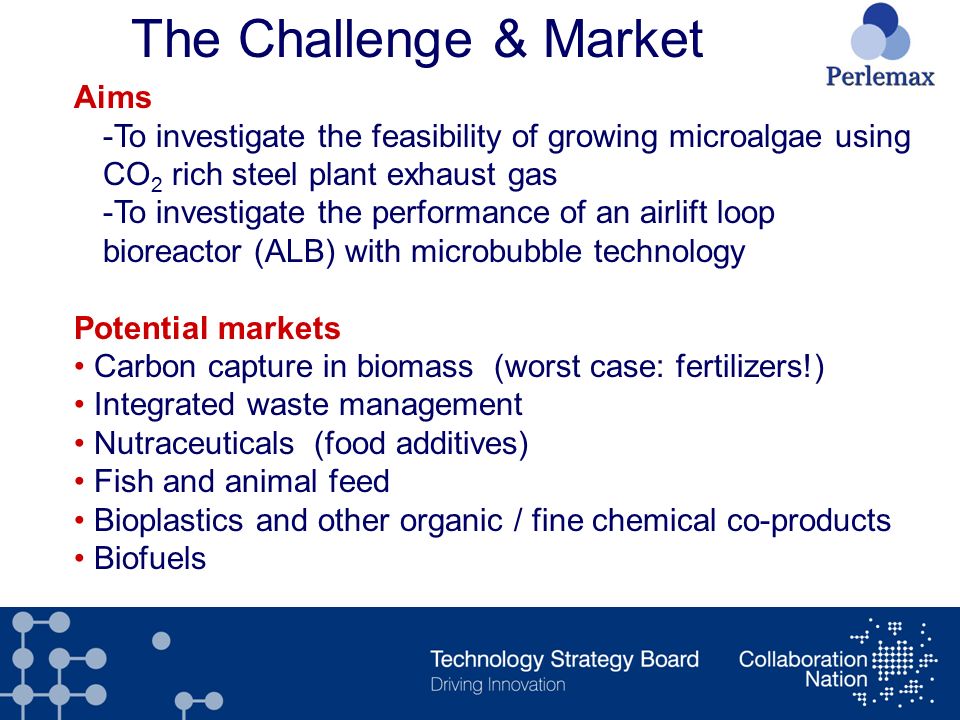

66. The Challenge & Market Aims -To investigate the feasibility of growing microalgae using CO 2 rich steel plant exhaust gas -To investigate the performance of an airlift loop bioreactor (ALB) with microbubble technology Potential markets Carbon capture in biomass (worst case: fertilizers!) Integrated waste management Nutraceuticals (food additives) Fish and animal feed Bioplastics and other organic / fine chemical co-products Biofuels

67. Methodology Challenges in Algal Cultivation Carbon dioxide supply Oxygen removal Light limitation Mixing Contamination This photobioreactor is designed to facilitate high algal growth within a short period of time by improving its transport processers. For best possible carbon capture and biofuel production, high biomass concentrations are preferred. Key design features CO 2 dissolution and O 2 stripping is substantially improved by microbubbels. Air lift loop design promotes vertical mixing of algae – keeps all algae suspended in the reactor while bringing them to lighted surfaces regularly. Designed as a closed system to avoid contamination. Airlift loop effect Volume = 2m 3 ( 1.5m X 1.3m X 1m )

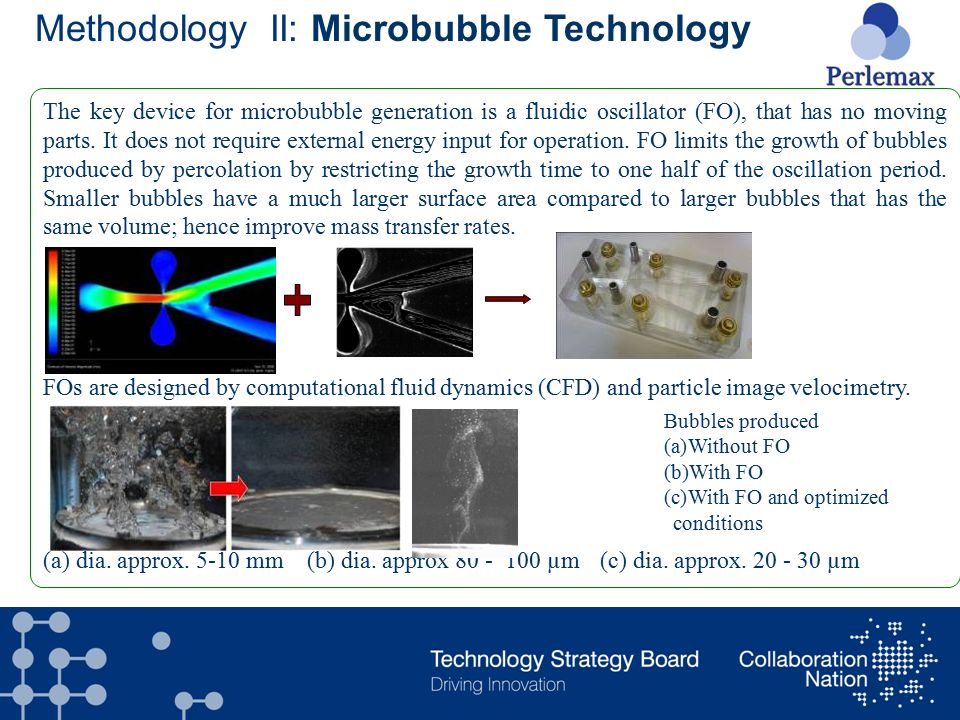

68. Methodology II: Microbubble Technology The key device for microbubble generation is a fluidic oscillator (FO), that has no moving parts. It does not require external energy input for operation. FO limits the growth of bubbles produced by percolation by restricting the growth time to one half of the oscillation period. Smaller bubbles have a much larger surface area compared to larger bubbles that has the same volume; hence improve mass transfer rates. FOs are designed by computational fluid dynamics (CFD) and particle image velocimetry. (a) dia. approx. 5-10 mm(b) dia. approx 80 - 100 µm(c) dia. approx. 20 - 30 µm Bubbles produced (a)Without FO (b)With FO (c)With FO and optimized conditions

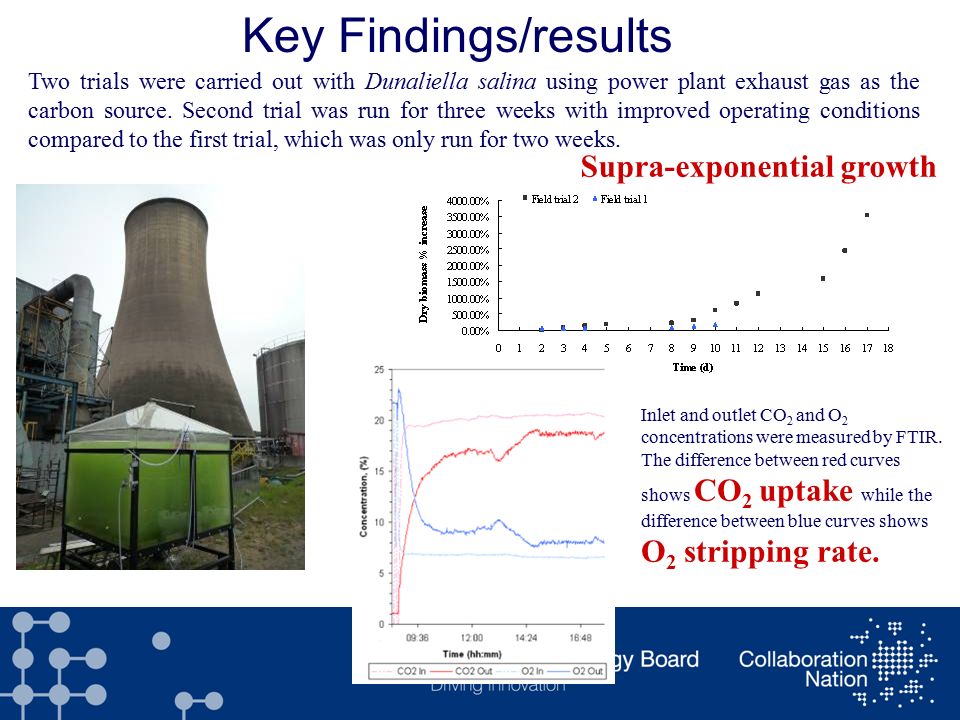

69. Key Findings/results Two trials were carried out with Dunaliella salina using power plant exhaust gas as the carbon source. Second trial was run for three weeks with improved operating conditions compared to the first trial, which was only run for two weeks. Inlet and outlet CO 2 and O 2 concentrations were measured by FTIR. The difference between red curves shows CO 2 uptake while the difference between blue curves shows O 2 stripping rate. Supra-exponential growth

70. Next Steps Installing microbubble generators in algal bioreactor company’s pilot plants and other types of bioreactors. Catalyzing the next generation pilot plant to produce co- products and biofuels by assembling leading edge unit operations such as artificial lighting (AAT), dewatering (UoS), ultrasonic milking (NPL), microwave pyrolysis (York) and esterification intensification (CSL). When could it become commercially viable? Biofuels still need a large cost reduction. Nutraceuticals? NOW Why should people invest? SUSTAINABLE Development!

71. Further Information Stand No: 17 Name: Graeme Hitchen, MD Email: graeme@perlemax.com www: eyrie.shef.ac.uk/steelCO2/awards.html

72. Lunch and Networking Carbon Abatement Showcase

73. Leeds, March 2 nd 2011

74. The Market Place Part 1 Carbon Abatement Showcase

75. Cambridge Carbon Capture Electrochemical Mineral Carbonation Michael Priestnall Stand No.2 Consortium partners Cambridge Carbon Capture University of Cambridge

76. CCS via a direct oxidation fuel cell The Challenge The Approach Key Results Built direct-(m)ethanol AFC CO2 – to – CO3 electrochemically serpentine digestion to Mg(OH)2 Mg(OH)2 – to – MgCO3 sequestration AFC using regenerated electrolyte AFC exhaust out 200ppm CO2 Next Steps Profitable CCS without subsidy 100% CO2 capture in a fuel cell closed-loop, low-energy process sequester as valuable solid mineral Partner with strategic industrials (wastes, minerals, metals, OGC, CCS) Process development & optimisation Customer R&D contract revenues FP7 Commercial pilot demonstration

77. Consortium members: Carbon Sequestration Ltd British Sugar plc Carbon Sequestration Ltd ‘’An alternative to CCS: Assessing the feasibility of converting CO 2 to organic products, i.e. carboxylic acids and lactones’’ Dr David Hogg Stand No: 04 Carbon Sequestration Ltd Realising the value of CO 2

78. Assessing the feasibility of converting CO 2 to organic products, i.e. carboxylic acids and lactones The Challenge The Approach Determination of end-product choice Analyses of co-products composition for tailored microbial CO 2 abatement chemistry Selection of readily available natural organism Laboratory experimentation to 10 litre scale enhancing desired chemistry Next Steps Reduce British Sugar’s CO 2 emissions Conversion of CO 2 to value organic carboxylic acid products Utilising CO 2 and organic co-products as feedstock Resulting in a carbon negative process Progress success of feasibility study Financial requirement for pilot plants Continued collaboration with British Sugar Commercial scale plant by 2015 Key Results –Carboxylic acids production

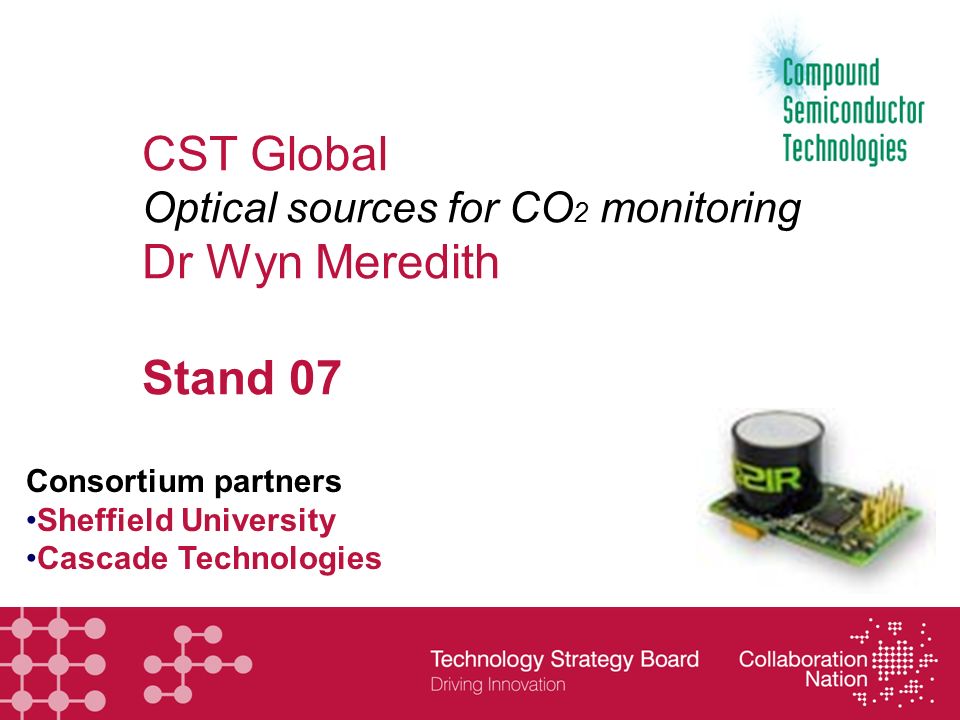

79. CST Global Optical sources for CO 2 monitoring Dr Wyn Meredith Stand 07 Consortium partners Sheffield University Cascade Technologies

80. Optical sources for CO2 monitoring The Challenge The Approach Key Results Apply consumer grade semiconductor laser chip fabrication technology Exploit novel materials science to access wavelength of peak sensitivity Sample prototypes to different sensor manufacturers for specification refinement Next Steps Producing high specification laser sources at peak sensitivity for CO 2 detection by optical means Cost effective, volume potential Flexibility in specification for different sensor architectures Sampled and engaged with 3 sensor manufacturers: low cost, low resolution (%) monitoring high end point source, discrimination large area, free-space monitoring

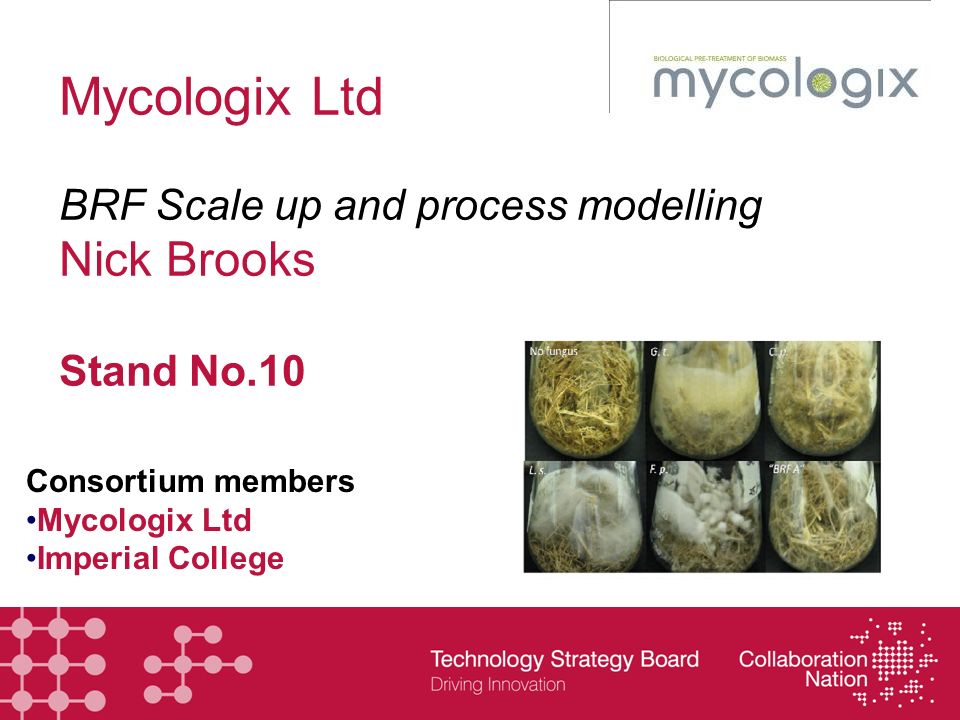

81. Mycologix Ltd BRF Scale up and process modelling Nick Brooks Stand No.10 Consortium members Mycologix Ltd Imperial College

82. Mycologix – BRF scale up and process modelling The Challenge The Approach Key Results Targeted experimentation to scale up to kg scale Identification of a new in-vessel process Process modelling to optimise the integration of the pre-treatment process into the overall production process Next Steps Creating a breakthrough in the cost of converting ligno-cellulosic biomass to advanced biofuels Reducing capex on plant Reducing energy requirements Reducing process costs Scaling process to pilot Developing knowhow and IP around in-vessel process Extending array of feedstocks Developing combination solutions

83. Newton Industrial Group Energy Efficient Oxygen Transfer for Wastewater Treatment John Haworth Stand No. 12 Consortium members Newton Industrial United Utilities

84. Energy Efficient Oxygen Transfer for Wastewater Treatment The Challenge The Approach Key Results Design & develop 2 alternative designs Work with pump supplier to modify existing pump Test at large sScale = 100 l/s Next Steps Reduce UK CO 2 emissions by 800,000 tCO 2 pa Develop Energy Efficient Integrated Water Pump and Air Injector Use as feed to Gravitox (oxygen transfer device) Develop & test replacement for Gravitox Develop & test production system - Requires new control systems Market to the world

85. Scionix Novel Method for Capturing CO 2 from Fossil-Fuelled Power Stations – Displace Dr Khalid Shukri Consortium members Scionix, TWI, Independent Power Corporation Stand No. 14

86. Novel Method for Capturing CO2 from Fossil-Fuelled Power Stations The Challenge The Approach Key Results Specification of Technical Targets Separation of CO 2 from Waste Gas Process Design for Displace Application Commercial Impacts and Exploitation Next Steps Using IL solvents to absorb CO 2 gas from the discharge released by fossil-fired power stations. The extracted gas could then be recovered, stored in the IL which can then be easily transported and pumped into exhausted oil or gas reservoirs, or reused in high value applications Further work/funding is required to look at different ionic liquids with different physical properties and operating temperatures, pressure..etc

87. Break and Networking Carbon Abatement Showcase

88. The Market Place Part 2 Carbon Abatement Showcase

89. Stopford Projects Ltd Assessing the technical feasibility of using a novel combustion regime to allow electricity to be produced from synthetic gas in highly efficient gas turbines Vajira Wijekoon Stand No.15 Consortium members: Stopford Projects Leeds University Insert Company Logo Insert Image representative of project

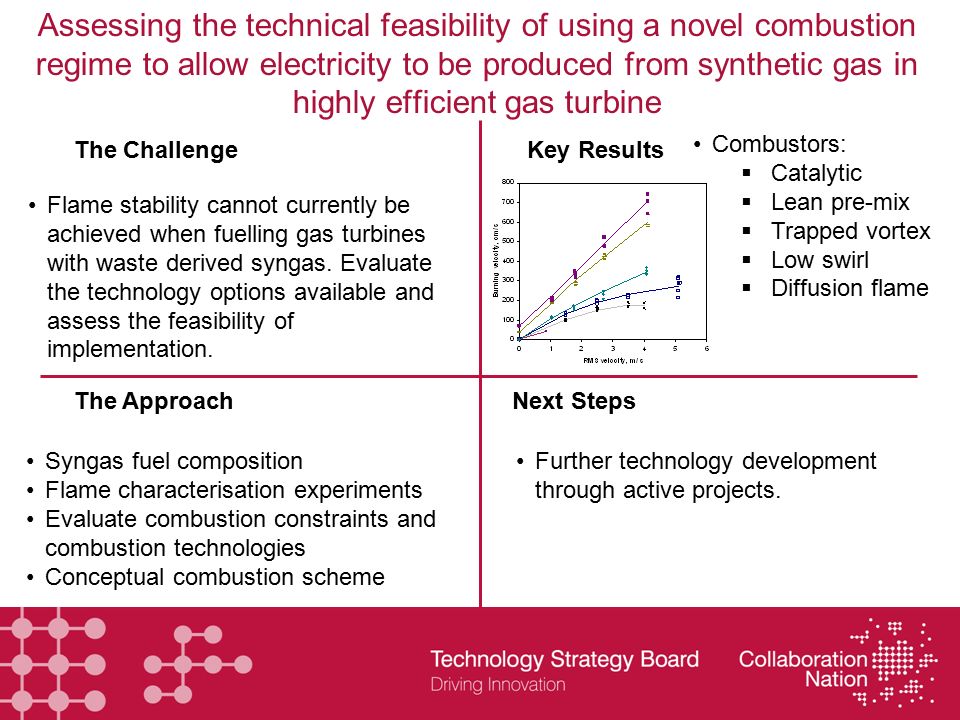

90. Assessing the technical feasibility of using a novel combustion regime to allow electricity to be produced from synthetic gas in highly efficient gas turbine The Challenge The Approach Key Results Syngas fuel composition Flame characterisation experiments Evaluate combustion constraints and combustion technologies Conceptual combustion scheme Next Steps Further technology development through active projects. Flame stability cannot currently be achieved when fuelling gas turbines with waste derived syngas. Evaluate the technology options available and assess the feasibility of implementation. Combustors:  Catalytic  Lean pre-mix  Trapped vortex  Low swirl  Diffusion flame

91. Stopford Projects Ltd Investigating the feasibility of using highly efficient microwave induced plasma for advanced gasification technologies Dr. Ben Herbert Stand No.16 Consortium members Stopford Projects Liverpool, John Moores University Insert Company Logo Insert Image representative of project

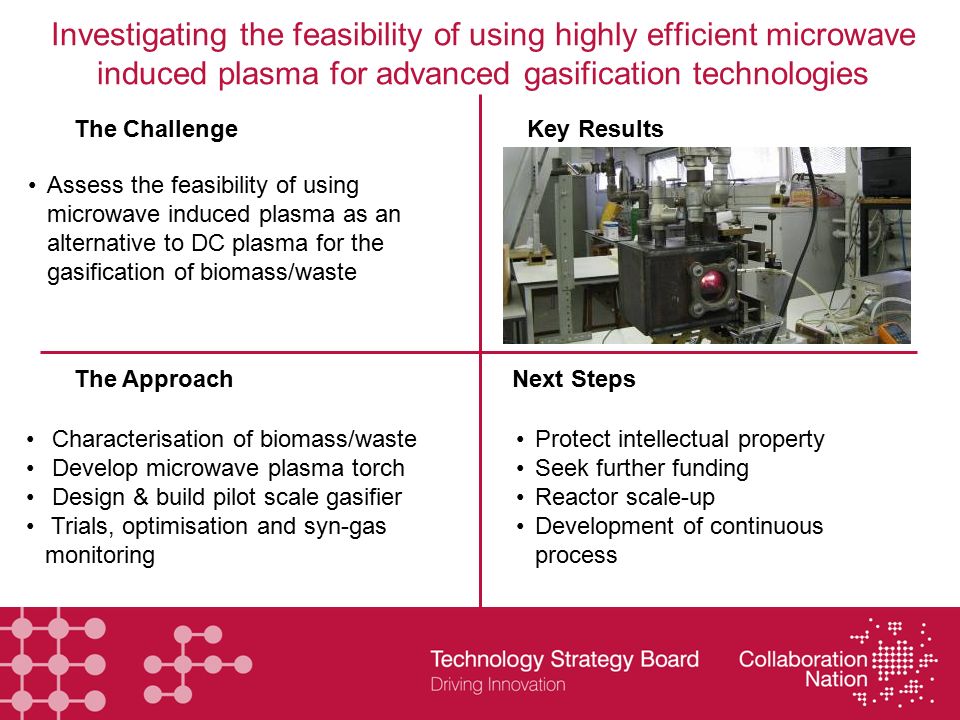

92. Investigating the feasibility of using highly efficient microwave induced plasma for advanced gasification technologies The Challenge The Approach Key Results Characterisation of biomass/waste Develop microwave plasma torch Design & build pilot scale gasifier Trials, optimisation and syn-gas monitoring Next Steps Assess the feasibility of using microwave induced plasma as an alternative to DC plasma for the gasification of biomass/waste Protect intellectual property Seek further funding Reactor scale-up Development of continuous process

93. West & Company Latent Power Turbines Dick West Stand No. 18 Consortium members: West & Company Cheshire Innovations Lancaster University

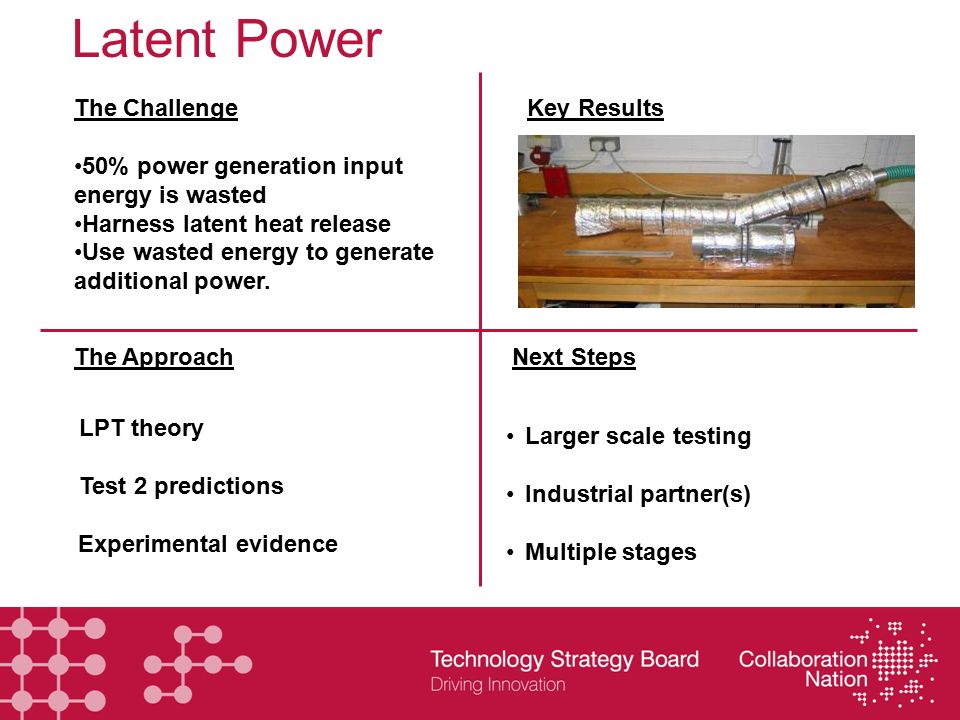

94. Latent Power The Challenge 50% power generation input energy is wasted Harness latent heat release Use wasted energy to generate additional power. The Approach Key Results LPT theory Test 2 predictions Experimental evidence Next Steps Larger scale testing Industrial partner(s) Multiple stages

95. WRK Design & Services Ltd. Entrapment of Carbon dioxide for Reuse Prof. Mike J Winterbottom Stand No. 19 Insert Image representative of project

96. Entrapment of Carbon Dioxide for Reuse. The Challenge The Approach Key Results DGC reactor: efficient single stage gas-liquid mass transfer properties; High absorption rates and efficiency Obtain scale-up design information Use of simulated Biogas; remove CO2 and H2S; increase CH4 concentration Cost savings in power generation; increased life of CHP engines Next Steps Use of a DGC [Downflow Gas Contactor] reactor for: Entrapment of CO2 from Air Recovery of the CO2 Selective absorption of CO2 from Mixed gases Enhancement of Biogas Design and fabricate Demonstration Unit for trials at AD sites Application for Patent Showcasing potential Clients; AD plants; Industrial; Power generation; Waste treatment; Renewable energy Investment/Partners/Venture capital CO2 RECOVERY CO2 ABSORPTION FROM AIR BIOGAS ENHANCEMENT

97. Collaboration Nation Value Systems and Business Modelling Next Steps Neil Morgan Head of Energy, Technology Strategy Board

98. Our Energy Programme Energy is a priority area Policy & legislation Global market opportunity Wealth creation for UK Timeliness & impact Our total energy portfolio (2009-10) valued at over £230m with >£40m in CATs

99. Moving forward in carbon abatement technologies Important we don’t leave best technologies ‘on the shelf ’ -help promote and broker partnerships -considering how to support best feasibility studies to the next stage through potential further investment later in year -working with other funding bodies

100. Underpinning technologies are important In addition We recognise the value of underpinning technologies to the energy sector Considering the potential of supporting projects in ‘Energy Materials’ which will target low carbon technologies including CATs -Focusing on demonstration of materials in ‘real’ environments

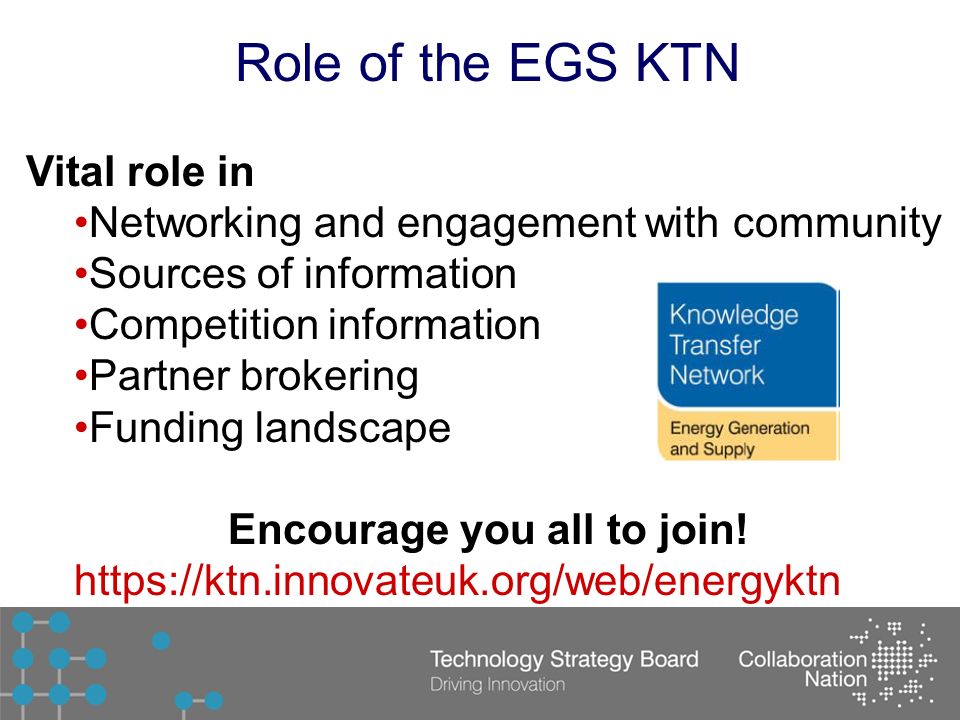

101. Role of the EGS KTN Vital role in Networking and engagement with community Sources of information Competition information Partner brokering Funding landscape Encourage you all to join! https://ktn.innovateuk.org/web/energyktn

102. Collaboration Nation Value Systems and Business Modelling Thank you
