1. ECE 301 – Digital Electronics Brief introduction to Sequential Circuits and Latches (Lecture #14)

2. ECE 301 - Digital Electronics2 Sequential Logic Circuits

3. ECE 301 - Digital Electronics3 Sequential Logic Circuits Combinational Logic Circuits  Output is a function of the inputs only.  Do not have “history” Sequential Logic Circuits  Output is a function of the inputs and the present state.  Have “history”  Maintain state information  Require memory elements

4. ECE 301 - Digital Electronics4 Sequential Logic Circuits

5. ECE 301 - Digital Electronics5 Basic Memory Elements

6. ECE 301 - Digital Electronics6 Basic Memory Elements Latch  Clock input is level sensitive.  Output can change multiple times during a clock cycle.  Output changes while clock is active. Flip Flop  Clock input is edge sensitive.  Output can change only once during a clock cycle.  Output changes on clock transition.

7. ECE 301 - Digital Electronics7 Basic Memory Elements Both latches and flip flops use feedback to achieve “memory”.

8. ECE 301 - Digital Electronics8 A Simple Memory Element AB (what is the problem with this circuit?)

9. ECE 301 - Digital Electronics9 SR Latch (NOR gate implementation)

10. ECE 301 - Digital Electronics10 SR Latch QaQa QbQb QbQb QaQa

11. ECE 301 - Digital Electronics11 Resetting the SR Latch (Qa = 0) SR Latch

12. ECE 301 - Digital Electronics12 SR Latch: S = 0, R = 1 R = 1 → Qa = 0 S = 0 & Qa = 0 → Qb = 1 Latch is reset. Time 1 0 1 0 1 0 1 0 R S Q a Q b ? ? t 1 t 2 t 3 t 4 t 5 t 6 t 7 t 8 t 9 t 10 S = 0, R = 1 Qa = 0 Qb = 1

13. ECE 301 - Digital Electronics13 Setting the SR Latch (Qa = 1) SR Latch

14. ECE 301 - Digital Electronics14 SR Latch: S = 1, R = 0 S = 1 → Qb = 0 R = 0 & Qb = 0 → Qa = 1 Latch is set. Time 1 0 1 0 1 0 1 0 R S Q a Q b ? ? t 1 t 2 t 3 t 4 t 5 t 6 t 7 t 8 t 9 t 10 S = 1, R = 0 Qa = 1 Qb = 0

15. ECE 301 - Digital Electronics15 Storing the value in the SR Latch (Qa + = Qa) SR Latch

16. ECE 301 - Digital Electronics16 SR Latch: S = 0, R = 0; Qa = 0 S = 0 & Qa = 0 → Qb = 1 R = 0 & Qb = 1 → Qa = 0 Behavior of latch is consistent. Time 1 0 1 0 1 0 1 0 R S Q a Q b ? ? t 1 t 2 t 3 t 4 t 5 t 6 t 7 t 8 t 9 t 10 S = 0, R = 0 Qa = 0Qb = 1 Qa = 0 Latch stores the value of Qa

17. ECE 301 - Digital Electronics17 SR Latch: S = 0, R = 0; Qa = 1 S = 0 & Qa = 1 → Qb = 0 R = 0 & Qb = 0 → Qa = 1 Behavior of latch is consistent. Time 1 0 1 0 1 0 1 0 R S Q a Q b ? ? t 1 t 2 t 3 t 4 t 5 t 6 t 7 t 8 t 9 t 10 S = 0, R = 0 Qa = 1 Qb = 0 Qa = 1 Latch stores the value of Qa

18. ECE 301 - Digital Electronics18 The undefined state of the SR Latch (Qa = Qb = 0) SR Latch

19. ECE 301 - Digital Electronics19 SR Latch: S = 1, R = 1 S = 1 → Qb = 0; R = 1 → Qa = 0 Time 1 0 1 0 1 0 1 0 R S Q a Q b ? ? t 1 t 2 t 3 t 4 t 5 t 6 t 7 t 8 t 9 t 10 S = 1, R = 1 Qa = 0 Qb = 0

20. ECE 301 - Digital Electronics20 SR Latch: S = 1, R = 1 S = 1 → Qb = 0; R = 1 → Qa = 0 Time 1 0 1 0 1 0 1 0 R S Q a Q b ? ? t 1 t 2 t 3 t 4 t 5 t 6 t 7 t 8 t 9 t 10 S = 1, R = 1 Qa = 0 Qb = 0

21. ECE 301 - Digital Electronics21 SR Latch: The undefined state What if both S and R transition from 1 to 0 at the same time? (S = 1 → 0 & R = 1 → 0)

22. ECE 301 - Digital Electronics22 SR Latch: The undefined state If S and R both transition to 0 simultaneously,  Output is unpredictable  Dependent on speed of the 2 NOR gates. Time 1 0 1 0 1 0 1 0 R S Q a Q b ? ? t 1 t 2 t 3 t 4 t 5 t 6 t 7 t 8 t 9 t 10 S = 1 → 0 R = 1 → 0 Qa = ? Qb = ?

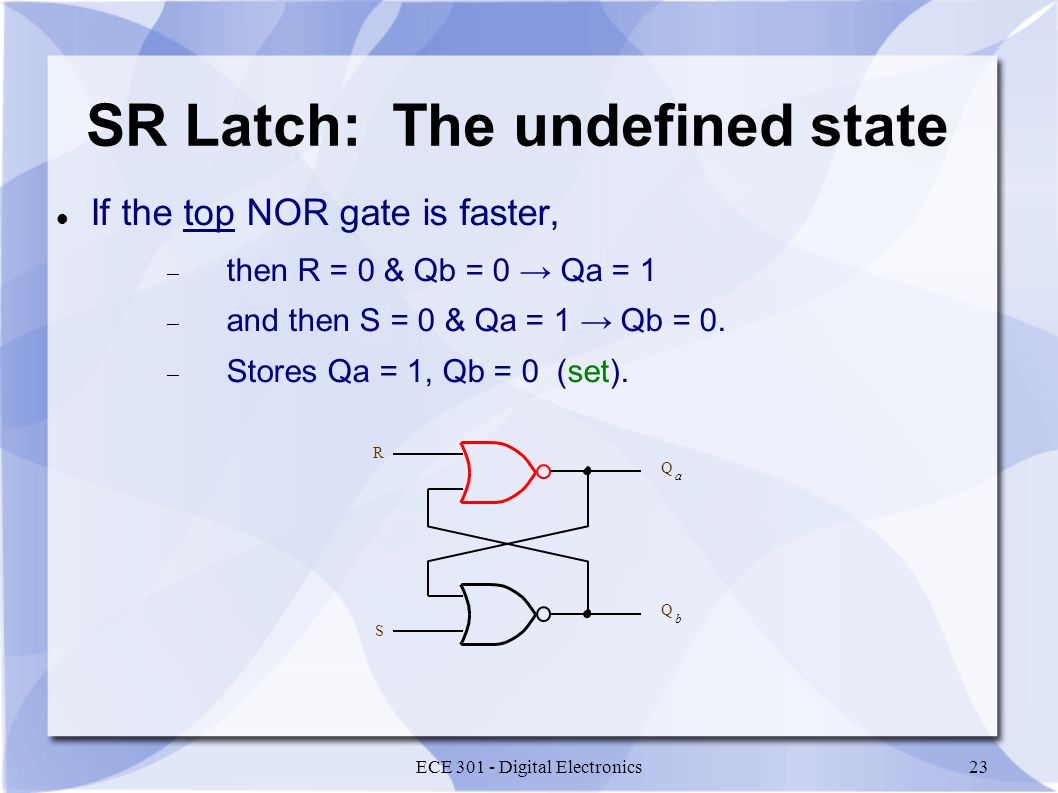

23. ECE 301 - Digital Electronics23 SR Latch: The undefined state If the top NOR gate is faster,  then R = 0 & Qb = 0 → Qa = 1  and then S = 0 & Qa = 1 → Qb = 0.  Stores Qa = 1, Qb = 0 (set). Q a Q b R S

24. ECE 301 - Digital Electronics24 SR Latch: The undefined state If the bottom NOR gate is faster,  then S = 0 & Qa = 0 → Qb = 1  and then R = 0 & Qb = 1 → Qa = 0.  Stores Qa = 0, Qb = 1 (reset). Q a Q b R S

25. ECE 301 - Digital Electronics25 SR Latch (NAND gate implementation)

26. ECE 301 - Digital Electronics26 SR Latch

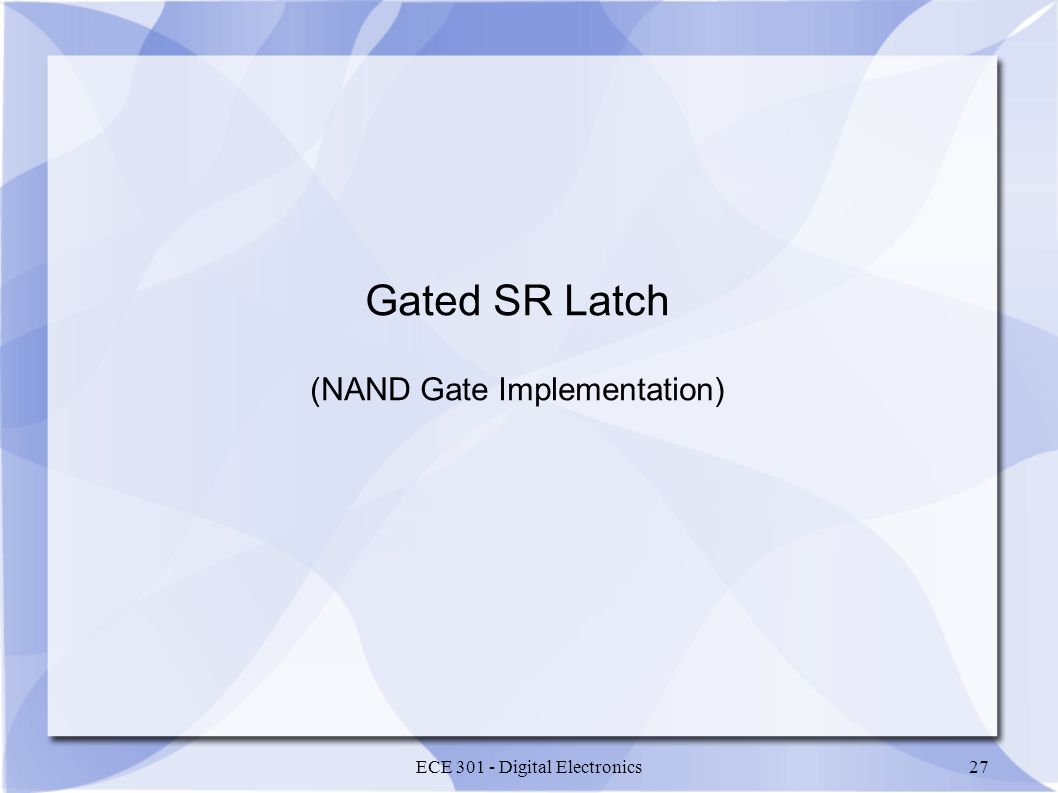

27. ECE 301 - Digital Electronics27 Gated SR Latch (NAND Gate Implementation)

28. ECE 301 - Digital Electronics28 Gated SR Latch S' R'

29. ECE 301 - Digital Electronics29 Gated SR Latch: State Equation State Equation: Q + = S + R'.Q  Q is the present (or current) state.  Q + is the next state. After the transition of the output Q.  The next state is a function of the inputs and the present state. Inputs: S and R Present State: Q  Note: Q is also denoted as Q(t)  and Q + is also denoted as Q(t+1).

30. ECE 301 - Digital Electronics30 Gated D Latch

31. ECE 301 - Digital Electronics31 Gated D Latch S' R' S R

32. ECE 301 - Digital Electronics32 Gated D Latch: Clk = 0 Clk = 0 Clk = 0 → S' = R' = 1 S' = R' = 1 → Q + = Q  Next state = present state Latch stores the value of Q

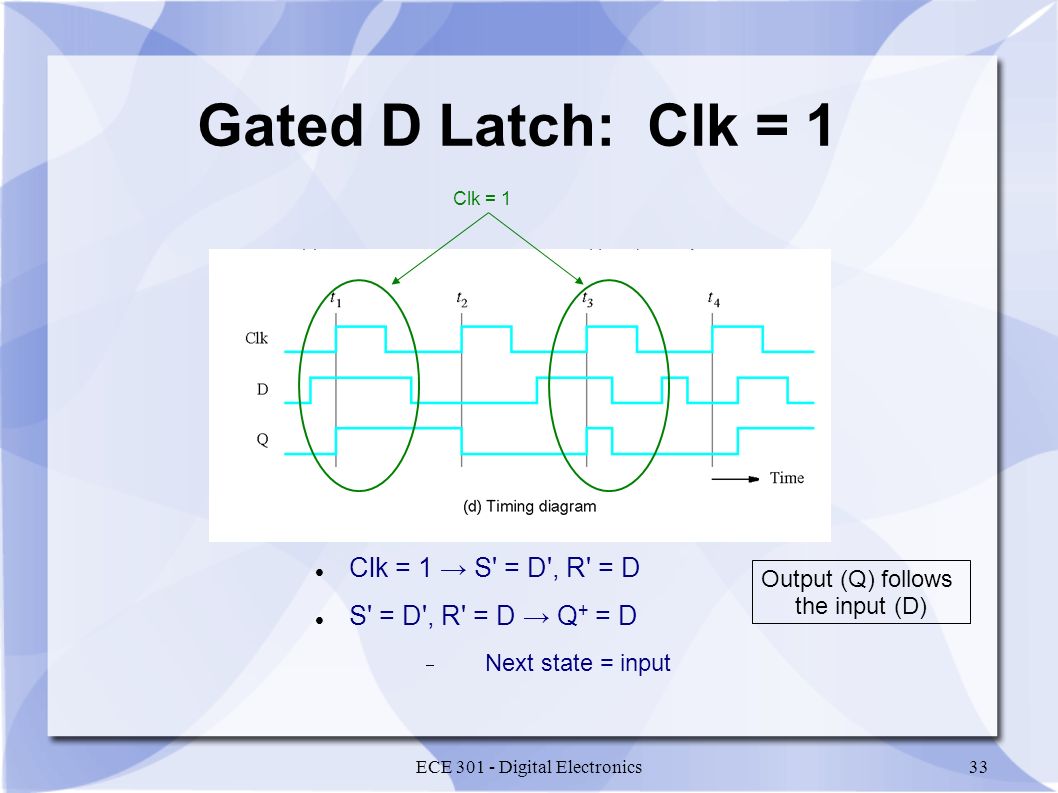

33. ECE 301 - Digital Electronics33 Gated D Latch: Clk = 1 Clk = 1 Clk = 1 → S' = D', R' = D S' = D', R' = D → Q + = D  Next state = input Output (Q) follows the input (D)

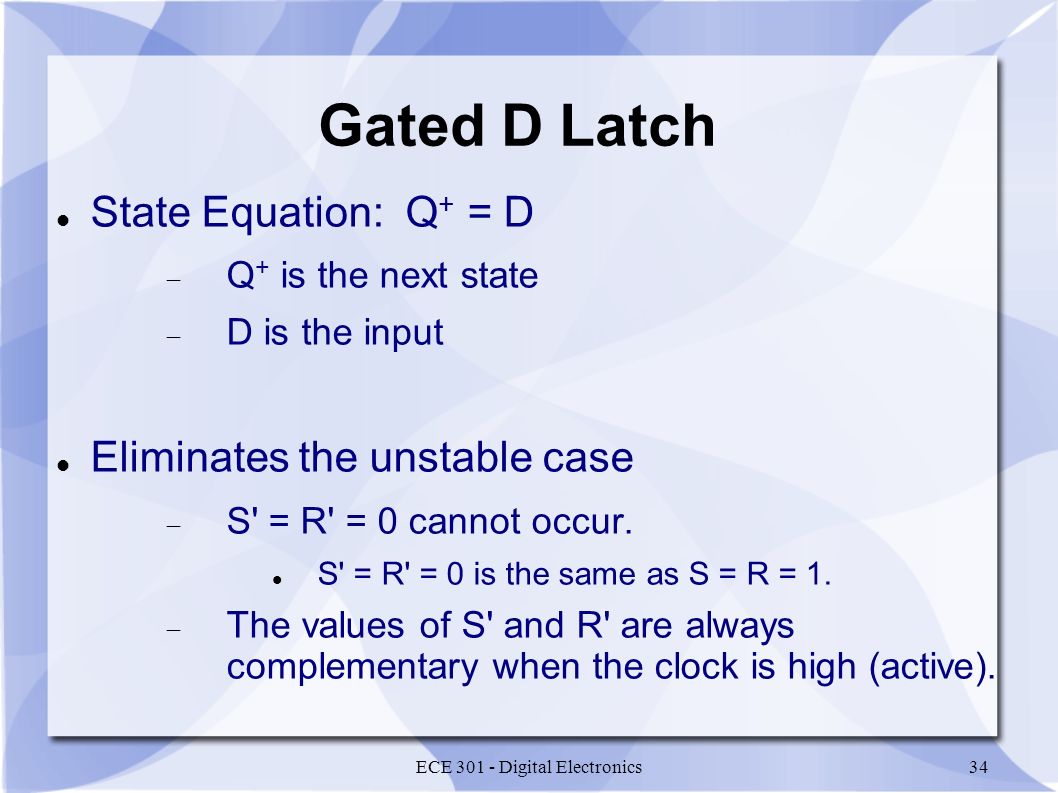

34. ECE 301 - Digital Electronics34 Gated D Latch State Equation: Q + = D  Q + is the next state  D is the input Eliminates the unstable case  S' = R' = 0 cannot occur. S' = R' = 0 is the same as S = R = 1.  The values of S' and R' are always complementary when the clock is high (active).

35. ECE 301 - Digital Electronics35 Gated D Latch: Issues Must satisfy setup and hold times.  Otherwise, the output will be unpredictable or metastable. Glitches on D are passed to Q when clock is high.  Use edge-triggered or Master-Slave D Flip-Flop to overcome this undesirable behavior. t su t h Clk D Q

36. ECE 301 - Digital Electronics36 Latches: Symbols QQ Q
