1. Some preliminary FIM results DCMIP workshop July/August 2012 Boulder, CO

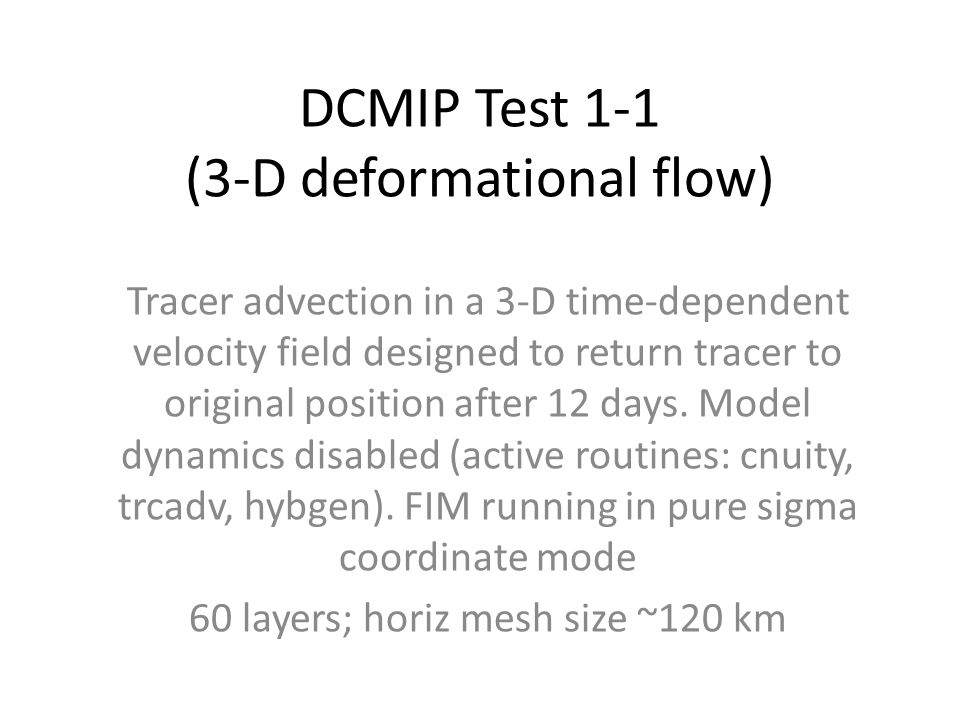

2. DCMIP Test 1-1 (3-D deformational flow) Tracer advection in a 3-D time-dependent velocity field designed to return tracer to original position after 12 days. Model dynamics disabled (active routines: cnuity, trcadv, hybgen). FIM running in pure sigma coordinate mode 60 layers; horiz mesh size ~120 km

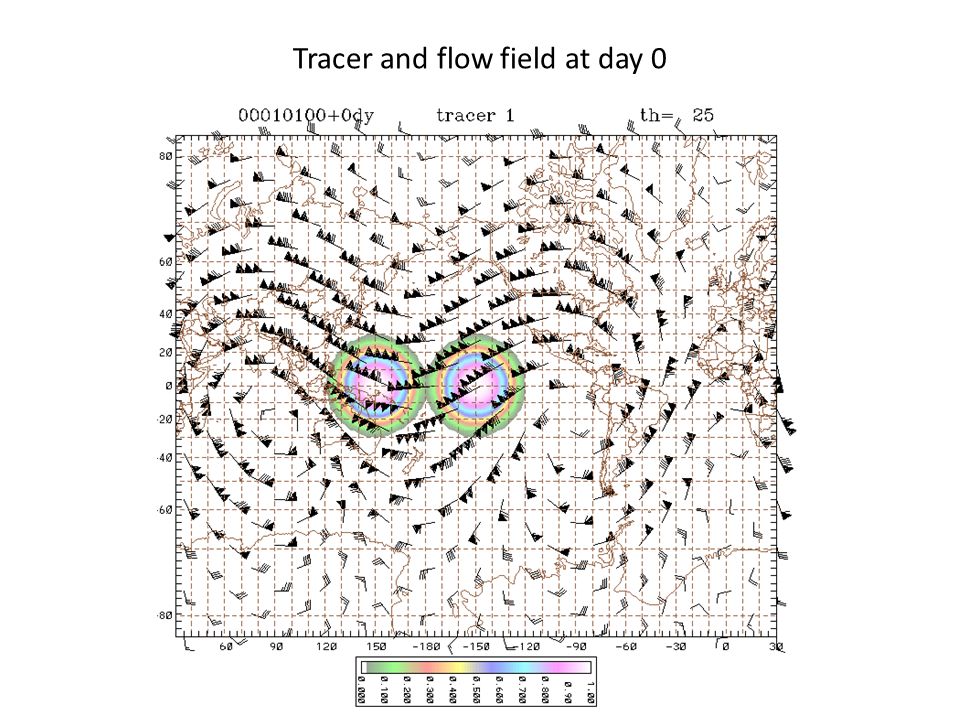

3. Tracer and flow field at day 0

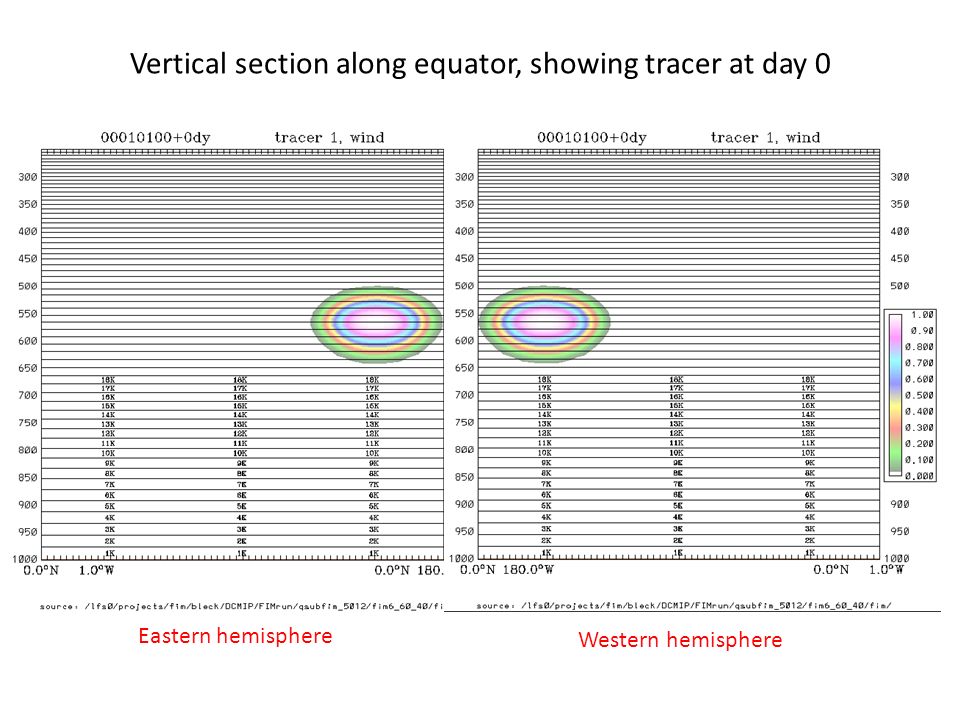

4. Vertical section along equator, showing tracer at day 0 Western hemisphere Eastern hemisphere

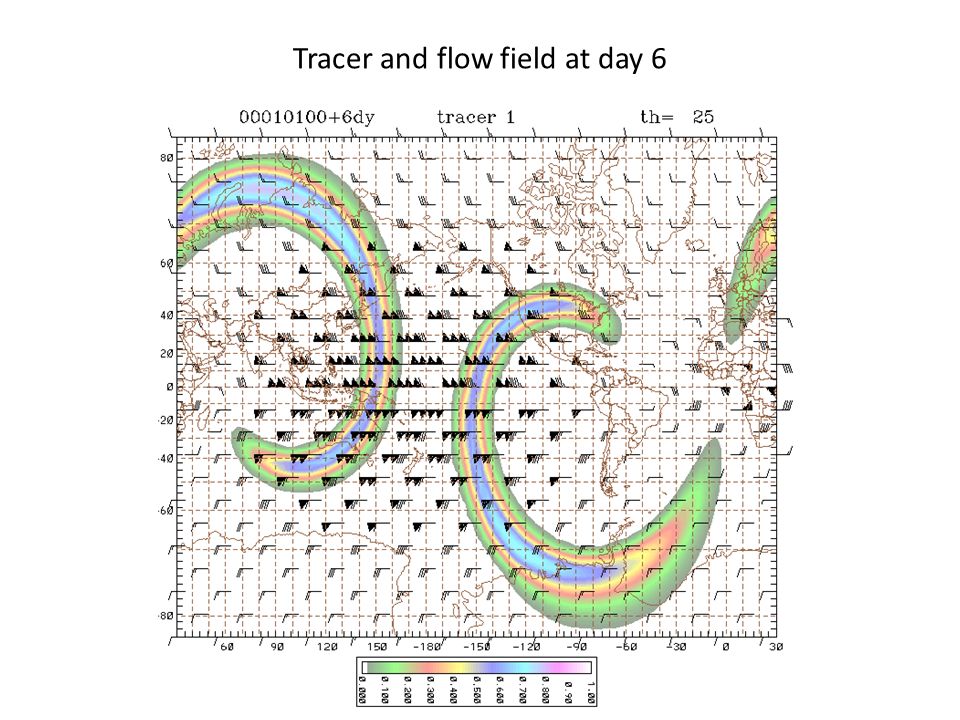

5. Tracer and flow field at day 6

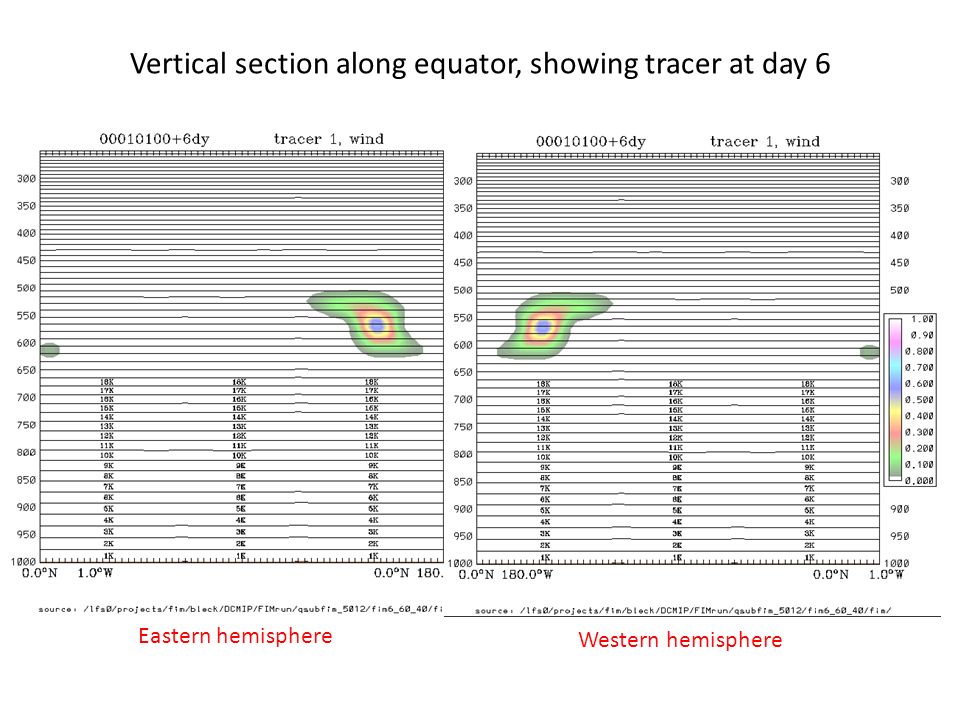

6. Vertical section along equator, showing tracer at day 6 Western hemisphere Eastern hemisphere

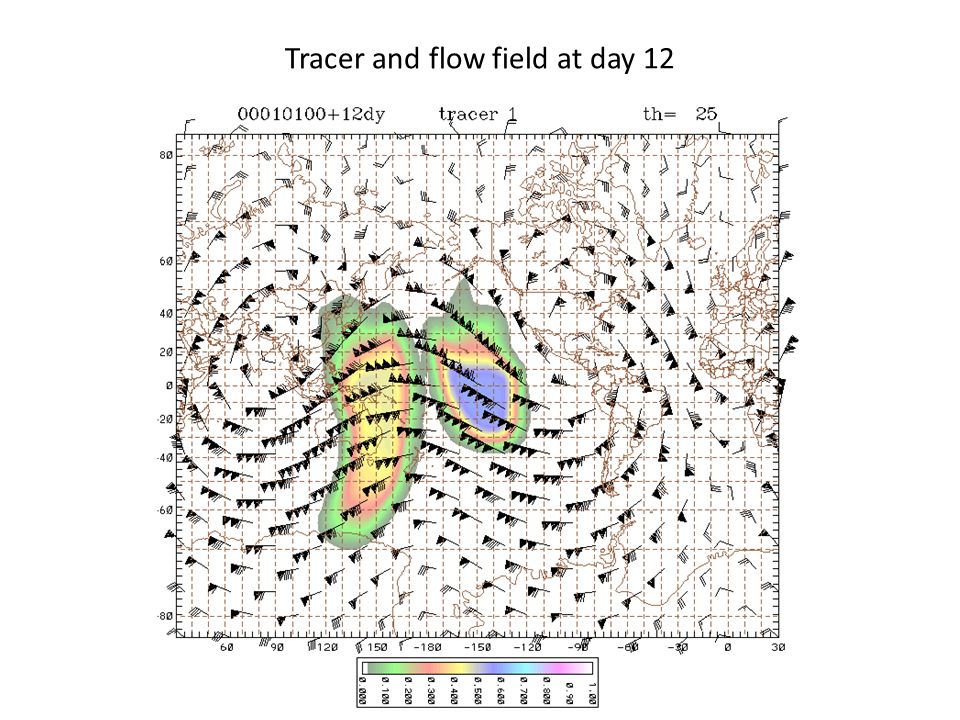

7. Tracer and flow field at day 12

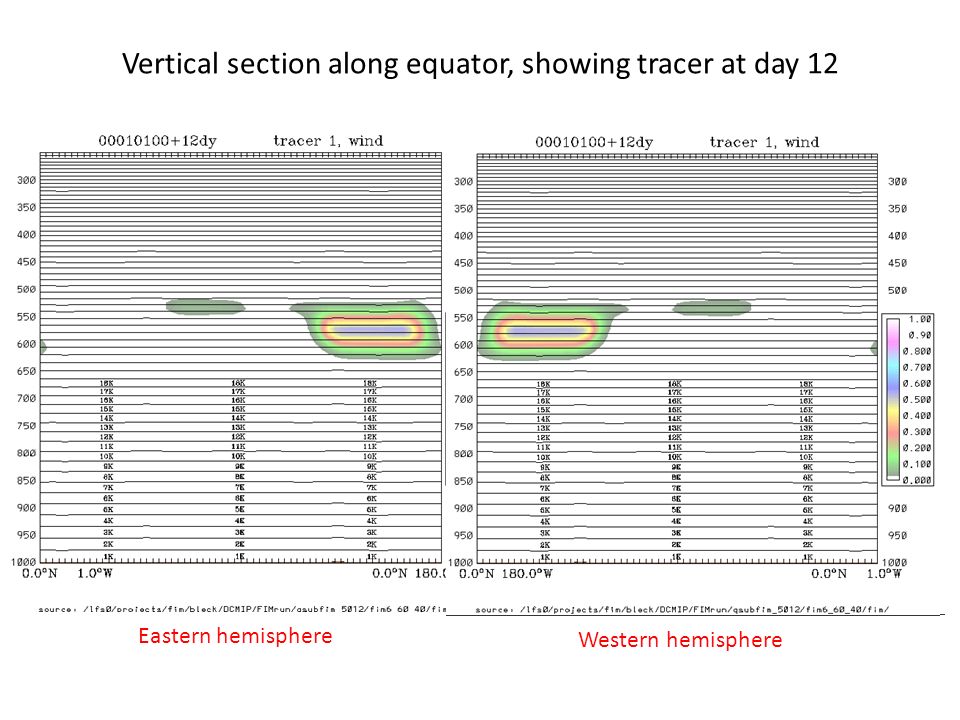

8. Vertical section along equator, showing tracer at day 12 Western hemisphere Eastern hemisphere

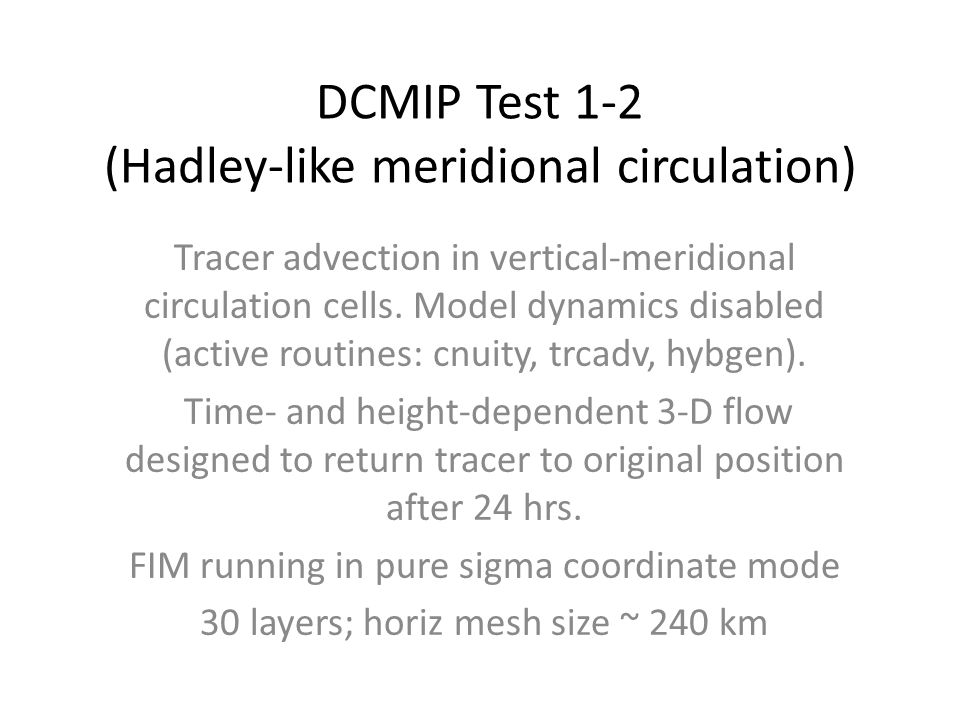

9. DCMIP Test 1-2 (Hadley-like meridional circulation) Tracer advection in vertical-meridional circulation cells. Model dynamics disabled (active routines: cnuity, trcadv, hybgen). Time- and height-dependent 3-D flow designed to return tracer to original position after 24 hrs. FIM running in pure sigma coordinate mode 30 layers; horiz mesh size ~ 240 km

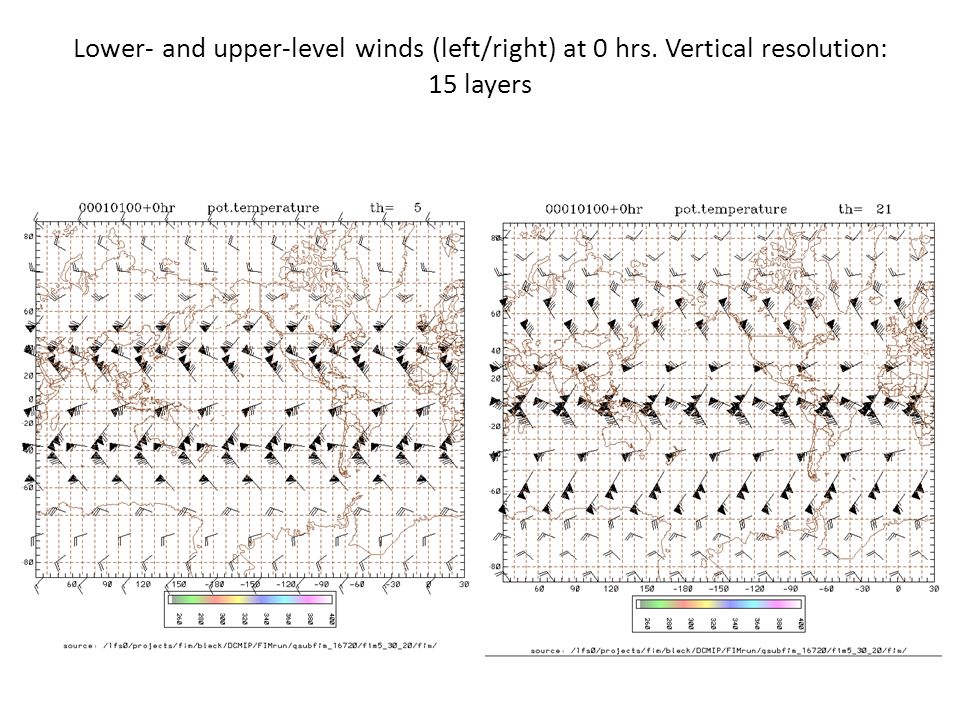

10. Lower- and upper-level winds (left/right) at 0 hrs. Vertical resolution: 15 layers

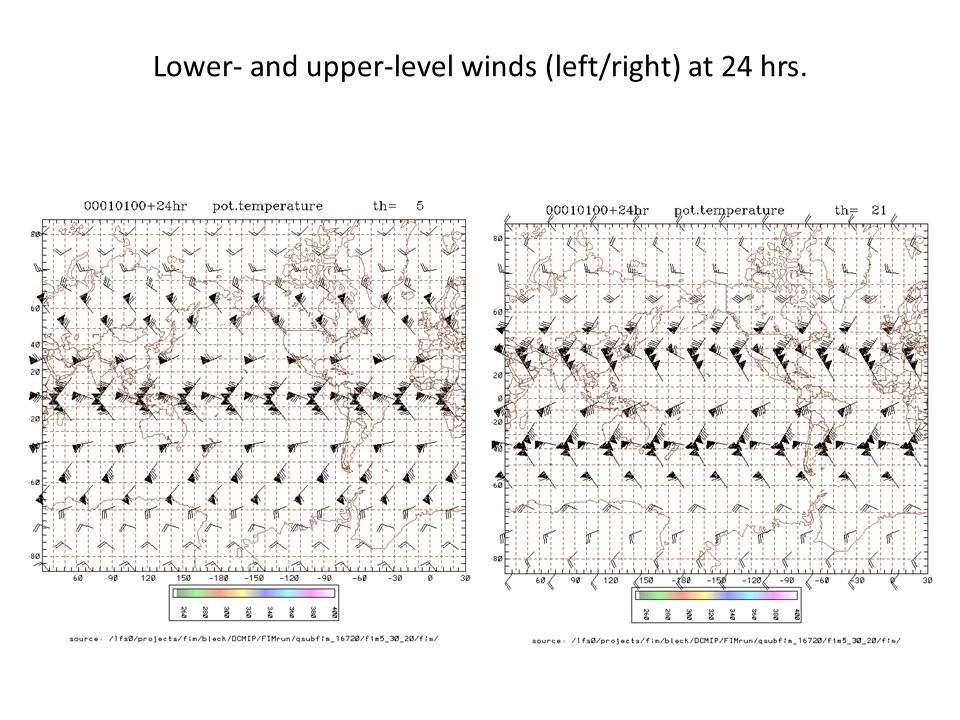

11. Lower- and upper-level winds (left/right) at 24 hrs.

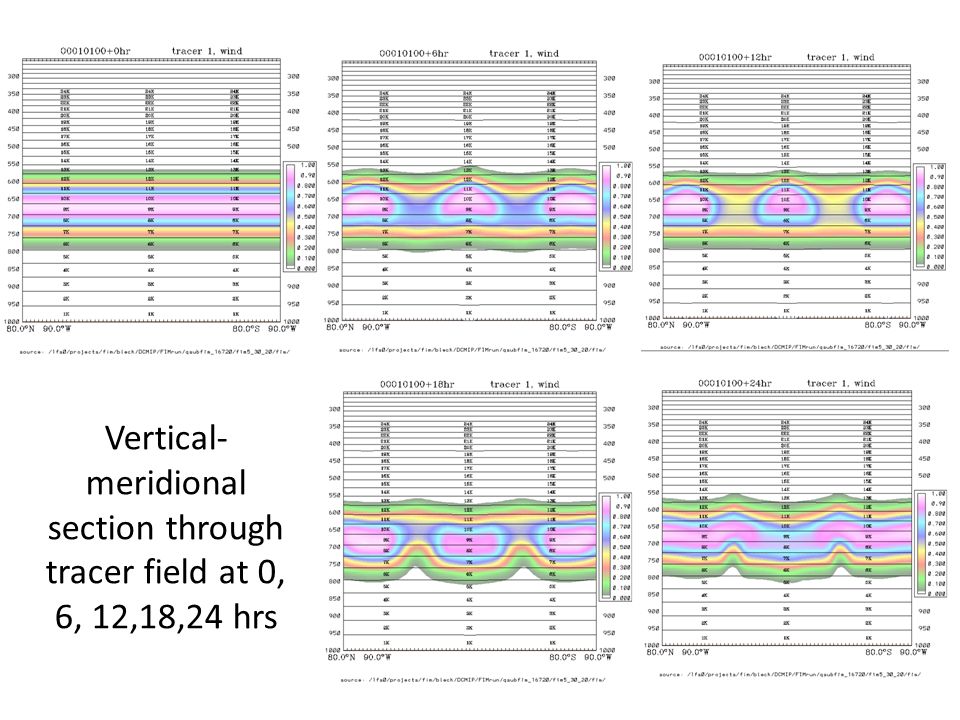

12. Vertical- meridional section through tracer field at 0, 6, 12,18,24 hrs

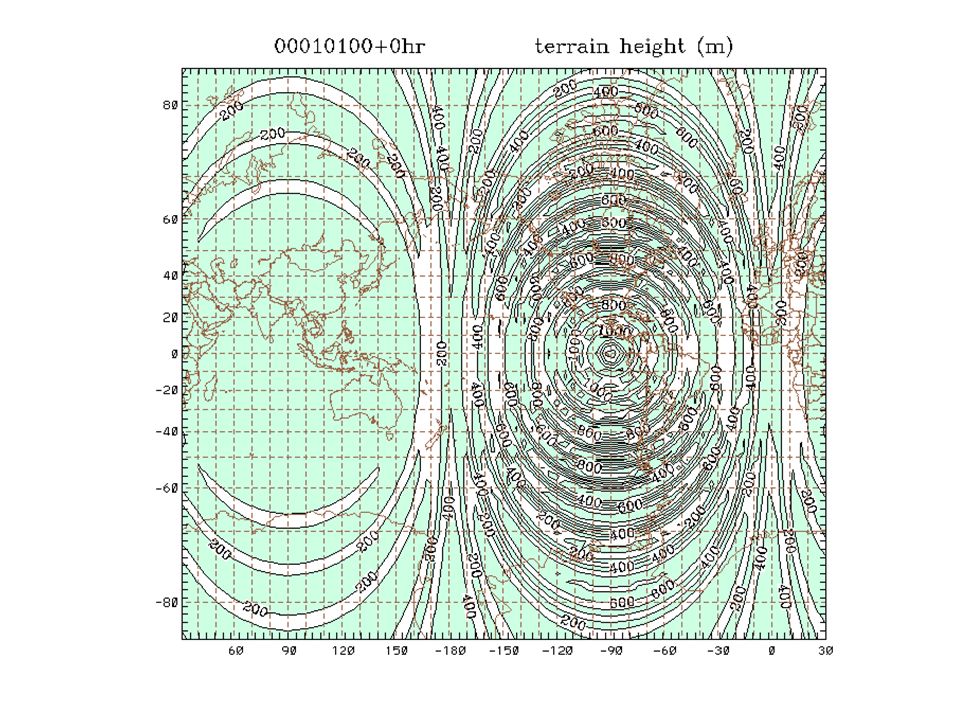

13. DCMIP Test 1-3 (advection over heavily corrugated mountain) Tracer advection in terrain-following coordinates. Model dynamics disabled (active routines: cnuity, trcadv, hybgen). Time-independent horizontal flow. Schaer-type, 2km high, corrugated mountain. 3 passive tracers representing low, middle, high clouds. Advection once around the globe (12 days) 30 layers; horiz mesh size ~120km

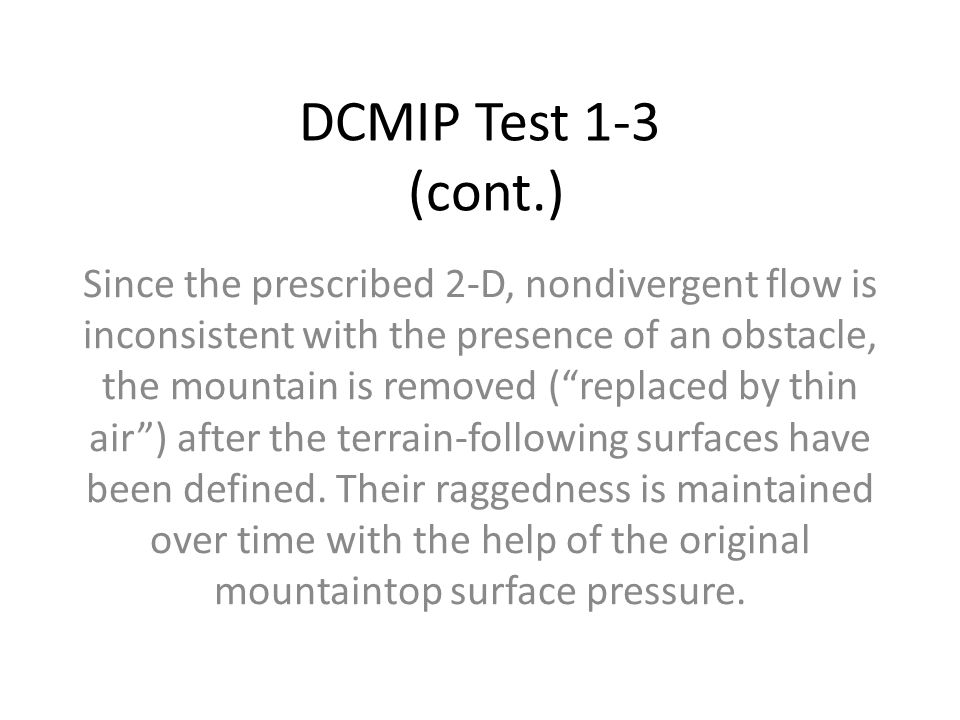

14. DCMIP Test 1-3 (cont.) Since the prescribed 2-D, nondivergent flow is inconsistent with the presence of an obstacle, the mountain is removed (“replaced by thin air”) after the terrain-following surfaces have been defined. Their raggedness is maintained over time with the help of the original mountaintop surface pressure.

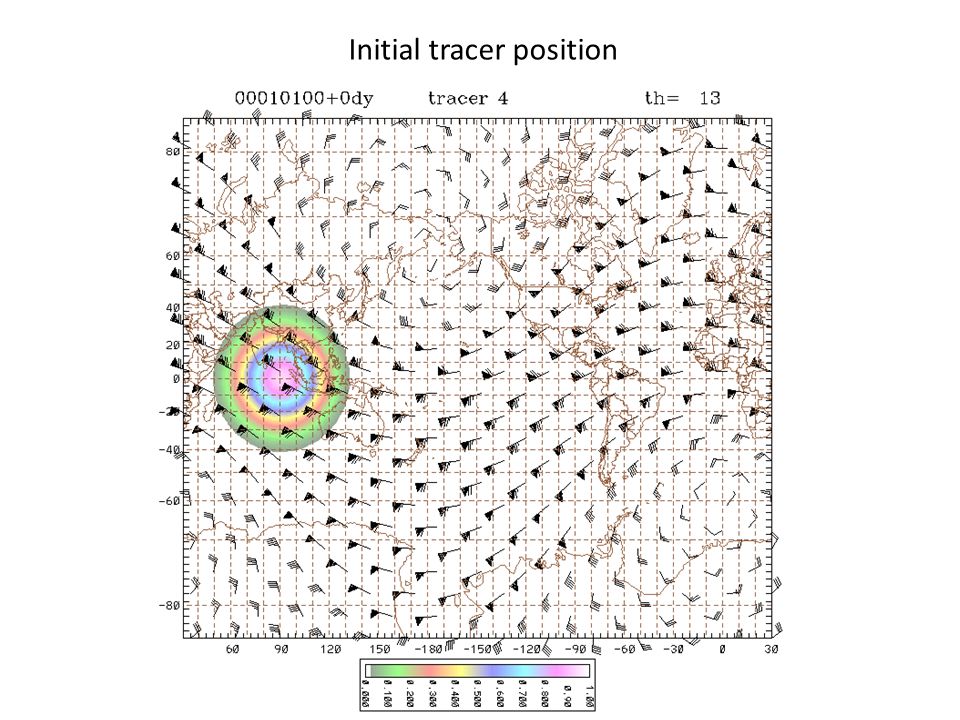

16. zonal section along equator, day 0 Initial tracer position

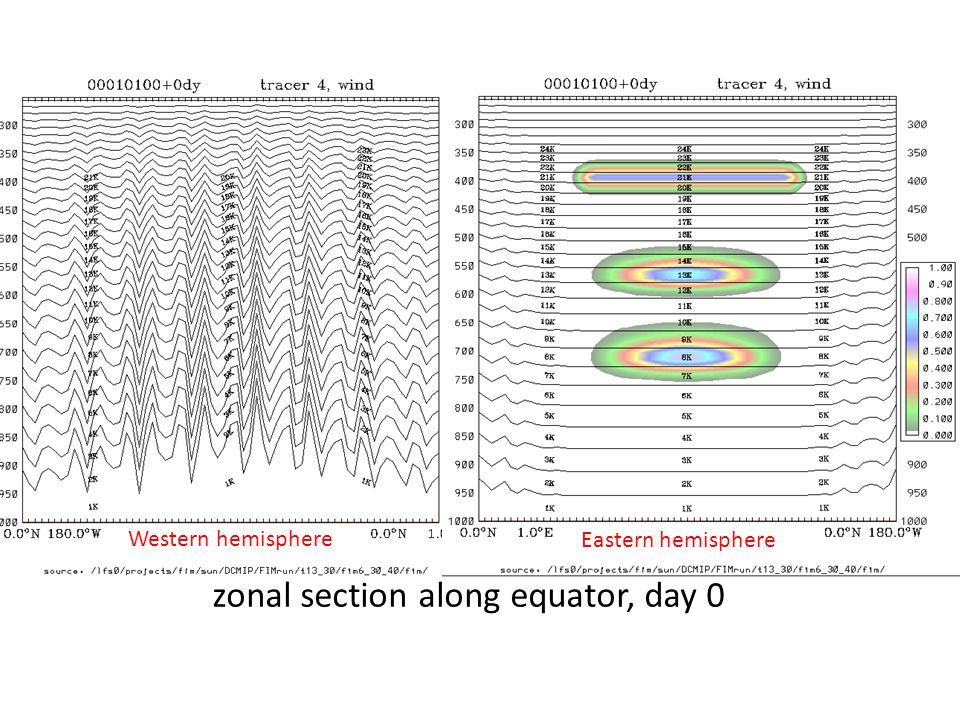

17. zonal section along equator, day 0 Western hemisphere Eastern hemisphere

18. zonal section along equator, day 6 Western hemisphere Eastern hemisphere

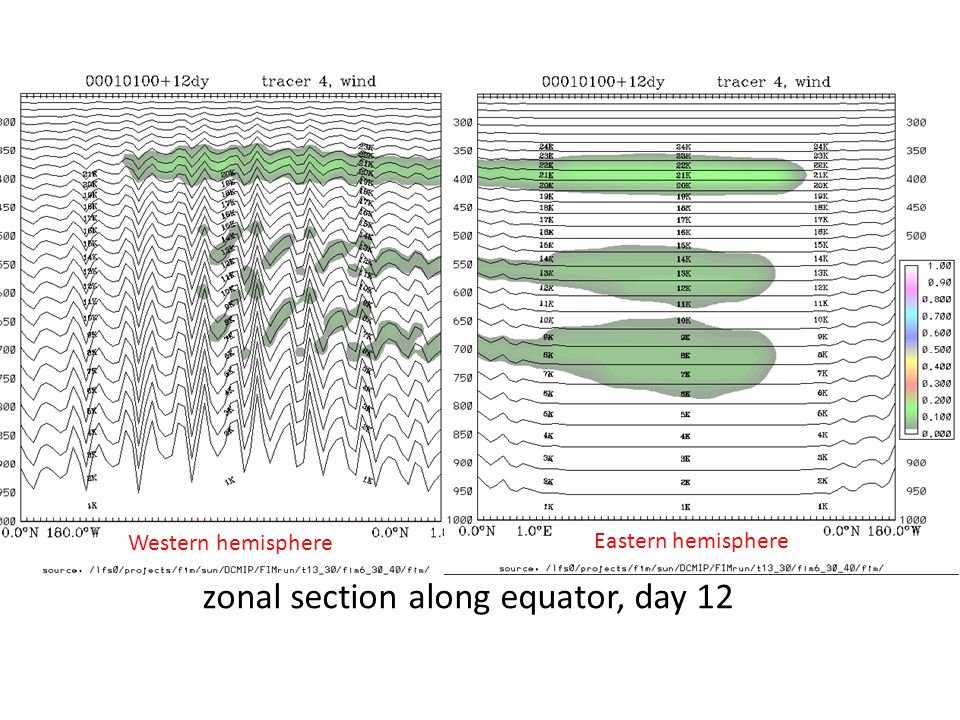

19. zonal section along equator, day 12 Western hemisphere Eastern hemisphere

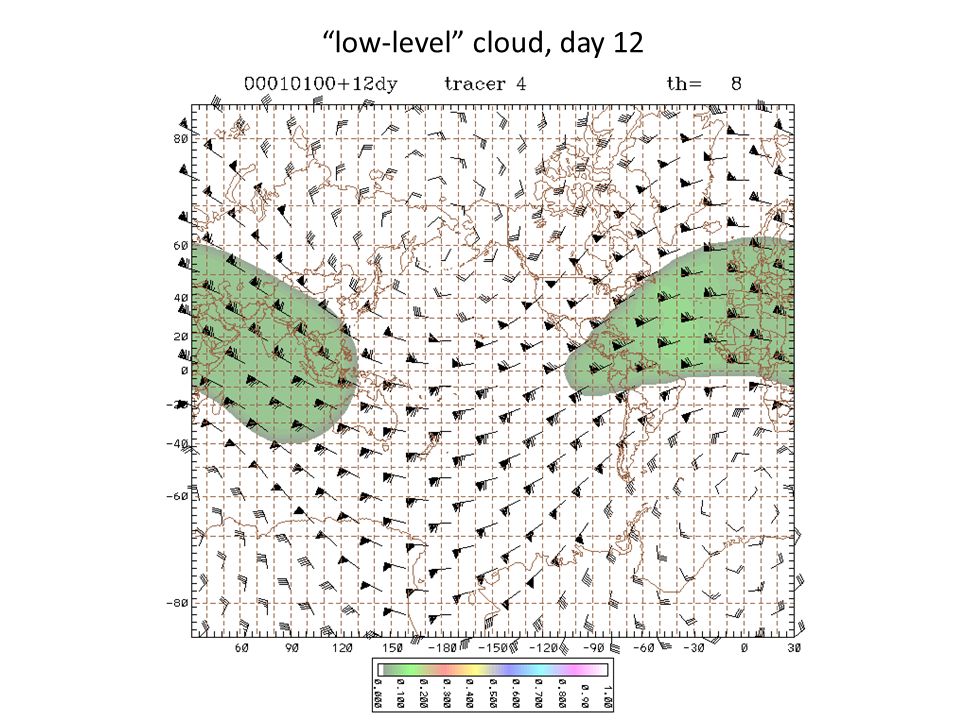

20. “low-level” cloud, day 12

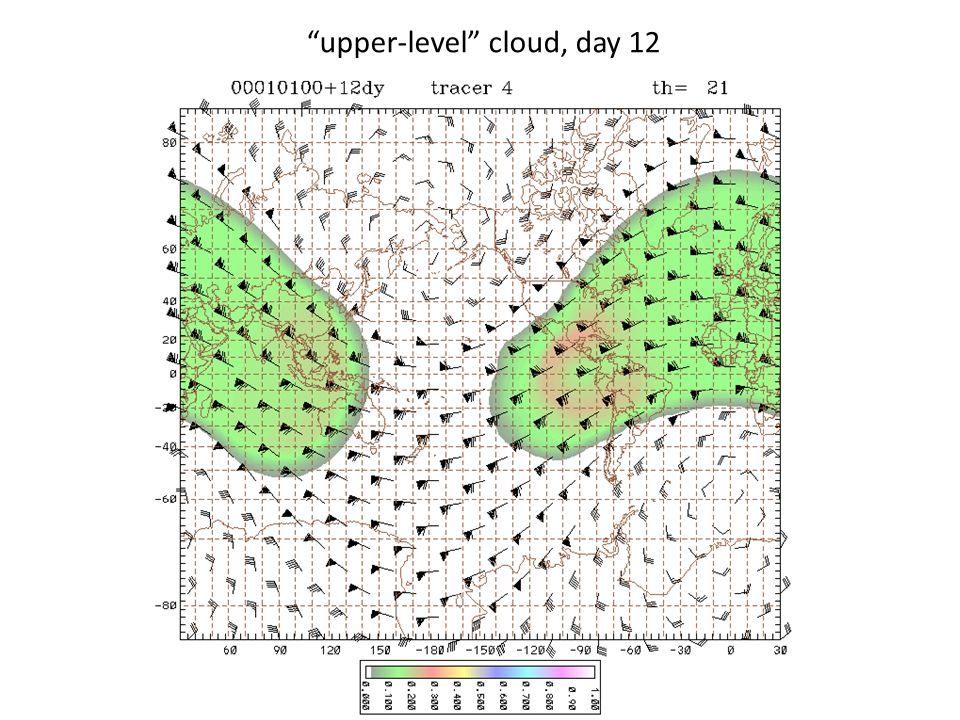

21. “upper-level” cloud, day 12

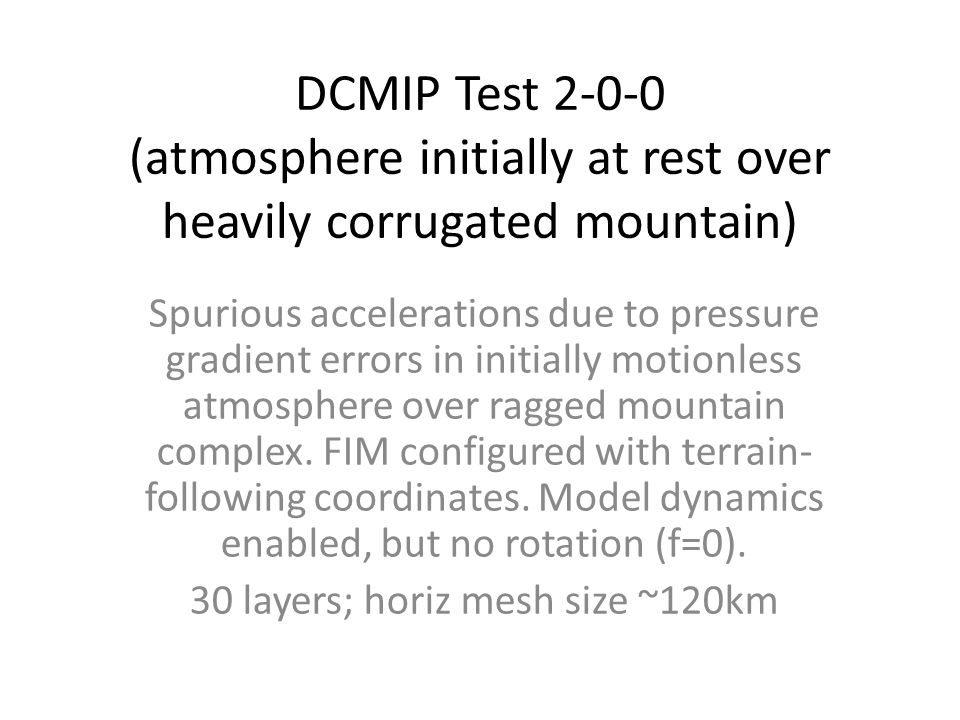

22. DCMIP Test 2-0-0 (atmosphere initially at rest over heavily corrugated mountain) Spurious accelerations due to pressure gradient errors in initially motionless atmosphere over ragged mountain complex. FIM configured with terrain- following coordinates. Model dynamics enabled, but no rotation (f=0). 30 layers; horiz mesh size ~120km

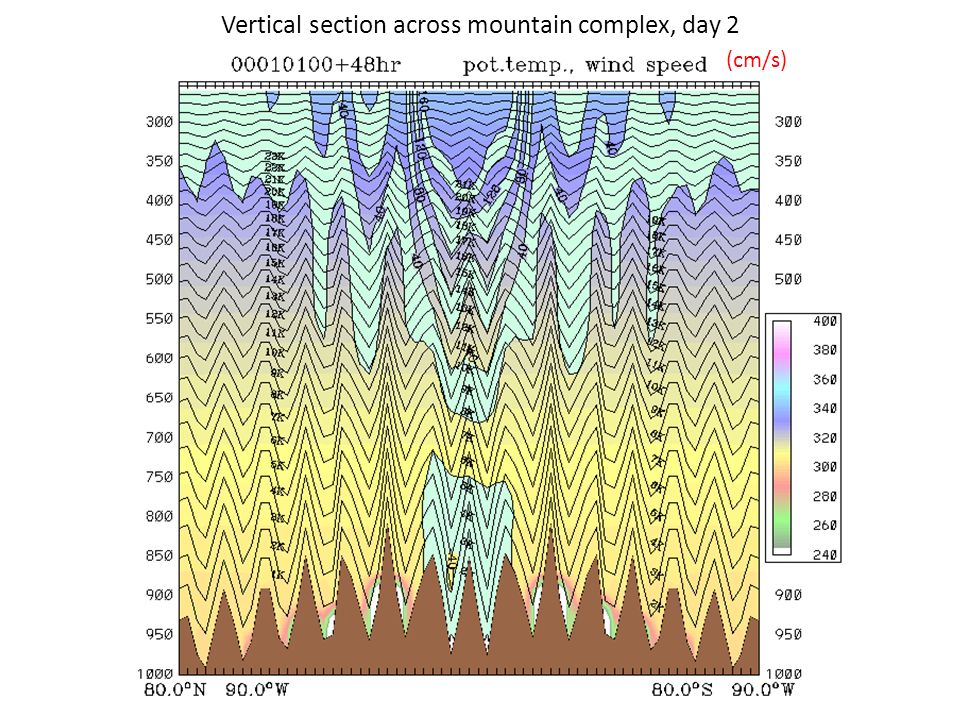

23. Vertical section across mountain complex, day 2 (cm/s)

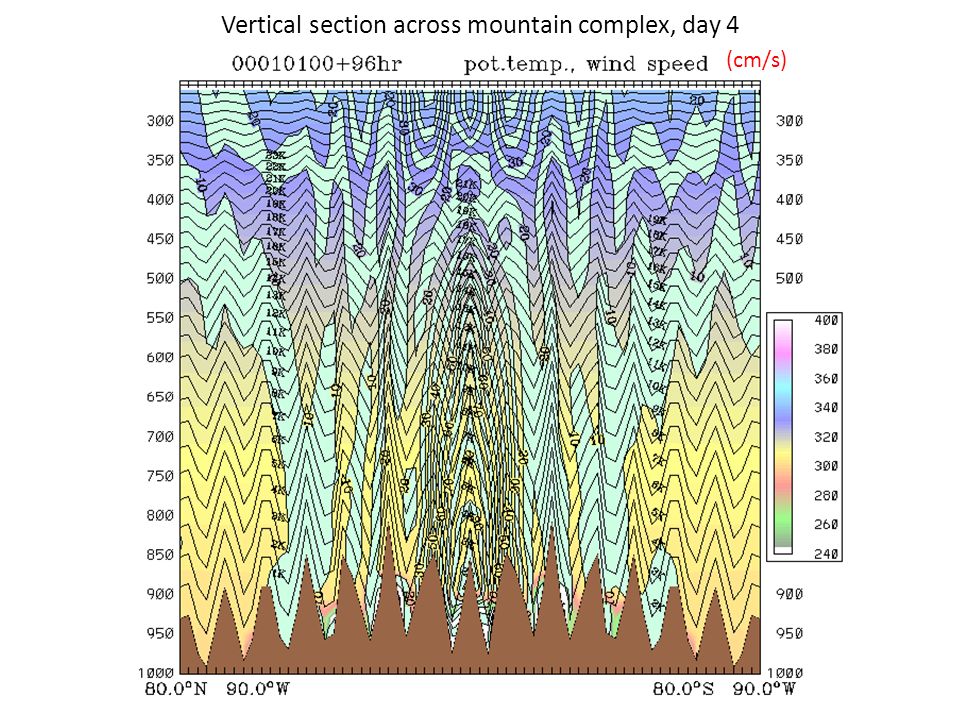

24. Vertical section across mountain complex, day 4 (cm/s)

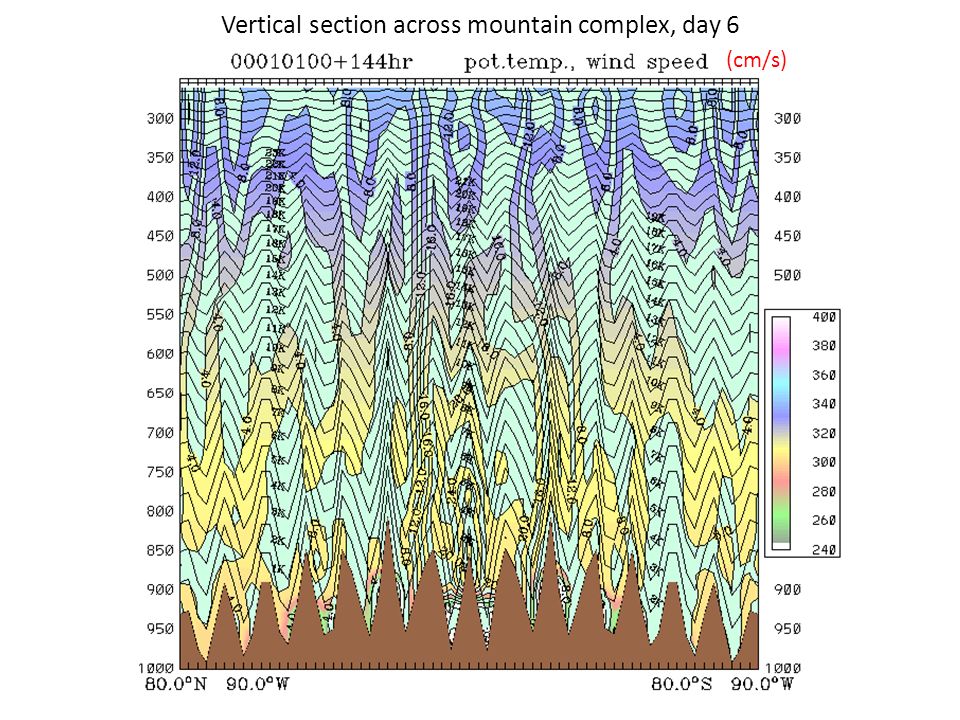

25. Vertical section across mountain complex, day 6 (cm/s)

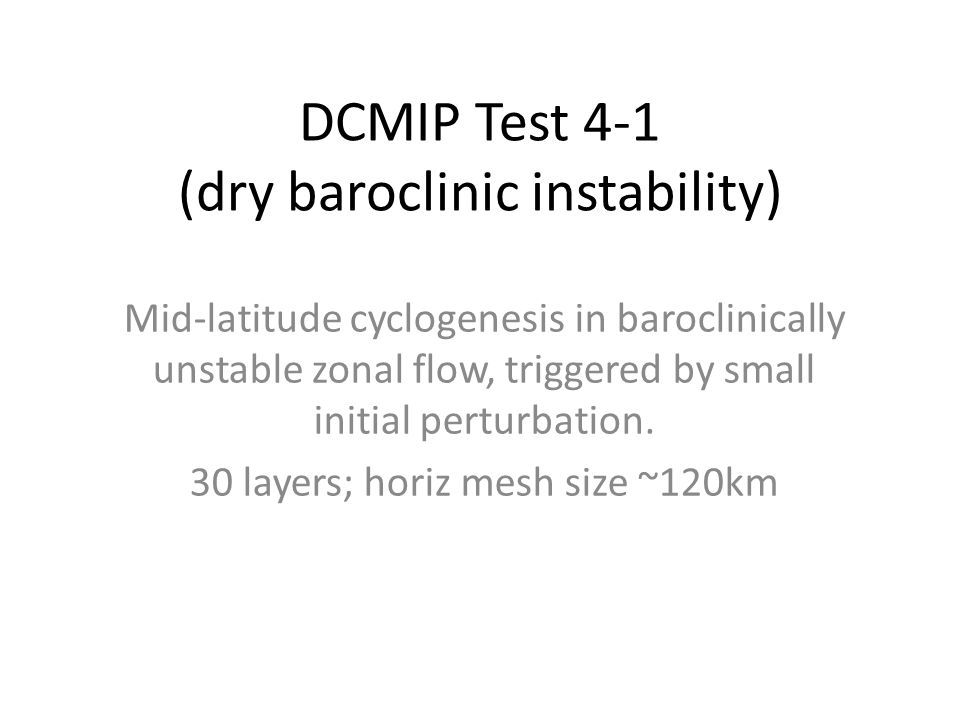

26. DCMIP Test 4-1 (dry baroclinic instability) Mid-latitude cyclogenesis in baroclinically unstable zonal flow, triggered by small initial perturbation. 30 layers; horiz mesh size ~120km

27. Initial conditions at 500 hPa

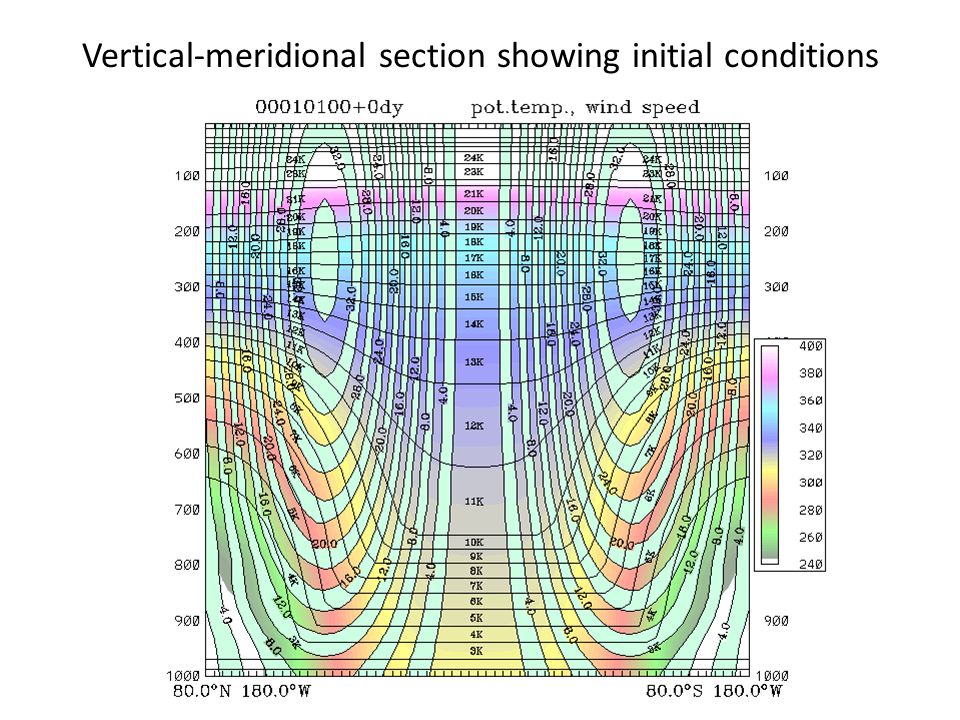

28. Vertical-meridional section showing initial conditions

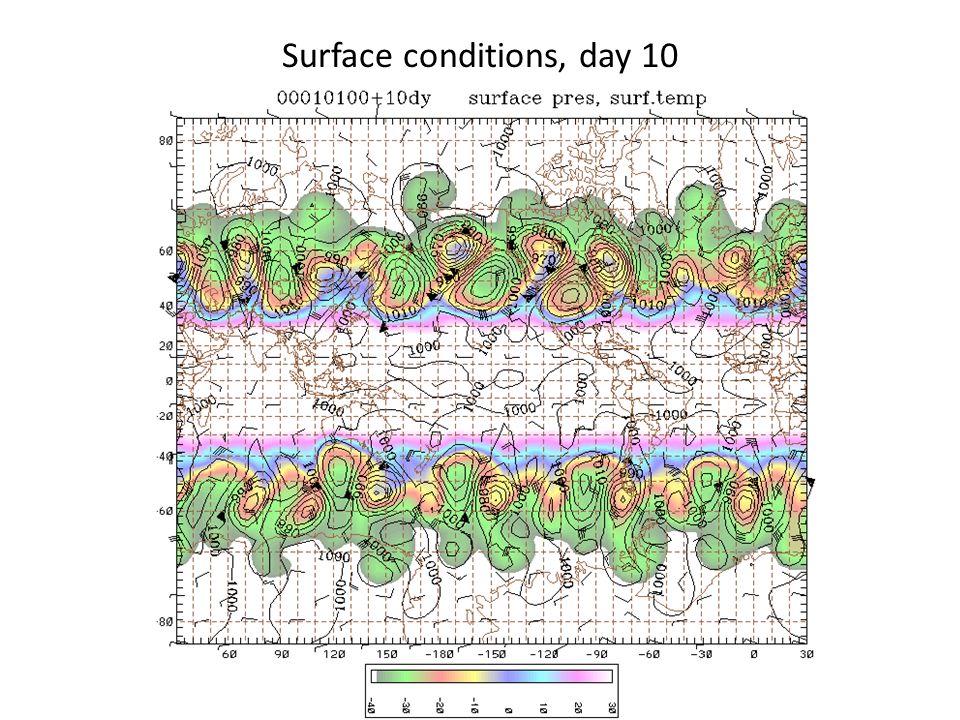

29. Surface conditions, day 10

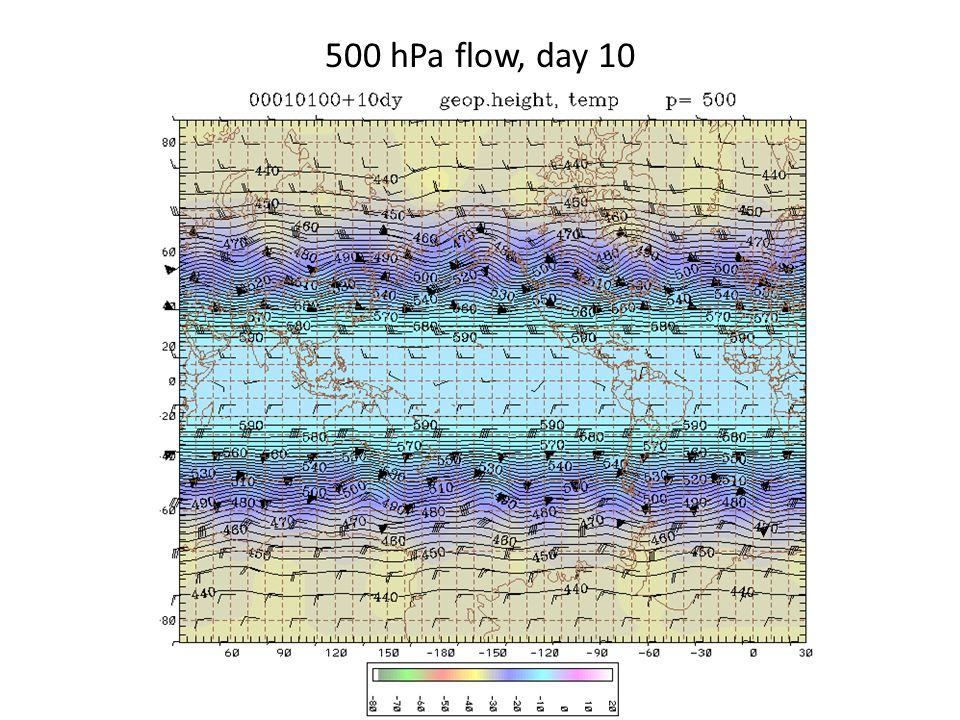

30. 500 hPa flow, day 10
