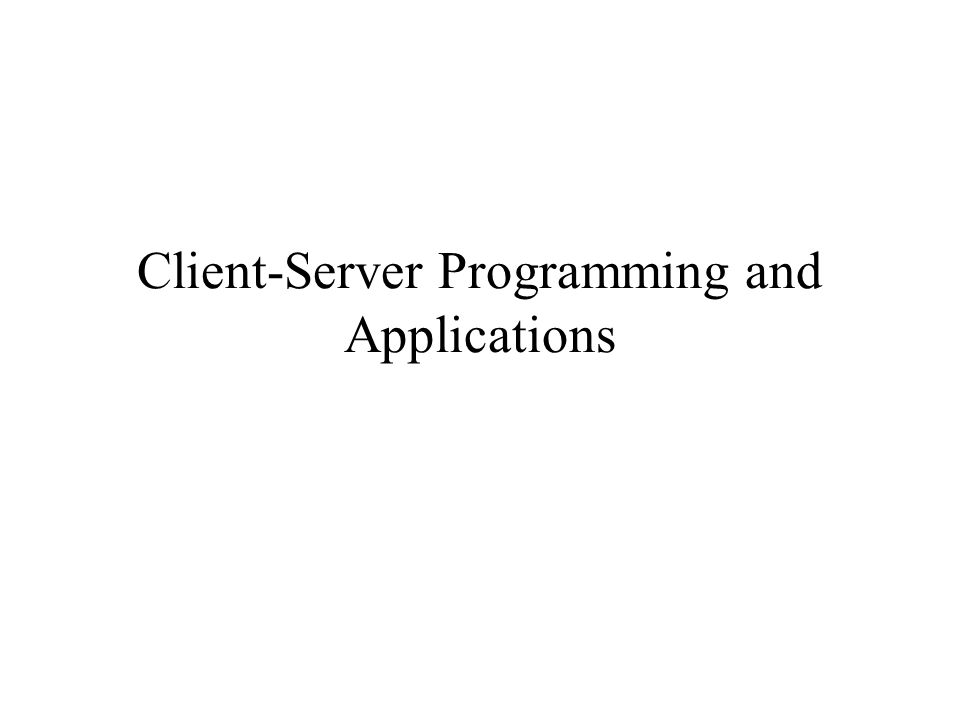

1. Client-Server Programming and Applications

2. References Douglas Comer, David Stevens, “Internetworking with TCP/IP: Client-Server Programming and Applications”, Volume III, Prentice Hall Chapter 8: Algorithms and Issues in Server Software Design. Chapter 11:Concurrent Connection-oriented servers. Chapter 12:Single-process concurrent servers. “An advanced 4.4BSD Interprocess Communication Tutorial” www.cis.temple.edu/~ingargio/old/cis307s96/readings/docs/ipc.html

3. Terminology Sequential Program –Typical of most program –Single thread of control Concurrent program –Multiple threads of control –Execution proceeds in parallel –More difficult to create

4. Types of Servers A server can be: Connectionless Connection-Oriented IterativeConcurrent iterative connectionless concurrent Connectionless iterative connection -oriented concurrent connection- oriented

5. Iterative (or sequential) Server Handles one request at a time Client waits for all previous requests to be processed Unacceptable to user if long request blocks short request while (1) { accept a connection (or request) from a client service the client close the connection (if necessary) }

6. Concurrent Server Can handle multiple requests at a time by creating new thread of control to handle each request No waiting while (1) { accept a connection/request from client start a new thread to handle this client /* the thread must close the connection! */ }

7. Stateful Server Maintains some information between requests Requires smaller messages, since some information is kept between contacts May become confused if a connection terminates abnormally (if the design is not fault tolerant) Example: FTP

8. Stateless Server Requires larger messages. That is, the message must contain all information about the request since no state information is kept. Example: HTTP

9. Applications and Transport Protocols ApplicationApplication-Layer Protocol Underlying Transport Protocol EmailSMTPTCP Remote Terminal AccessTelnetTCP WebHTTPTCP File TransferFTPTCP Remote File ServerNFSTypically UDP Streaming MultimediaProprietaryTypically UDP Network ManagementSNMPTypically UDP Routing ProtocolRIPTypically UDP Name TranslationDNSTypically UDP Internet TelephonyProprietaryTypically UDP

10. Concurrency in Client/server Concurrency refers to real or apparent simultaneous computing –time-sharing –multiprocessor Concurrent processing is fundamental to distributed computing –concurrency among machines in a network –among clients on a single machine –among client programs running on several machines

11. Concurrency in Client Software “Most client software achieves concurrent operation because the underlying OS allows users to execute client programs concurrently or because user can execute client software simultaneously”

12. SERVER SOFTWARE DESIGN A server follows a simple set of steps –Creates a socket and binds the socket to the well-known port at which it desires to receive the client requests (In UNIX systems, the services are registered in /etc/services. –Enters an infinite loop in which it accepts the next request that arrives from a client. –Processes the request by itself. –Formulates a reply and sends it back to the client according to the predefined service protocol, (e.g. POP3, TELNET, FTP, HTTP, etc..)  This represents the simplest form of server design and is referred to as an iterative server. It can handle only one request at a time.

13. Why Was There a Need to Introduce Concurrency in Client-Server Not effective conventional iterative method  Iterative servers are suitable for the most trivial services, (e.g., Time of Day, Local Time, Echo Servers, etc..)  They are NOT suitable for requests that require substantial amount of time to be completed, (e.g., FTP, TELNET, FILE SERVER, etc..) Large amount of data could consume lot of time This deprives communication for other client terminals  A concurrent server, on the other hand, is a server that can handle multiple requests.

14. How Concurrent Implementation Could Be an Answer to This Kind of Problem A concurrent server allows communication with many clients simultaneously In this kind of configuration a single client is not allowed to hold all resources Concurrency in servers –more difficult –server software must be programmed explicitly to handle requests concurrently

16. CONCURRENT SERVER ALGORITHM  Introducing concurrency into a server arises from the need to provide faster response time to multiple clients.  Concurrency improves response time, if Forming a response requires significant I/O. The processing time varies dramatically among requests, The server executes on a computer with multiple processors.  Concurrency may have significant overhead cost associated with it.

17. How Does Concurrent Model Works Master-Slave model The server is not connected to client directly The accept command makes the server to wait at a particular port for the request to arrive Upon its arrival master server process creates a slave process to handle the connection Also the master process is blocked to accept another call

18. Socket for socket for individual connection connections requests master slave 1 slave 2 slave n Server application processes Operating system

19. Advantages of the Concurrent Model More than one slave process can be created and can be allowed to operate concurrently

20. A. Concurrent, Connectionless Server: Parent Step 1: Create a socket and bind, leave the socket unconnected. Parent Step 2: Repeatedly call recvfrom( ) to receive the next request from a client, and create a new slave process (either through thr_create() or fork( ) ) to handle the response.

21. Slave Step 1: Receive a specific request upon creation as well as access to the socket. Slave Step 2: Form a reply according to the application protocol and send it back to the client using sendto( ) API. Slave Step 3: Exit (i.e. a slave process terminates after handling one request).  Because process creation is usually expensive, few connectionless servers have concurrent implementations.

22. B. Concurrent, Connection-oriented Server: Connection-oriented servers use a connection as the basic paradigm for communication. They allow a client to establish a connection to a server, communicate over that connection, then discard it after finishing. In most cases, the connection between clients and a server handles more than a single request, thus: Connection-oriented protocols implement concurrency among connections rather than individual requests.

23. The Algorithm Parent Step 1: Create a socket and bind, leave the socket unconnected. Parent Step 2: Place the socket in a passive mode, making it ready for use by a server, e.g. listen(s, 3). Parent Step 3: Repeatedly call accept() to receive the next request from a client, and create a new slave process to handle the response.

24. The Algorithm (cont.) Slave Step 1: Receive a connection request upon creation, i.e., socket for the connection. Slave Step 2: Interact with the client using the connection, read and send back the responses. Slave Step 3: Close the connection and exit. The slave process exits after handling all requests from clients.

25. The Pseudo code /* create a socket and bind*/ s = tcp_open(…); listen (s, 5); len = sizeof (client_addr); for (;;){ /* Wait for a connection request */ ns = accept (s, (struct sockaddr *) &client_addr, len ); /* Now create a slave process to handle the request */ child = fork(); if ( child == 0 ){ close (s); process_the_request (ns); exit (0); } close (ns); /* just to be safe */ }

26. Concurrent ECHO Echo service Iterative or concurrent implementation?

27. Concurrent ECHO server example /* TCPechod.c - main, TCPechod */ /* include header files here */ #define QLEN 5 /*max. connection queue length */ #define BUFSIZE4096 void reaper (int) /* clean up zombie child */ int TCPechod(int fd) /*echo data until end of file */ int errexit (const char *format, …); int passiveTCP (const char *service, int qlen);

28. /* main- concurrent TCP server for ECHO service */ int main(int argc, *argv[]) { char *service = “echo”; /*service name or port number */ struct sockaddr_in fsin; /* the address of a client */ int alen; /* length of a client’s address */ int msock; /*master server socket */ int ssock; /*slave server socket */ /* check arguments - not detailed here*/

29. msock = passiveTCP (service, QLEN); (void) signal(SIGCHLD, reaper); while (1){ alen = sizeof(fsin); ssock=accept(msock, (struct sockaddr *)&fsin, &alen); /* error with accept call not detailed here */ switch (fork( ) ) { case 0: /* child */ (void) close (msock); exit (TCPechod ( ssock ));

30. default:/* parent */ (void) close ( ssock ); break; case -1: errexit(“fork: %s\n”, strerror(errno)); }

31. Details of Concurrency Master server calls accept to wait for connection request from client. The command accept creates a socket and returns a socket descriptor. Master server creates a slave process using fork command to handle connection. The parent process closes the socket. The above loop is repeated

32. Details of Concurrency Close command by the master process for the new connection for the new connection, closes connection (socket) for the master process. Close command by the slave process, closes connection (socket) for the slave process. Slave process continues to have access to new socket until it exits. Master continues to retain access to the socket that corresponds to the well known port.

33. Details of Concurrency The slave closes the master socket and provides echo service. Read and write repeatedly executed, returning number of bytes read and written. In this case, negative number indicates error and 0 indicates EOF condition. Exit command is used to terminate the process. When slave exits the system automatically closes open descriptors.

34. How to Solve the Problem of Incompletely Terminated Process A signal is send to parent process whenever a child process exits. The exiting process remains in zombie state until parent executes wait3 system call. Server catches the child termination signal and executes a signal handling function signal(SIGCHLD,reaper) The above function indicates that master server process should execute function reaper whenever it receives a signal that child process has exited (signal SIGCHLD). Function reaper calls system function wait3 to complete termination of child that exits. Wait3 blocks until one or more children exit.

35. /* reaper - clean up zombie child */ void reaper (int sig) { int status; while (wait3(&status, WNOHANG, (struct rusage *) 0) >= 0) /* empty */; } wait3 returns a value in the status structure that can be examined to find out about the process that has exited. WNOHANG tells the kernel not to block if there are no terminated children.

36. Alternative to function reaper /* reaper - clean up zombie child */ void reaper (int sig) { pid_tpid; int status while ((pid = waitpid (-1, &status, WNOHANG) )> 0) /* empty */; return; } waitpid returns a value in the status structure that can be examined to find out about the status of the child. A value of –1 says to wait for the first of the children processes.

37. How to handle interrupted system call Recall: –The parent is blocked in its call to accept when SIGCHLD signal is delivered. What happens when the signal handler returns? –Since the signal was caught by the parent while the parent was blocked in a slow system call (accept), the kernel causes the accept to return an error of EINTR (interrupted signal call). The parent does not handle this error so it aborts. Solution: If ((ssock=accept(….)) <0) if (errno = EINTR) continue; else err_sys(“accept error”);

38. Summary ECHO service example –use of fork function –each slave process begins execution immediately following the call to fork.

39. Single Process, Concurrent, Connection-Oriented Servers (TCP) (Chapter 12)

40. INTRODUCTION Last time: Concurrent Connection-Oriented server - echo server - that supports multiple clients at the same time using multiple processes Today: similar echo server but uses only one single process.

41. Motivation for apparent concurrency using a single process Cost of process creation Sharing of information among all connections Apparent concurrency among processes that share memory can be achieved if the total load of requests presented to the server does not exceed its capacity to handle them.

42. Single-process, Concurrent Server Idea: Arrange for a single process to keep TCP connections open to multiple clients. In this case a server handles a given connection when data arrives. Thus arrival of data is used to trigger processing.

43. How Concurrent Execution Differs From Single-process Execution In concurrent execution a server creates a separate slave process to handle each new connection. So theoretically it depends on operating systems time slicing mechanism to share the CPU among the processes and thus among the connections. However in reality the arrival of data controls processing. “Concurrent servers that require little processing time per request often behave in a sequential manner where the arrival of data triggers execution. Timesharing only takes over if the load becomes so high that the CPU cannot handle it sequentially.”

44. How Does Single Process Mechanism Works? In a single process server, a single server process has TCP connections open to many clients. The process blocks waiting for data to arrive. On the arrival of data, on any connection, the process awakens, handles the request and sends the reply.

45. Advantages of Single-process Server Over Multiple Process Concurrent Server Single- process implementation requires less switching between process contexts. Thus it may be able to handle slightly higher load than implementation that uses multiple processes.

46. Socket for sockets for connection individual connections requests server Server <--- application process Operating <---system

47. Details of Single-process Server A single-process server must perform the duties of both master and slave process A set of socket is maintained. One socket is set bound to the well known port at which master can accept connection. The other socket in the set correspond to a connection over which a slave can handle request.

48. Details of Single-process Server If the descriptor corresponding master socket is ready, it calls accept on the socket to obtain a new connection. If the descriptor corresponding to slave is ready, it calls read to obtain request and answers it. The above step is then repeated.

49. Algorithm Create a socket and bind to well-known port for the service. Add socket to the list of those on which I/O is possible. Use select to wait for I/O on existing sockets. If original socket is ready, use accept to obtain the next connection, and add the new socket to the list of those on which I/O is possible.

50. Algorithm (Cont.) If some socket other than the original is ready, use read to obtain the next request, form a response, and use write to send the response back to the client. Continue processing with step 2 above.

51. The select system call Select provides asynchronous I/O by permitting a single process to wait for the first of any file descriptors (not restricted to sockets) in a specified set to become ready. The caller can also specify a maximum timeout for the wait. By example, tell the kernel to return only when: –Any of the descriptors in set {1,4,5} are ready for reading –Any of the descriptors in set {2,7} are ready for writing –Any of the descriptors in set {1,4,5} have an exception pending –Or after 20 seconds have elapsed

52. The select system call retcode = select (numfds, rfds, wrfds, exfds, time) Arguments –int numfds –&fd_set rfds –&fd_set wrfds –&fd_set exfds –&struct timeval returns: number of ready file descriptors fd_set data type: descriptor sets are typically an array of integers, with each bit in the integer corresponding to a descriptor.

53. Macros /* clears all bits in fdset void FD_ZERO(fd_set *fdset); /* turn on the bit for fd in fdset void FD_SET(inf fd, fd_set *fdset); /* turn off the bit for fd in fdset void FD_CLR(inf fd, fd_set *fdset); /* Is the bit for fd on in fdset? Int FD_ISSET(inf fd, fd_set *fdset);

54. Example - Single Process ECHO Server /* TCPmechod.c - main, TCPechod */ /* include header files here */ #define QLEN 5 /*max. connection queue length */ #define BUFSIZE4096 extern int errno; int echo (int fd) /*echo data until end of file */ int errexit (const char *format, …); int passiveTCP (const char *service, int qlen);

55. /* main- concurrent TCP server for ECHO service */ int main(int argc, *argv[]) { char *service = “echo”; /*service name or port number */ struct sockaddr_in fsin; /* the from address of a client */ int alen; /* length of a client’s address */ int msock; /* master server socket */ fd_set rfds; /* read file descriptor set */ fd_set afsd; /* active file descriptor set */ int fd; /* check arguments - not detailed here*/

56. msock = passiveTCP (service, QLEN); FD_ZERO (&afds); FD_SET (msock, &afds); while(1) { memcpy(&rfds, &afds, sizeof(rfds)); if ( select (FD_SETSIZE, &rfds, (fd_set *) 0, (fd_set *) 0, (struct timeval *) 0) < 0) errexit (“select: %s\n”, strerror(errno));

57. if ( FD_ISSET (msock, &rfds)) { int ssock; alen = sizeof (fsin); ssock = accept(msock,(struct sockaddr *)&fsin, &alen); if ( ssock < 0) errexit (“accept: %s\n, strerror (errno)); FD_SET (ssock, &afds); }

58. for ( fd = 0; fd < FD_SETSIZE; ++fd) if (fd!=msock && FD_ISSET(fd, &rfds)) if (echo(fd) ==0 ) { (void) close (fd); FD_CLR (fd, &afds); }

59. /* Echo - echo one buffer of data, returning byte count */ int echo (int fd) { char buf[BUFSIZE]; int cc; cc = read (fd, buf, sizeof(buf)); if ( cc < 0 ) errexit(“echo read: %s\n”, strerror(errno)); if (cc && write(fd, buf, cc) < 0 ) errexit (“echo write: %s\n”, strerror(errno)); return cc; }

60. Summary Execution in concurrent servers often driven by arrival of data When the service requires little processing, a single-process implementation is preferable: –Can use asynchronous I/O to manage connections to multiple clients Single-process implementation performs the duties of master and slave processes.
