COMSOL Analysis: End Loaded Cantilever Beams of Various Cross Sections Gregory Hew.

Published byEleanor Mitchell Modified over 8 years ago

Similar presentations

Presentation on theme: "COMSOL Analysis: End Loaded Cantilever Beams of Various Cross Sections Gregory Hew."— Presentation transcript:

1 COMSOL Analysis: End Loaded Cantilever Beams of Various Cross Sections Gregory Hew

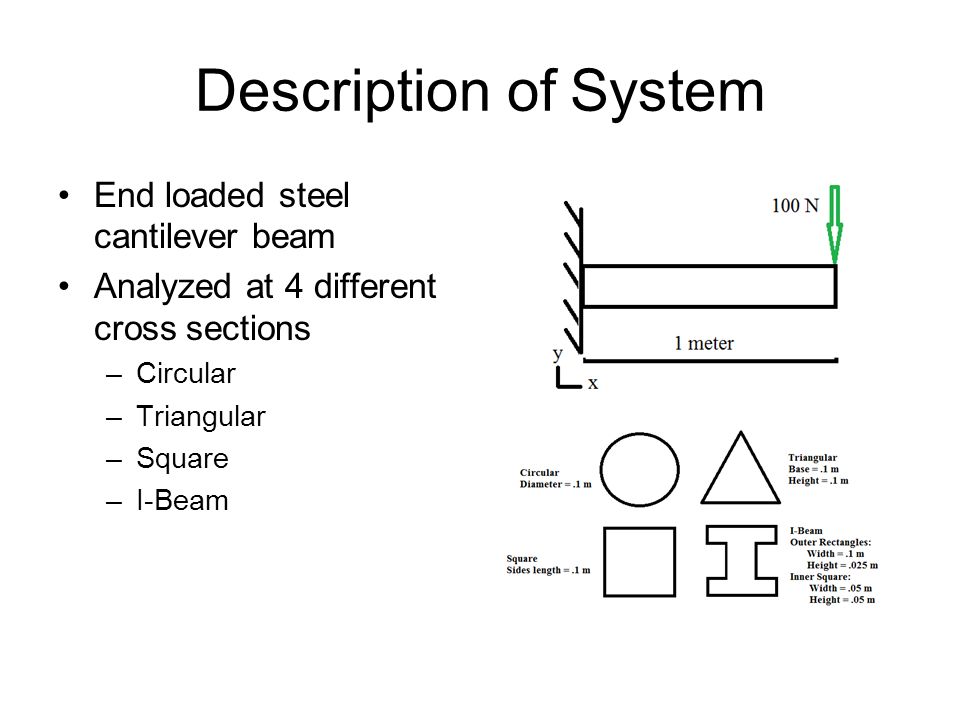

2 Description of System End loaded steel cantilever beam Analyzed at 4 different cross sections –Circular –Triangular –Square –I-Beam

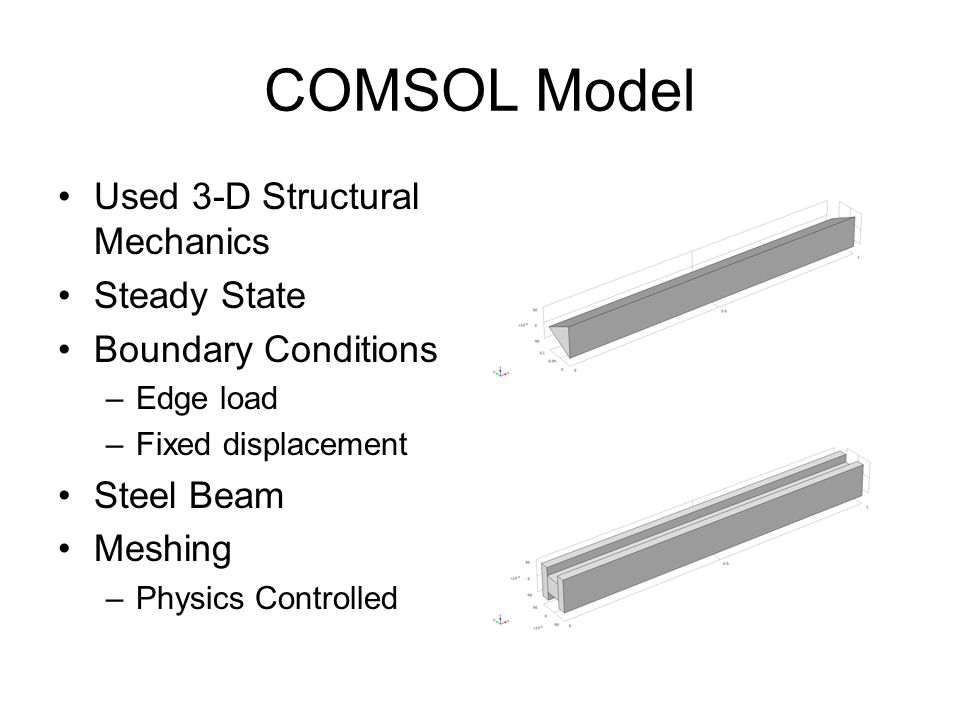

3 COMSOL Model Used 3-D Structural Mechanics Steady State Boundary Conditions –Edge load –Fixed displacement Steel Beam Meshing –Physics Controlled

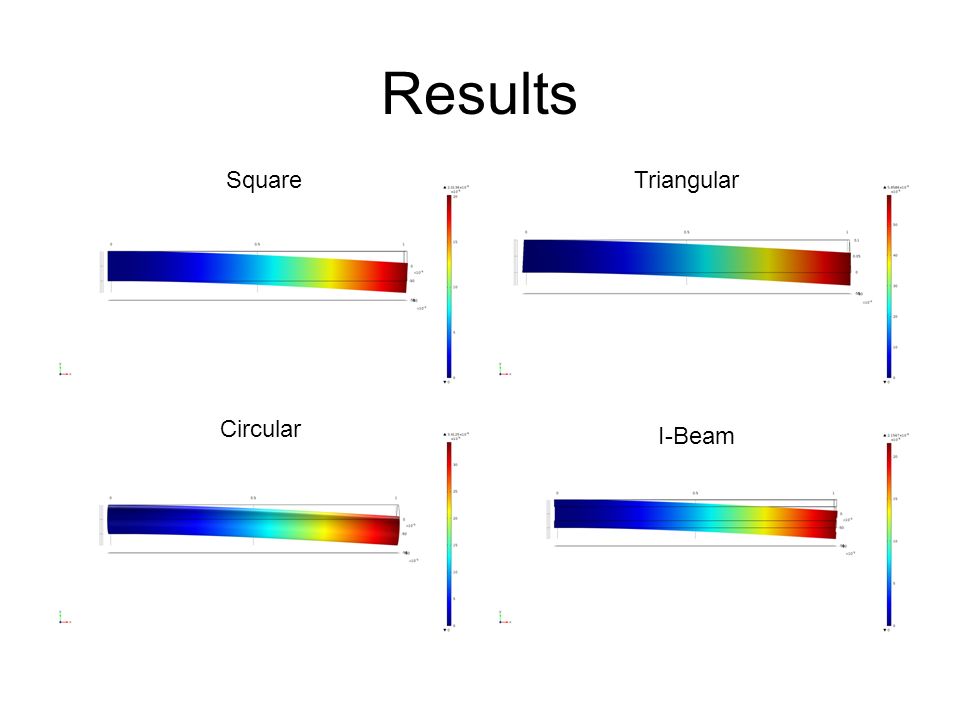

4 Results Circular SquareTriangular I-Beam

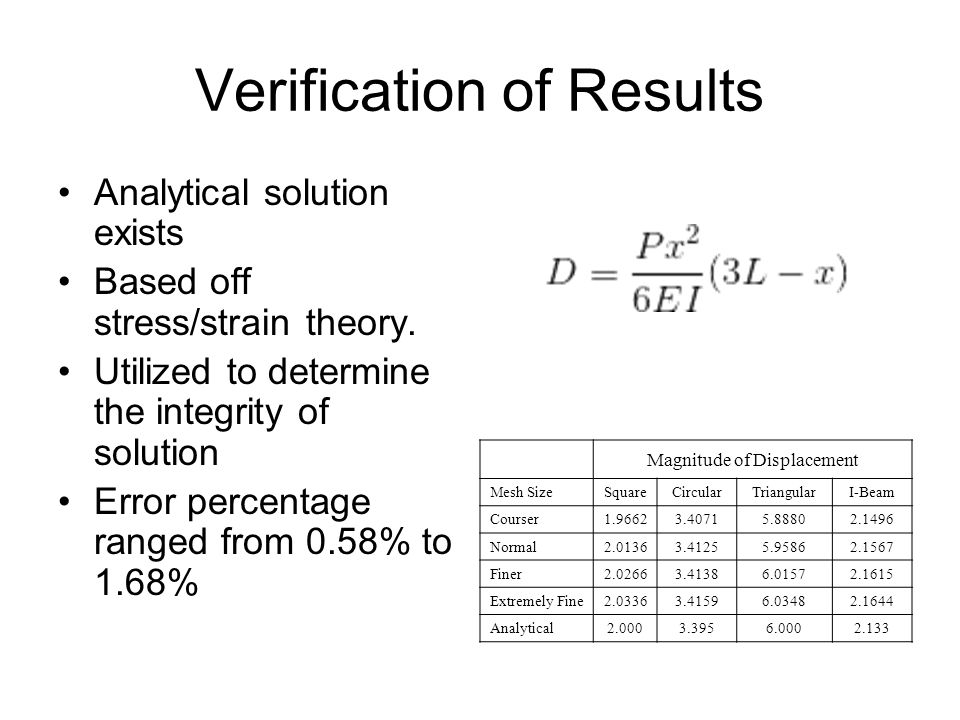

5 Verification of Results Analytical solution exists Based off stress/strain theory. Utilized to determine the integrity of solution Error percentage ranged from 0.58% to 1.68% Magnitude of Displacement Mesh SizeSquareCircularTriangularI-Beam Courser1.96623.40715.88802.1496 Normal2.01363.41255.95862.1567 Finer2.02663.41386.01572.1615 Extremely Fine2.03363.41596.03482.1644 Analytical2.0003.3956.0002.133

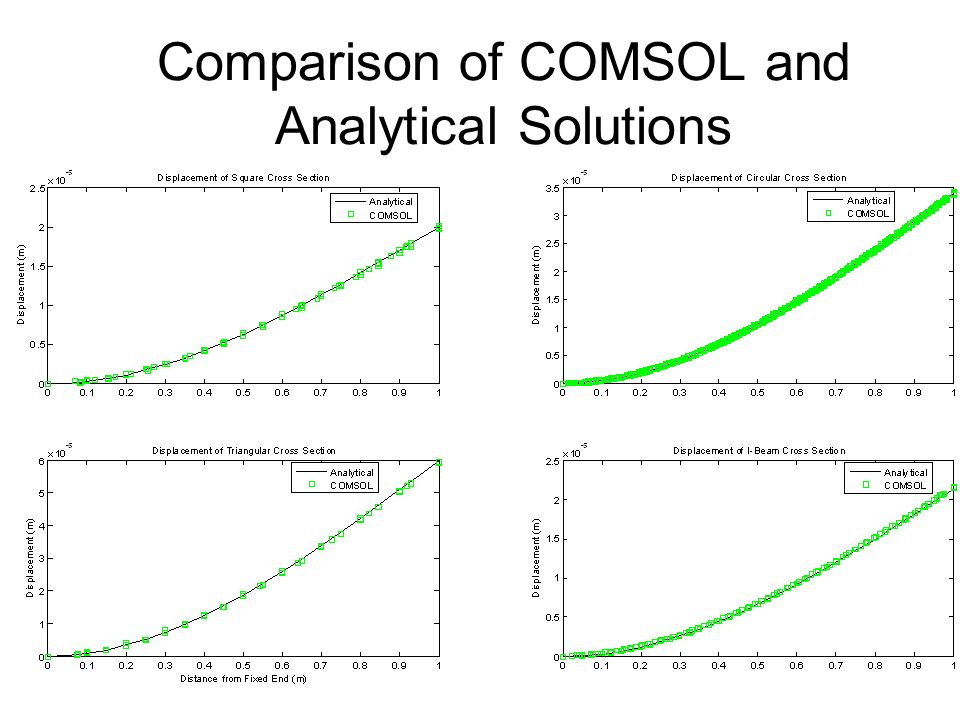

6 Comparison of COMSOL and Analytical Solutions

7 Mesh Extension Difference Between Meshes/Actual Solutions X 10 5 Solutions ComparedSquareCircularTriangularI-Beam Courser - Normal0.04740.00540.07060.0071 Normal - Finer0.01300.00130.05710.0048 Finer - Extremely Fine0.00700.00210.01910.0029 Actual - Extremely Fine0.03360.02090.03480.0314 Verified convergence of solutions Slight divergence at extremely fine for circular cross section May be due to difficulties using tetrahedral meshes on circular geometry
