T.Takahashi Hiroshima 1 2007/11/5 Tohru Takahashi Hiroshima University 高橋 徹 広島大学
2
T.Takahashi Hiroshima 2 Why polarized positrons electrons are polarized,,,,,, choose helicity of its counter part if unpolarized e+ a half of the beam is thrown away
3
T.Takahashi Hiroshima 3 electon beam is polarized but,,,, In principle, we can suppress this by polarized electrons if we want but
4
polarization (either e- or e+) has to be well controlled Positron polarization Positron polarization helps much to : increase luminosity effectively suppress background physics is sensitive to the polarization
5
ILC: e+ Polarization from Beginning? To use the e+ polarization for physics we strongly ask to provide a machine with flexible helicity reversal also for the positron beam No or very rare reversal of e+ helicity could be worse than no e+ polarization Positron Pol WG Reminder: Positron Pol is important for numerous physics channels Gain in production rate Reduction of Bckgrnd Access to new channels J.Hewett LCWS07 SUSY, New Phys. summary
6
How to get them Helical Undulator Ee~150GeV L>150m Ee~GeV Laser Compton
7
T.Takahashi Hiroshima 7 pros and cons Compton based positron polarization independent of main linac good capability of controlling polarization R& D issues how to get enough intensity
8

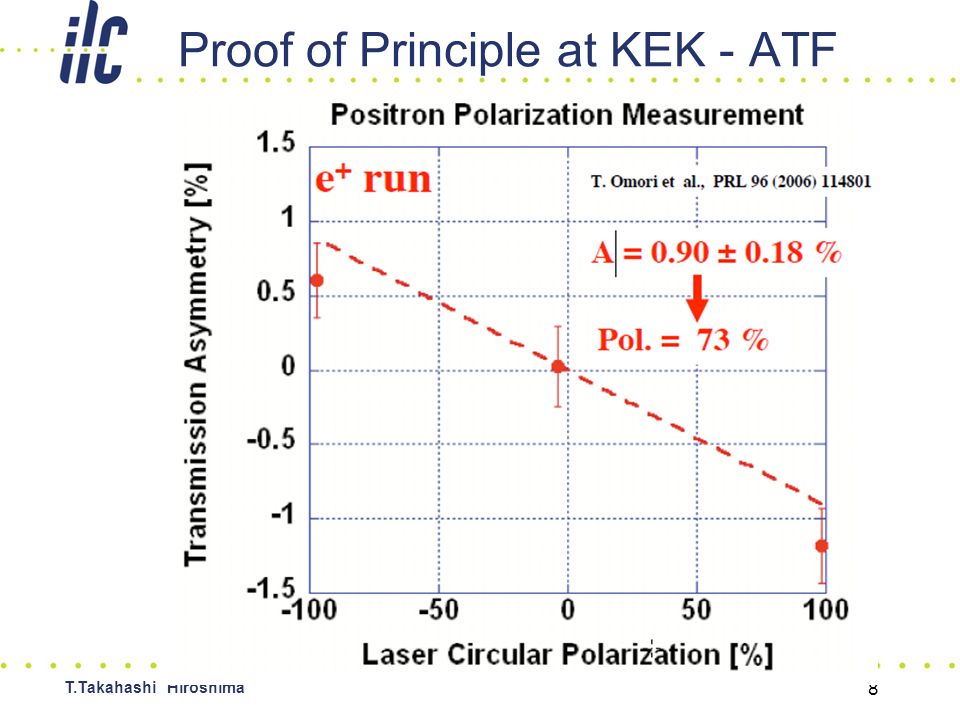

T.Takahashi Hiroshima 8 Proof of Principle at KEK - ATF
9

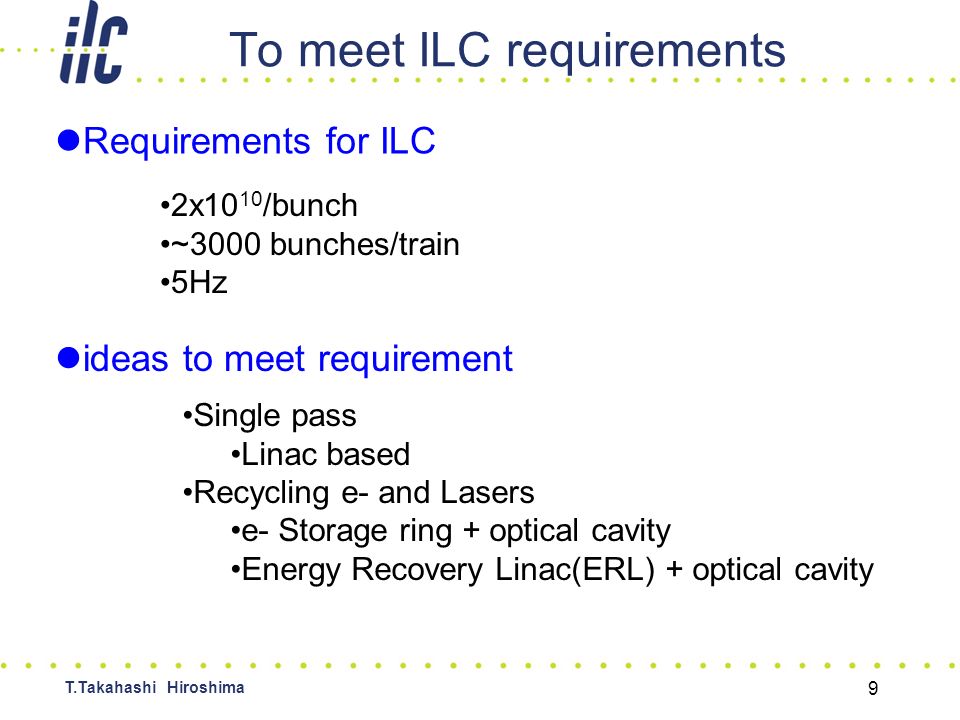

T.Takahashi Hiroshima 9 To meet ILC requirements Requirements for ILC 2x10 10 /bunch ~3000 bunches/train 5Hz ideas to meet requirement Single pass Linac based Recycling e- and Lasers e- Storage ring + optical cavity Energy Recovery Linac(ERL) + optical cavity
10
Linac Scheme T.Takahashi Hiroshima 10 4GeV, 1A 15MeV e+ Co 2 laser 1J Single pass 5x10 11 2x10 10 e+ V.Yakimenko ~2m directly creates enough e+ high current e- source, regenerative laser cavity ?
11
capture system Compton Ring Scheme T.Takahashi Hiroshima 11 1.3 GeV e- source Electron Storage Ring Optical Cavities target damping ring main linac 6.15ns electron bunches stored in the ring laser pluses are stacked in the optical cavities -> 600mJ stacking 100 bunches on a same bucket in the DR -> 2.4x10 10 e/bunch 2.4x10 8 e+ 1.7x10 10 high repetion e- source optical cavity, pulse staking, e- quality in ring ?
12

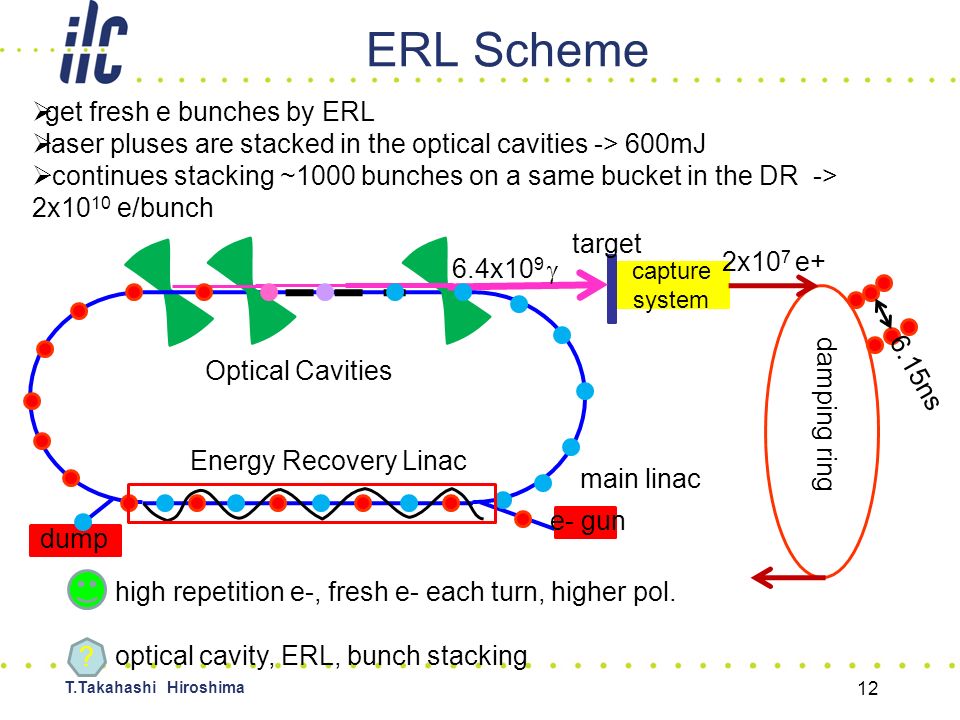

capture system ERL Scheme T.Takahashi Hiroshima 12 e- gun Energy Recovery Linac Optical Cavities target damping ring main linac 6.15ns get fresh e bunches by ERL laser pluses are stacked in the optical cavities -> 600mJ continues stacking ~1000 bunches on a same bucket in the DR -> 2x10 10 e/bunch 2x10 7 e+ 6.4x10 9 dump high repetition e-, fresh e- each turn, higher pol. optical cavity, ERL, bunch stacking ?
13
CR/ERL simulations studies (Kharkov, LAL, JAEA, KEK) design studies Optical Cavity (LAL,IHEP, Hiroshima, KEK) e+ capture (LAL, ANL) We will start collaboration with KEKB upgrade study e+ stacking in DR (CERN) Basic beam dynamics studies Laser Fiber laser / Mode-lock laser (cooperation with companies) CO2 laser (BNL) experimental R/D beam dynamics studies omori R&D times
14
325 MHz Cavity Enhancement Factor = 1000 - 10 5 Laser-electron small crossing angle Laser bunches L cav = n L cav = m L laser Omori Laser pulse stacking cavity
15
4-mirror cavity (LAL) 2-mirror cavity (Hiroshima/KEK) high enhancement very small spot size complicated control moderate enhancement small spot size simple control Prototypes accumulate experiences w/ beam at ATF to ATF later
16
Experimental R/D at ATF ATF at KEK 2 mirror FP L cav = 420 mm for 2.8ns bunch spacing
17
installed into the ATF DR last September
18
World-Wide-We b of Laser Compton
19

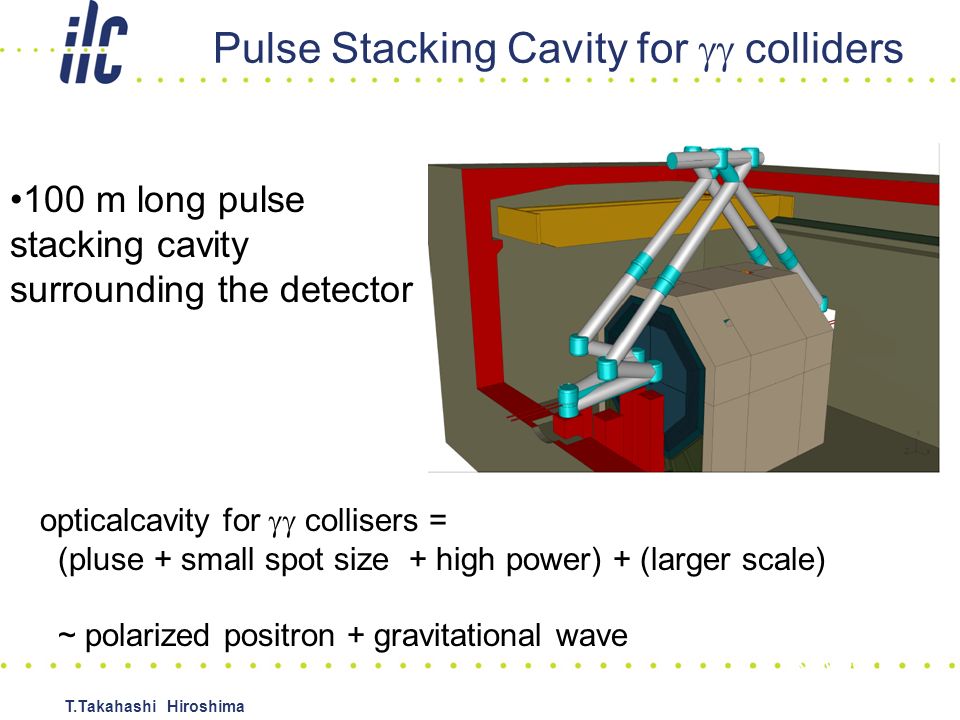

T.Takahashi Hiroshima Pulse Stacking Cavity for colliders K. Moeing 100 m long pulse stacking cavity surrounding the detector opticalcavity for collisers = (pluse + small spot size + high power) + (larger scale) ~ polarized positron + gravitational wave
20

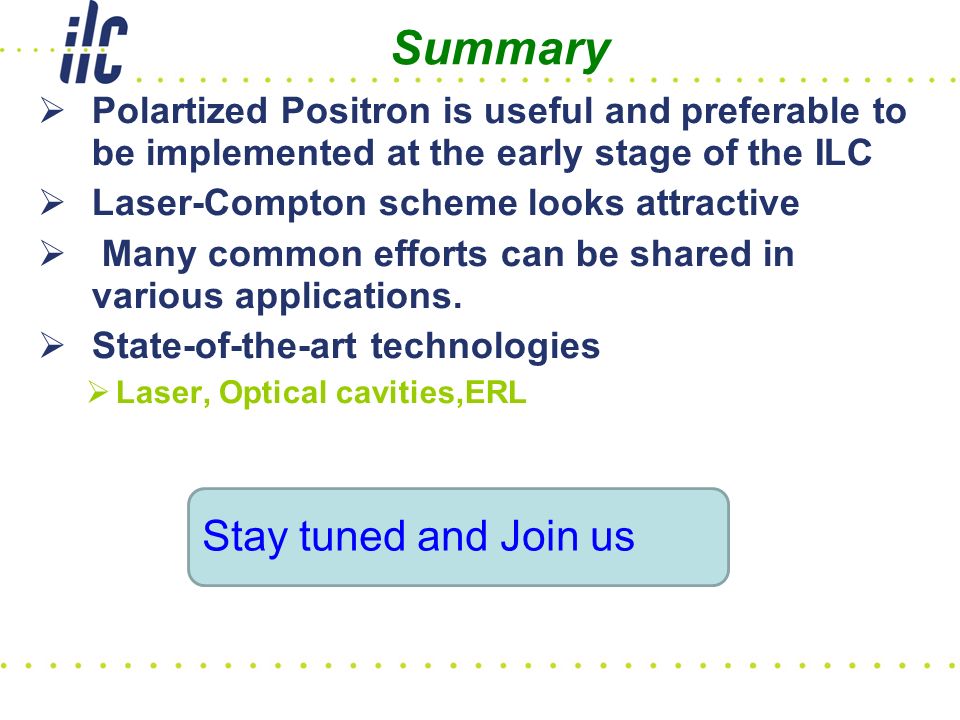

Summary Polartized Positron is useful and preferable to be implemented at the early stage of the ILC Laser-Compton scheme looks attractive Many common efforts can be shared in various applications. State-of-the-art technologies Laser, Optical cavities,ERL Stay tuned and Join us
21
25/05/2007 POSIPOL 2007 21 e- beam tube beam Interaction point e- beam 4 mirror cavity at LAL intend to be installed into ATF
22
T.Takahashi Hiroshima 22 Proof of Princple at KEK - ATF
23
Pros and Cons T.Takahashi Hiroshima 23 Linac Scheme High gen by one pass; no stacking in DR 10nc 5ps e- source high power Co 2 laser: regenerative cavity Ring Compton moderate laser power w/ optical cavity 100 stacking optical cavity R&D beam life, stability on the Compton Ring Crab crossing? ERL moderate laser power w/ optical cavity high yield /w stacking higher polarization 200 ~ 1000 staking optical cavity R&D Energy recovery after compton Optical cavity bunch stacking seems
24

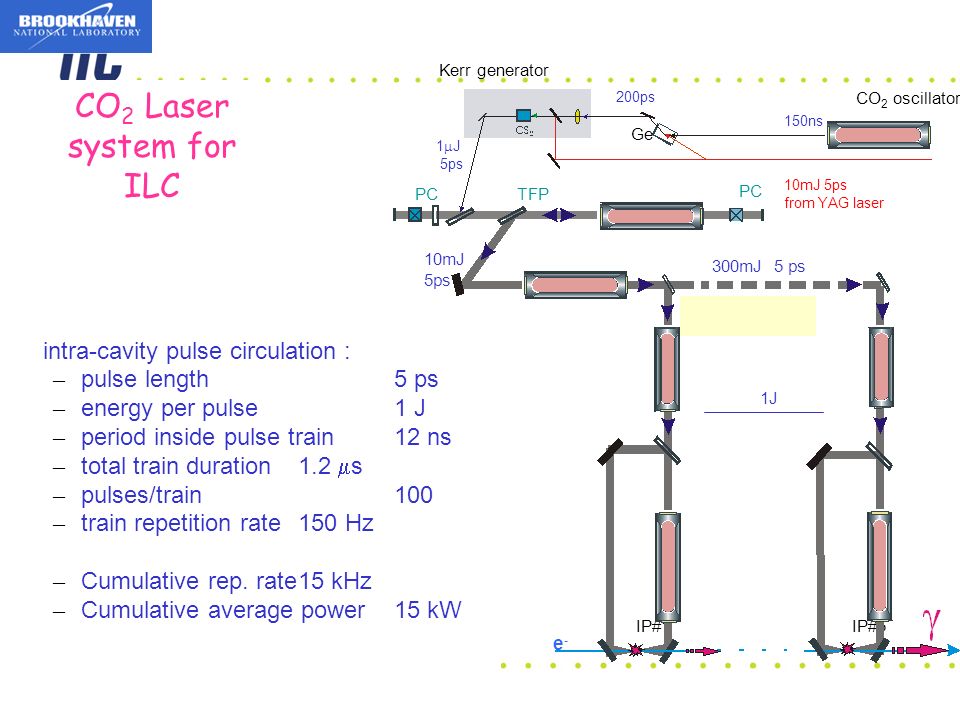

CO 2 Laser system for ILC intra-cavity pulse circulation : – pulse length 5 ps – energy per pulse1 J – period inside pulse train12 ns – total train duration1.2 s – pulses/train 100 – train repetition rate150 Hz – Cumulative rep. rate15 kHz – Cumulative average power15 kW Kerr generator IP#1IP#5 2x30mJ CO 2 oscillator 10mJ 5ps from YAG laser 200ps 1 J 5ps 10mJ 5ps 300mJ 5 ps TFPPC 150ns Ge 1J e-e-
25

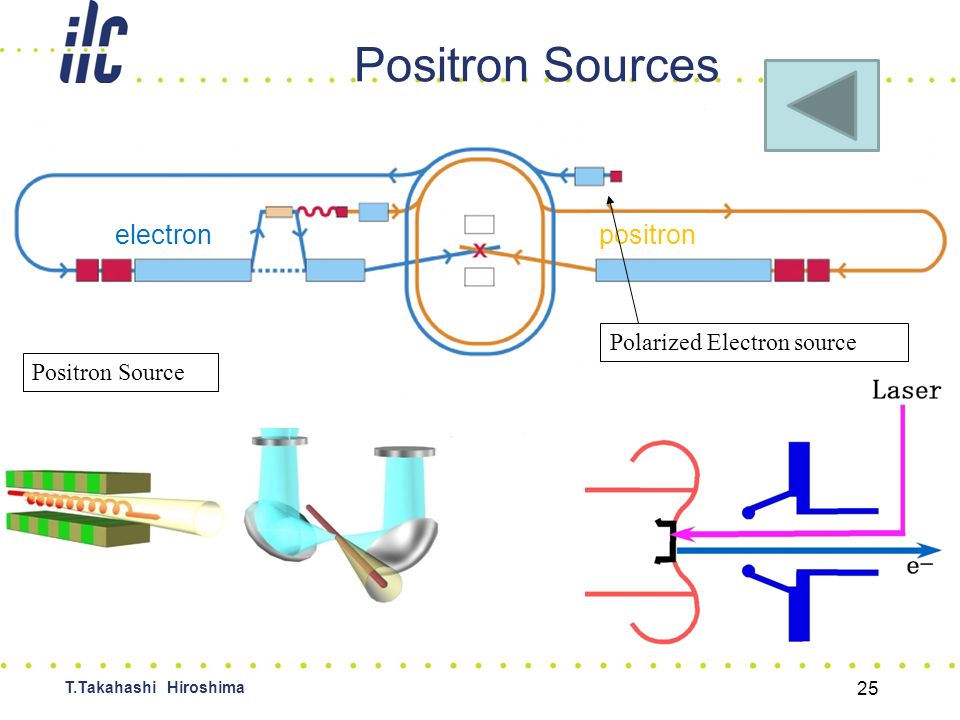

T.Takahashi Hiroshima 25 Positron Sources Polarized Electron source Positron Source electronpositron
26
T.Takahashi Hiroshima 26 Pros and Cons ComptonHelical Undulator Indepedence need 150GeV e- from main linace independent of main linac Tunability need deceleration for low energy operation Pol. flip not foreseen yetno problem e+ intensity OK? intense bunch stacking
27
T.Takahashi Hiroshima 27 Principle of Pol. e+ generation by Compton Scattering Omori laser
