Two-Stage Copeland Scroll Compressors
2
DESIGN AIR UNIVERSITY External view 1 st stage = 67% 2 nd stage = 100% Used in 17 SEER AC.
3
DESIGN AIR UNIVERSITY Customer Experience Majority of run hours @ 67% Majority of run hours @ 67% Delivers steady state cooling. Delivers steady state cooling. Eliminates temperature peaks & valleys from compressor cycling. Eliminates temperature peaks & valleys from compressor cycling. Better humidity control. Better humidity control. Majority of run hours @ 67% Majority of run hours @ 67% Delivers steady state cooling. Delivers steady state cooling. Eliminates temperature peaks & valleys from compressor cycling. Eliminates temperature peaks & valleys from compressor cycling. Better humidity control. Better humidity control.
4
DESIGN AIR UNIVERSITY How does it work? Solenoid opens or closes a port on the internal scrolls. Valve is actually a ring that rotates. Ring opens or closes the bypass port. Solenoid opens or closes a port on the internal scrolls. Valve is actually a ring that rotates. Ring opens or closes the bypass port.
5
DESIGN AIR UNIVERSITY Internal assembly
6
DESIGN AIR UNIVERSITY 1st Stage Position Solenoid is NOT energized. Port is OPEN. Only 2/3 of scroll compresses refrigerant. The other 1/3 is bypassed thru the open port. Solenoid is NOT energized. Port is OPEN. Only 2/3 of scroll compresses refrigerant. The other 1/3 is bypassed thru the open port.
7
DESIGN AIR UNIVERSITY Solenoid: “unpowered”
8

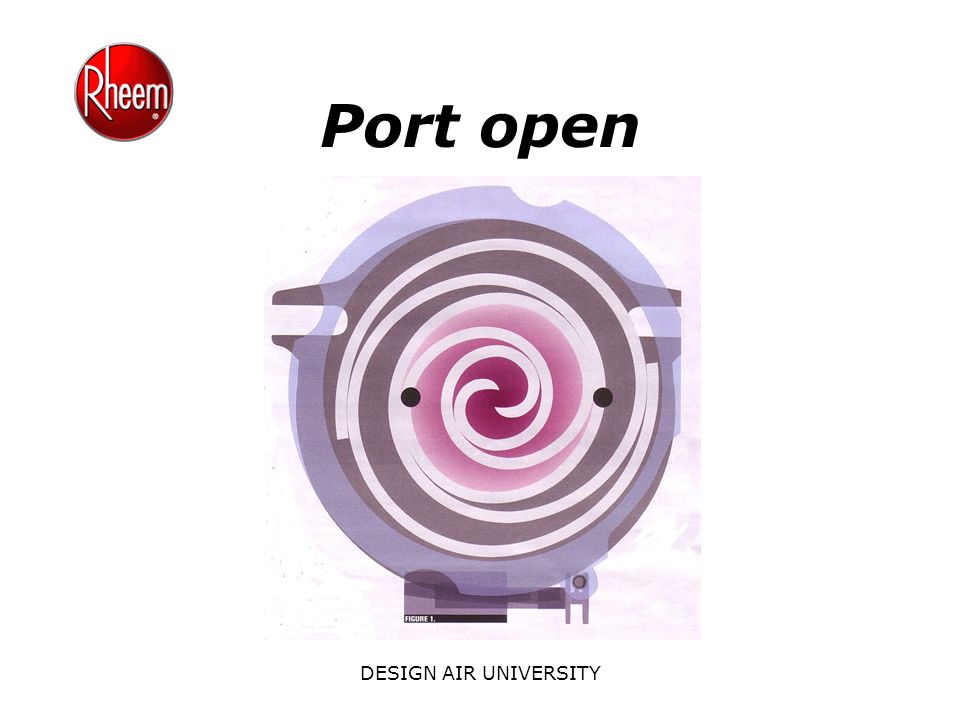

DESIGN AIR UNIVERSITY Port open
9

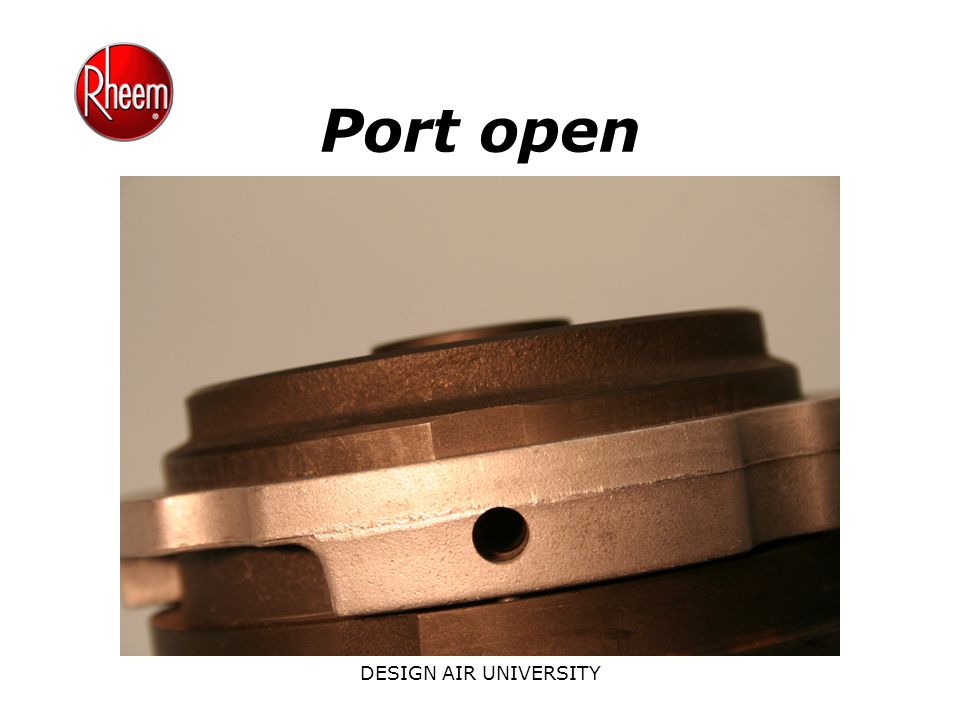

DESIGN AIR UNIVERSITY Port open
10
DESIGN AIR UNIVERSITY 2nd Stage Position Solenoid is energized w 24 volts dc. Ring rotates & closes the port. The entire scroll capacity is delivered. Solenoid is energized w 24 volts dc. Ring rotates & closes the port. The entire scroll capacity is delivered.
11
DESIGN AIR UNIVERSITY Scroll internals Solenoid operates on DC voltage. Initial inrush is 18 to 28 volts DC. Holding voltage is less. Solenoid operates on DC voltage. Initial inrush is 18 to 28 volts DC. Holding voltage is less.
12

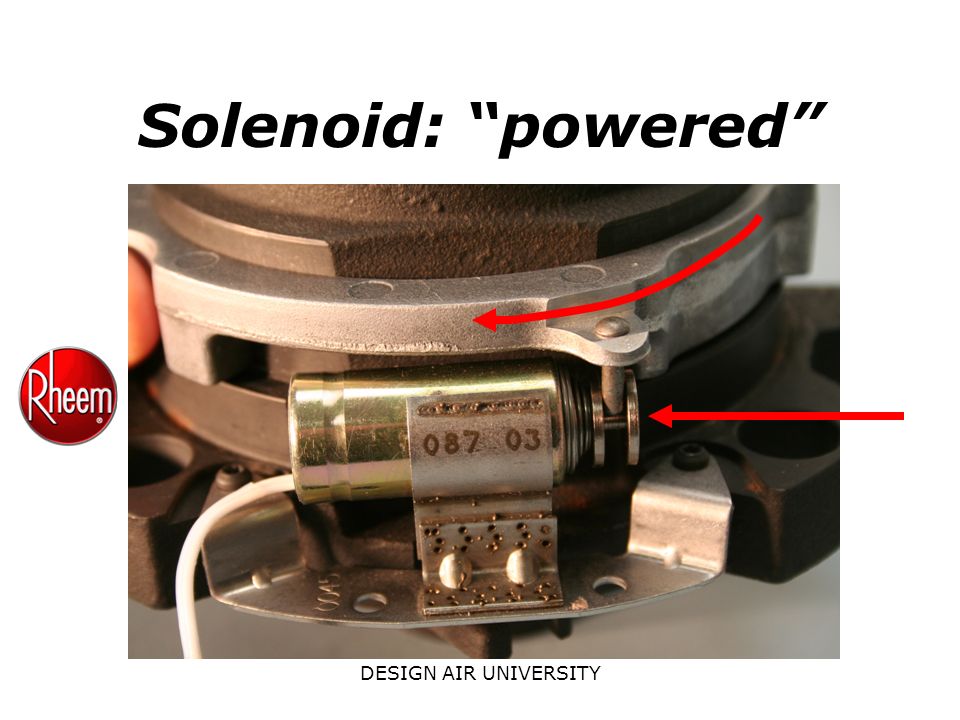

DESIGN AIR UNIVERSITY Solenoid: “powered”
13
DESIGN AIR UNIVERSITY Port closed
14
DESIGN AIR UNIVERSITY Port closed
15
DESIGN AIR UNIVERSITY Staging Control Wiring Separate wiring to terminal block on compressor shell. Connects integrated compressor control to internal solenoid. Separate wiring to terminal block on compressor shell. Connects integrated compressor control to internal solenoid.
16
DESIGN AIR UNIVERSITY Checking Solenoid Use your ohmmeter.
17
DESIGN AIR UNIVERSITY Solenoid Molex Plug
18
DESIGN AIR UNIVERSITY Molex unplugged
19
DESIGN AIR UNIVERSITY Placement of probes
20
DESIGN AIR UNIVERSITY “Good” Ohm reading 32 to 60 ohms.
21
DESIGN AIR UNIVERSITY Ohm check on Molex plug If resistance is infinite, the solenoid is electrically “open”. Compressor never operates on 2nd stage. The fix? Replace the compressor. If resistance is infinite, the solenoid is electrically “open”. Compressor never operates on 2nd stage. The fix? Replace the compressor.
