1. PHY 107 – Programming For Science

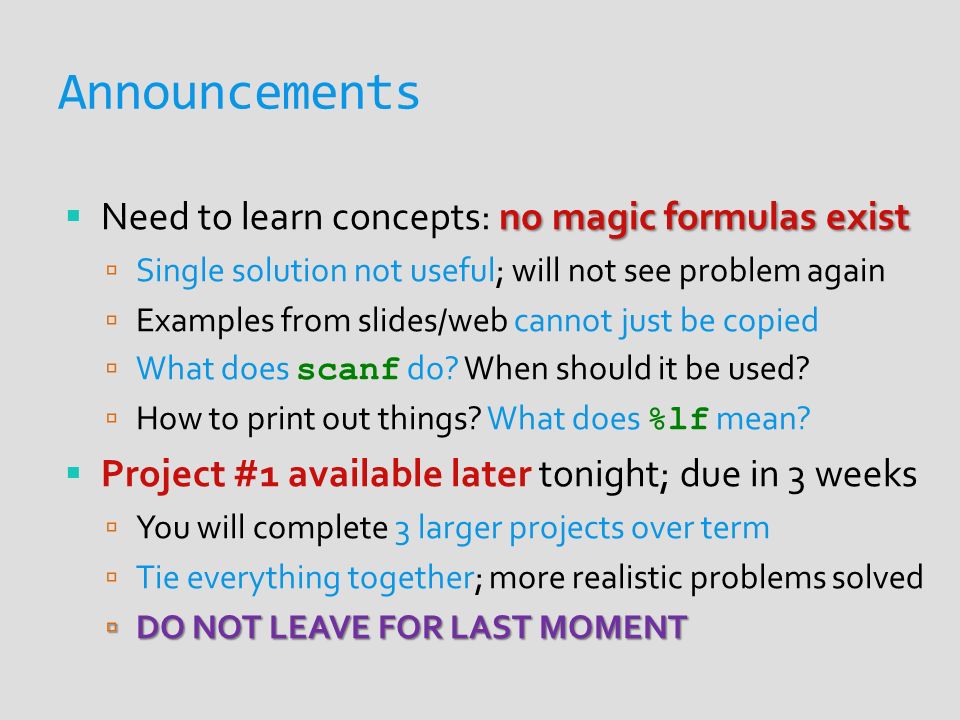

2. Announcements no magic formulas exist  Need to learn concepts: no magic formulas exist  Single solution not useful; will not see problem again  Examples from slides/web cannot just be copied  What does scanf do? When should it be used?  How to print out things? What does %lf mean?  Project #1 available later tonight; due in 3 weeks  You will complete 3 larger projects over term  Tie everything together; more realistic problems solved  DO NOT LEAVE FOR LAST MOMENT

3. Today’s Goals  At end of lecture, be able to use if statements  Choose what is executed so not just calculator  Understand source of many bugs & how to avoid  Correctly use braces ( { } ) and make code pretty  Be able to explain when & why if s used

4. Boolean Values  3 boolean functions can combine into computer  Billions of gates combined by engineers to make CPU (a && b) || (a && !c)  Could use, for example: (a && b) || (a && !c)  But how to generate inputs for these functions  First need boolean values of true and false  Easy in hardware (true is any signal > 3.3V)  But how could we do get values within our program?

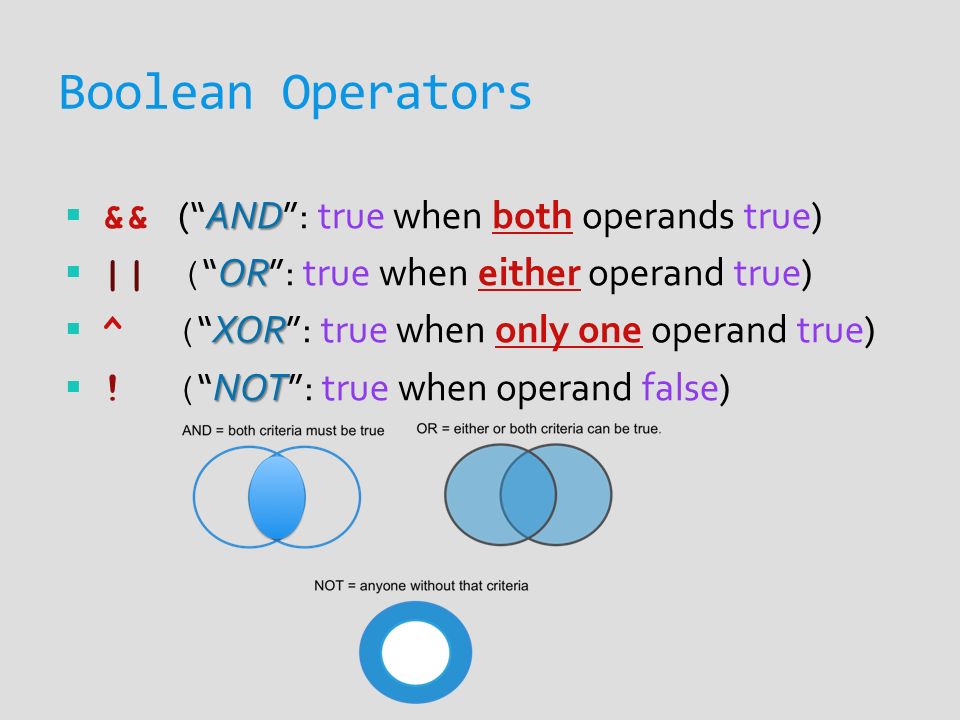

5. Boolean Operators AND  && (“AND”: true when both operands true) OR  || ( “OR”: true when either operand true) XOR  ^ ( “XOR”: true when only one operand true) NOT  ! ( “NOT”: true when operand false)

6. Relational Operators  < ( less than)  > ( greater than)  <= ( less than of equal to)  >= ( greater than of equal to)  != ( inequality ≠)  == ( equality – if two things have same value)  NOT the same as assignment (=)

7. Relational Operators

8.  < ( less than)  > ( greater than)  <= ( less than of equal to)  >= ( greater than of equal to)  != ( inequality ≠)  == ( equality – if two things have same value)  NOT the same as assignment (=)

9. Code Structures in Programming  Sequence

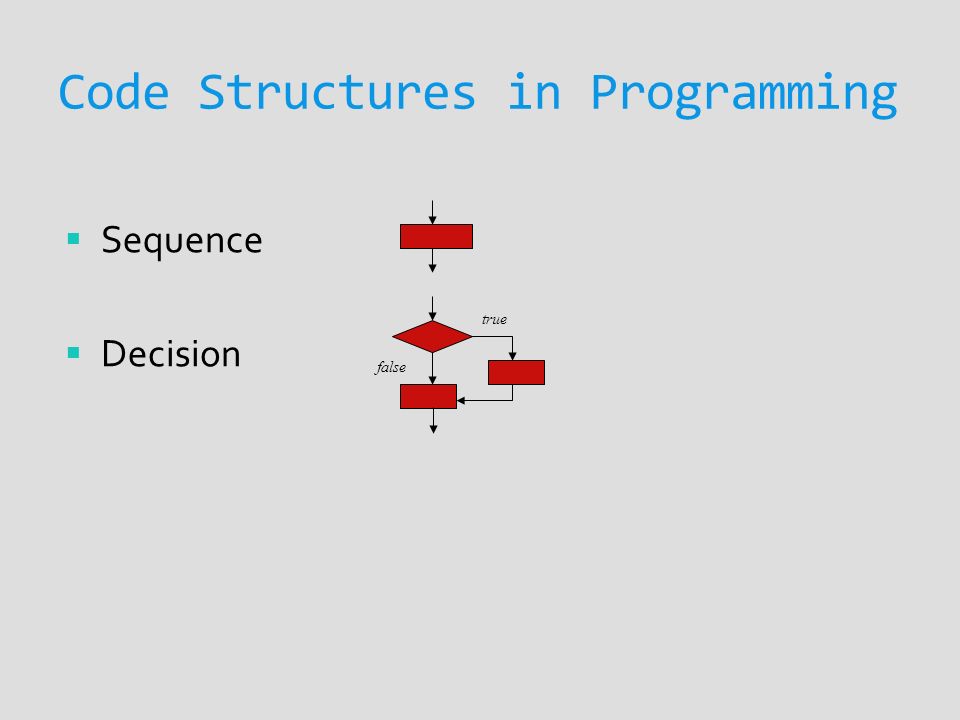

10. Code Structures in Programming  Sequence  Decision true false

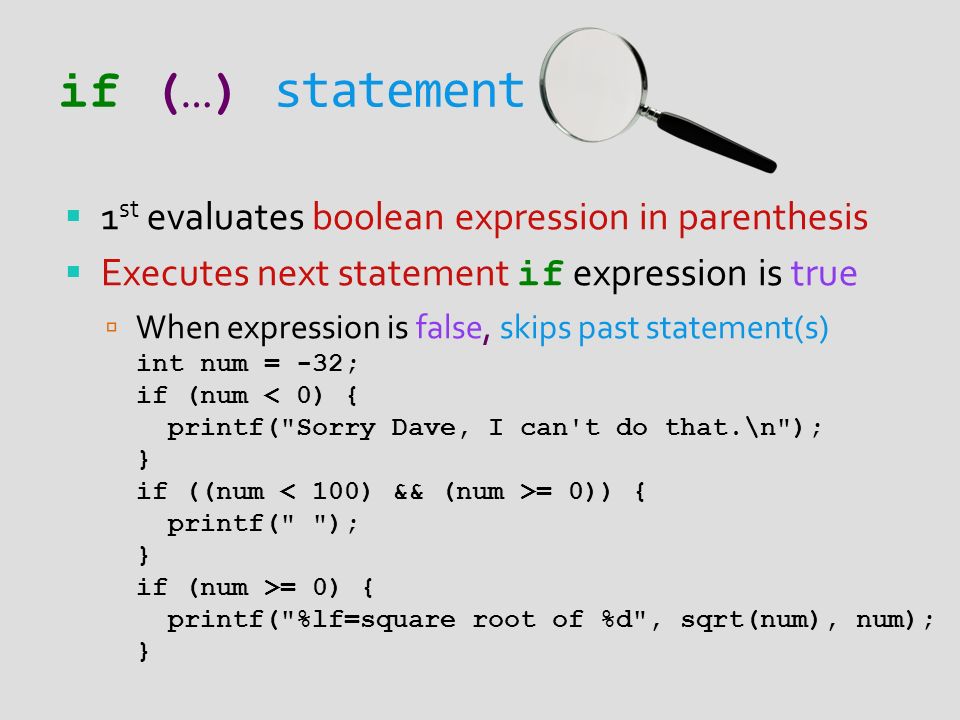

11. if (…) statement  1 st evaluates boolean expression in parenthesis  Executes next statement if expression is true  When expression is false, skips past statement(s) int num = -32; if (num = 0)) { printf(" "); } if (num >= 0) { printf("%lf=square root of %d", sqrt(num), num); }

12. if (…) statement

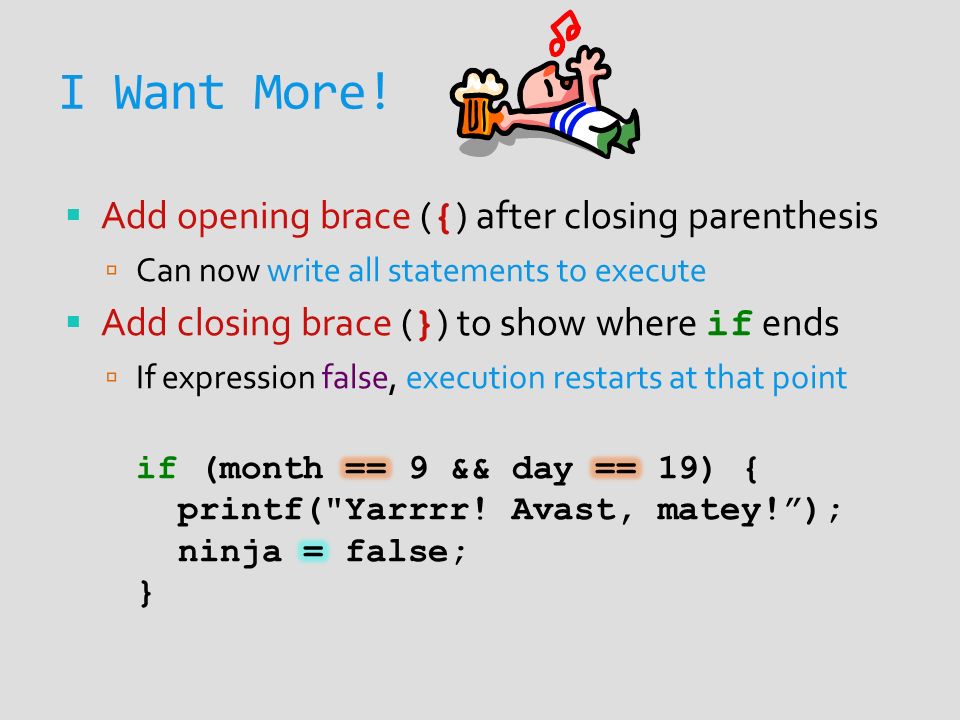

13. I Want More!

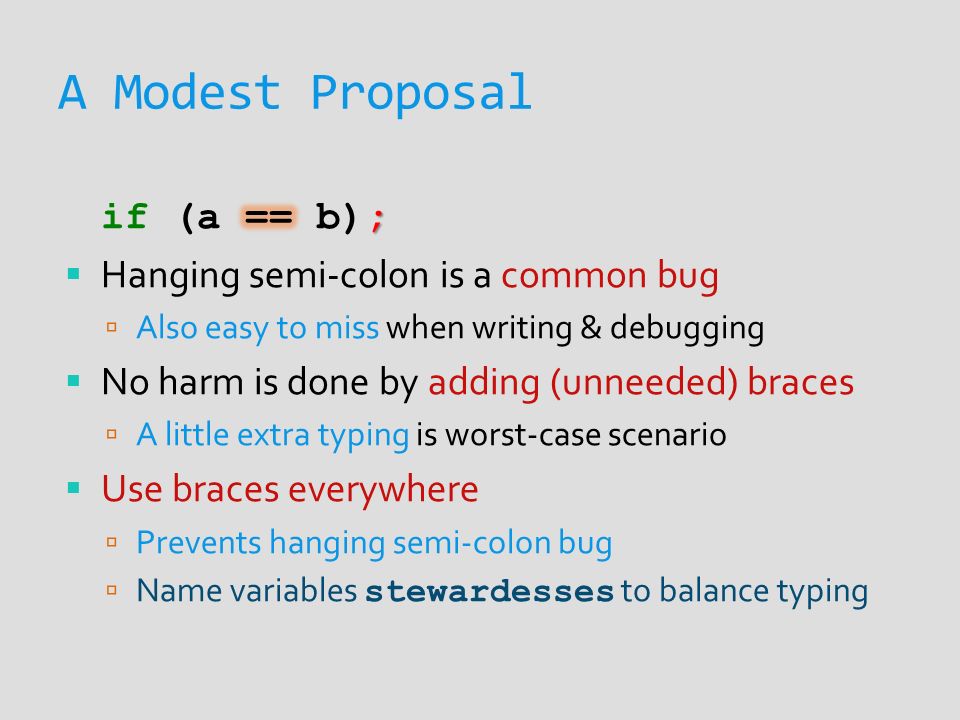

14. A Modest Proposal

16. Spacing in a Program  C/C++ ignores almost all spaces in a program  This also means where most newlines placed ignored  Symbolic constants & text in quotes are exceptions  This can lead to some very… interesting code

17. What Does This Compute? char _3141592654[3141 ],__3141[3141];_314159[31415],_3141[31415];main(){register char* _3_141,*_3_1415, *_3__1415; register int _314,_31415,__31415,*_31, _3_14159,__3_1415;*_3141592654=__31415=2,_3141592654[0][_3141592654 -1]=1[__3141]=5;__3_1415=1;do{_3_14159=_314=0,__31415++;for( _31415 =0;_31415<(3,14-4)*__31415;_31415++)_31415[_3141]=_314159[_31415]= - 1;_3141[*_314159=_3_14159]=_314;_3_141=_3141592654+__3_1415;_3_1415= __3_1415 +__3141;for(_31415 = 3141- __3_1415 ;_31415;_31415--,_3_141 ++,_3_1415++){_314 +=_314<<2 ;_314<<=1;_314+= *_3_1415;_31 =_314159+_314; if(!(*_31+1) )* _31 =_314 / __31415,_314 [_3141]=_314 % __31415 ;* ( _3__1415=_3_141 )+= *_3_1415 = *_31;while(* _3__1415 >= 31415/3141 ) * _3__1415+= - 10,(*--_3__1415 )++;_314=_314 [_3141]; if ( ! _3_14159 && * _3_1415)_3_14159 =1,__3_1415 = 3141-_31415;}if( _314+(__31415 >>1)>=__31415 ) while ( ++ * _3_141==3141/314 )*_3_141--=0 ;}while(_3_14159 ) ; { char * __3_14= "3.1415"; write((3,1) (--*__3_14,__3_14 ),(_3_14159 ++,++_3_14159))+ 3.1415926; } for ( _31415 = 1; _31415<3141- 1;_31415++)write( 31415% 314-( 3,14),_3141592654[ _31415 ] + "0123456789","314" [ 3]+1)-_314; puts((*_3141592654=0,_3141592654)) ;_314= *"3.141592";}

18. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)

19. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)  Nothing is

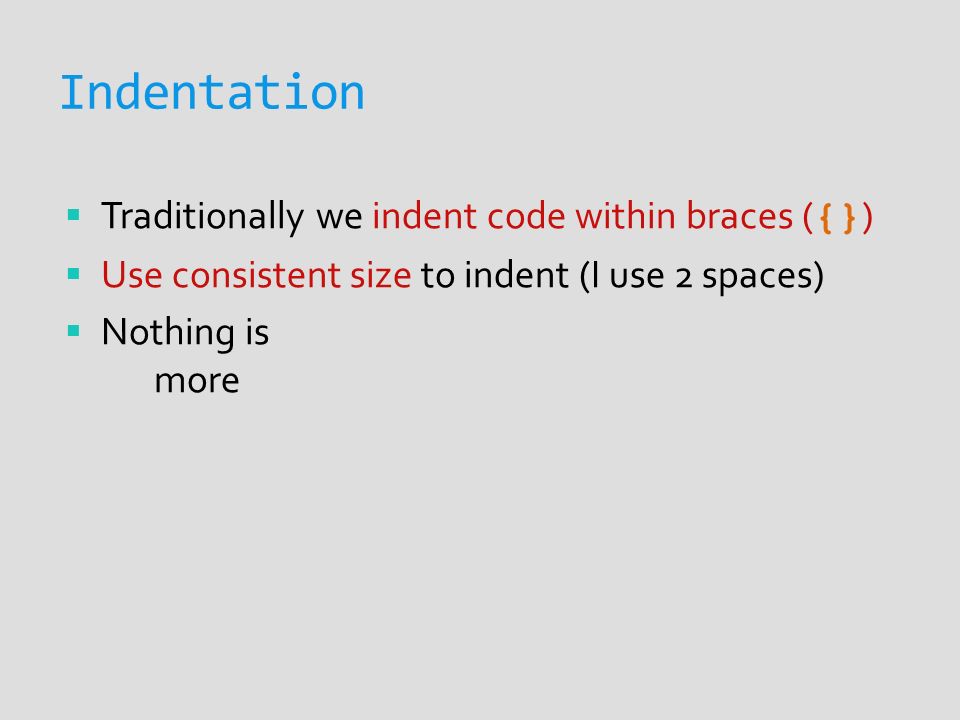

20. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)  Nothing is more

21. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)  Nothing is more annoying

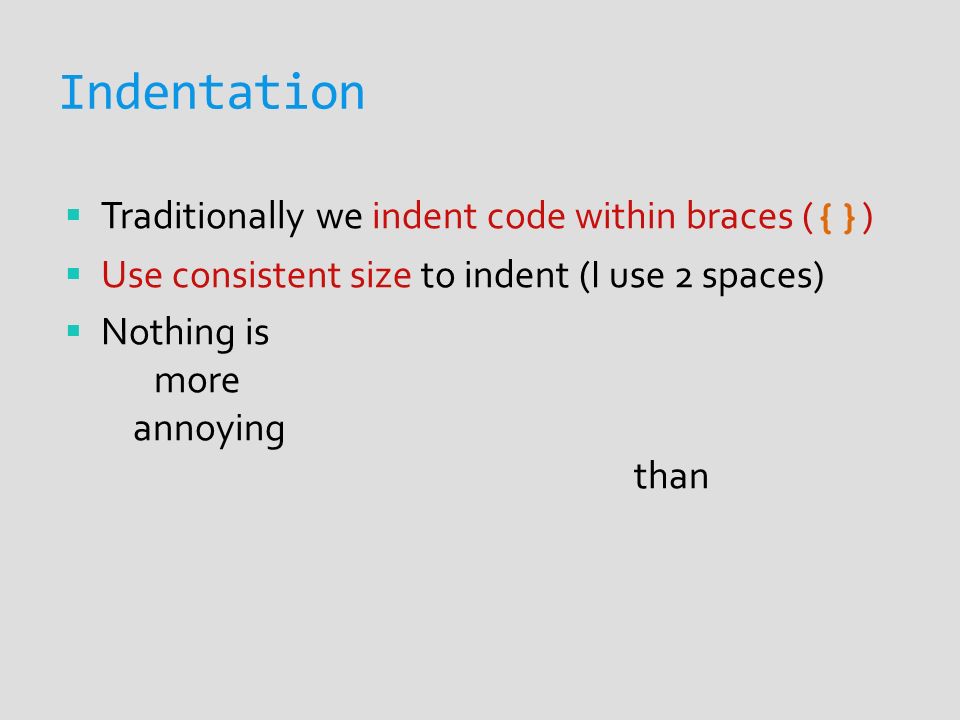

22. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)  Nothing is more annoying than

23. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)  Nothing is more annoying than looking

24. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)  Nothing is more annoying than looking for

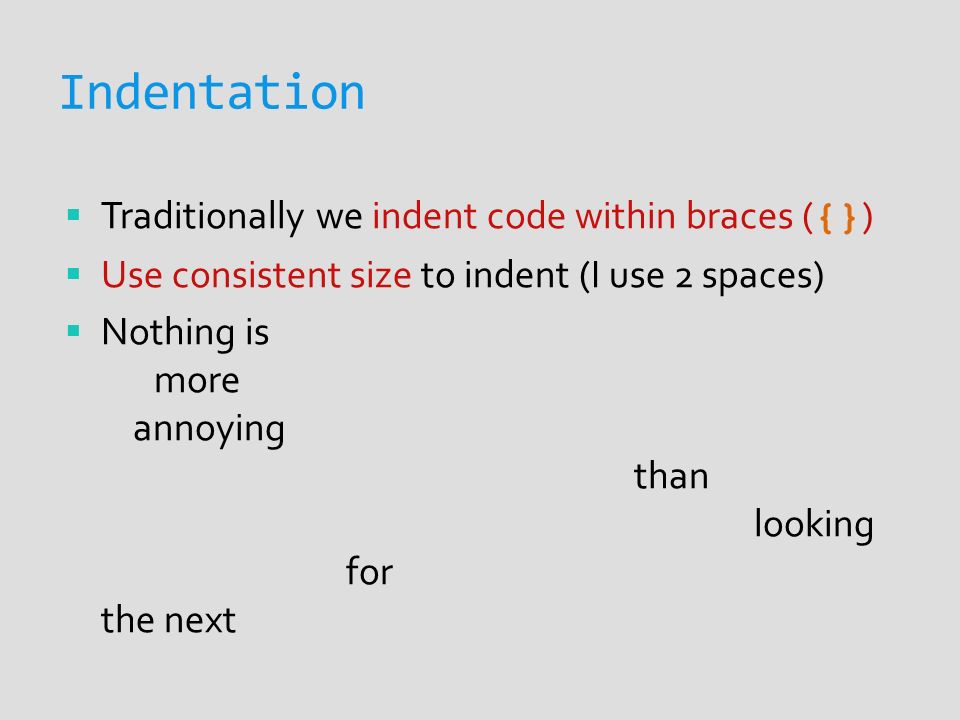

25. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)  Nothing is more annoying than looking for the next

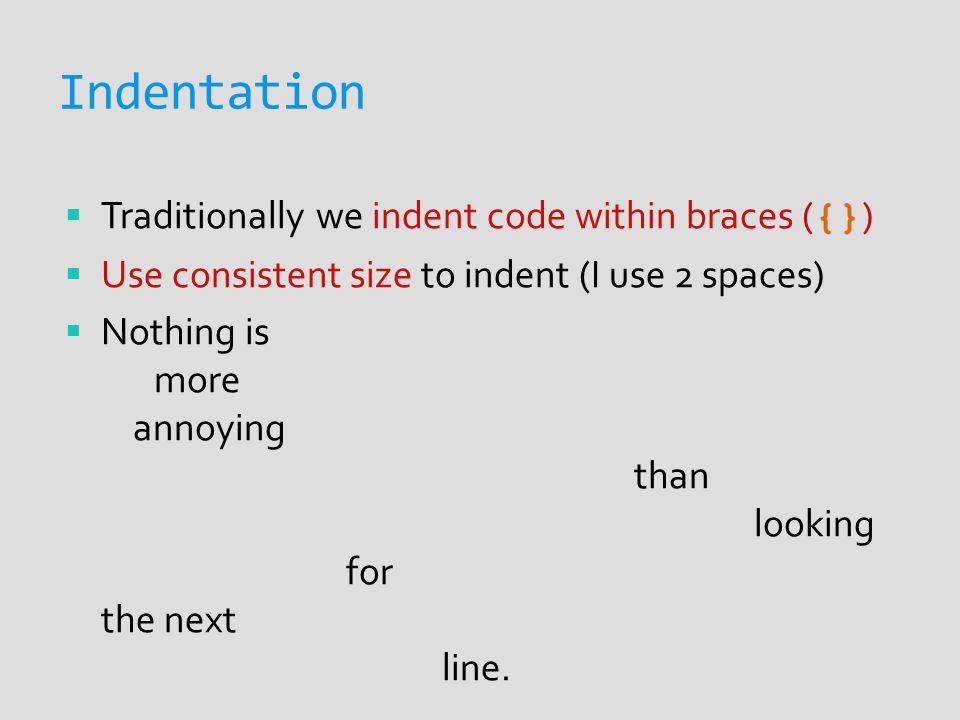

26. Indentation  Traditionally we indent code within braces ( {} )  Use consistent size to indent (I use 2 spaces)  Nothing is more annoying than looking for the next line.

27. Your Turn  Get in groups & work on following activity

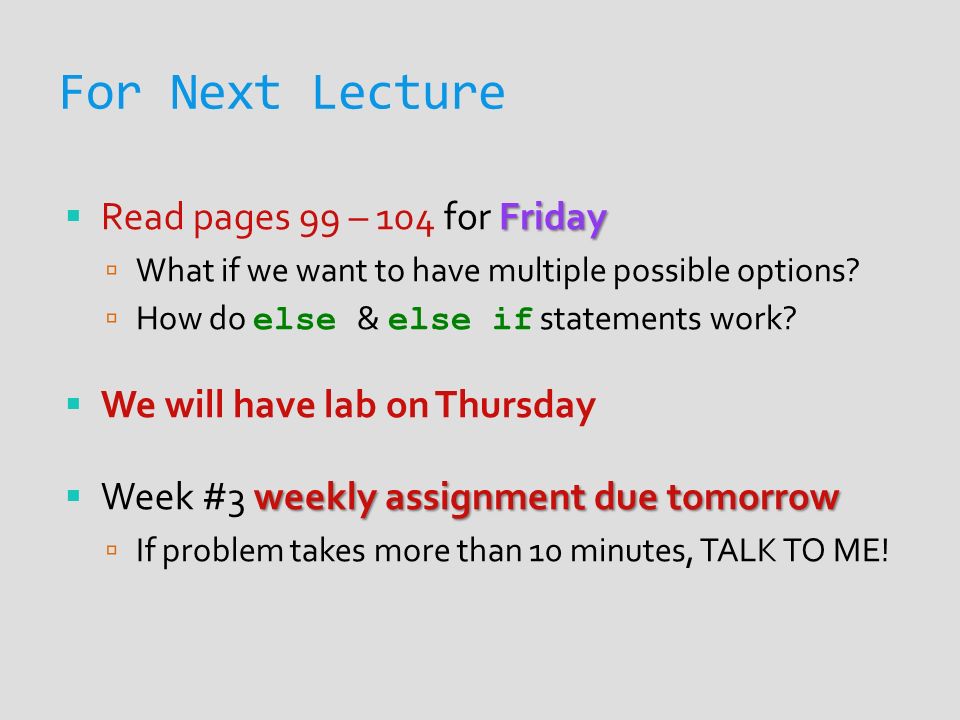

28. For Next Lecture Friday  Read pages 99 – 104 for Friday  What if we want to have multiple possible options?  How do else & else if statements work?  We will have lab on Thursday weekly assignment due tomorrow  Week #3 weekly assignment due tomorrow  If problem takes more than 10 minutes, TALK TO ME!
