The Basics of Arrays Problem: How can the rancher easily catalog all of his cattle?

Published byKaren Holmes Modified over 8 years ago

Similar presentations

Presentation on theme: "The Basics of Arrays Problem: How can the rancher easily catalog all of his cattle?"— Presentation transcript:

1

2 http://cs.mst.edu The Basics of Arrays

3 http://cs.mst.edu Problem: How can the rancher easily catalog all of his cattle?

4 http://cs.mst.edu Possible Solution string bessie; string mr_tongue; string miss_fancy; string jumper; … string blondie; Mr. Tongue

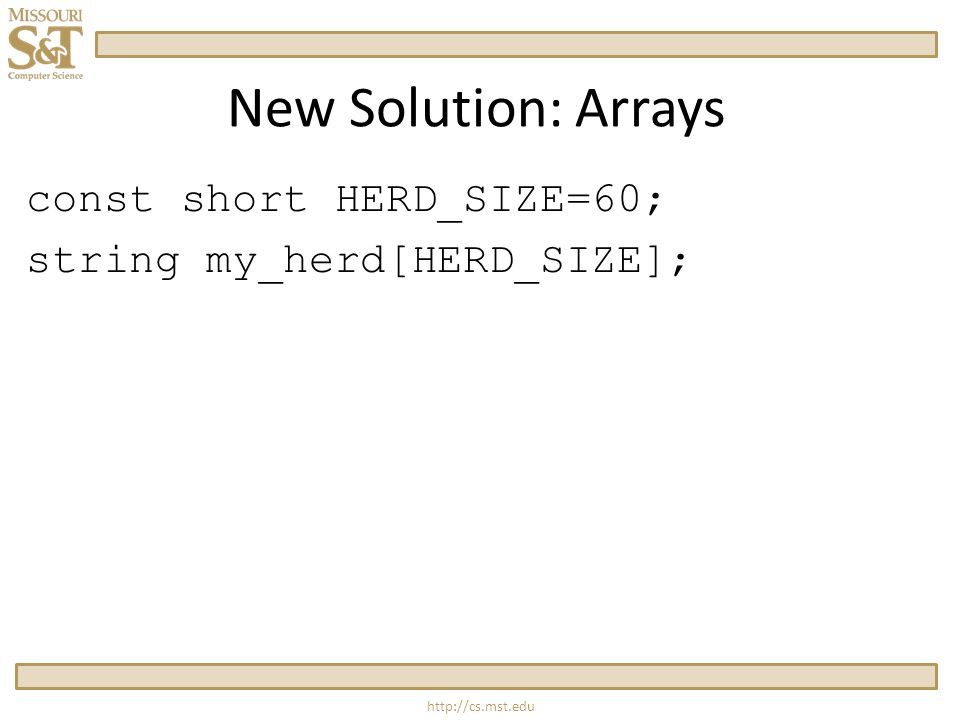

5 http://cs.mst.edu New Solution: Arrays const short HERD_SIZE=60; string my_herd[HERD_SIZE];

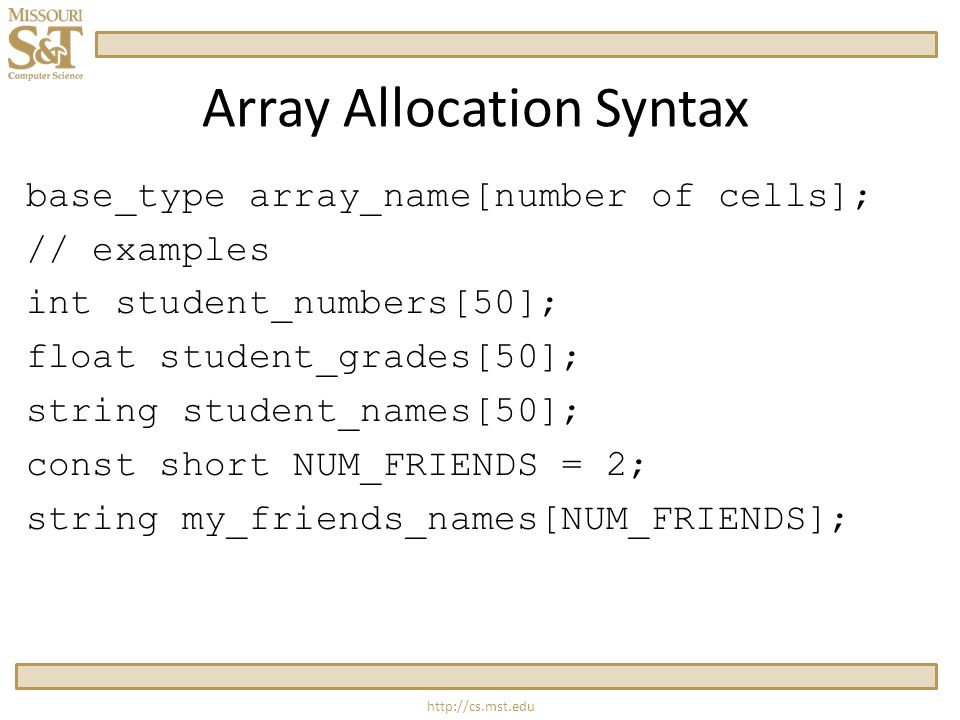

6 http://cs.mst.edu Array Allocation Syntax base_type array_name[number of cells]; // examples int student_numbers[50]; float student_grades[50]; string student_names[50]; const short NUM_FRIENDS = 2; string my_friends_names[NUM_FRIENDS];

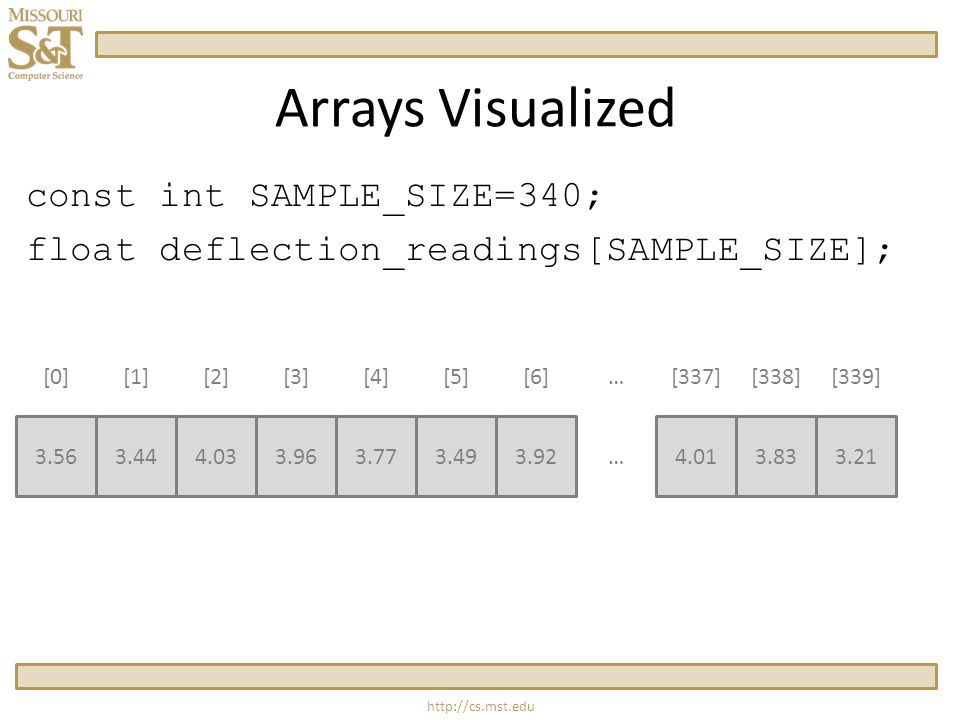

7 http://cs.mst.edu Arrays Visualized const int SAMPLE_SIZE=340; float deflection_readings[SAMPLE_SIZE]; 3.563.444.033.963.773.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

8 http://cs.mst.edu Accessing Elements deflection_readings[0]=45.1; deflection_readings[4]=12.1; cout << deflection_readings[6] << endl; 3.563.444.033.963.773.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

9 http://cs.mst.edu Accessing Elements deflection_readings[0]=45.1; deflection_readings[4]=12.1; cout << deflection_readings[6] << endl; 3.563.444.033.963.773.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

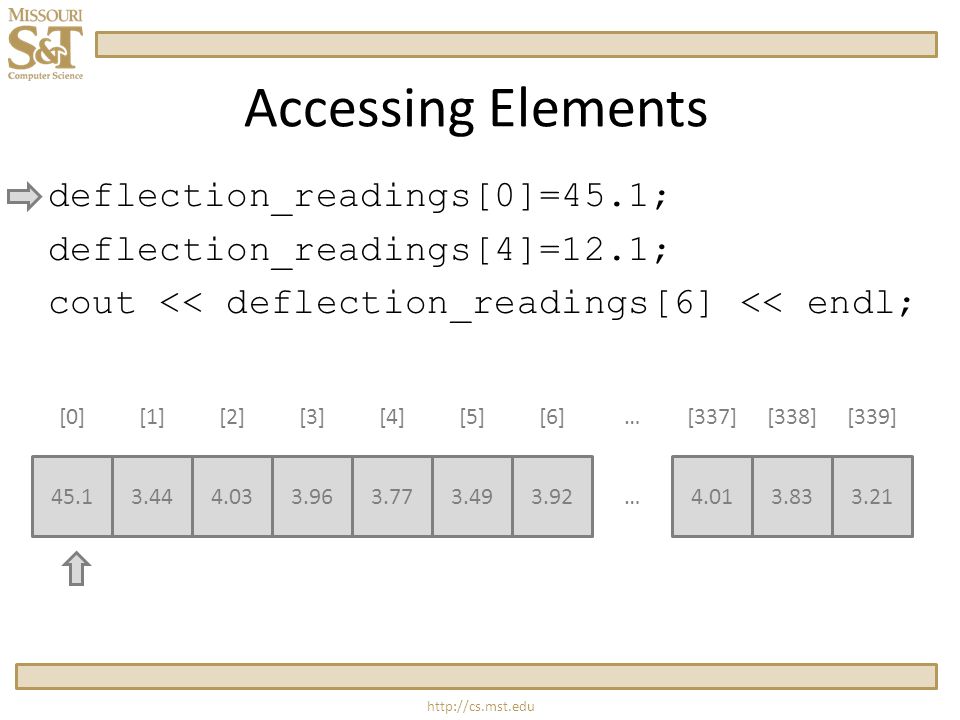

10 http://cs.mst.edu Accessing Elements deflection_readings[0]=45.1; deflection_readings[4]=12.1; cout << deflection_readings[6] << endl; 45.13.444.033.963.773.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

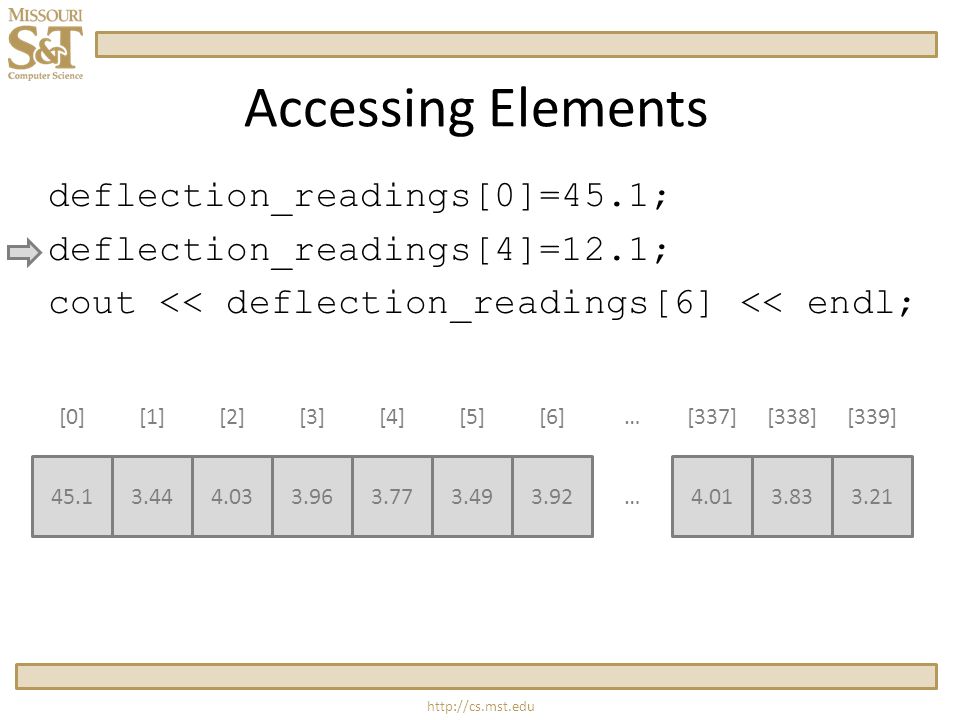

11 http://cs.mst.edu Accessing Elements deflection_readings[0]=45.1; deflection_readings[4]=12.1; cout << deflection_readings[6] << endl; 45.13.444.033.963.773.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

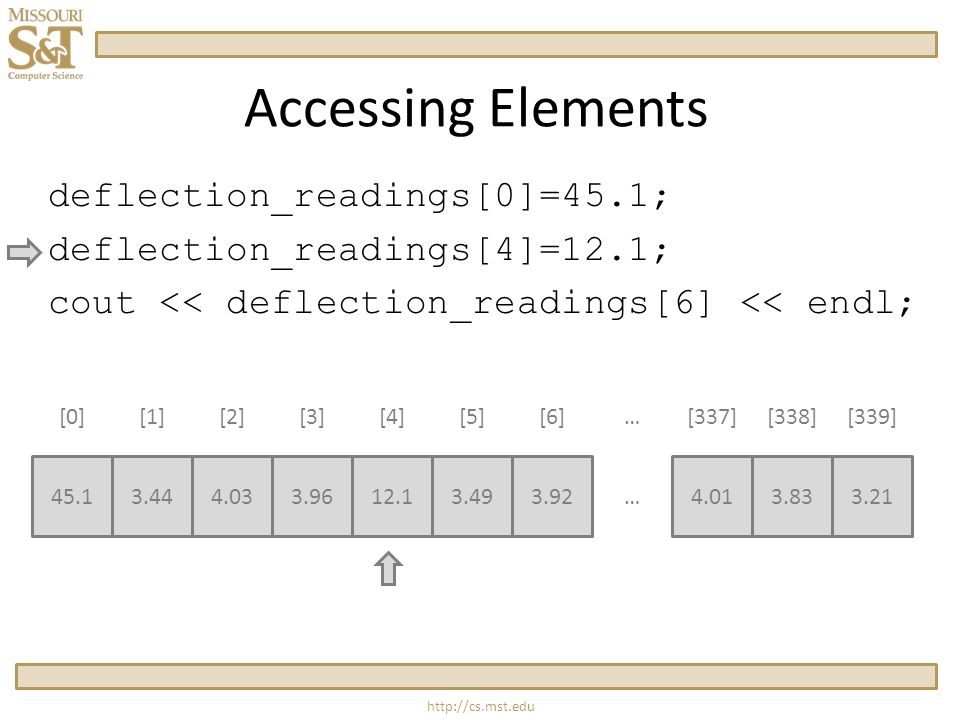

12 http://cs.mst.edu Accessing Elements deflection_readings[0]=45.1; deflection_readings[4]=12.1; cout << deflection_readings[6] << endl; 45.13.444.033.9612.13.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

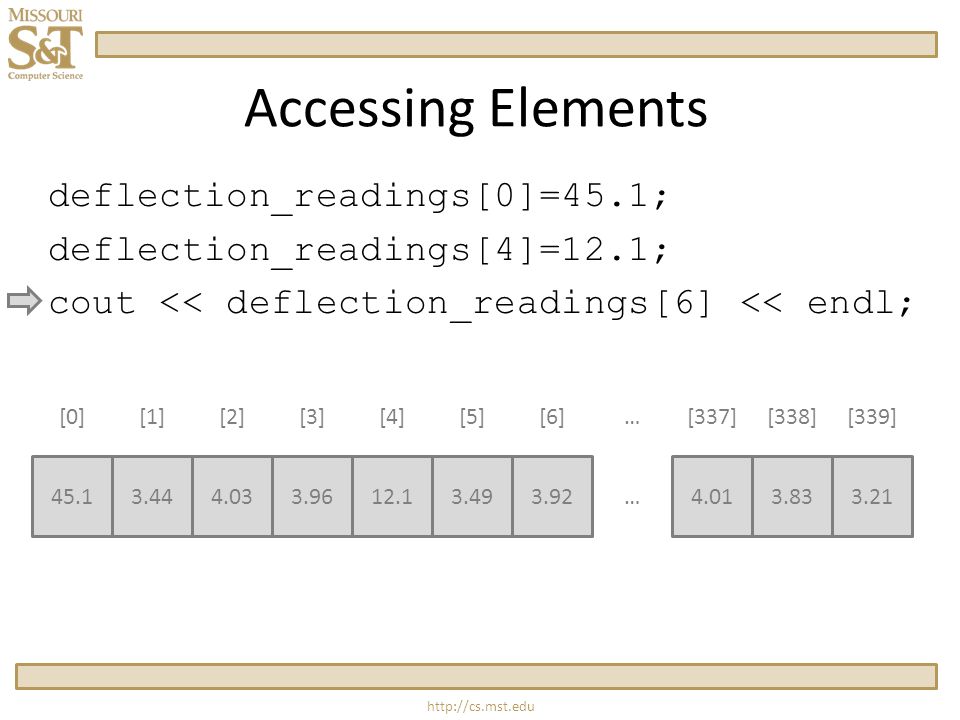

13 http://cs.mst.edu Accessing Elements deflection_readings[0]=45.1; deflection_readings[4]=12.1; cout << deflection_readings[6] << endl; 45.13.444.033.9612.13.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

14 http://cs.mst.edu Accessing Elements deflection_readings[0]=45.1; deflection_readings[4]=12.1; cout << deflection_readings[6] << endl; 45.13.444.033.9612.13.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

15 http://cs.mst.edu Access Mistakes const int SAMPLE_SIZE=340; float deflection_readings[SAMPLE_SIZE];... cout << deflection_readings[SAMPLE_SIZE]; 45.13.444.033.9612.13.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339]

16 http://cs.mst.edu Access Mistakes const int SAMPLE_SIZE=340; float deflection_readings[SAMPLE_SIZE];... cout << deflection_readings[SAMPLE_SIZE]; 45.13.444.033.9612.13.493.92 … 4.013.833.21 [0][1][2][3][4][5][6]…[337][338][339] ? [340] “Walking off the array” !! - This is not your program’s memory

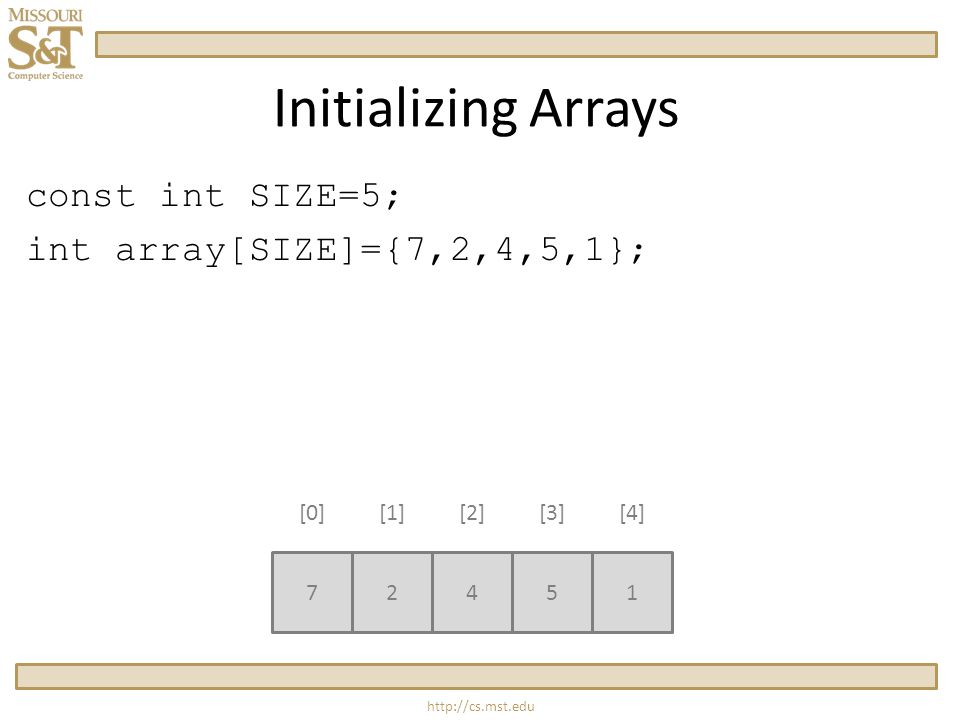

17 http://cs.mst.edu Initializing Arrays const int SIZE=5; int array[SIZE]={7,2,4,5,1}; 72451 [0][1][2][3][4]

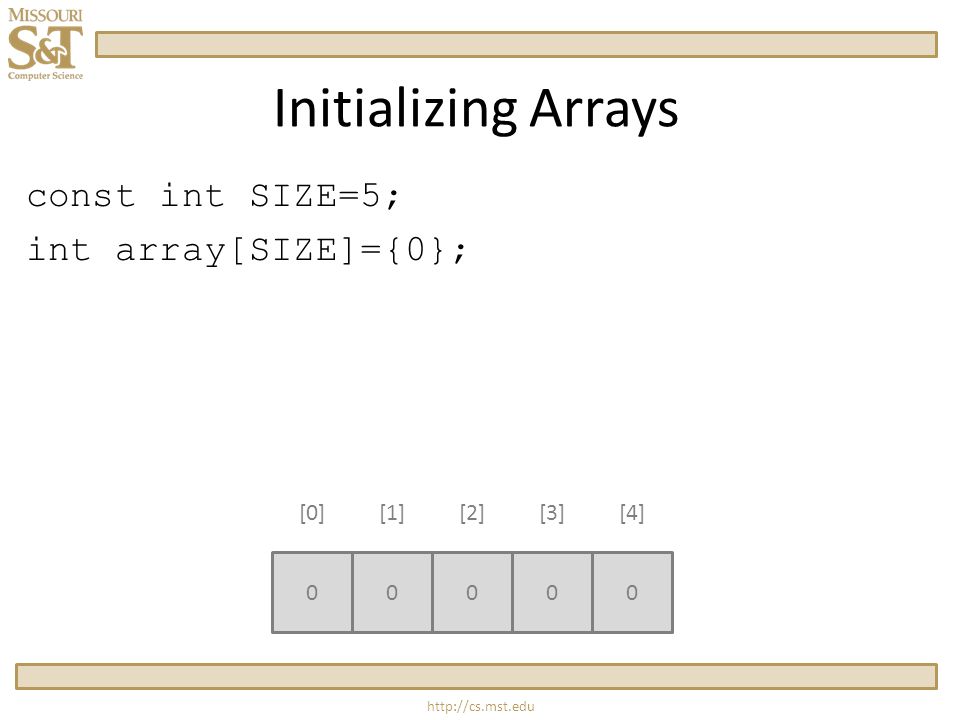

18 http://cs.mst.edu Initializing Arrays const int SIZE=5; int array[SIZE]={0}; 00000 [0][1][2][3][4]

19 http://cs.mst.edu Initializing Arrays const int SIZE=5; int array[SIZE]={9,1}; 91000 [0][1][2][3][4]

20 http://cs.mst.edu Initializing Arrays int array[]={5,2,4}; 524 [0][1][2]

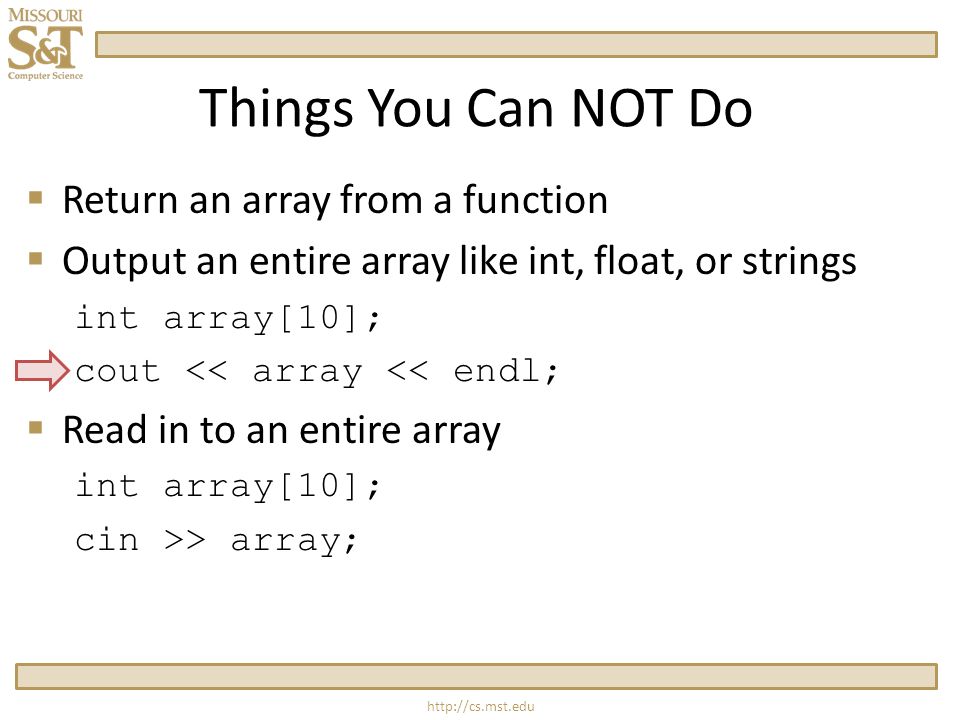

21 http://cs.mst.edu Things You Can NOT Do  Return an array from a function  Output an entire array like int, float, or strings int array[10]; cout << array << endl;  Read in to an entire array int array[10]; cin >> array;

22 http://cs.mst.edu Things You Can NOT Do  Return an array from a function  Output an entire array like int, float, or strings int array[10]; cout << array << endl;  Read in to an entire array int array[10]; cin >> array;

23 http://cs.mst.edu Things You Can NOT Do  Return an array from a function  Output an entire array like int, float, or strings int array[10]; cout << array << endl;  Read in to an entire array int array[10]; cin >> array;

24 http://cs.mst.edu End of Session
