1. Locking In CFML

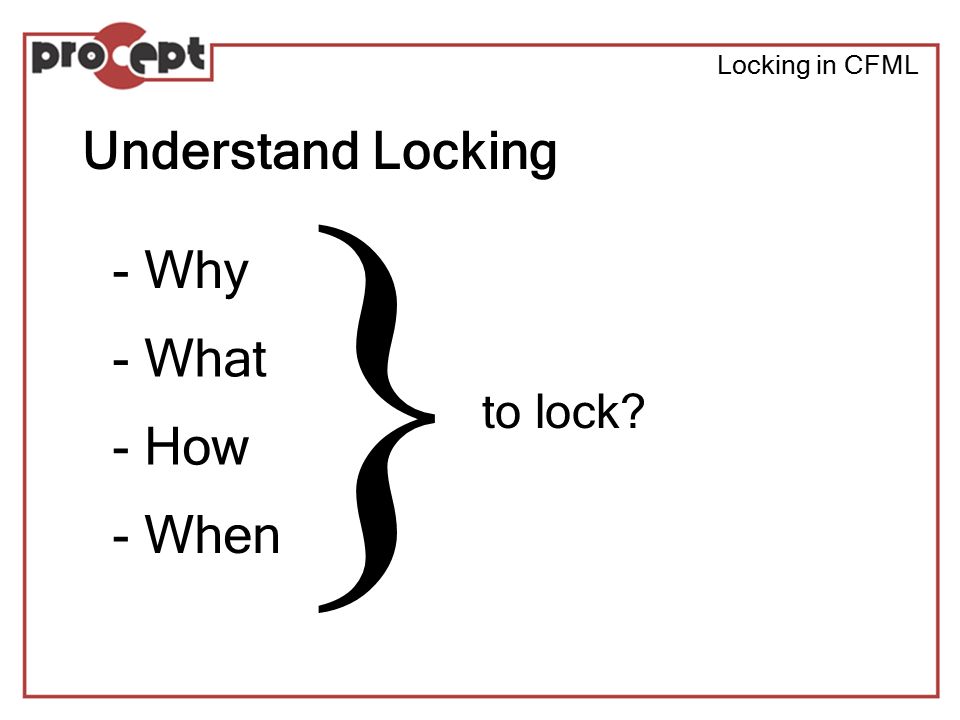

2. Locking in CFML - Why - How - What - When } to lock? Understand Locking

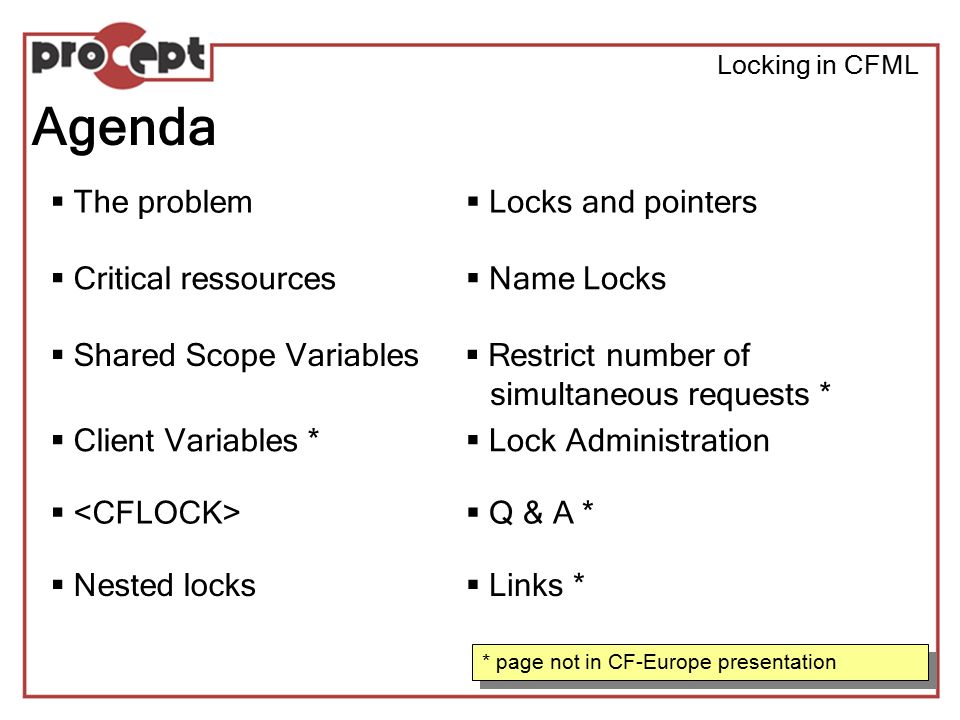

3. Locking in CFML Agenda  The problem  Critical ressources  Shared Scope Variables   Nested locks  Locks and pointers  Name Locks  Lock Administration  Client Variables *  Restrict number of simultaneous requests * * page not in CF-Europe presentation  Q & A *  Links *

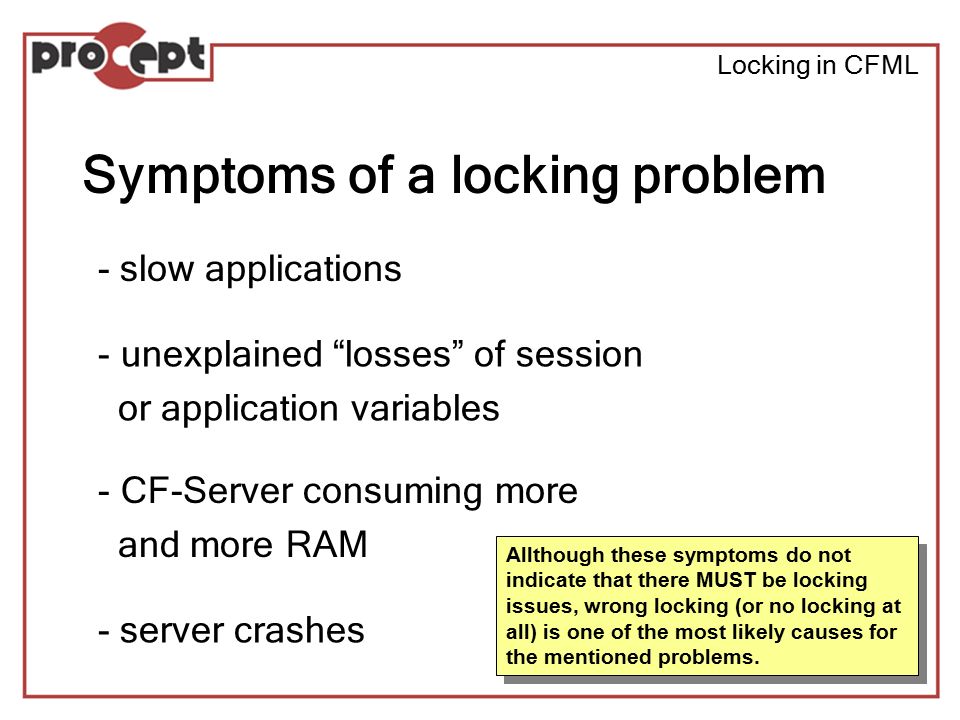

4. Locking in CFML Symptoms of a locking problem - unexplained “losses” of session or application variables - server crashes - CF-Server consuming more and more RAM - slow applications Allthough these symptoms do not indicate that there MUST be locking issues, wrong locking (or no locking at all) is one of the most likely causes for the mentioned problems.

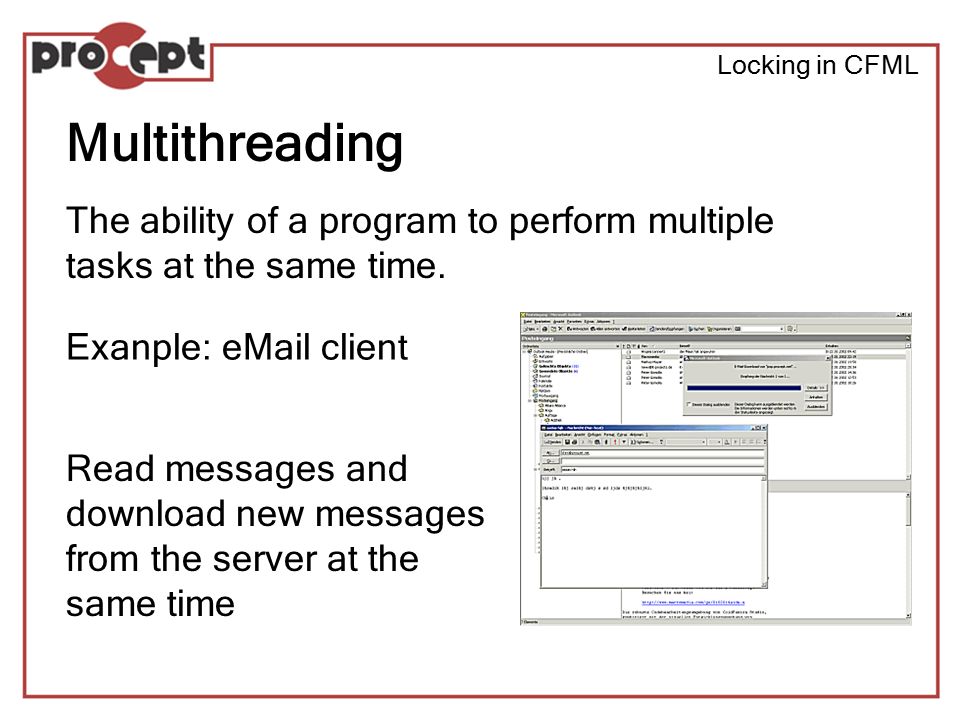

5. Locking in CFML Multithreading The ability of a program to perform multiple tasks at the same time. Exanple: eMail client Read messages and download new messages from the server at the same time

6. Locking in CFML Multithreading Advantages - performance / saves time - (system-) security Drawbacks - programs are more complicated to write - not easy to implement

7. Locking in CFML Multithreading in ColdFusion ColdFusion can handle multiple requests at the same time Every request is assigned to a thread Additional requests will be queued Within a thread the request is serialized Number of Worker Threads can be set in CF- Administrator

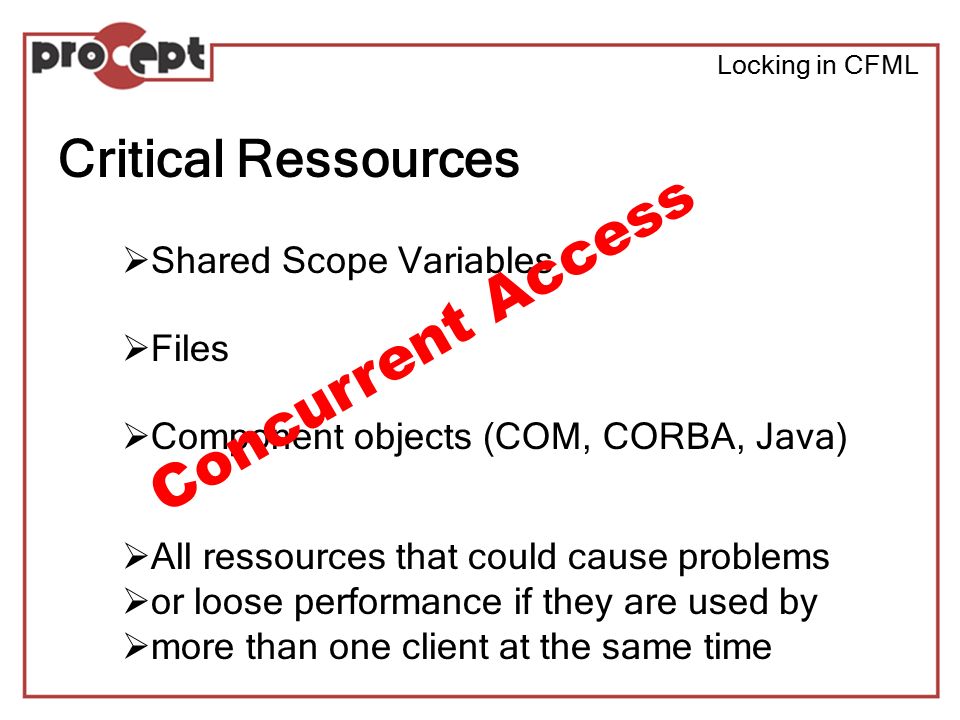

8. Locking in CFML Critical Ressources  Shared Scope Variables  Files  Component objects (COM, CORBA, Java)  All ressources that could cause problems  or loose performance if they are used by  more than one client at the same time Concurrent Access

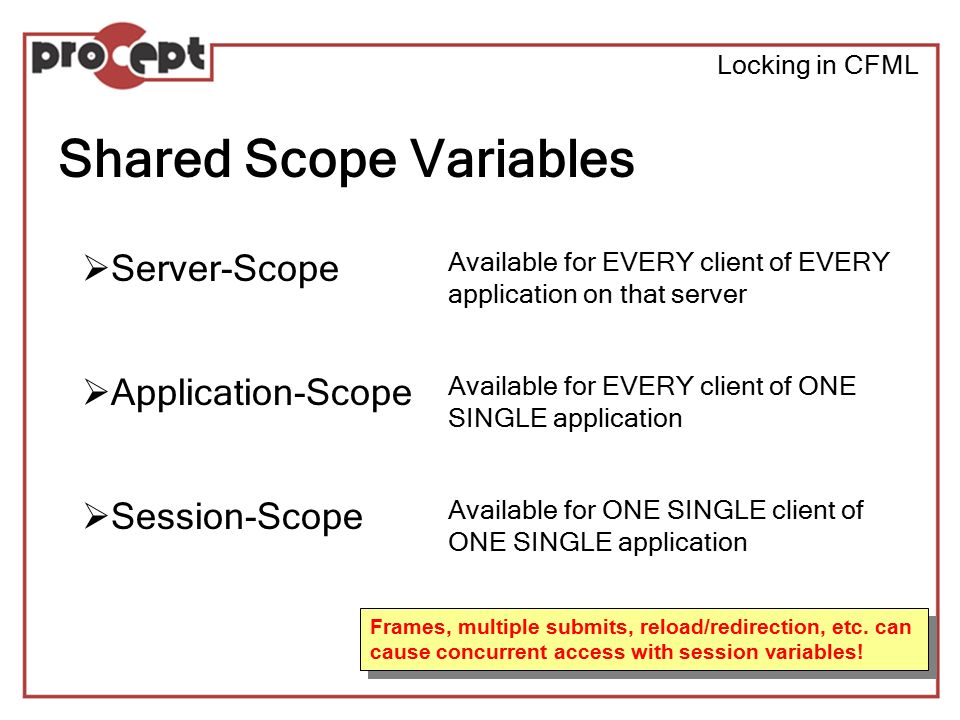

9. Locking in CFML Shared Scope Variables  Server-Scope  Application-Scope  Session-Scope Available for EVERY client of EVERY application on that server Available for EVERY client of ONE SINGLE application Available for ONE SINGLE client of ONE SINGLE application Frames, multiple submits, reload/redirection, etc. can cause concurrent access with session variables!

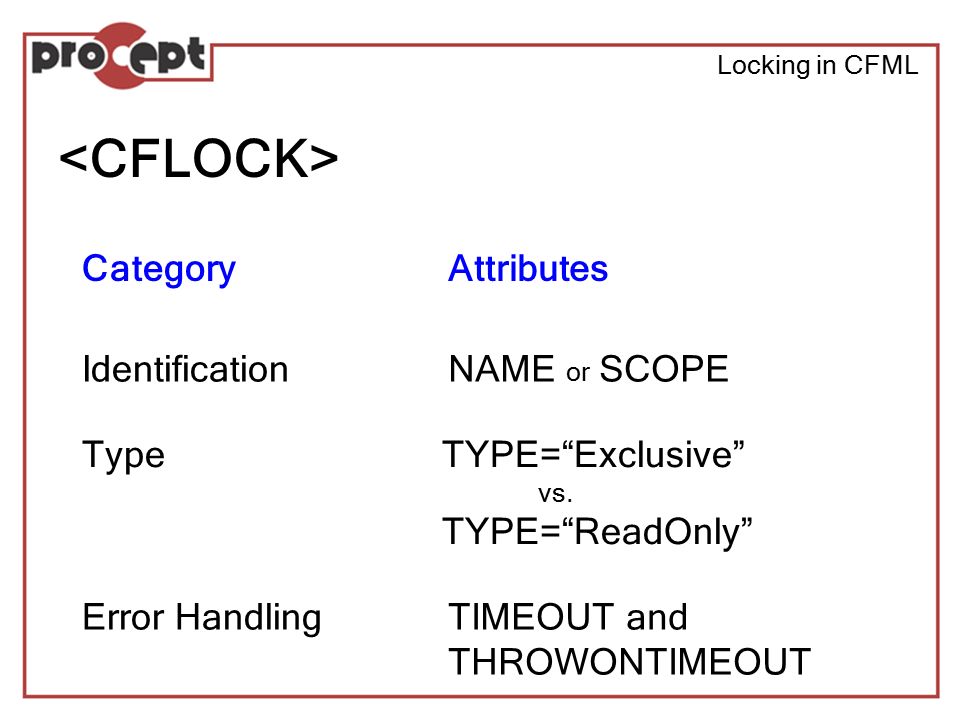

10. Locking in CFML Identification Type Error Handling NAME or SCOPE TYPE=“Exclusive” vs. TYPE=“ReadOnly” TIMEOUT and THROWONTIMEOUT CategoryAttributes

11. Locking in CFML and Shared Scope Variables Lock EVERY SINGLE access Lock the entire scope use the correct locking type lock only what needs to be locked Explained on pages “pointers and structures” and Q&A!

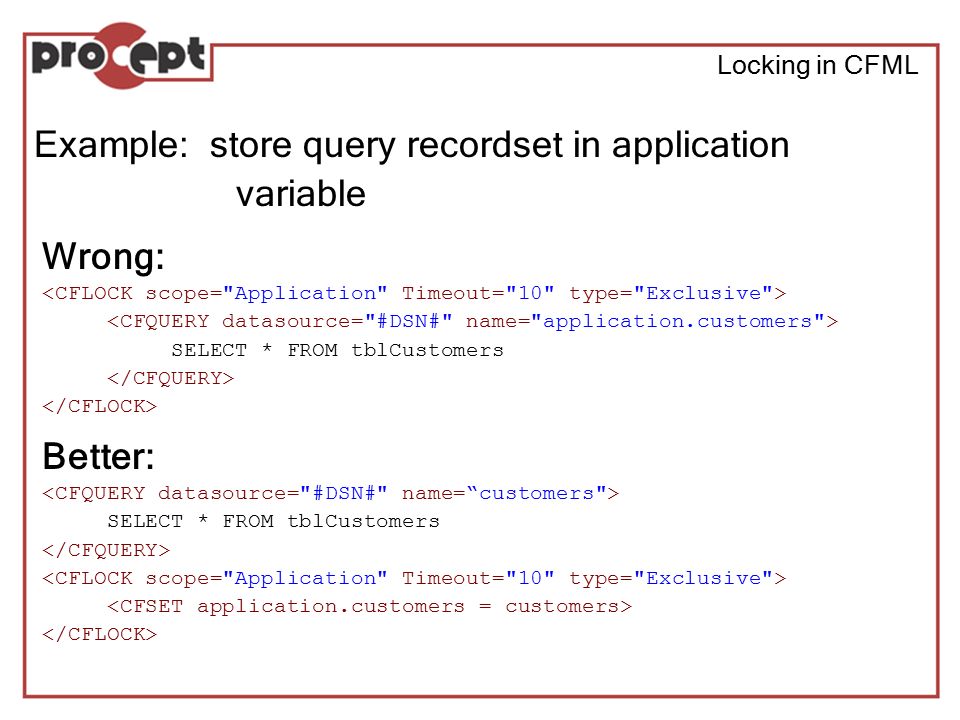

12. Locking in CFML Example: store query recordset in application variable Wrong: SELECT * FROM tblCustomers Better: SELECT * FROM tblCustomers

13. Locking in CFML Client Variables and Locking client variables are NOT stored in server RAM, but in DB, Registry oder Cookies  operating system or DB engine will take care of concurrent access  we do not need to lock client variables with ColdFusion

14. Locking in CFML Nested Locks  Deadlocks possible Code... Template 1: Code... Template 2: Code... Only nested locks make deadlocks possible! Consider what might happen if those templates are executed at the same instant!

15. Locking in CFML Avoiding Nested Locks Same result without nested locks:

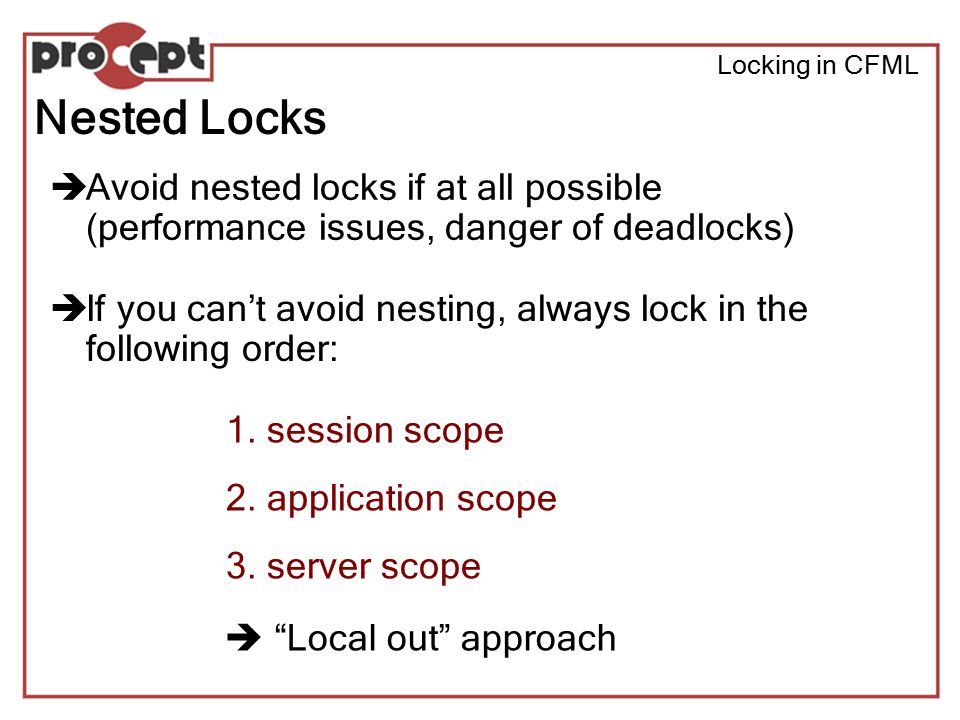

16. Locking in CFML Nested Locks  Avoid nested locks if at all possible (performance issues, danger of deadlocks) 1. session scope  If you can’t avoid nesting, always lock in the following order: 2. application scope 3. server scope  “Local out” approach

17. Locking in CFML Locking of Pointers Pointer: points to a structure (is NOT a real copy!) Changing the pointer also changes initial structure. Shared scope variables are structures! does not only access the key “myVar”, but accesses the structure “applciation”. So lock the entire scope! Always!!

18. Locking in CFML Name Locks Name idetifies the lock and denies access to protected ressource for all locks with the same name Use it for all critical ressources except shared scope variables, e.g.  Verity   COM-Objects Recommended: use a naming convention!

19. Locking in CFML Limit the number of simultaneous requests Some ressources will dramatically loose performance if they receive too many simultaneous requests. Some others (e.g. some FTP servers) will only accept a certain number of simultaneous requests from the same client. Name locks can be used to limit the number of simulatneous requests to a certain ressource, even if concurrent access is not a problem. You need to create a certain number of possible lock names, for example using the functions for random numbers: Because only three different lock names are possible, there will never be more than three simultaneous requests from CF to FTP server.

20. Locking in CFML Lock-Administration Single Threaded Sessions All thread with the same sessionID are serialized  concurrent access with session variables impossible  performance drawbacks (e.g. with frames)  template timeouts more likely to occur

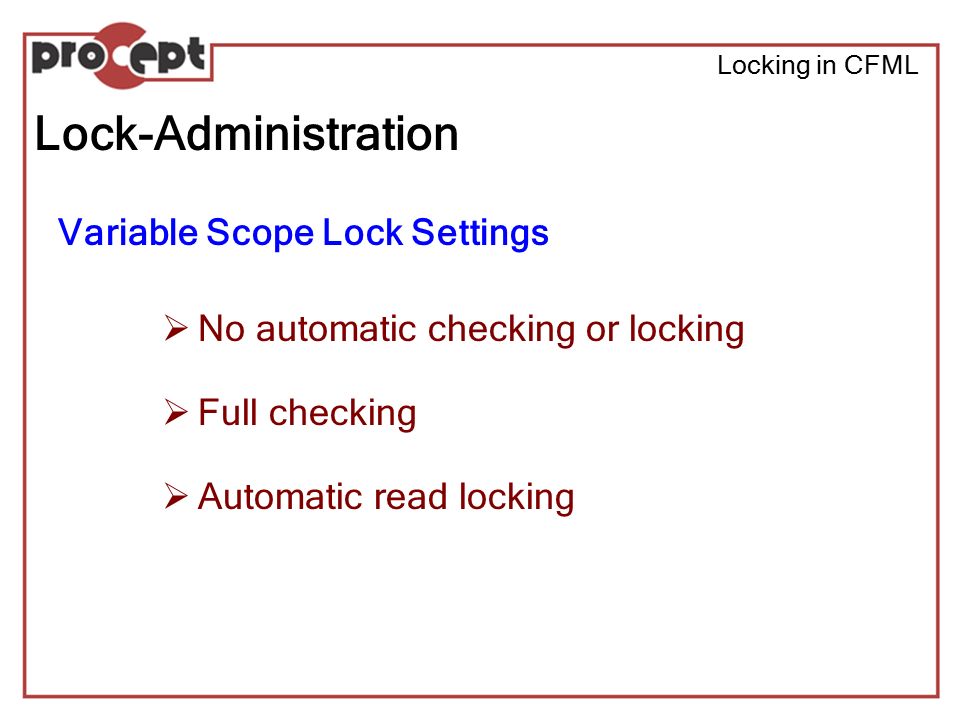

21. Locking in CFML Lock-Administration Variable Scope Lock Settings  No automatic checking or locking  Full checking  Automatic read locking

22. Locking in CFML Lock-Administration Variable Scope Lock Settings  No automatic checking or locking  developer is responsible for proper locking  good performance but dangerous  Use this setting for production servers with TESTED applications

23. Locking in CFML Lock-Administration Variable Scope Lock Settings  Full checking  every unlocked access throws an exception  secure, but small performance drawbacks  use it for development servers  for shared Servern  Name Locks also throw exceptions Bug warning! Not locking IsDefined() when using shared scope variables will NOT cause an exception! But, IsDefined(“shared_scope_var”) MUST be locked, too!! Bug warning! Not locking IsDefined() when using shared scope variables will NOT cause an exception! But, IsDefined(“shared_scope_var”) MUST be locked, too!!

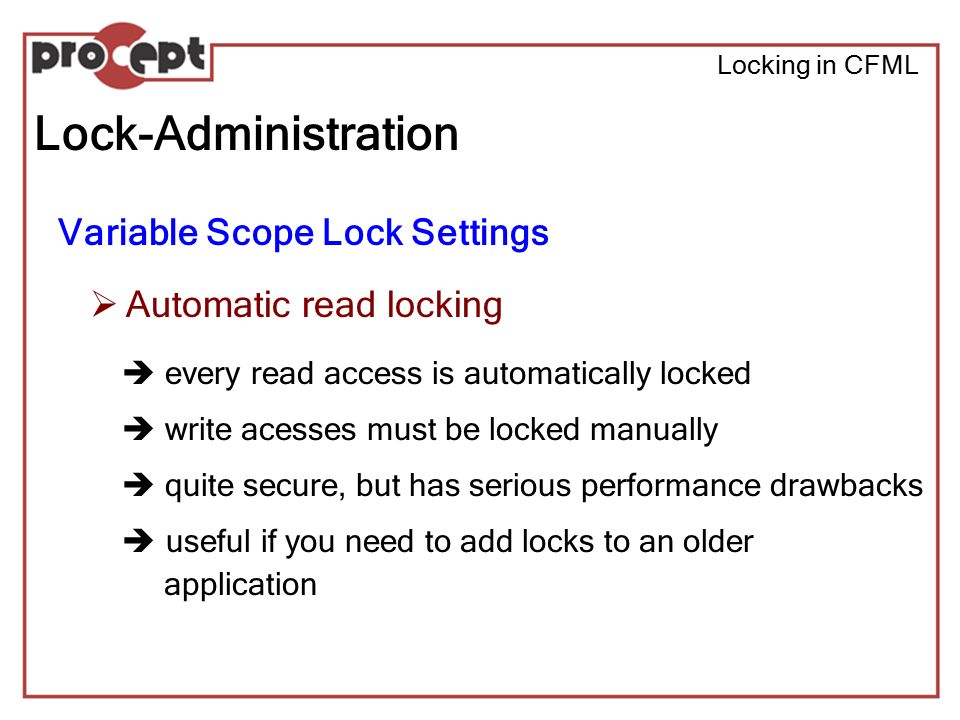

24. Locking in CFML Lock-Administration Variable Scope Lock Settings  Automatic read locking  every read access is automatically locked  quite secure, but has serious performance drawbacks  useful if you need to add locks to an older application  write acesses must be locked manually

25. Locking in CFML Summary 1. Lock EVERY access 2. If possible sum up accesses in a single lock, but, 3. Lock only what needs to be locked 4. For Shared Scope Variables always use the SCOPE attribute 5. Use the correct locking type 6. Avoid server scope on shared servers

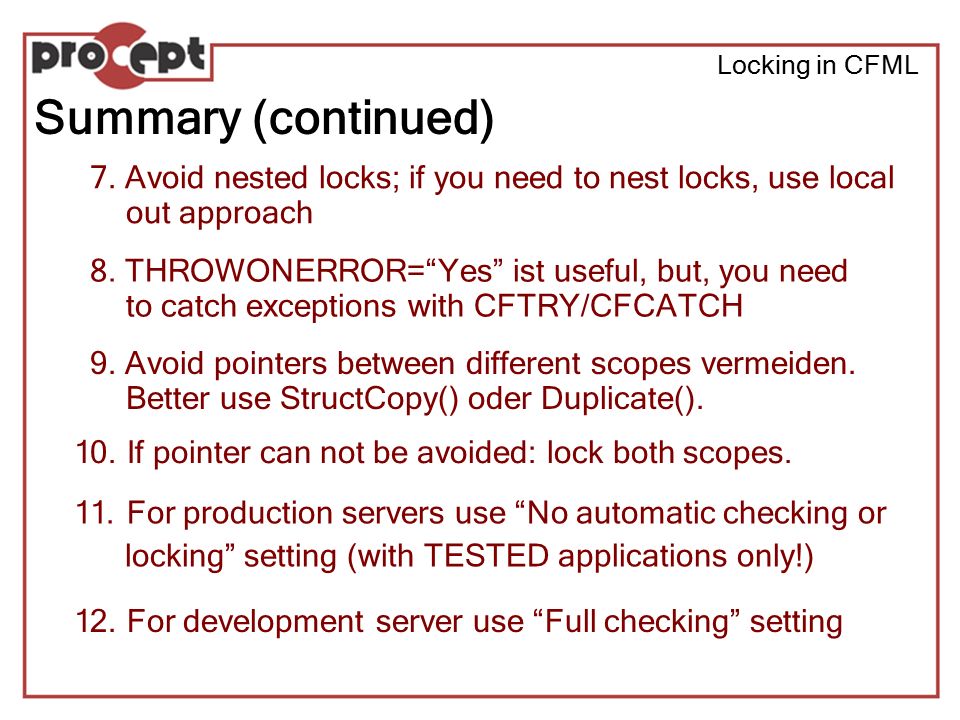

26. Locking in CFML Summary (continued) 8. THROWONERROR=“Yes” ist useful, but, you need to catch exceptions with CFTRY/CFCATCH 9. Avoid pointers between different scopes vermeiden. Better use StructCopy() oder Duplicate(). 10. If pointer can not be avoided: lock both scopes. 11. For production servers use “No automatic checking or locking” setting (with TESTED applications only!) 12. For development server use “Full checking” setting 7. Avoid nested locks; if you need to nest locks, use local out approach

27. Locking in CFML Q & A appends session.URLToken to the URL. Don‘t I have to lock that kind of access to shared scope variables, too? ADDTOKEN=“YES” does append CLIENT.URLToken instead of SESSION.URLToken. In the documentation of CFLOCATION only one small remark reveals the difference: “ clientManagement must be enabled”. So it is a client variable and we don’t have to lock those. Why do I have to lock the entire scope when using shared scope variables? Shouldn‘t it be sufficient to lock the single variable I try to access? When accessing a shared scope variable, we always access the structure as a whole. There‘s no use in locking a single element, if the bigger context can still be compromised. You should ALWAYS lock the entire scope. Due to security restrictions you can not use structure functions with the server scope. ( will not work either). But still it is a structure and must be locked entirely when using a server variable. When accessing a shared scope variable, we always access the structure as a whole. There‘s no use in locking a single element, if the bigger context can still be compromised. You should ALWAYS lock the entire scope. Due to security restrictions you can not use structure functions with the server scope. ( will not work either). But still it is a structure and must be locked entirely when using a server variable.

28. Locking in CFML Q & A Why do I have to lock EVERY single access to shared scope variables? One single unlocked access surely will not harm the locked variables... WRONG! It is very important to understand how locks work. A lock only prevents simulatneous accesses from within other locks with the same NAME or SCOPE attribute. If you lock the application scope, it is not protected against unlocked access, but only against access from within other locks with SCOPE=“application”. That’s why name locks are a bit difficult to use. If two locks have different names, they still can access the same ressource simultaneously and they can still cause concurrent access problems. Using a naming convention for locks can help you to manage lock names more easily. WRONG! It is very important to understand how locks work. A lock only prevents simulatneous accesses from within other locks with the same NAME or SCOPE attribute. If you lock the application scope, it is not protected against unlocked access, but only against access from within other locks with SCOPE=“application”. That’s why name locks are a bit difficult to use. If two locks have different names, they still can access the same ressource simultaneously and they can still cause concurrent access problems. Using a naming convention for locks can help you to manage lock names more easily. What kind of naming convention should I use for name locks? Actually that doesn‘t matter at all, as long as you follow your convention strictly. For example a lock name could be “Lock” + protected ressource, e.g. “Lock_files” or “Lock_ftp”. Actually that doesn‘t matter at all, as long as you follow your convention strictly. For example a lock name could be “Lock” + protected ressource, e.g. “Lock_files” or “Lock_ftp”.

29. Locking in CFML Links Best practices: http://www.macromedia.com/v1/Handlers/index.cfm?ID=20370&Method=Full A comprehensive guide: http://www.depressedpress.com/DepressedPress/Content/ColdFusion/Guides  /Locking/Index.cfm BF on CF: Lock it or loose it! http://www.sys-con.com/coldfusion/article.cfm?id=135

30. Locking in CFML Still got questions? Christoph Schmitz eMail: info@procept.net Latest version of this presentation is available for download at http://www.procept.net
