1. Regents Earth Science HIGH AND LOW PRESSURE SYSTEMS WEATHER SYSTEMS UNIT By the end of this class, you will be able to: *Compare and contrast high and low pressure systems *Identify areas of high and low pressure on a weather map

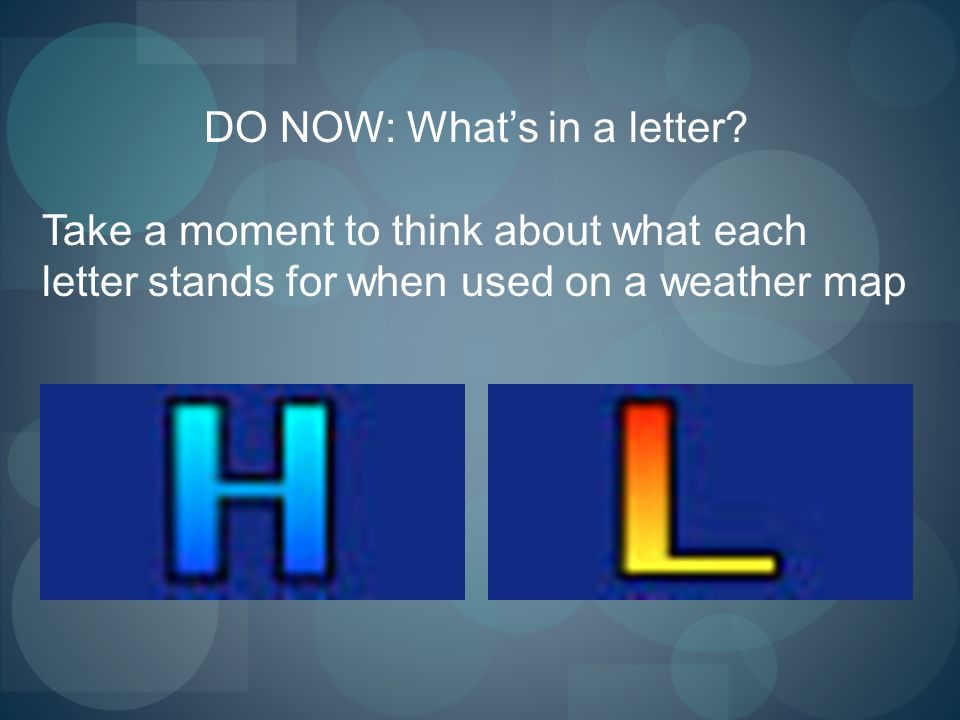

2. DO NOW: What’s in a letter? Take a moment to think about what each letter stands for when used on a weather map

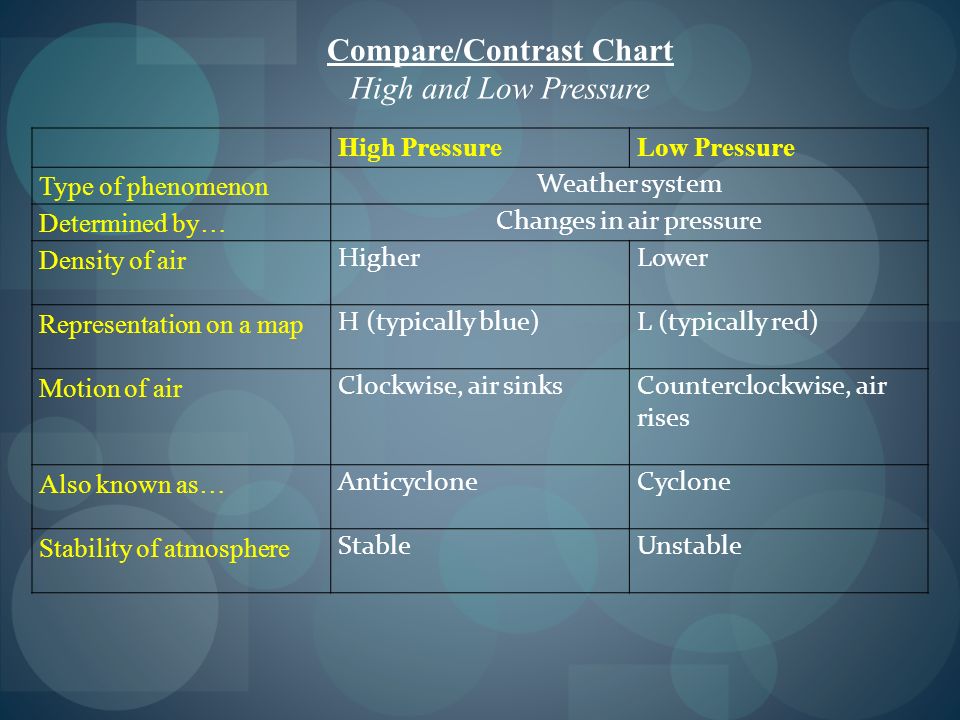

3. High PressureLow Pressure Type of phenomenon Weather system Determined by… Changes in air pressure Density of air HigherLower Representation on a map H (typically blue)L (typically red) Motion of air Clockwise, air sinksCounterclockwise, air rises Also known as… AnticycloneCyclone Stability of atmosphere StableUnstable Compare/Contrast Chart High and Low Pressure

4. High Pressure

5. LOW PRESSURE

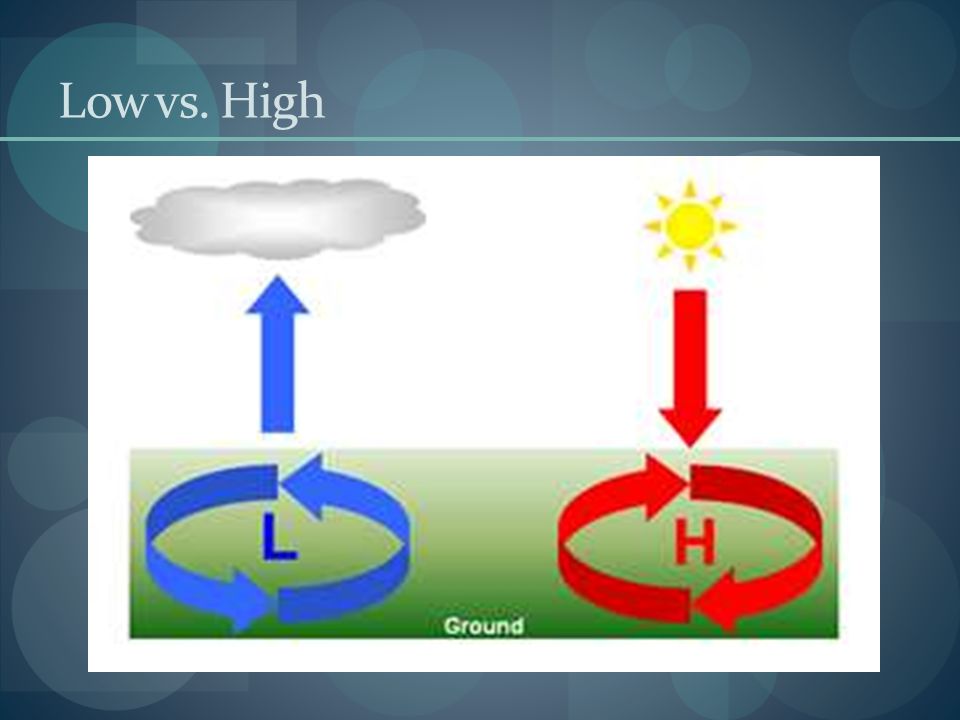

6. Low vs. High

7. Thumbs up for high, Thumbs down for low

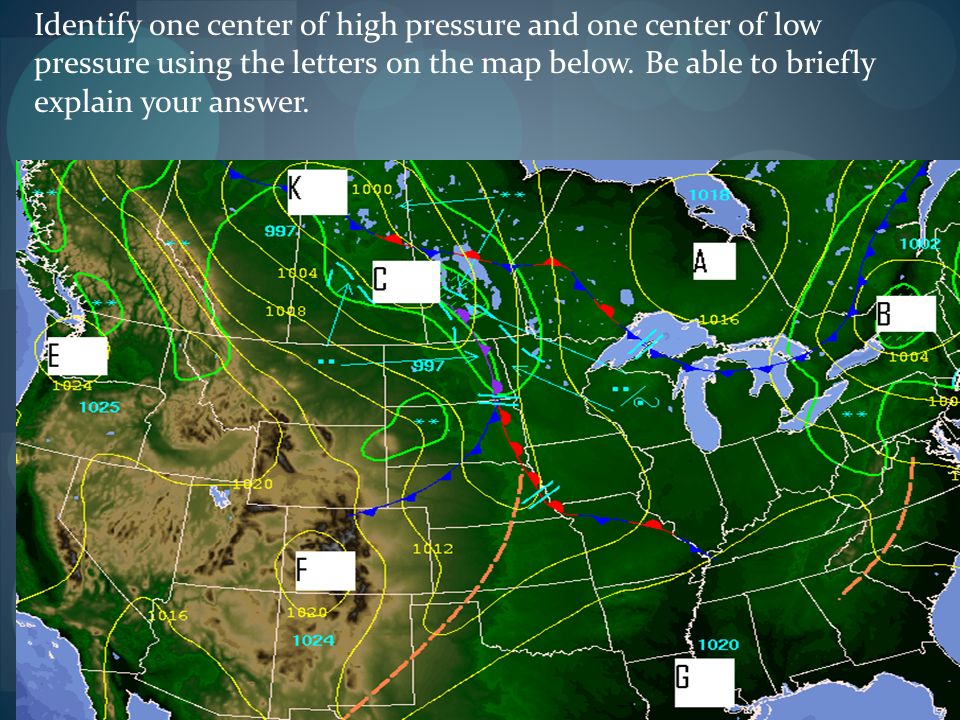

8. Identify one center of high pressure and one center of low pressure using the letters on the map below. Be able to briefly explain your answer.

9. FRONTS Front: The leading edge of an air mass-branch from low pressure systems

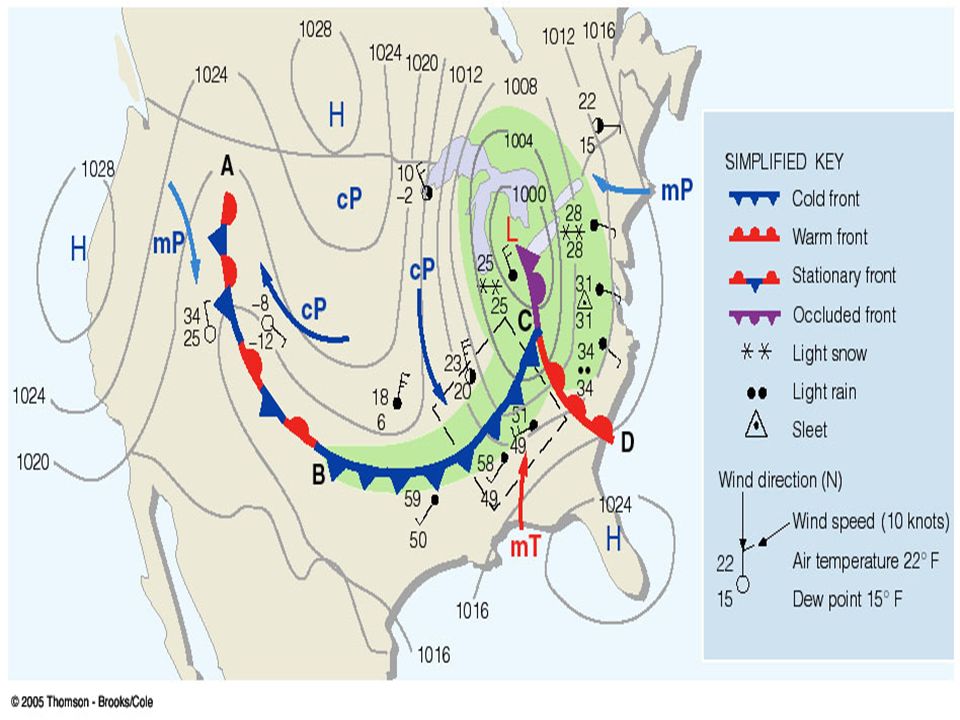

11. Fronts are shown by lines with symbols that show the type of front and the direction of movement

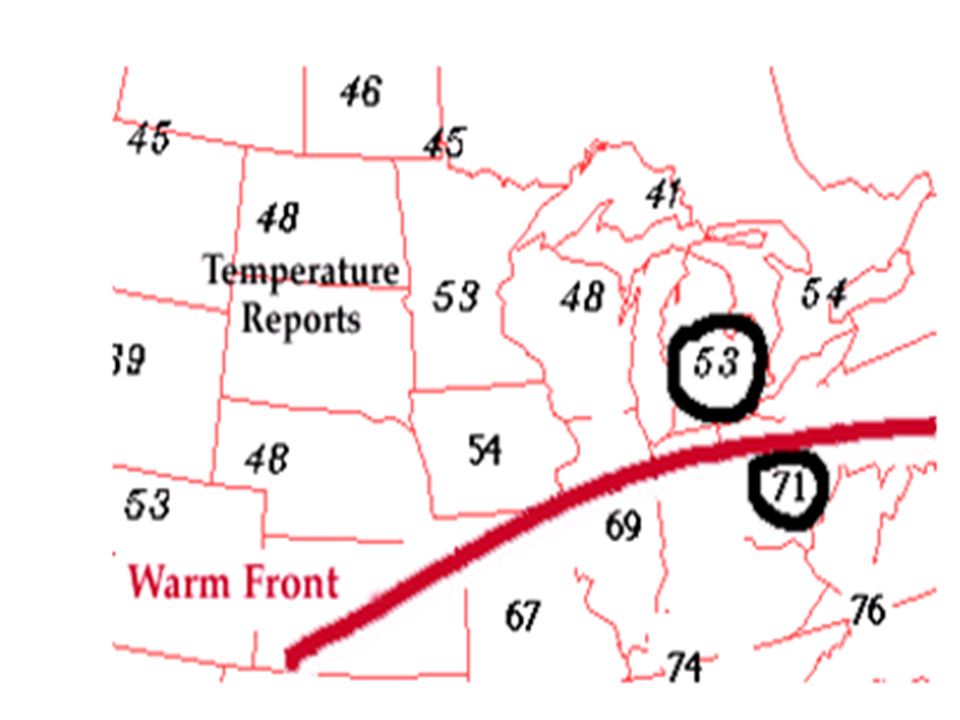

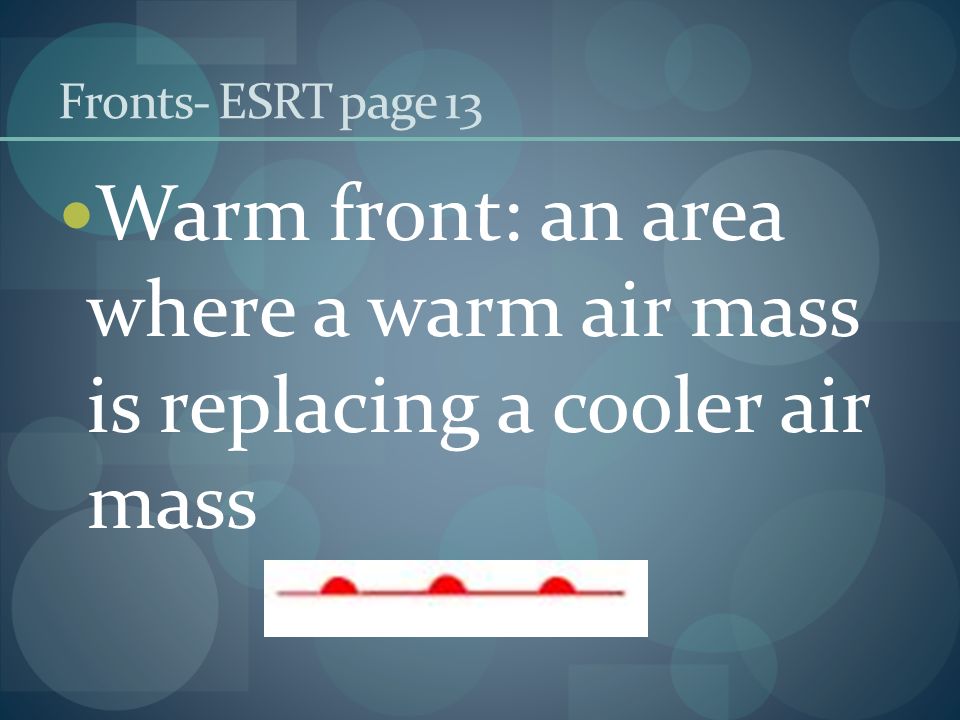

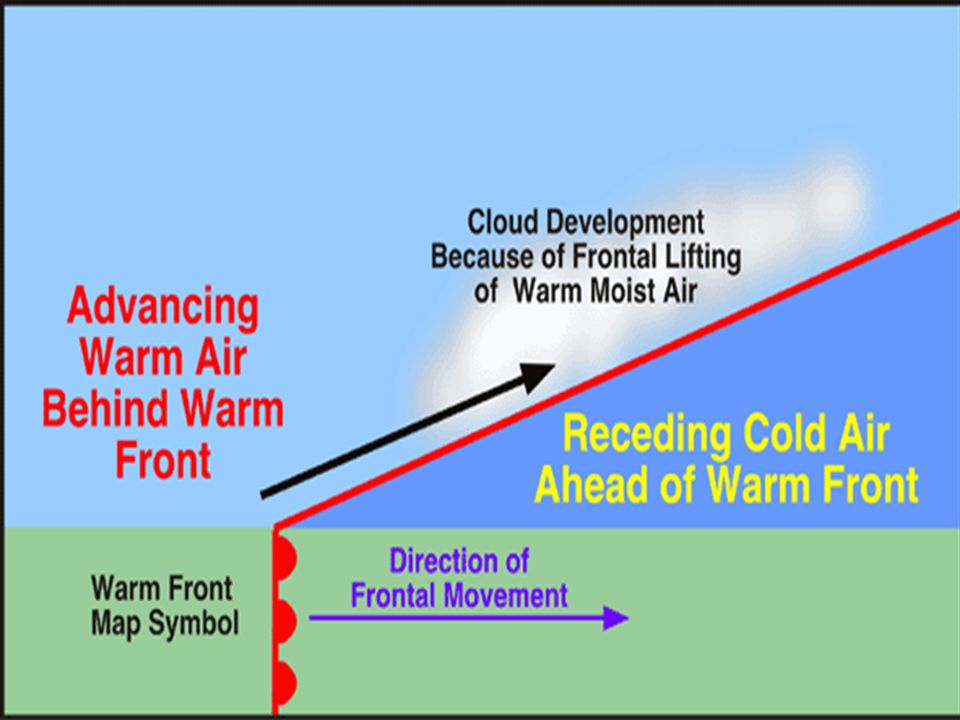

12. Fronts- ESRT page 13 Warm front: an area where a warm air mass is replacing a cooler air mass

13. What to Expect Before the front: A. cool or cold temps B. falling barometer C. increasing & thickening clouds D. light-to-moderate precip E. winds from the e-se, F. Temp and dp get closer together/higher humidity

14. After the front: A. Warmer and more humid weather conditions B. clearing clouds C. a brief rise in pressure D. winds from the s-sw E. Temp and dp are close/high humidity

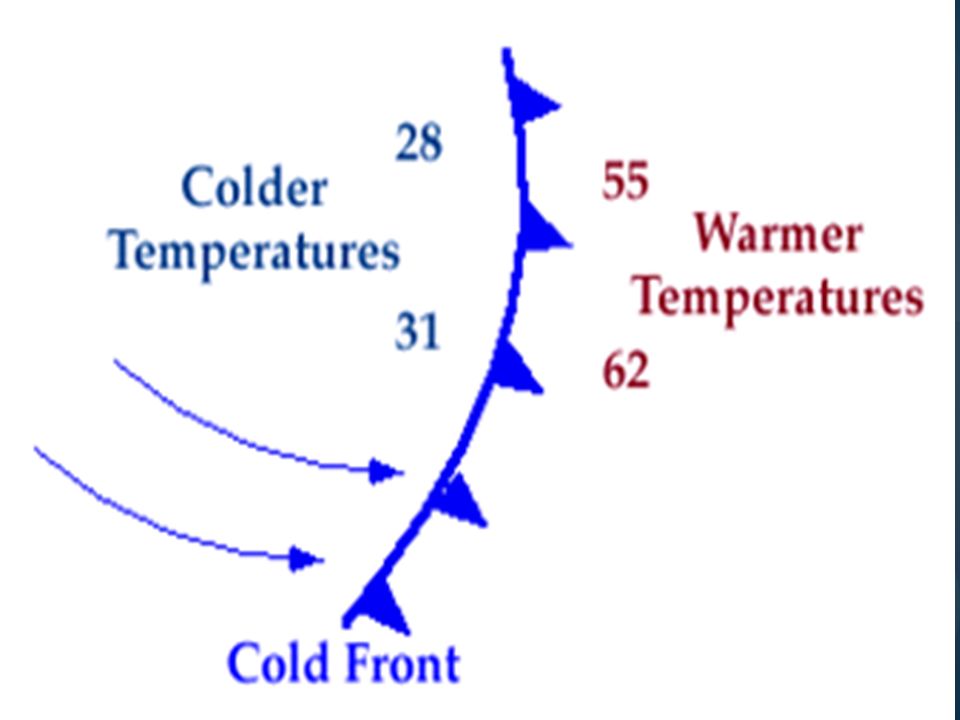

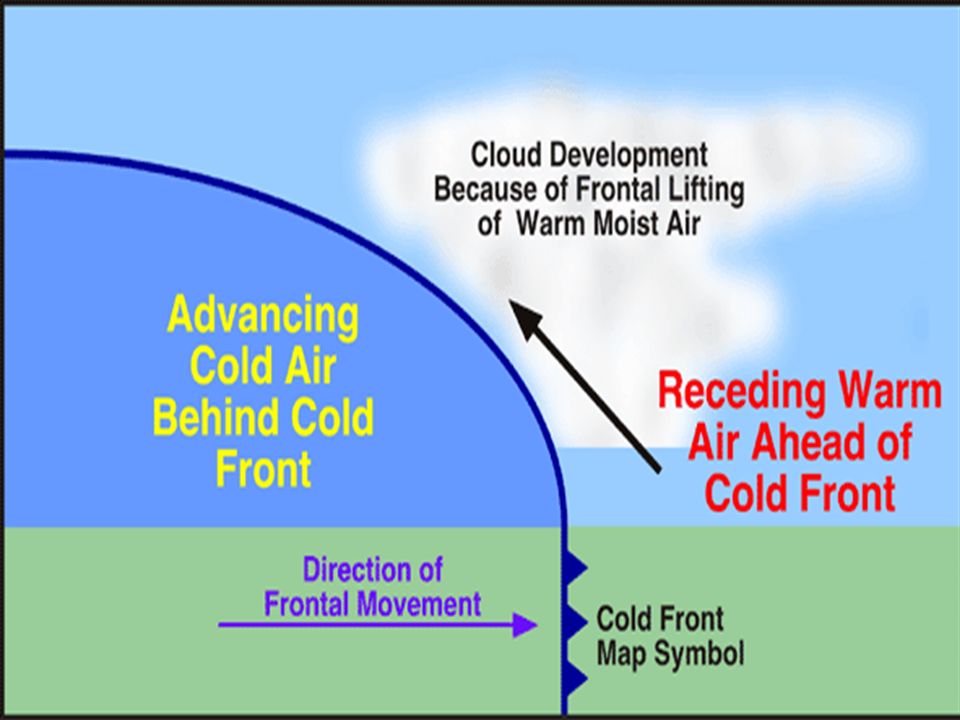

18. Cold Front Cold front: an area where a cold air mass is replacing a warmer air mass

19. What to Expect Before the Front: A. winds from the s-sw B. warm temps C. a falling barometer (dropping pressure) D. an increase in clouds E. a short period of precip F. Temp/dp are close; high humidity

20. Cold Front After the Front: A. winds from the w-nw B. a drop in temps C. a rise in pressure D. showers followed by clearing skies E. Temp and DP get farther apart/ lower humidity

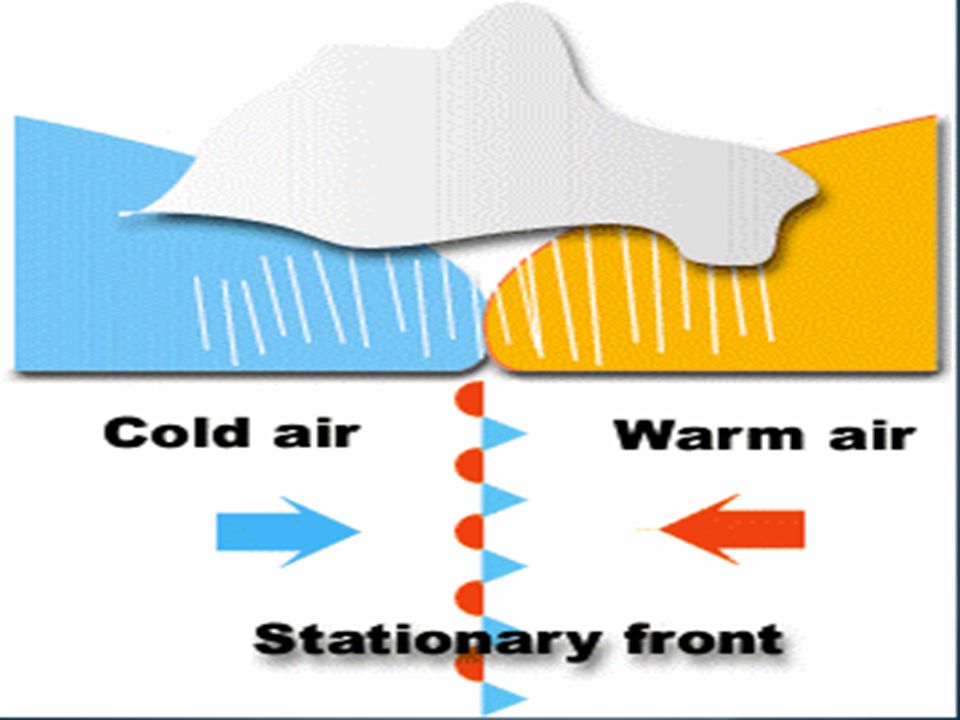

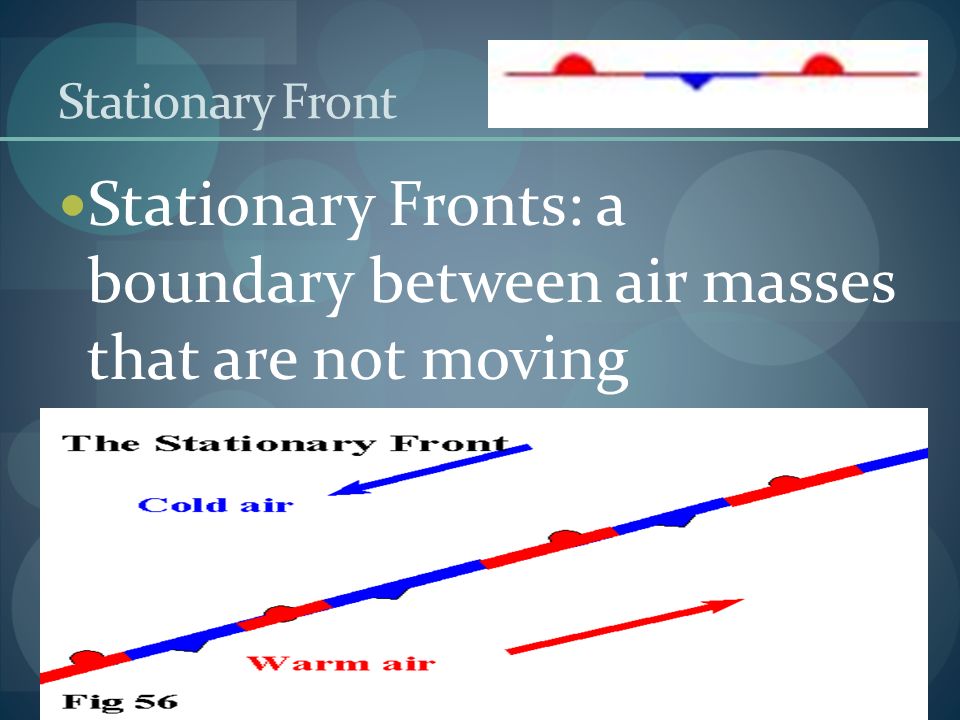

24. Stationary Front Stationary Fronts: a boundary between air masses that are not moving

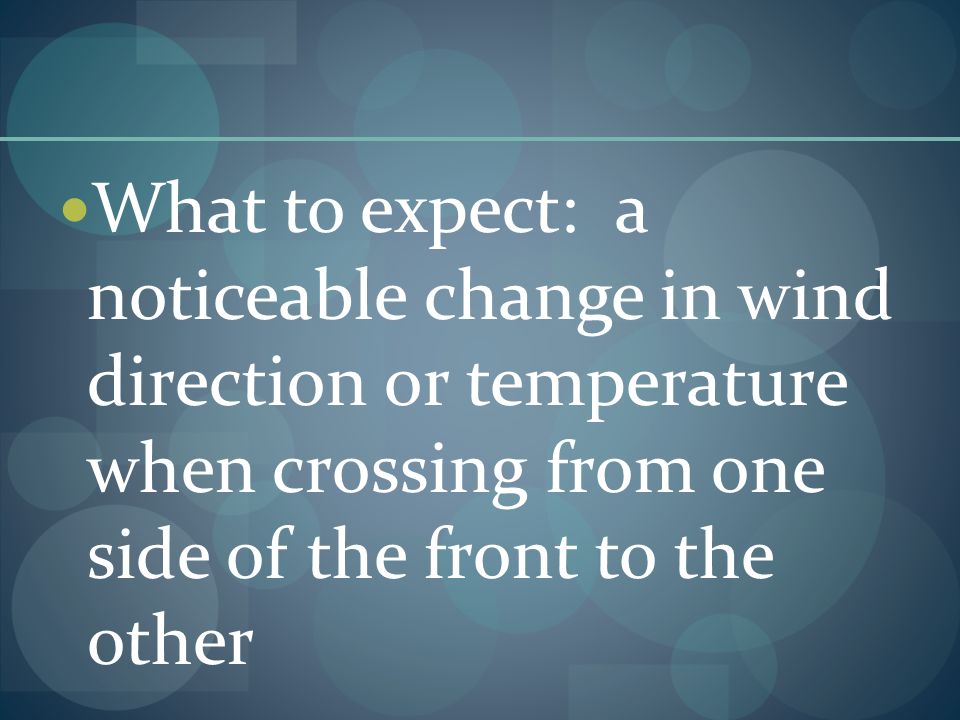

25. What to expect: a noticeable change in wind direction or temperature when crossing from one side of the front to the other

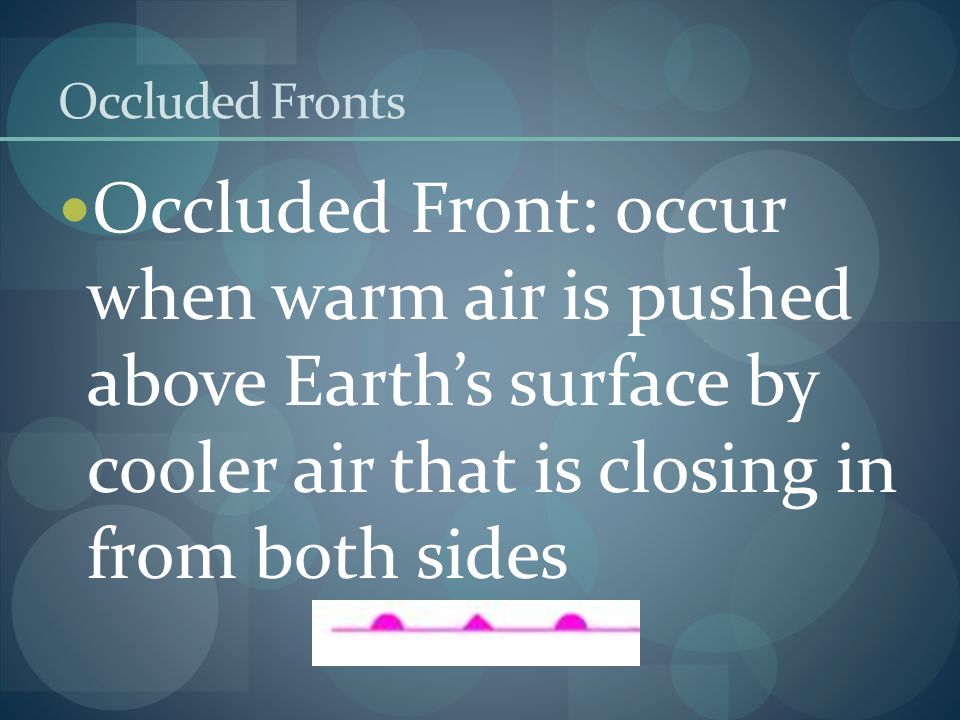

27. Occluded Fronts Occluded Front: occur when warm air is pushed above Earth’s surface by cooler air that is closing in from both sides

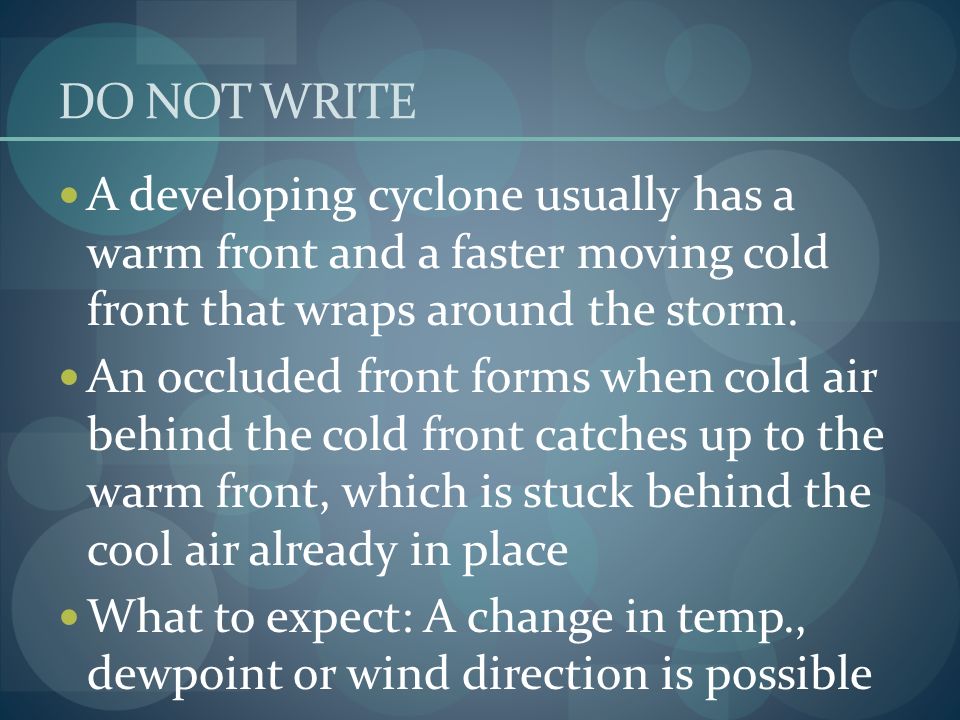

28. DO NOT WRITE A developing cyclone usually has a warm front and a faster moving cold front that wraps around the storm. An occluded front forms when cold air behind the cold front catches up to the warm front, which is stuck behind the cool air already in place What to expect: A change in temp., dewpoint or wind direction is possible

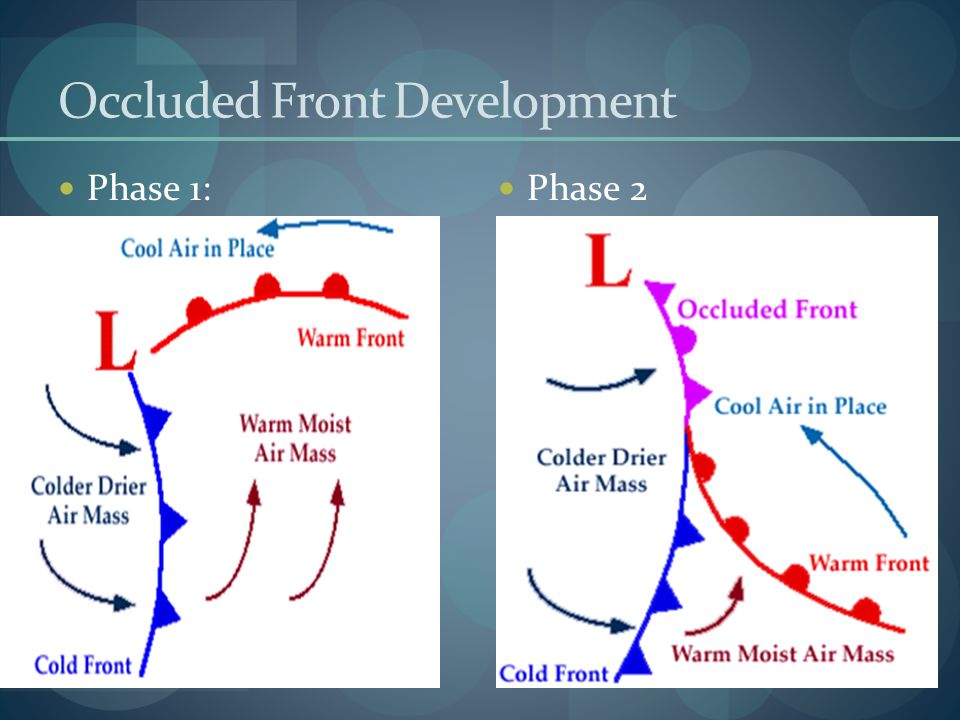

29. Occluded Front Development Phase 1: Phase 2

31. Animation of Fronts <3 Animation of Fronts

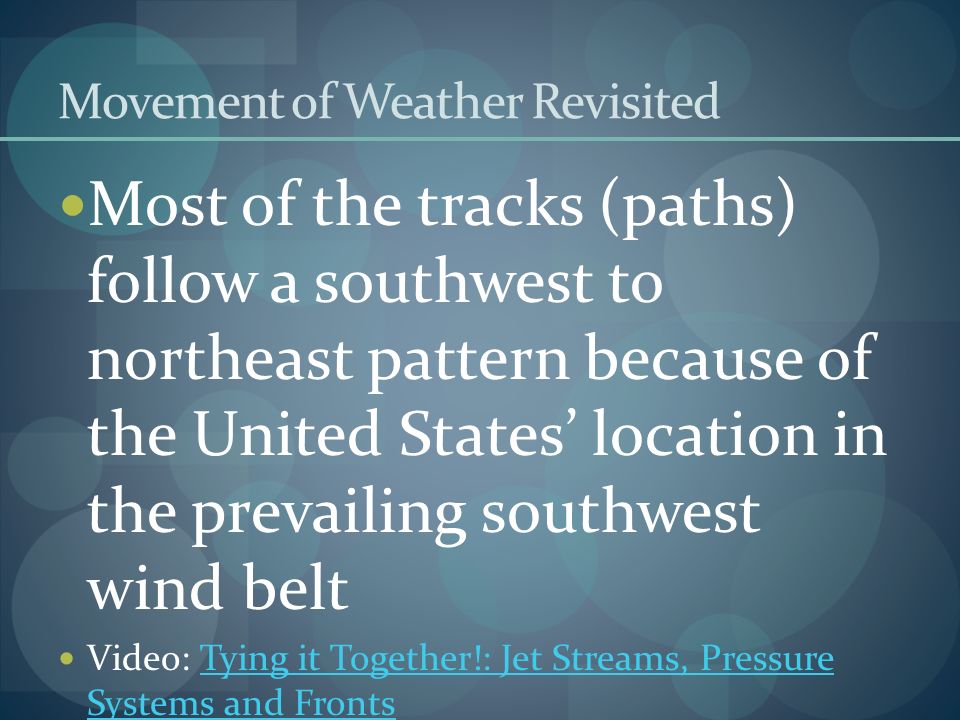

32. Movement of Weather Revisited Most of the tracks (paths) follow a southwest to northeast pattern because of the United States’ location in the prevailing southwest wind belt Video: Tying it Together!: Jet Streams, Pressure Systems and FrontsTying it Together!: Jet Streams, Pressure Systems and Fronts
