Welcome to Interactive Chalkboard Glencoe Geometry Interactive Chalkboard Copyright © by The McGraw-Hill Companies, Inc. Developed by FSCreations, Inc., Cincinnati, Ohio 45202 Send all inquiries to: GLENCOE DIVISION Glencoe/McGraw-Hill 8787 Orion Place Columbus, Ohio 43240
3
Splash Screen
4

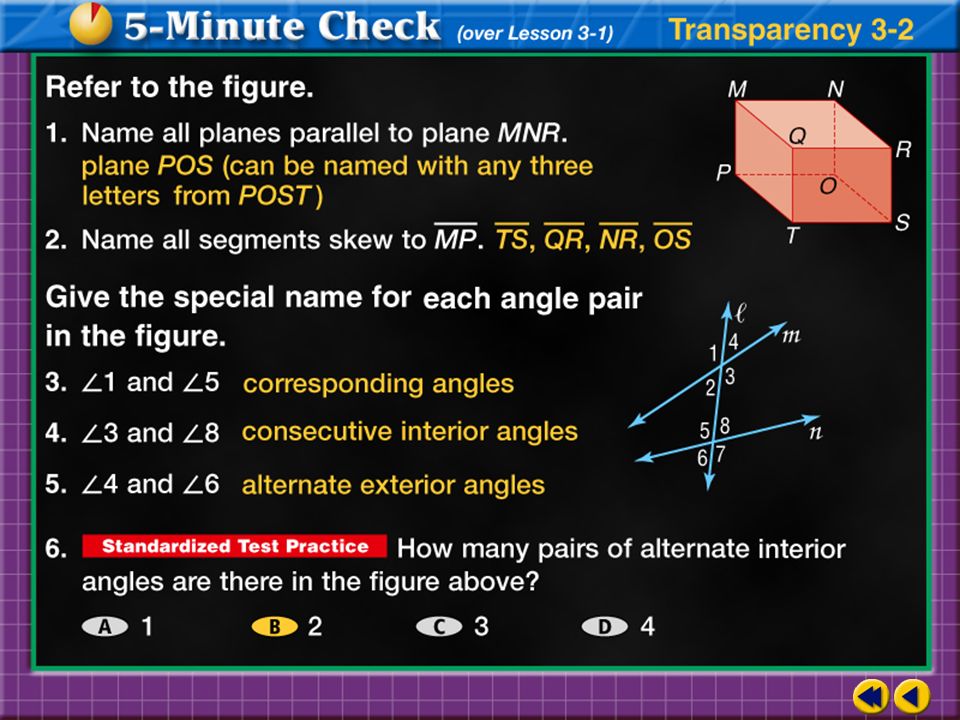

Transparency 2 Click the mouse button or press the Space Bar to display the answers.
5
Transparency 2a
6
Contents Lesson 3-1Parallel Lines and Transversals Lesson 3-2Angles and Parallel Lines Lesson 3-3Slopes of Lines Lesson 3-4Equations of Lines Lesson 3-5Proving Lines Parallel Lesson 3-6Perpendiculars and Distance
7

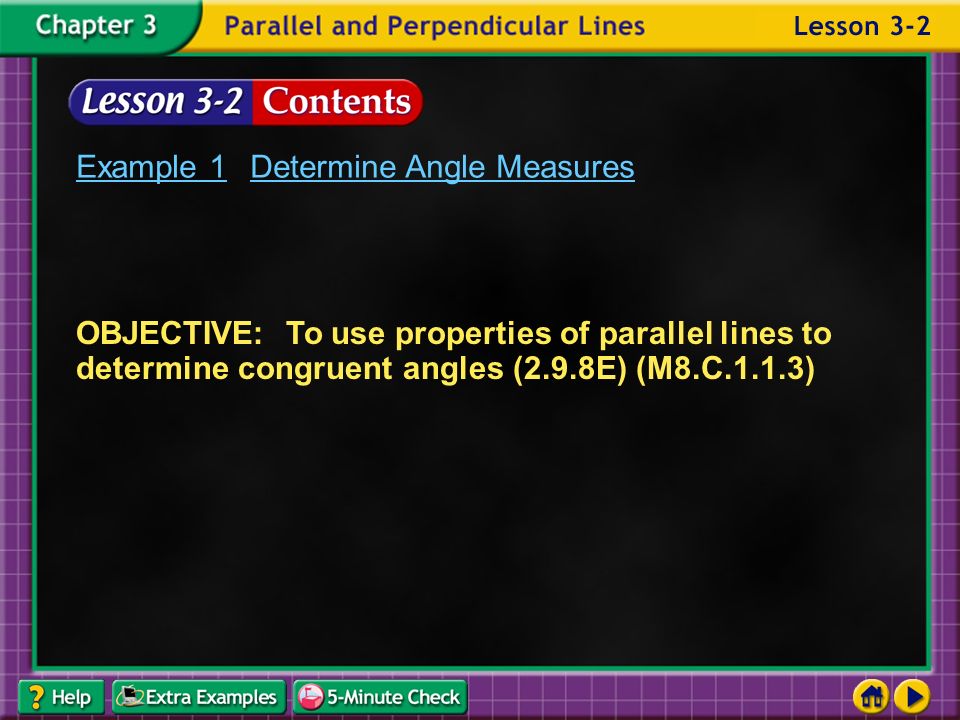

Lesson 2 Contents Example 1Determine Angle Measures OBJECTIVE: To use properties of parallel lines to determine congruent angles (2.9.8E) (M8.C.1.1.3)
8
POSTULATES AND THEOREMS Postulate 3.1 – Corresponding Angles Postulate: If 2 parallel lines are cut by a transversal, then each pair of corresponding angles is congruent. Theorem 3.1 – Alternate Interior Angles Theorem: If 2 parallel lines are cut by a transversal, then each pair of alternate interior angles is congruent.
9

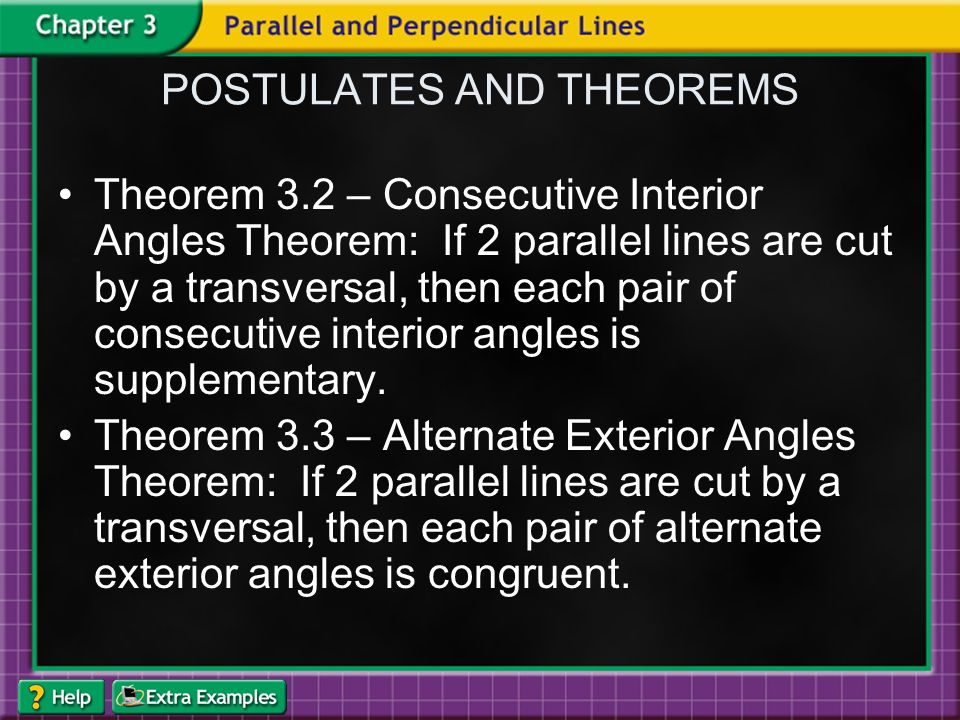

POSTULATES AND THEOREMS Theorem 3.2 – Consecutive Interior Angles Theorem: If 2 parallel lines are cut by a transversal, then each pair of consecutive interior angles is supplementary. Theorem 3.3 – Alternate Exterior Angles Theorem: If 2 parallel lines are cut by a transversal, then each pair of alternate exterior angles is congruent.
10
POSTULATES AND THEOREMS Theorem 3.4 – Perpendicular Transversal Theorem: In a plane, if a line is perpendicular to one of two parallel lines, then it is perpendicular to the other.
11
Answer: Example 2-1a Corresponding Angles Postulate Vertical Angles Theorem Transitive Property Definition of congruent angles Substitution In the figure and Find
12
Example 2-1b Answer: In the figure and Find
13

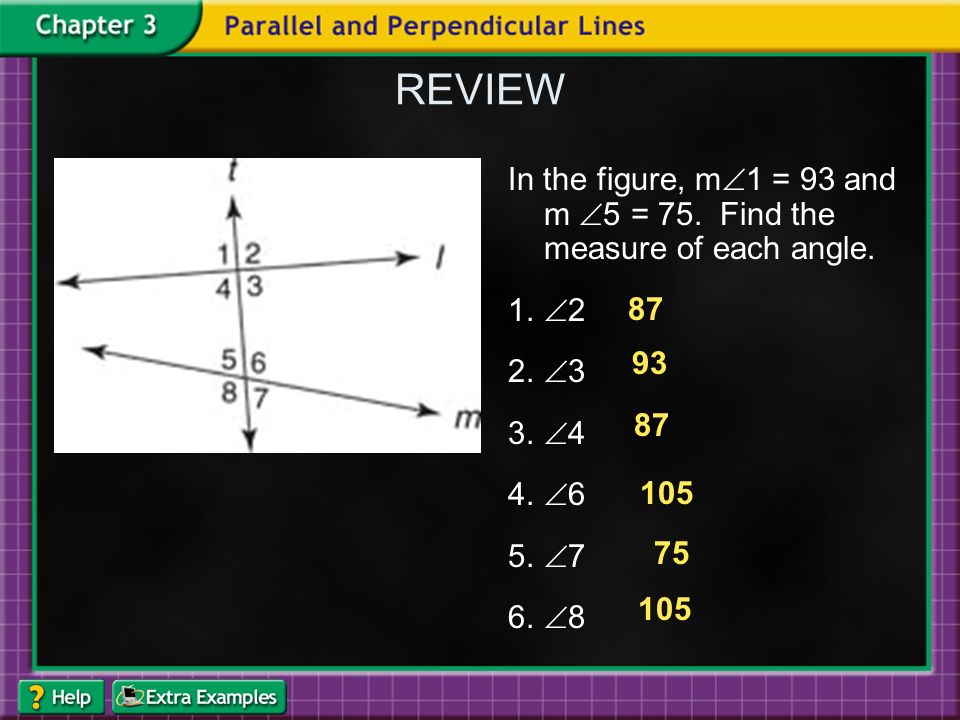

REVIEW In the figure, m 1 = 93 and m 5 = 75. Find the measure of each angle. 1. 2 2. 3 3. 4 4. 6 5. 7 6. 8 87 93 87 105 75 105
14
End of Lesson 2
15
End of Custom Show End of Custom Shows WARNING! Do Not Remove This slide is intentionally blank and is set to auto-advance to end custom shows and return to the main presentation.
16
End of Slide Show
