1. Power Analysis of Embedded Software : A Fast Step Towards Software Power Minimization 指導教授 : 陳少傑 教授 組員 : R91922053 張馨怡 R91922058 林秀萍

2. Outlines Introduction Experimental Method Instruction Level Modeling Base energy cost Inner-Instruction effects Estimation Framework Software Power Optimization Instruction reordering Generation of energy efficient code Conclusion

3. Introduction Power constrains become critical component of the design of embedded system. At present, power analysis tools can only be applied at the lower level. Circuit level and Gate level This paper describes the first systematic attempt to model the power cost of the software component of the system. Instruction-level Thus can meet the power constrains. Helpful for power optimization

4. Outlines Introduction Experimental Method Instruction Level Modeling Base energy cost Inner-Instruction effects Estimation Framework Software Power Optimization Instruction reordering Generation of energy efficient code Conclusion

5. Power and Energy Power consumption: P=I*Vcc P---average power I---average current Vcc---the supply voltage Energy consumption: E=P*T T is execution time, T=N*period Distinguish power consumption and energy consumption.

6. Current Measurement The current was measured through a standard off shelf, dual-slope integrating digital ammeter. Execution time of programs was measured through detection of specific bus states using a logic analyzer. The programs being considered were put in infinite loops. Choosing a window of time (100ms)

7. Outlines Introduction Experimental Method Instruction Level Modeling Base energy cost Inner-Instruction effects Estimation Framework Software Power Optimization Instruction reordering Generation of energy efficient code Conclusion

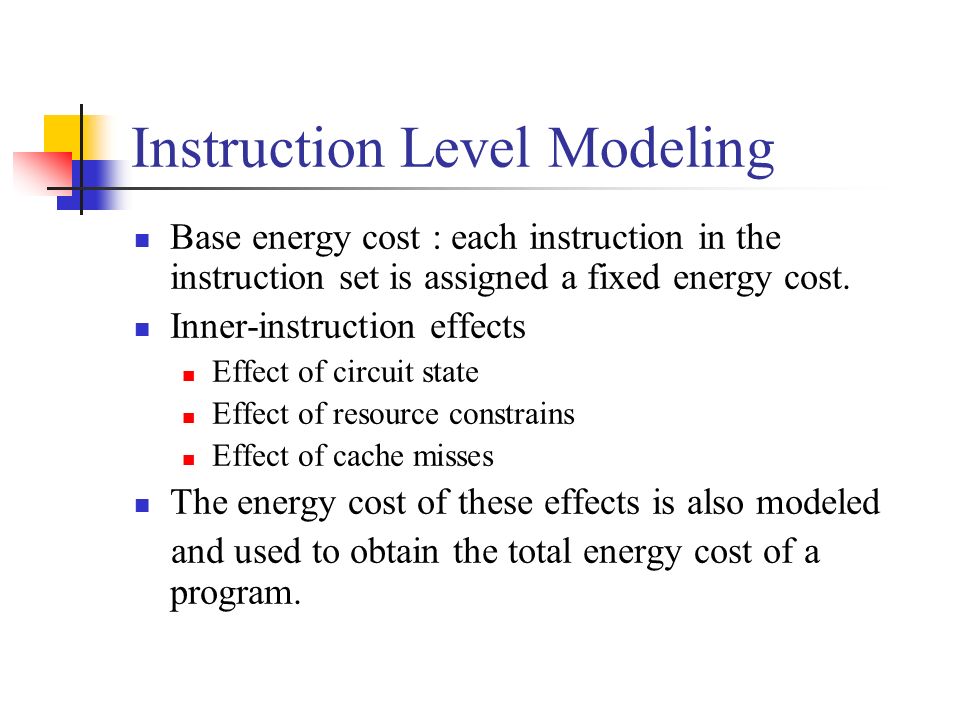

8. Instruction Level Modeling Base energy cost : each instruction in the instruction set is assigned a fixed energy cost. Inner-instruction effects Effect of circuit state Effect of resource constrains Effect of cache misses The energy cost of these effects is also modeled and used to obtain the total energy cost of a program.

9. Base Energy Cost The 486DX2 CPU has a five-stage pipeline E jI k ---be the average energy consumed by pipeline stage j when instruction I k executes in that stage. E cycle =E1 I1 +E2 I2 +E3 I3 +E4 I4 +E5 I5 E ins =  j E jI1 Forming a loop of instances of instruction I1, result in E cycle =E ins The average current in this case is  j E j I1/(V cc* period)

10. Base Energy Cost (cont.)

11. Variations in base cost Different functionality Different addressing modes the number of 1’s in the binary representation of the immediate data The range of all variation in all cases is small, about 5% Considering the address of operand Typically, operand value and address can be known only at the run time.

12. Inner-Instruction Effects Inner-instruction effects---when sequences of instructions are considered Effect of circuit state Example: XOR BX,1 319.2mA average is ADD AX,DX 313.6mA 314.4mA But actual cost is 323.2mA Experiments show that the circuit state overhead has a limited range---between 5mA and 30.0mA and most frequently occurred in the vicinity of 15.0 mA

13. Inner-Instruction Effects (cont.) Effect of resource constrains---can lead to stalls, e.g. pipeline stalls and write buffer stalls Example:a sequence of 120 MOV DX, [BX] instructions take 164 cycles to execute, instead of 120 due to prefetch buffer stalls When calculating the energy cost, considering the stall energy cost. The number of stall cycles is estimated through a traversal of the program code.

14. Inner-Instruction Effects (cont.) Effect cache misses---a cache miss will lead to extra cycles being consumed (which leads to an energy penalty.) Experimentally, an average penalty of 216 mA for cache miss Considering the average penalty multiplied by the cache miss rate.

15. Outlines Introduction Experimental Method Instruction Level Modeling Base energy cost Inner-Instruction effects Estimation Framework Software Power Optimization Instruction reordering Generation of energy efficient code Conclusion

16. Estimation Framework

17. Estimation Framework (cont.) Dividing it by the estimated number of cycles(72) gives us an average current of 369.1 mA. Adding circuit state overhead offset value of 15.0 mA, we get 384.0 mA. The actual value is 385.0mA. Reasons for the differences Operand values and addresses not known until run-time Circuit state overhead Stall and cache misses

18. Estimation Framework (cont.) Overall flow

19. Outlines Introduction Experimental Method Instruction Level Modeling Base energy cost Inner-Instruction effects Estimation Framework Software Power Optimization Instruction reordering Generation of energy efficient code Conclusion

20. Instruction Reordering A technique of scheduling instructions. This technique is trying to reduce circuit state overhead. In fact, a variation of only up to 2% Different architecture may lead to different results.

21. Generating of energy efficient code Instruction using only register operands cost in the vicinity of 300mA. Memory reads that hit the cache cost upwards of 430 mA. Memory writes cost upwards of 530 mA. For example ADD DX,BX takes just one cycle ADD DX,[BX] takes two cycles Reducing in number of memory operands can be achieved by adopting suitable code generation policies.

22. Generating of energy efficient code (cont.) 1cc---general purpose compiler ht1---hand tuning of the code for shorter running time leads to 15% reduction in running time. Energy cost goes down by 13.5% ht2---3 local variables are located to registers and the appropriate memory operands are replaced by register operands. ht3---2 more variables are allocated to registers and all redundant instructions are removed. 40.6% 33%

23. Outlines Introduction Experimental Method Instruction Level Modeling Base energy cost Inner-Instruction effects Estimation Framework Software Power Optimization Instruction reordering Generation of energy efficient code Conclusion

24. This paper presents a methodology for analyzing the energy consumption of embedded software. Based on an instruction level model. It can be used to help verify if an embedded design meets its energy constrains and be the guideline. Initial attempts at code re-writing demonstrate significant power reductions-justifying the motivation for such a power analysis technique.

25. Thanks for attention!
