1. Myelopoiesis and Lymphopoiesis Amy Lovett-Racke, PhD Associate Professor Department of Microbial Infection and Immunity

2. Learning Objectives  Know which cells are derived from the three major progenitor cells.  Know which cells play a role in innate versus adaptive immune responses.  Describe the role of cytokines in hematopoiesis.

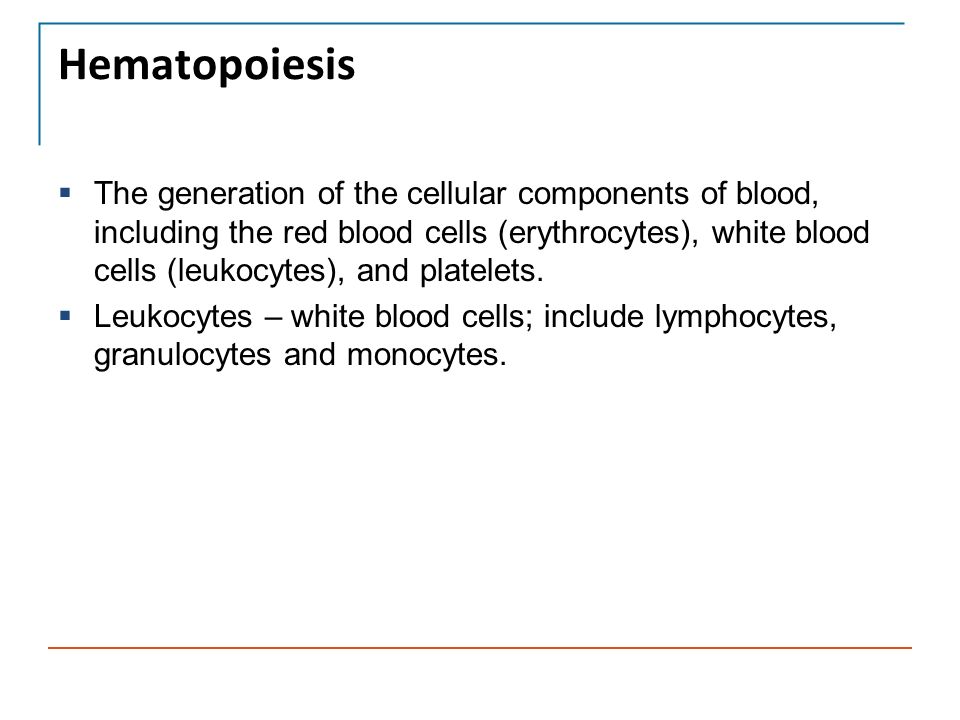

3. Hematopoiesis  The generation of the cellular components of blood, including the red blood cells (erythrocytes), white blood cells (leukocytes), and platelets.  Leukocytes – white blood cells; include lymphocytes, granulocytes and monocytes.

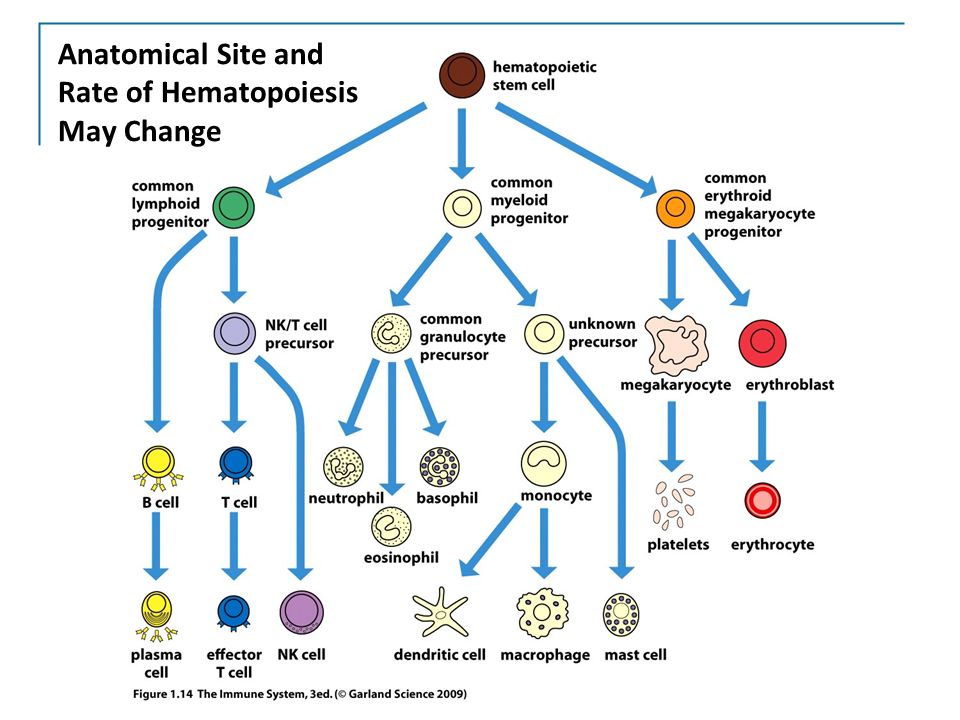

4. Anatomical Site and Rate of Hematopoiesis May Change

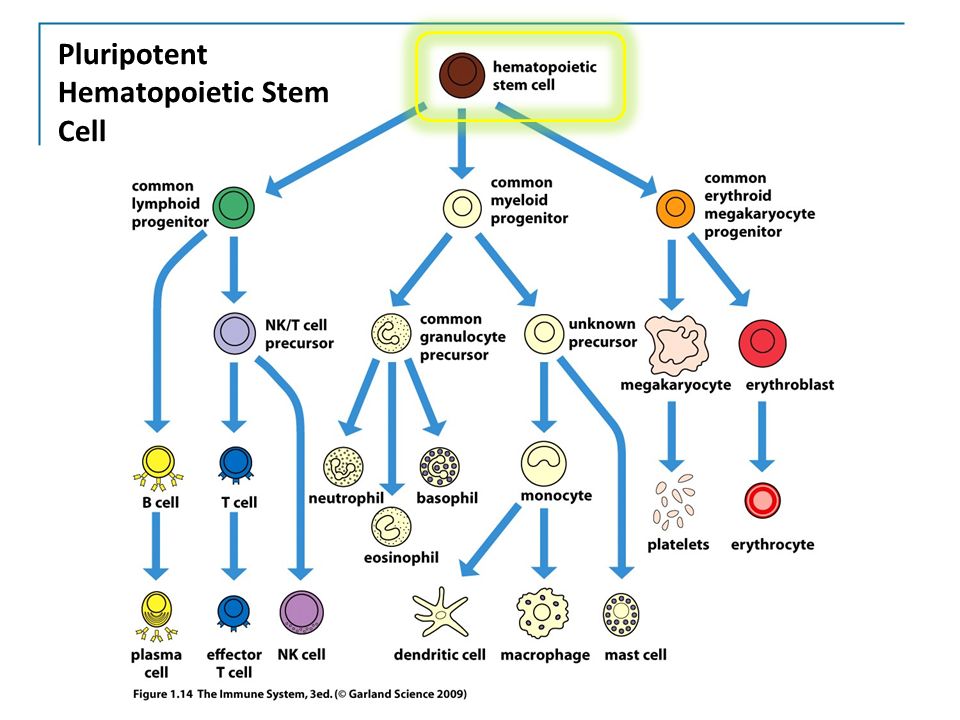

5. Pluripotent Hematopoietic Stem Cell

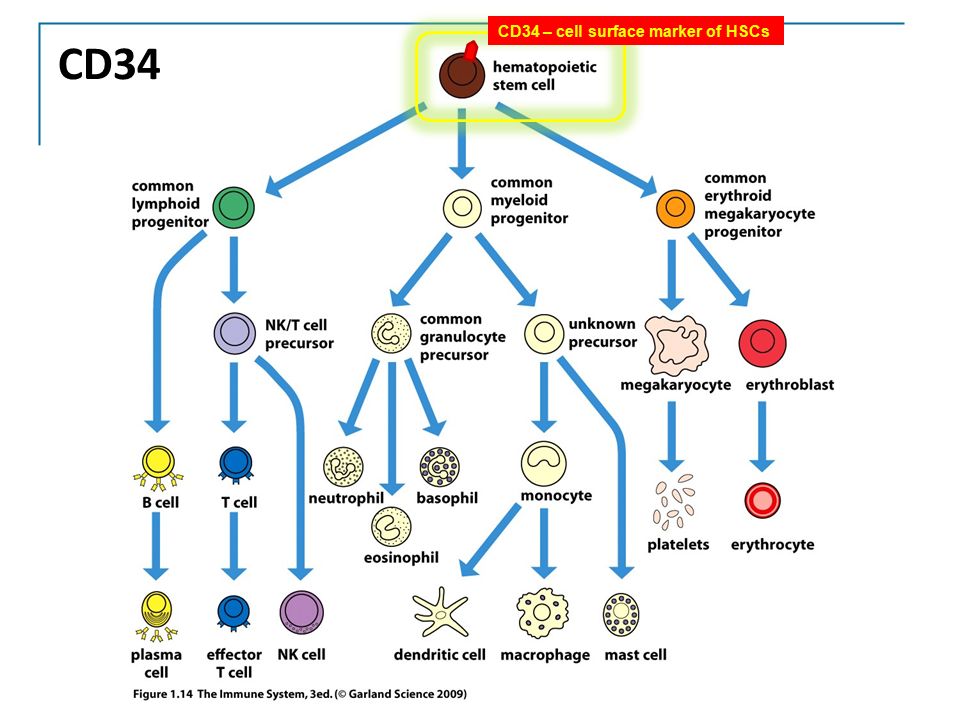

6. CD34 – cell surface marker of HSCs CD34

7. Progenitor Cells

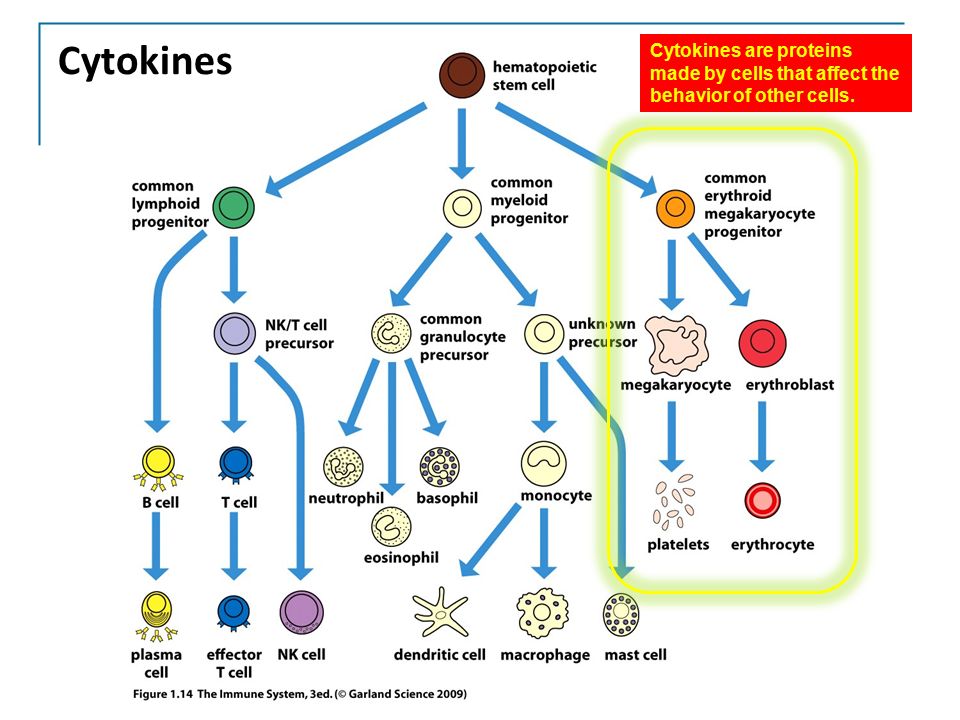

8. Cytokines Cytokines are proteins made by cells that affect the behavior of other cells.

9. Erythropoietin (EPO) is a cytokine that promotes the development of erythrocytes. Erythropoietin EPO

10. Cytokines are proteins made by cells that affect the behavior of other cells. Thrombopoietin (TPO) is the primary cytokine that promotes the development of megakaryocytes. thrombocytes Thrombopoietin TPO

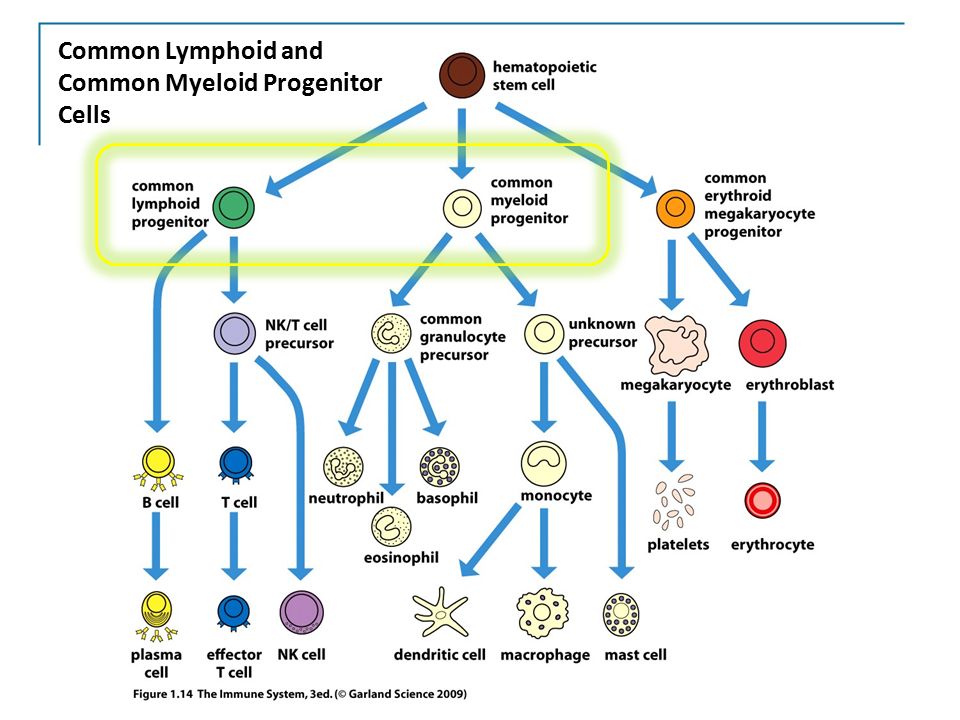

11. Common Lymphoid and Common Myeloid Progenitor Cells

12. Innate Immune Cells

13. GM-CSF – granulocytes macrophage stimulating factor M-CSF – macrophage colony stimulating factor G-CSF – granulocyte colony stimulating factor IL-3 – interleukin-3 Cytokines

14. B and T Cells Adaptive Immune Cells

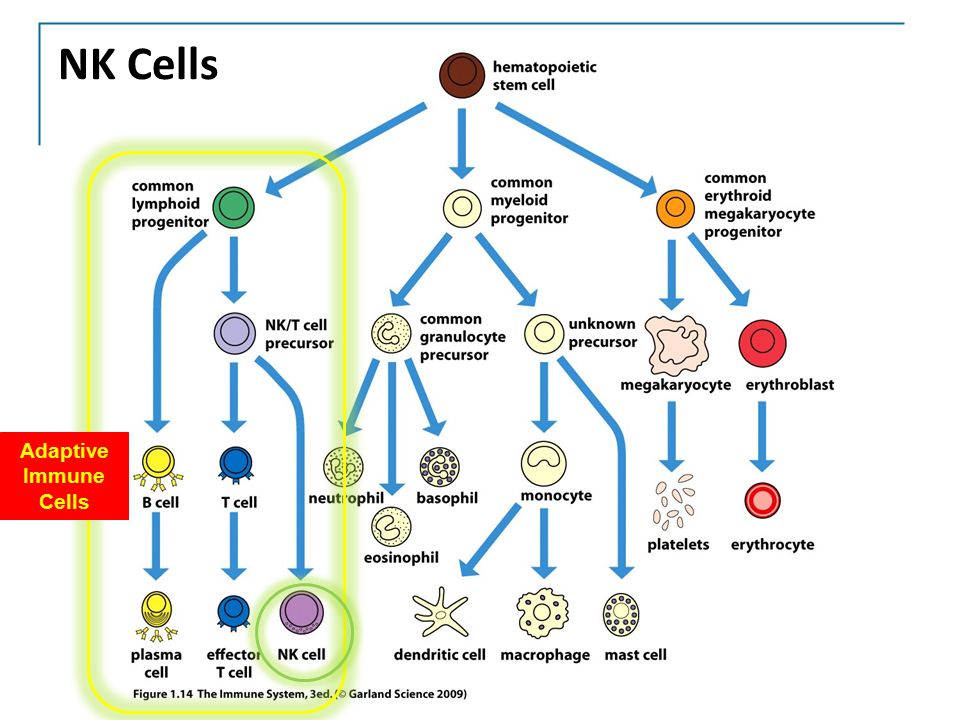

15. NK Cells

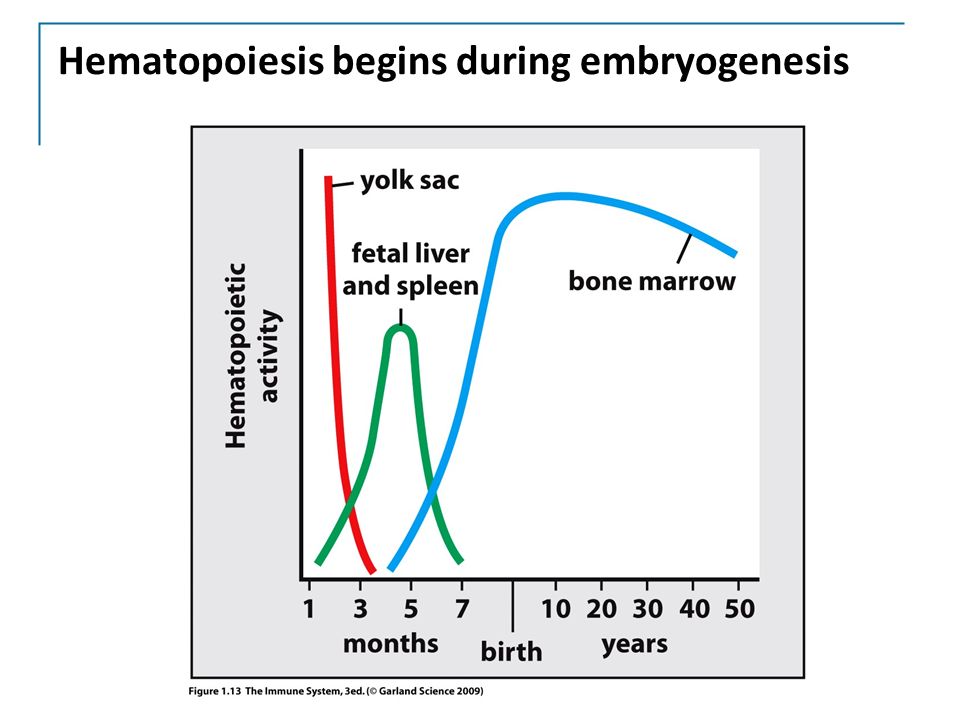

16. Hematopoiesis begins during embryogenesis

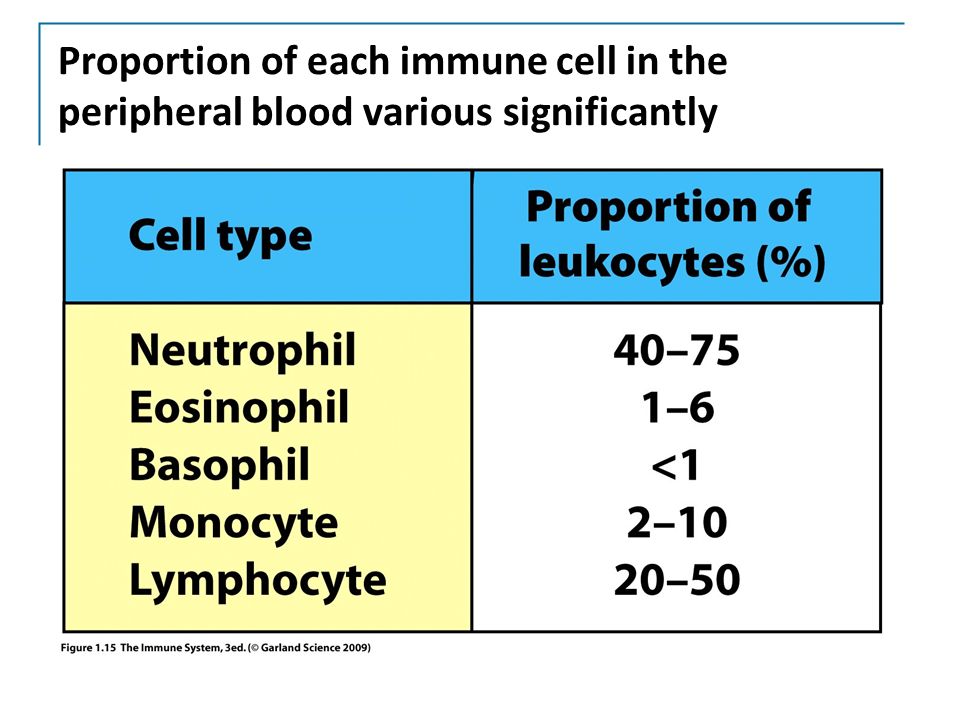

17. Proportion of each immune cell in the peripheral blood various significantly

18. Summary 1.All blood cells originate from hematopoietic stem cells. 2.Blood cells are divided into three types based on progenitor cell origination; erythroid/megakarocyte (red blood cells and megakaryocytes), myeloid and lymphoid. 3.Myeloid and lymphoid derived cells are the white blood cells and are responsible for innate and adaptive immune functions. 4.Cytokines play a vital role in the development of immune cells. 5.Hematopoiesis occurs predominantly in the bone marrow, but originates in the yolk sac and fetal liver/spleen during development.

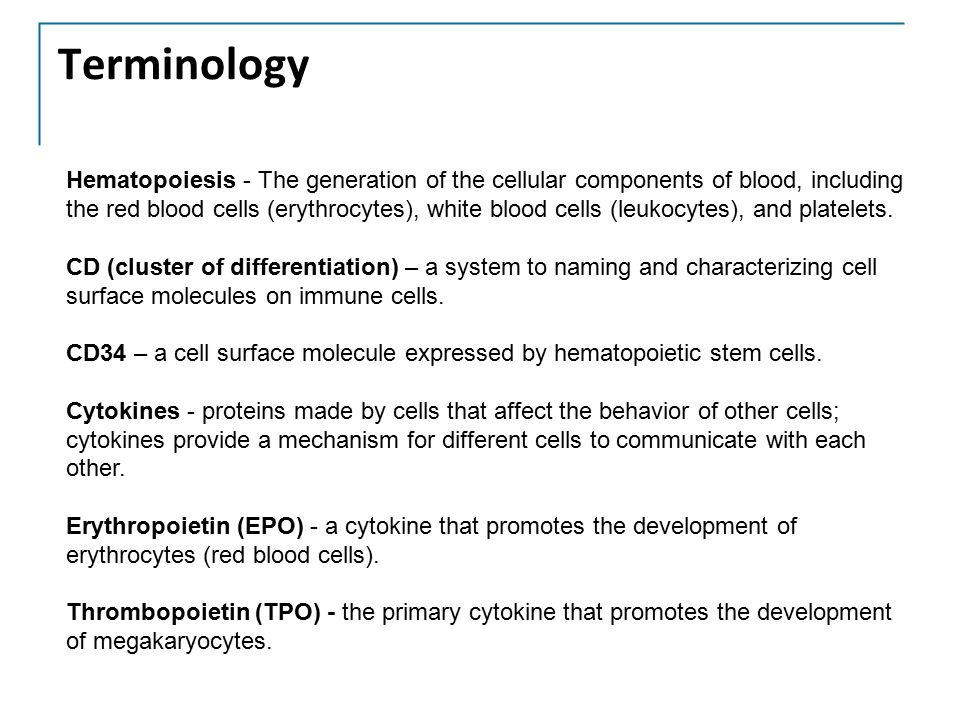

19. Terminology Hematopoiesis - The generation of the cellular components of blood, including the red blood cells (erythrocytes), white blood cells (leukocytes), and platelets. CD (cluster of differentiation) – a system to naming and characterizing cell surface molecules on immune cells. CD34 – a cell surface molecule expressed by hematopoietic stem cells. Cytokines - proteins made by cells that affect the behavior of other cells; cytokines provide a mechanism for different cells to communicate with each other. Erythropoietin (EPO) - a cytokine that promotes the development of erythrocytes (red blood cells). Thrombopoietin (TPO) - the primary cytokine that promotes the development of megakaryocytes.

20. Terminology Thrombocytes – platelets; derived from megakaryocytes Innate immune cells – cells derived from myeloid progenitors and NK cells; these cells act early in infection and are not specific for the pathogen. Adaptive immune cells – B cells and T cells which differentiate upon infection into cells that recognize the specific pathogen; responses have memory and therefore, can rapidly recognize the same pathogen upon re-infection.
