Turtle Dissection
3
Scientists believe other land vertebrates evolved from BONY LOBE-FINNED fish
4
TURTLE LATIN meaning KINGDOM _____________ PHYLUM ____________________________ SUBPHYLUM ___________________________ CLASS _______________________________ ORDER _____________________________ ANIMALIA CHORDATA VERTEBRATA “backbone” REPTILIA “to creep or crawl” CHELONIA “tortoise”
5
INTEGUMENT THICK, DRY, SCALY SKIN Contains KERATIN (protein) LIPIDS & PROTEINS make it water tight
6
ADVANTAGES over thin, moist Amphibian skin 1.WATER TIGHT - Keeps them from drying out on land 2.TOUGH PROTECTION – - prevents injury, keeps out germs, - prevents wear & tear on skin when crawling around on land
7

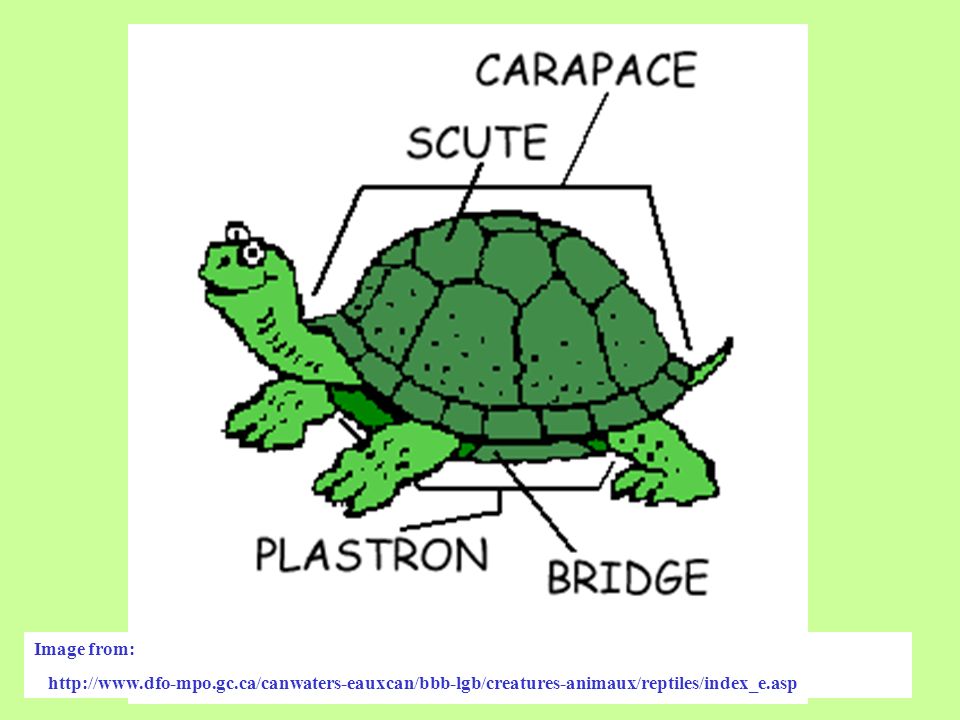

Image from: http://www.dfo-mpo.gc.ca/canwaters-eauxcan/bbb-lgb/creatures-animaux/reptiles/index_e.asp
8
SHELL IS LIVING PART OF BODY Expanded ribs form shell Can regenerate damaged scutes Growth rings tell age
9

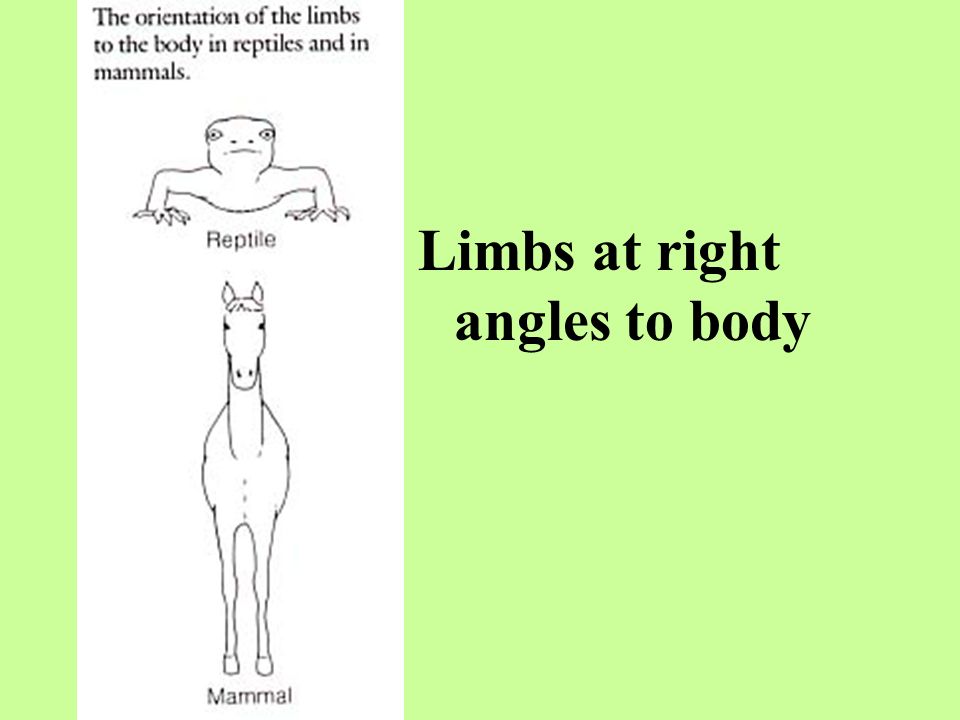

Limbs at right angles to body
10
Location of Pelvic and Pectoral girdles allow turtle to pull limbs into shell http://www.biosci.ohio-state.edu/~eeob/anatomy/eeob512/miscellaneous/turtleskeleton.jpg
11
Nictitating membrane Tympanic membrane External nares Only reptiles with NO TEETH
12

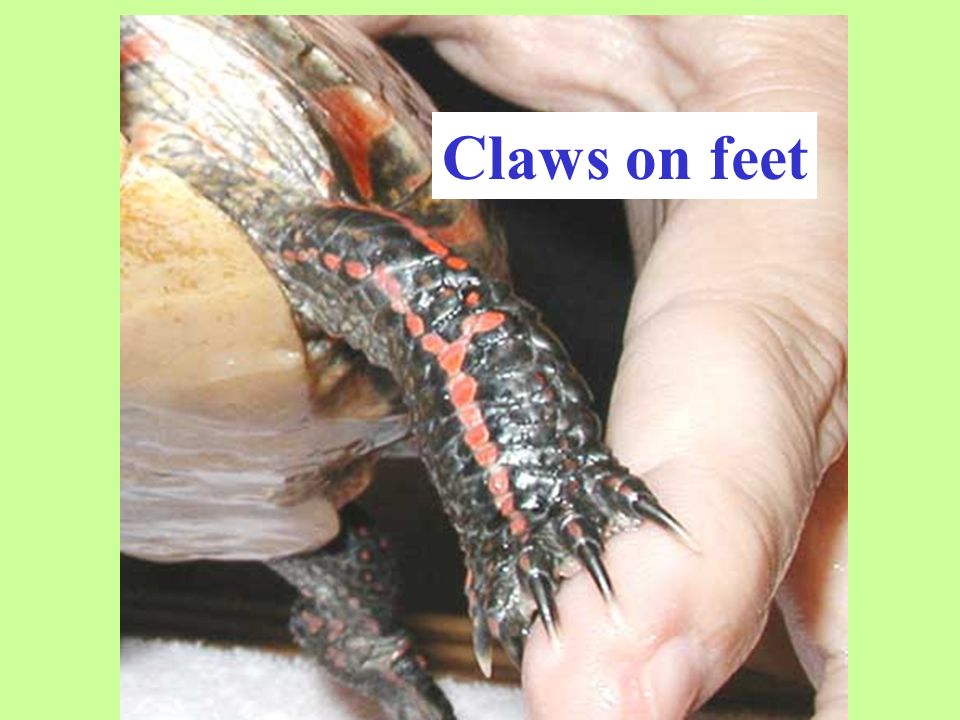

Claws on feet
13
VENT
14
WHAT SEX IS IT? FEMALES: MALES: Short tail Longer tail Vent closer Vent farther from body
15
MALE PLASTRON slightly CONCAVE to fit on top of female CURVE OF PLASTRON FEMALE PLASTRON slightly CONVEX to make more room for eggs
16
INTERNAL FERTILIZATION Increases chances of sperm and egg meeting Image from: http://www.turtletimes.com/PhotoContest/2001PhotoContests/May2001/Geoemyda%20spengleri%20mating.jpg Penis deposits sperm inside female’s body
17
GLOTTIS – respiratory opening
18
PHARYNX GULLET GLOTTIS INTERNAL NARES
19
Ectothermic Body heat comes from surrounding environment Slow metabolism/low activity in cold places “cold-blooded” EX: All invertebrates, fish, amphibians, reptiles
20
ECTOTHERMIC ADVANTAGES: Slow metabolism means you can survive on 1/10 the food as a same size endotherm DISADVANTAGES: Can’t to live in extremely cold places (NO reptiles in Arctic) Can’t keep up max activity level for long
21
Endothermic “warm-blooded” Create own body heat FAST metabolism allows for: high activity for extended time ability to live in variety of environments EX: Birds, Mammals
22
PELVIC & PECTORAL GIRDLES inside ribs PERICARDIAL MEMBRANE Covers & protects heart
23

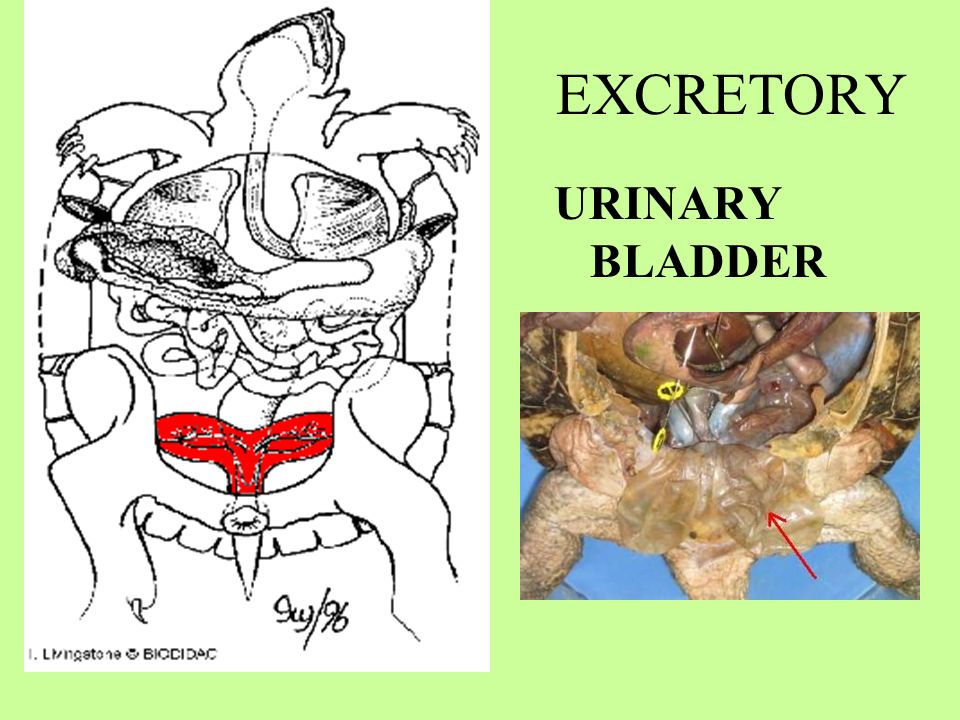

EXCRETORY URINARY BLADDER
24

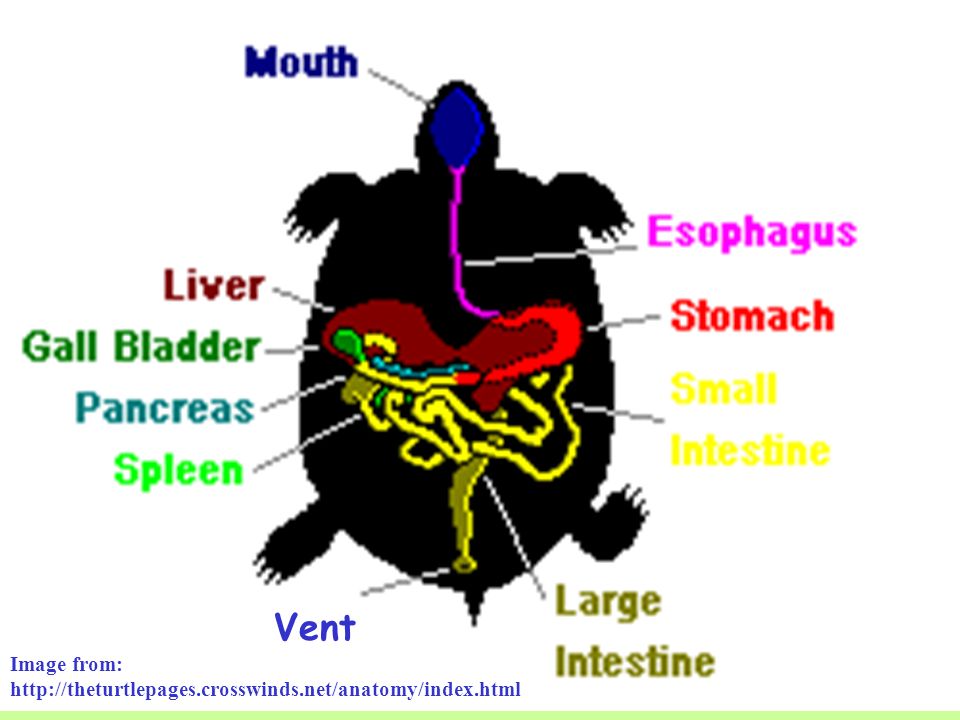

Image from: http://theturtlepages.crosswinds.net/anatomy/index.html Vent
25
LIVER Makes BILE Stores GLYCOGEN Stores VITAMINS Processes TOXINS including nitrogen waste for kidneys
26
Image from: http://www.spc.cc.tx.us/biology/jmckinney/Studyimages/turtle/turtledissectlist.html
27
GALL BLADDER Stores BILE
28
STOMACH Add ACID; Start DIGESTION; Grind & mash food
29

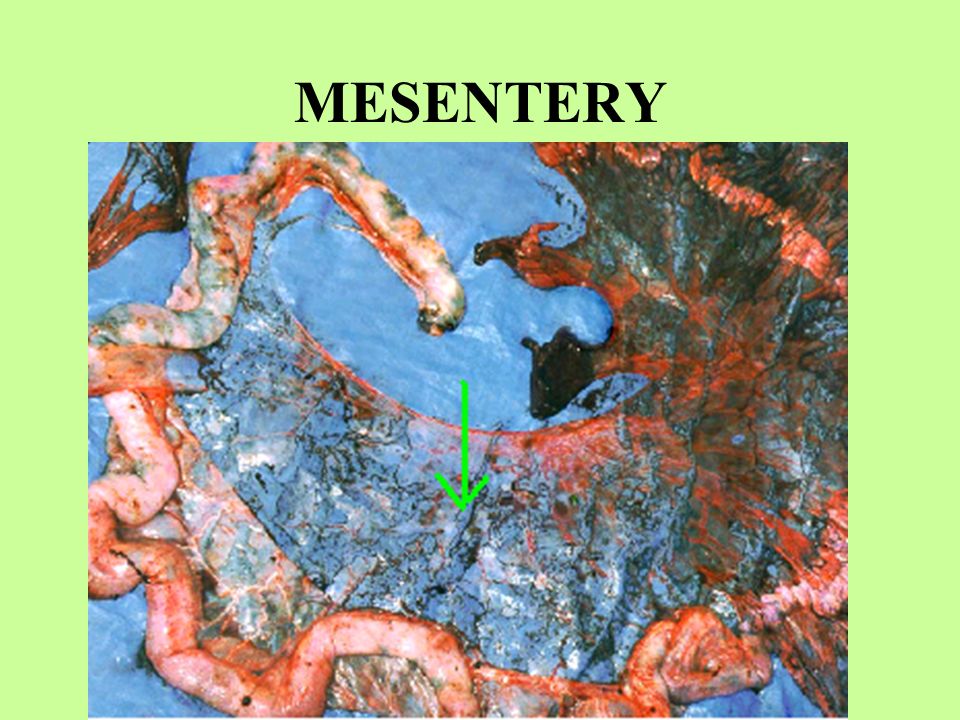

MESENTERY
30
PANCREAS In mesentery near first loop of small intestine Makes TRYPSIN, INSULIN, GLUCAGON
31
SMALL INTESTINE Duodenum Ileum LARGE INTESTINE (Also called COLON)
32
CLOACA
33
SPLEEN Make, store, recycle RBC’s
34

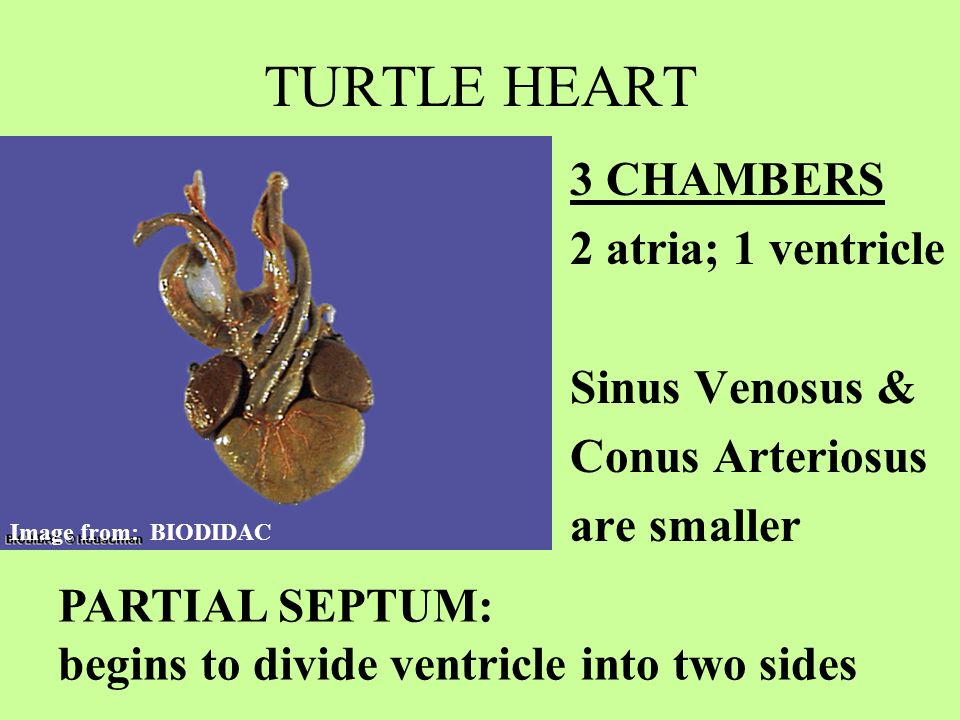

TURTLE HEART 3 CHAMBERS 2 atria; 1 ventricle Sinus Venosus & Conus Arteriosus are smaller PARTIAL SEPTUM: begins to divide ventricle into two sides Image from: BIODIDAC
35
FISH
36
Sinus venosus RIGHT Atrium Ventricle Conus arteriosus Lungs Body organs LEFT Atrium FROG/TURTLE CIRCULATION
37
REPTILES Can bypass lungs to save energy Holding breath underwater Hibernating When want to warm up quickly
38
ENDOCRINE Glands that make hormones that control other body organs THYROID: located above heart Makes hormones that control heart rate, blood pressure; cell development and growth PANCREAS controls blood sugar levels
40
TRACHEA & ESOPHAGUS
41
BRONCHI
42

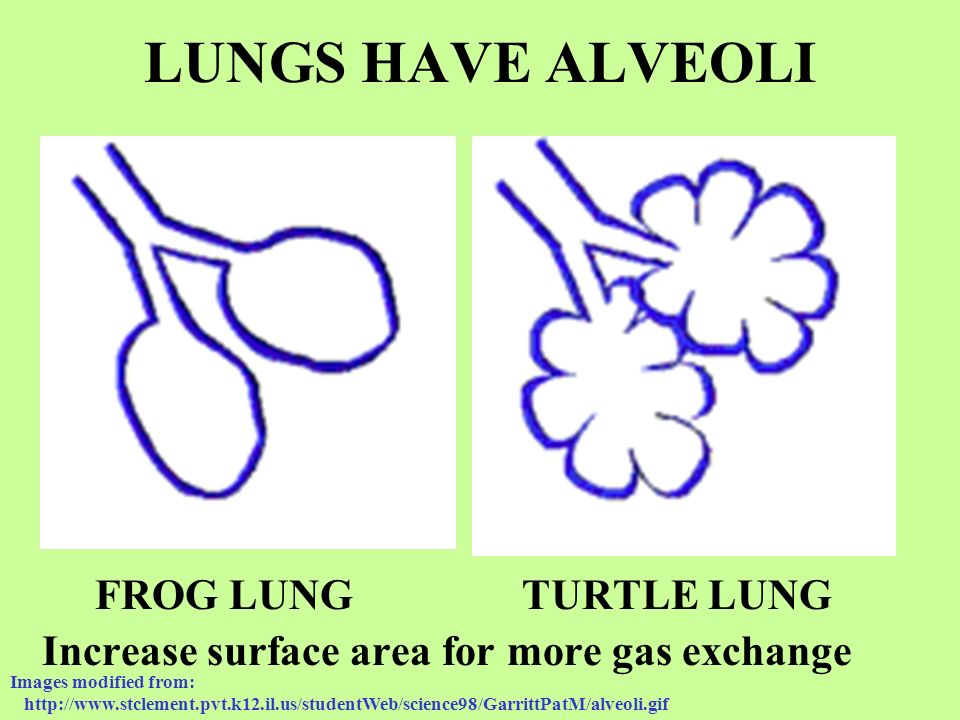

LUNGS HAVE ALVEOLI FROG LUNGTURTLE LUNG Increase surface area for more gas exchange Images modified from: http://www.stclement.pvt.k12.il.us/studentWeb/science98/GarrittPatM/alveoli.gif
43
REPRODUCTIVE MALEFEMALE Images modified from: http://theturtlepages.crosswinds.net/anatomy/index.html Vent
44
OVARY- make eggs OVIDUCT- add shells transport to cloaca
45
Image from: BIODIDAC EPIDIDYMIS –sperm mature here; add tails TESTES – make sperm
46
INTERNAL FERTILIZATION Increases chances of sperm and egg meeting Image from: http://www.turtletimes.com/PhotoContest/2001PhotoContests/May2001/Geoemyda%20spengleri%20mating.jpg
47
DIRECT DEVELOPMENT Image from: http://www.neuroscientist.com/animimag/turtles.htm
48
SEX is determined by TEMPERATURE of NEST Image from: http://www.parcplace.org/documents/GeneralHerpInfo/learnabout2.htm
49
Types of Reproduction
50
Ways offspring enter world OVIPARITY- Reproductive tract encloses egg in a protective shell Eggs deposited outside body to hatch Nourishment comes from egg EX: Most reptiles,birds & a few mammals (monotremes)
51
VIVIPARITY- No shell around egg Eggs retained in body Nourished by mother through placenta Offspring are born alive Ex: Mammals & some reptiles Ways offspring enter world
52
OVOVIVIPARITY- Egg surrounded by protective shell but kept in body until just before hatching or can hatch inside female Nourishment comes from egg not mother Ex: Some reptiles (snakes) Ways offspring enter world
53
OVI PARITY OVOVIVI PARITY VIVI PARITY SHELL? NO SHELL? Embryo grows? Food comes From? Seen in? SHELL OUTSIDE EGG Birds, Reptiles, Few mammals NO SHELL INSIDE MOTHER Mammals, few reptiles SHELL INSIDE EGG Reptiles
54
AMNIOTIC EGG
55
NERVOUS COMPLEX BRAIN DORSAL SPINAL CORD (Spine is fused to shell)
57
TURTLE BRAIN BIGGER CEREBRUM than same sized amphibian Image modified from: http://theturtlepages.crosswinds.net/anatomy/reprodexc.html
58
WHAT’S IN REPTILES? Internal fertilization- (Penis) increases chances of sperm finding egg allows addition of protective shell Amniotic eggs- can lay eggs on land now; better protection for embryos Partial septum- better separation on high/low oxygen blood
59
WHAT’S IN REPTILES? Other kinds of reproduction- (OVOVIVIPARITY; VIVIPARITY) increases chances for offspring survival Control over Pulmonary circulation can shift blood away from lungs to body when needed Dry, scaly skin better able to live on land
60
WHAT’S IN REPTILES? Nitrogen waste = uric acid AMMONIA UREA URIC ACID Least toxic form; Needs least water to dilute conserves water Bigger cerebrum- “smarter”; more complex behaviors
61

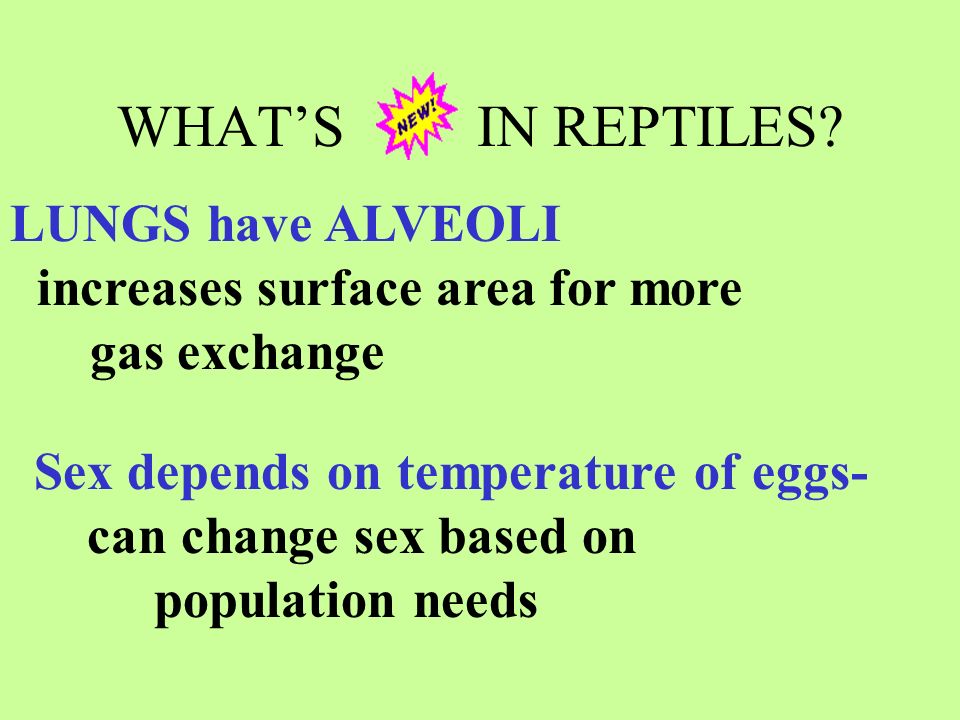

WHAT’S IN REPTILES? LUNGS have ALVEOLI increases surface area for more gas exchange Sex depends on temperature of eggs- can change sex based on population needs
