2. Spares for Critical Items Kickers W. Weterings SPS Consolidation Review Laurent Ducimetiere, Patrick Faure, Luis Miguel Coralejo Feliciano, Remy Noulibos, Luc Sermeus, Viliam Senaj

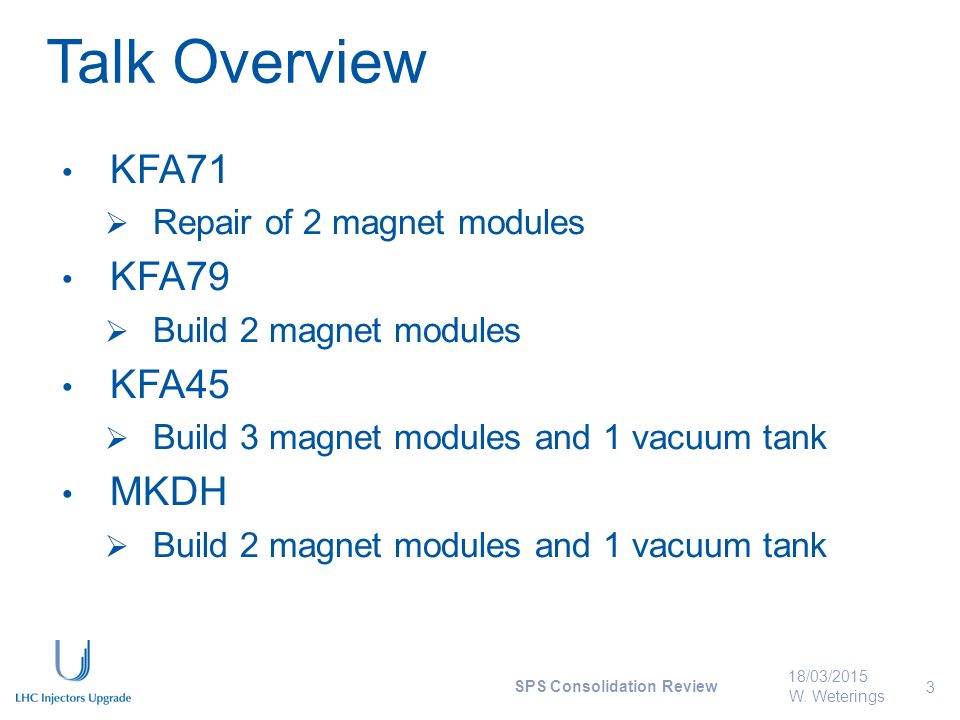

3. SPS Consolidation Review Talk Overview KFA71  Repair of 2 magnet modules KFA79  Build 2 magnet modules KFA45  Build 3 magnet modules and 1 vacuum tank MKDH  Build 2 magnet modules and 1 vacuum tank 18/03/2015 W. Weterings 3

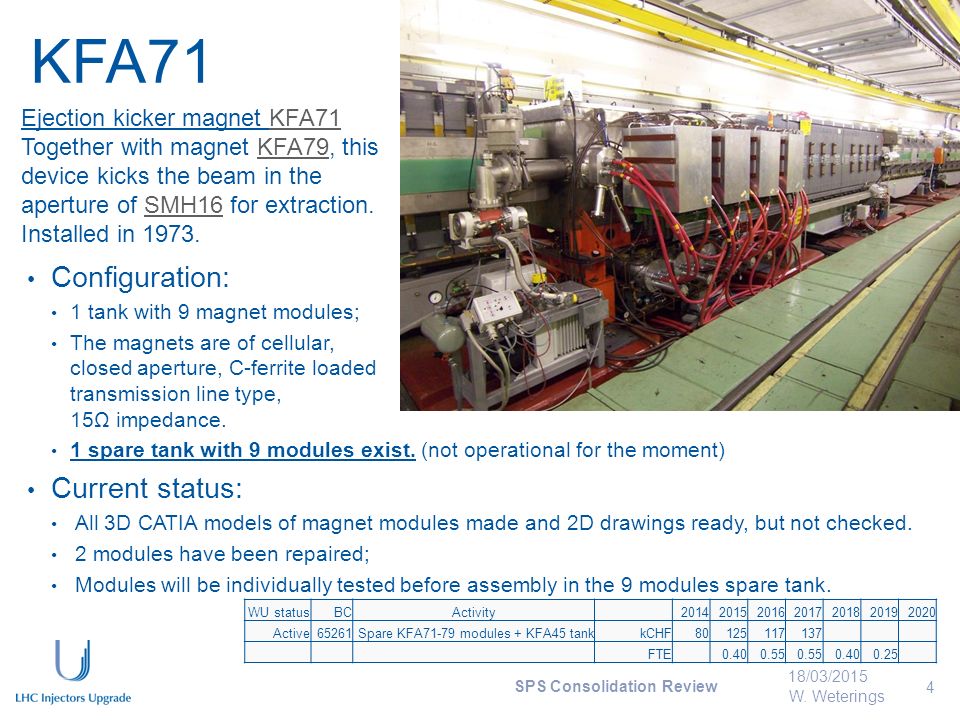

4. SPS Consolidation Review KFA71 18/03/2015 W. Weterings 4 Ejection kicker magnet KFA71 Together with magnet KFA79, this device kicks the beam in the aperture of SMH16 for extraction.KFA71KFA79SMH16 Installed in 1973. Configuration: 1 tank with 9 magnet modules; The magnets are of cellular, closed aperture, C-ferrite loaded transmission line type, 15Ω impedance. 1 spare tank with 9 modules exist. (not operational for the moment) Current status: All 3D CATIA models of magnet modules made and 2D drawings ready, but not checked. 2 modules have been repaired; Modules will be individually tested before assembly in the 9 modules spare tank. WU statusBCActivity 2014201520162017201820192020 Active65261Spare KFA71-79 modules + KFA45 tankkCHF80125117137 FTE 0.400.55 0.400.25

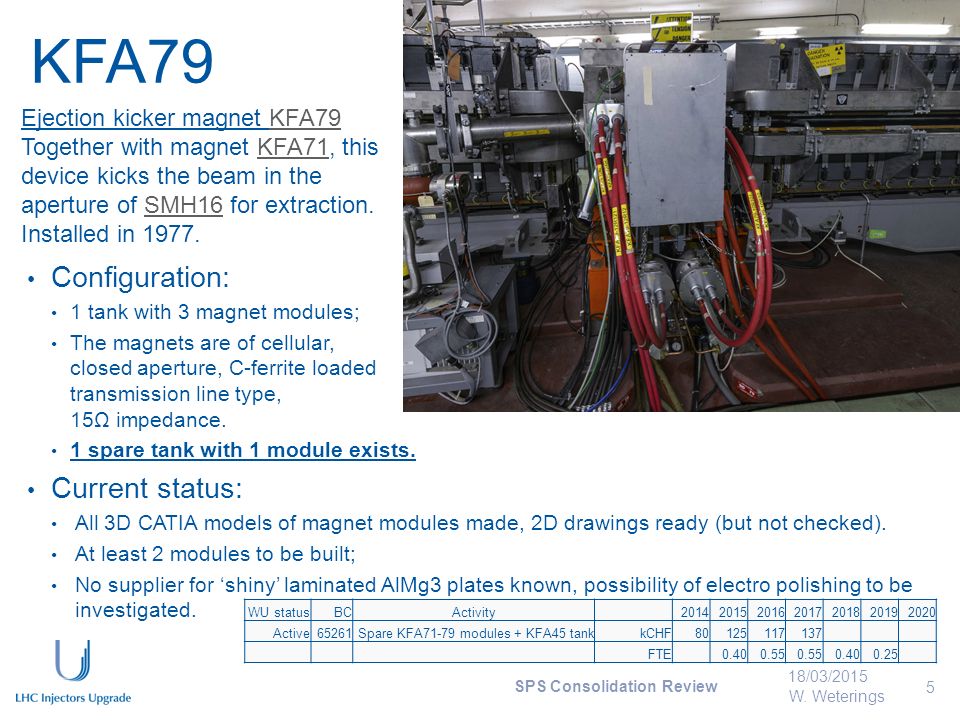

5. SPS Consolidation Review KFA79 Configuration: 1 tank with 3 magnet modules; The magnets are of cellular, closed aperture, C-ferrite loaded transmission line type, 15Ω impedance. 1 spare tank with 1 module exists. Current status: All 3D CATIA models of magnet modules made, 2D drawings ready (but not checked). At least 2 modules to be built; No supplier for ‘shiny’ laminated AlMg3 plates known, possibility of electro polishing to be investigated. 18/03/2015 W. Weterings 5 Ejection kicker magnet KFA79 Together with magnet KFA71, this device kicks the beam in the aperture of SMH16 for extraction. Installed in 1977.KFA79KFA71SMH16 WU statusBCActivity 2014201520162017201820192020 Active65261Spare KFA71-79 modules + KFA45 tankkCHF80125117137 FTE 0.400.55 0.400.25

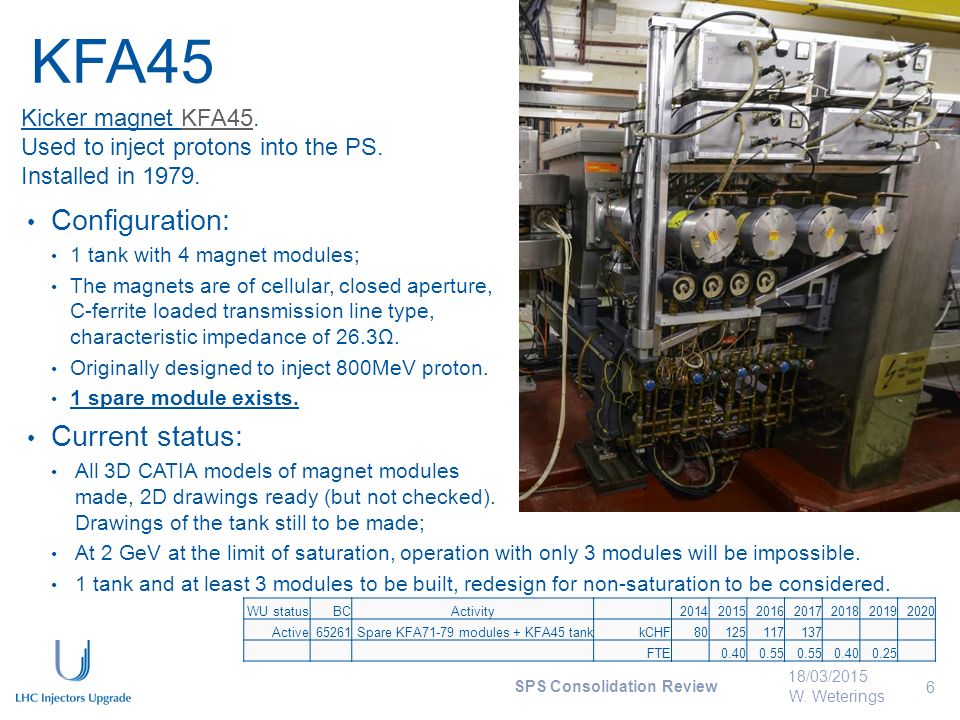

6. SPS Consolidation Review KFA45 18/03/2015 W. Weterings 6 Kicker magnet KFA45.KFA45 Used to inject protons into the PS. Installed in 1979. Configuration: 1 tank with 4 magnet modules; The magnets are of cellular, closed aperture, C-ferrite loaded transmission line type, characteristic impedance of 26.3Ω. Originally designed to inject 800MeV proton. 1 spare module exists. Current status: All 3D CATIA models of magnet modules made, 2D drawings ready (but not checked). Drawings of the tank still to be made; At 2 GeV at the limit of saturation, operation with only 3 modules will be impossible. 1 tank and at least 3 modules to be built, redesign for non-saturation to be considered. WU statusBCActivity 2014201520162017201820192020 Active65261Spare KFA71-79 modules + KFA45 tankkCHF80125117137 FTE 0.400.55 0.400.25

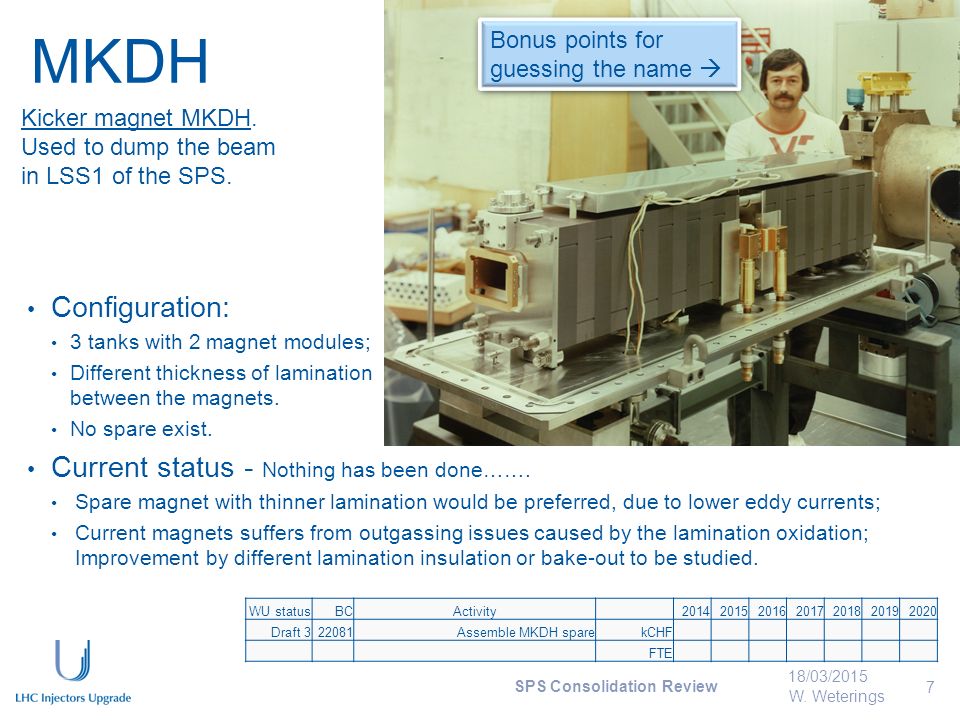

7. SPS Consolidation Review Configuration: 3 tanks with 2 magnet modules; Different thickness of lamination between the magnets. No spare exist. Current status - Nothing has been done……. Spare magnet with thinner lamination would be preferred, due to lower eddy currents; Current magnets suffers from outgassing issues caused by the lamination oxidation; Improvement by different lamination insulation or bake-out to be studied. MKDH 18/03/2015 W. Weterings 7 WU statusBCActivity 2014201520162017201820192020 Draft 322081Assemble MKDH sparekCHF FTE Kicker magnet MKDH. Used to dump the beam in LSS1 of the SPS. Bonus points for guessing the name 

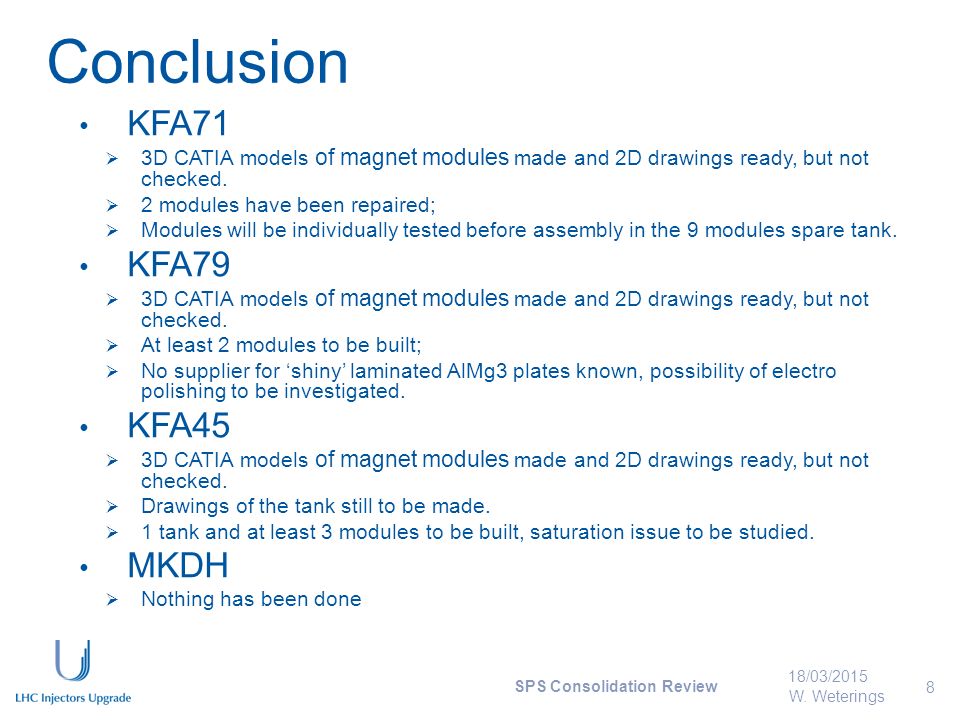

8. SPS Consolidation Review Conclusion KFA71  3D CATIA models of magnet modules made and 2D drawings ready, but not checked.  2 modules have been repaired;  Modules will be individually tested before assembly in the 9 modules spare tank. KFA79  3D CATIA models of magnet modules made and 2D drawings ready, but not checked.  At least 2 modules to be built;  No supplier for ‘shiny’ laminated AlMg3 plates known, possibility of electro polishing to be investigated. KFA45  3D CATIA models of magnet modules made and 2D drawings ready, but not checked.  Drawings of the tank still to be made.  1 tank and at least 3 modules to be built, saturation issue to be studied. MKDH  Nothing has been done 18/03/2015 W. Weterings 8
