1. Module 14: Migrating Users from Exchange Server 5.5 to Exchange Server 2003

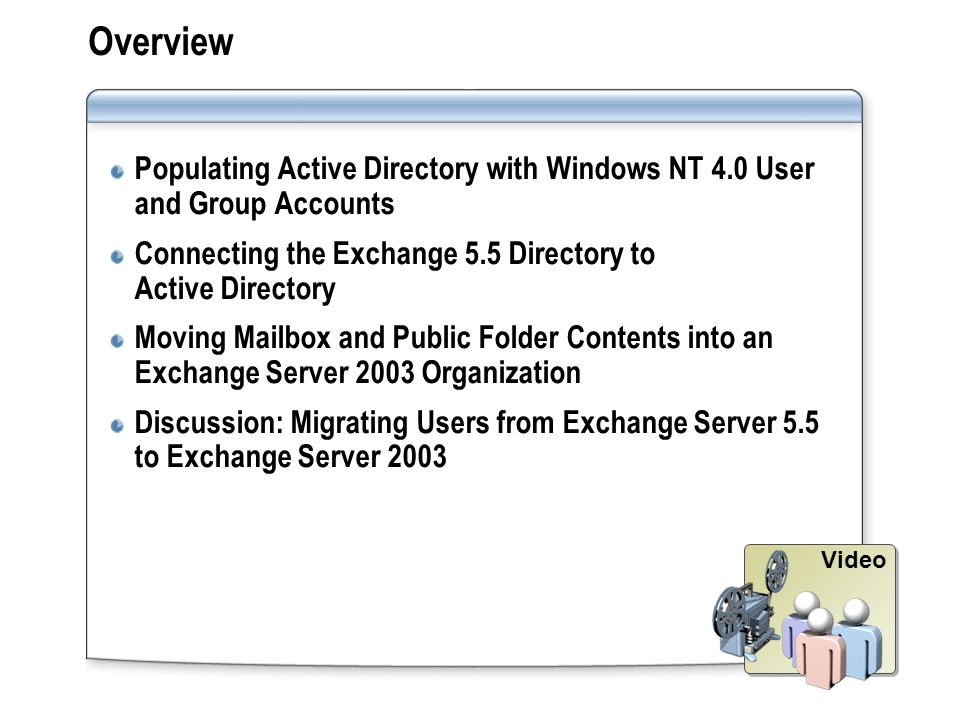

2. Overview Populating Active Directory with Windows NT 4.0 User and Group Accounts Connecting the Exchange 5.5 Directory to Active Directory Moving Mailbox and Public Folder Contents into an Exchange Server 2003 Organization Discussion: Migrating Users from Exchange Server 5.5 to Exchange Server 2003 Video

3. Lesson: Populating Active Directory with Windows NT 4.0 User and Group Accounts What Is ADMT? What Is SIDHistory? The Process of Populating Active Directory Using ADMT How to Create a Two-Way Trust Between a Windows NT Server 4.0 Domain and an Active Directory Domain How to Install ADMT How to Migrate User and Group Accounts Using ADMT How to Migrate Exchange Server 5.5 Mailbox ACLs Using ADMT How to Verify a Successful User and Group Account Migration

4. What Is ADMT? A wizard-based utility that simplifies the migration and reconfiguration of user and group accounts Active Directory Migration Tool At least one domain controller in the Must be running Target domain Windows 2003 Source domain Windows NT 4.0 SP4 or later

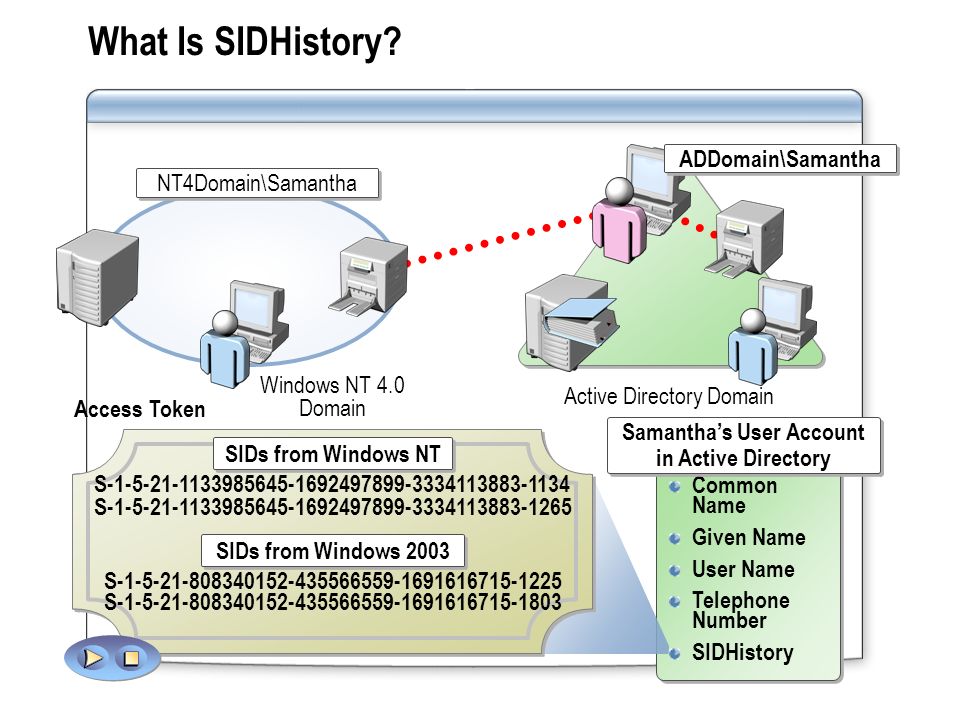

5. What Is SIDHistory? NT4Domain\Samantha Windows NT 4.0 Domain Active Directory Domain Access Token Common Name Given Name User Name Telephone Number SIDHistory Common Name Given Name User Name Telephone Number SIDHistory Samantha’s User Account in Active Directory ADDomain\Samantha S-1-5-21-1133985645-1692497899-3334113883-1134 S-1-5-21-1133985645-1692497899-3334113883-1265 S-1-5-21-808340152-435566559-1691616715-1225 S-1-5-21-808340152-435566559-1691616715-1803 SIDs from Windows NT SIDs from Windows 2003 Windows NT 4.0 Domain Active Directory Domain Access Token Common Name Given Name User Name Telephone Number SIDHistory Common Name Given Name User Name Telephone Number SIDHistory Samantha’s User Account in Active Directory ADDomain\Samantha S-1-5-21-1133985645-1692497899-3334113883-1134 S-1-5-21-1133985645-1692497899-3334113883-1265 S-1-5-21-808340152-435566559-1691616715-1225 S-1-5-21-808340152-435566559-1691616715-1803 SIDs from Windows NT SIDs from Windows 2003 NT4Domain\Samantha

6. The Process of Populating Active Directory Using ADMT verify Administrator 2 2 User and Group Accounts 5 5 migrate Windows NT 4.0 Domain 1 1 3 3 Active Directory Domain 4 4 Mailbox ACLs Mailbox ACLs migrate Administrator 2 2 User and Group Accounts 5 5 migrate Windows NT 4.0 Domain Active Directory Domain Mailbox ACLs migrate User and Group Accounts Mailbox ACLs Mailbox ACLs 1 1 verify 4 4 3 3 Create a two-way trust Install ADMT Migrate user and group accounts using ADMT Migrate Exchange 5.5 mailbox ACLS using ADMT Verify that user and group accounts migrated 1 1 2 2 3 3 4 4 5 5

7. How to Create a Two-Way Trust Between a Windows NT Server 4.0 Domain and an Active Directory Domain create a two- way trust Active Directory Domain Practice To create a two-way trust: From the Windows NT domain, add the Active Directory domain as a trusted domain and a trusting domain From the Active Directory domain, create a two-way trust with the Windows NT domain Add the Active Directory administrator account to the Windows NT domain’s local administrators group From the Windows NT domain, add the Active Directory domain as a trusted domain and a trusting domain From the Active Directory domain, create a two-way trust with the Windows NT domain Add the Active Directory administrator account to the Windows NT domain’s local administrators group 1 1 2 2 3 3 Windows NT 4.0 Domain

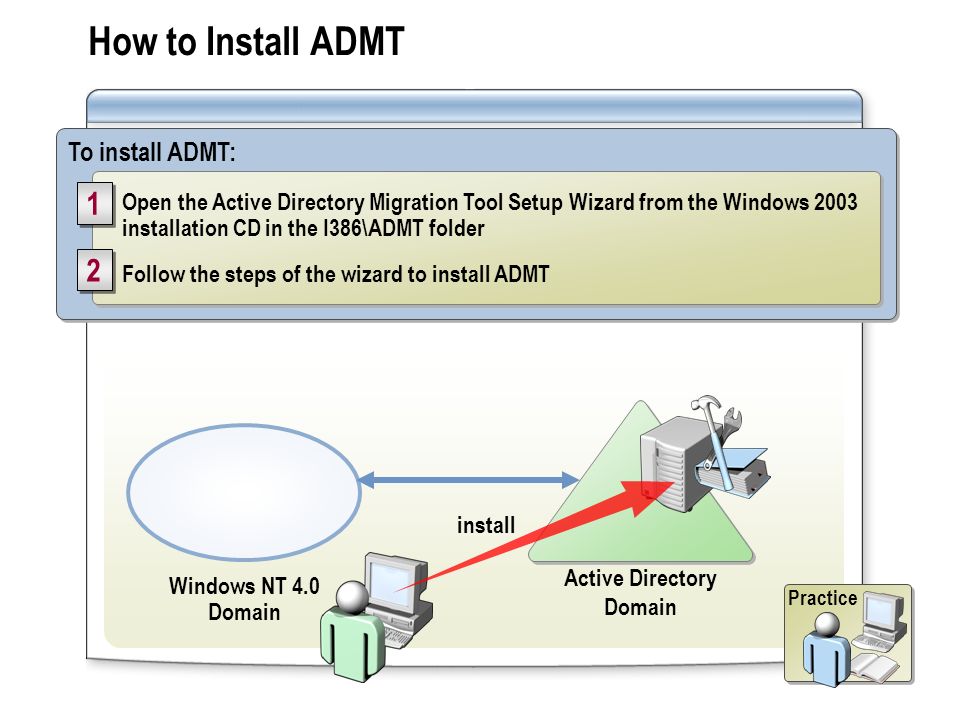

8. How to Install ADMT Practice To install ADMT: Open the Active Directory Migration Tool Setup Wizard from the Windows 2003 installation CD in the I386\ADMT folder Follow the steps of the wizard to install ADMT Open the Active Directory Migration Tool Setup Wizard from the Windows 2003 installation CD in the I386\ADMT folder Follow the steps of the wizard to install ADMT 1 1 2 2 Active Directory Domain Windows NT 4.0 Domain install

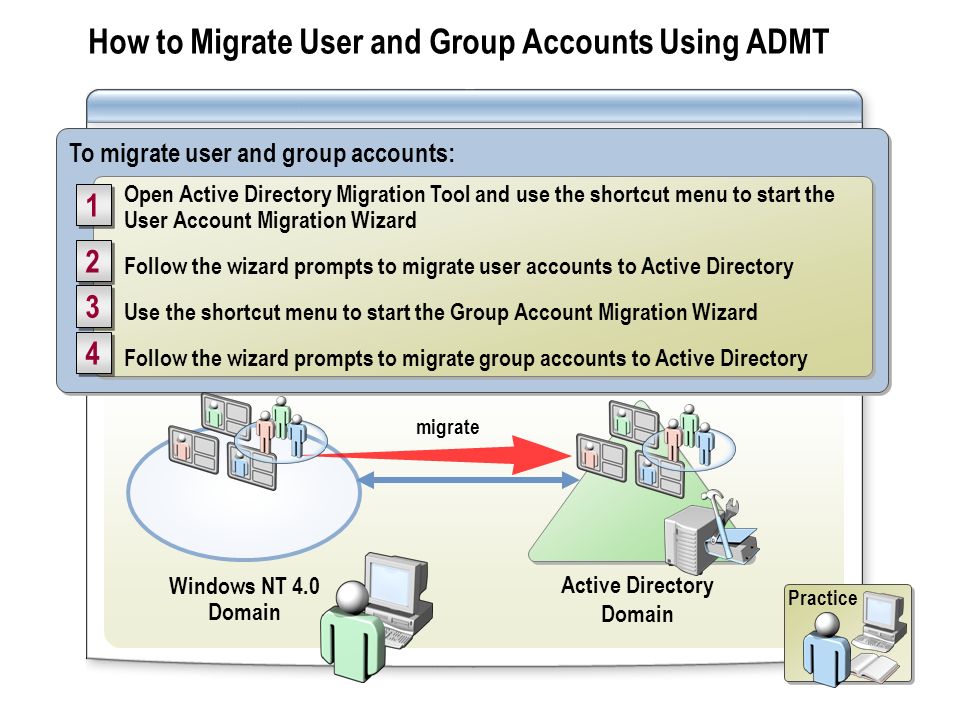

9. How to Migrate User and Group Accounts Using ADMT To migrate user and group accounts: Open Active Directory Migration Tool and use the shortcut menu to start the User Account Migration Wizard Follow the wizard prompts to migrate user accounts to Active Directory Use the shortcut menu to start the Group Account Migration Wizard Follow the wizard prompts to migrate group accounts to Active Directory Open Active Directory Migration Tool and use the shortcut menu to start the User Account Migration Wizard Follow the wizard prompts to migrate user accounts to Active Directory Use the shortcut menu to start the Group Account Migration Wizard Follow the wizard prompts to migrate group accounts to Active Directory Practice 1 1 2 2 3 3 4 4 Active Directory Domain Windows NT 4.0 Domain migrate

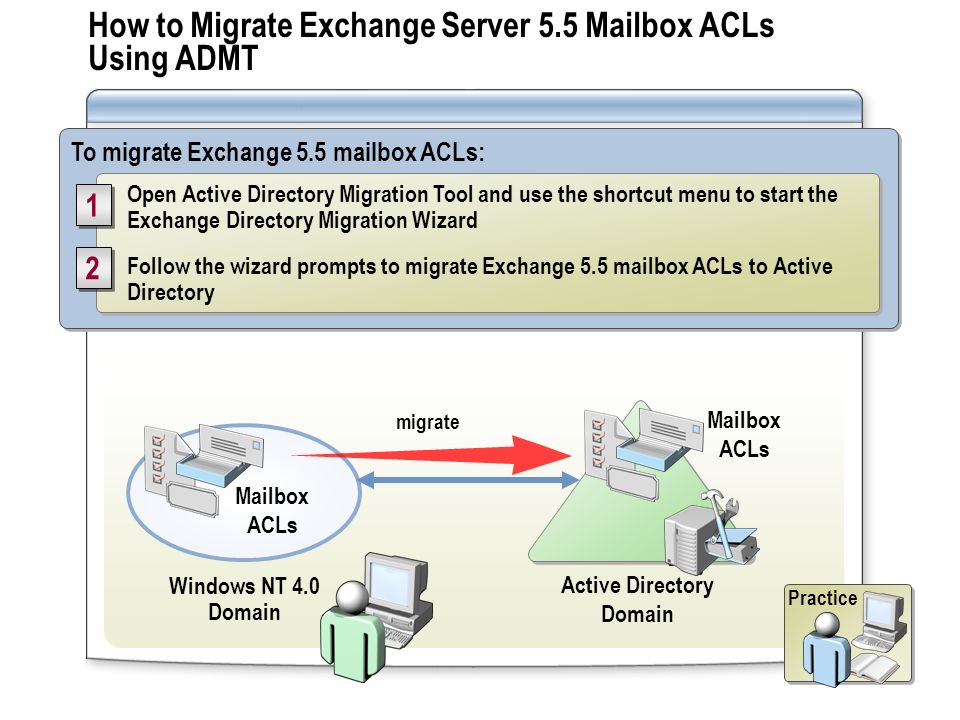

10. How to Migrate Exchange Server 5.5 Mailbox ACLs Using ADMT To migrate Exchange 5.5 mailbox ACLs: Open Active Directory Migration Tool and use the shortcut menu to start the Exchange Directory Migration Wizard Follow the wizard prompts to migrate Exchange 5.5 mailbox ACLs to Active Directory Open Active Directory Migration Tool and use the shortcut menu to start the Exchange Directory Migration Wizard Follow the wizard prompts to migrate Exchange 5.5 mailbox ACLs to Active Directory Practice 1 1 2 2 Active Directory Domain Windows NT 4.0 Domain migrate Mailbox ACLs

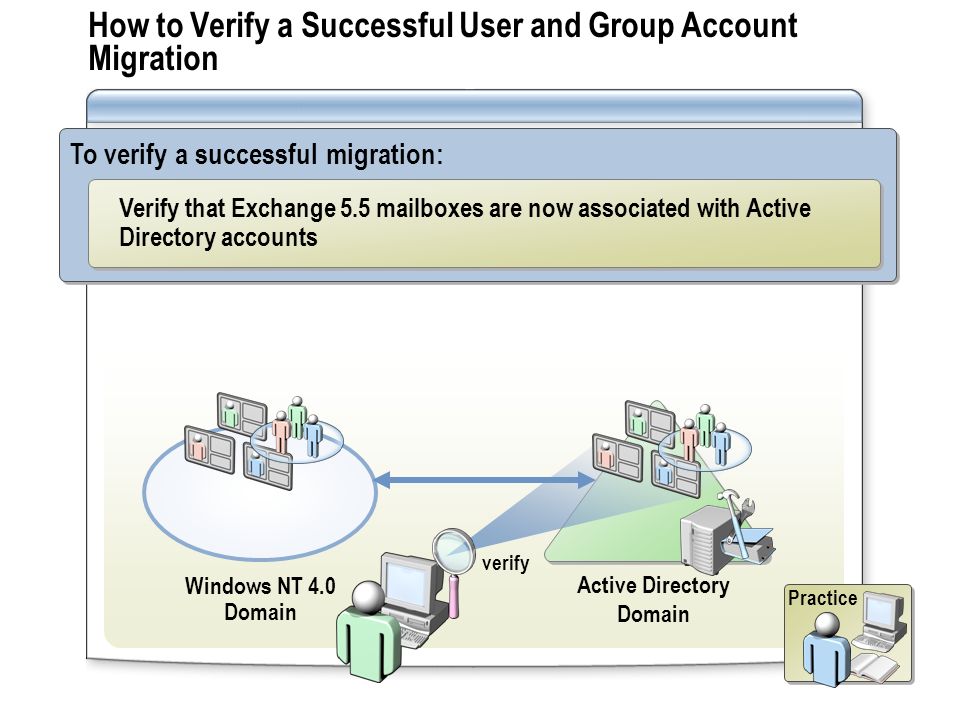

11. How to Verify a Successful User and Group Account Migration To verify a successful migration: Practice Verify that Exchange 5.5 mailboxes are now associated with Active Directory accounts Active Directory Domain Windows NT 4.0 Domain verify

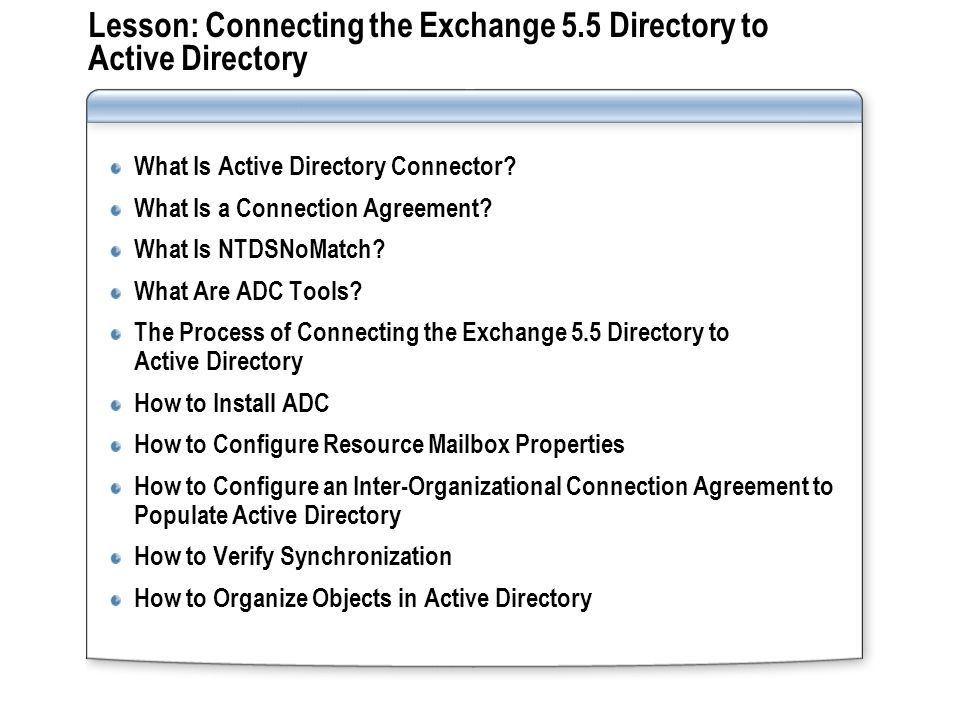

12. Lesson: Connecting the Exchange 5.5 Directory to Active Directory What Is Active Directory Connector? What Is a Connection Agreement? What Is NTDSNoMatch? What Are ADC Tools? The Process of Connecting the Exchange 5.5 Directory to Active Directory How to Install ADC How to Configure Resource Mailbox Properties How to Configure an Inter-Organizational Connection Agreement to Populate Active Directory How to Verify Synchronization How to Organize Objects in Active Directory

13. What Is Active Directory Connector? Updates object changes between the Exchange 5.5 directory and Active Directory: Eliminates the need for re-entering this data in Active Directory Automatically performs directory synchronization and maps all objects from the Exchange 5.5 directory to Active Directory Updates object changes between the Exchange 5.5 directory and Active Directory: Eliminates the need for re-entering this data in Active Directory Automatically performs directory synchronization and maps all objects from the Exchange 5.5 directory to Active Directory Active Directory Connector

14. What Is a Connection Agreement? An object that defines what will be synchronized and how synchronization will occur between the Exchange 5.5 directory and Active Directory Connection Agreement TypeDescription Configuration Replicates Exchange 5.5 configuration container information to Active Directory Recipient Defines which recipient objects in Active Directory and Exchange 5.5 will be synchronized and where each synchronized object will be replicated Public folder Replicates public folder properties between the Exchange 5.5 directory and Active Directory. Can only exist where a recipient connection agreement exists and only works in the same organization

15. What Is NTDSNoMatch? Needed because Exchange 5.5 allows a single Windows NT user account to own more than one mailbox but Exchange 2003 does not Use it to control how ADC matches mailboxes to Active Directory user accounts Needed because Exchange 5.5 allows a single Windows NT user account to own more than one mailbox but Exchange 2003 does not Use it to control how ADC matches mailboxes to Active Directory user accounts NTDSNoMatch An attribute in Active Directory that designates mailboxes as resource mailboxes: NTDSNoMatch Custom Attribute 10 (10): SamSmith’s Mailbox SamSmith Conf1 SamSmith Conf2 SamSmith’s Mailbox Resource Mailboxes

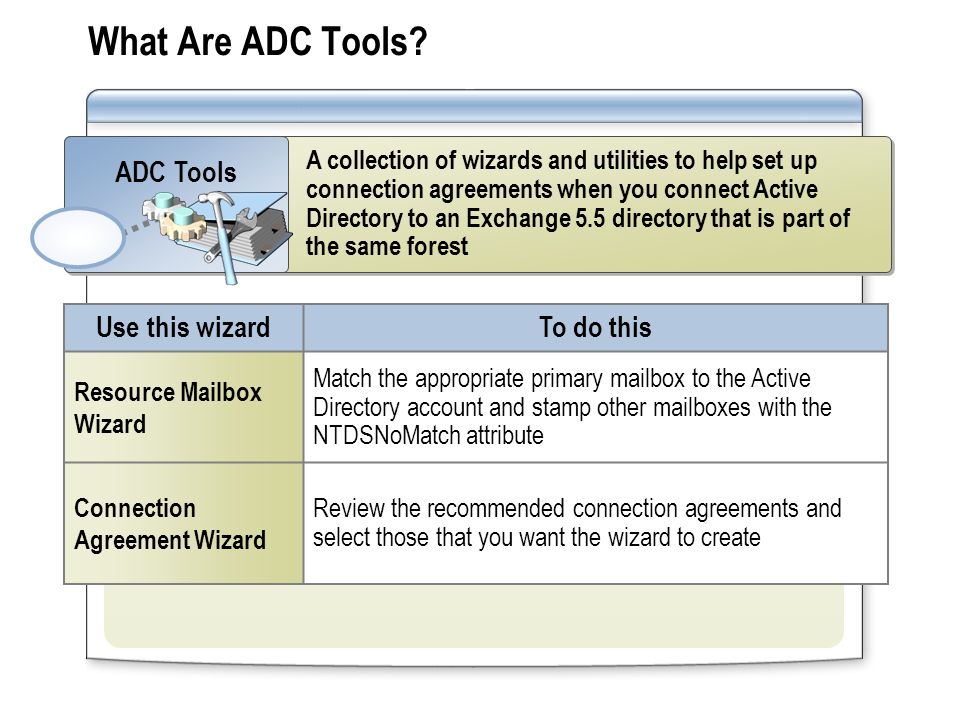

16. What Are ADC Tools? Use this wizardTo do this Resource Mailbox Wizard Match the appropriate primary mailbox to the Active Directory account and stamp other mailboxes with the NTDSNoMatch attribute Connection Agreement Wizard Review the recommended connection agreements and select those that you want the wizard to create A collection of wizards and utilities to help set up connection agreements when you connect Active Directory to an Exchange 5.5 directory that is part of the same forest ADC Tools

17. Administrator The Process of Connecting the Exchange 5.5 Directory to Active Directory verify 5 5 Install ADC 4 4 Exchange 5.5 Organization Active Directory Domain Install ADC Configure resource mailbox properties Configure an Inter-Organizational Connection Agreement to Populate Active Directory Verify synchronization Organize objects in Active Directory 1 1 2 2 3 3 4 4 5 5 SamSmith’s Mailbox SamSmith Conf1 2 2 SamSmith’s Mailbox Resource mailbox Configure Connection Agreement 3 3 1 1 Administrator verify Exchange 5.5 Organization Active Directory Domain Install ADC Configure resource mailbox properties Configure an inter-organizational connection agreement to populate Active Directory Verify synchronization Organize objects in Active Directory 1 1 2 2 3 3 4 4 5 5 SamSmith’s Mailbox SamSmith Conf1 SamSmith’s Mailbox Resource mailbox configure Connection Agreement

18. How to Install ADC Practice To install ADC: Use ExDeploy to choose a deployment scenario Start the Exchange 2003 ADC Setup Wizard Follow the wizard steps to complete the installation Use ExDeploy to choose a deployment scenario Start the Exchange 2003 ADC Setup Wizard Follow the wizard steps to complete the installation 1 1 2 2 3 3 Active Directory Domain Exchange 5.5 Organization install

19. To configure resource mailbox properties: Open Active Directory Connector from the Administrative Tools folder Run the Resource Mailbox Wizard to configure Custom Attribute 10 = NTDSNoMatch for mailboxes that have aliases that do not match their owner’s Verify that NTDSNoMatch completed successfully by viewing the custom attributes of one resource mailbox Use ExDeploy to verify that NTDSNoMatch completed without errors Open Active Directory Connector from the Administrative Tools folder Run the Resource Mailbox Wizard to configure Custom Attribute 10 = NTDSNoMatch for mailboxes that have aliases that do not match their owner’s Verify that NTDSNoMatch completed successfully by viewing the custom attributes of one resource mailbox Use ExDeploy to verify that NTDSNoMatch completed without errors 1 1 2 2 3 3 4 4 How to Configure Resource Mailbox Properties Practice Active Directory Domain Exchange 5.5 Organization ADC SamSmith’s Mailbox SamSmith Conf1 SamSmith’s Mailbox Resource mailbox configure

20. How to Configure an Inter-Organizational Connection Agreement to Populate Active Directory Practice To configure an inter-organizational connection agreement to populate Active Directory: Use Active Directory Connector Services to create a new recipient connection agreement Configure the connection agreement to be an inter-organizational connection agreement Verify the results by viewing the status in ADC Tools Use Active Directory Connector Services to create a new recipient connection agreement Configure the connection agreement to be an inter-organizational connection agreement Verify the results by viewing the status in ADC Tools 1 1 2 2 3 3 Active Directory Domain Exchange 5.5 Organization configure Connection Agreement

21. How to Verify Synchronization Practice To verify synchronization: Verify that Exchange 5.5 mailbox properties are synchronized to Active Directory Verify that Exchange 5.5 distribution lists are synchronized to Active Directory Run ExDeploy and verify that output indicates a successful synchronization Verify that Exchange 5.5 mailbox properties are synchronized to Active Directory Verify that Exchange 5.5 distribution lists are synchronized to Active Directory Run ExDeploy and verify that output indicates a successful synchronization 1 1 2 2 3 3 Active Directory Domain Exchange 5.5 Organization verify

22. How to Organize Objects in Active Directory Practice To organize objects in Active Directory: Move synchronized objects into your existing organizational structure Verify that synchronization works from the Exchange 5.5 directory to Active Directory after the objects have been moved Move synchronized objects into your existing organizational structure Verify that synchronization works from the Exchange 5.5 directory to Active Directory after the objects have been moved 1 1 2 2 Active Directory Domain Exchange 5.5 Organization organize verify

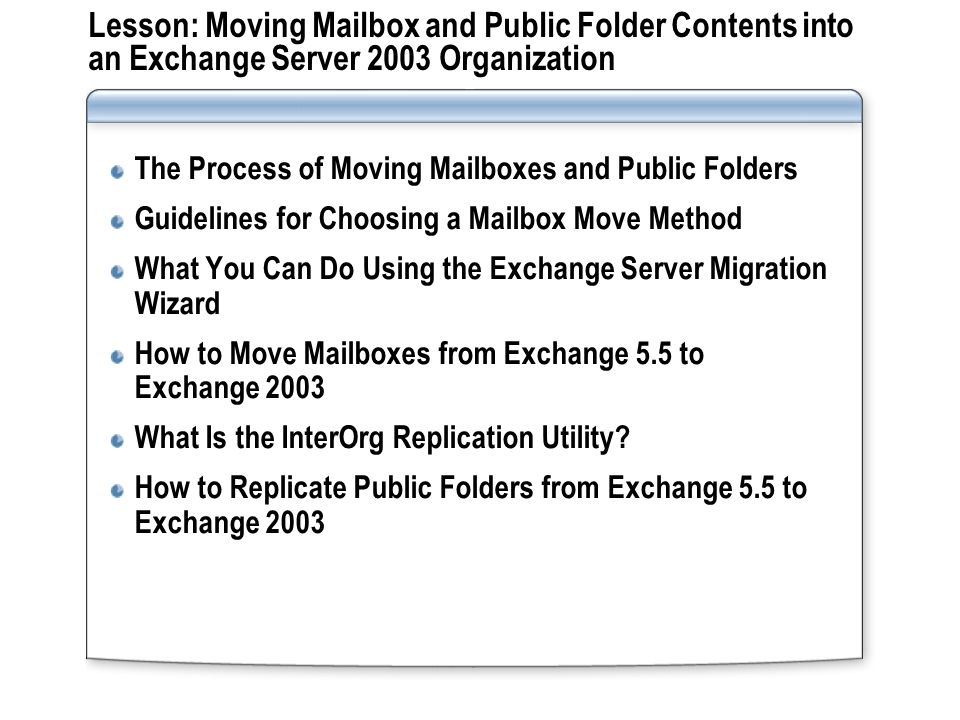

23. Lesson: Moving Mailbox and Public Folder Contents into an Exchange Server 2003 Organization The Process of Moving Mailboxes and Public Folders Guidelines for Choosing a Mailbox Move Method What You Can Do Using the Exchange Server Migration Wizard How to Move Mailboxes from Exchange 5.5 to Exchange 2003 What Is the InterOrg Replication Utility? How to Replicate Public Folders from Exchange 5.5 to Exchange 2003

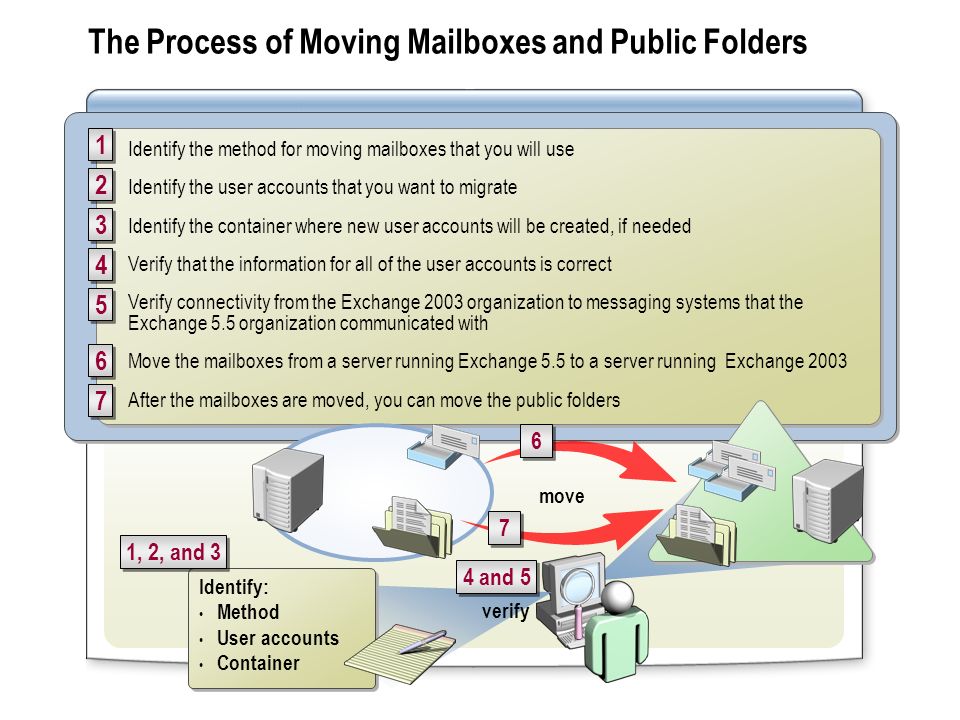

24. The Process of Moving Mailboxes and Public Folders Identify the method for moving mailboxes that you will use Identify the user accounts that you want to migrate Identify the container where new user accounts will be created, if needed Verify that the information for all of the user accounts is correct Verify connectivity from the Exchange 2003 organization to messaging systems that the Exchange 5.5 organization communicated with Move the mailboxes from a server running Exchange 5.5 to a server running Exchange 2003 After the mailboxes are moved, you can move the public folders Identify the method for moving mailboxes that you will use Identify the user accounts that you want to migrate Identify the container where new user accounts will be created, if needed Verify that the information for all of the user accounts is correct Verify connectivity from the Exchange 2003 organization to messaging systems that the Exchange 5.5 organization communicated with Move the mailboxes from a server running Exchange 5.5 to a server running Exchange 2003 After the mailboxes are moved, you can move the public folders 1 1 verify Identify: Method User accounts Container Identify: Method User accounts Container 1, 2, and 3 4 and 5 move 6 6 7 7 3 3 2 2 4 4 5 5 6 6 7 7

25. Guidelines for Choosing a Mailbox Move Method Method Description The one-step move Extract the e-mail data from the server running Exchange 5.5 and import it immediately to the server running Exchange 2003 The two-step move 1. Run the Exchange Server Migration Wizard once to extract migration files from the server running Exchange 5.5 2. Run the wizard again to import those migration files to the server running Exchange 2003 Guidelines: Use the one-step method if you have a high-bandwidth connection Use the two-step method: If your servers cannot reliably communicate across the network If you want to review and edit the extracted migration files between steps Use the one-step method if you have a high-bandwidth connection Use the two-step method: If your servers cannot reliably communicate across the network If you want to review and edit the extracted migration files between steps

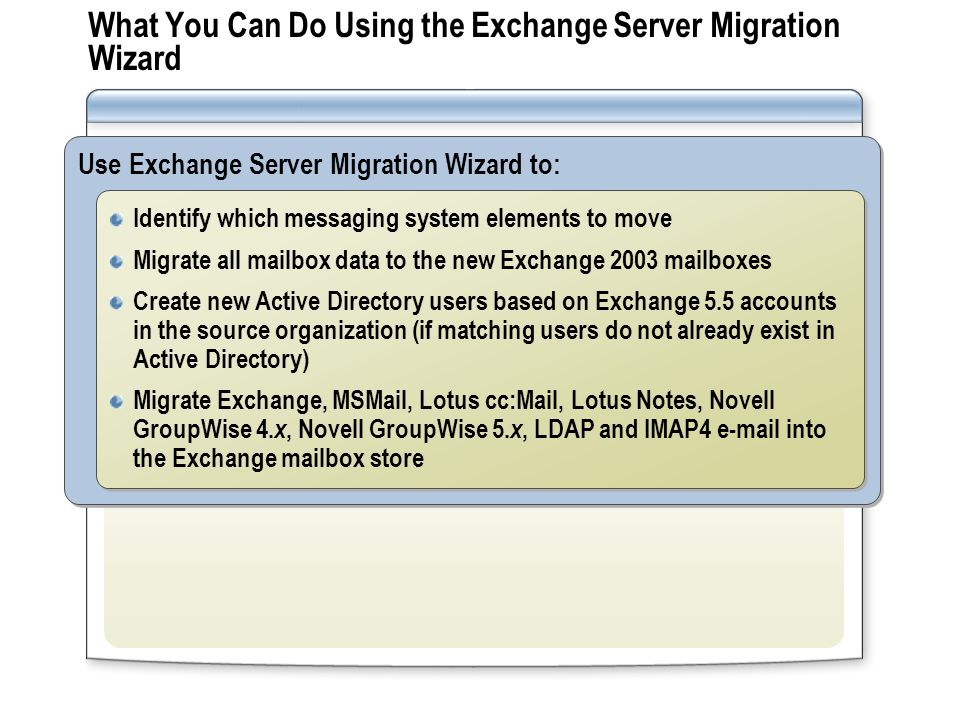

26. What You Can Do Using the Exchange Server Migration Wizard Use Exchange Server Migration Wizard to: Identify which messaging system elements to move Migrate all mailbox data to the new Exchange 2003 mailboxes Create new Active Directory users based on Exchange 5.5 accounts in the source organization (if matching users do not already exist in Active Directory) Migrate Exchange, MSMail, Lotus cc:Mail, Lotus Notes, Novell GroupWise 4. x, Novell GroupWise 5. x, LDAP and IMAP4 e-mail into the Exchange mailbox store Identify which messaging system elements to move Migrate all mailbox data to the new Exchange 2003 mailboxes Create new Active Directory users based on Exchange 5.5 accounts in the source organization (if matching users do not already exist in Active Directory) Migrate Exchange, MSMail, Lotus cc:Mail, Lotus Notes, Novell GroupWise 4. x, Novell GroupWise 5. x, LDAP and IMAP4 e-mail into the Exchange mailbox store

27. How to Move Mailboxes from Exchange 5.5 to Exchange 2003 Practice To move mailboxes from Exchange 5.5 to Exchange 2003: Use Exchange Server Migration Wizard to move mailboxes Verify that the mailboxes were moved Verify that Exchange 5.5 resource mailboxes are synchronized to Active Directory Use Exchange Server Migration Wizard to move mailboxes Verify that the mailboxes were moved Verify that Exchange 5.5 resource mailboxes are synchronized to Active Directory 1 1 2 2 3 3 move Windows NT 4.0 Domain verify Active Directory Domain Exchange Server Migration Wizard

28. What Is the InterOrg Replication Utility? Program Description Configuration Creates a configuration file for setting replication frequency, logging options, folders to be replicated, and accounts to be used Replication Service Uses the file created by the Configuration program to continuously update information from one server (the Publisher) to one or more Exchange servers (Subscribers) Replicates public folders between different Exchange organizations Includes the Configuration and Replication Service programs Replicates public folders between different Exchange organizations Includes the Configuration and Replication Service programs InterOrg Replication Utility

29. How to Replicate Public Folders from Exchange 5.5 to Exchange 2003 Practice To replicate public folders from Exchange 5.5 to Exchange 2003: Prepare the servers for the InterOrg Replication Utility Install the InterOrg Replication Utility Create a replication configuration file on the server running Exchange 5.5 Configure the replication service on the server running Exchange 5.5 Use Outlook to verify that public folders and their content are replicating correctly Remove the instances of the public folders from the server running Exchange 5.5 Prepare the servers for the InterOrg Replication Utility Install the InterOrg Replication Utility Create a replication configuration file on the server running Exchange 5.5 Configure the replication service on the server running Exchange 5.5 Use Outlook to verify that public folders and their content are replicating correctly Remove the instances of the public folders from the server running Exchange 5.5 1 1 2 2 3 3 4 4 5 5 6 6 replicate Windows NT 4.0 Domain Active Directory Domain InterOrg Replication Utility verify Outlook

30. Discussion: Migrating Users from Exchange Server 5.5 to Exchange Server 2003 Read the scenarios Determine possible solutions Discuss your solutions with the class Read the scenarios Determine possible solutions Discuss your solutions with the class 1 1 2 2 3 3
