1 T HUNDERSTORMS & T ORNADOES

2 Q UESTION OF THE D AY Where would you expect to find the greatest proportion of Tstorms and why?

3 C YCLONE Circulation around ANY low- pressure center Intensity and size do not matter Tornadoes and Hurricanes are smaller than mid-latitude cyclones and more violent

4 T HUNDERSTORMS Storm that produces lightning and thunder Characterized based upon the up/down draft of air NOT circular motion of air Forms when warm, humid air rises in an unstable environment Unequal heating of earth’s surface (Air-Mass Tstorms) Unequal heating along with frontal wedging or oorgraphic lift (Severe Tstorms)

5 A IR -M ASS T HUNDERSTORMS Occur in mT air that moves Northward from Gulf. Most frequent during Spring and Summer Frequently around midafternoon Thunderstorm Project produced a model of the life cycle of a Tstorm Cumuls Stage Mature Stage Dissipating Stage

6 C UMULUS S TAGE Formation of cumulus clouds allow for moisture to be at greater heights Clouds grow vertically Cumulonimbus clouds form Dominated by updraft Downdraft forms and failing precipitation causes drag Entrainment intensifies downdraft

7 M ATURE S TAGE Officially starts when precipitation leaves the cloud Updraft and downdraft exists side by side and grow the cloud Anvil top forms when cloud reaches base of the stratosphere Most active stage: Gusty winds, ligthning, hail/heavy precipitation

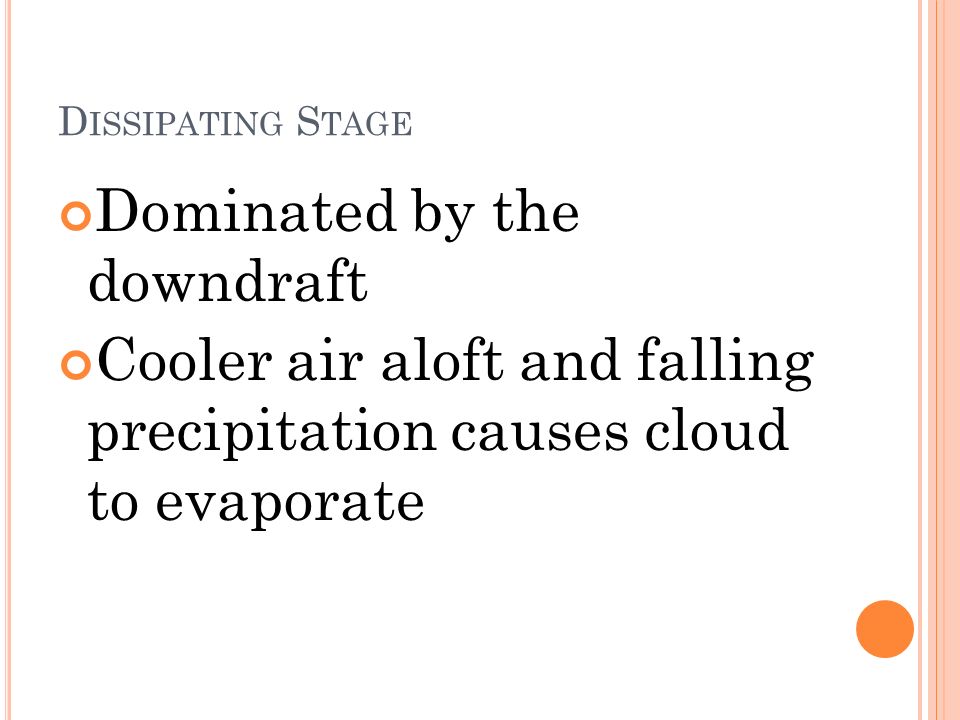

8 D ISSIPATING S TAGE Dominated by the downdraft Cooler air aloft and falling precipitation causes cloud to evaporate

9

10 S EVERE T HUNDERSTORMS Characterized by heavy downpours, flash flooding, strong/gusty winds, hail, lightning, and maybe tornadoes. Must have winds over 58mph or hailstones.75 in diameter or produce a tornado

11

12 S UPERCELL T STORMS Single, powerful cell up to 65,000’ and 12-30 miles in diameter 2000-3000/year in the US Can form mesocyclones when updraft rotates

13 T HUNDER & L IGHTNING Thunder is: Expanding air Heat Lightning Lightning is created due to separation of charges in a cumulonimbus cloud Sheet Lightning Within the cloud or between clouds 80% of all lightning Cloud to Ground Lightning 20% of lightning strokes Most damaging and dangerous Flash is made up of individual strokes Leader, step leader, return stroke, and dart leader

14

15

16 T ORNADOES AKA: twisters, cyclones Violent windstorms that are a vortex Contains lower pressure inside the vortex than the surrounding areas

17 T ORNADO F ORMATION Form in association with severe thunderstorms Located wherever severe weather is: cold fronts, squall lines, hurricanes, supercells Only tornado if funnel cloud touches surface

18

19 F-S CALE Fujita Intensity Scale Determined based upon damage produced

20 T ORNADO F ORECASTING Alters public to POSSIBLITY of tornadoes over a specific area for a certain time period. 65,000sq.km for 4-6 hours Issued by local NWS ACTUAL sighted tornado in an area or indicated by radar Smaller areas and for shorter periods of time WatchesWarnings

21
