1. Orthology & Paralogy Alignment & Assembly Alastair Kerr Ph.D. [many slides borrowed from various sources]

2. Overview  Orthology & Paralogy Definitions and examples Ways to determine an ortholog Pre-calculations: resources  Alignment & Assembly Differences Key programs for each Jalview example

3. Homologs Have common origins but may or may not have common activity. Homologous or not?: Often determined by arbitrary threshold level of similarity determined by alignment

4. Homologs …have common ancestry, but the way they are related can vary (i.e. the reasons they have diverged into different sequences can vary)  orthologs - Homologs produced by speciation. They tend to have similar function.  paralogs - Homologs produced by gene duplication. They tend to have differing functions.

5. Orthologous or paralogous homologs Early globin gene mouse  ß -chain gene  -chain gene cattle ß human ß mouse ß human  cattle  Orthologs (  ) Orthologs ( ß ) Paralogs (cattle) Homologs Gene Duplication Orthologs – diverged after speciation – tend to have similar function Paralogs – diverged after gene duplication – some functional divergence occurs Therefore, for linking similar genes between species, or performing “annotation transfer”, identify orthologs

6. True or False? A1x is the ortholog in species x of A1y? A1x is a paralog of A2x? A1x is a paralog of A2y?

7. Identifying Gene/Protein Relationships from Phylogenetic trees  orthologs - Homologs produced by speciation. Gene phylogeny matches organismal phylogeny.  paralogs - Homologs produced by gene duplication. Multiple copies of homologs in a given species or evidence that gene duplication involved through phylogenetic analysis and lack of match to organismal phylogeny

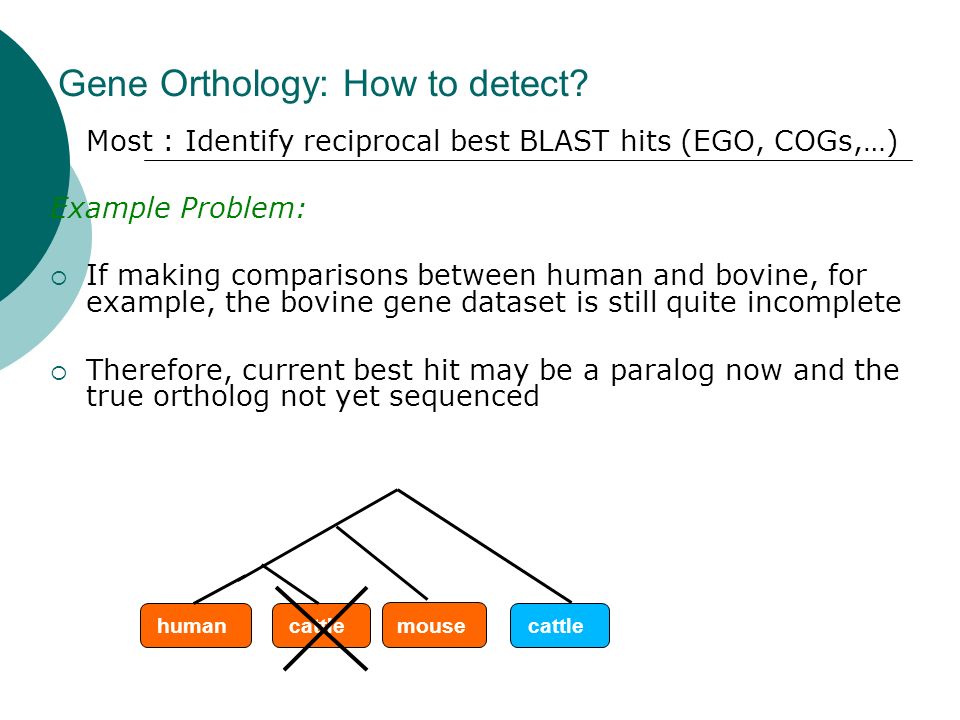

8. Gene Orthology: How to detect?  Most : Identify reciprocal best BLAST hits (EGO, COGs,…) Example Problem:  If making comparisons between human and bovine, for example, the bovine gene dataset is still quite incomplete  Therefore, current best hit may be a paralog now and the true ortholog not yet sequenced cattlehumancattle mouse

9. 2 Forms in 1 Species ++++ Slides from Jonathan Eisen

10. 2 Forms in 1 Species - Gene Loss Gene duplicated in common ancestor ++++ + Loss

11. Unusual Distribution Pattern + +

12. Unusual Distribution - Gene Loss + + Gene present in ancestor Gene lost here

13. Unusual Distribution - Evolutionary Rate Variation -? + + Gene too diverged to be found

14. Ortholog guess via synteny ACB AC?

15. Syntenic blocks

16. ensEMBL calculations http://www.ensembl.org demo

17. OMA Browser http://omabrowser.org demo

18. Alignments and Assemblies  Alignment ALL sequences from SAME region Therefore can be useless for a  non-overlapping contigs  PCR probes/oligos Good for  paralog/orthologs  Basis for phylogeny  Assembly: Good for near identical sequences Types:  De-novo  Guided [reference sequence]

19. Alignment  Implicit statement Each residue in an aligned sequence derived from the last common ancestor [LCA]  Therefore ok to only look at conserved regions or mask non- conserved regions Especially for phylogeny

20. Alignment Tools  Faster but less accurate (some better with gaps) Muscle ClustalW/X MAFFT  Slow but more accurate *-Coffee  T: original  3D: uses pdb as guide (structural)  M: uses multiple methods Probcons

21. Alignment Edit Tools  NEVER use a word processor or excel to edit alignments……  JalView (Java Alignment Viewer) Good for editing DAS capable

22. Figure Generation Trees Annotation Features Structures PDB ‘Standard’ Formats FASTA MSF CLUSTAL PILEUP BLC PFAM Distributed Annotation System Distributed Annotation System GFF Jalview Features Newick Secondary Structure Prediction Multiple Sequence Alignment Sequences Alignments Clickable HTML Images Line Art Analysis Consensus Conservation & Clustering Visualization Jalview Annotation

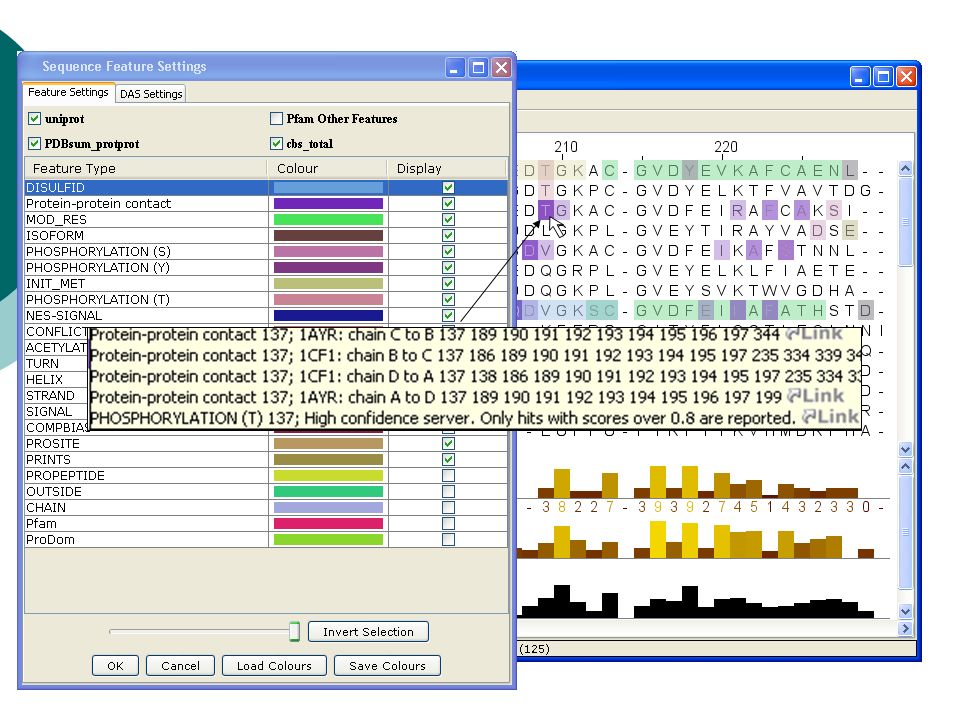

25. Jalview DAS Client Functionality DAS ANNOTATION SERVERS DAS ANNOTATION SERVERS Query matches ID to Authority Map to local reference frame Mouse over for feature name, links and scores Group features by source Type==colour Highlight start-end Select specific sources Filtered list Add user defined sources

26. Assemblers  Many free options  STADEN - staden.sf.net Original assembler, all platforms No longer in development Useless for next gen sequencing  MAQ and MAQView Installed in computers in COIL
