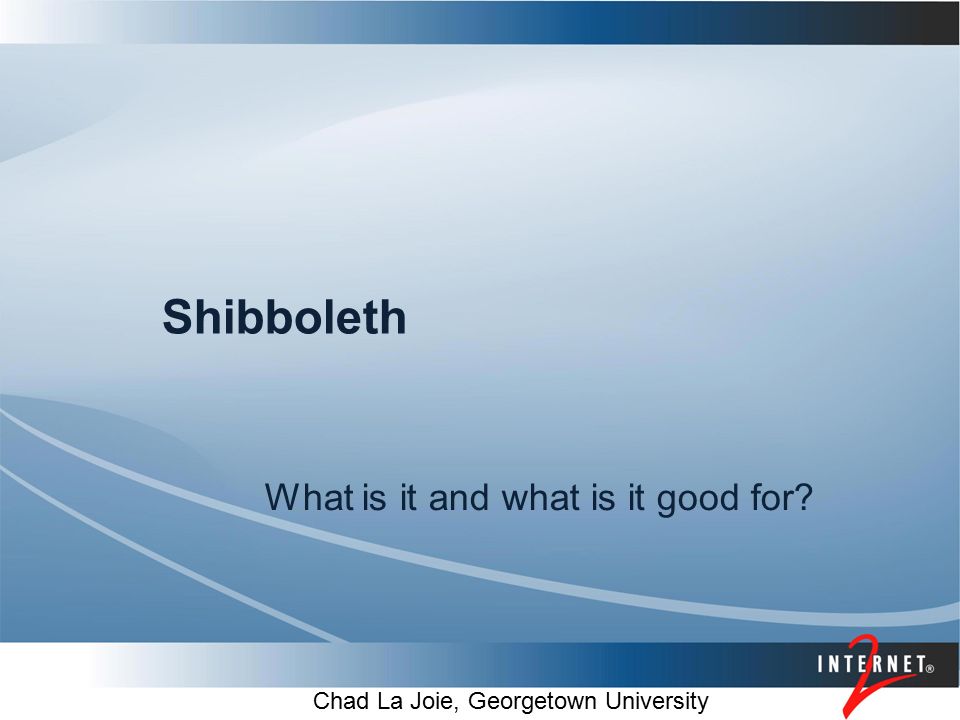

1. Shibboleth What is it and what is it good for? Chad La Joie, Georgetown University

2. What Shibboleth is NOT Virtual/Meta Directory Identity management system Account provisioning system Authentication system Authorization system

3. What is Shibboleth? Web based single sign-on System … Providing user attributes to services … While protecting a user’s identity … Using a standard, open, protocol; SAML. Identity federation system … Based on multi-lateral trust & policy… With policy enforcement at IdP & SP.

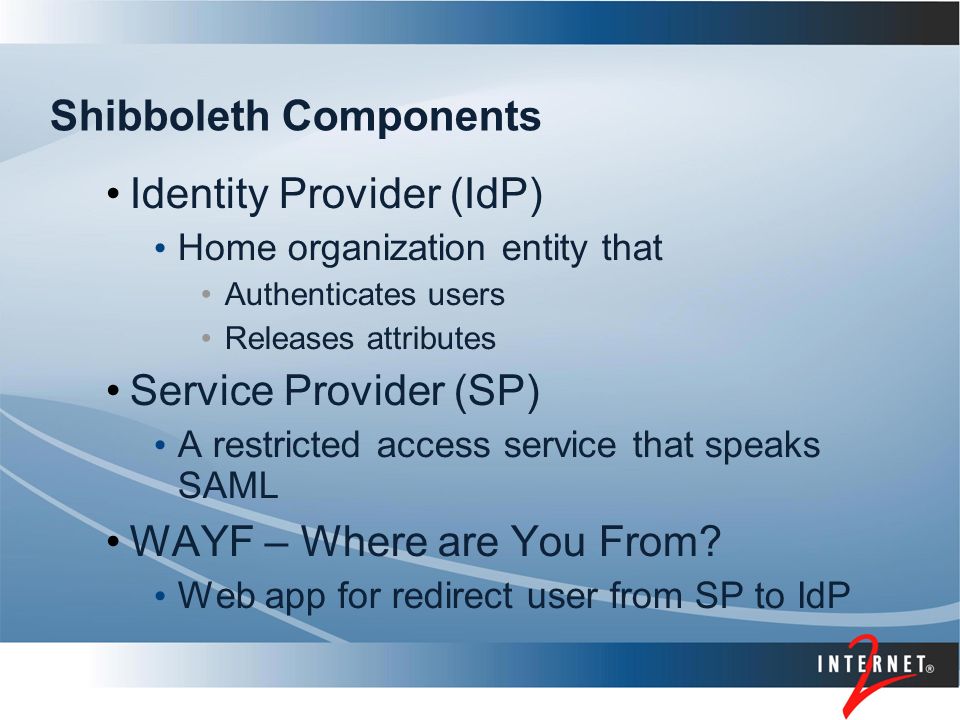

4. Shibboleth Components Identity Provider (IdP) Home organization entity that Authenticates users Releases attributes Service Provider (SP) A restricted access service that speaks SAML WAYF – Where are You From? Web app for redirect user from SP to IdP

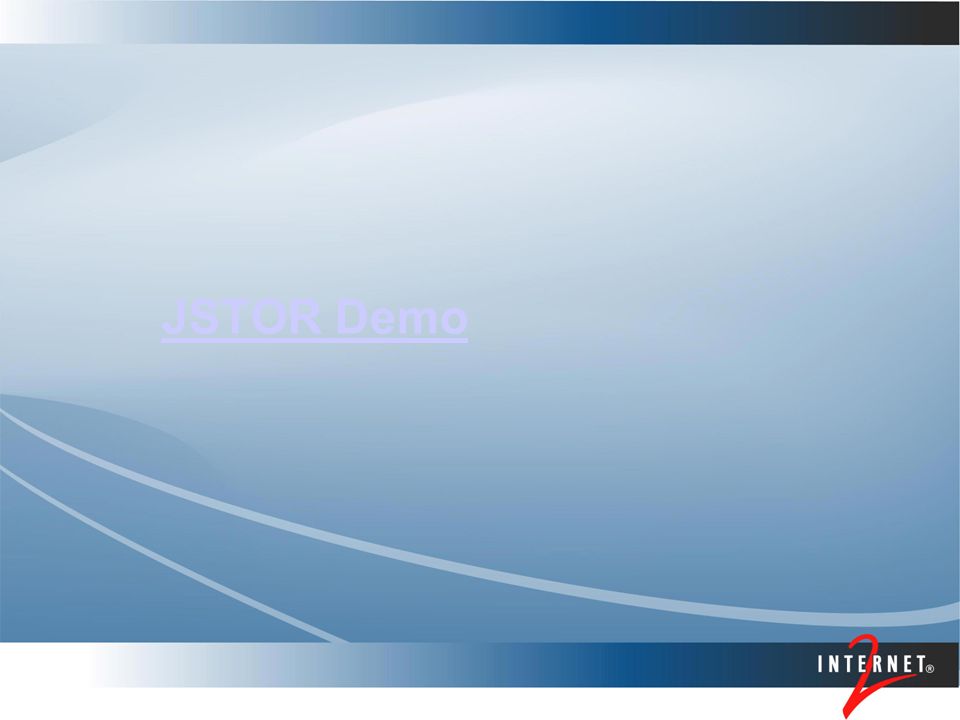

5. JSTOR Demo

6. Providing User Attributes Identity Provider (IdP) pulls attributes from ID systems (LDAP, RDMS, etc) Attributes available as HTTP headers Attributes can be anything: Academic: Major, school, classes Groups and Entitlements Provides the means for attribute-based authorization

7. Protecting User Identity Opaque identifier can be used _820d2843-2342-8236-ad28-8ac94fb3e6a1 Different identifiers for each service Different identifiers for each new visit However identifiers… Need not be opaque: netid, email address May be persistent across multiple visits

8. Multi-Lateral Trust & Policy Technical Trust: mutual, endpoint authentication via digital key pairs Business Trust: written and consented to operational agreements Trust is established bi-laterally with the federation and used multi-laterally; similar to PKI

9. Policy Enforcement IdP policy enforcement: What identifiers to release What attributes and values to release Which service providers to trust SP policy enforcement: What attributes and values to accept Which identity providers to trust

10. Shibboleth 2.0 Existing Shibboleth 1.3 functionality SAML 2.0 support Single Sign-On, Logout, Attribute query Persistent name identifiers Java Service Provider Better documentation Platform for developing new features: Non-web based systems Delegation/Proxy Support

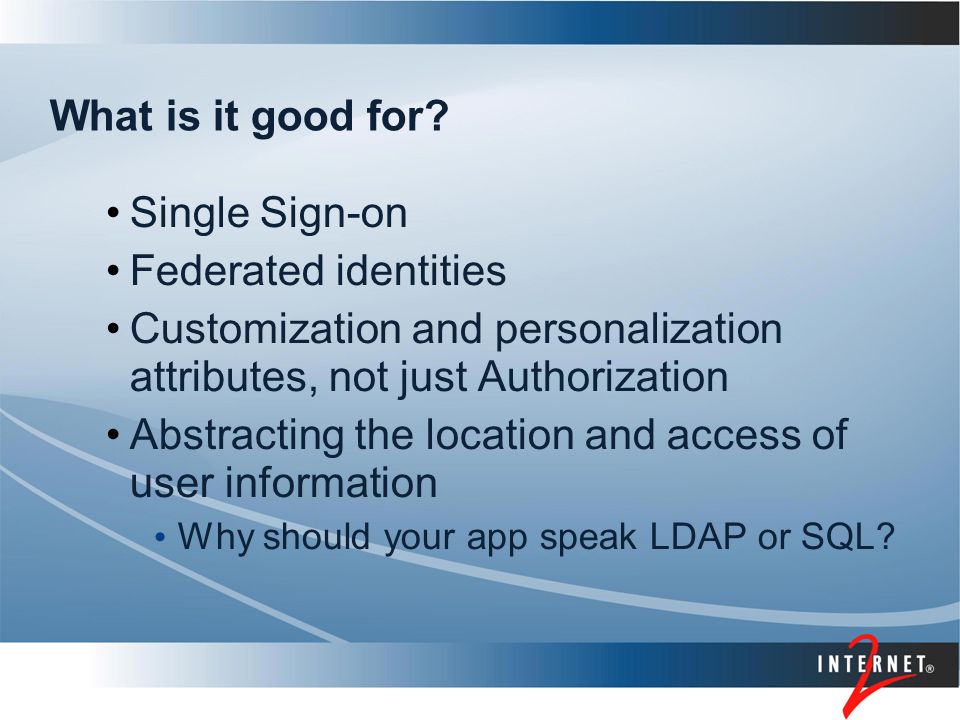

11. What is it good for? Single Sign-on Federated identities Customization and personalization attributes, not just Authorization Abstracting the location and access of user information Why should your app speak LDAP or SQL?

12. IdP Barriers to Entry Clean Identity Management Systems It’s no longer just your mess/idiosyncrasies Policies FERPA/HIPAA? Micro-group attribute provisioning Education Chicken and Egg Where are the services?

13. SP Barriers to Entry Trust concerns How do I know you're doing the right thing? Application adaptation Can your app use info outside its store? Security concerns My castle, your gate Education Chicken & Egg

14. Use Case: Project Vivarium Professional organization wants member access to JSTOR journals Members come from a wide range of organizations (Higher ED, High Schools, personal accounts) IP & Proxy based restriction is not possible

15. Use Case: Project Vivarium Solution Establish entitlement attributes for each journal (not a collection of journals) urn:mace:jstor.org:entitlement:issn:00098388 Establish prof. org. membership attribute urn:mace:jstor.org:participant:vivarium Use persistent, but opaque, identifiers

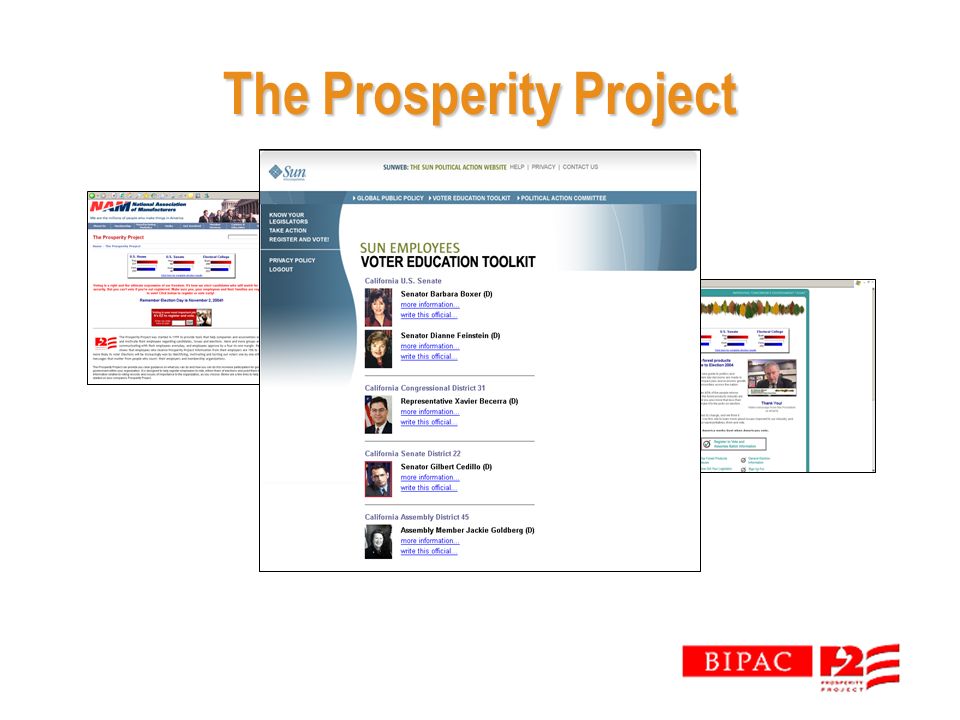

16. The Prosperity Project

17. FEC & the Restricted Class Clearly defined audience for “advocacy” & “good government” messages –Managers, executives, shareholders PAC solicitation, advocacy for candidates –All employees Voter registration, voting records, grassroots involvement Penalties include substantial civil fines

18. States & the Restricted Class Each state regulates their own elections –Ranges from Unlimited corporate contributions and advocacy No corporate involvement whatsoever Penalties also vary –Most severe Large personal fines for corporate officers 10 Years jail time Corporate charter is disolved

19. BIPAC’s Goals for a Turnkey Solution Protect employee privacy Eliminate the need to give employee data to third-party vendors Provide information relevant to the employee without additional sign-on or registration

20. Without Liberty… Employers had these options –Do nothing – no political information shared with employees –Use paper-based communications only –Develop expensive in-house communications tools –Use third-party vendors to authenticate users and provide content

21. Turning Away 9 out of 10 Employees "Would you be MORE LIKELY or LESS LIKELY to visit a website that requires you to register before you are allowed to view political or voter information?" 91% Total Less Likely

22. Before… Copyright 2005, BIPAC

23. After…

24. Benefits

25. The Liberty Alliance Board and sponsor members include:

26. Benefits – Identity Protection Fewer authentication points –Easier to ‘get it right’ in fewer places –Easier to implement stronger authentication and anti-phishing mechanisms in fewer places –Users more likely to recognize imposter sites –Fewer places to update credentials after breaches

27. Benefits – Identity Protection Information in fewer places –With federation, less sensitive data shared –Information frequently identified differently at different sites – harder to correlate –Data from one service provider may not help at another –Ability to retrieve up-to-date information when you need it, then discard or rely on assertions

28. For More Information p2@bipac.orgp2@bipac.org800-497-8351 BIPAC 888 16th St NW, Suite 305 Washington DC 20006
